10 inch Rack Bracket for FRITZ!Box 7590

Description:

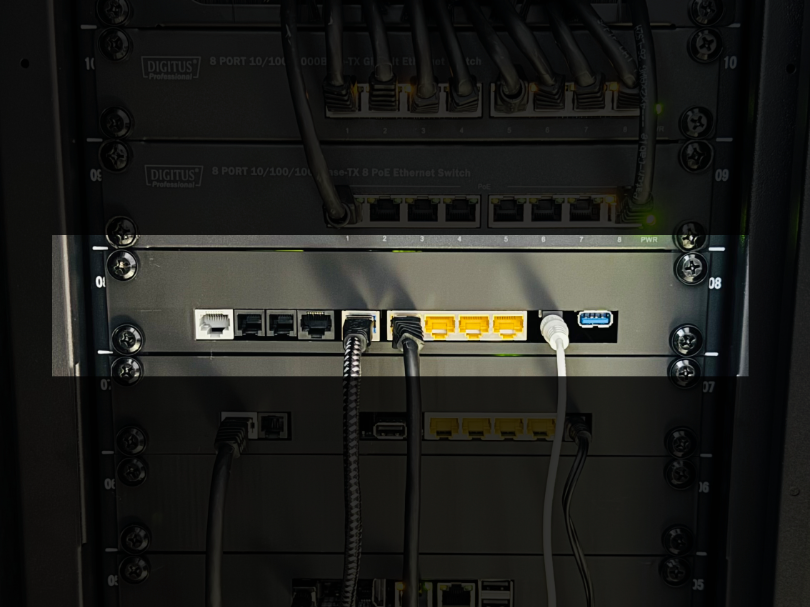

This custom-designed 10-inch rack mount provides a professional and secure way to integrate an AVM FRITZ!Box 7590 into a standard 10" server cabinet. Perfect for enthusiasts, network admins, and home lab users who want a tidy, accessible, and space-efficient solution for their FRITZ!Box setup. The mount was created in Autodesk Fusion 360 and printed using a Bambu Lab P1S.

Design and Functionality:

• Tailored for FRITZ!Box 7590: Specifically designed to fit the mainboard and port layout of the AVM FRITZ!Box 7590, this mount allows clean front-facing access to all connectors.
• 10-Inch Rack Compatibility: Fits perfectly into a standard 10-inch server cabinet, ideal for compact networking environments.
• Secure Mounting: The enclosure includes precise cutouts and mounting points to safely hold the PCB in place with screws – no glue or zip ties required.
• Clean Cable Management: Ports are easily accessible from the front, reducing cable clutter and simplifying service or troubleshooting.

Material and Printing Details:

• 3D Printer: Bambu Lab P1S
• Material: PETG (recommended for durability and heat resistance), or PLA for standard use
• Layer Height: 0.2 mm for accurate detail and clean finish
• Infill: 80% – required for strong thread engagement and secure screw mounting
• Print Time: Approximately 2–3 hours, depending on printer and settings

Key Features:

• Professional Look: Gives your home or office rack a polished, organized appearance.
• Tool-Free Installation (for Rack): Designed to slide directly into the rack with front panel screws; internal FRITZ!Box mounting requires standard screws.
• Sturdy and Reliable: High infill ensures structural integrity for long-term use.

Why This Rack Mount?

If you're looking to integrate your FRITZ!Box 7590 into a compact 10" server rack without resorting to zip ties or makeshift shelves, this custom mount provides a clean, secure, and purpose-built solution. It’s ideal for smart homes, structured cabling setups, or anyone building a clean network stack.

Design by VRKTTR on MakerWorld (license: BY-ND).
