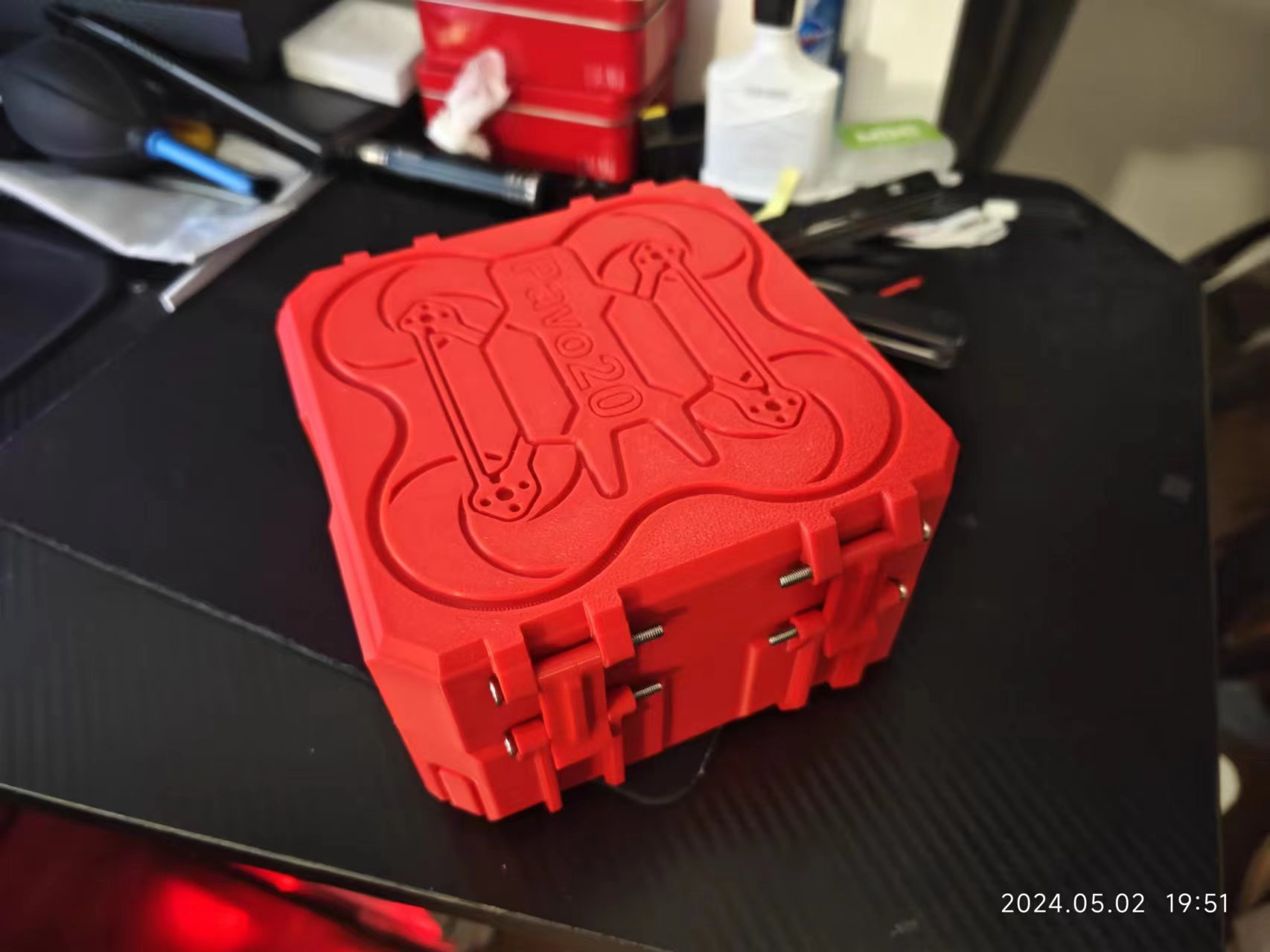

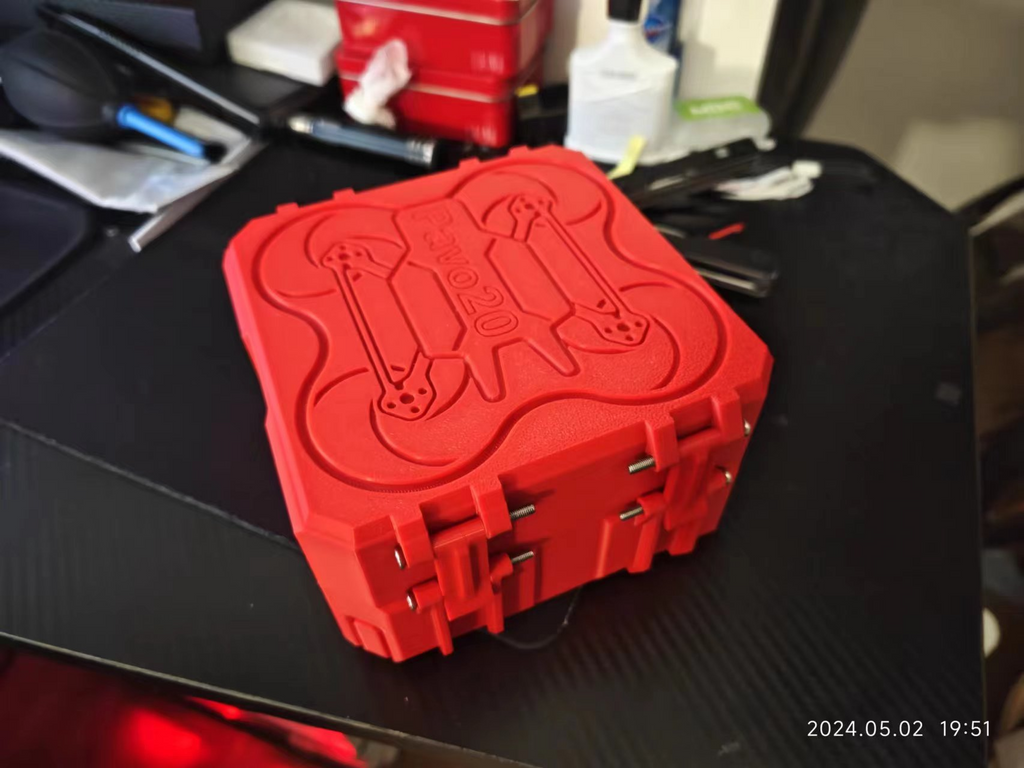

BetaFPV Pavo 20 Travel Case (Compatible Pavo20Pro)

Note: for Pavo20pro, Check all part should be at 106.6% scale

This my own take on travel case for BetaFPV Pavo20

I tried make the case compact and make all the spaces usefu:

There are 3 versions of different height:

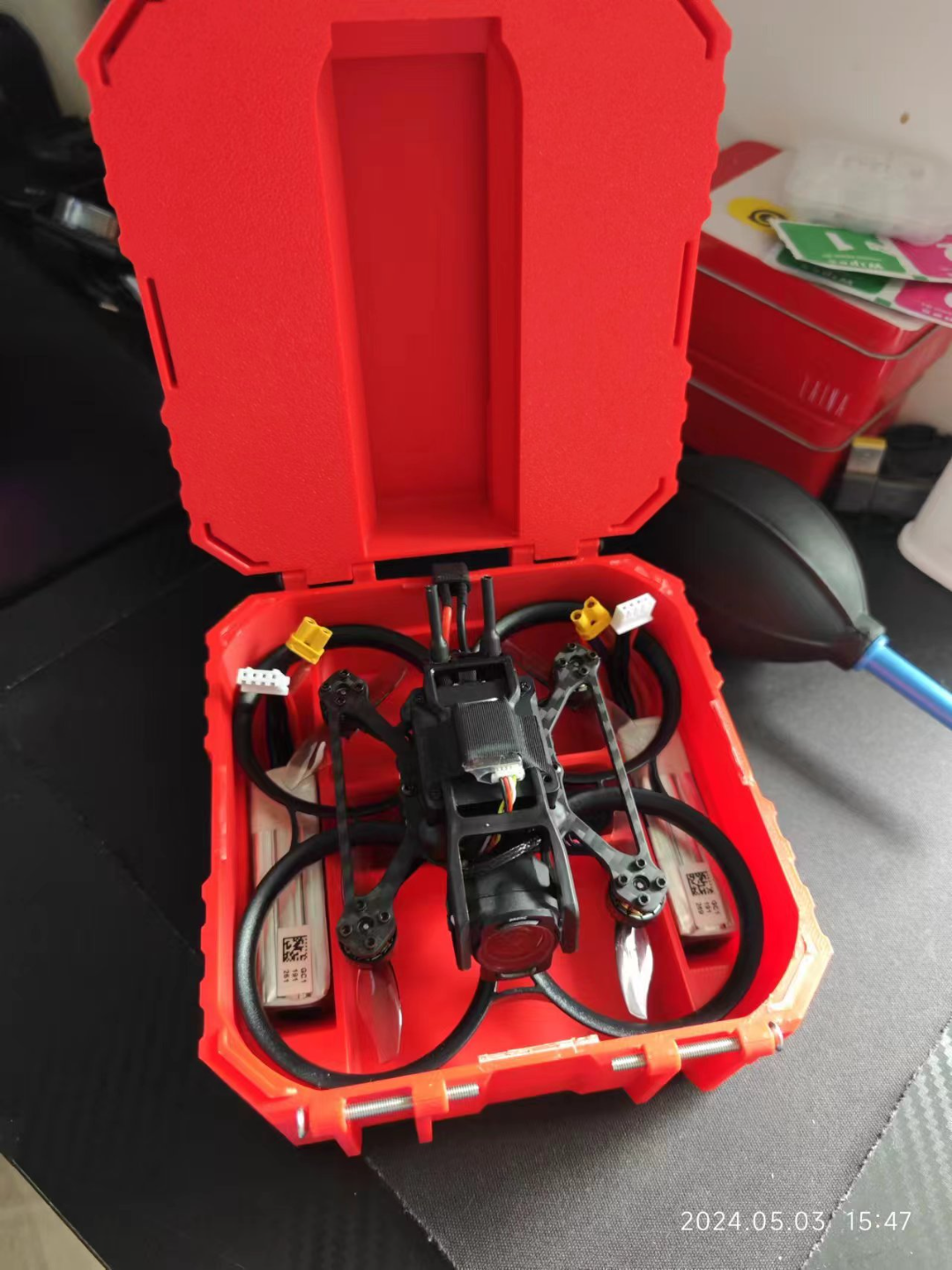

Standard Version:

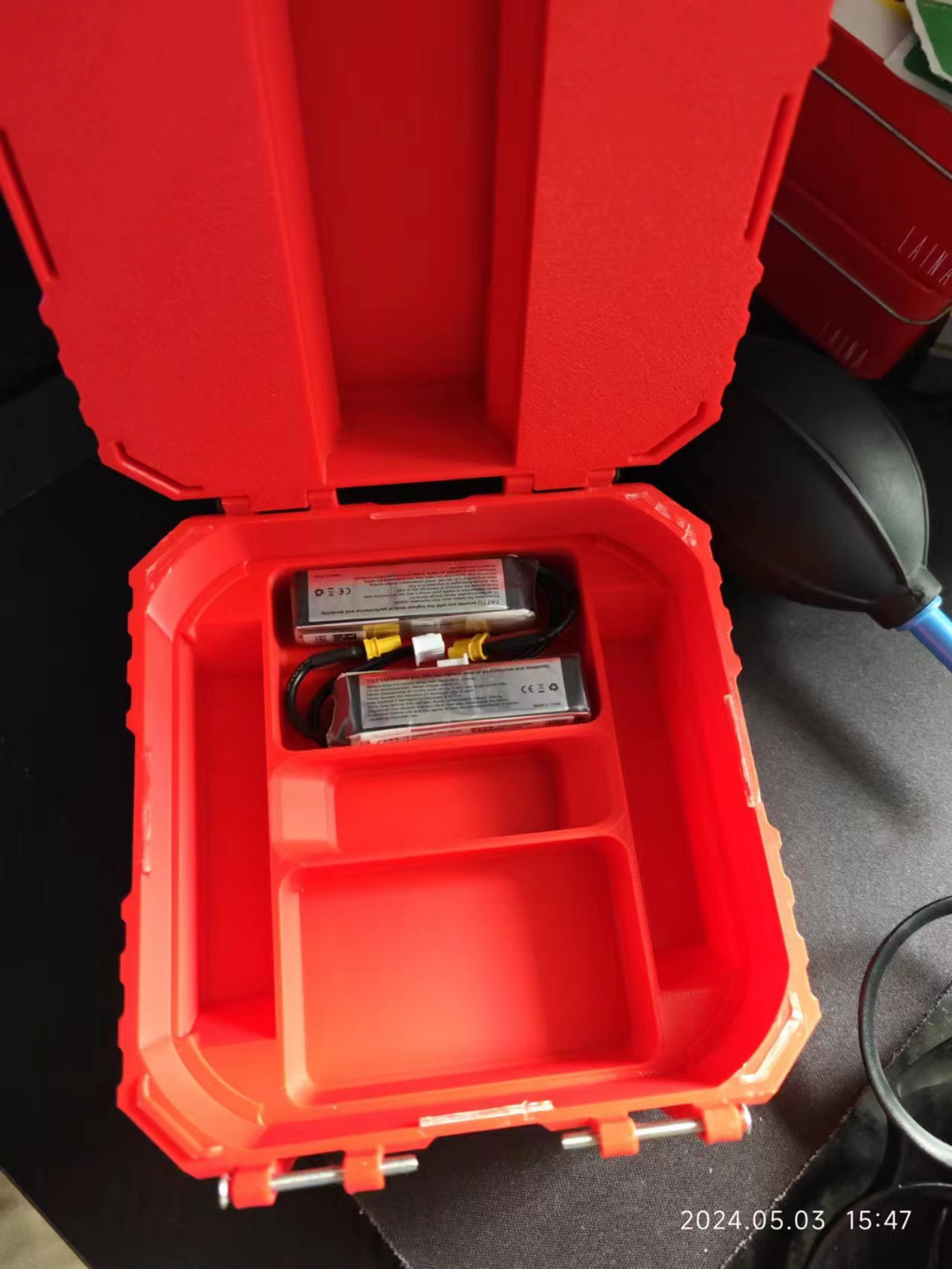

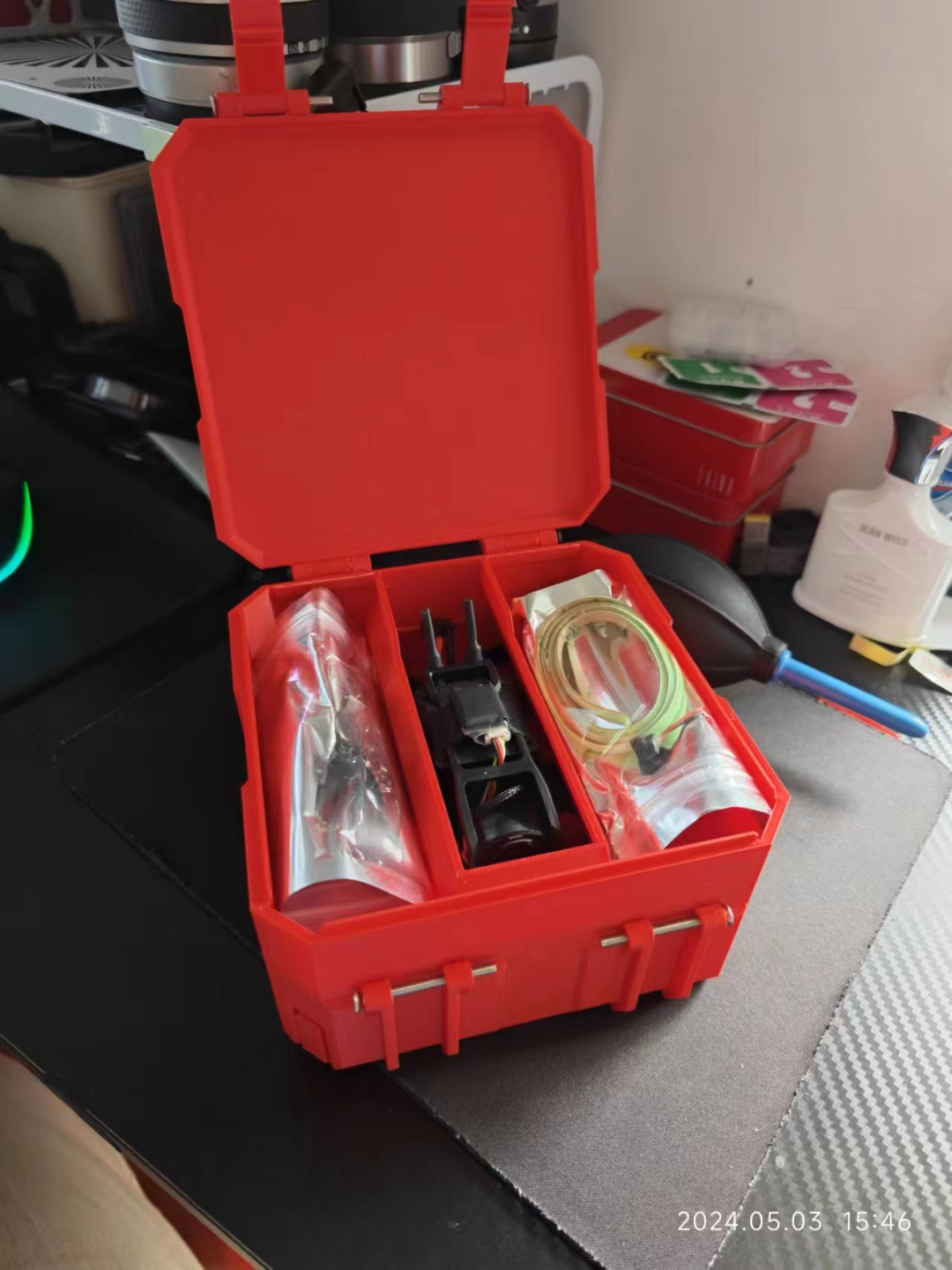

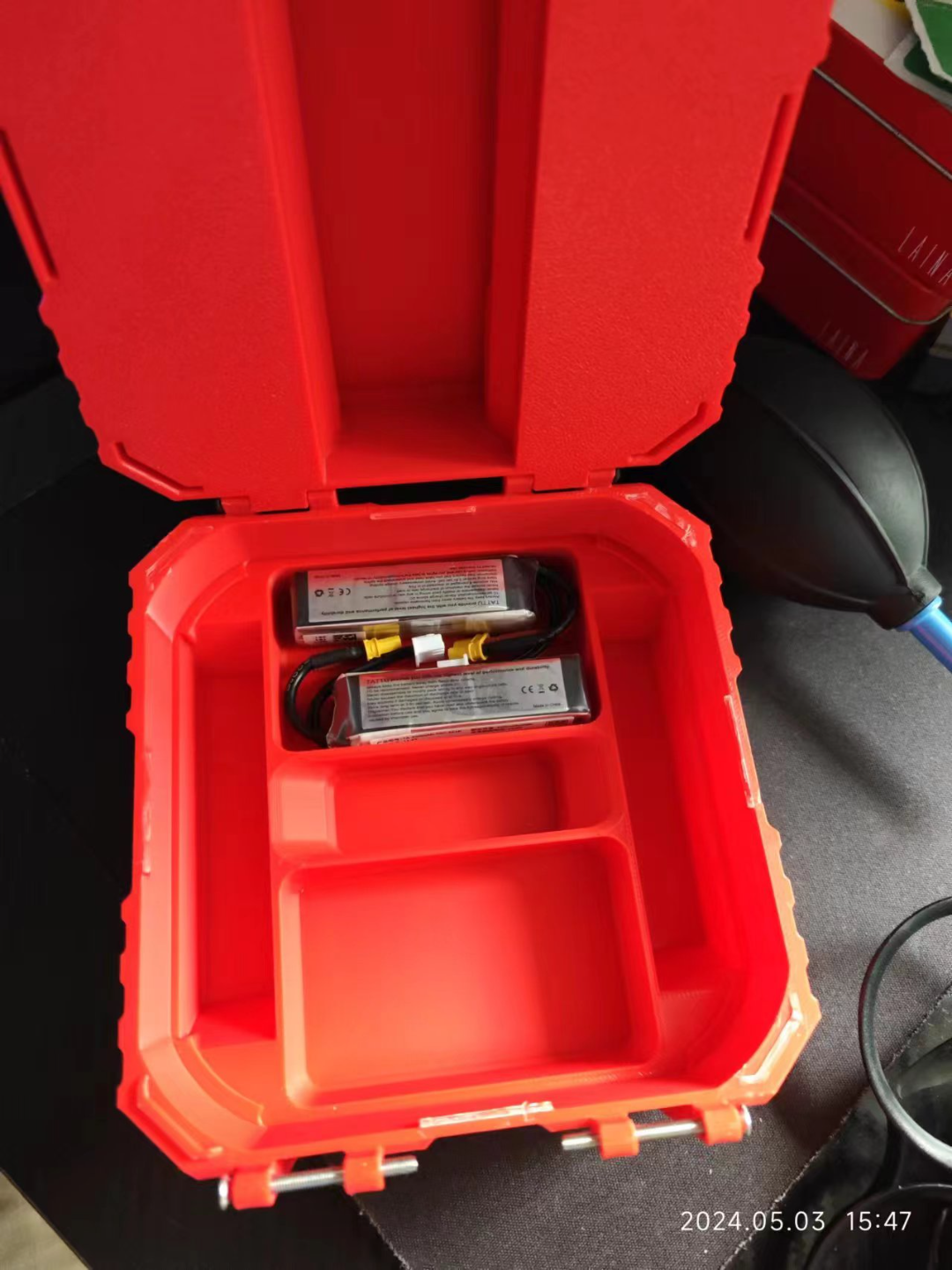

this version features a big battery storage space (6 pcs) under the quad, and 4 pcs on the mid section.(assume the batteries are 450mah)

Parts to Print:

Pavo20BaseStd

Pav20Mid

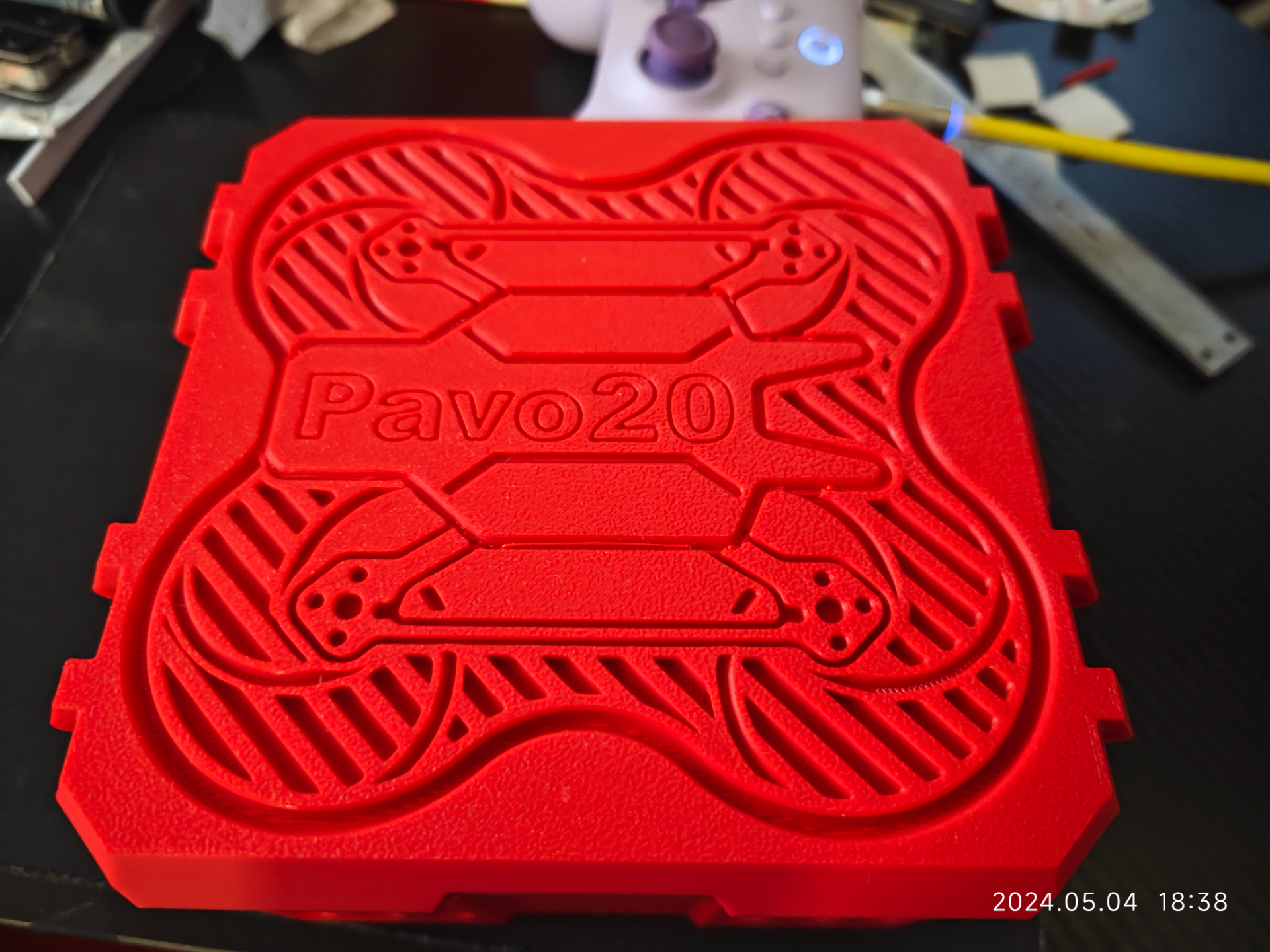

Pavo20CaseCapV2

Clips

Slim Version:

Some how I feel the standard version is too big, so I modified it to this slim version, removed all the under quad battery space. Only 4 batteries can be stored.

Parts to print:

Pavo20BaseSlim

Pav20Mid

Pavo20CaseCapV2

Clips

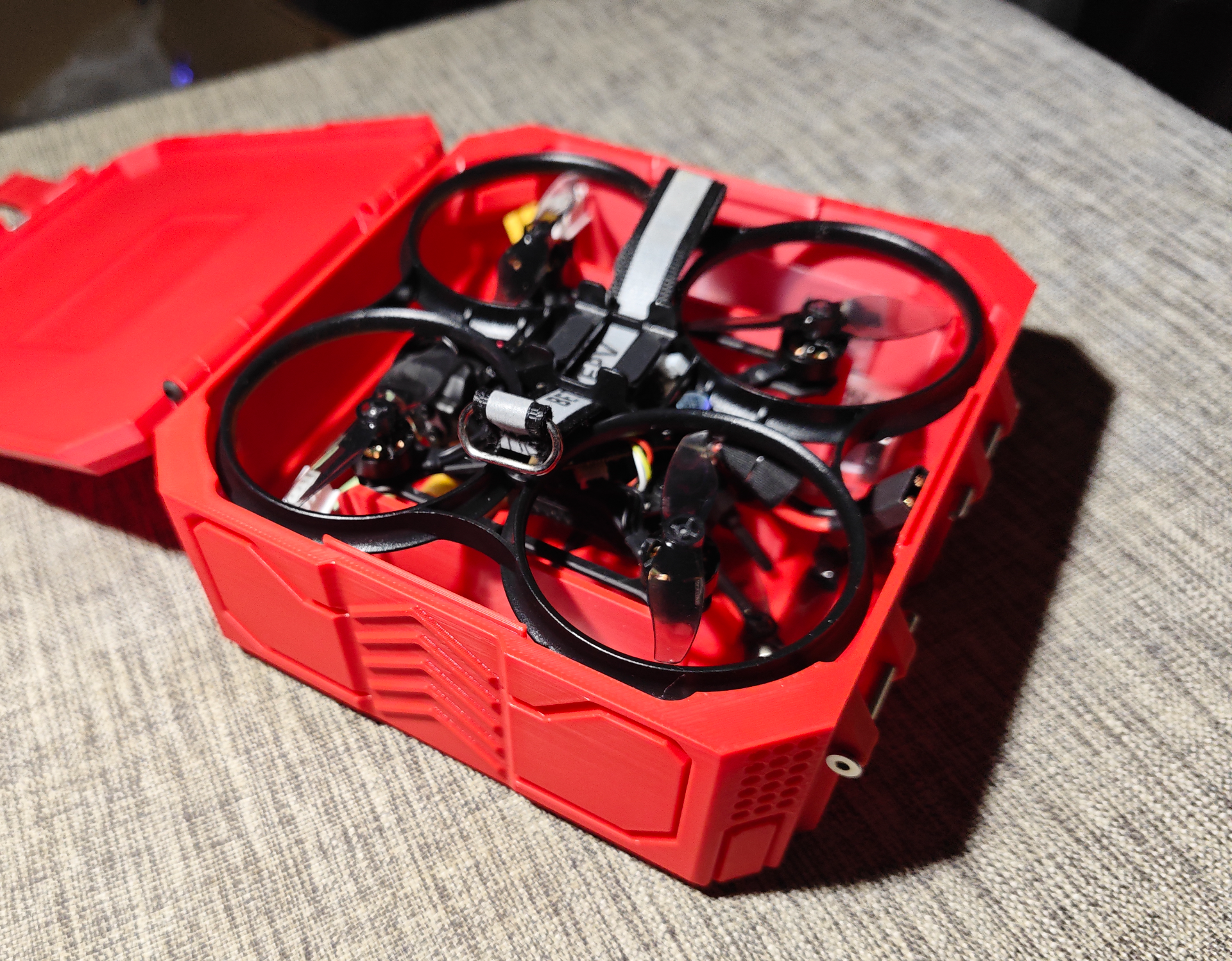

FlippedSlimVersion:

After using both previous version, I feels the 2 previous designs is kind of annoying when I just want to open one layer. And the center of mass is pretty high causing the case to tip over when opened. So made a new version to have all the batteries on the bottom , and flipped the quad upside-down to save space.

Parts to print:

Pavo20BaseSlim V2

Pavo20CaseCapV2

Clips

OtherParts:

All the hinges and clips using M3 screws and nuts:

M3x30 screw : 8

M3 lock nuts : 8

Update:

Community have tested scaling all parts to 106.6% to fit Pavo20Pro.

Design by sccdsix on MakerWorld (license: BY).
