Cable Channel Covers for Bambu Labs P1S 2023
Cable Channel Covers for Bambu Labs P1S 2023

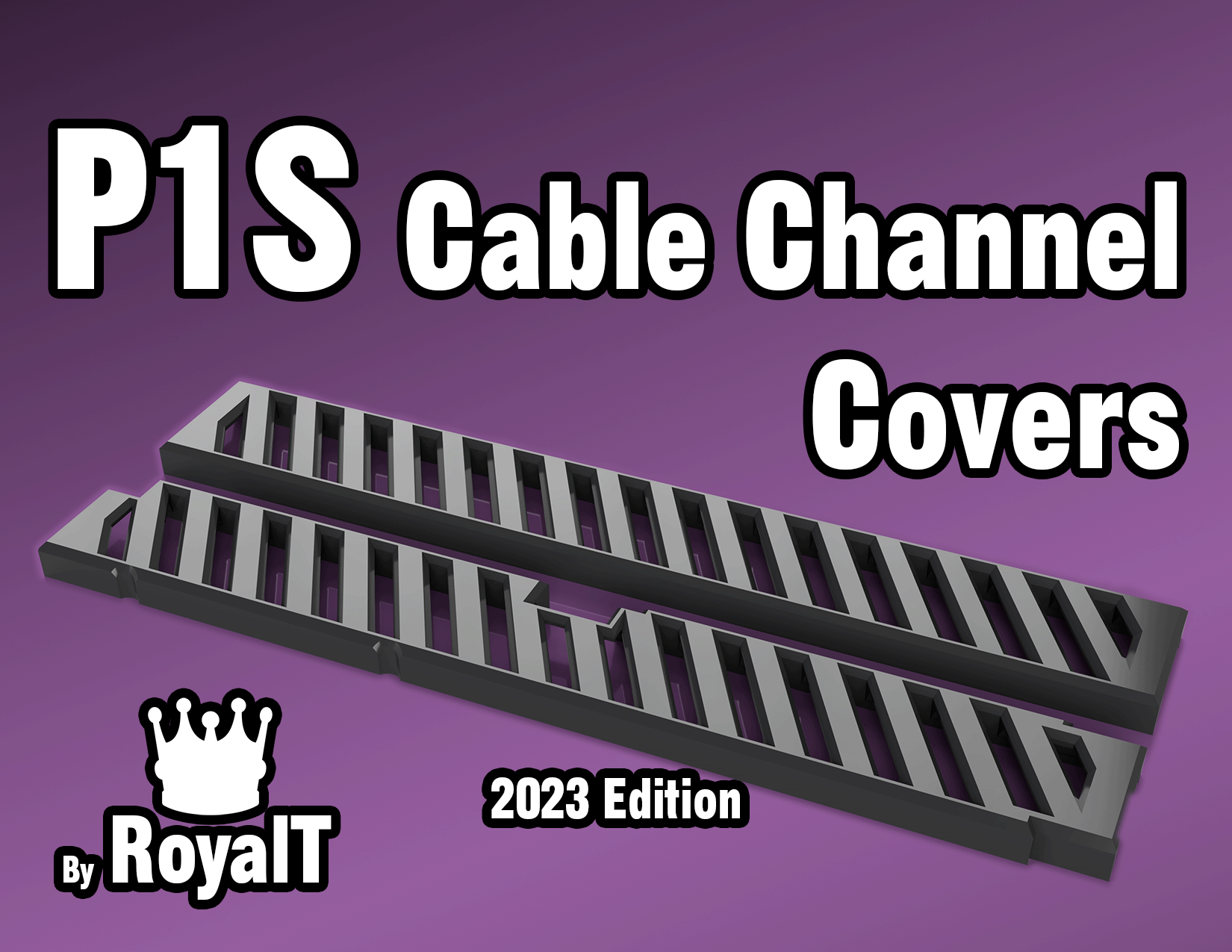

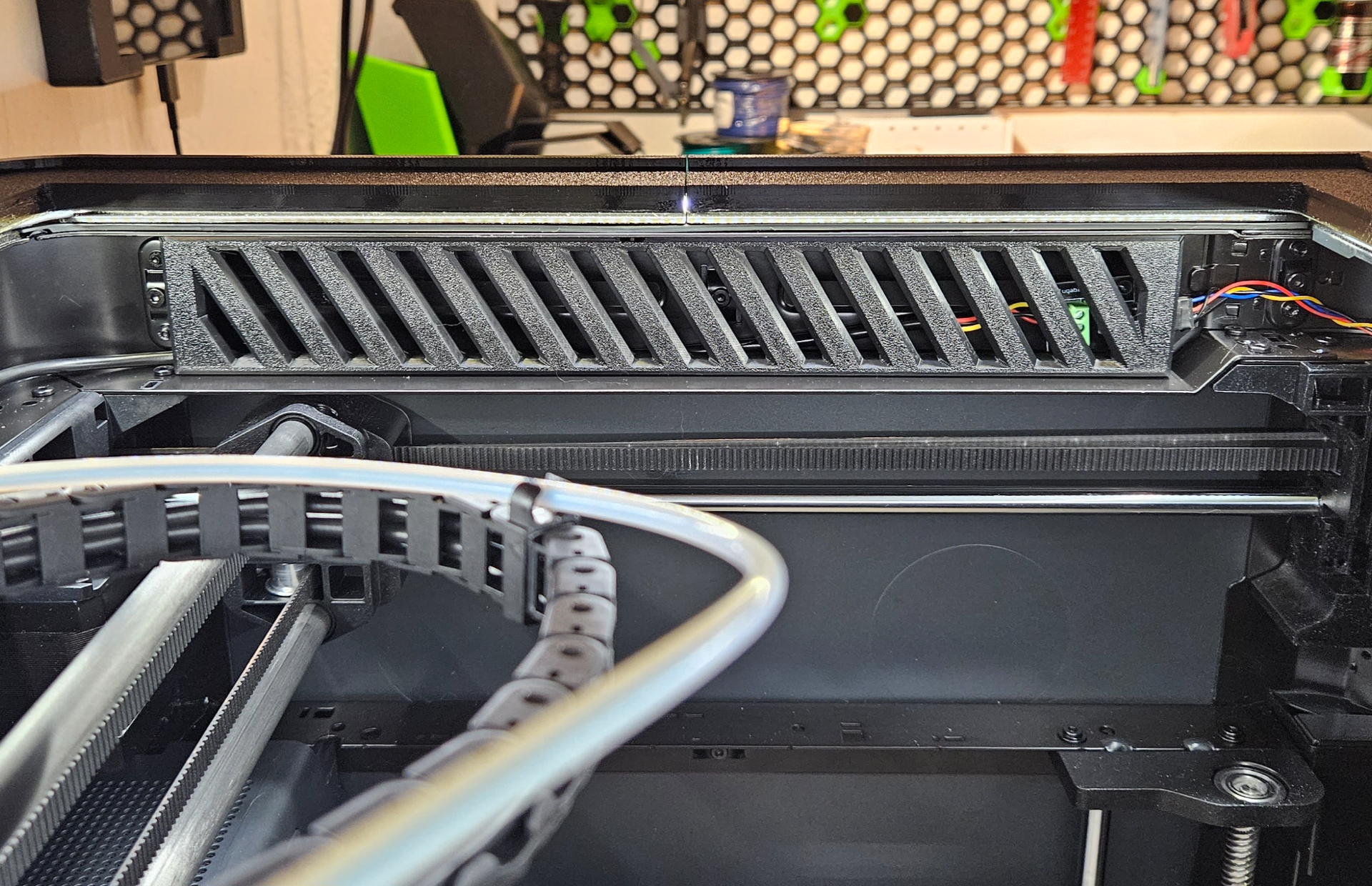

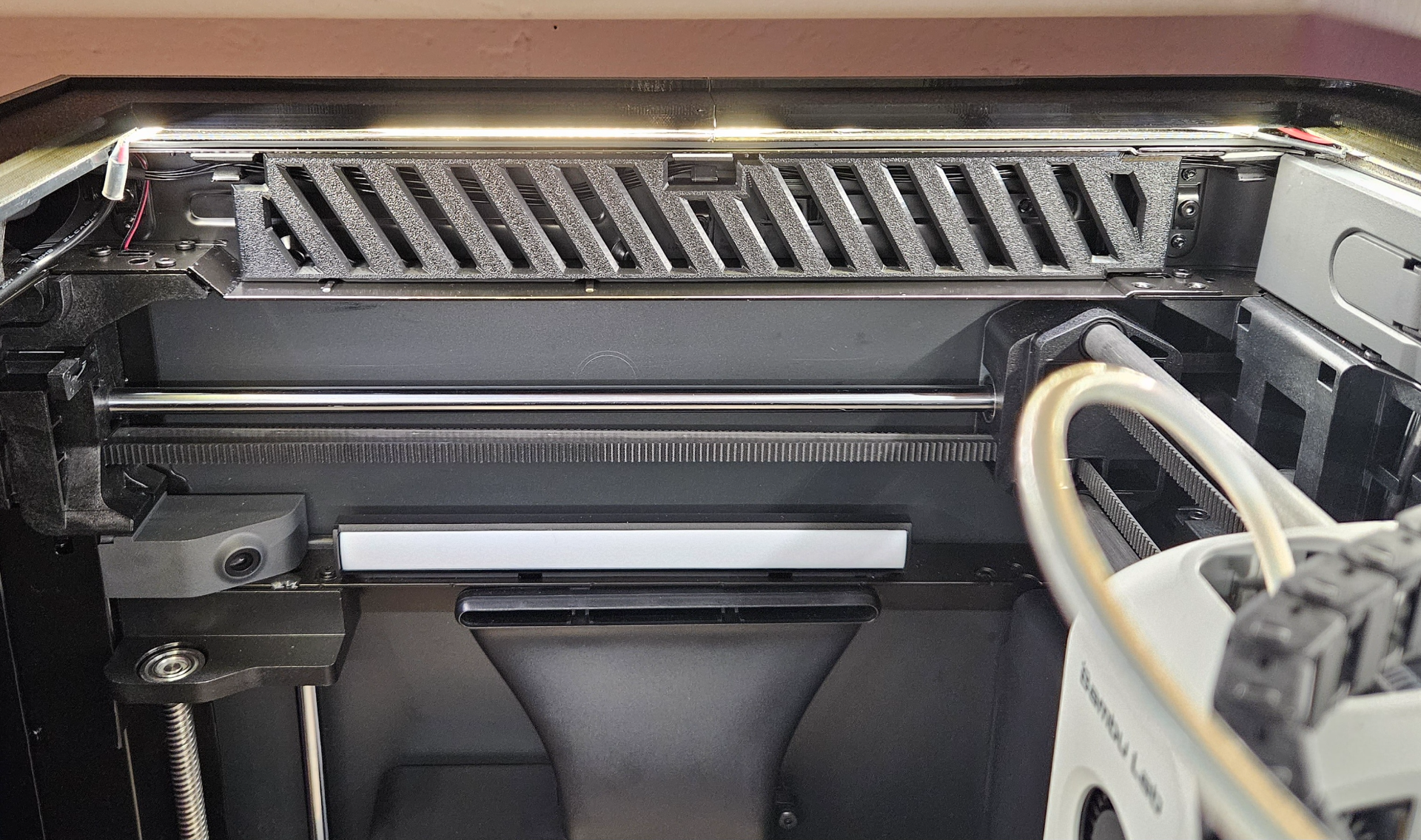

Panels to cover the cable channels running along the top left and right edges of the Bambu Labs P1S 2023 models. The other cable covers I found seem to be made for an older version of the P1S or P1P as they did not fit my machine correctly. These panels are compatible with the latest edition of the P1S (End of 2023).
I have uploaded two print profiles. The first includes both left and right cable channel cover panels on one plate. The second has the left and right panels each on one plate. You can always Download the STL to print however you prefer as well.
Recommended print settings (100% scale, 0.4mm nozzle)
| Material | ABS, ASA, or PETG |
| Infill | 10% Support Cubic |
| Elephant foot compensation | 0.15 mm |
| Supports | None |
| Brim | None |
Make sure you use a filament that can withstand 60c temps. PLA will be a no-go if you print materials like ABS that require high chamber temps. The chamber temps regularly reach 60c+, when the build plate is set to 90-100c with the door closed, at the top of the case where the panels sit. ABS and ASA would be good choices for this print. You could probably get away with PETG or PETG-CF too if you don't do much high-temperature printing.
This is my first public release so any critiques or suggestions are more than welcome!
I ❤️ My Bambu
Design by RoyalT on MakerWorld (license: BY).
