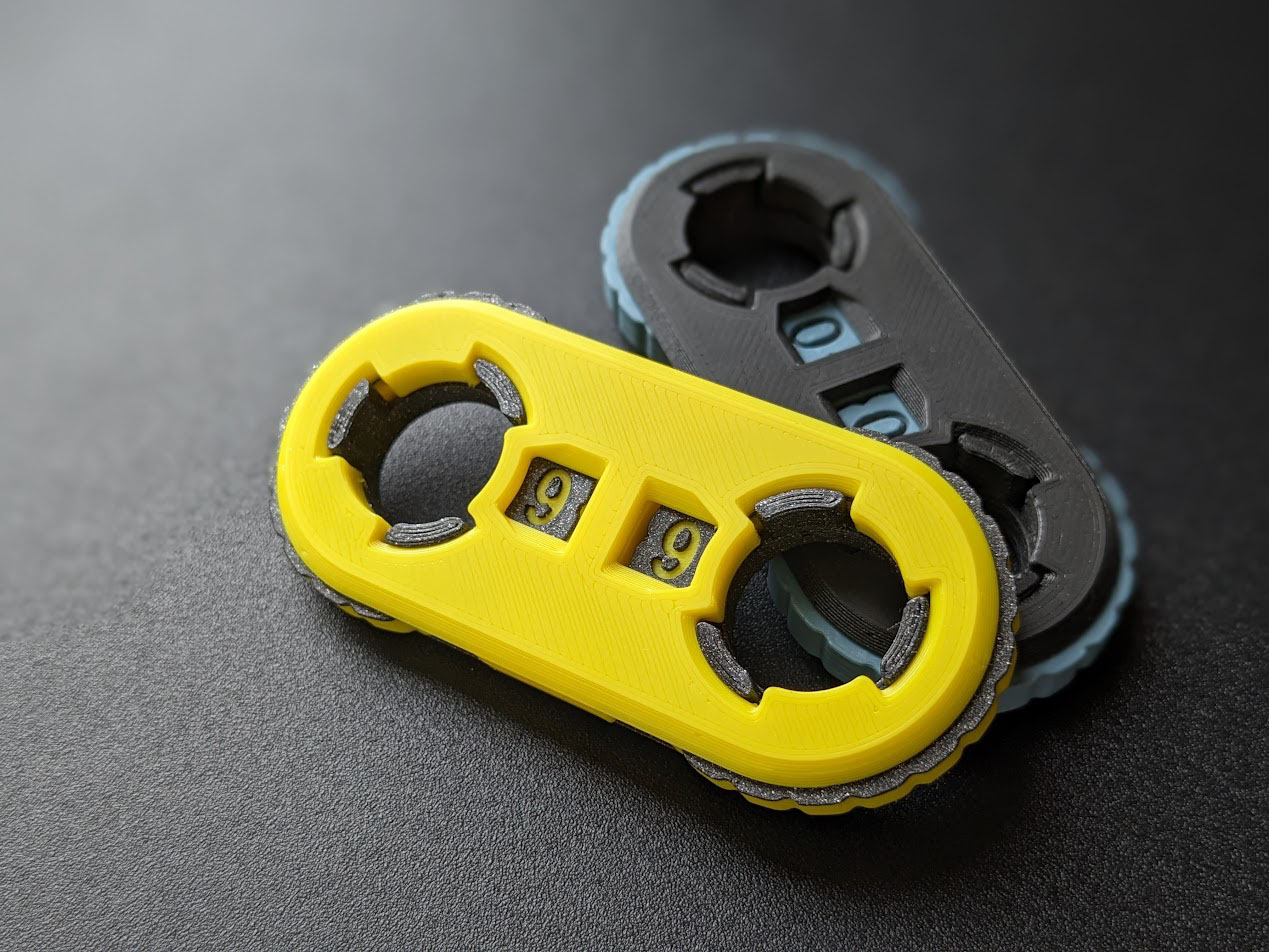

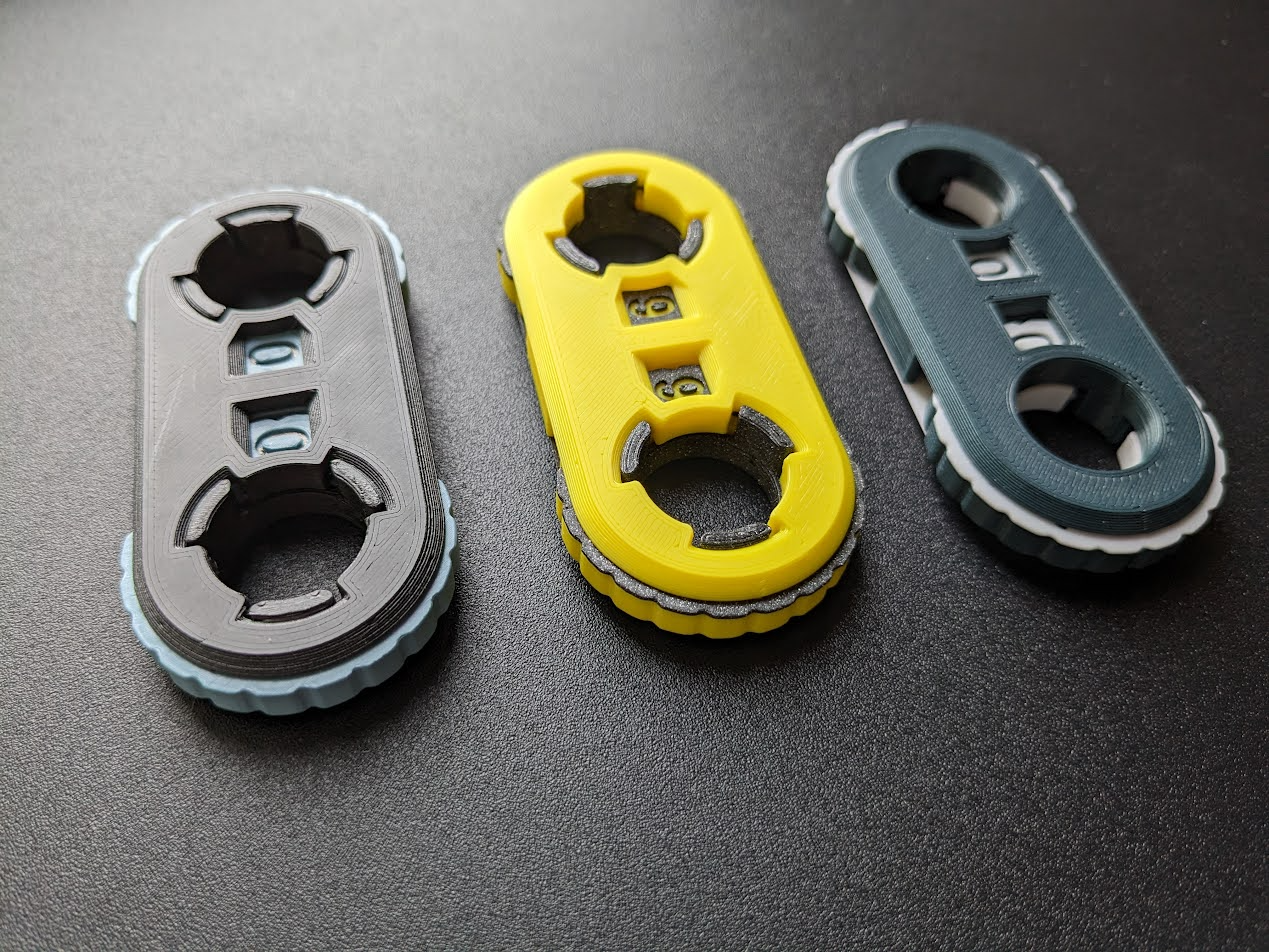

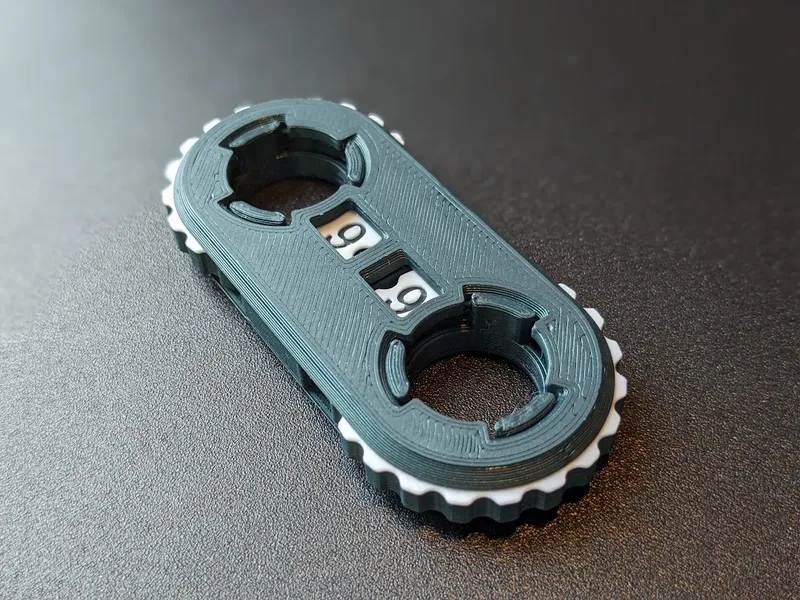

Clicky Rotate Counter

This 2-digit counter boasts a stylish design! It features a wheel with a satisfying click. Each number comes to a stop with a click. and easy snap on assembly.

Assembly:

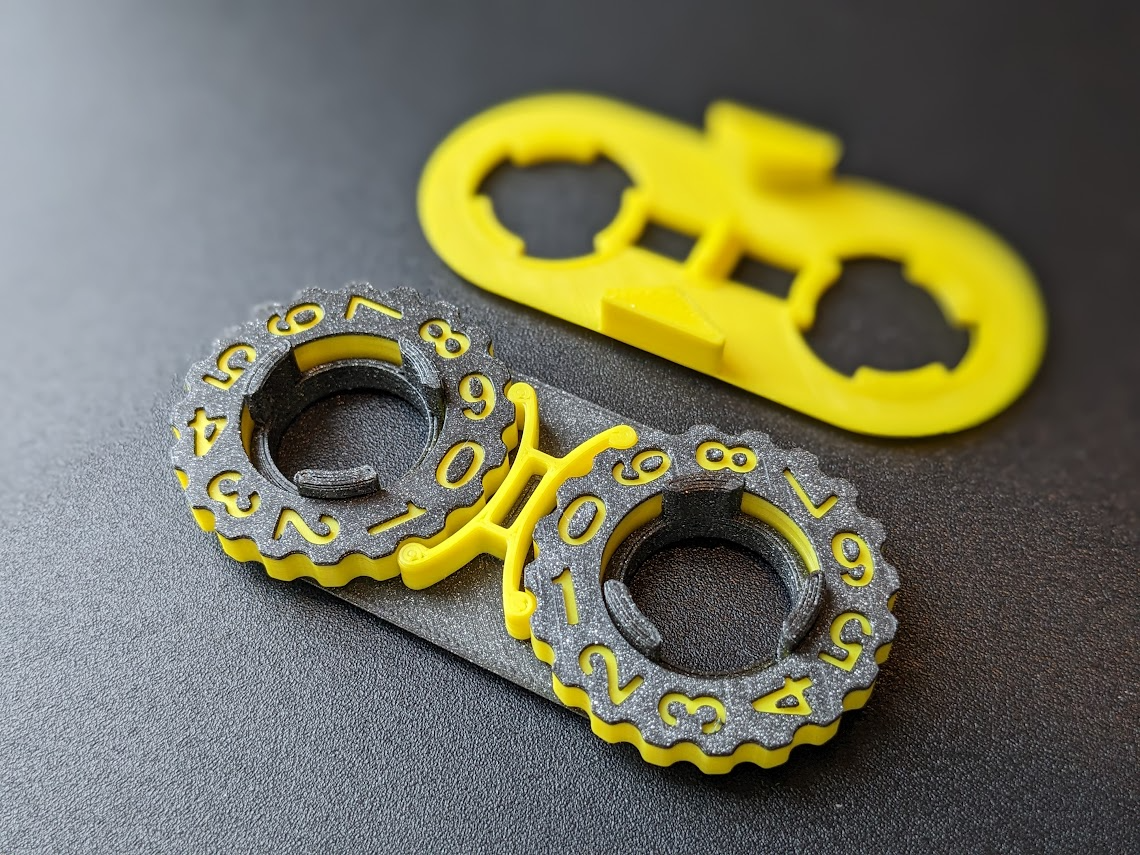

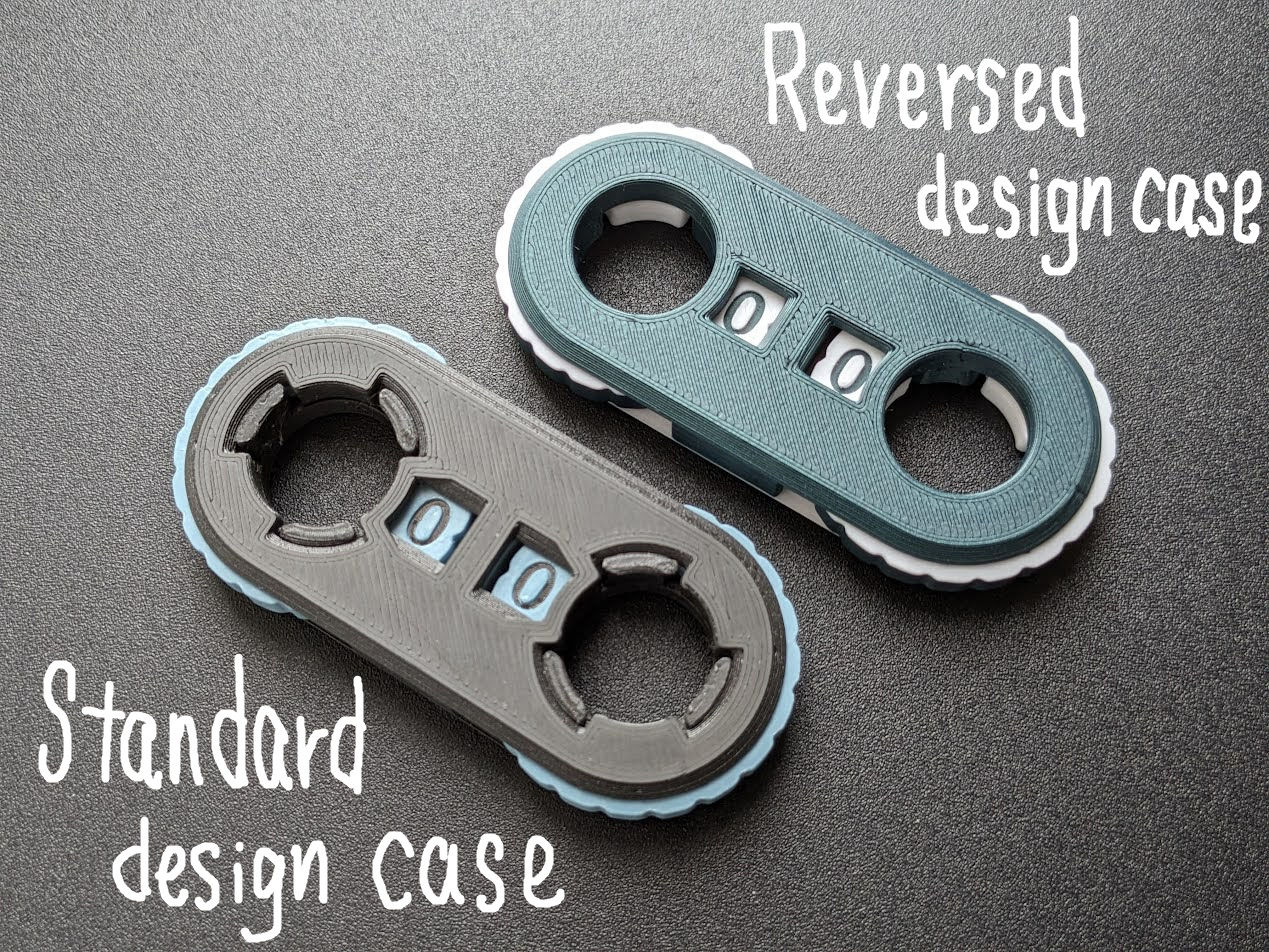

0. print a total of 5 parts: ‘Case_M’, ‘Case_F’, ‘Spring’, ‘Wheel_A’, and ‘Wheel_B’. Choose either the Standard or Reversed case, and select either Normal or Soft for the spring.

1. Put the wheel onto the 'case_M' part and check its rotation. If it feels stiff, use sandpaper or apply a small amount of grease to the inside of the wheel. (When you choose the reversed design case the wheel numbers must be placed downward.)

2. Put the spring onto the ‘case_M’ part.

3. Snap-on the opposite side of the case.

Notes:

• Recommended layer height: 0.15 - 0.20mm, In my case with slicer, layer heights above 0.28mm, the spring, wheel clearance lost are do not function.
• Do not use Matte PLA, Silk PLA, as they have weak layer adhesion and can break with snap-on.

Design by BaGooN on MakerWorld (license: BY-SA).
