DeWALT DCB1104 Battery Charger HSW Mount

As I continue to organize my DeWALT stuff I’m going to Publish things that could be useful not only for me.

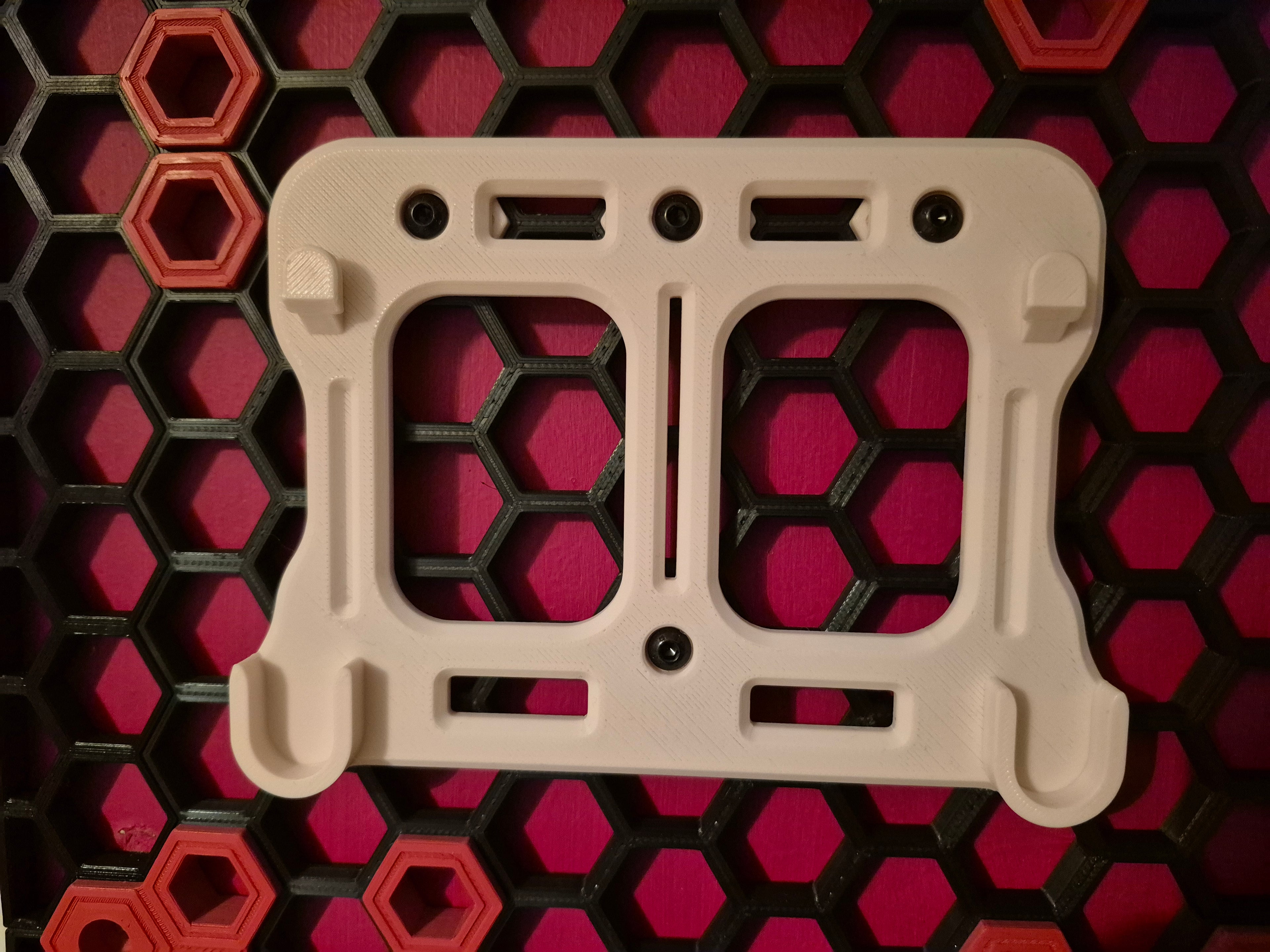

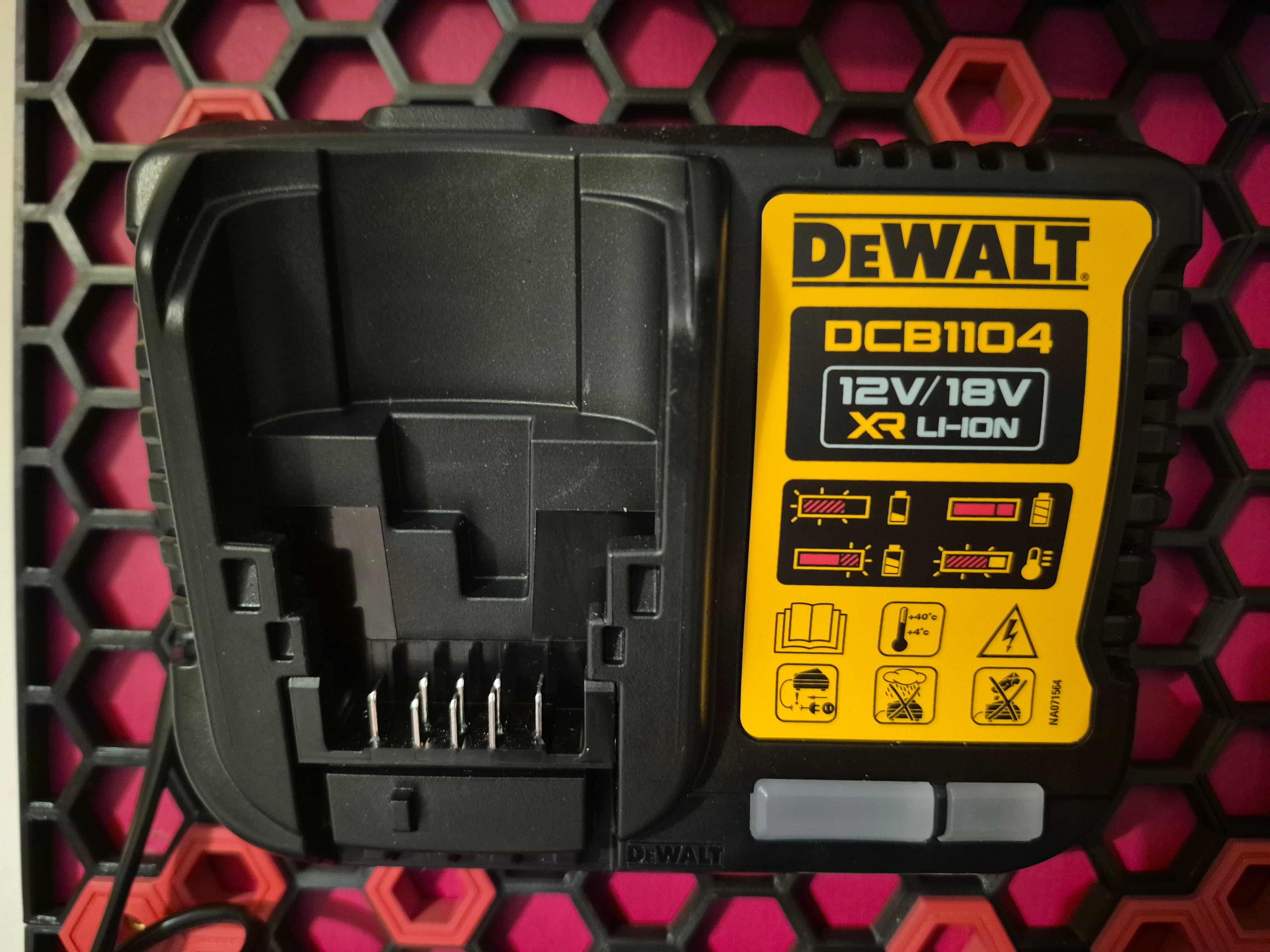

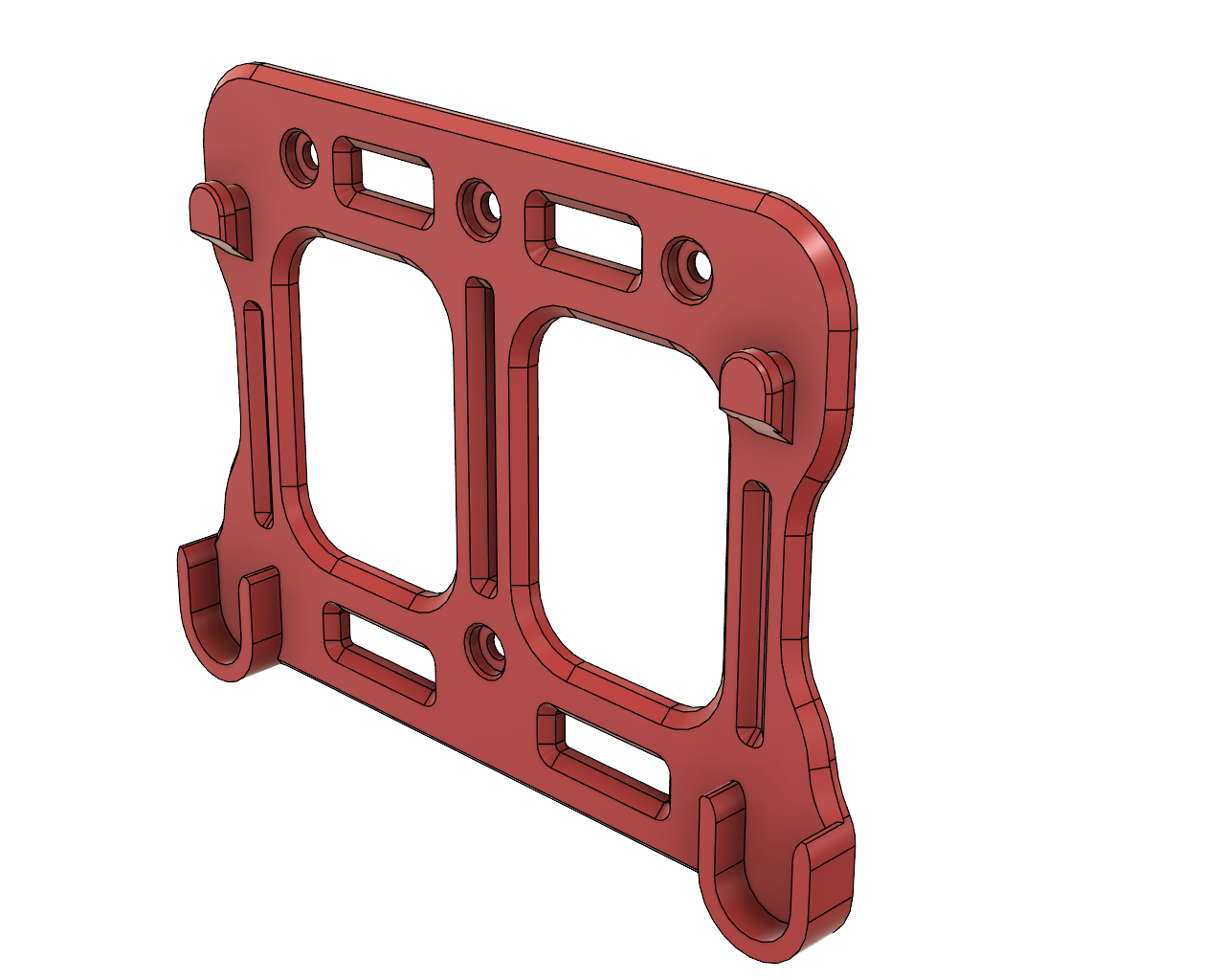

This time, here is a Honeycomb Storage Wall (HSW) mount for DeWALT DCB1104 Battery charger. You also can mount it on Bare Wall using M4 Flat Head (or similar) or Countersunk  screws.

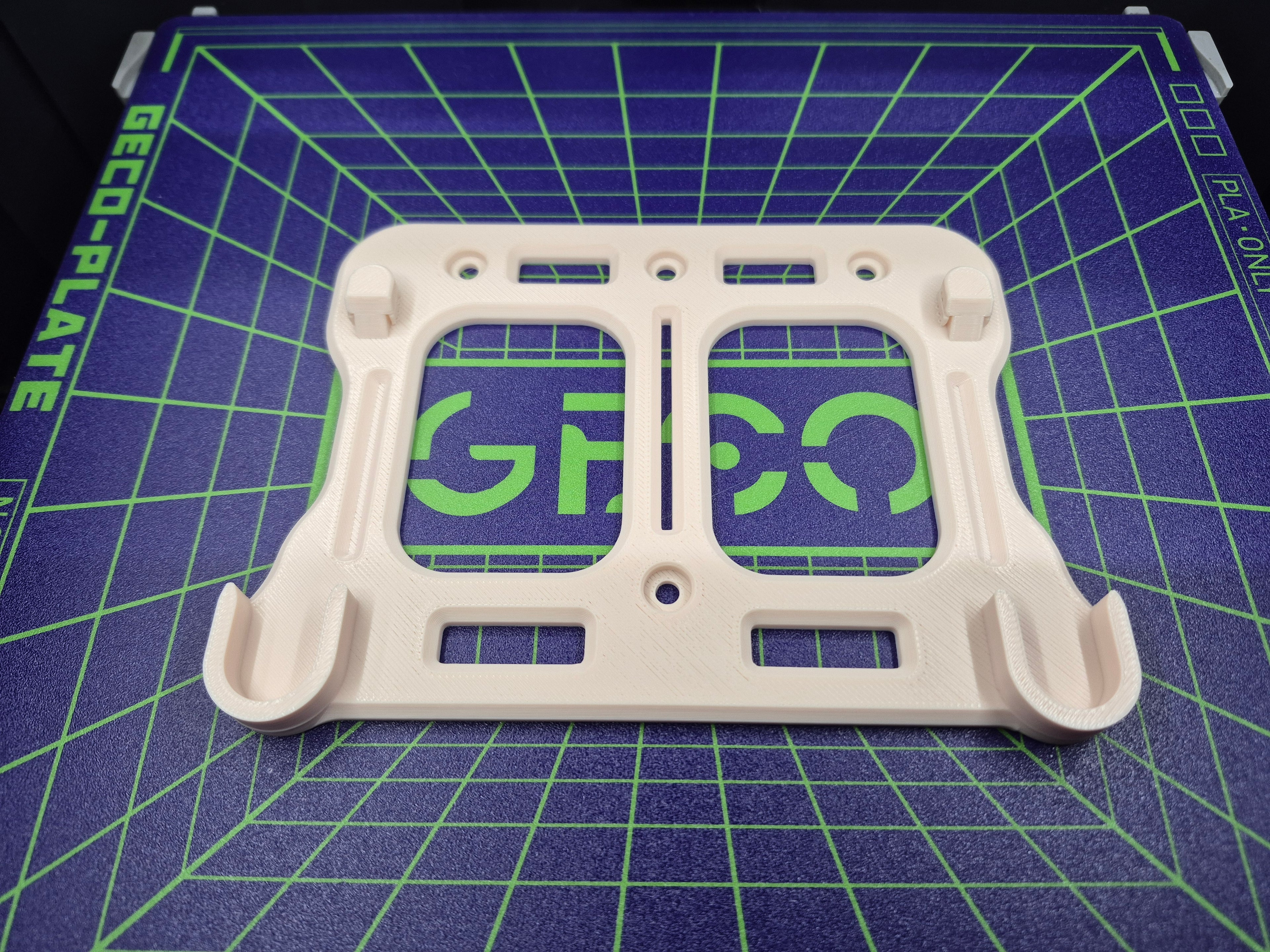

Don't forget to remove few supports from mount pegs before using it.

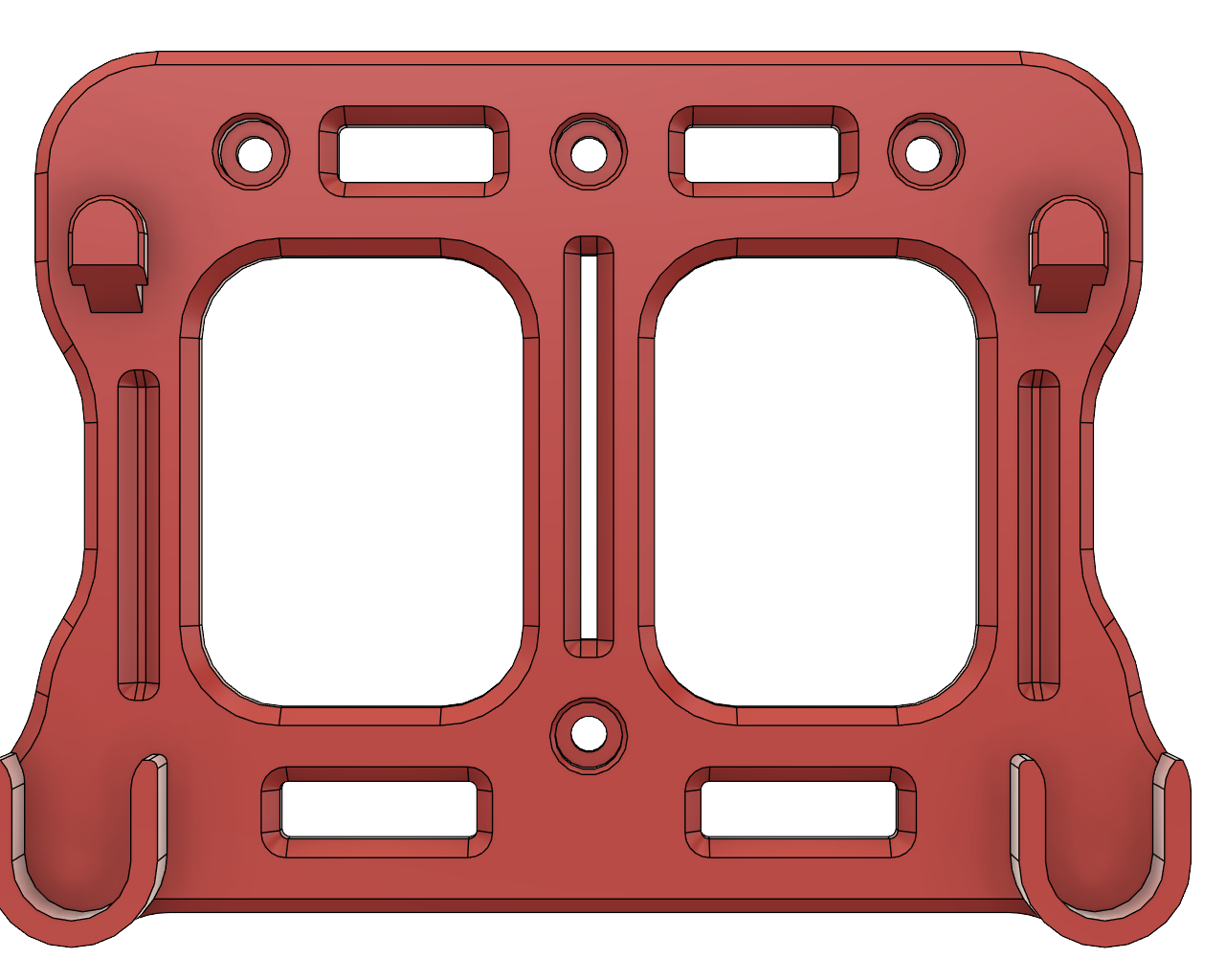

Mount Bracket is presented in 2 versions:

• Flat head Screws (or similar) to be used to fix bracket to the wall (Plate 1 in Profile)
• Countersunk Screws to be used to fix bracket to the wall (Plate 2 in Profile)

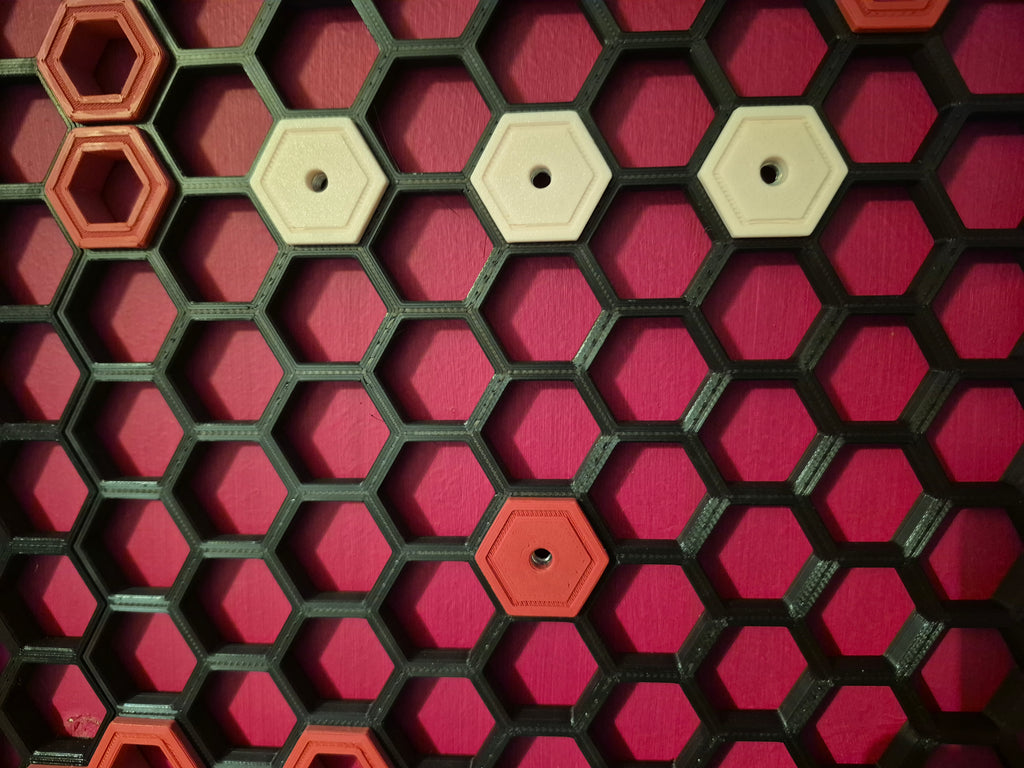

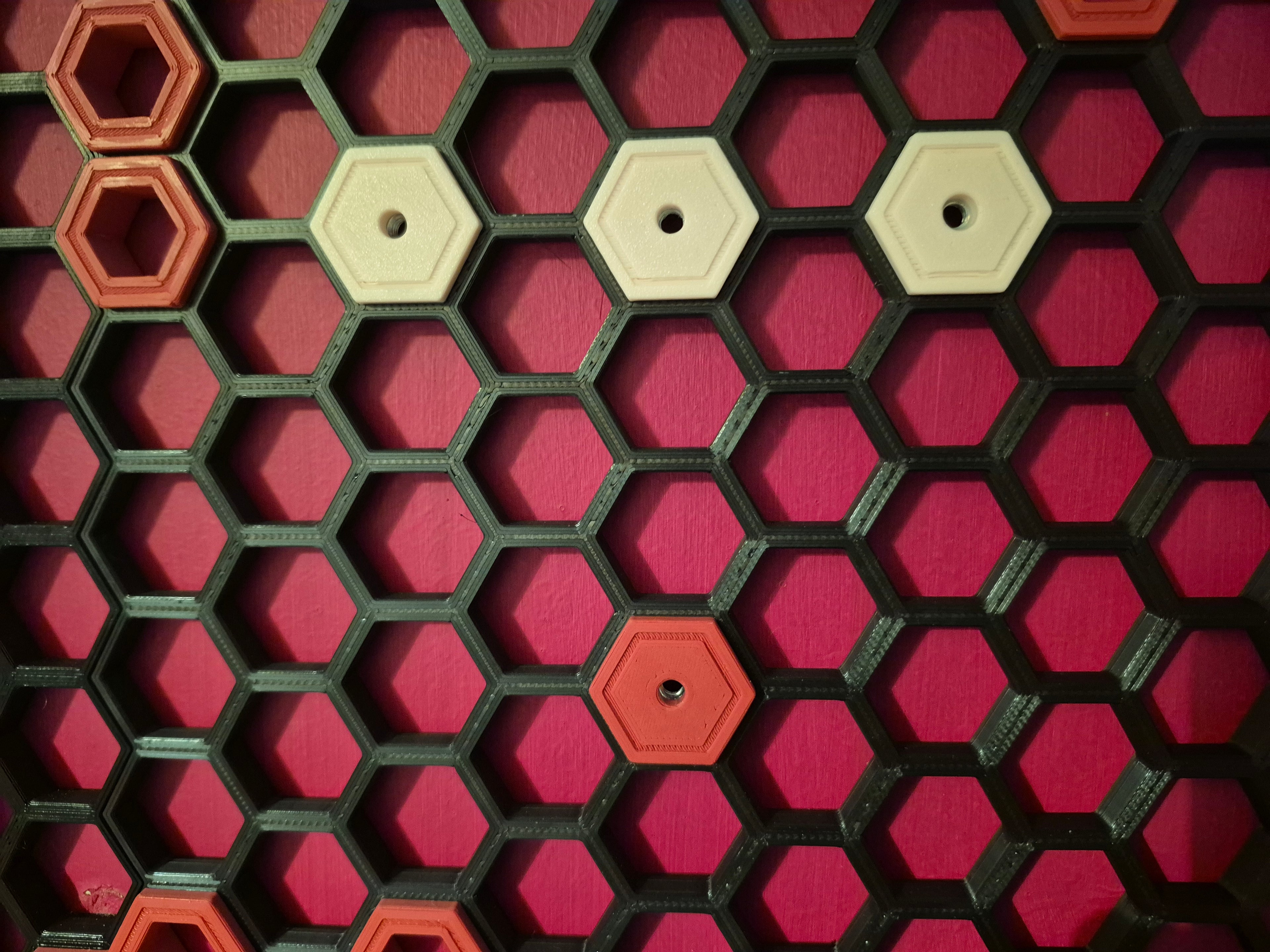

To mount this mount bracket to the Honeycomb Storage Wall (HSW) use a M4x8 or M8x10 (Flat Head or Countersunk Head according to Bracket You have chosen) and M4 Nut and M4 Insert from Plate 3 in presented profile. Or You can take an insert M4.STEP from original HSW Model by RostaP.

You can Mount this Bracket to the bare wall using M4 Screws.

You can Buy me a coffee if You would like to support me even more :)

https://www.buymeacoffee.com/warlogh

(And very Big Thank You For interest in my work)

Design by warlogh on MakerWorld (license: BY).
