Gridfinity Shadow Tray- M12 Impact Driver 3453-20

My students and I are developing gridfinity shadow trays to organize the tools. Some fit better than others and most of them are setup for a 1in tool pocket depth. There will be more posted soon.

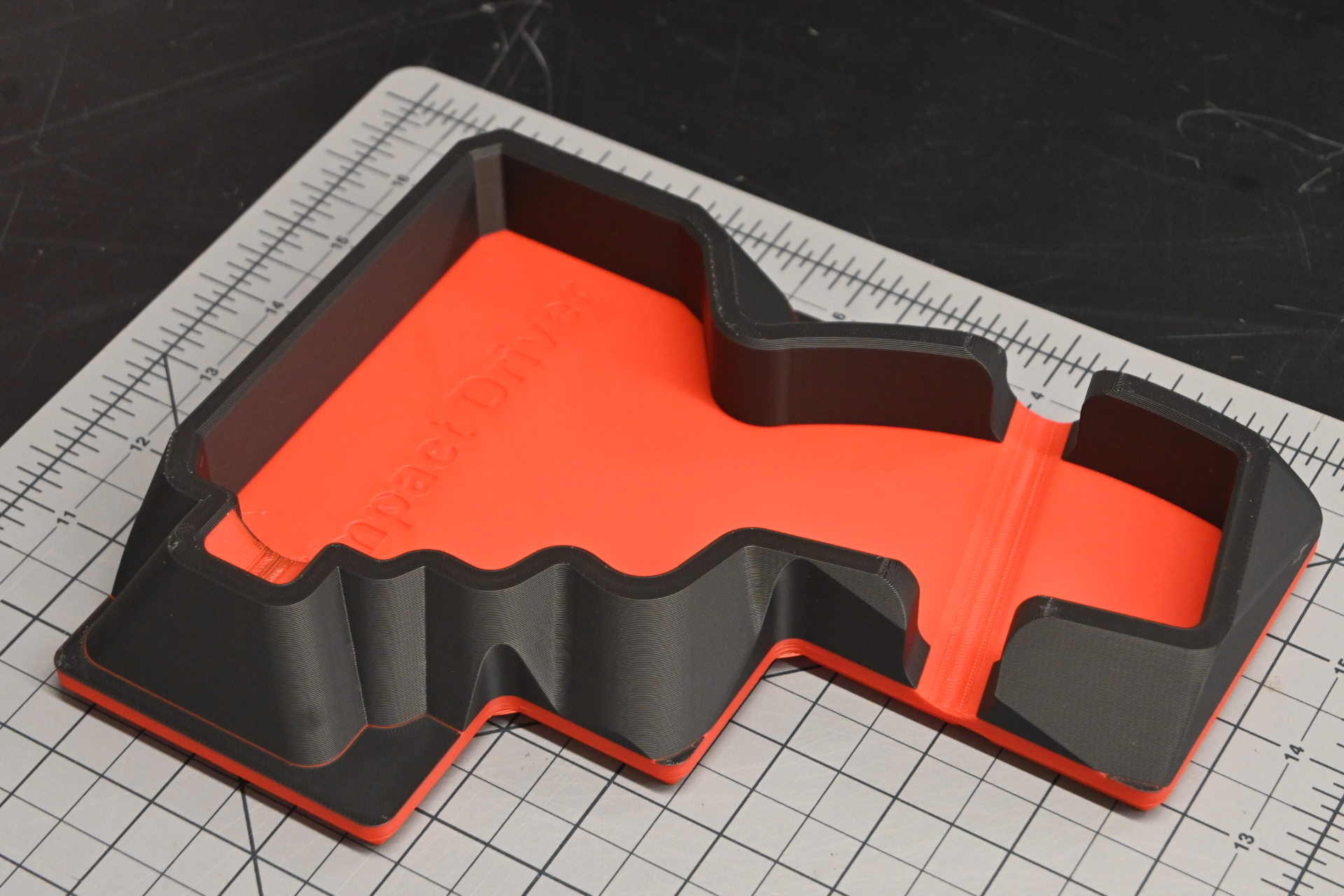

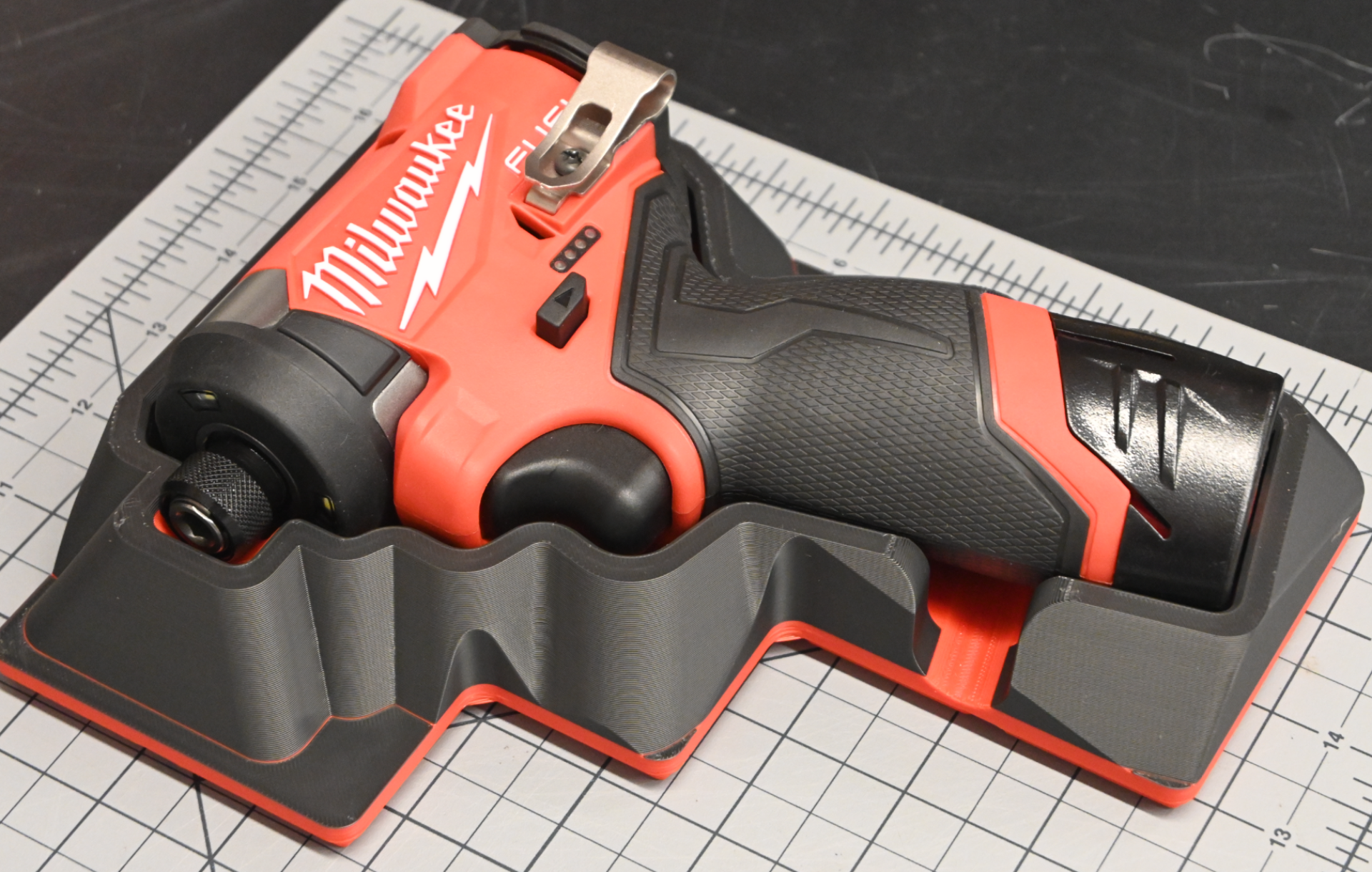

Here is a tray for the M12 Fuel Impact Driver 3453-20.

There are two versions:

-Squared top: Uses more filament but has more options for adding additional pockets for bits.

-30 Degree Drafted top: Uses less filament, weighs less in the travel box.

I printed these on a Bambu X1C with .4mm nozzle, basic PLA filament, .28mm layer height, no supports.

Feel free to use them as you see fit.

Design by AcesHighX1 on MakerWorld (license: BY-SA).
