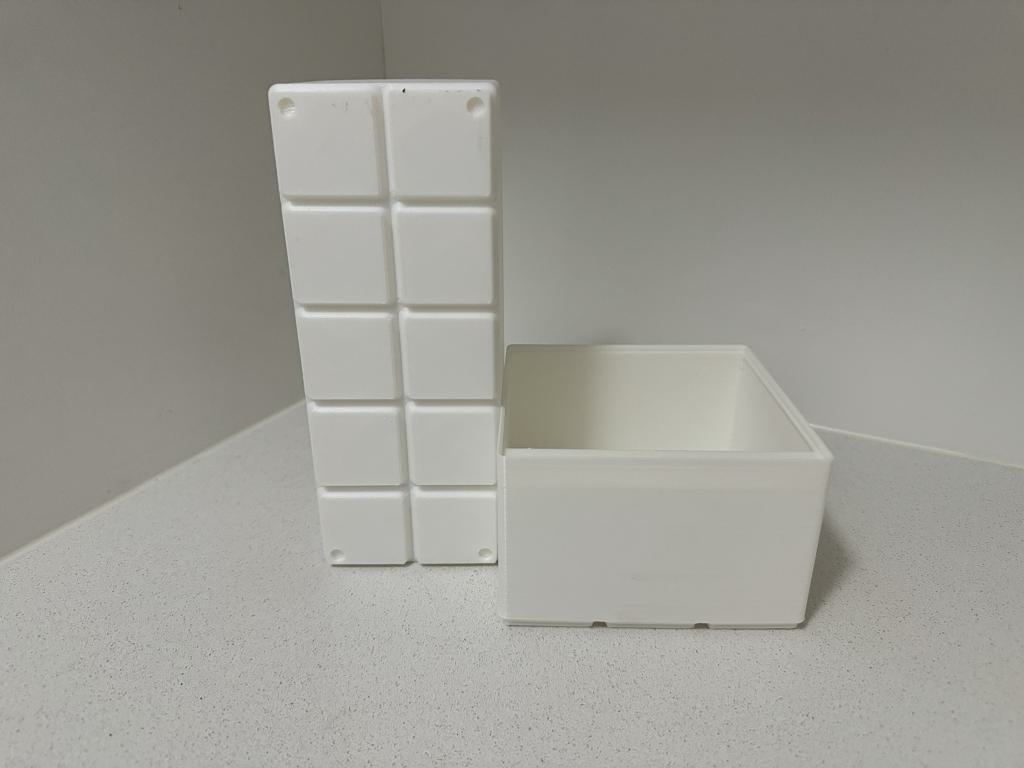

Light Gridfinity Bins with Magnet and Screw

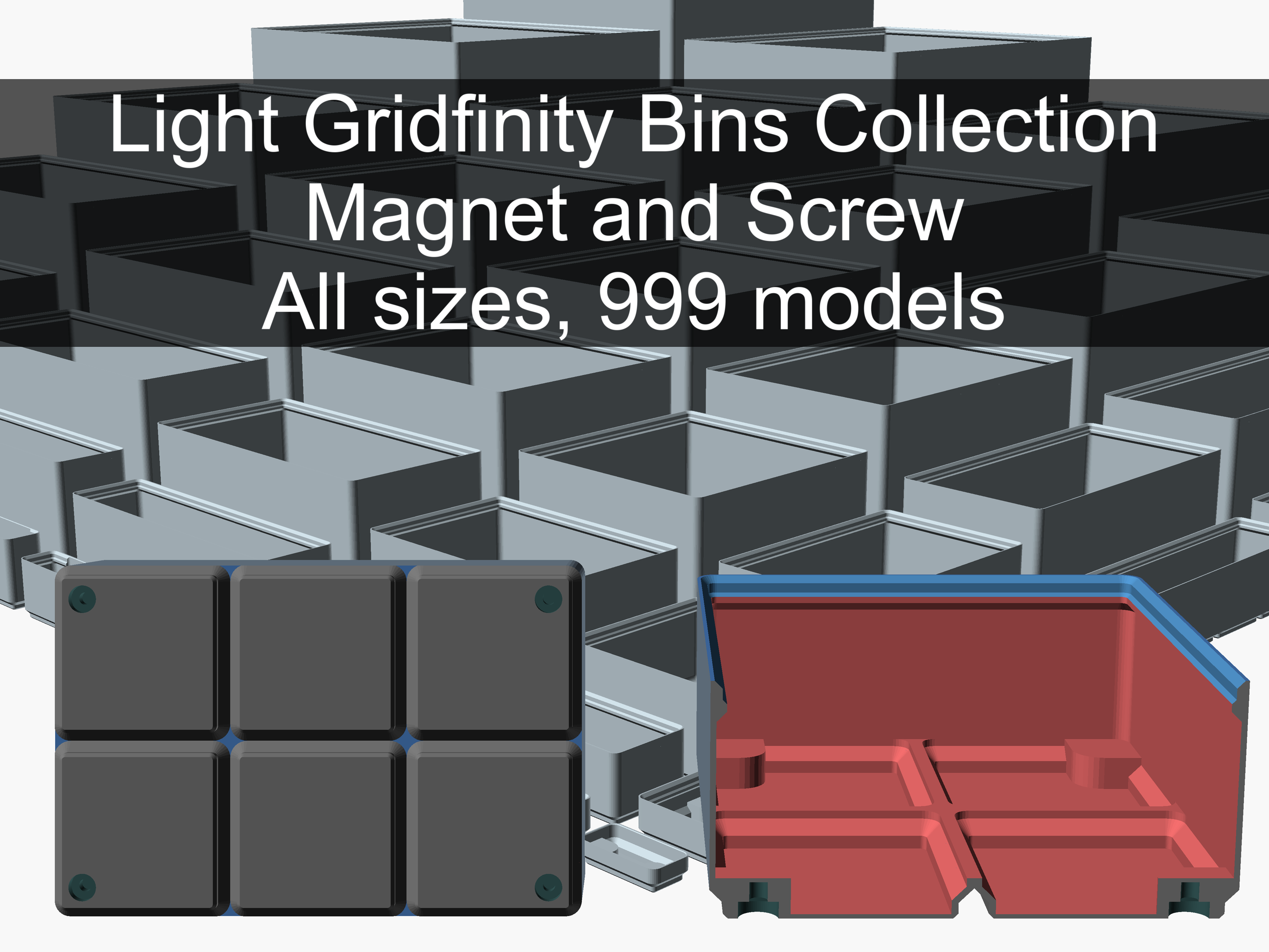

Collection of Gridfinity basic cups with Efficient base and Attachments. The Efficient floor reduces the plastic used, and print time, however the bin floor is not flat. The attachments are only on the corners with greatly improves print time and plastic used.

Generated using my Gridfinity Extended OpenSCAD script. I have generated STLs for bins of all common configurations (over 2500 configurations per height).

This will hopefully allow people to grab the size and config you need without needing generate it yourself. The OpenSCAD script is quite flexible and all configurations can't be included here. If what you need is not here please make a suggestion, or check the OpenSCAD script.

Options included:

• Height: [2, 2.5, 3-37] (in 7mm units)
• Widths: [0.5, 1, 2, 3, 4, 5, 6] (in 42mm units)
• Depths: [1, 2, 3, 4, 5, 6] (in 42mm units)
• HalfPitch: off
• EfficientFloor: on
• Attachment points: Corners only
  • MagnetDiameter = 6.5
  • ScrewDepth = 6

Design by ostat on MakerWorld (license: BY).
