LilyGo T-Echo Backplate Bracket

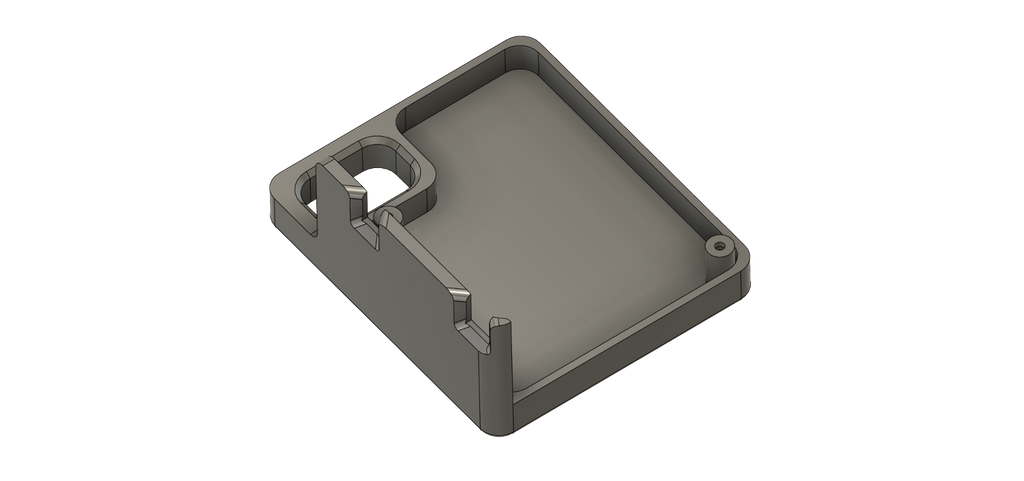

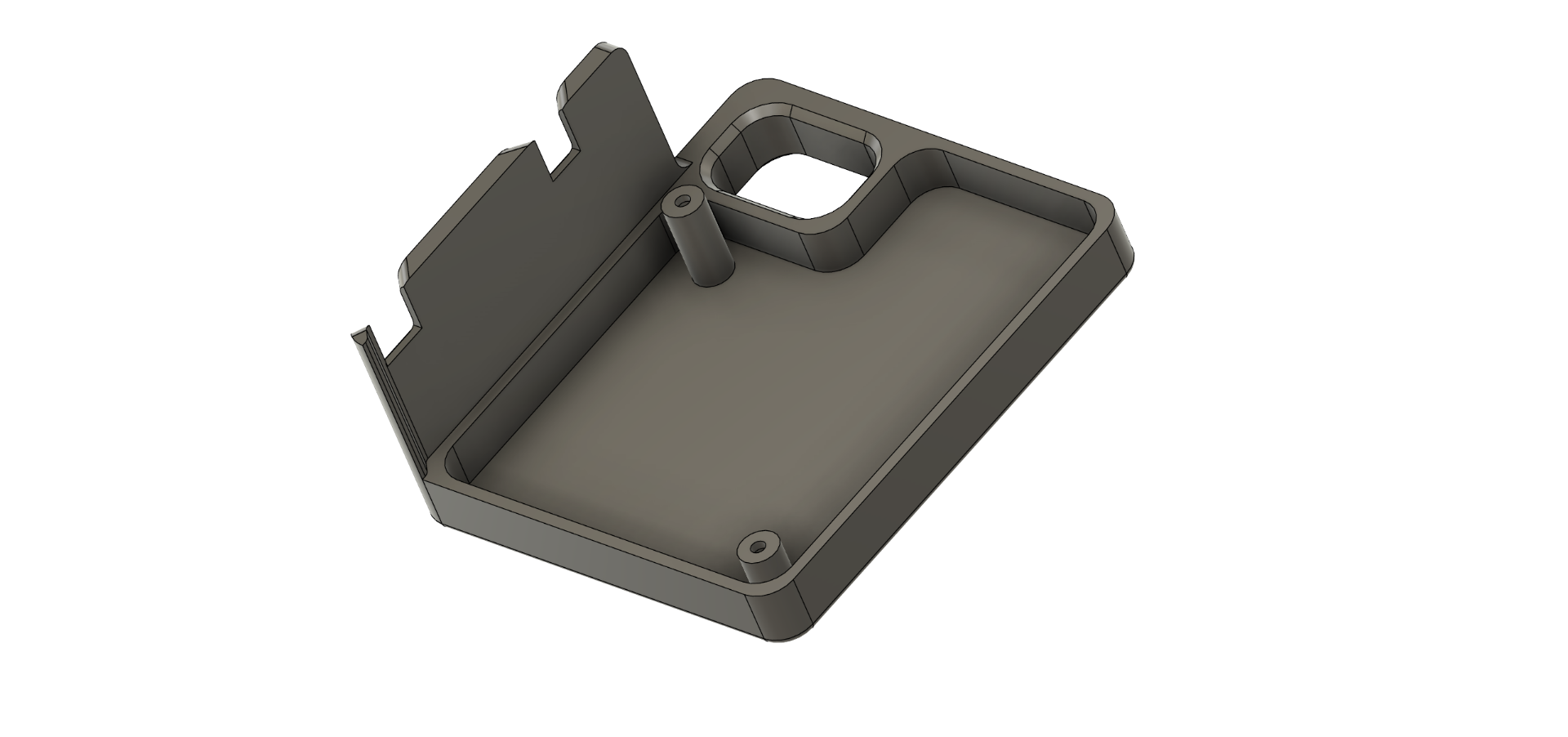

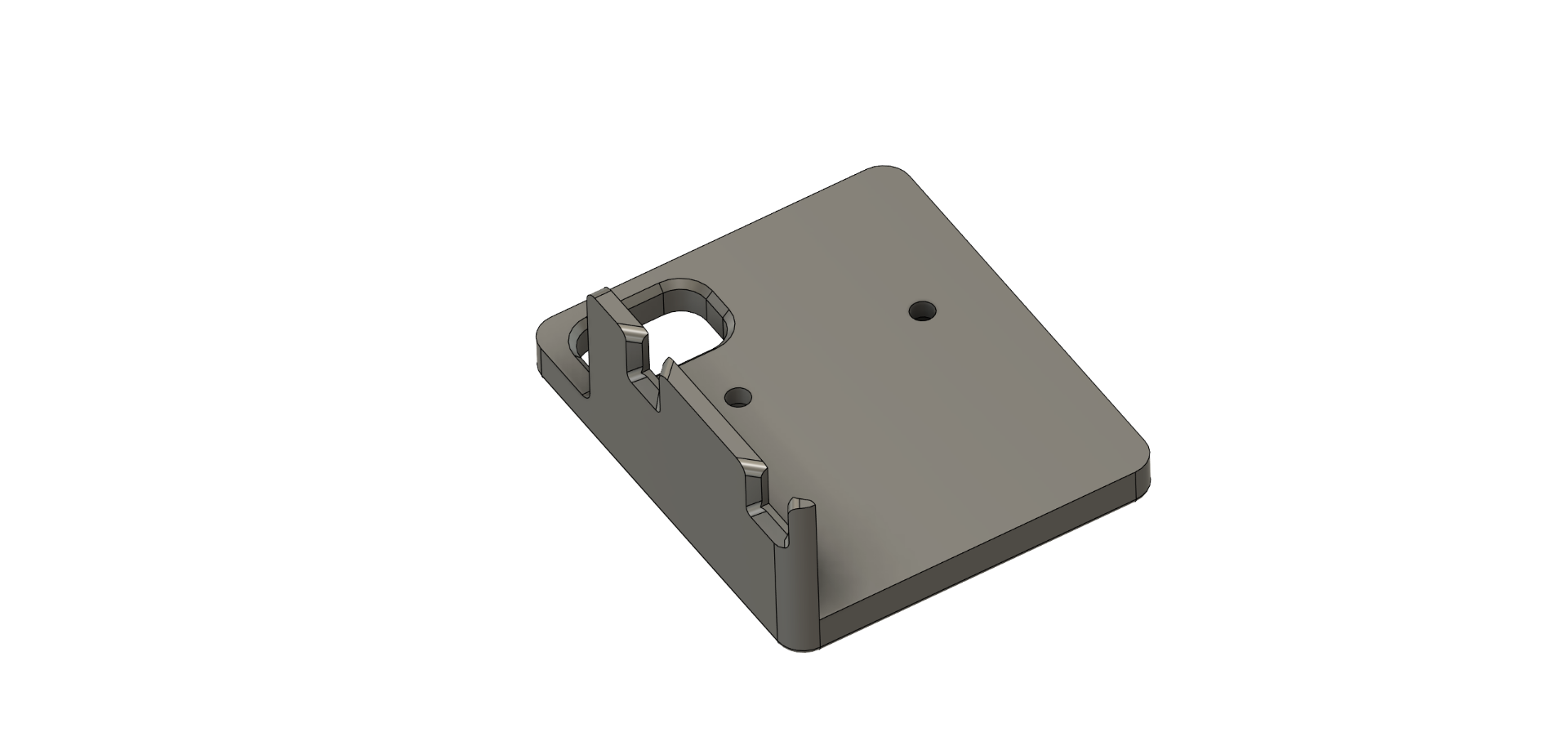

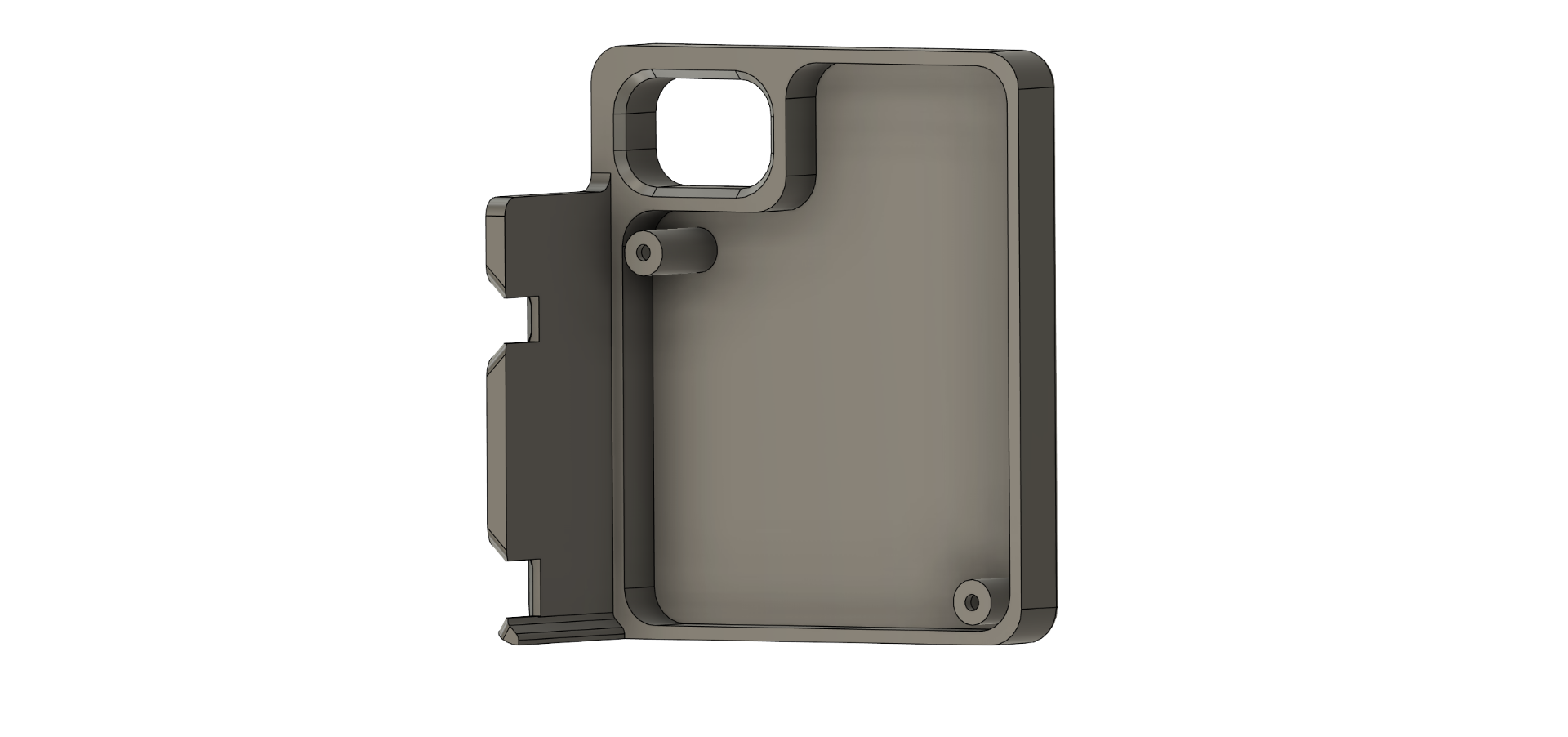

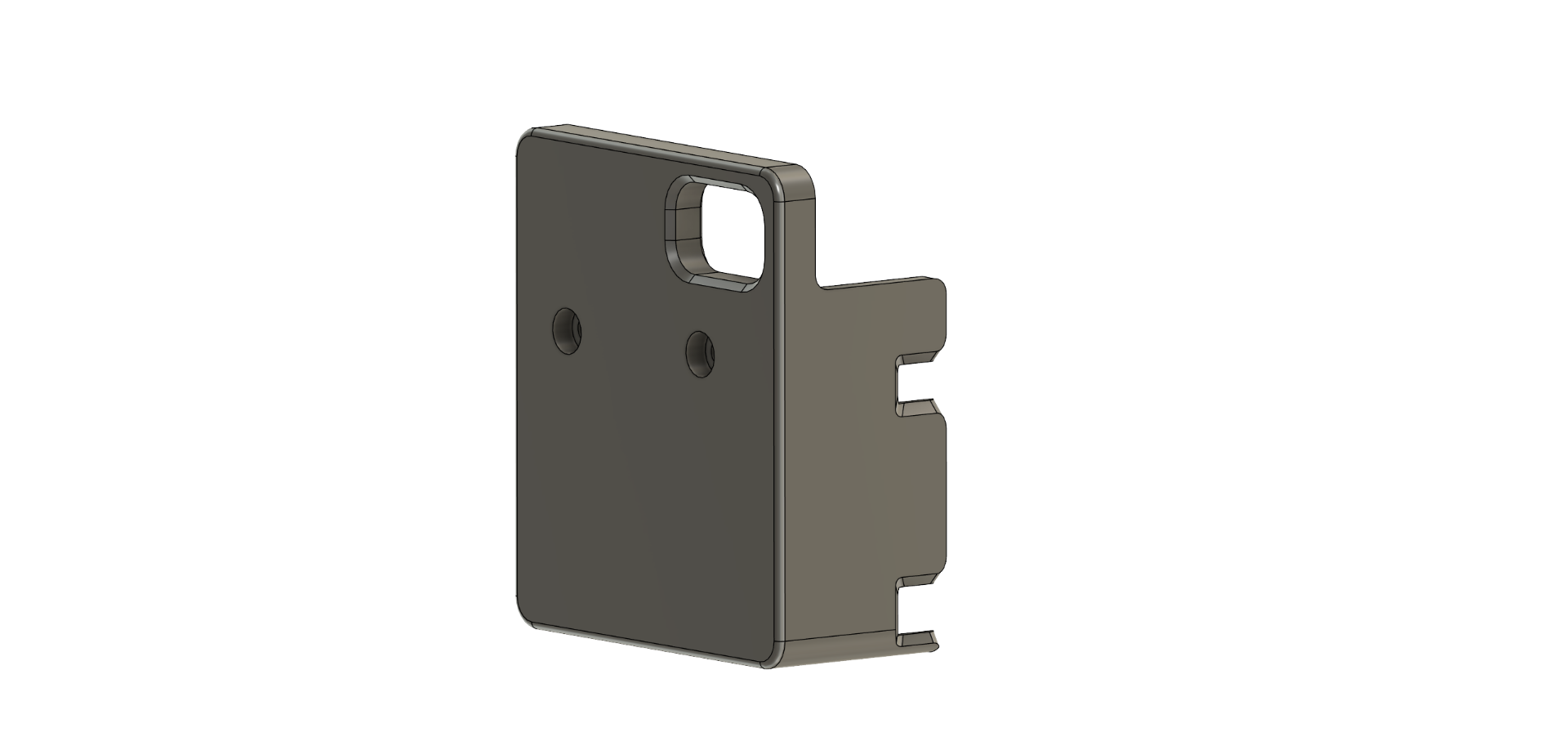

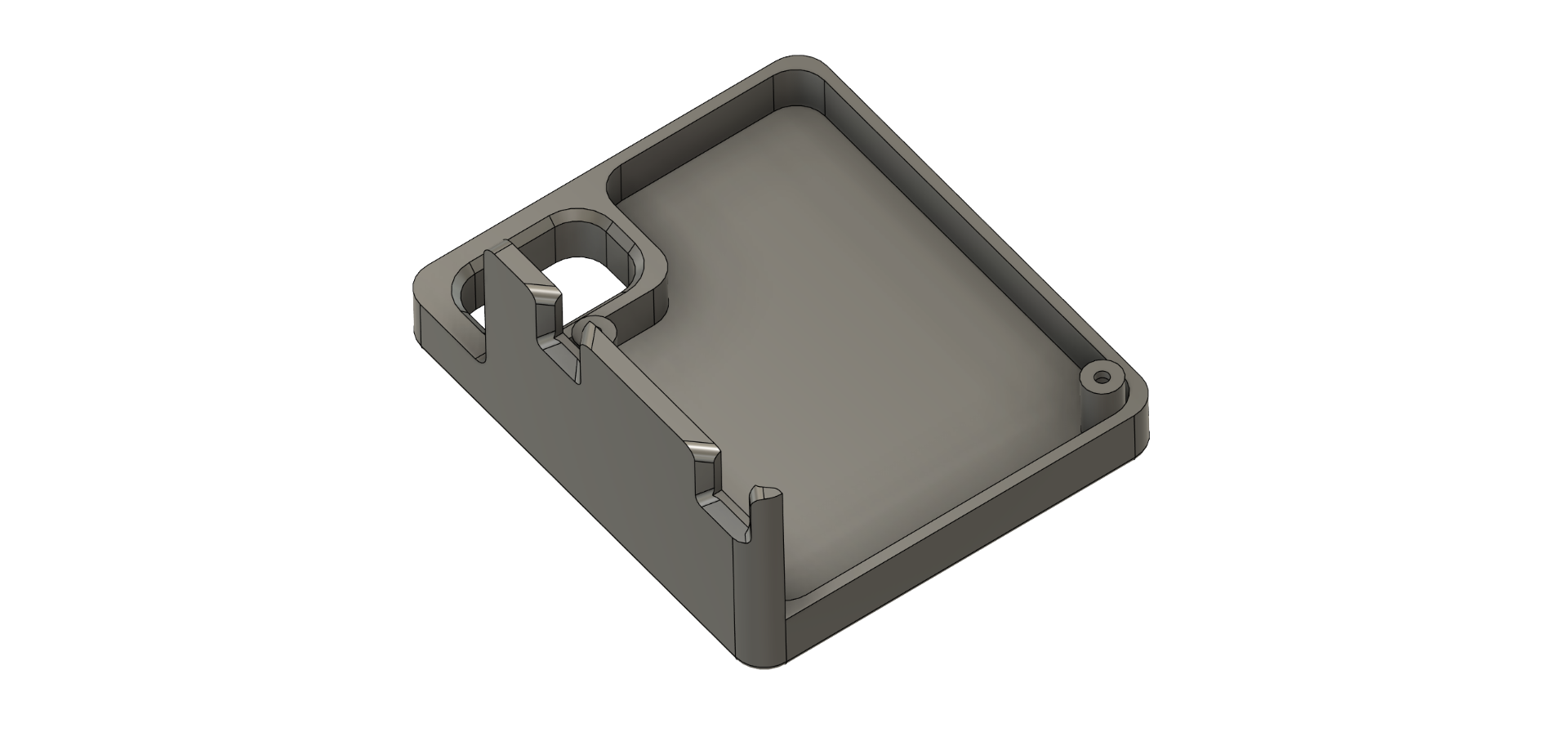

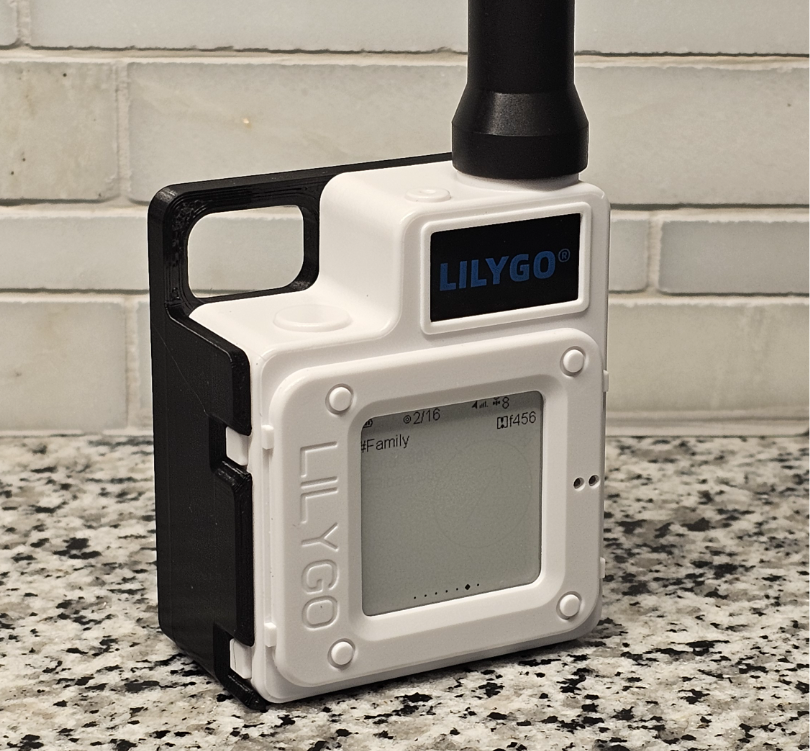

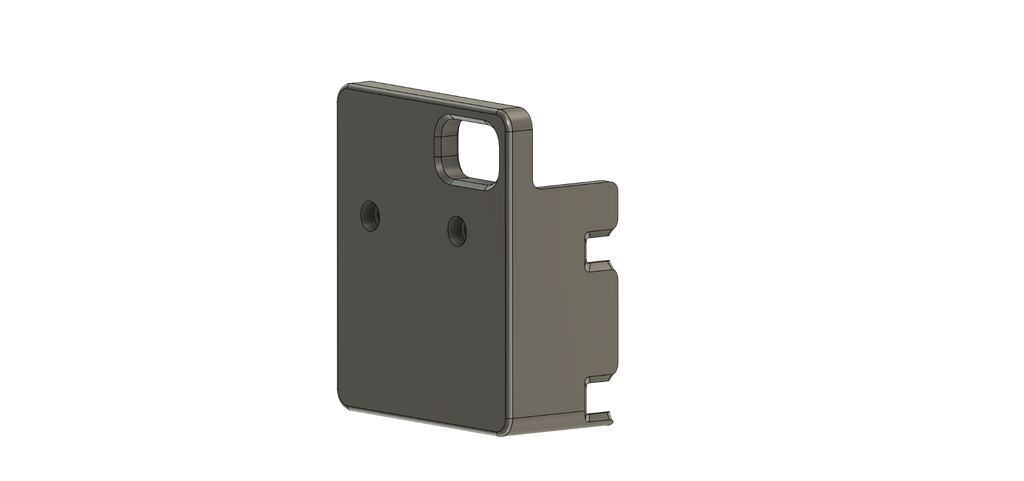

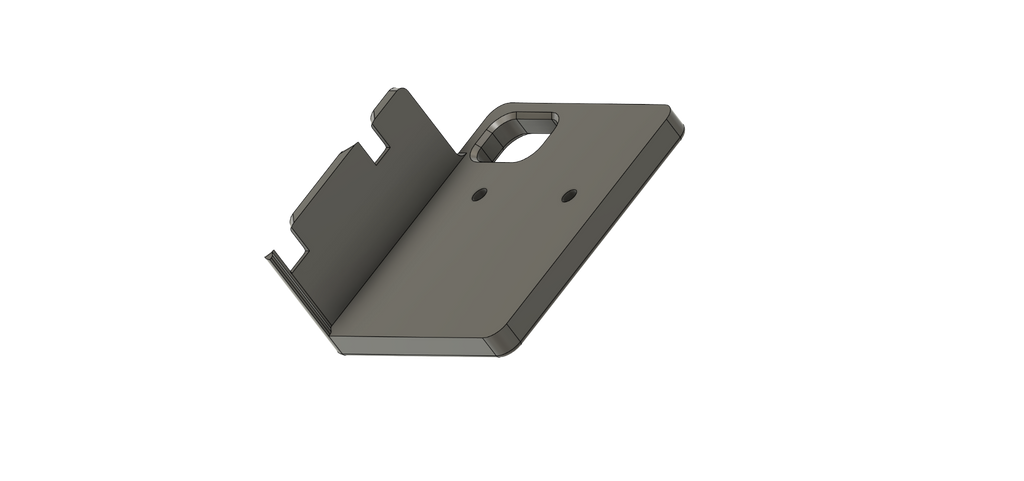

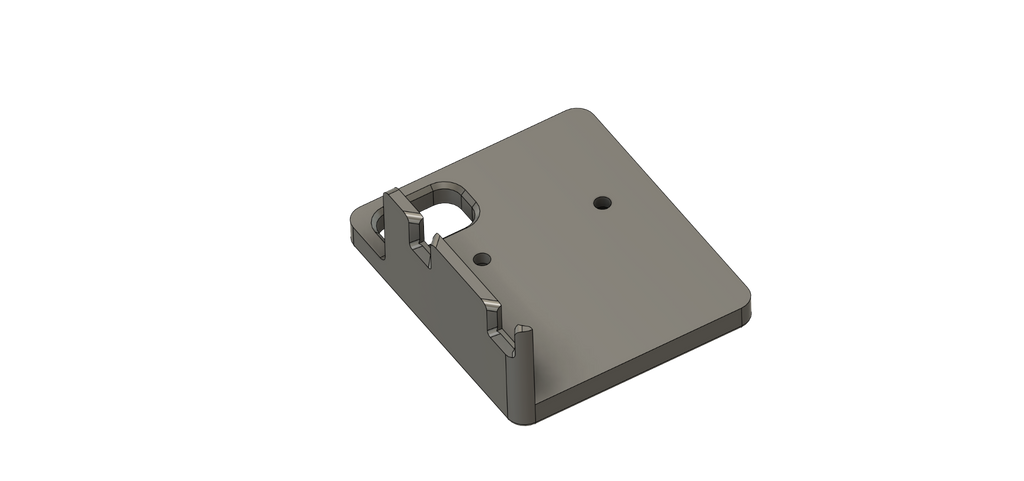

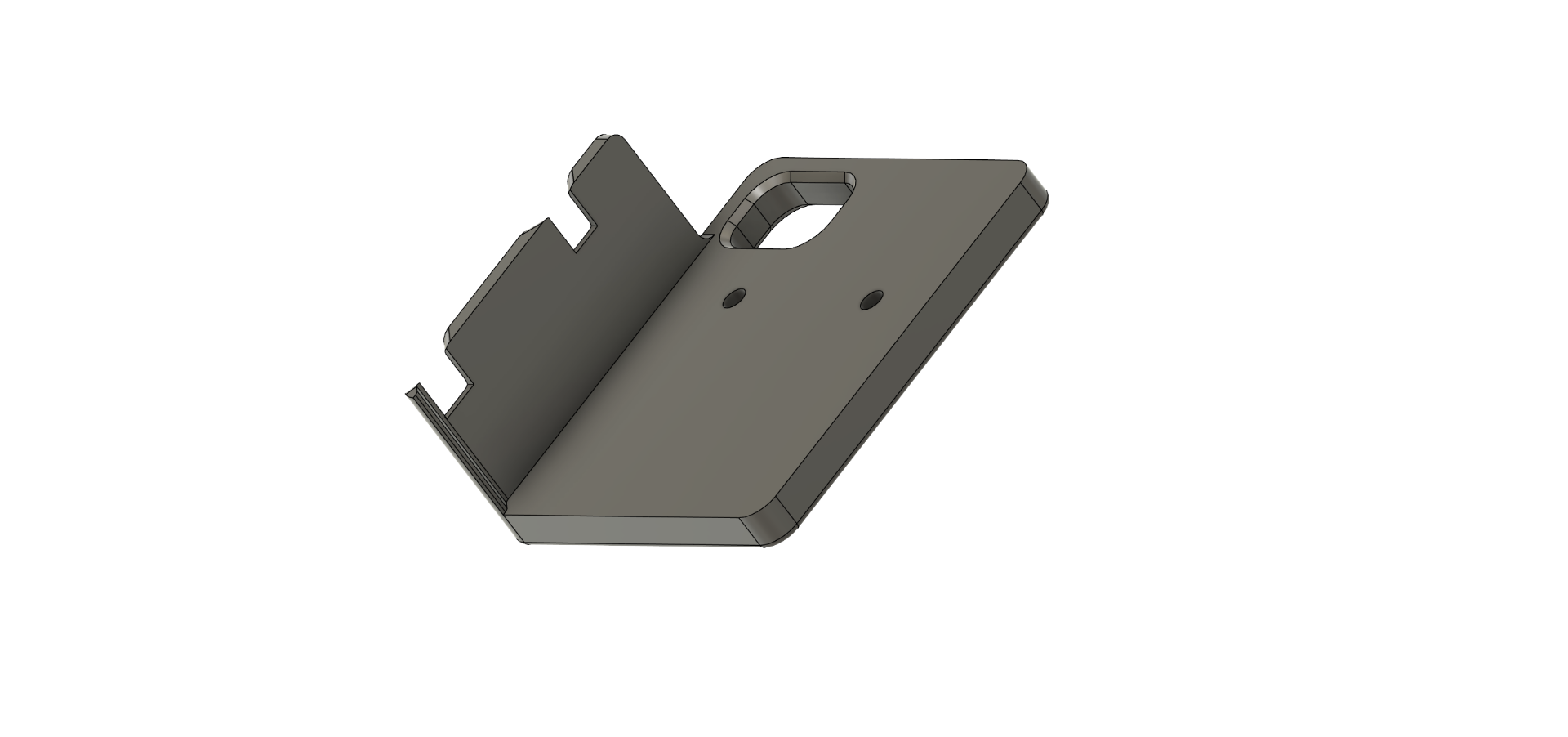

This Backplate / Bracket provides protection from accidentally hitting the two exposed buttons on the side of the device while also giving you a place to hook a carabiner or cord for easier carrying. The bracket was designed to contour the device for a more seamless feel.

Printer Settings (Suggested):

• Material: PETG
• Nozzle: 0.4mm
• Layer: 0.20mm / 0.16mm

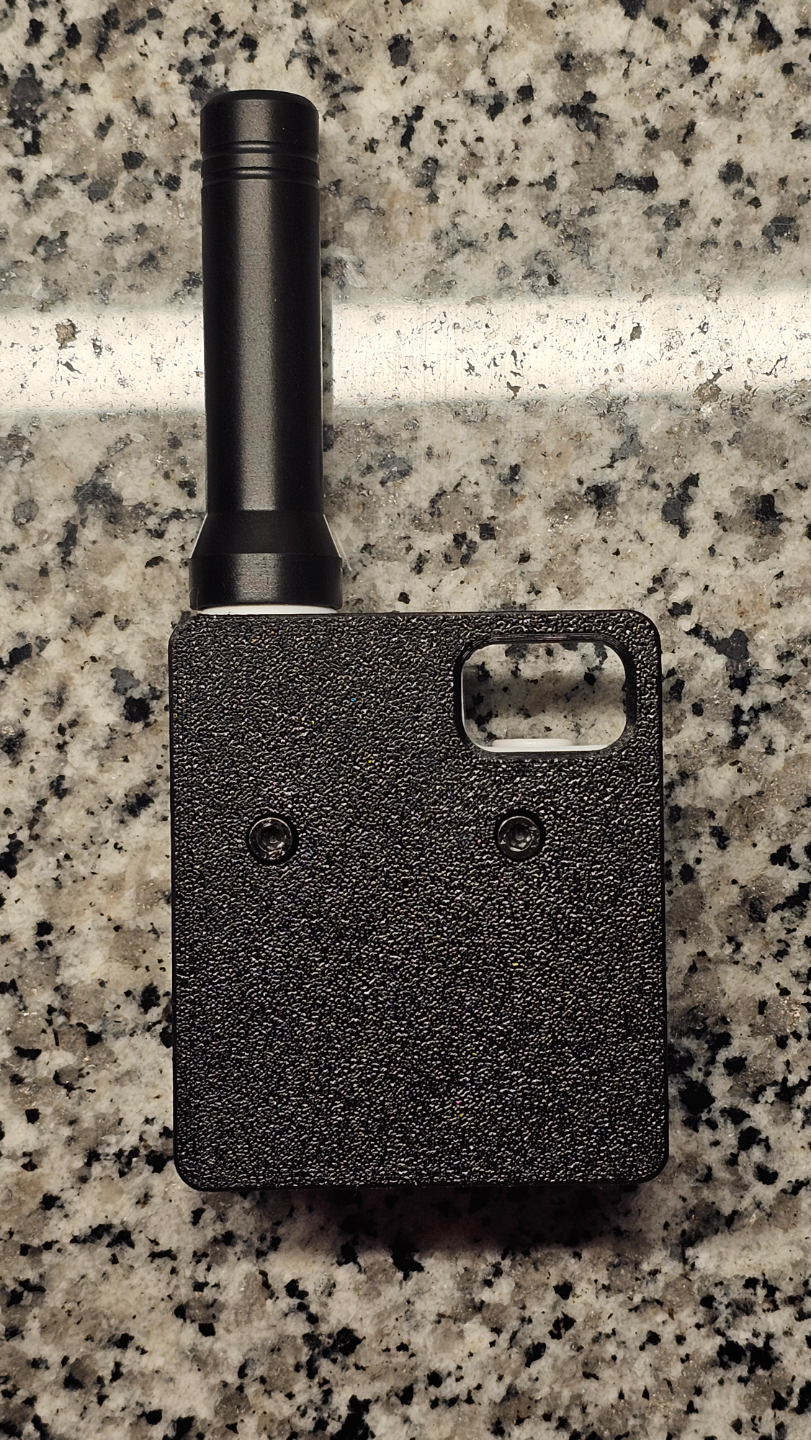

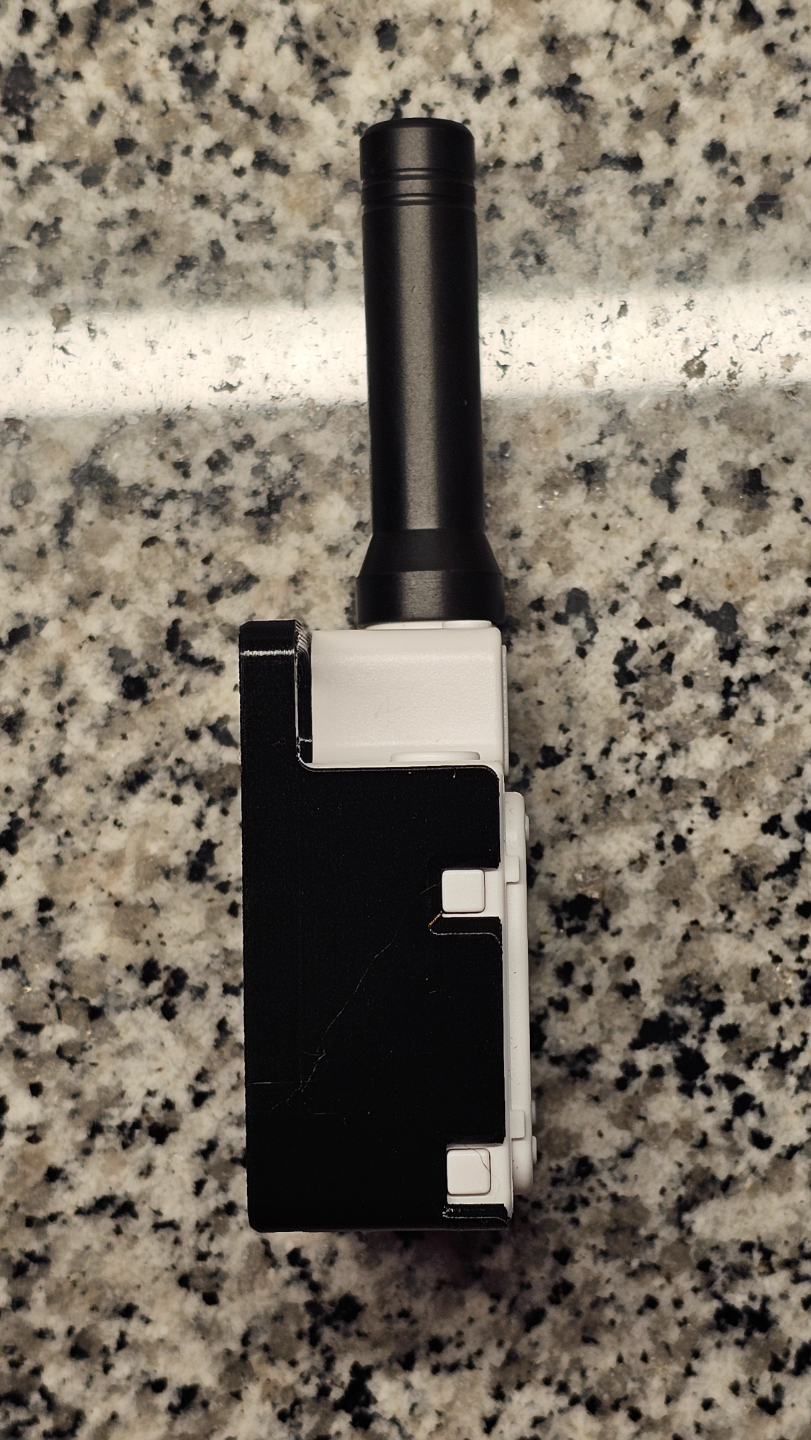

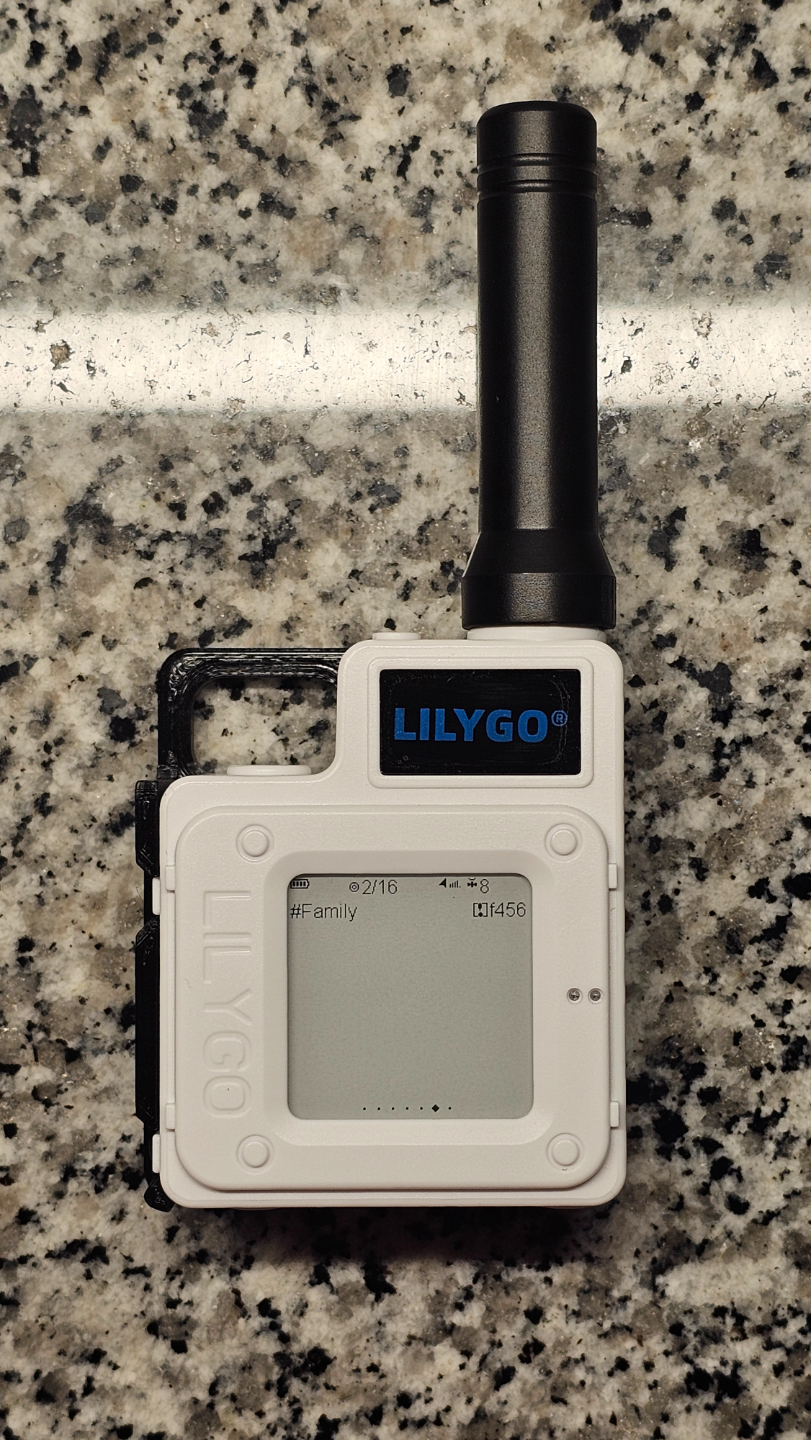

  • Photos were printed in 0.16mm.
• Support: Only in the Mounting Holes.

Hardware needed:

• 2x M3x10mm screws (hex socket head cap screws suggested, provides a flusher surface).

EXTENSION:

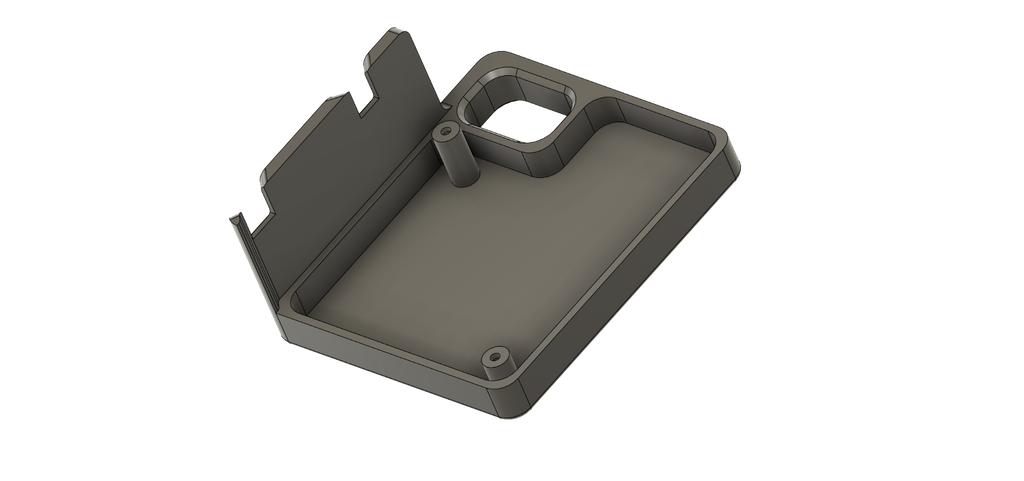

Added a model that provides an additional 6mm of interior depth (adds another 2mm of overall depth to the original). No additional hardware needed. Remove the factory back plate and use those screws.

Design by Space on MakerWorld (license: BY-SA).
