Lithobox V2

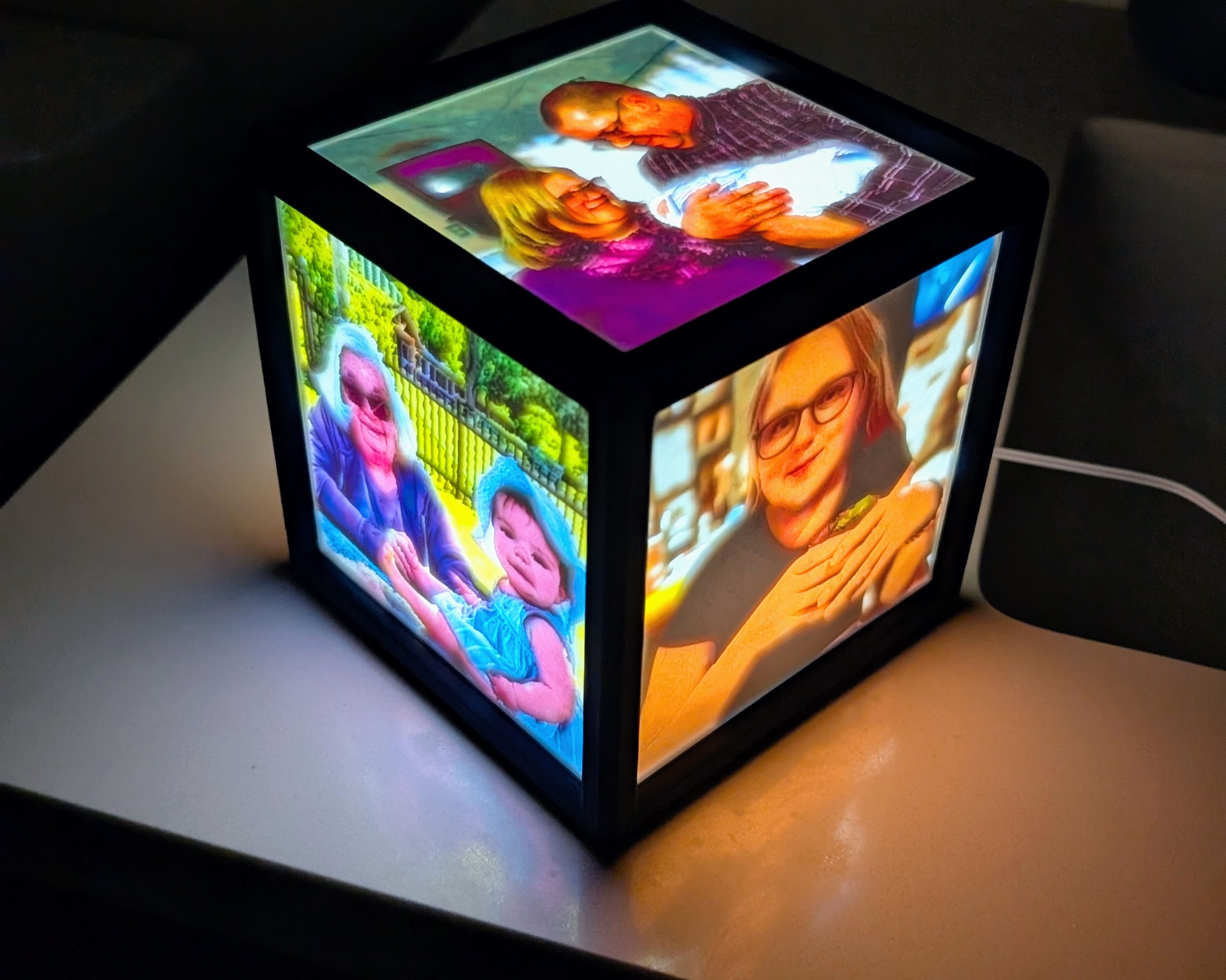

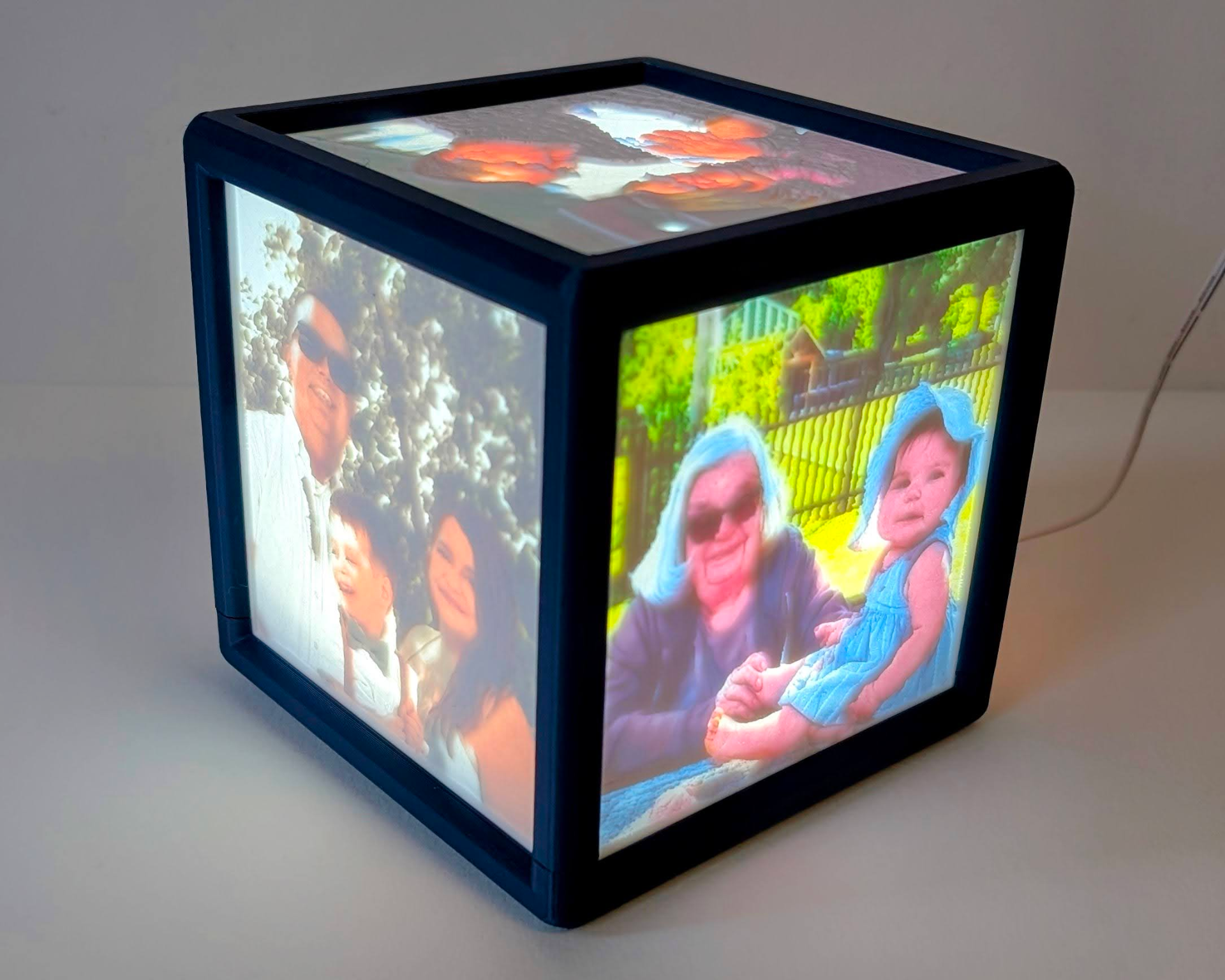

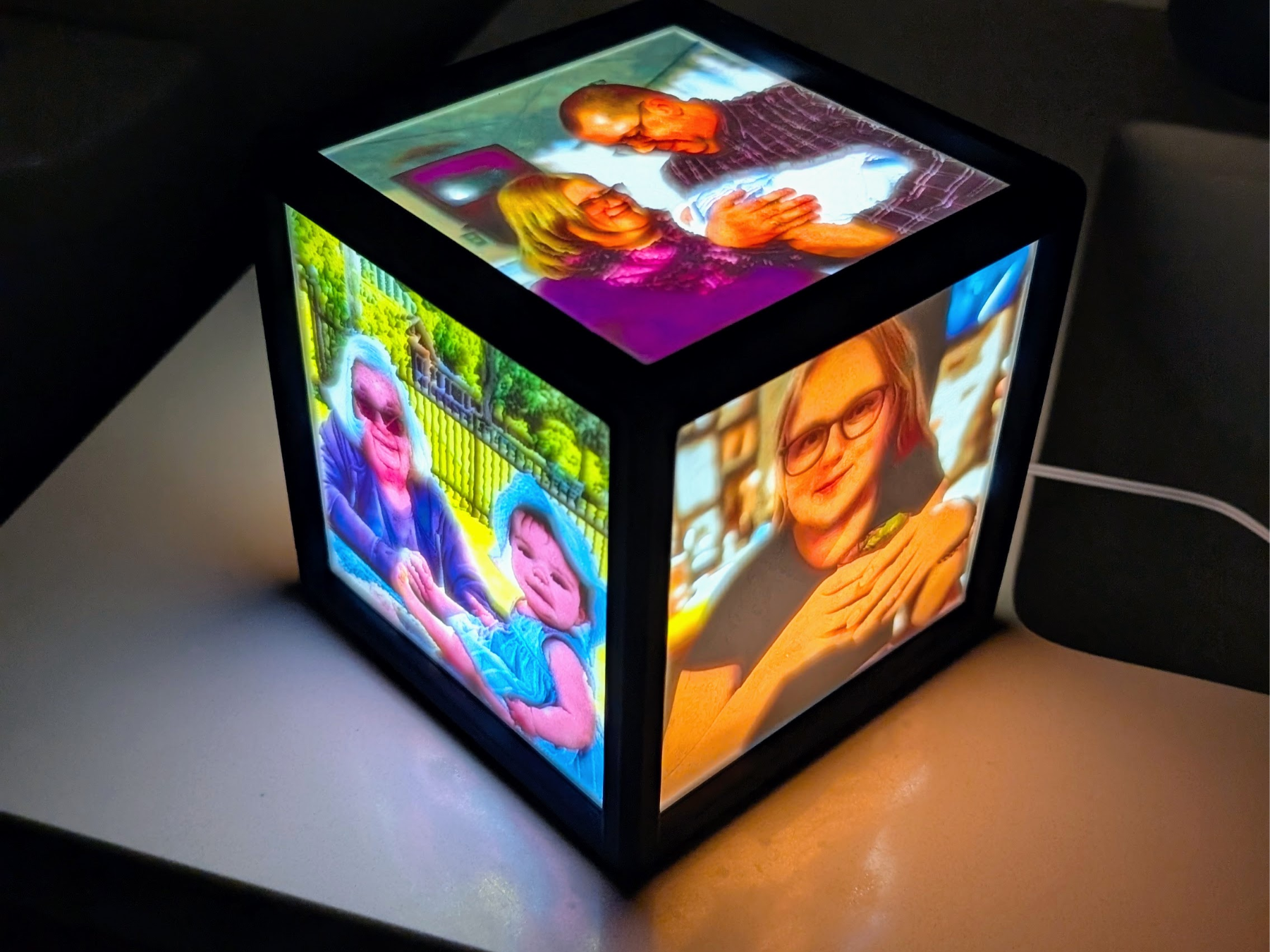

Clean, modern 3d-printed lamp design to display photos as lithophanes. Open source CAD available for remix.

Updated version of my old design in https://www.thingiverse.com/thing:238435/makes

CAD is available as a public Onshape model, please feel free to clone, remix, and update any of the parameters https://cad.onshape.com/documents/74da6eb0719cfd414a8e0fd4/.

Printing Instructions:

No supports needed. I usually print the inside piece with a brim.

Bill of materials:

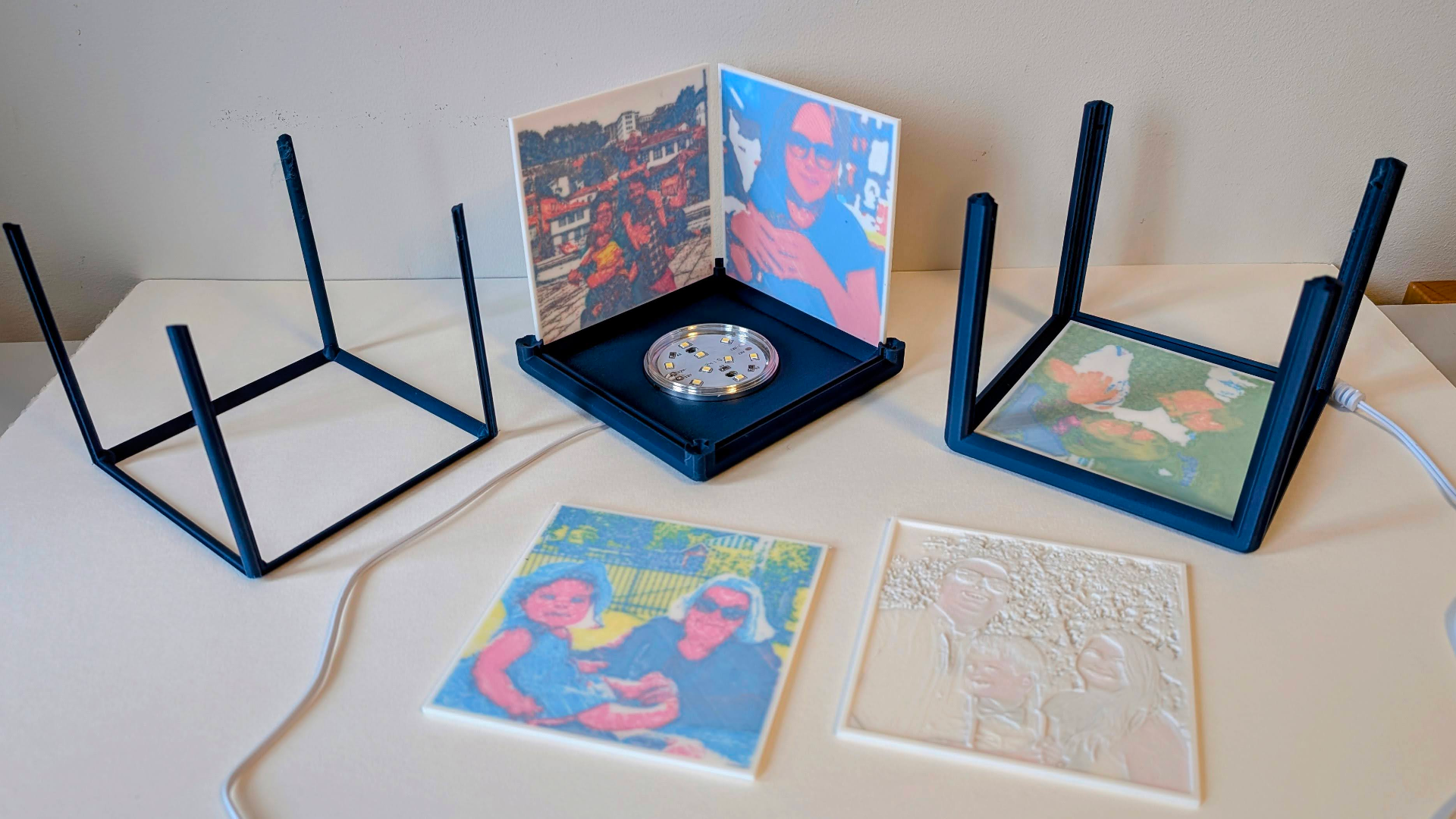

• 5 lithophanes (104mm square, 2.5mm depth, 2mm border).
  • I used the generator at https://makerworld.com/en/makerlab/makeMyLithophane
  • https://lithophanemaker.com/Color%20Lithophane.html also seems workable

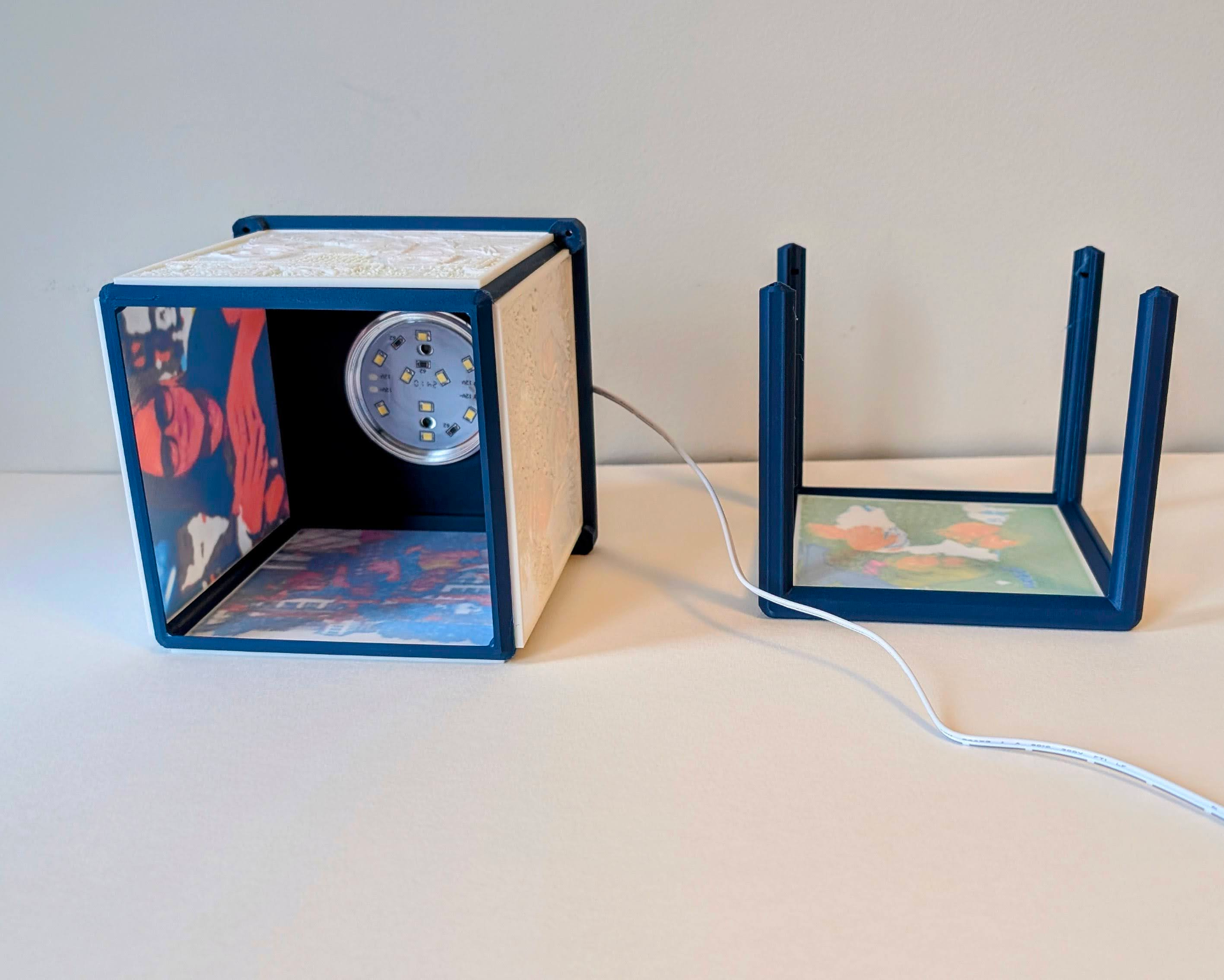

• Printed lithobox parts (3)
• LED puck light
  • I used https://www.amazon.ca/dp/B08NJMNK4D
  • Bambu has one https://ca.store.bambulab.com/products/led-lamp-kit-001
  • Plenty of options on Aliexpress https://www.aliexpress.com/item/1005005368235042.html
• M2 x 20mm bolts (4), M2 hexnuts (4)

Design by paulbovbel on MakerWorld (license: BY).
