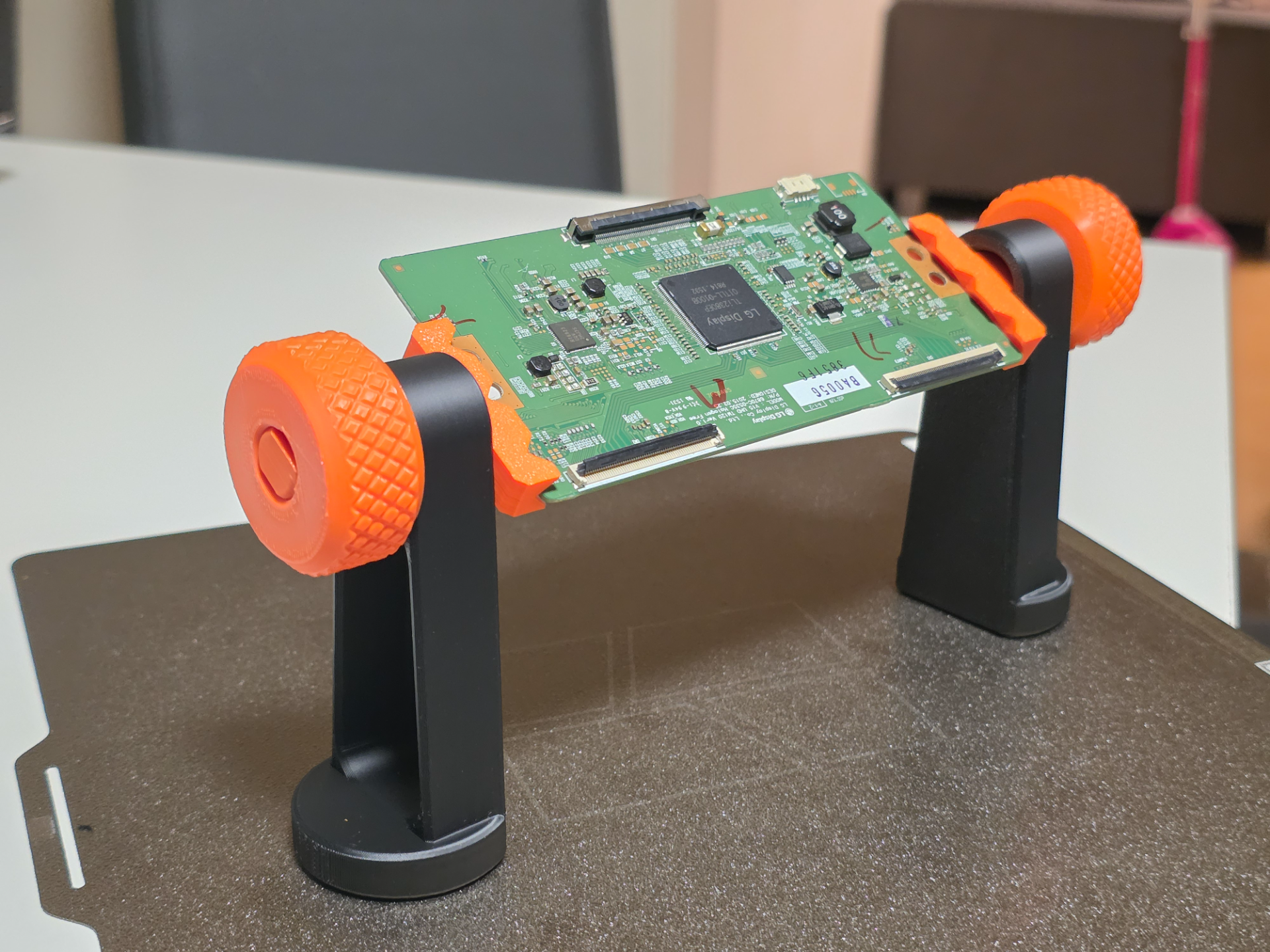

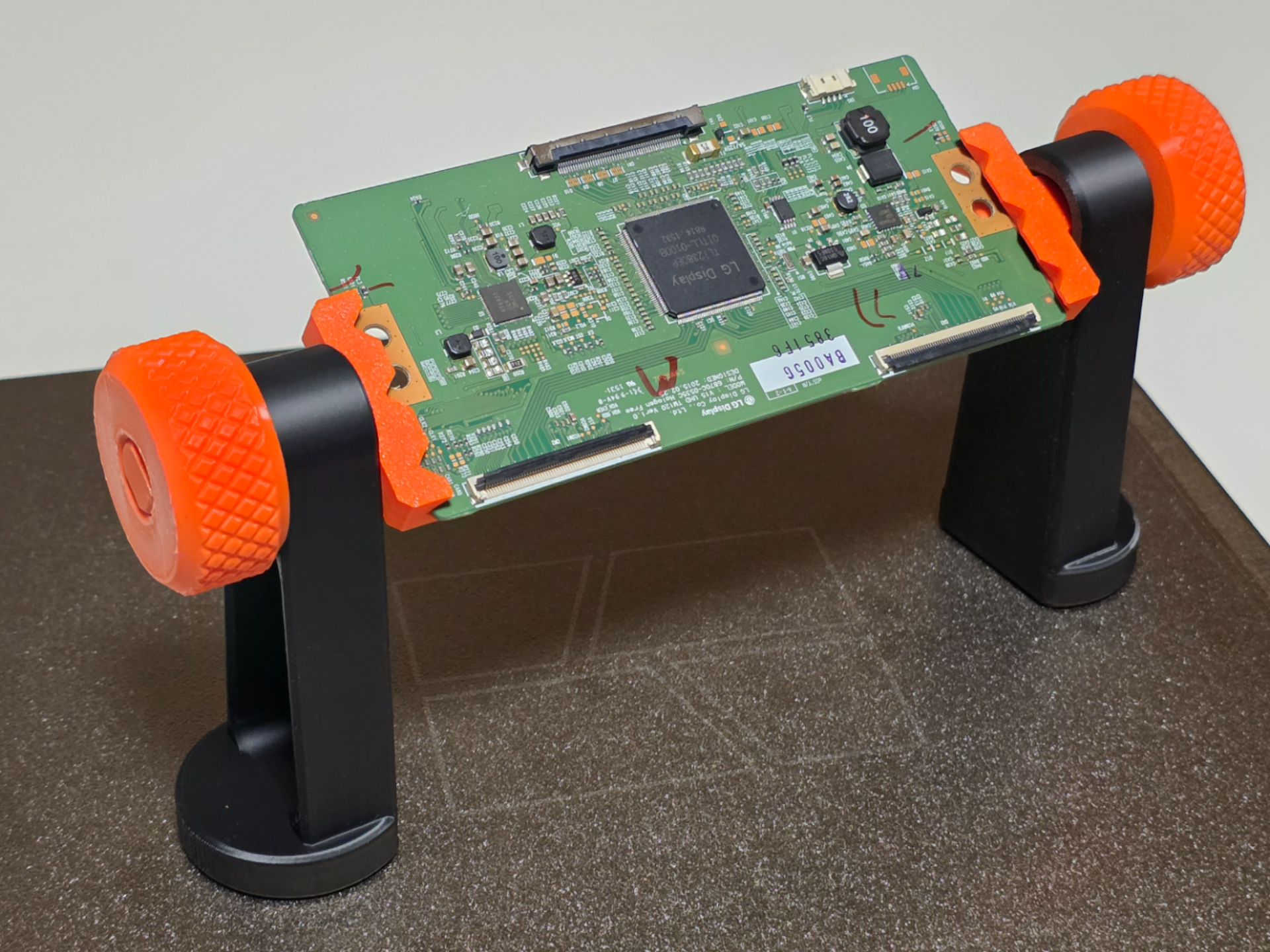

Magnetic Adjustable PCB Holder Tool

Magnetic PCB Holder that utilizes an old, repurposed build plate or any metal surface for maximum flexibility.

This model is a remix of an excellent PCB holder originally designed by squinn. I’d like to take this opportunity to thank him for his brilliant idea and even better execution—truly masterful work!

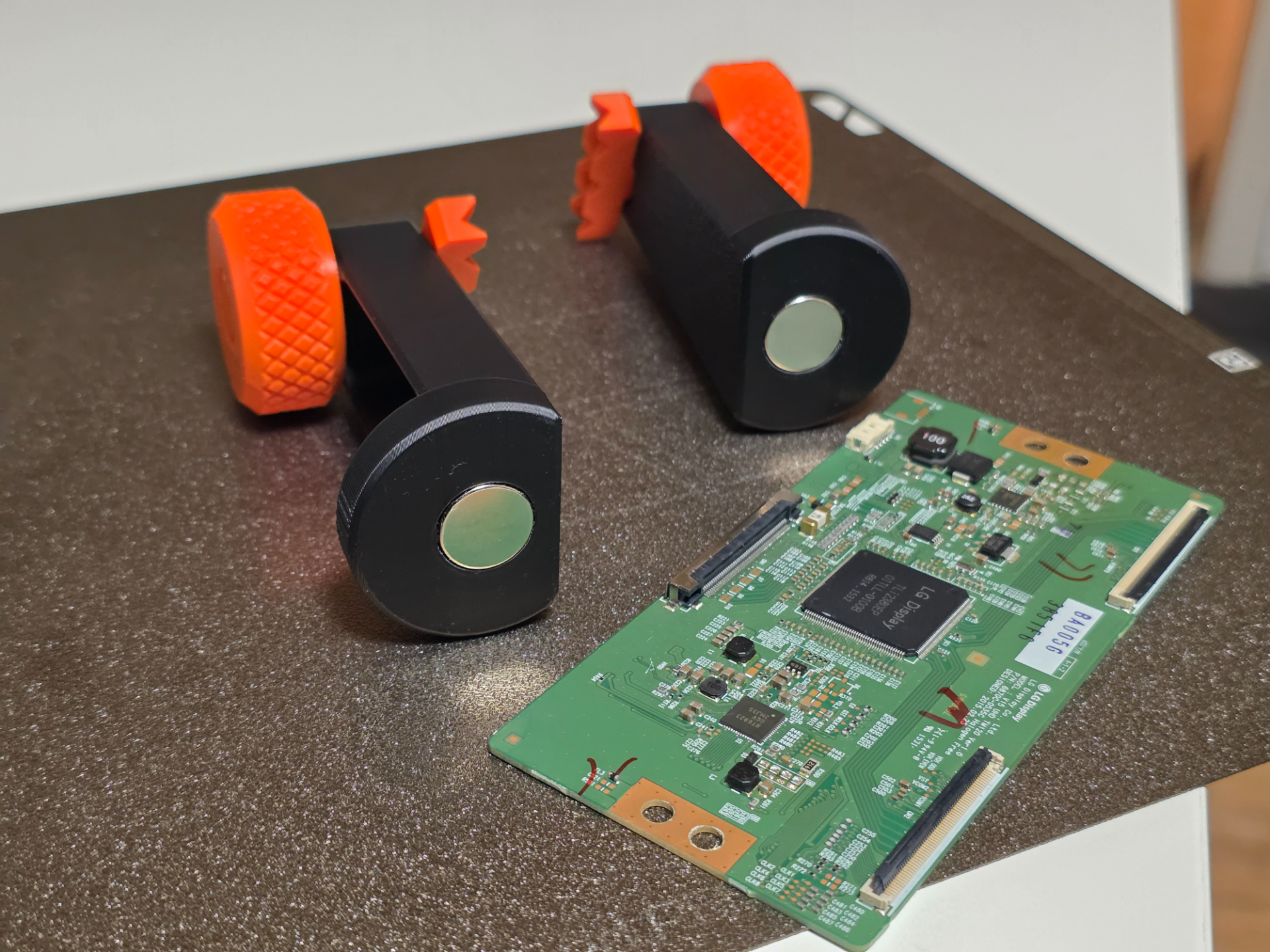

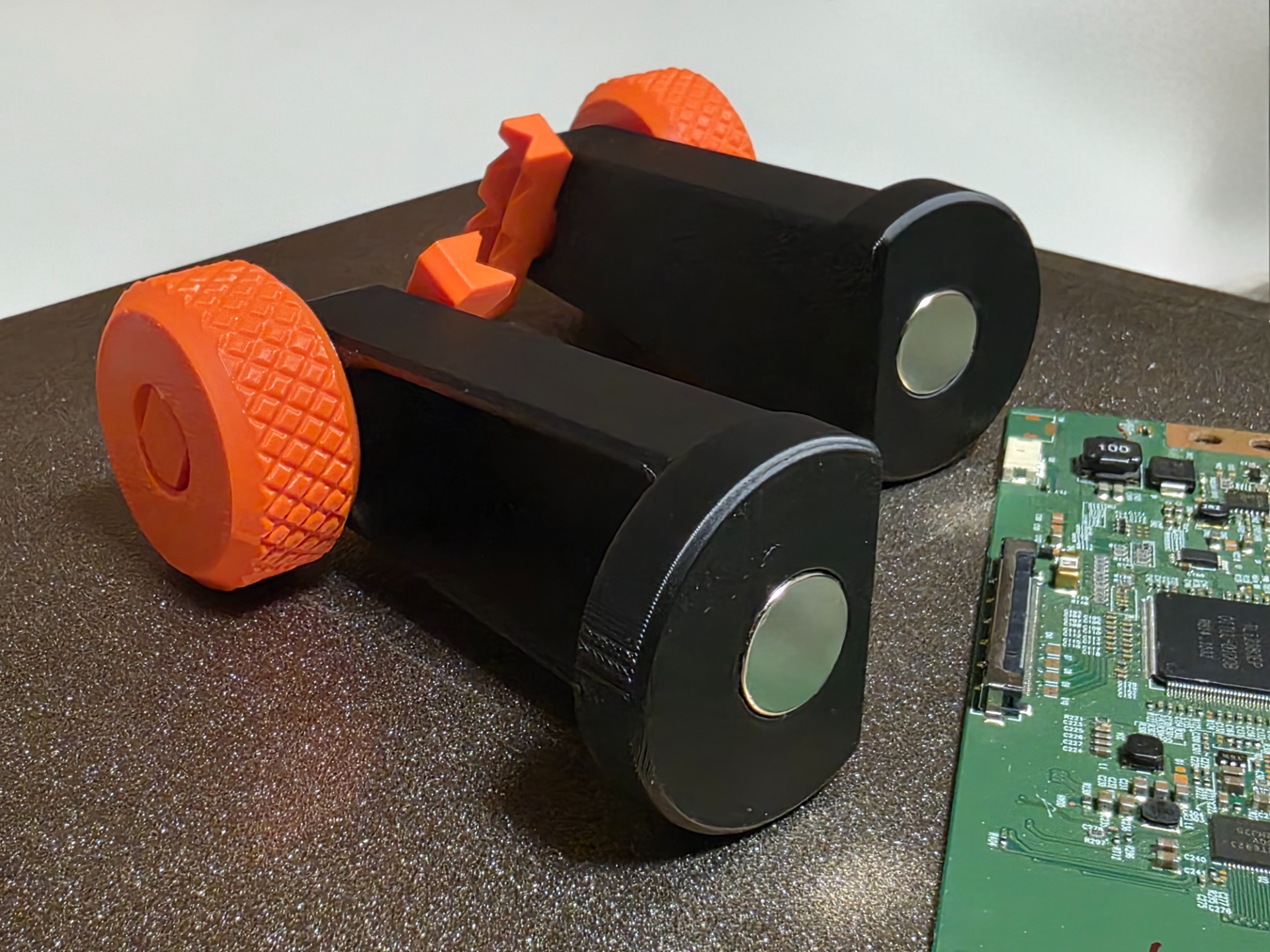

The main difference in my remix is that it uses magnets for attachment.

I recommend using strong magnets, and I have included two different versions in the print profile:

• For 15mm diameter, 3mm thick magnets
• For 20mm diameter, 3mm thick magnets

If you already have magnets of different dimensions, I have also provided the Fusion360 project file in .STEP format and a .STL file without the magnet hole, making it easier for you to modify it in your preferred 3D modeling software.

Design by Sanja 3D on MakerWorld (license: BY).
