Multiboard - Vallejo Acrylic Paint Bottle Holder

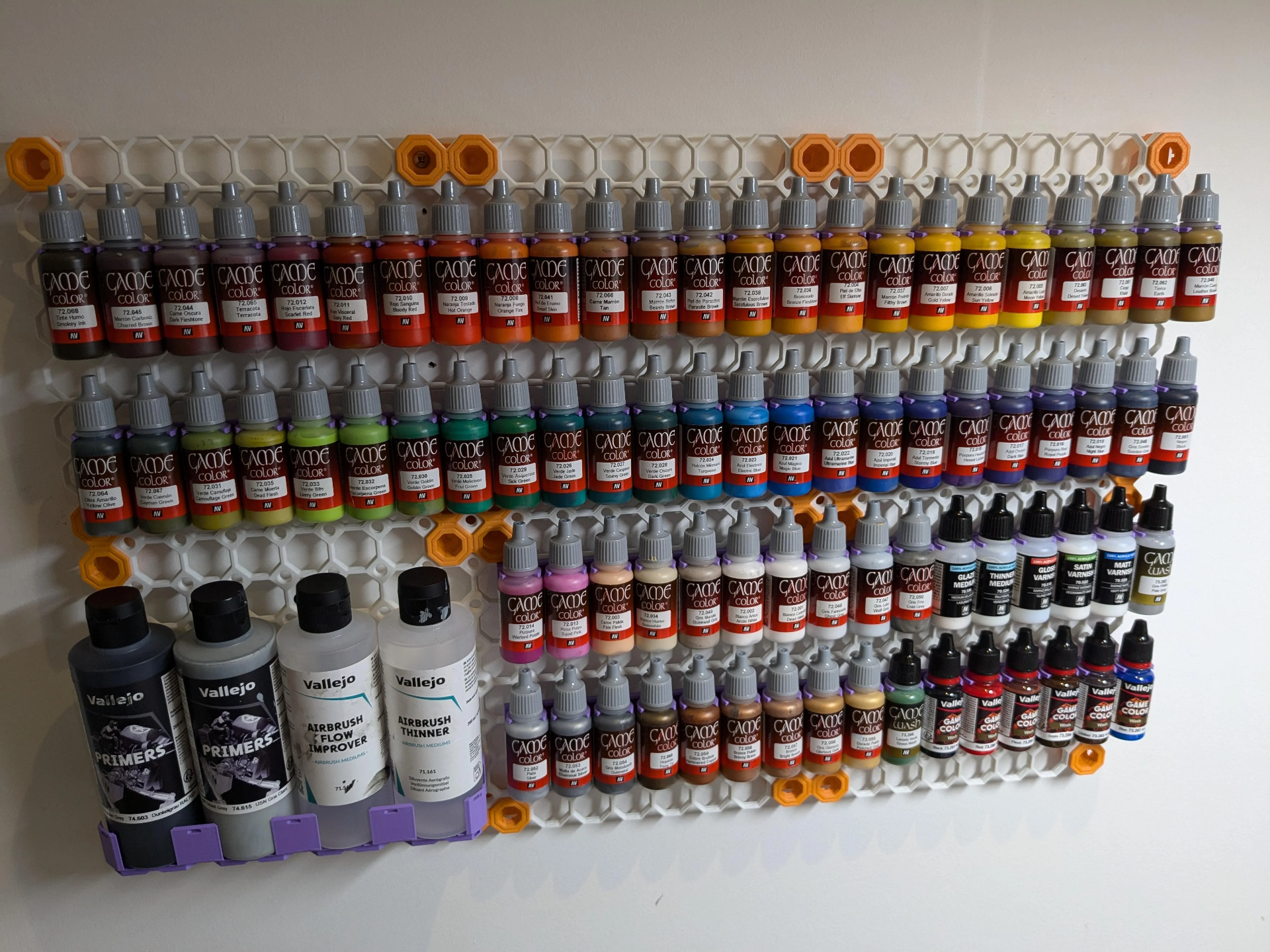

This is a minimal holder specifically for Vallejo paint bottles. I created it because I wanted a solution that showed the full bottle for easy colour recognition, while printing in less time and with less filament. It attaches to Multiboard using the peg holes and lite Multipoint attachment (see screenshots).

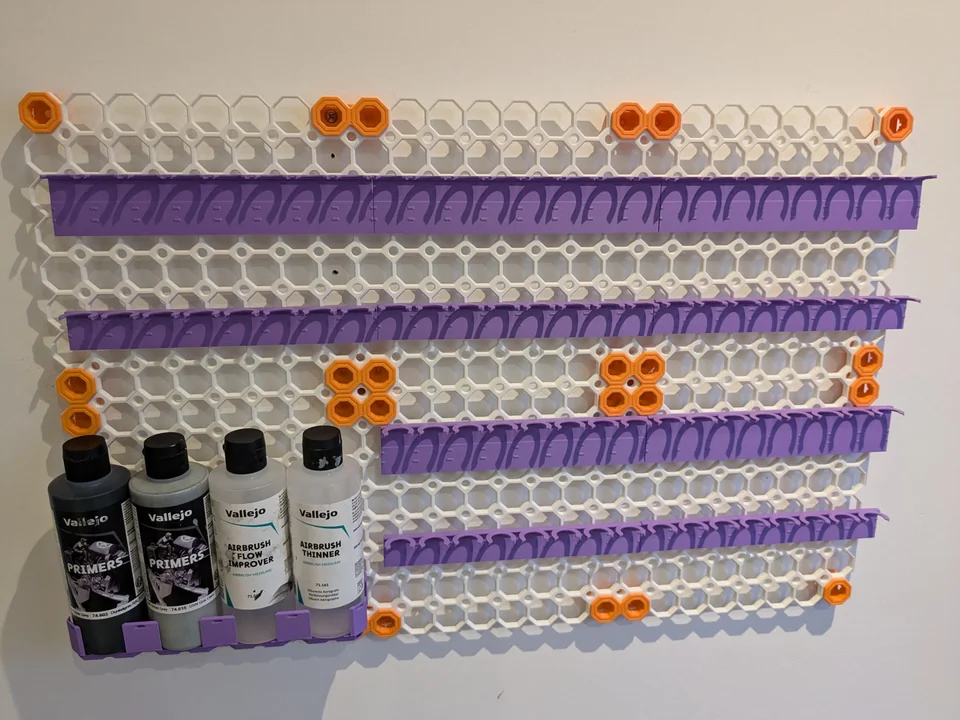

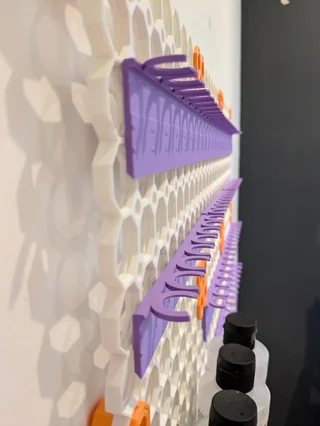

There are two versions because for optimal use of space, a Vallejo bottle needs 3.5 pegs spacing. So the ‘offset’ version raises the bottle 0.5 pegs (25mm). The two versions are then inserted alternating 3 and 4 peg separation which ensures even bottle spacing. If that doesn't make sense, it's much easier to look at the images.

It is remixed from the default Multibin, because it uses that Multipoint connector.

The 50mm bottle holders in the bottom left of the photo can be found here: https://makerworld.com/en/models/700111#profileId-629464

The connector for Multiboard is the Small Thread - Lite Multipoint - https://thangs.com/designer/Multiboard/3d-model/Small%20Thread%20-%20Lite%20Multipoint-1123321

Design by Sambi on MakerWorld (license: CC0).
