Only one - Geeetech&Co AMS Lite Adapter ID 70-78mm

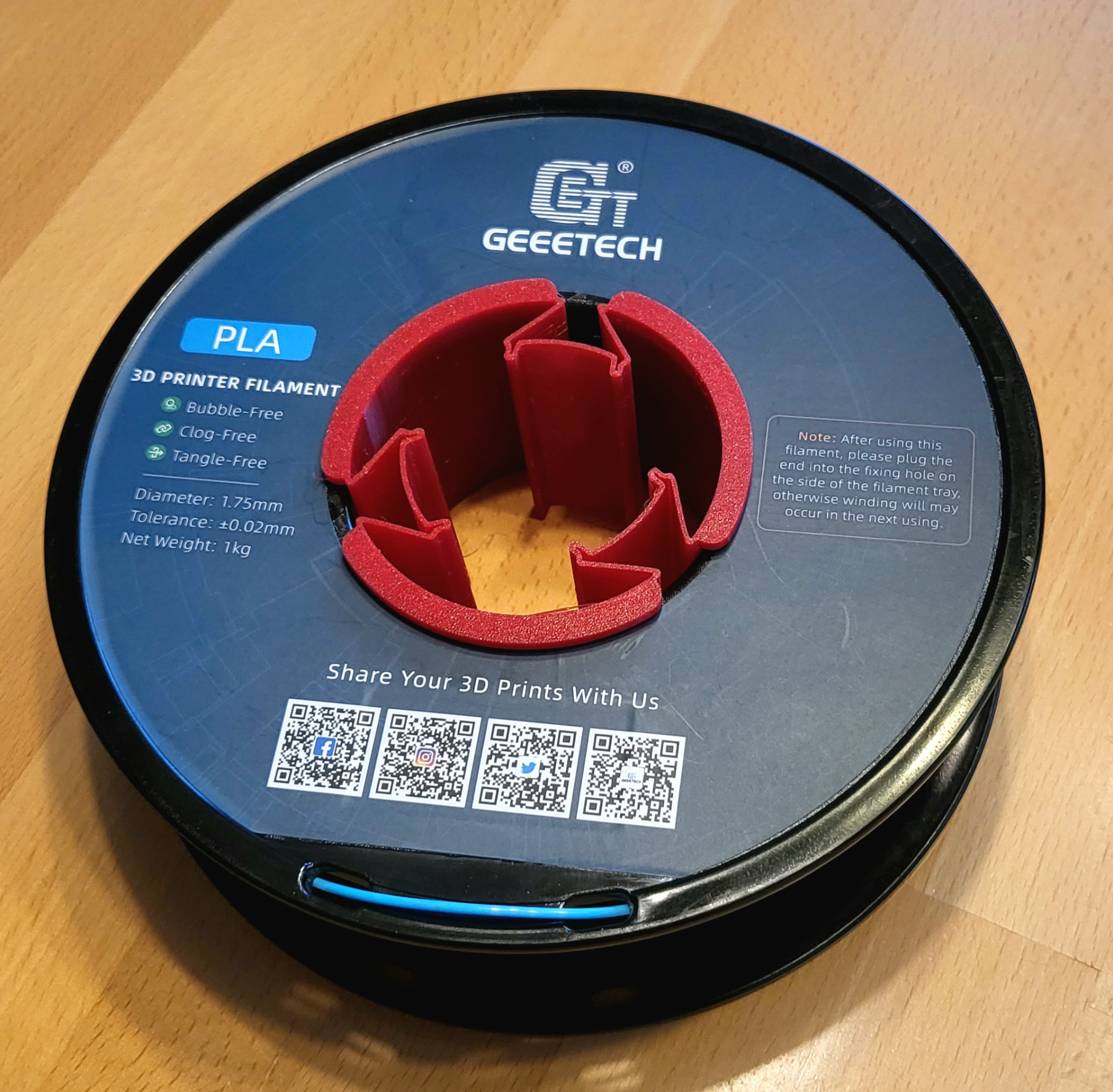

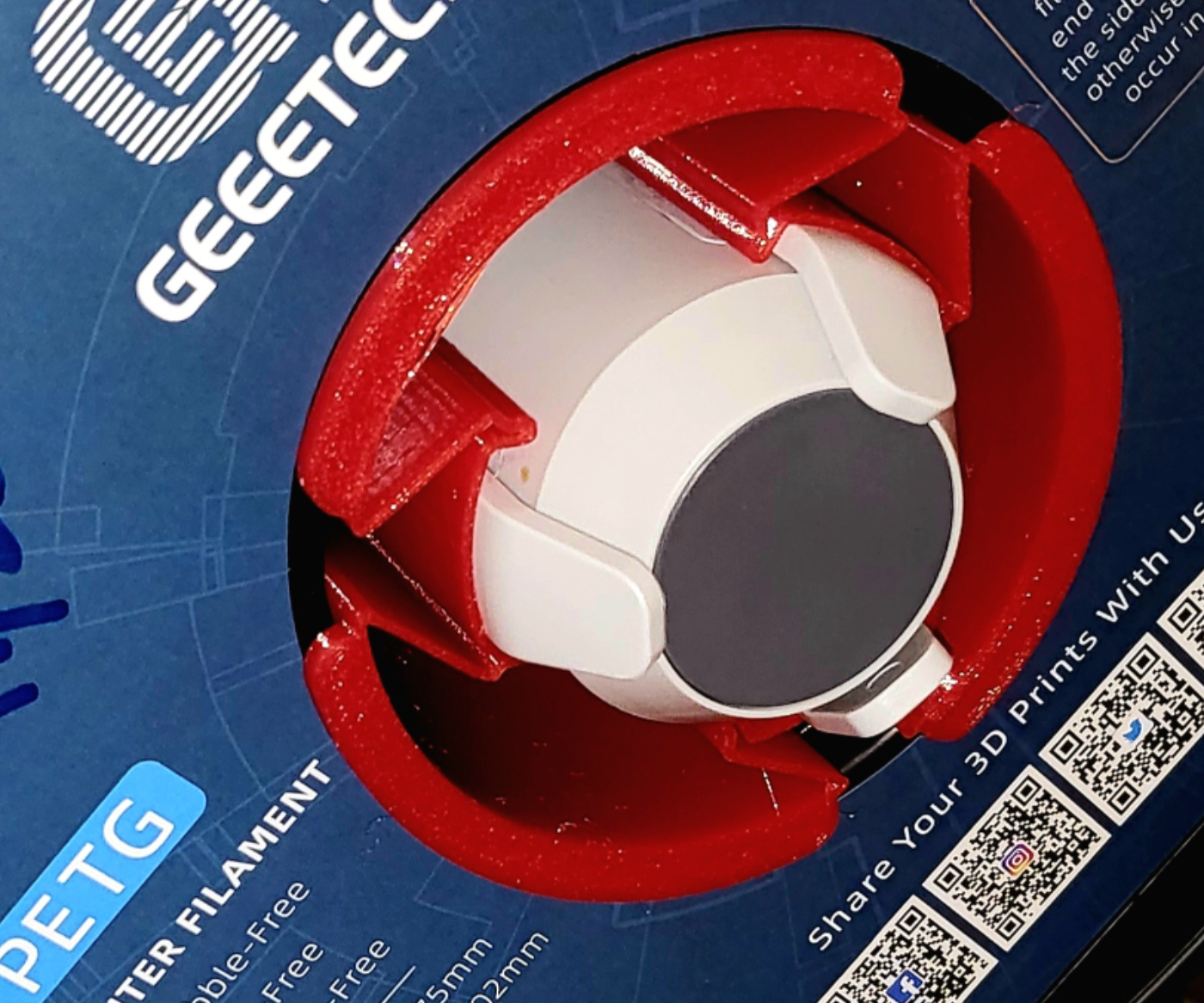

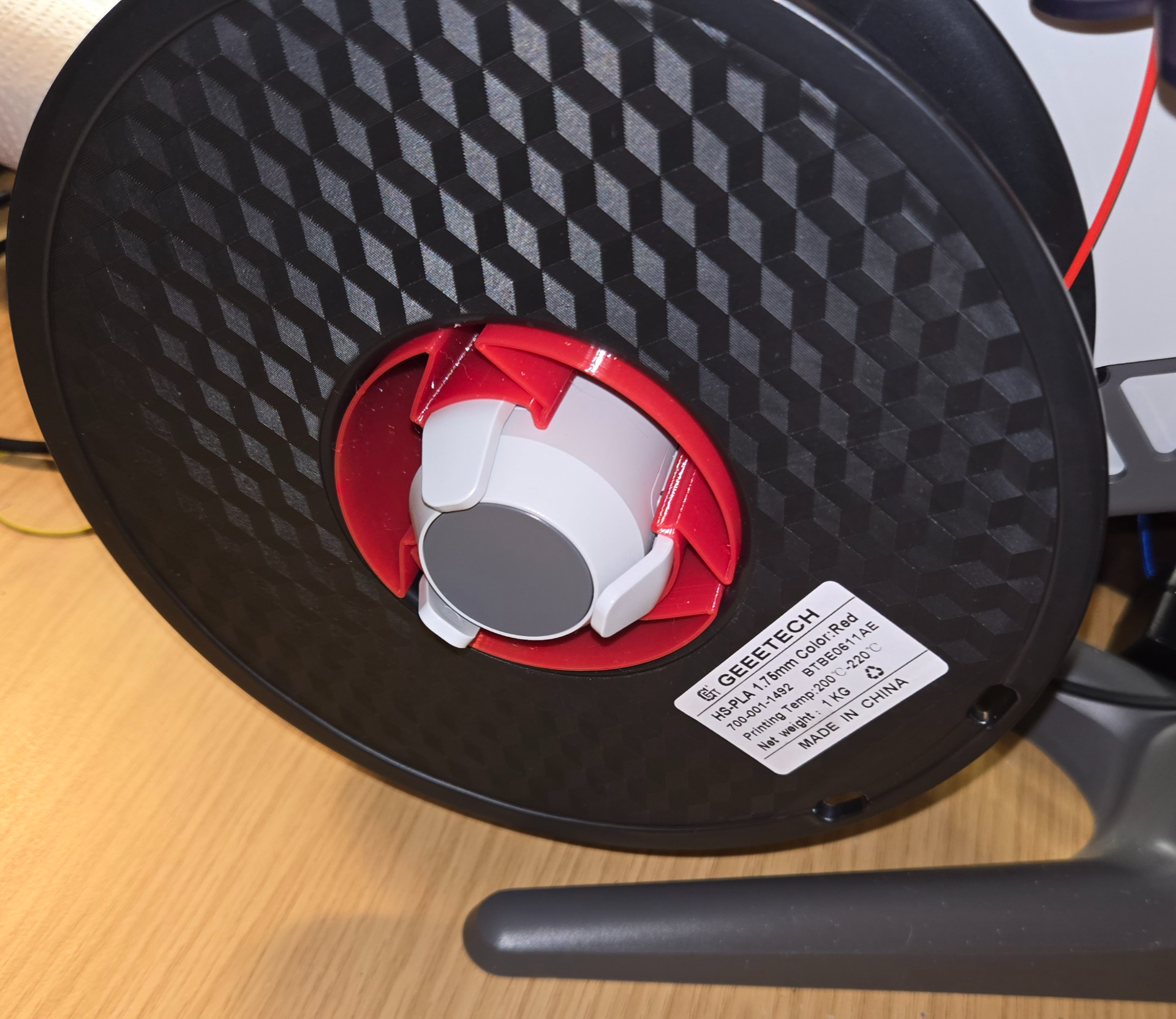

Compared to the original model, it consists of only one part, which makes it much easier to fit the coil.

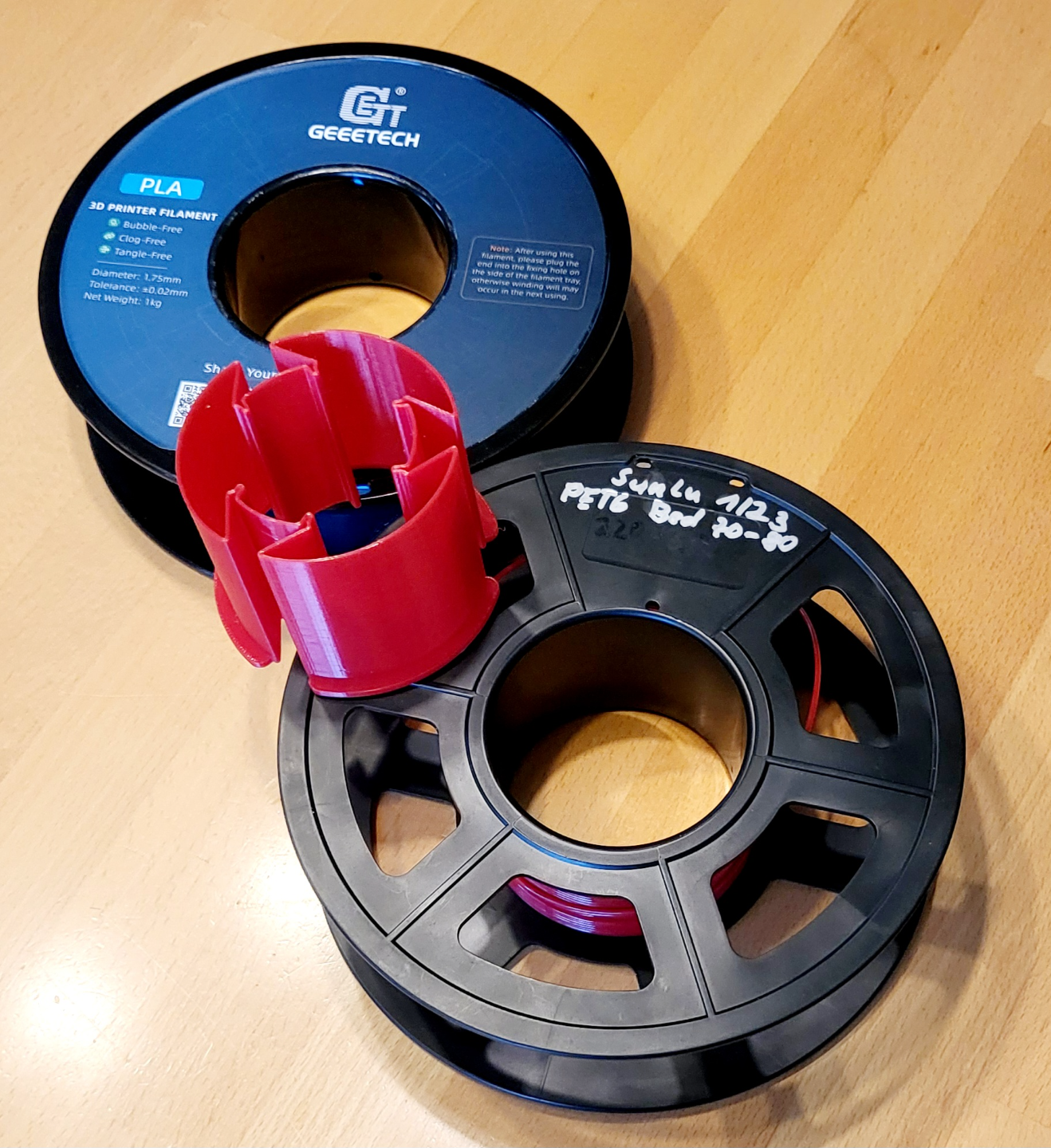

This adapter adapts to the inner diameter ID (approx. 70 -78 mm) of various coils.

I have tested it with GEEETECH, Jay-O, Giantarm and Sunlu (73 mm) coils.

Recently there are also Sunlu coils with an inner diameter of 63 mm, for which the adapter is not suitable.

Best results with:

• PETG, but PLA also works
• Seam position: random
• Wall generator: Arachne
• Layer: 0.2 to 0.28 mm

Update 13.11.2024

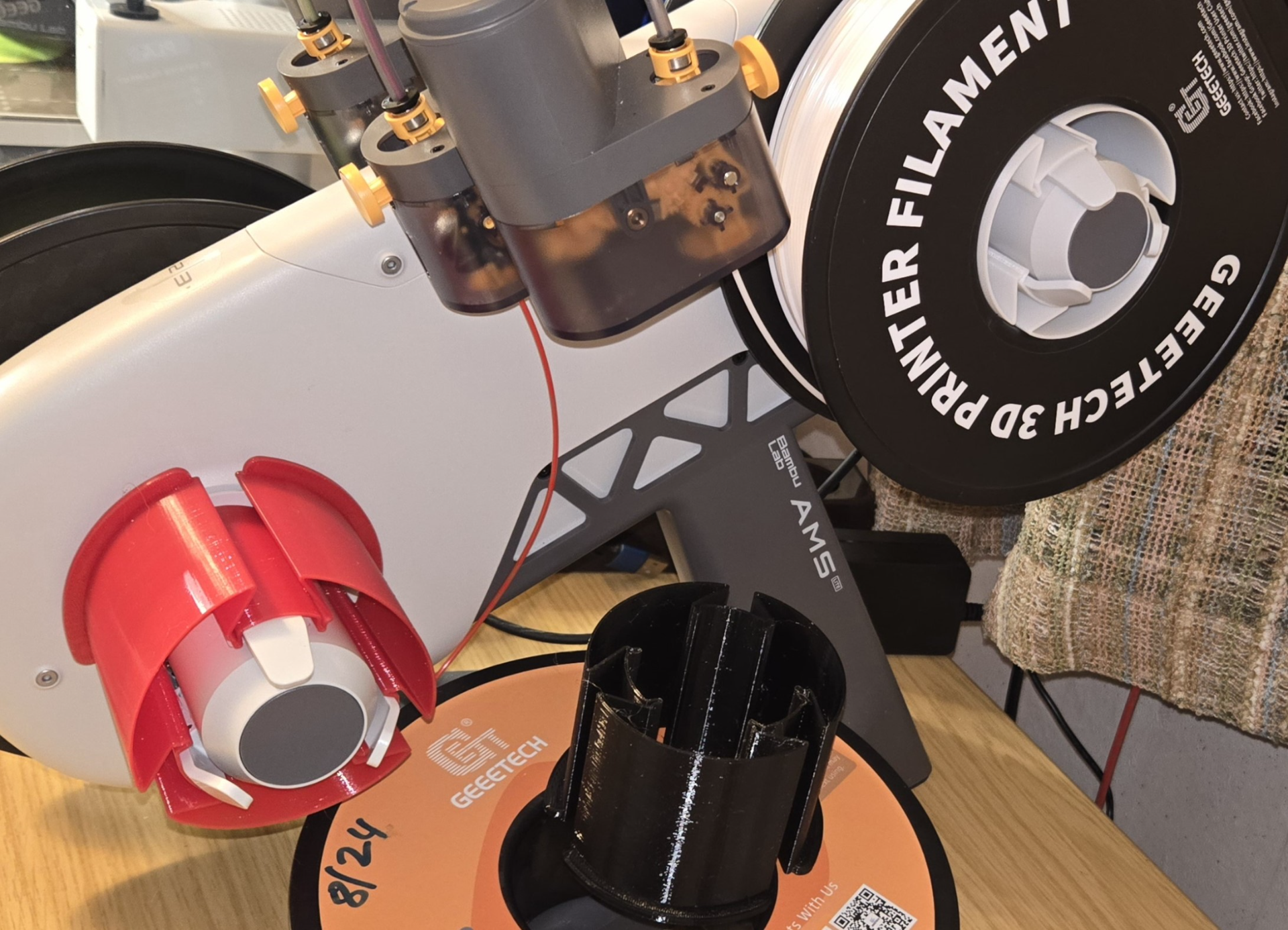

Handling is considerably simplified when the adapter is rotated 180 degrees and placed on the bracket (see last picture).

This makes it easy to change the coil without having to remove the adapter from the AMS-Light bracket. The only requirement is that the coil has sufficient friction on the adapter, but this works perfectly by me.

Design by becki05 on MakerWorld (license: BY).
