Open Source Vacuum Turbine Module (Fully Printable)

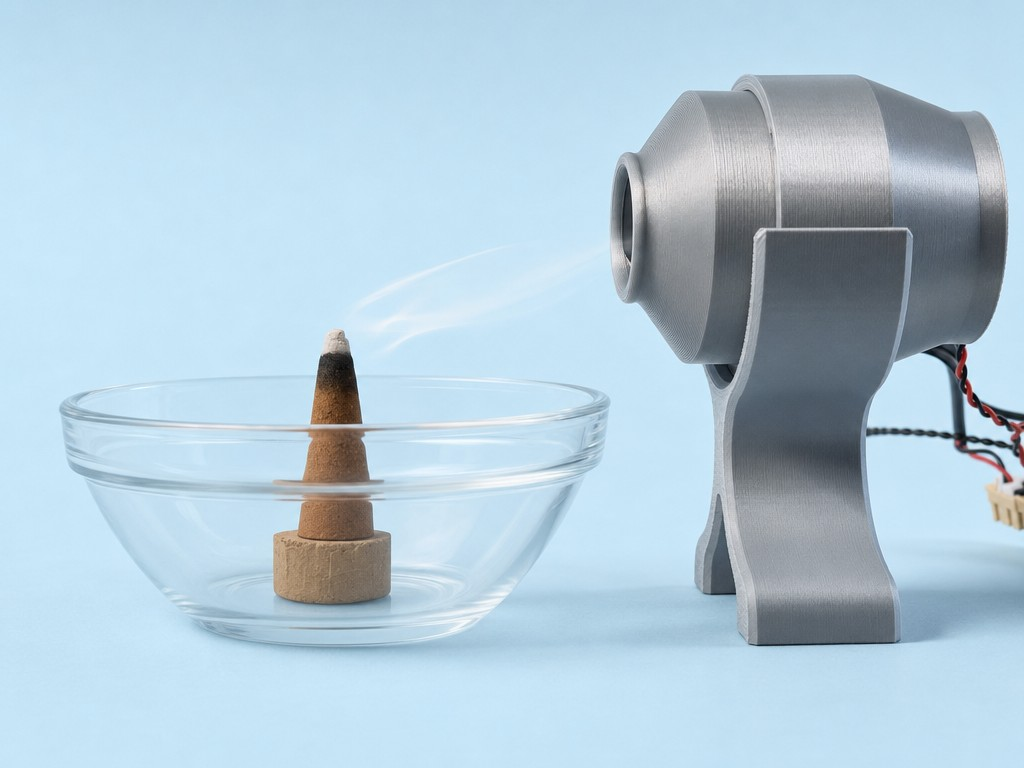

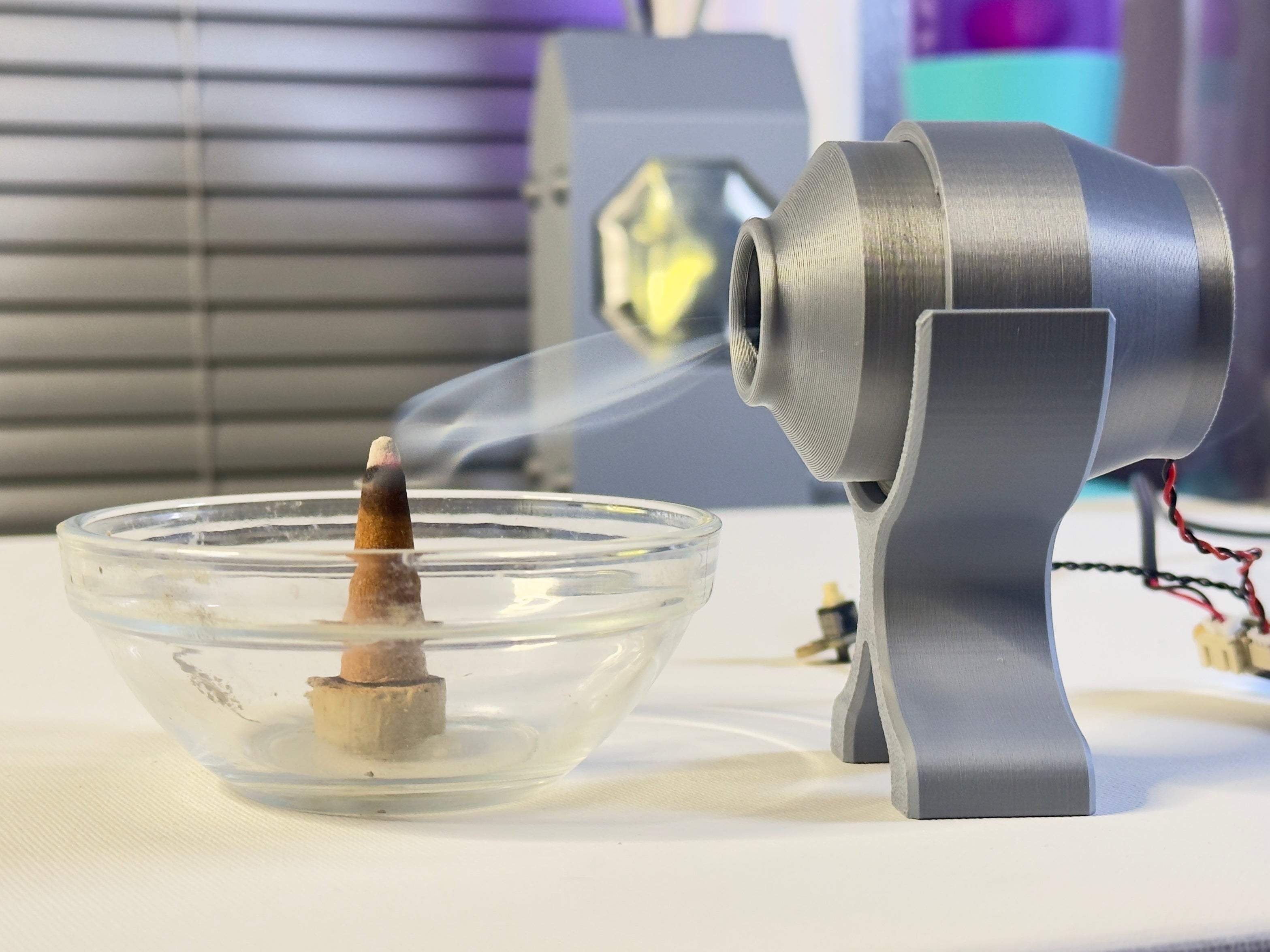

This is a fully printable, open-source vacuum turbine set designed to be easily incorporated into your own projects. Whether you are building a custom vacuum, a fume extractor, or experimenting with cyclonic separation, this module provides a compact and reliable air-movement solution.
I have included the STEP files so you can remix, modify, and integrate this turbine directly into your own housing designs.
Key Features

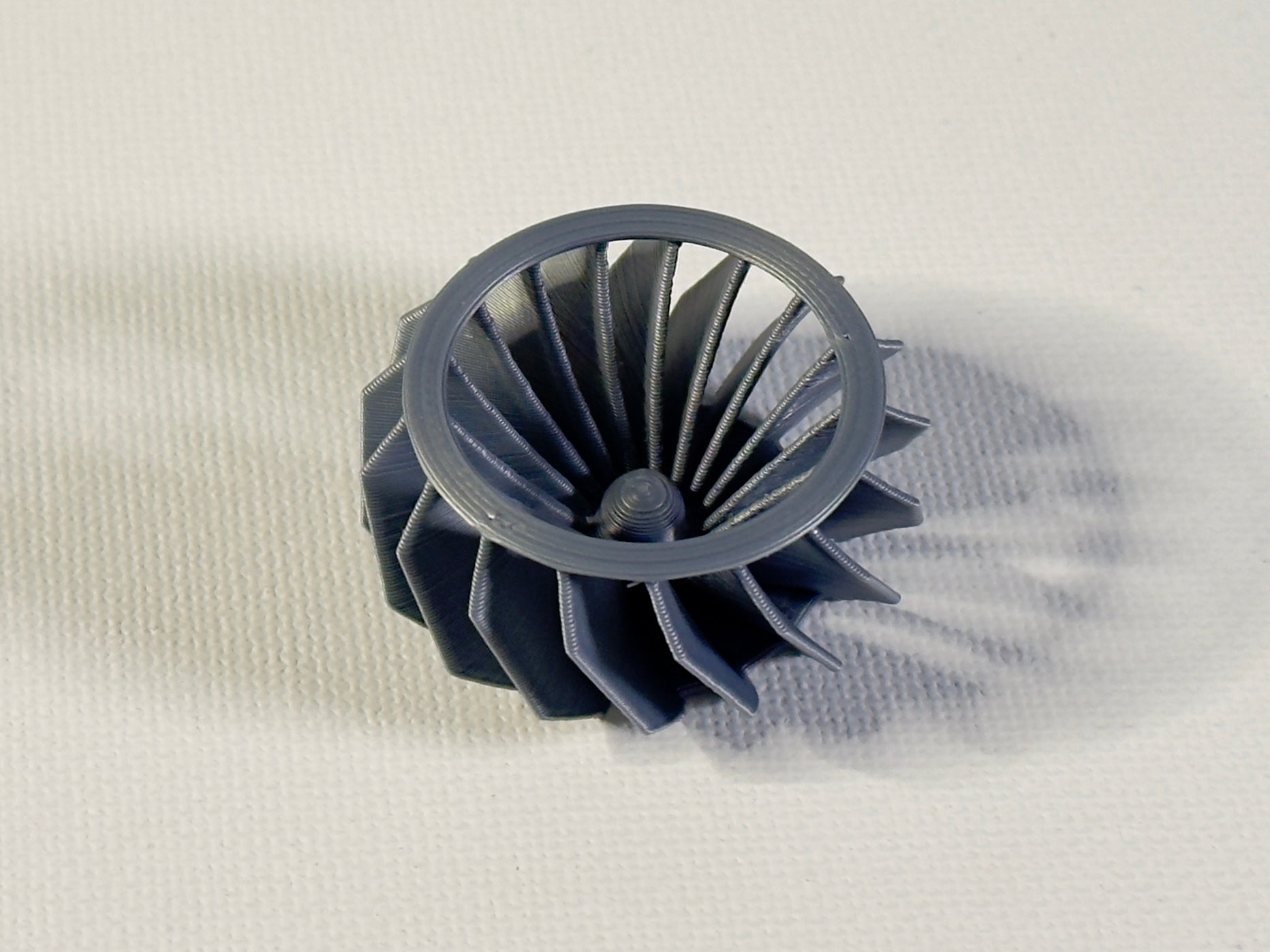

- Fully Printable: Custom turbine impeller designed for optimized airflow.

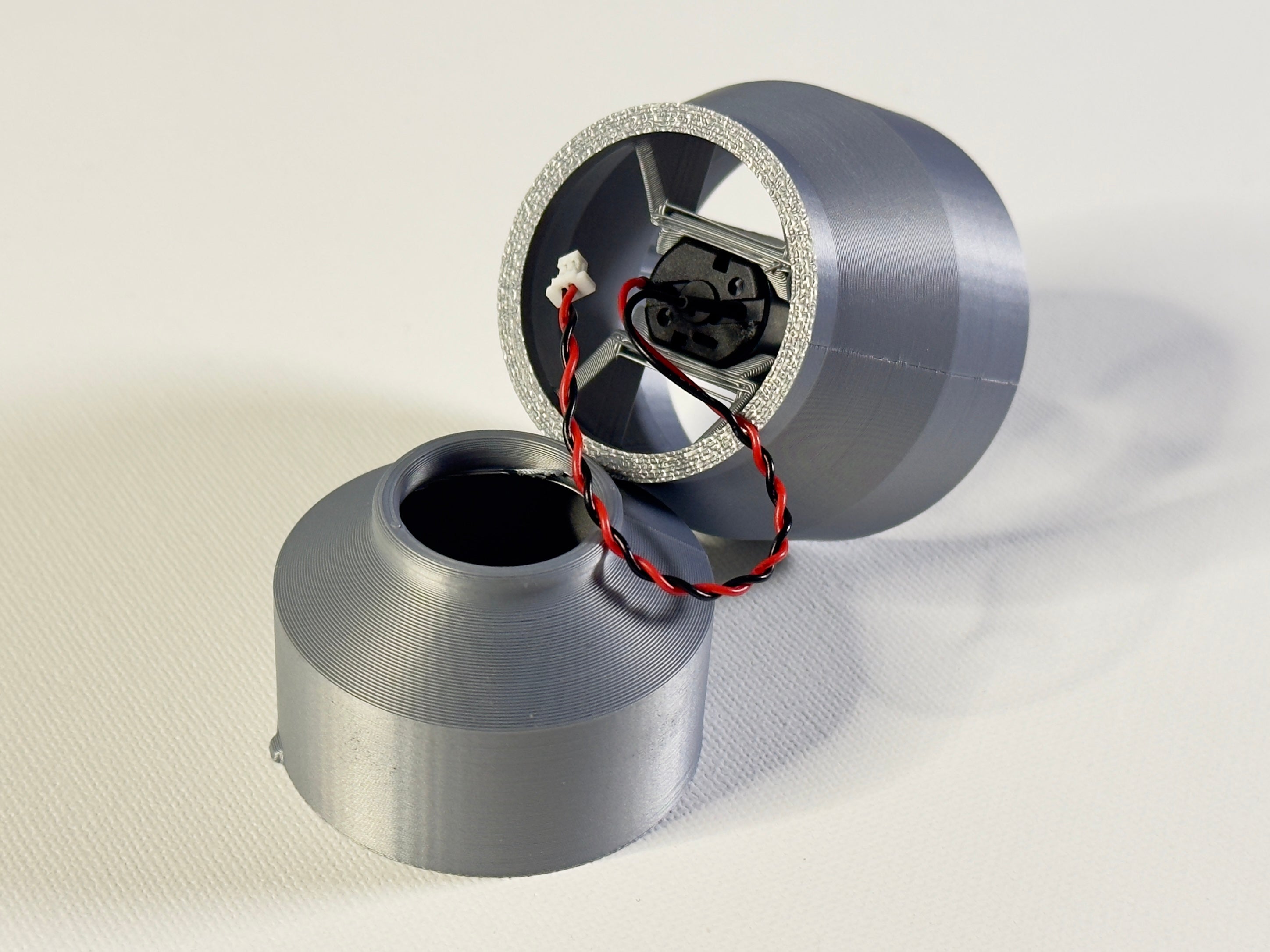

- Twist-Lock Housing: The housing uses a secure slide-and-twist mechanism (bayonet style) for easy maintenance and assembly without screws.
- Open Source: STEP files included for full remixability.
- Hardware: Designed around a simple 030 fan/motor.
Bill of Materials (BOM)
- 1x 030 Fan/Motor
- Printed Parts (Housing, Impeller, Cap)
Assembly Instructions

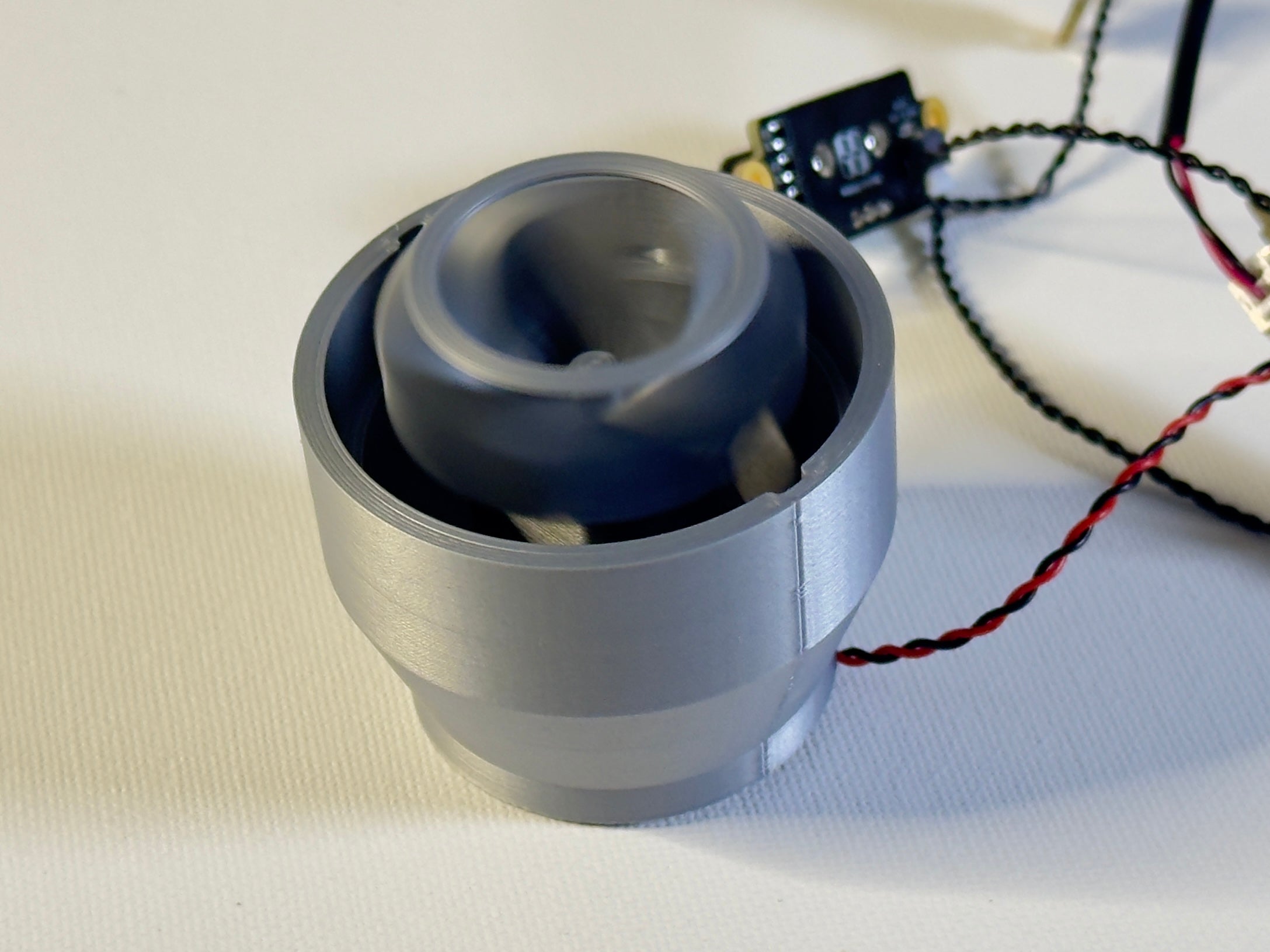

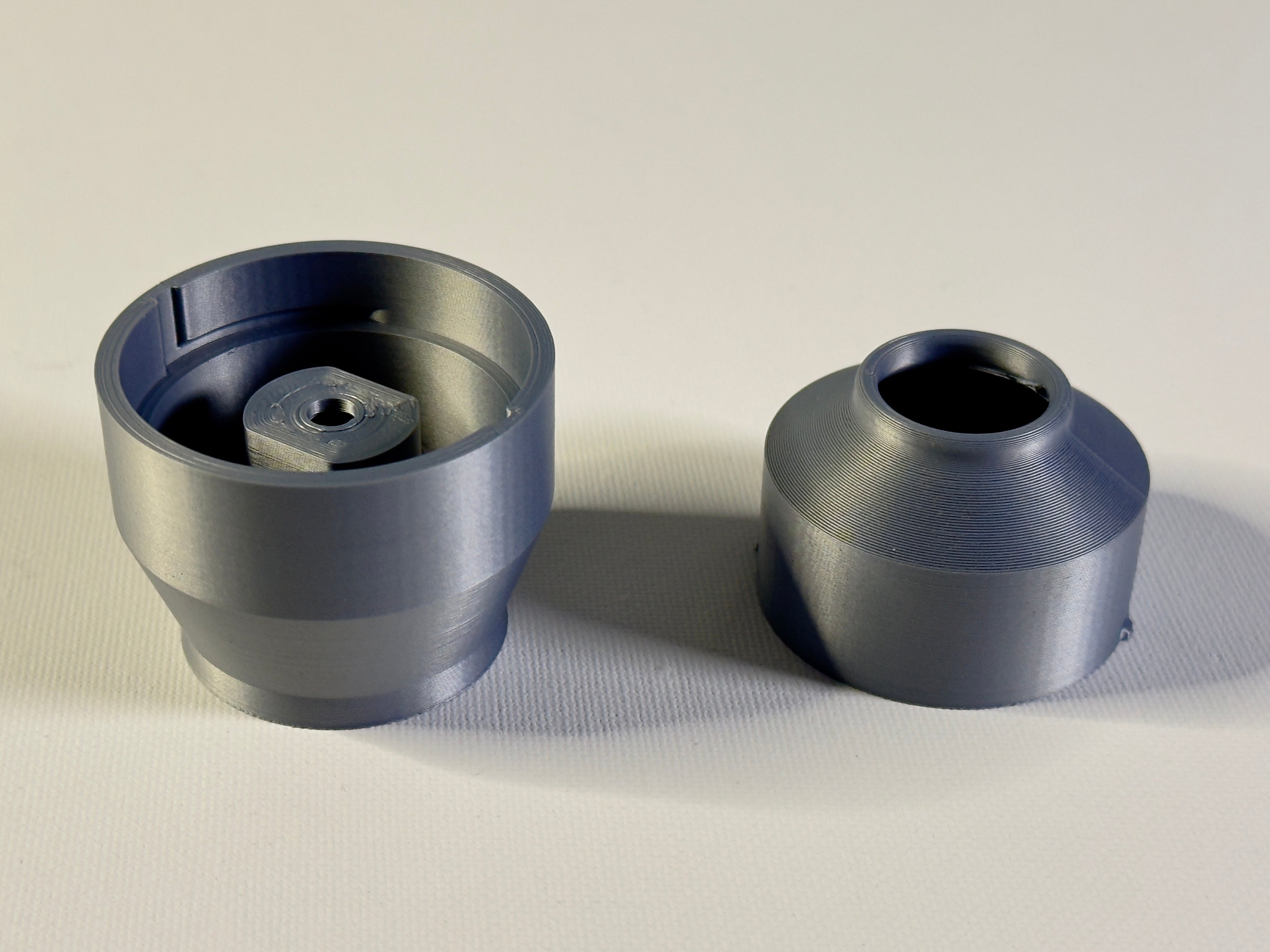

Install the Motor: Seat the 030 motor into the main housing.

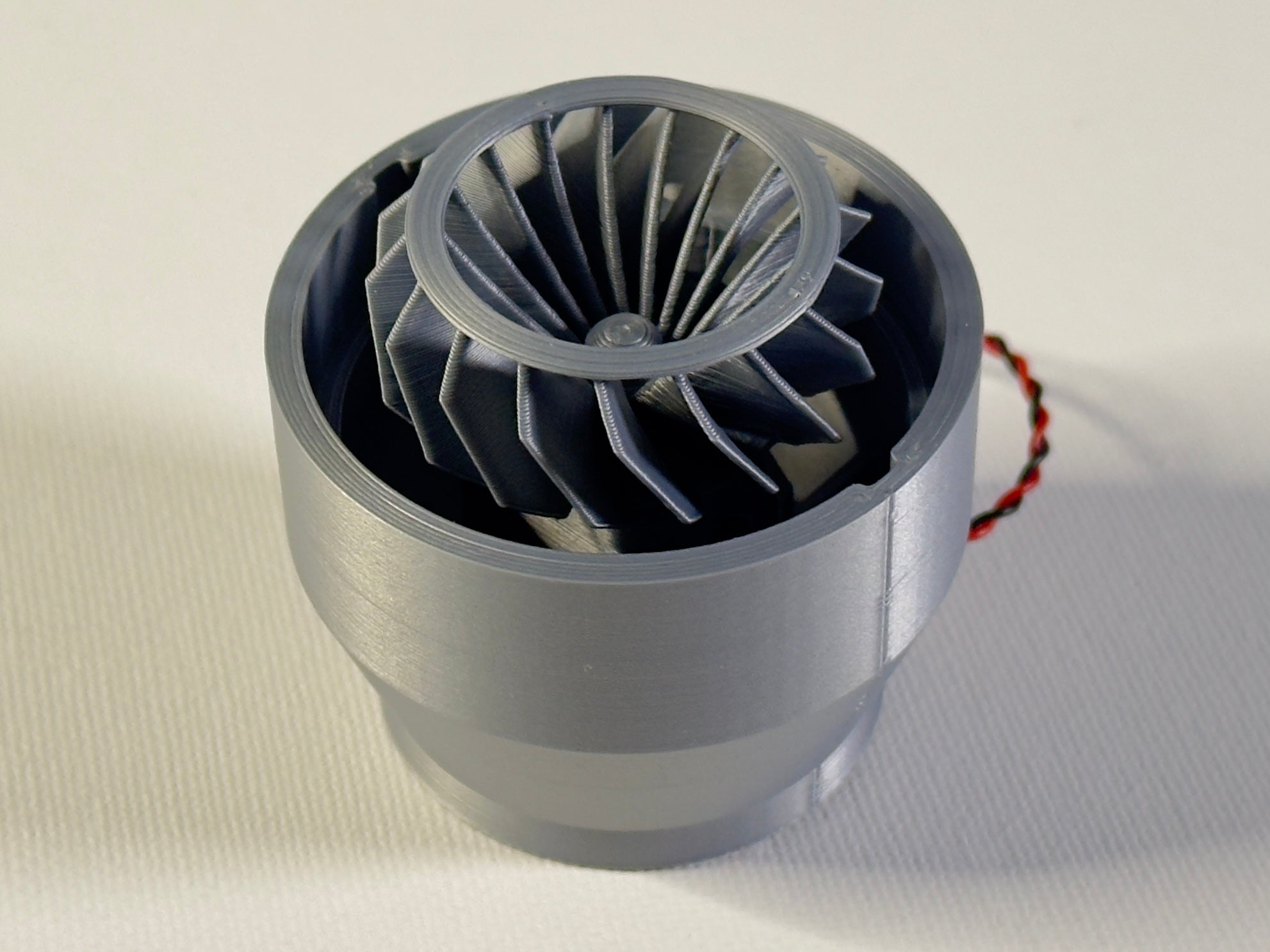

Mount the Turbine: Push the printed turbine impeller onto the motor shaft.
⚠️ IMPORTANT: Apply pressure only with your thumb in the very center of the blade hub. Pushing on the fins may damage the geometry or snap the blades.

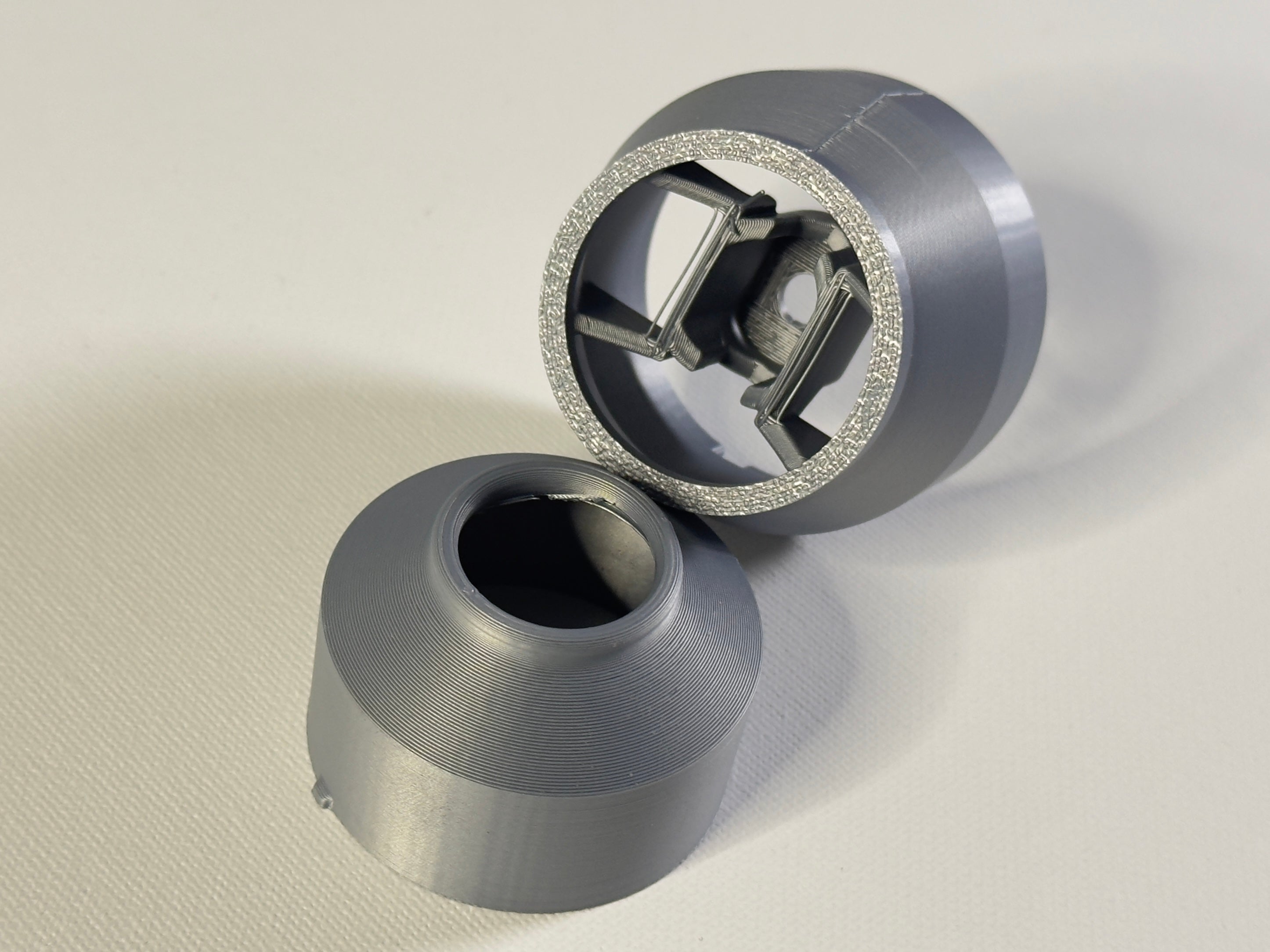

Close the Housing: Align the cap, slide it into place, and twist to lock it securely.
Print Settings
Material: PLA+ recommended for the impeller (for stiffness and durability at high RPM).
Walls: 3+ walls recommended for the housing.
Supports: Can be printed without supports, though organic supports keep the overhangs clean.
Design by Joshuaisodd on MakerWorld (license: BY-SA).
