Panda Touch Lowrider Mount

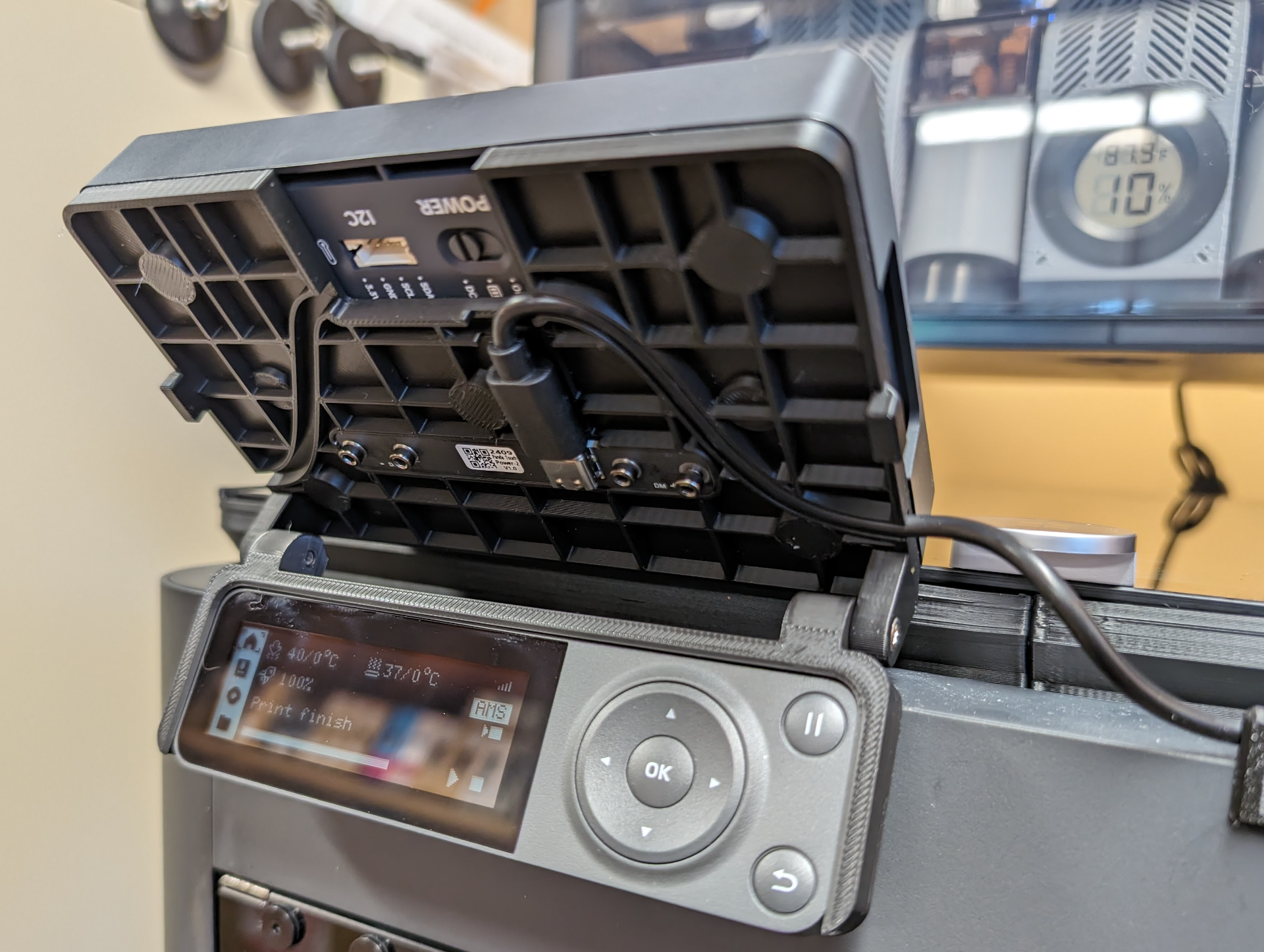

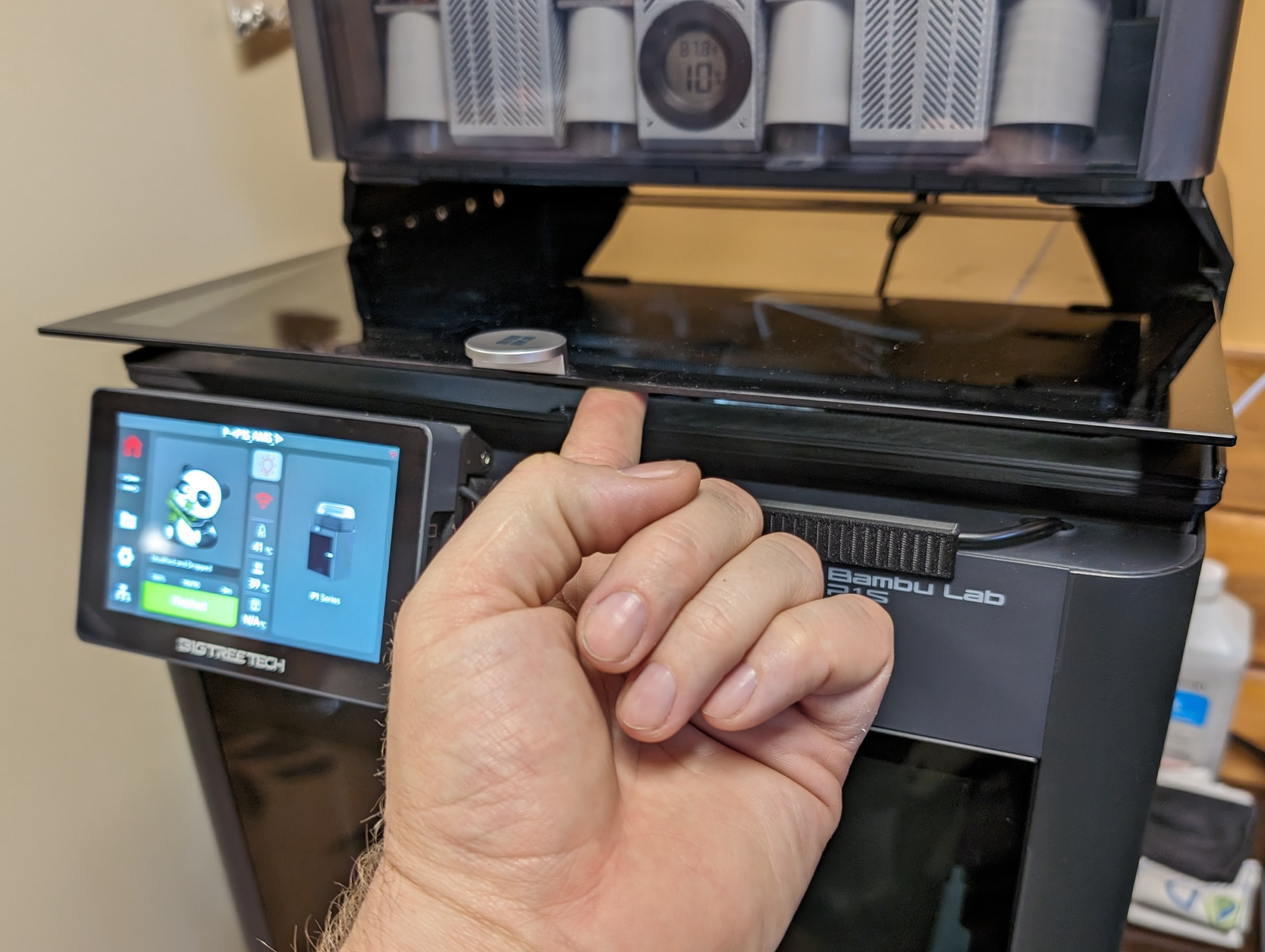

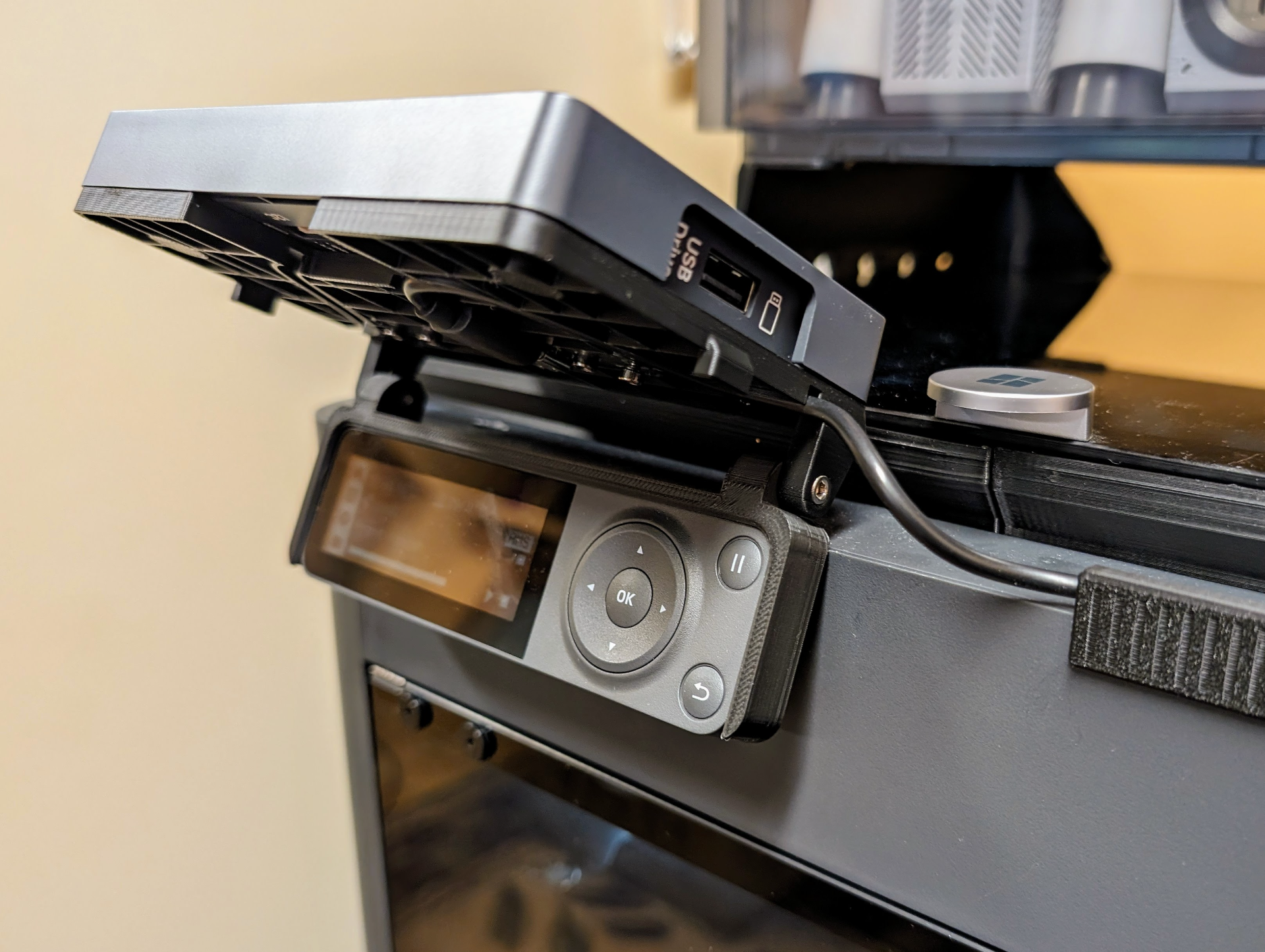

This is a Bigtreetech Panda Touch Mount and is a remix of the great work by @Pretzel3D. The issue I had with the original was it sat too high for the top glass to be removed when I used the AMS Riser by @SpectreGadget. So this is my LowRider version which allows the glass to be removed, but still avoids the door below the screen.

You will need Qty:5 - 8mm diameter x 3mm thick neodymium magnets to glue into the mount (Unless you want to pull the ones from the factory mount which I wanted to avoid)

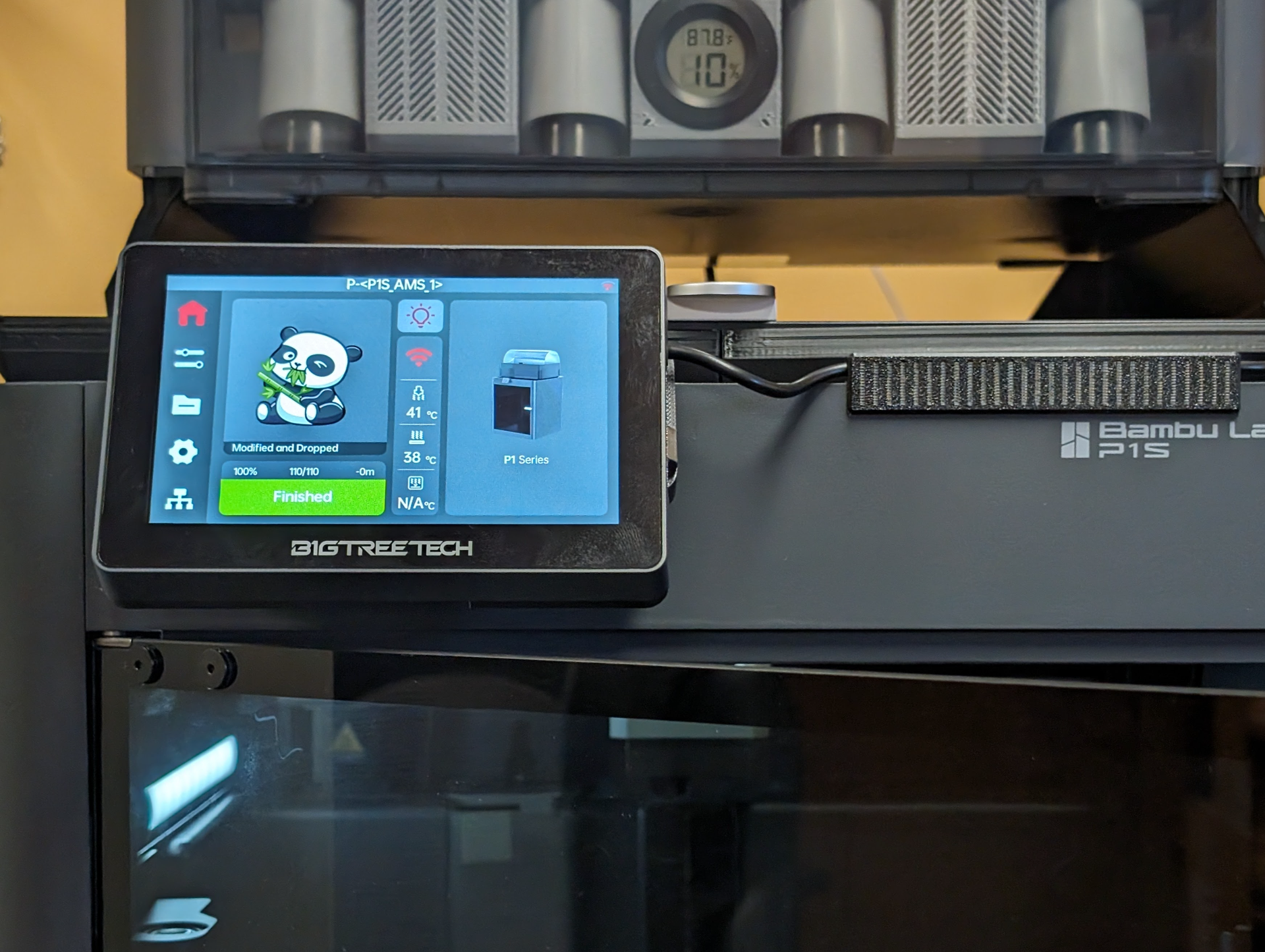

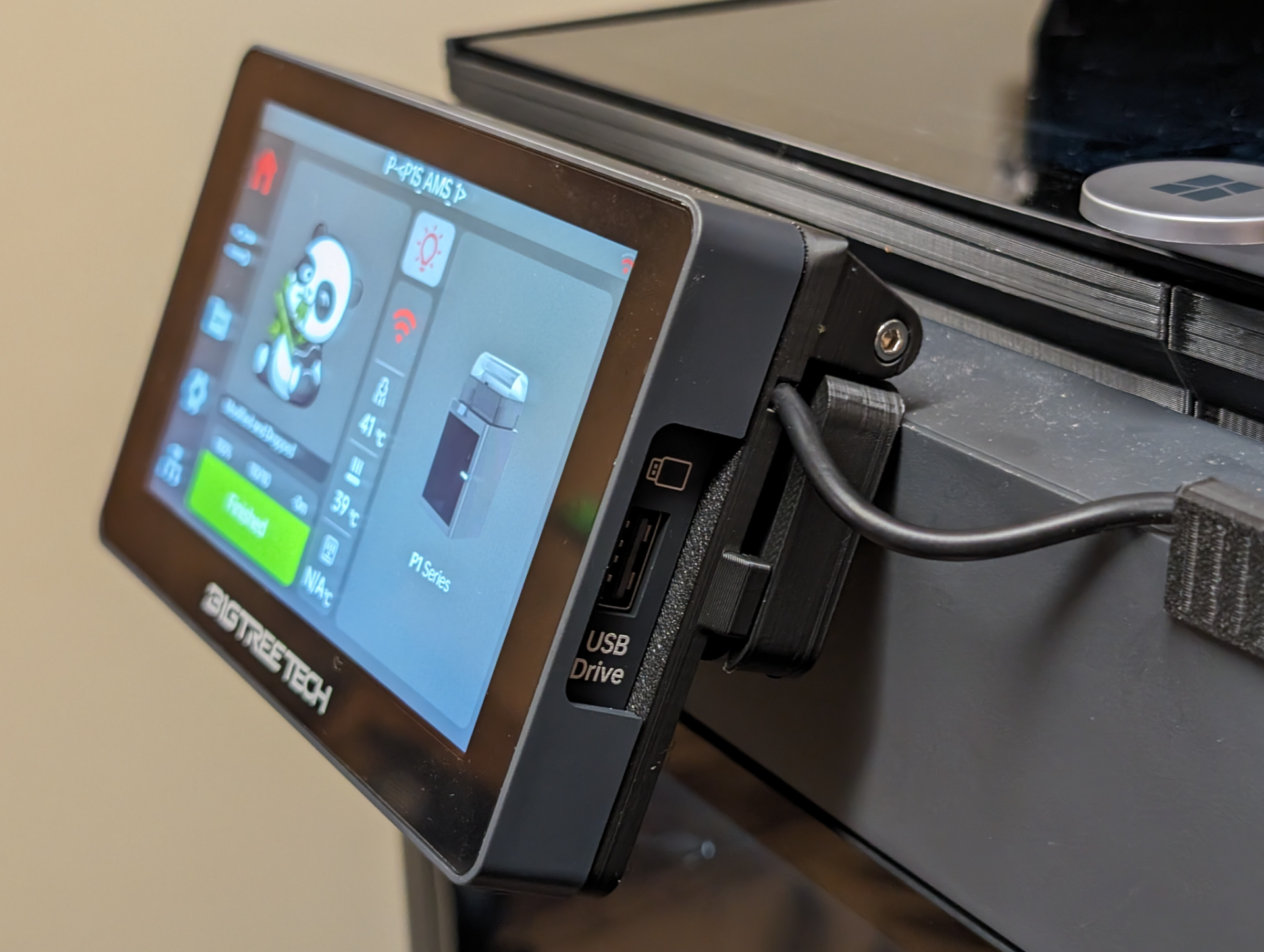

I also included a cable guide which I printed and double sided taped in place to route the USB-C cable out to the screen.

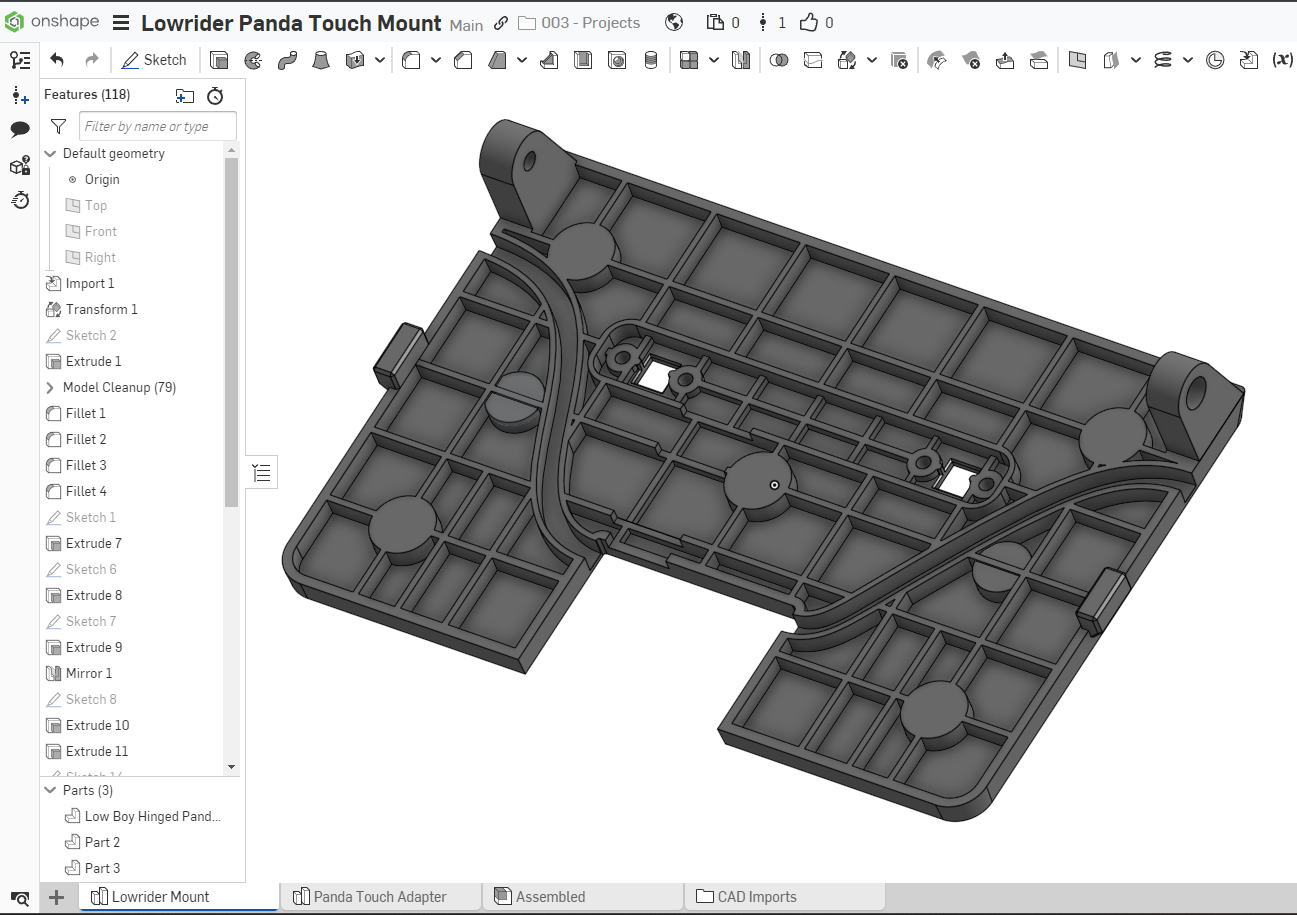

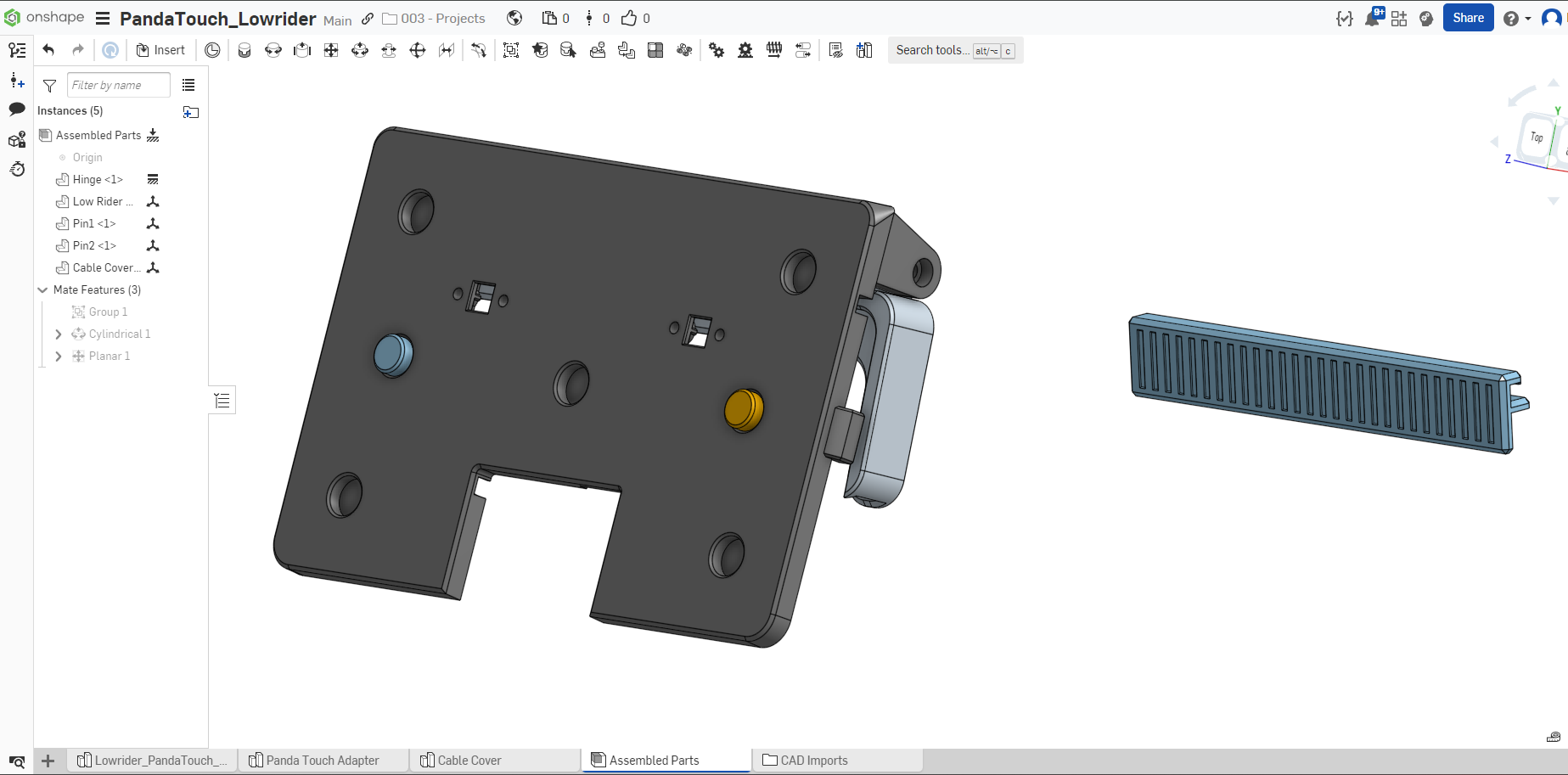

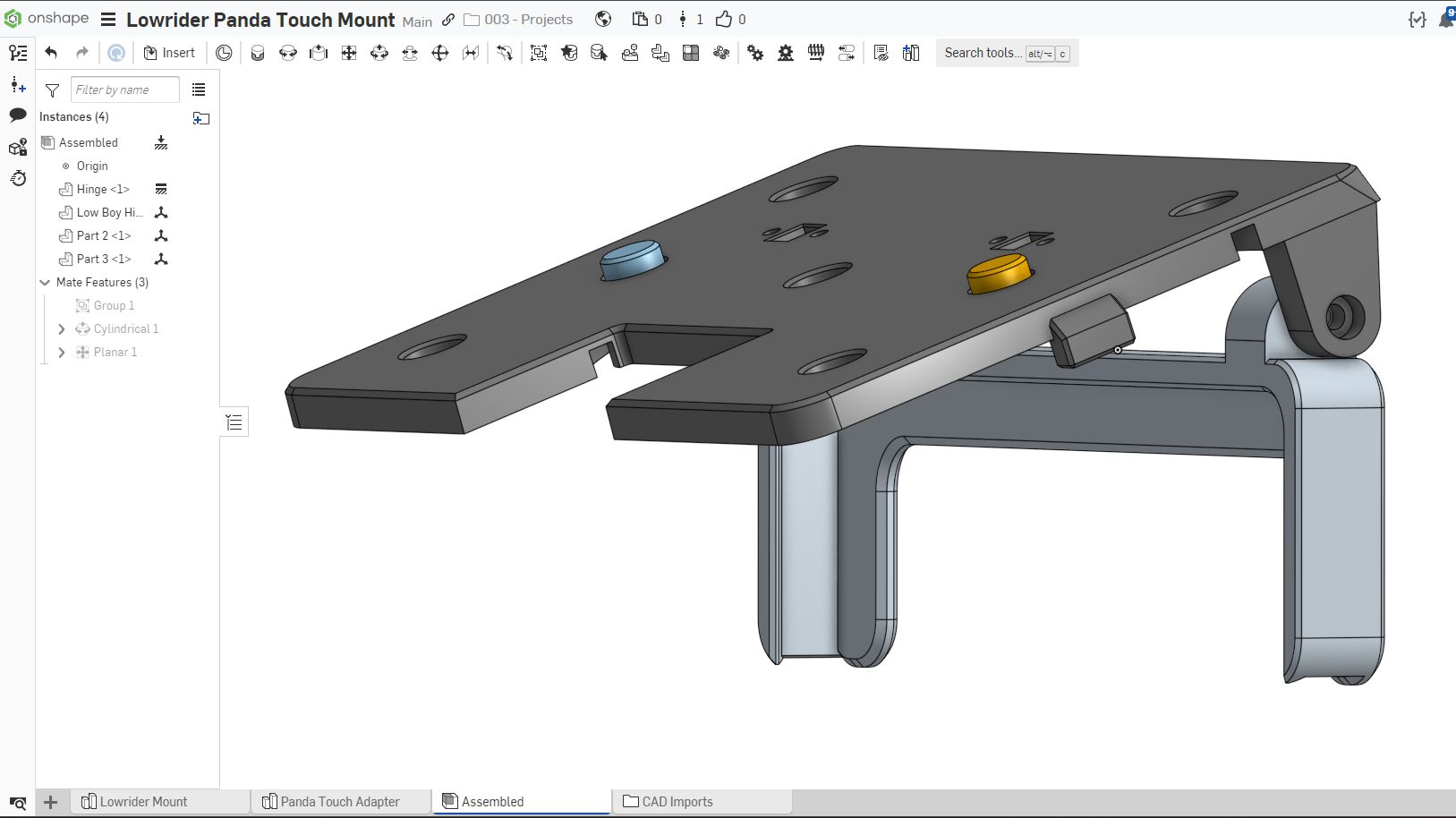

I hope you find it useful. And if you want to do any remixes yourself, I have included a STEP file, and have a link to the Onshape file I used.

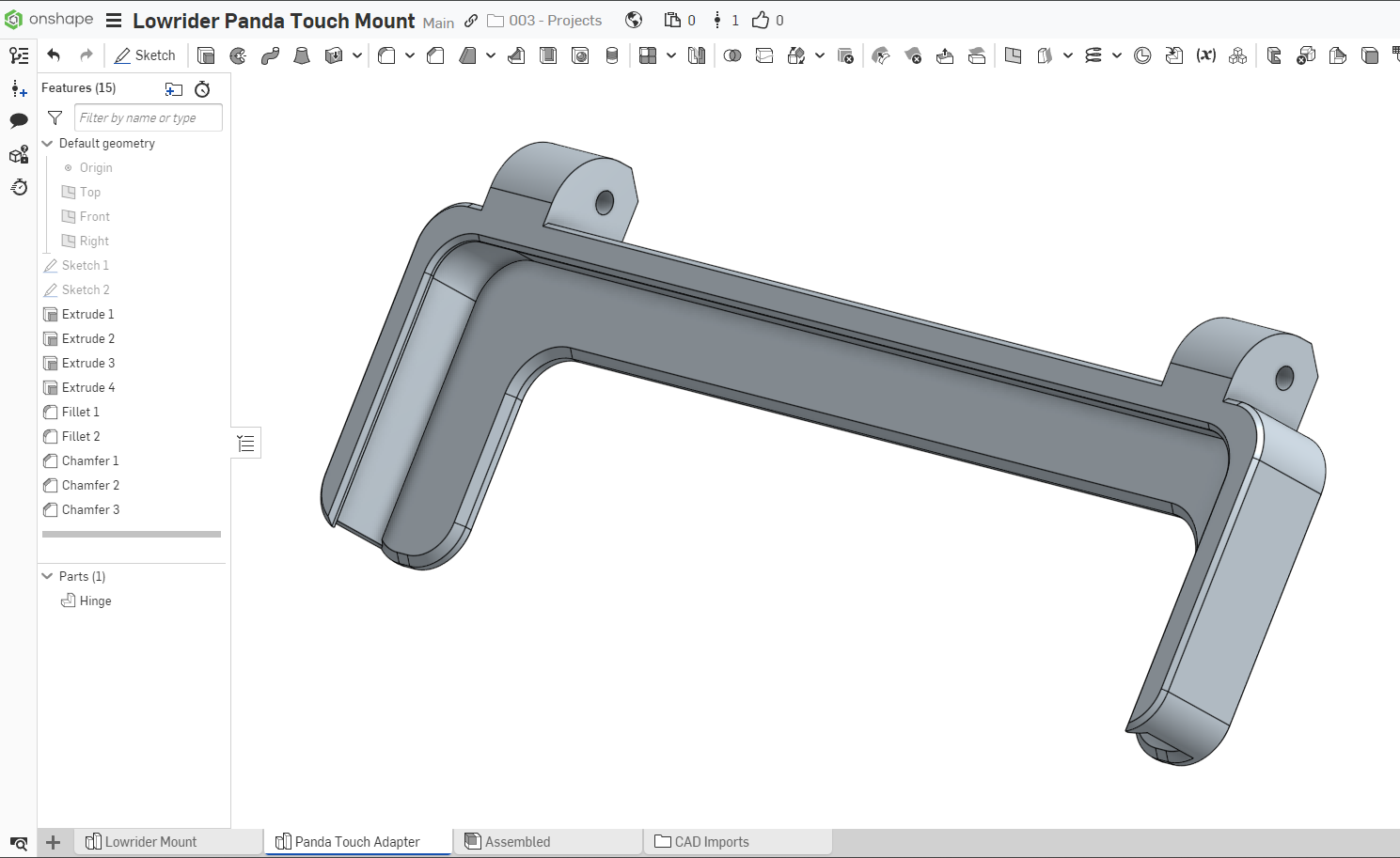

Onshape: https://cad.onshape.com/documents/03b72949cd8549f69b760d6d/w/ec728c7d966369d00abf63eb/e/347cb160af7952b600205a07?renderMode=0&uiState=6627cbe9150fda109c1fb9b7

Design by eclien on MakerWorld (license: BY-SA).
