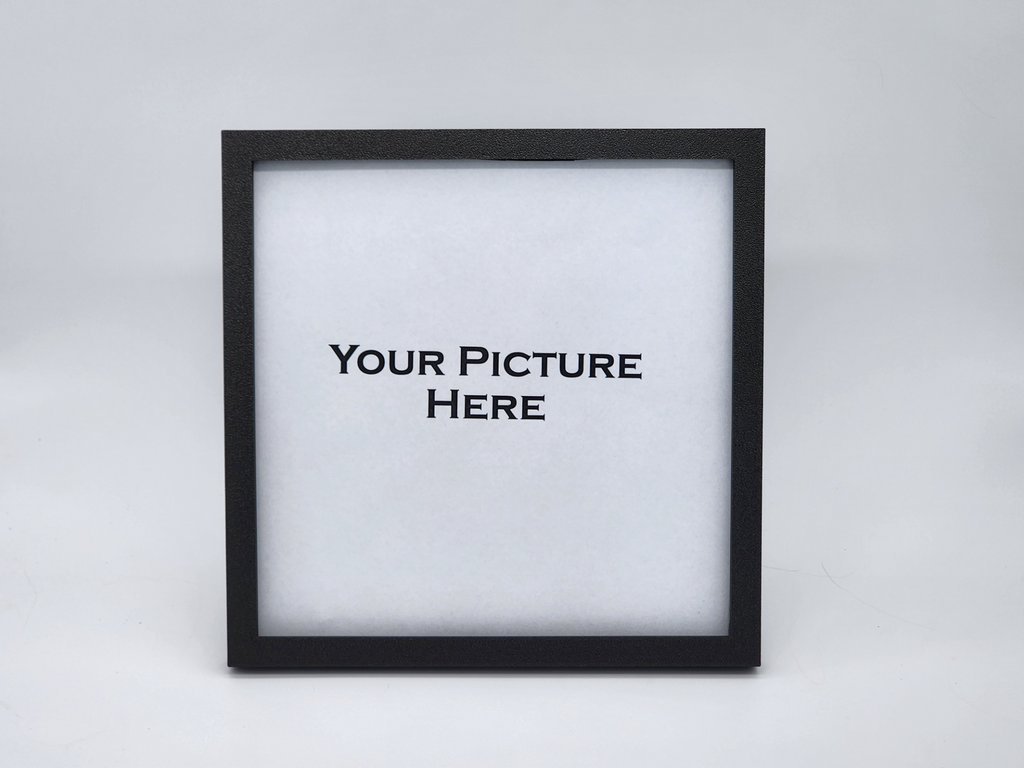

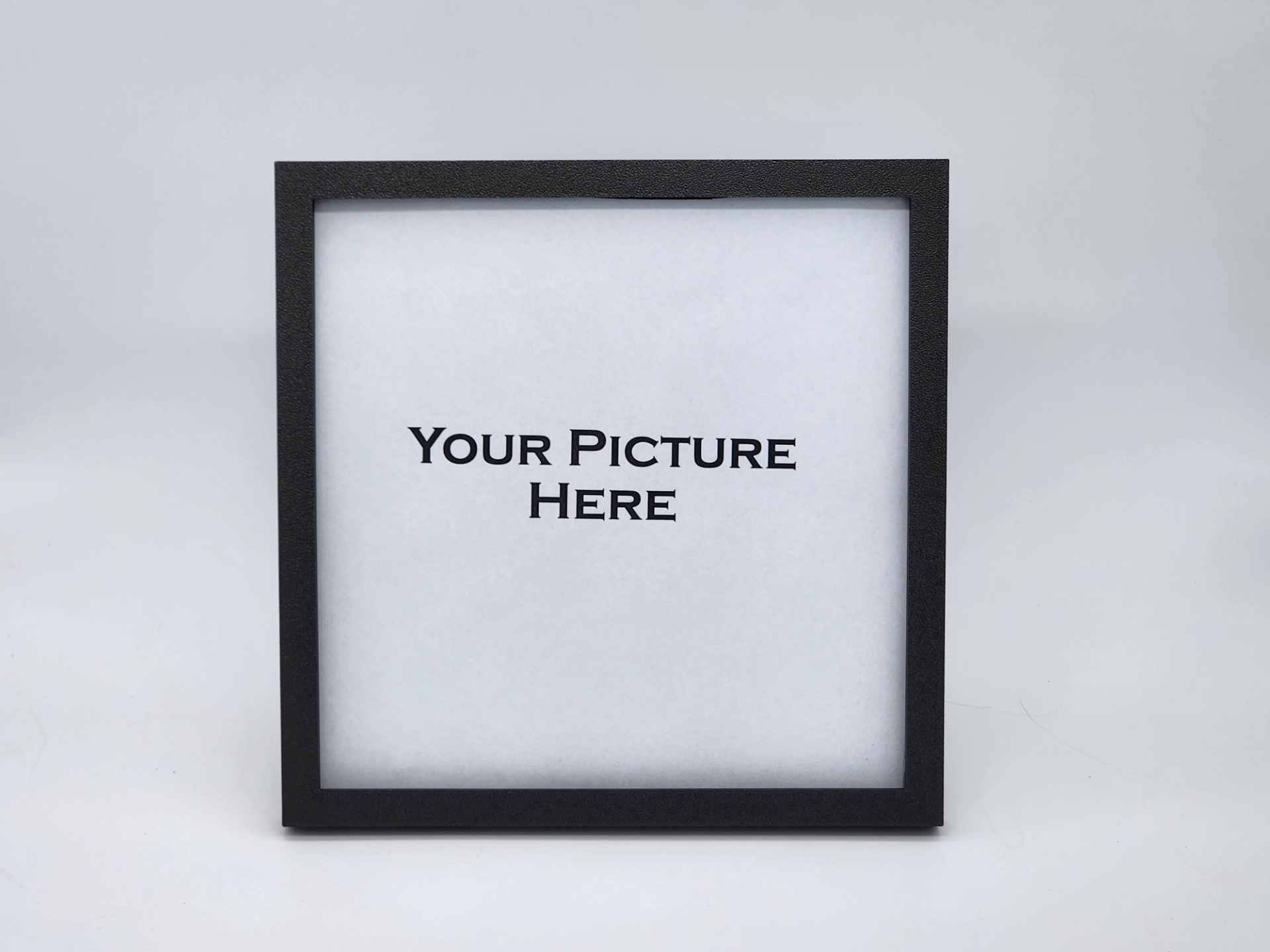

Parametric HueForge Picture Frame Generator

Parametric HueForge Picture Frame

Features:

• Free-form picture width and height, independently controllable from 25mm up to 400mm.
• Swap pictures as often as you desire.
• Supports pictures up to 10mm in depth.
• Variable picture frame border size.

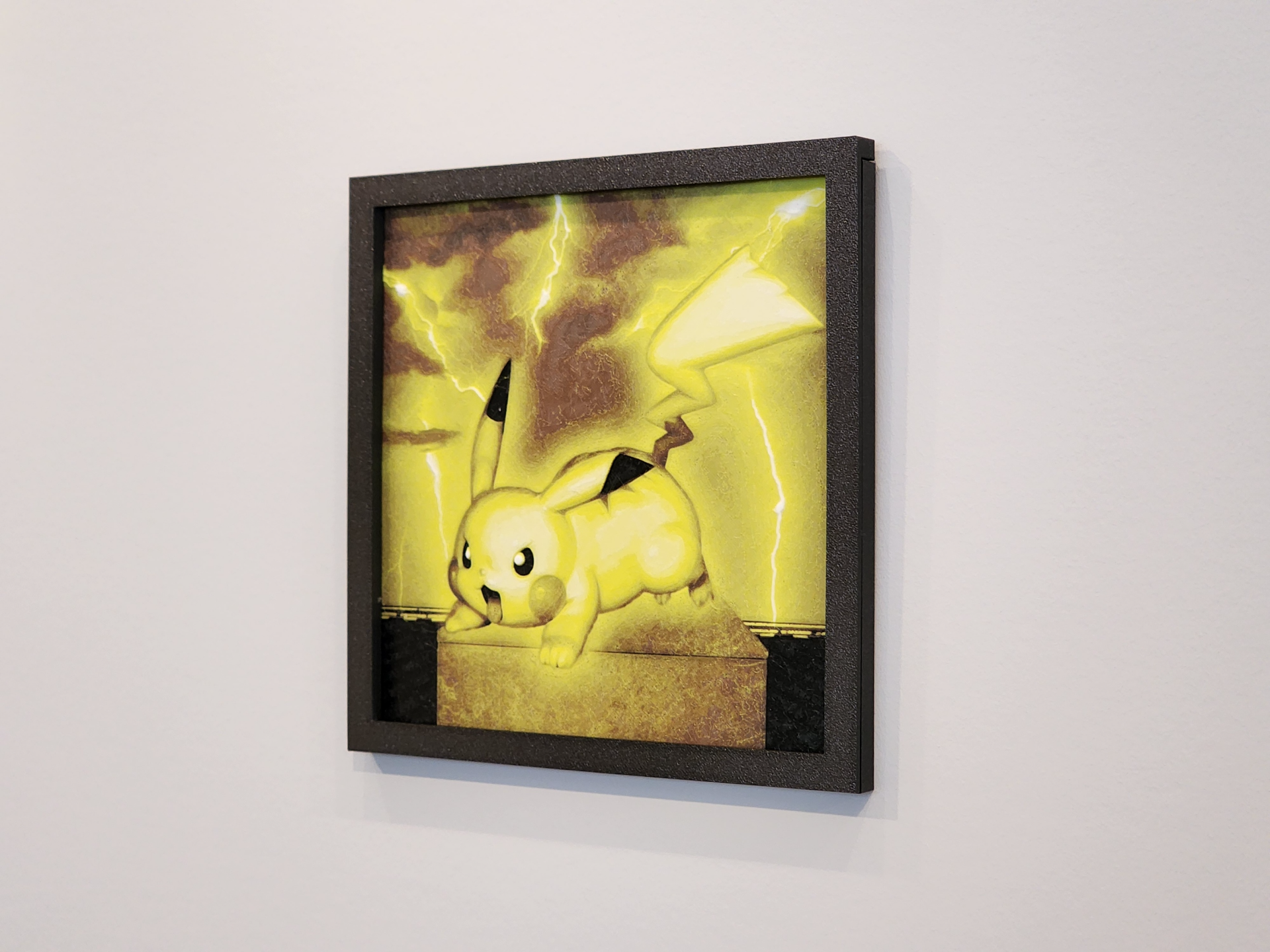

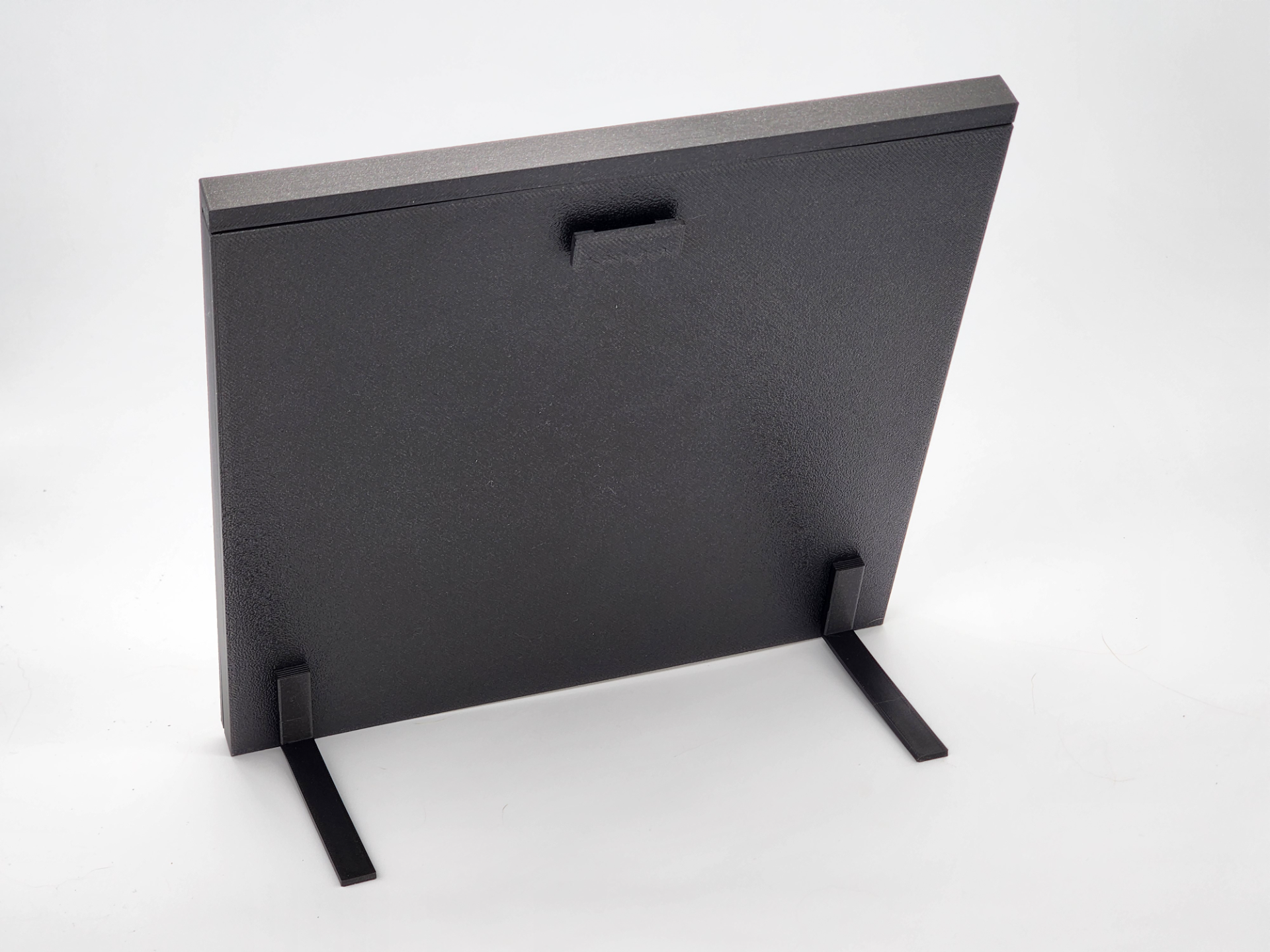

• Togglable picture frame hook for hanging your picture on the wall.

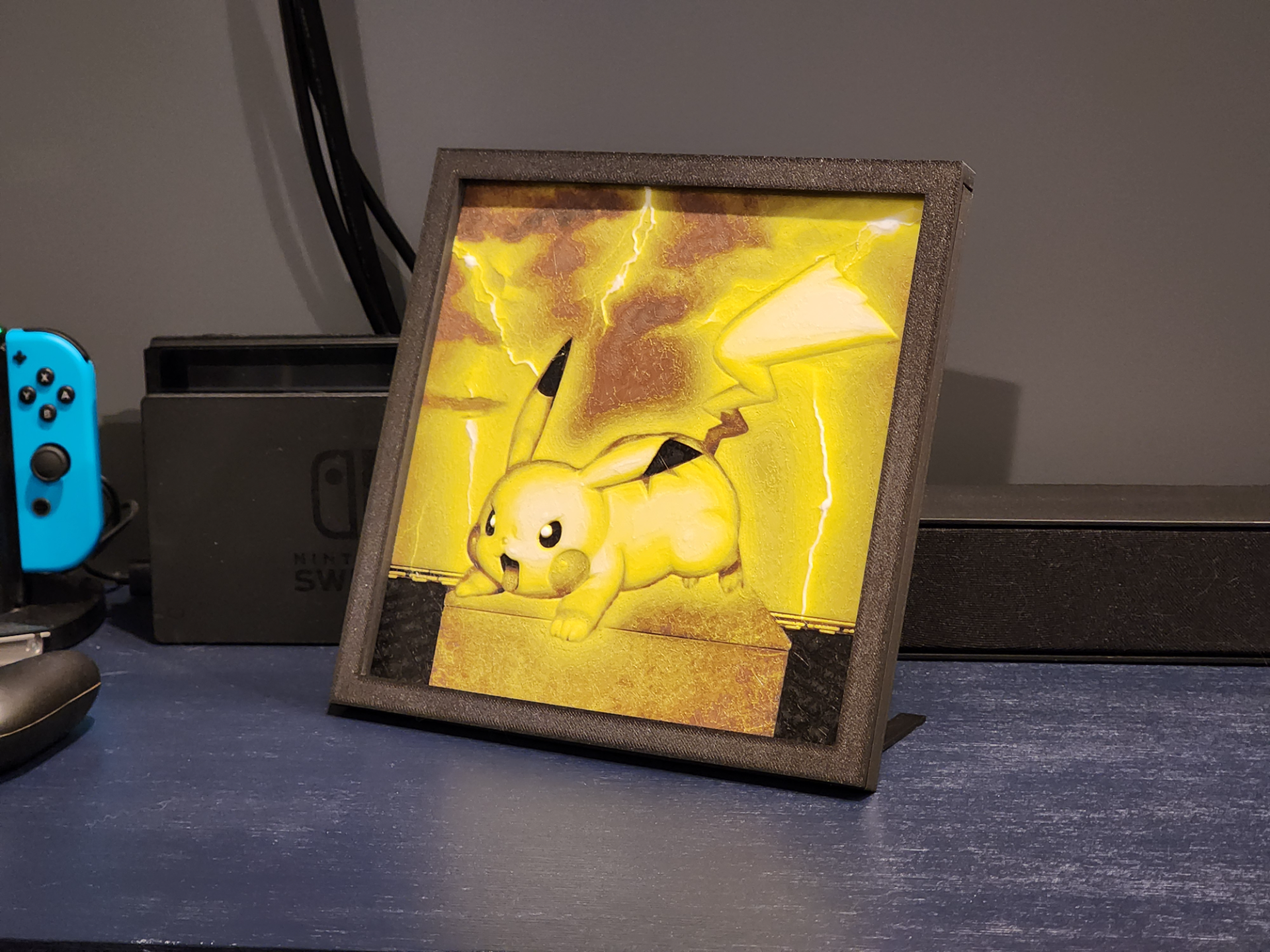

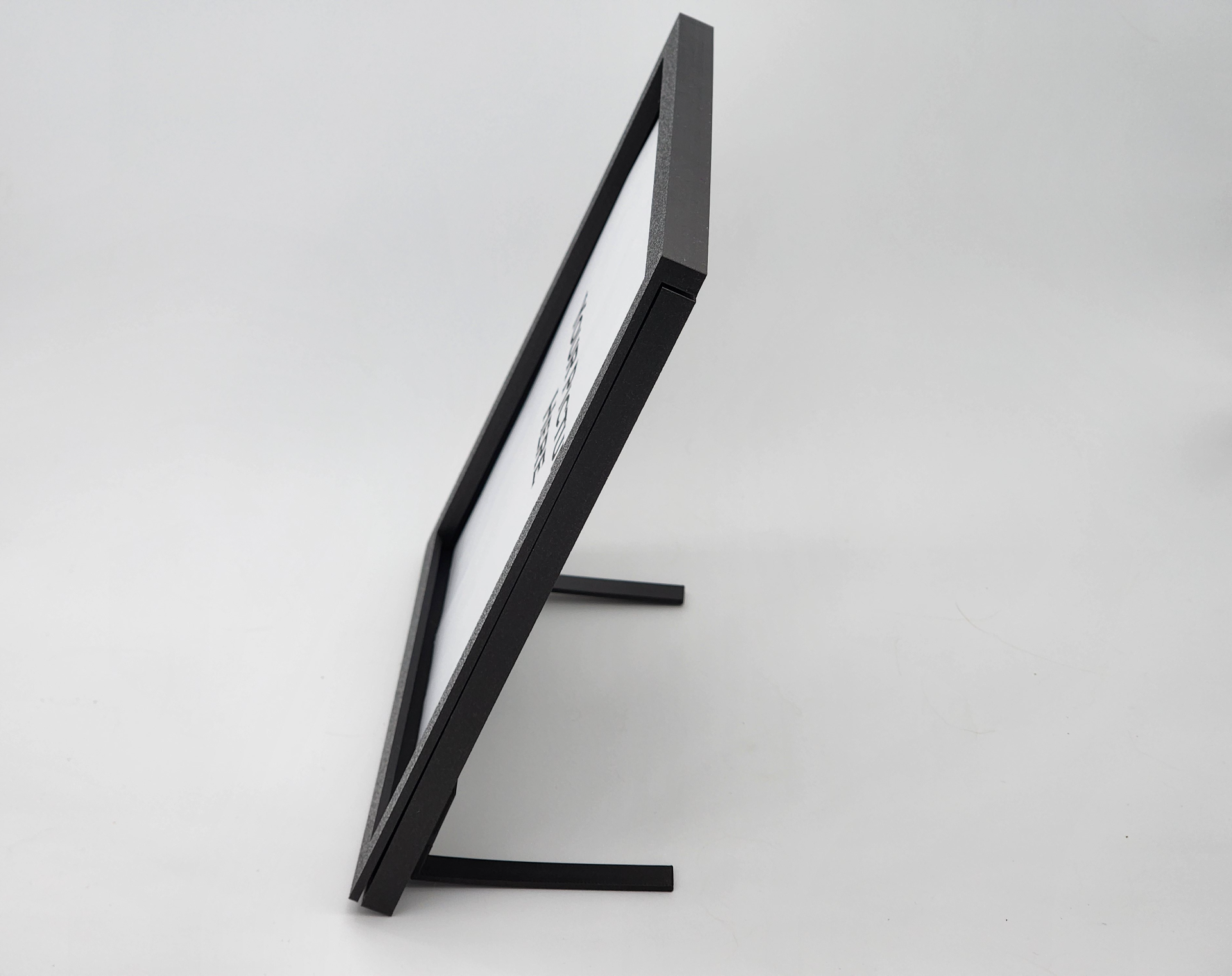

• Togglable picture frame legs for standing your picture up on a flat surface.
• Multiple tolerance settings, so you can find the right fit for your printer.

Current version: v1.0

Instructions

Your customized model will be downloaded as a STL mesh. Large frames will not fit on the bed in one print. Use the “Split to Objects” button to convert your single STL into multiple objects, which can then be arranged on separate plates. Use the “Arrange all objects" button to automatically create the necessary plates and arrange the parts. Your parts may be arranged to intersect with the calibration strips. If necessary, you can manually move the hook/legs to be printed in the middle of the top piece of the frame.

Profile Settings

If you are using Bambu Studio, the default 0.2mm Standard profile is recommended. Switch the infill pattern to Gyroid. With default settings, supports are not needed. If you have legs enabled and decrease the angle, you may benefit from having supports underneath the leg pins.

Demonstrations

Build plate configuration:

Assembly/usage:

Design by robere2 on MakerWorld (license: BY).
