TT Gear Motor Mount

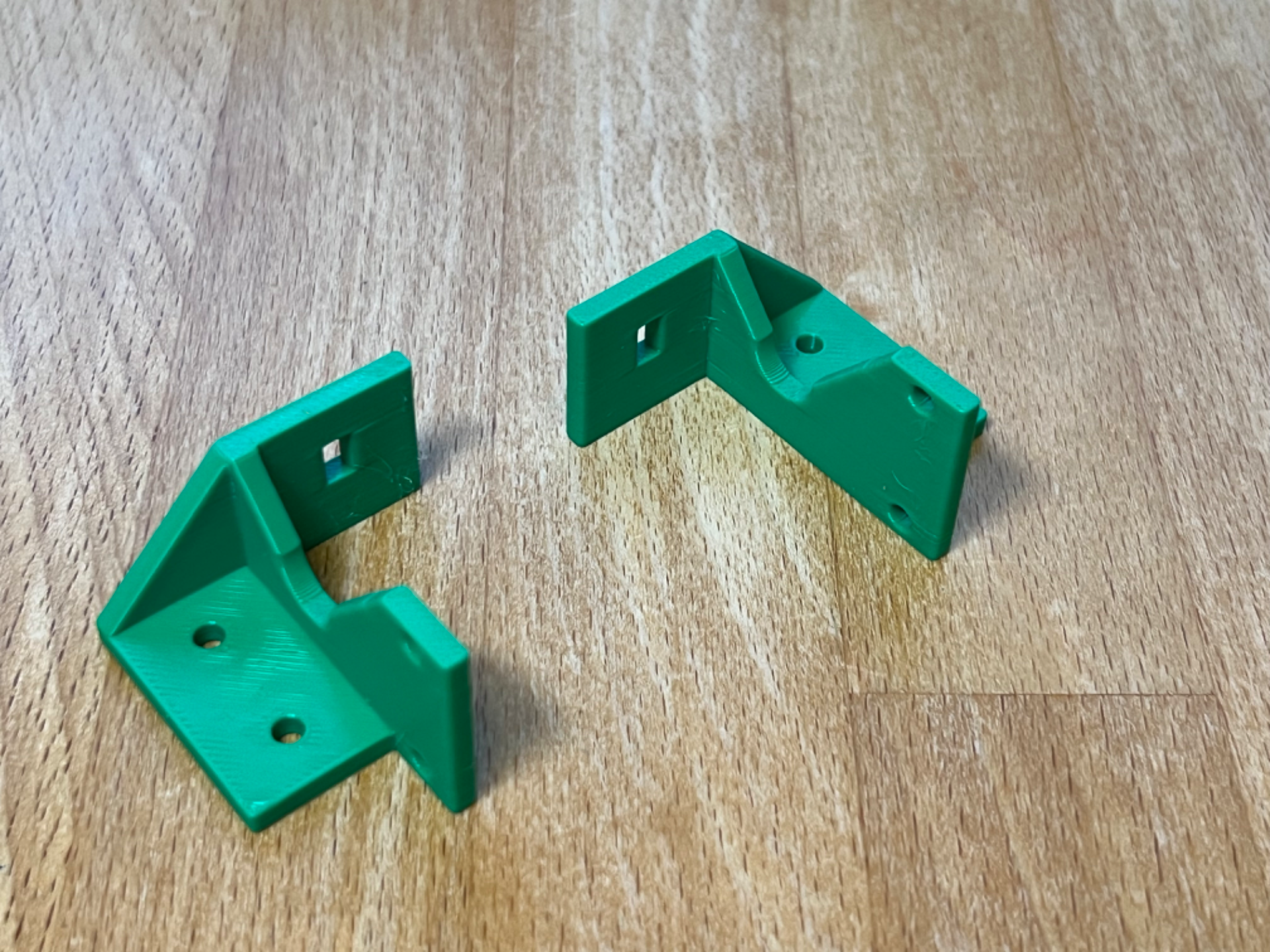

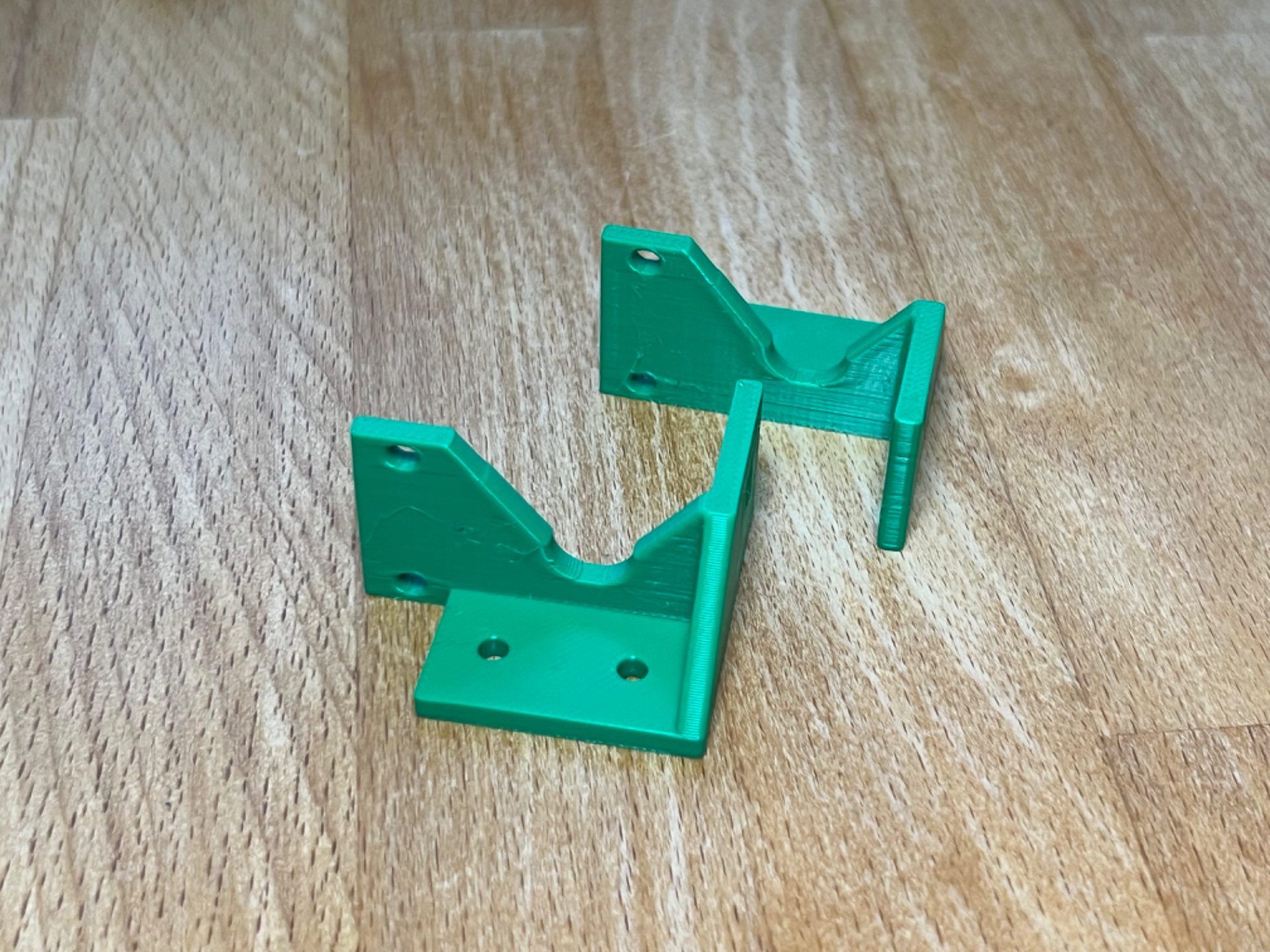

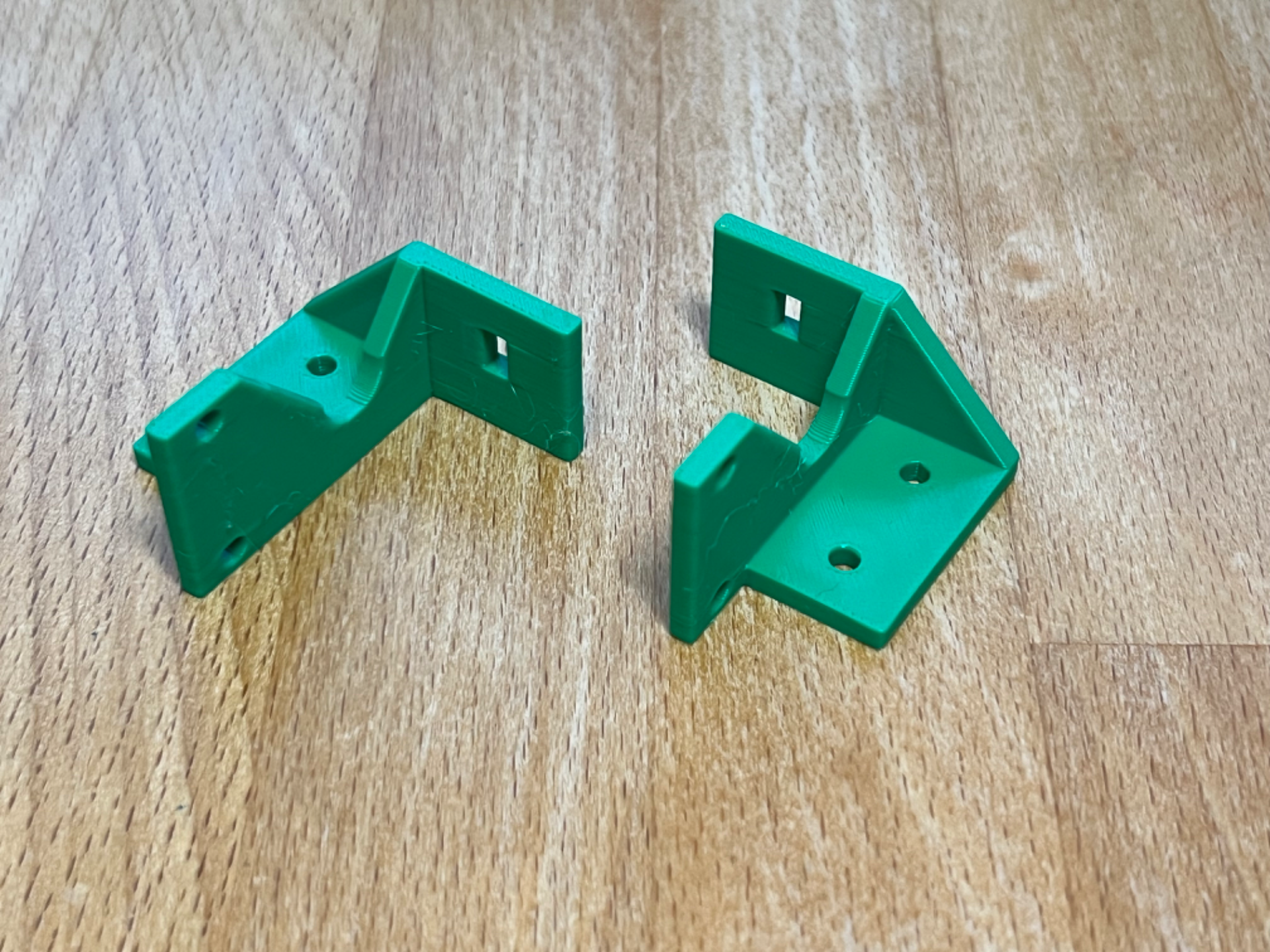

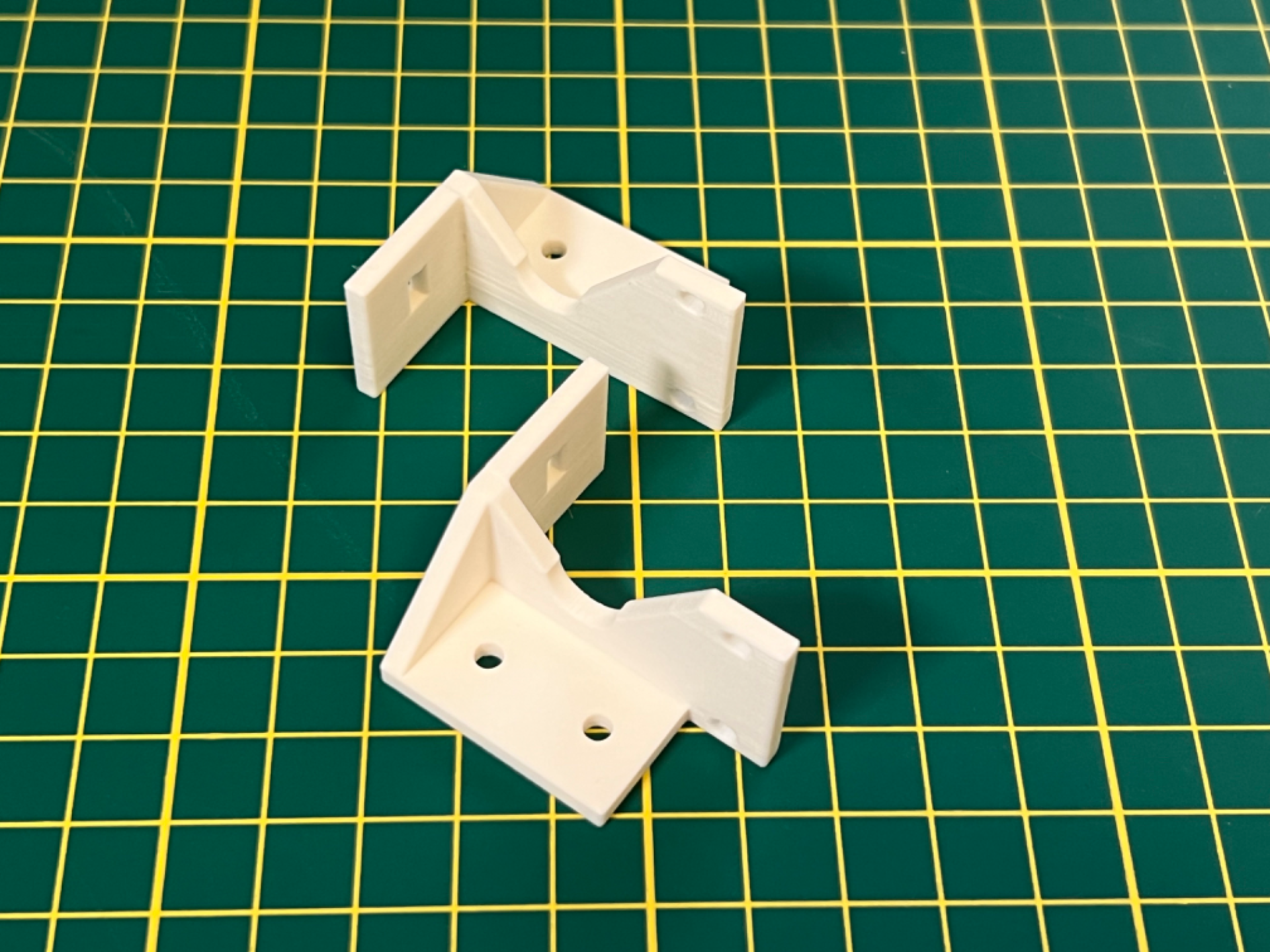

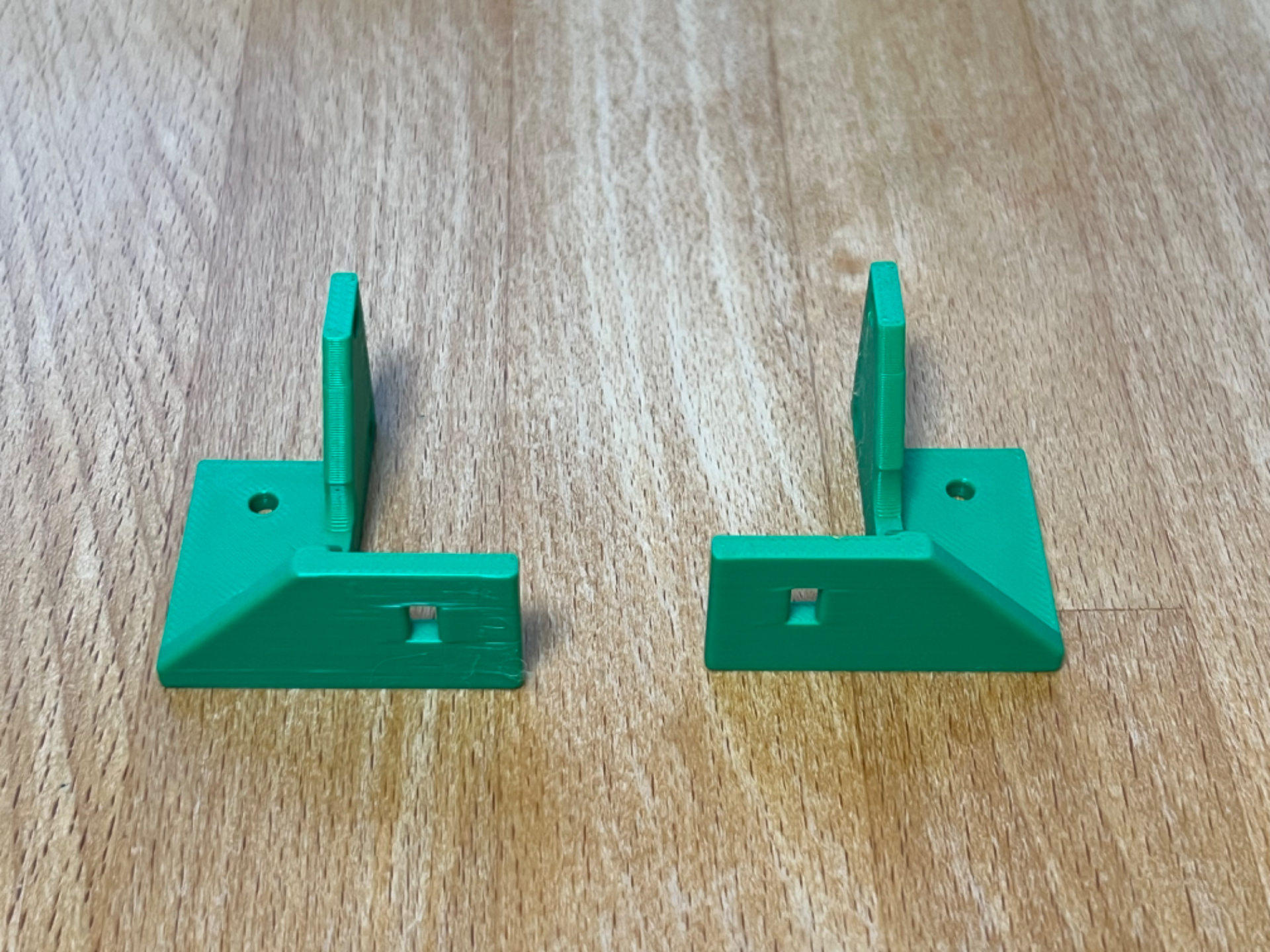

This file contains low-profile left and right motor mounts used for fastening the commonly-available, yellow, TT gear motors to a platform or a simple robot.

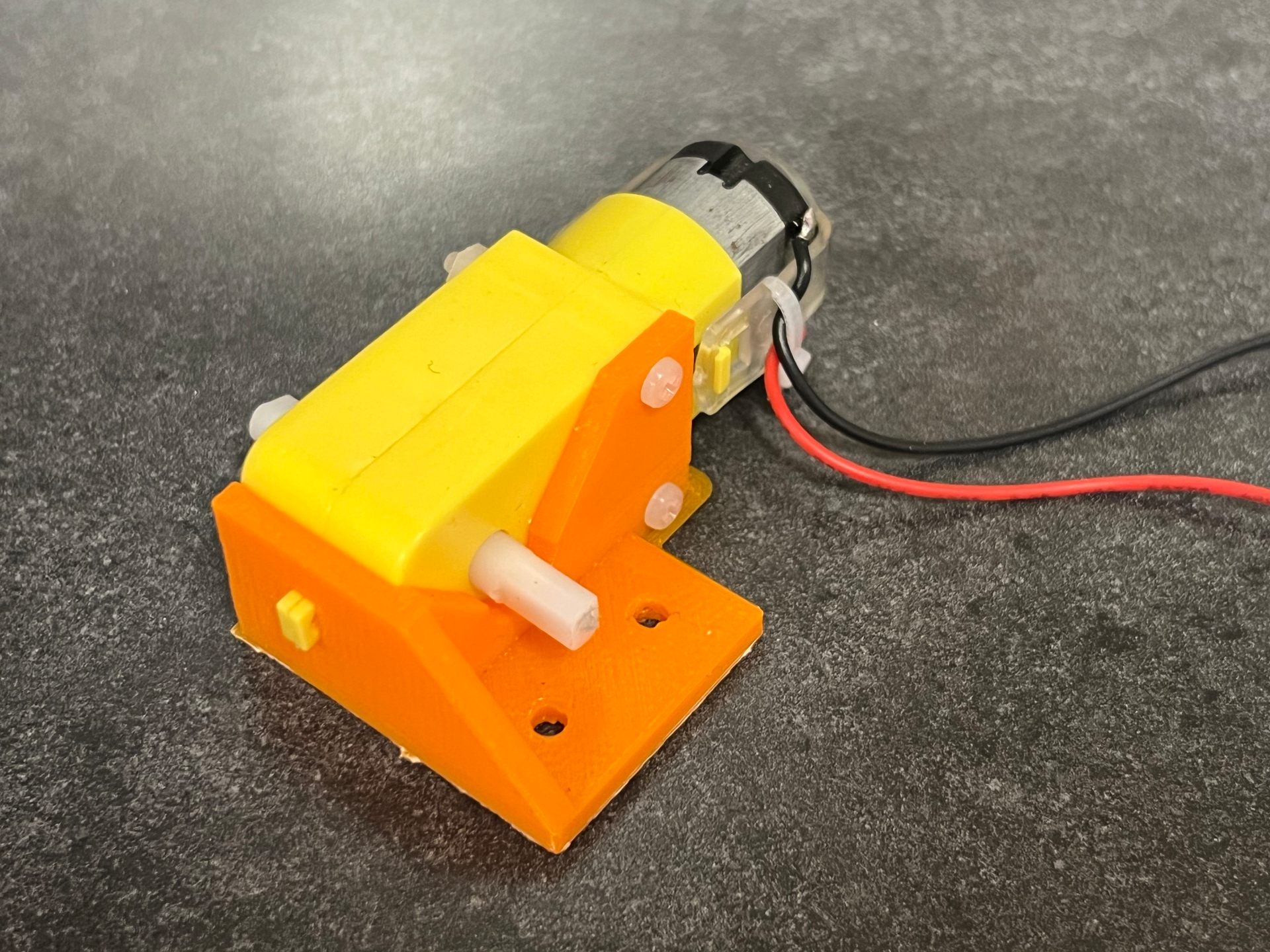

Fit the nub on the end of the gear motor into the small rectangular hole in the mount, and pivot the motor to align the its mounting holes with the holes in the V-groove section of the mount. Fasten the motor to the mount using two M2.5 X 25mm (or #4-40 X 1") machine screws and nuts available from Maker's Supply.

Attach the motor mount to your robot or platform using #4 screws inserted through the two round mounting holes in the rectangular section.

Design by Chief human on MakerWorld (license: BY).
