1/4"-20 UNC Screw w/spacer– Camera, Plate,Bracket

📝 Description:

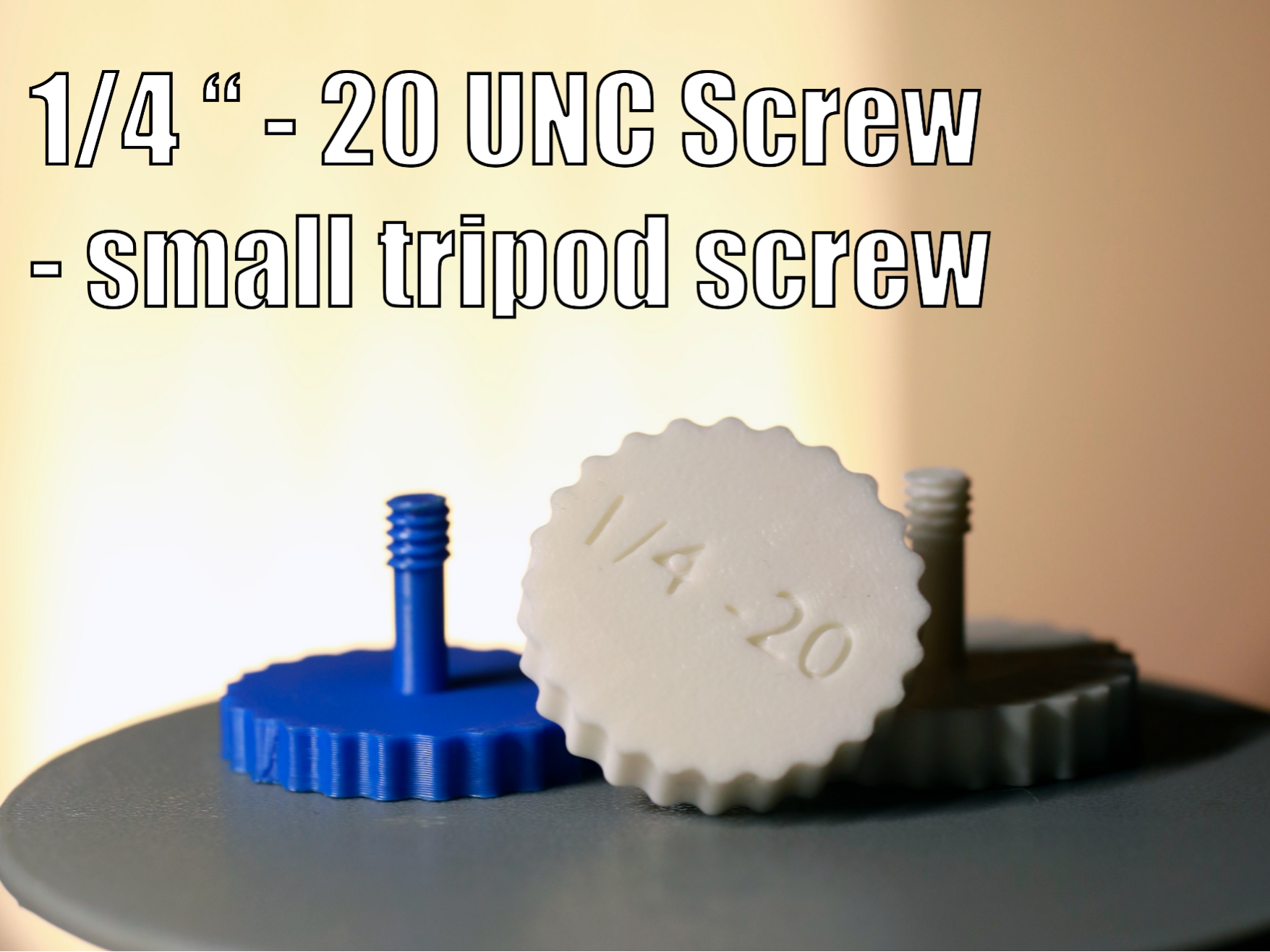

A lightweight but functional 1/4"-20 UNC tripod screw, designed for cameras, quick release plates, and L-brackets.
Perfect for emergency use, lightweight camera setups, or DIY photography rigs.

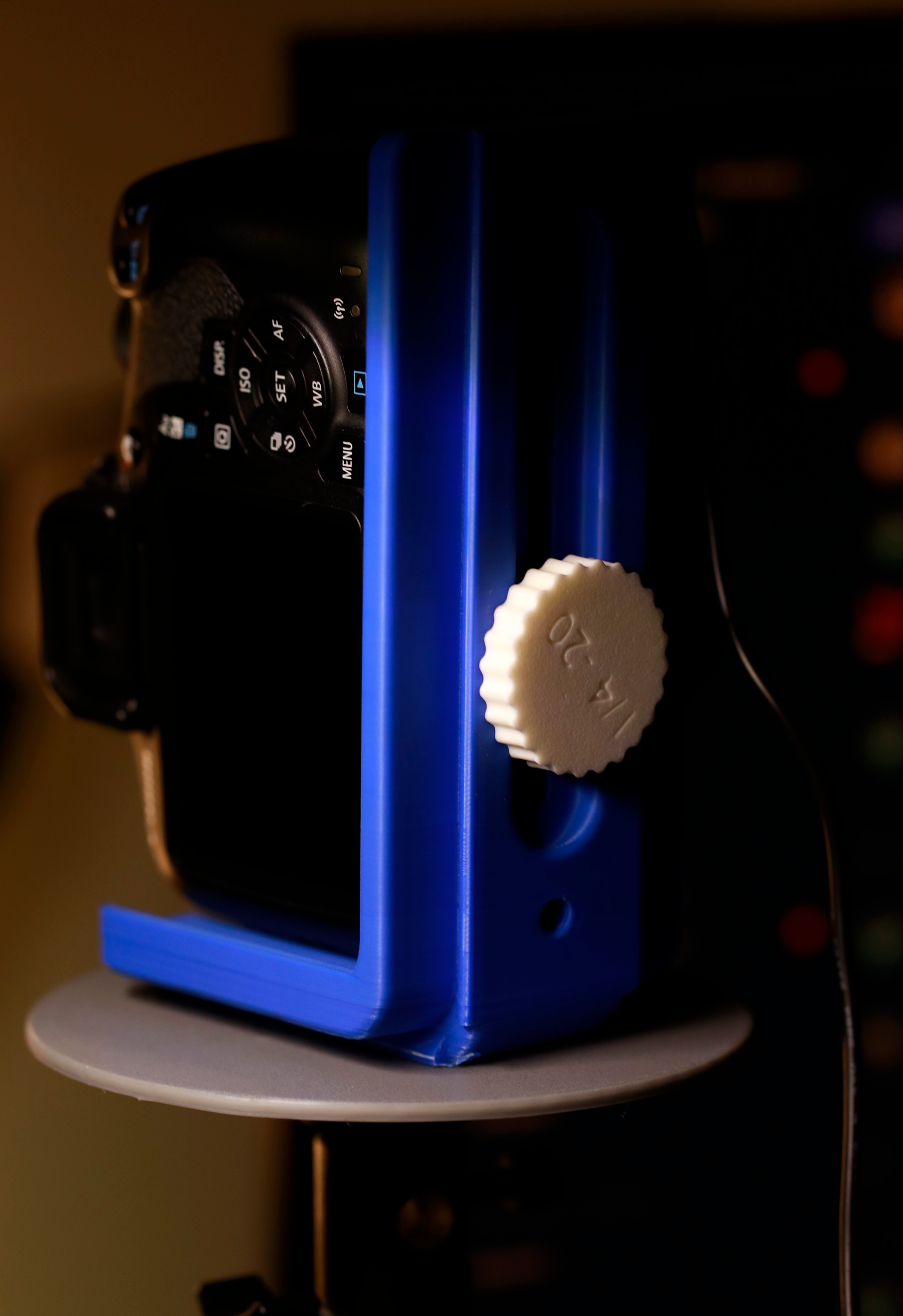

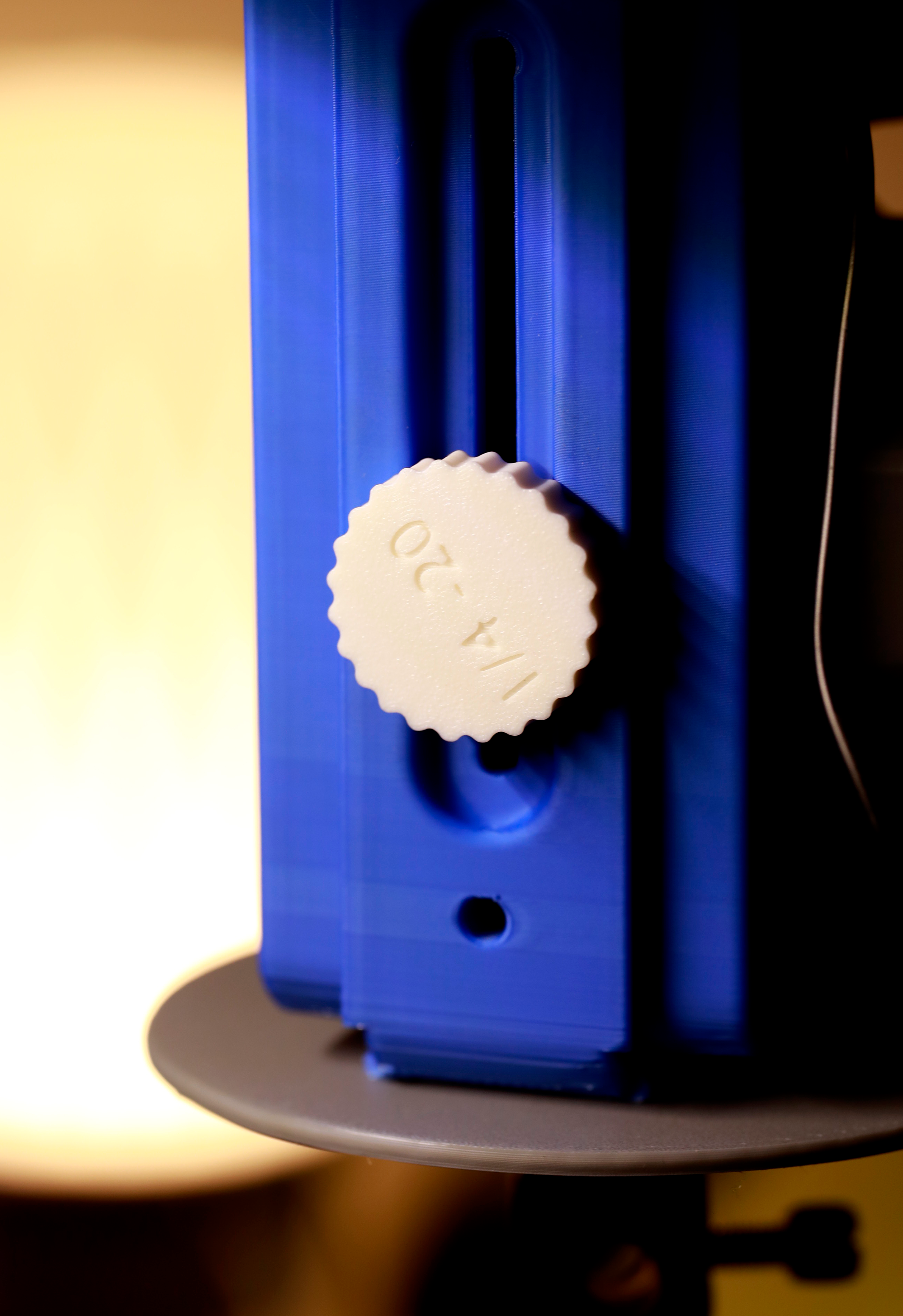

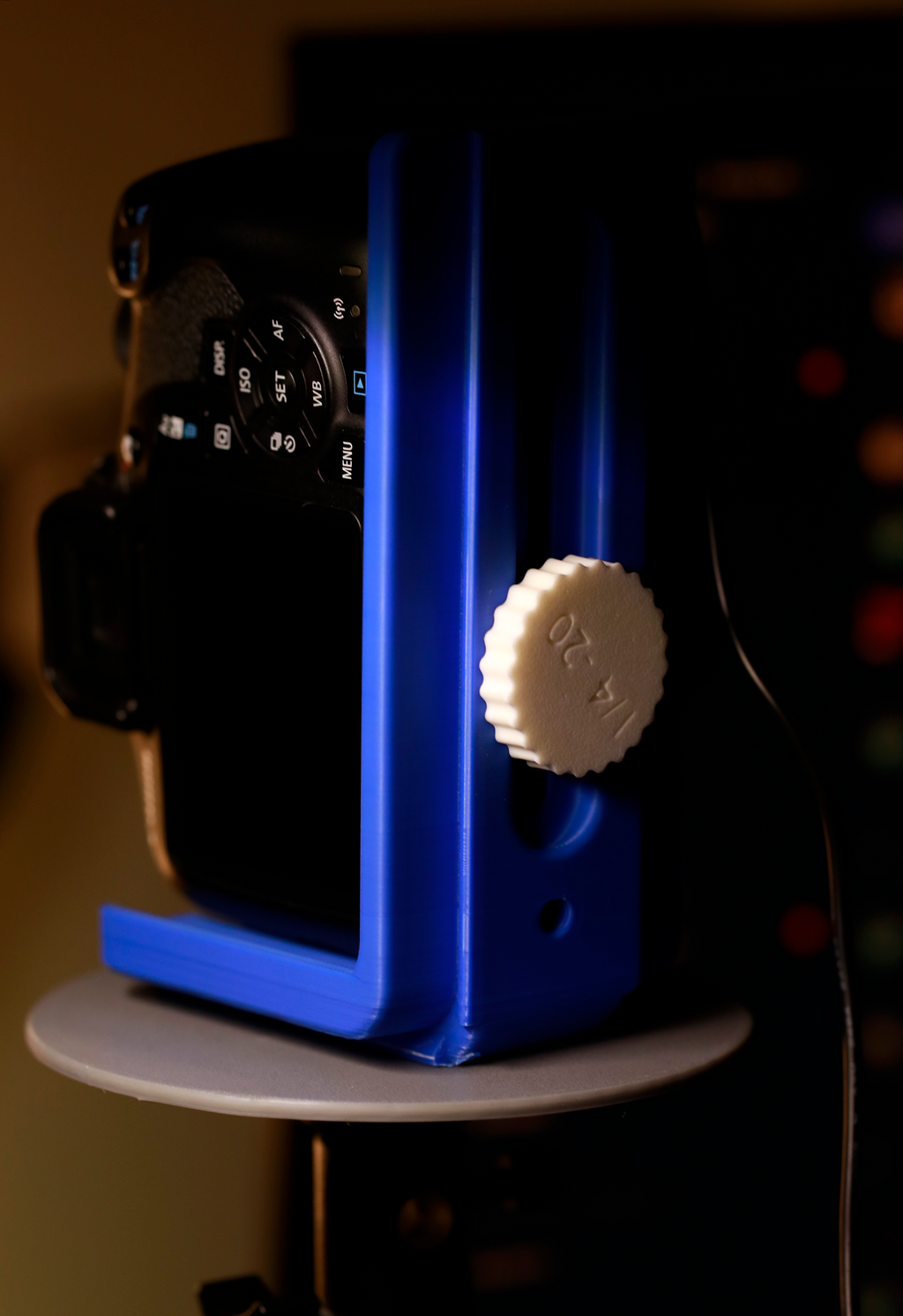

This version features a smooth shaft section between the threads – useful when screwing into quick release plates or L-brackets, allowing them to stay in place even when not fully tightened, just like in the photo.

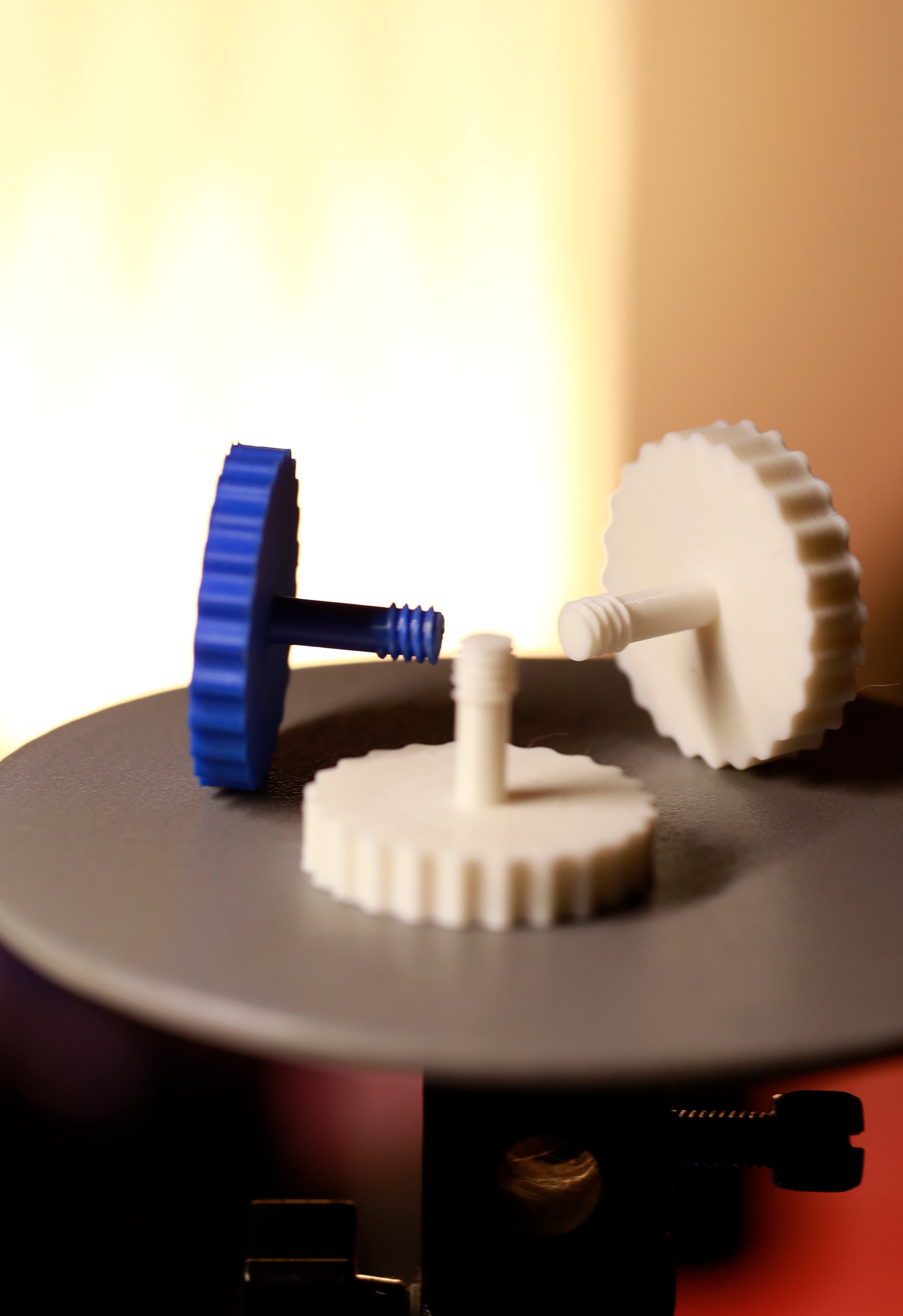

The knob is easy to grip and turn by hand, with a ridged outer edge that gives you good control when mounting your gear.

⚠️ Disclaimer:

This is a hobby-grade part. While it works great with smaller cameras (such as entry-level DSLRs or mirrorless systems), I do not take responsibility for any damage or equipment loss caused by use. Use at your own risk – especially with heavier gear (e.g., 2kg old-school DSLR + lens is probably not a good match). Evaluate the strength based on your use case.

🖨️ Recommended print settings:

• Layer height: 0.20 mm
• Top/bottom layers: 5
• Wall count: 5–7
• Infill: 99%
• Material: PLA works, but PETG is highly recommended for durability

  If it helped you out, a like or boost would mean a lot – thanks!

Design by Amarok71 on MakerWorld (license: CC0).
