300W GaN Charging Dock (Charge Station HX-P23)

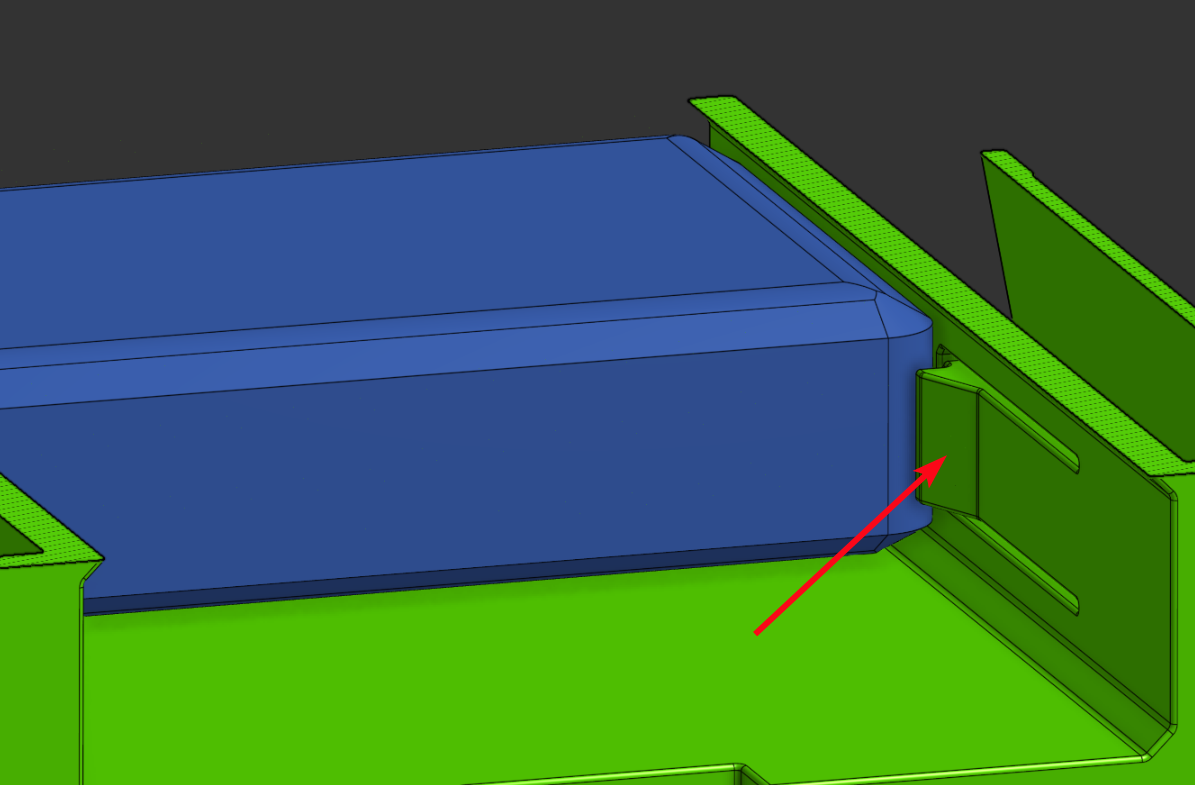

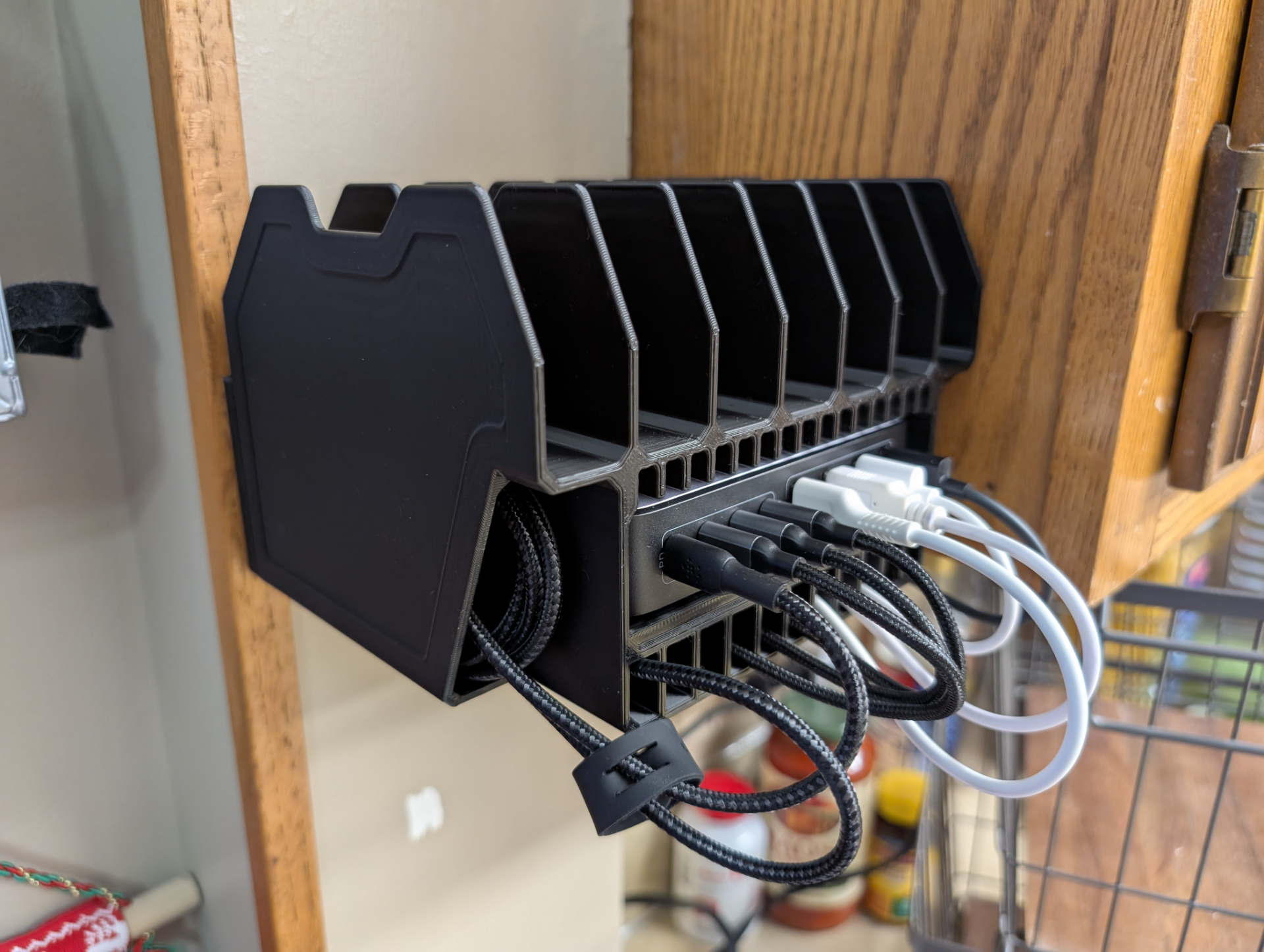

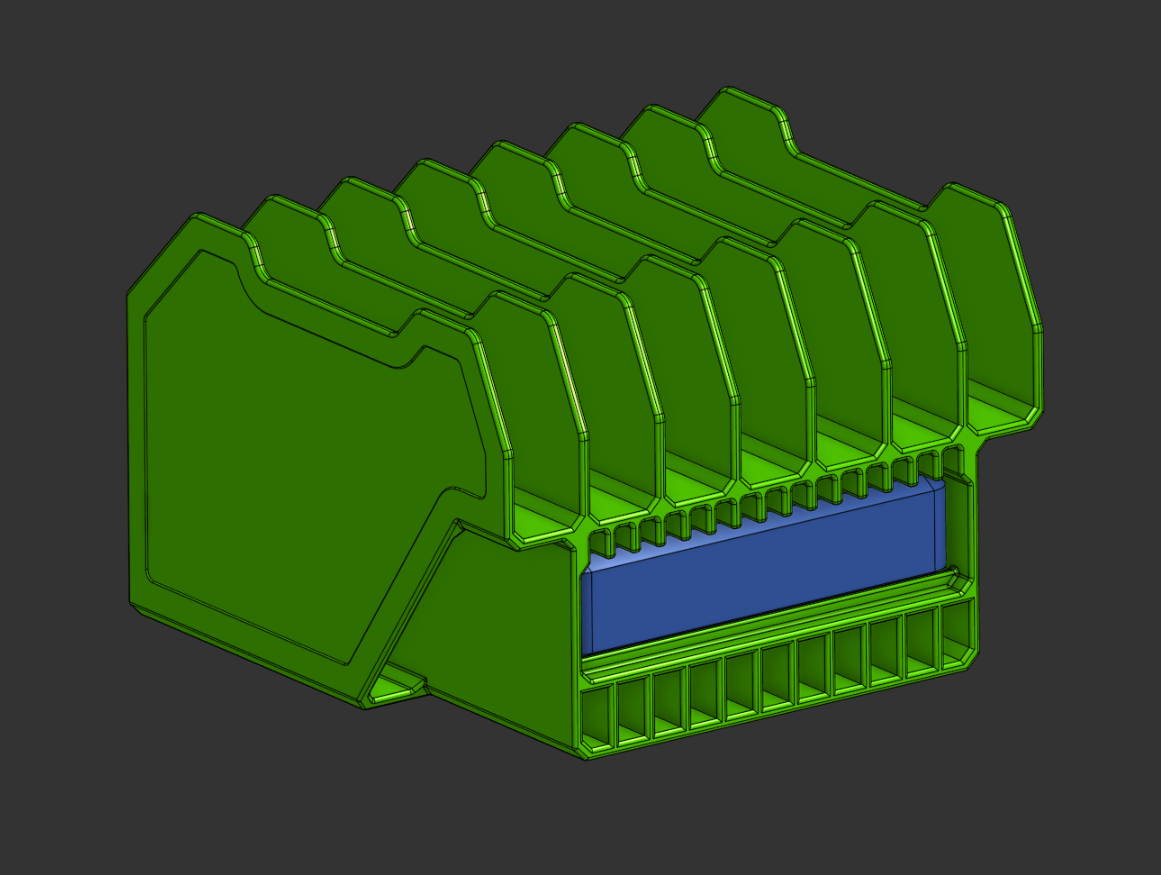

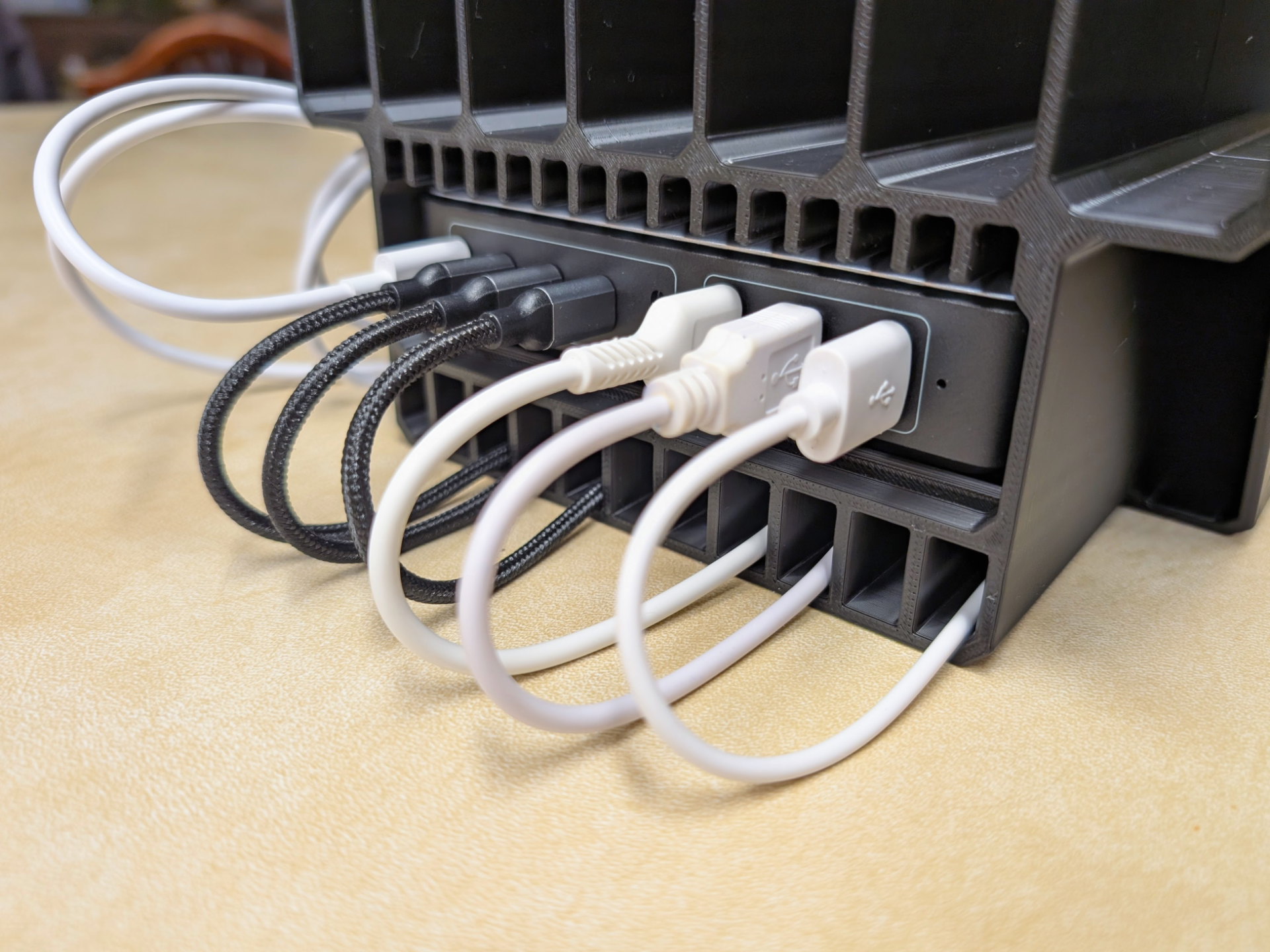

I needed a good multi device charger for all the families devices. Between all the Phones, Tablet, E-Readers, Etc they were always taking up all the horizontal space and outlets around the house. I wanted a locations to tuck both short and long cables and ends into when not in use so it looks clean. I chose to use the common  300W USB-C GaN charger from amazon because it has lots of high amp ports which can fast charge and is reasonably cost competitive . Then the unit can either be wall mounted (you need a long bit driver to access the screws), or put on a desk/counter. The charger slides in from the back and a retention latch should lock it in place (See image).

Note I have found there are a few brands and styles of these GaN chargers. And I think the 200W and 300W versions have slightly different dimensions. So either get the one linked, or get the one you want and adjust the model to fit your needs.

I have included a Step file in the Raw model files, and an Onshape link below you can use to modify it to your needs. Hope you can find it useful. Feel free to modify and remix to suit your needs.

Onshape: https://cad.onshape.com/documents/791c4b6903e4e3c1ba6742b0/w/1e6af5a72910132fb3e1b2d3/e/3170db2e2b50b05fbc4dd0ce?renderMode=0&uiState=67c308dbf0df7b79e936ae54

Design by eclien on MakerWorld (license: BY-SA).
