3D打印135宽幅胶卷相机Falcon P-35项目 哈苏xpan

      开源说明                       (ENGLISH translation now available,please scroll to the bottom)

 2025年4月26日   作者：黑白影趣（B站 闲鱼 小红书同名）
项目名称：Falcon P-35 第一版（正式版）后续会继续更新，请持续关注！

特别说明:作者目前是高中学生， 本系列3D打印胶片相机为本人原创作品，开源的目的是为了更好的展示科技创新成果的现实意义和实用价值。

（最初上传的平面图插刀有问题，2.25号已经重新上传了）！！！

玛米亚新闻机镜头的适配版本已上线

各位胶片摄影爱好者都可以免费打印组装属于自己的宽幅胶片相机。制作非常简单，视频教程会陆续发布在B站。也迎大家提供修改意见和改进完善成果分享。

开源作者联系方式：微信 zsq15983556719 QQ 2897769642
邮箱shengqiangzhang84@gmail.com     可以联系我进微信交流群。

本设计是非盈利的项目，但是允许玩3D打印的DIY爱好者自己拼装并出售，
售卖或分享请务必注明模型原作者：“黑白影趣”

B站视频功能和结构介绍：
【3D打印135宽幅胶卷相机开源最终预告 3D打印xpan来啦！ “Falcon P-35”项目-哔哩哔哩】 https://b23.tv/uQwttoB

正式开源介绍：
【正式开源啦！3D打印135宽幅胶卷相机Falcon P-35项目-哔哩哔哩】 https://b23.tv/QAEOxW2
（B站同名账号后续上传打印说明和拼装教程，请持续关注）

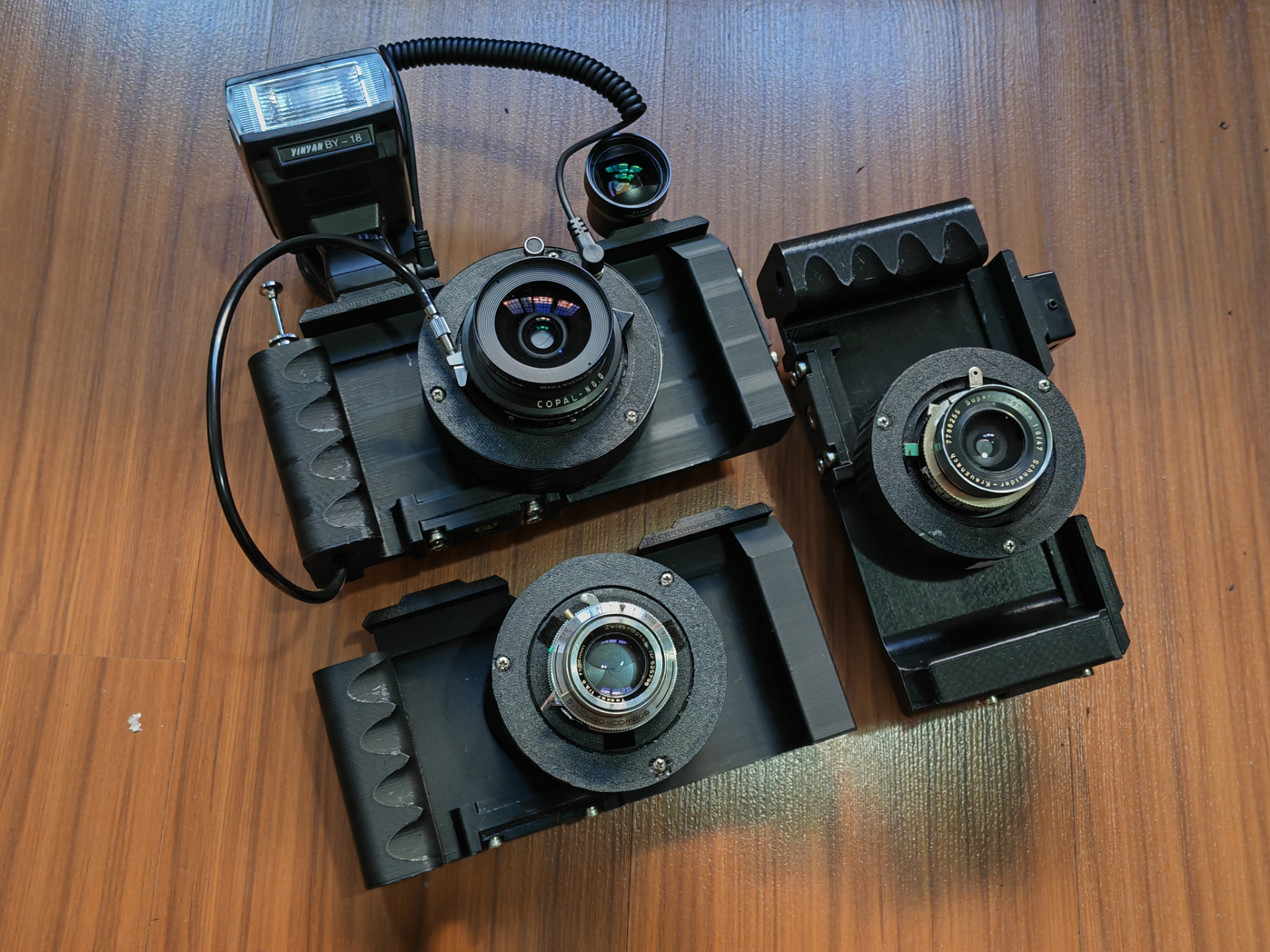

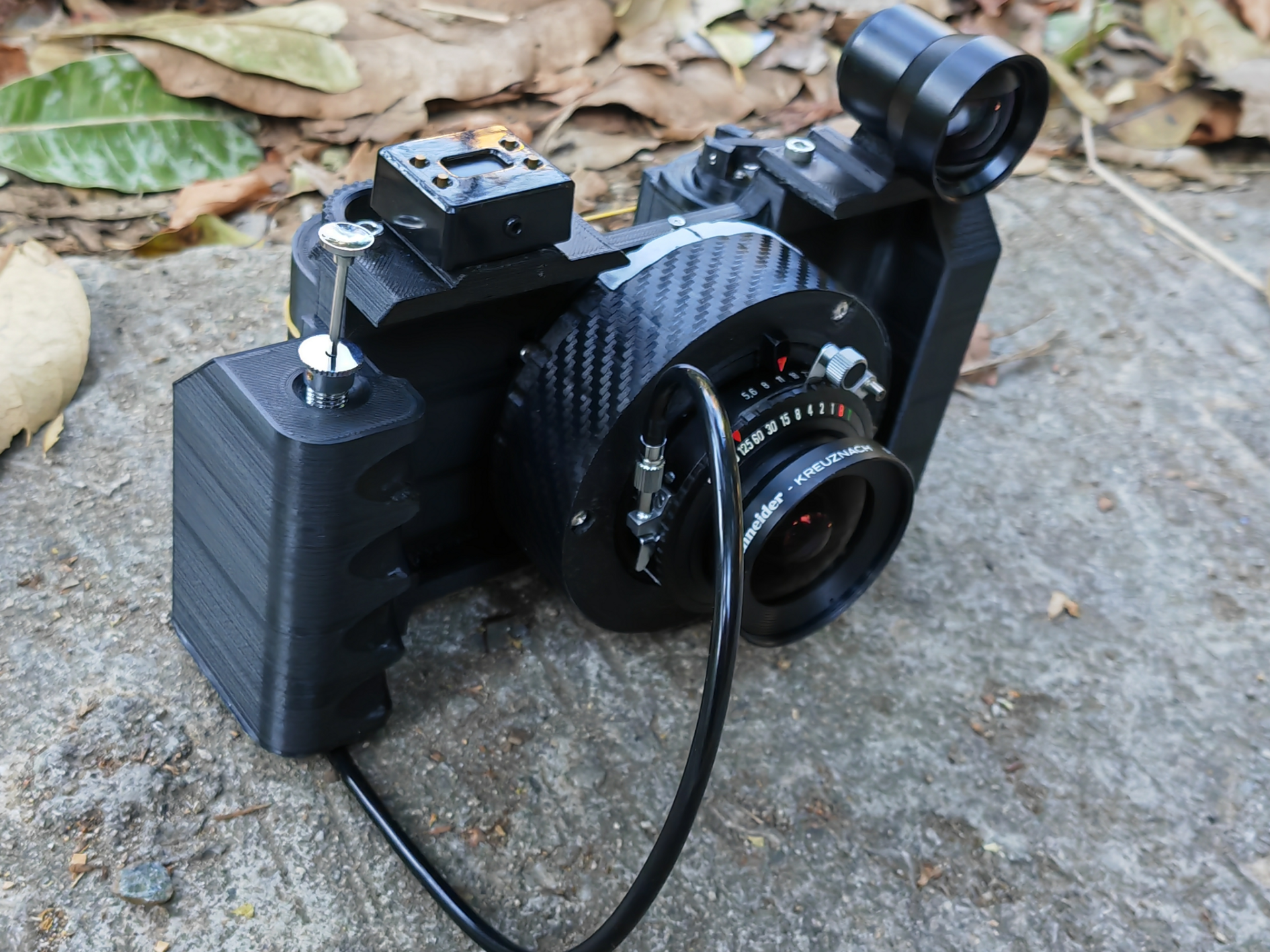

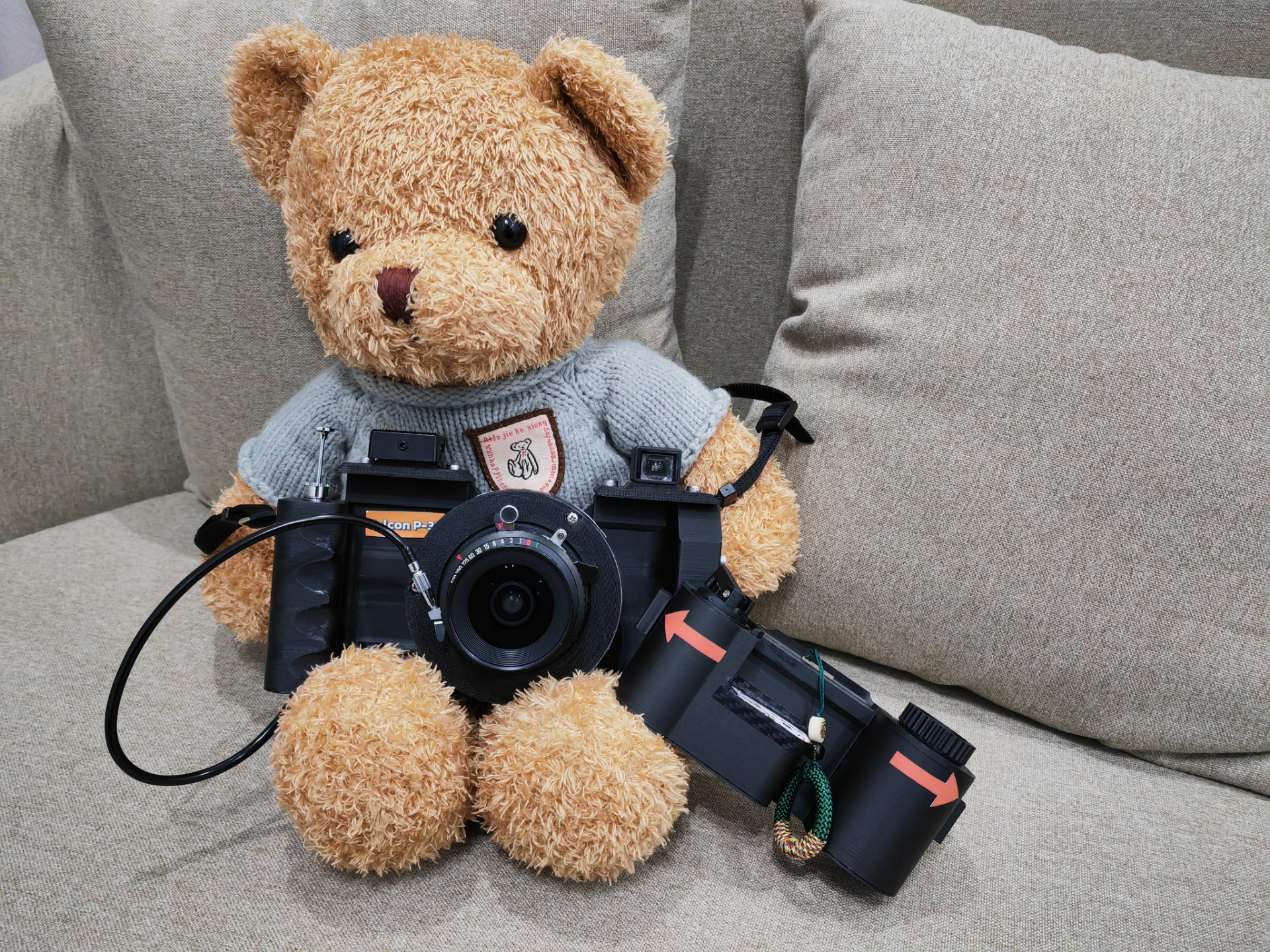

简介：这是一台主要使用3D打印零件组装的 拍摄135胶卷宽幅（24×65mm）可定位可计数可对焦胶片相机。可以通过3D打印转接板转接4×5大画幅相机后组拍摄。

除金属固定件、豆腐刀和磨砂亚克力对焦屏以外全部3D打印，结构坚固且足够简单，适合普通FDM工艺3D打印。pla，petg等等材料都可以。如果您没有打印机的话也可以把模型文件发给接代3D打印的商家（主意一定要是熔融挤出成型的打印工艺，纯黑色哑光材料，不可用光固化！），各部件打印摆放方式和切片设置详见文件夹里面的打印说明，如果您不了解3D打印的话，打印设置不可轻易更改，如果要发给代打印的商家也请着重提醒！

手拧过片，机械计数，标准36张的35mm胶卷可拍20-22张24×65mm尺寸的宽幅照片。

打印机精度有差异。如果齿轮间隙太大咬不住的话可以试试单独打印齿轮，增加挤出量（相当于整体膨胀一层）！

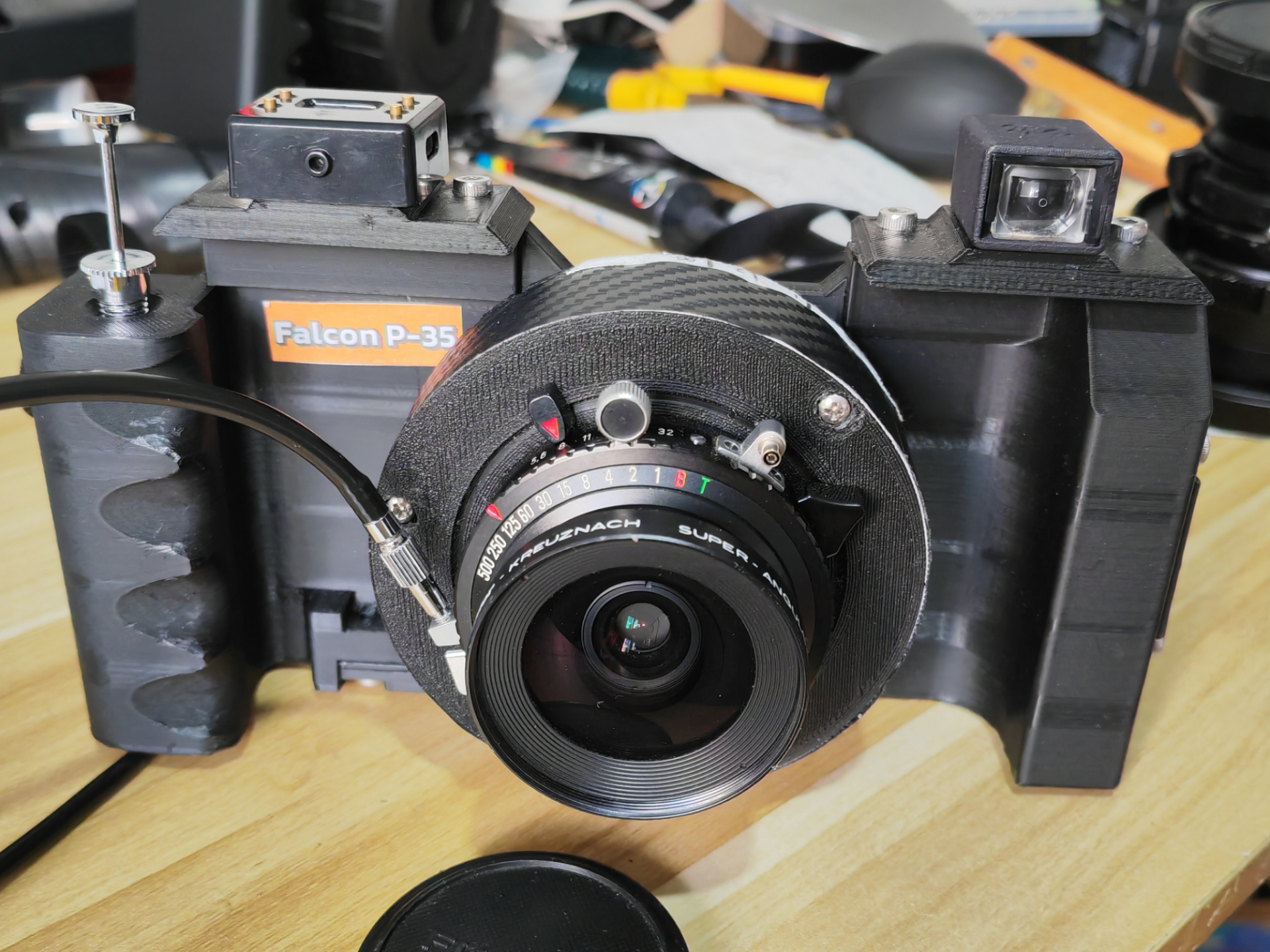

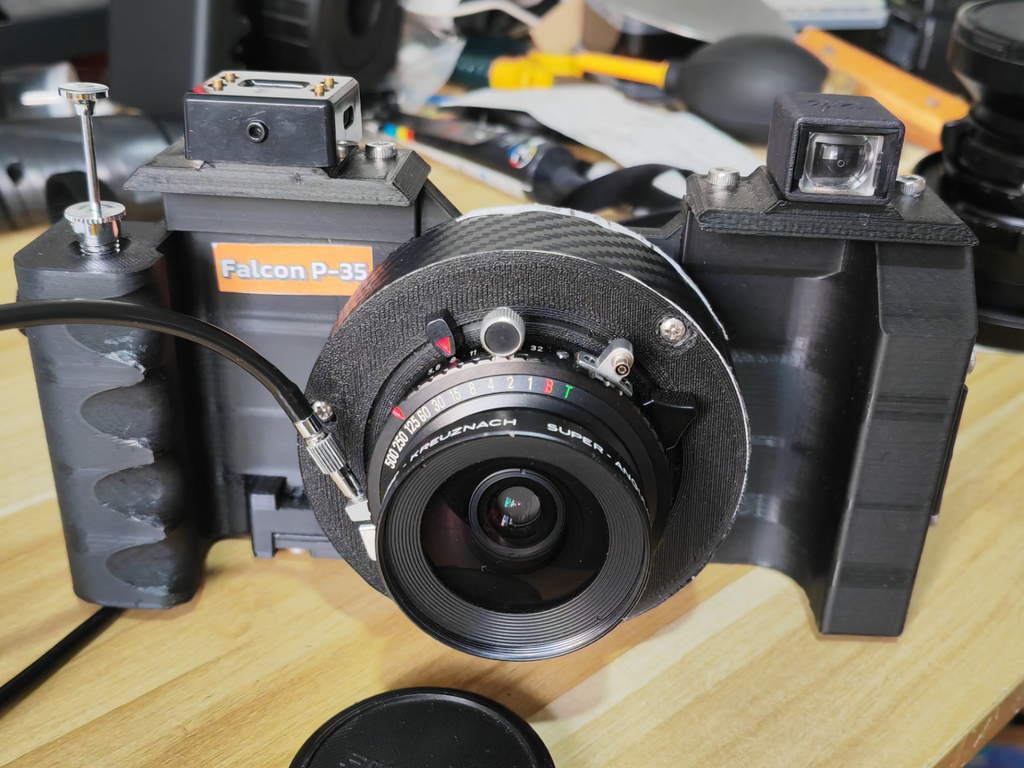

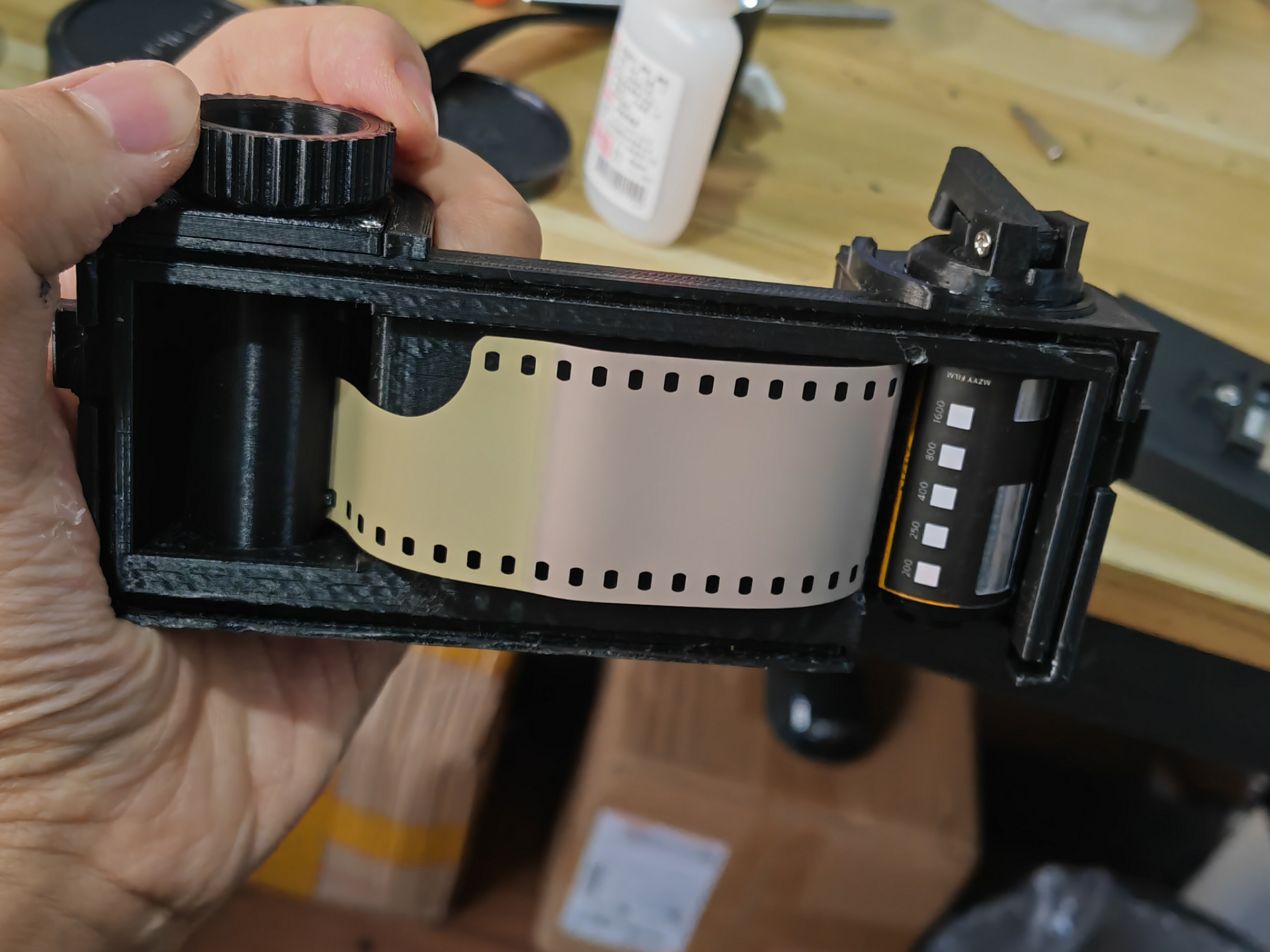

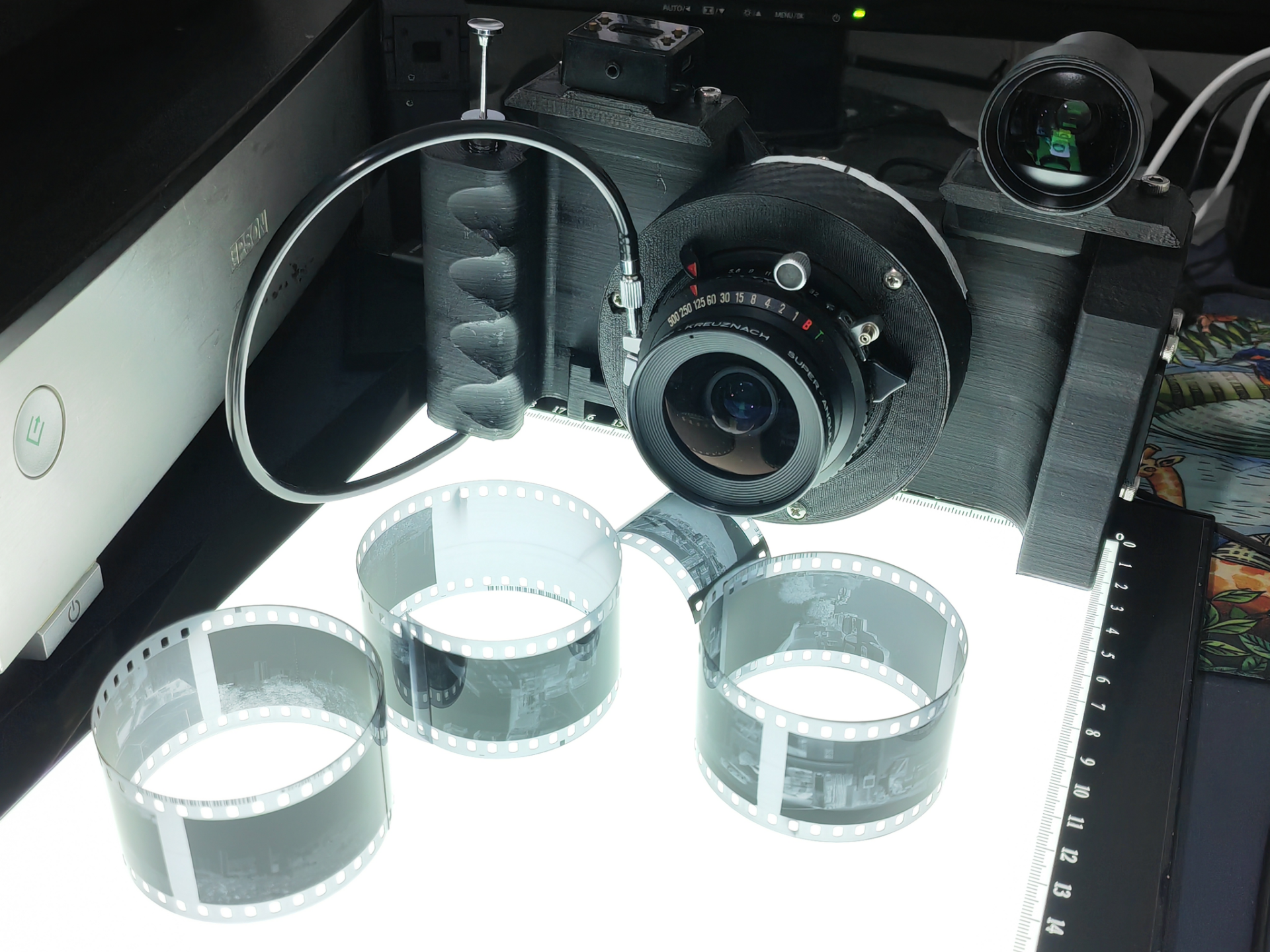

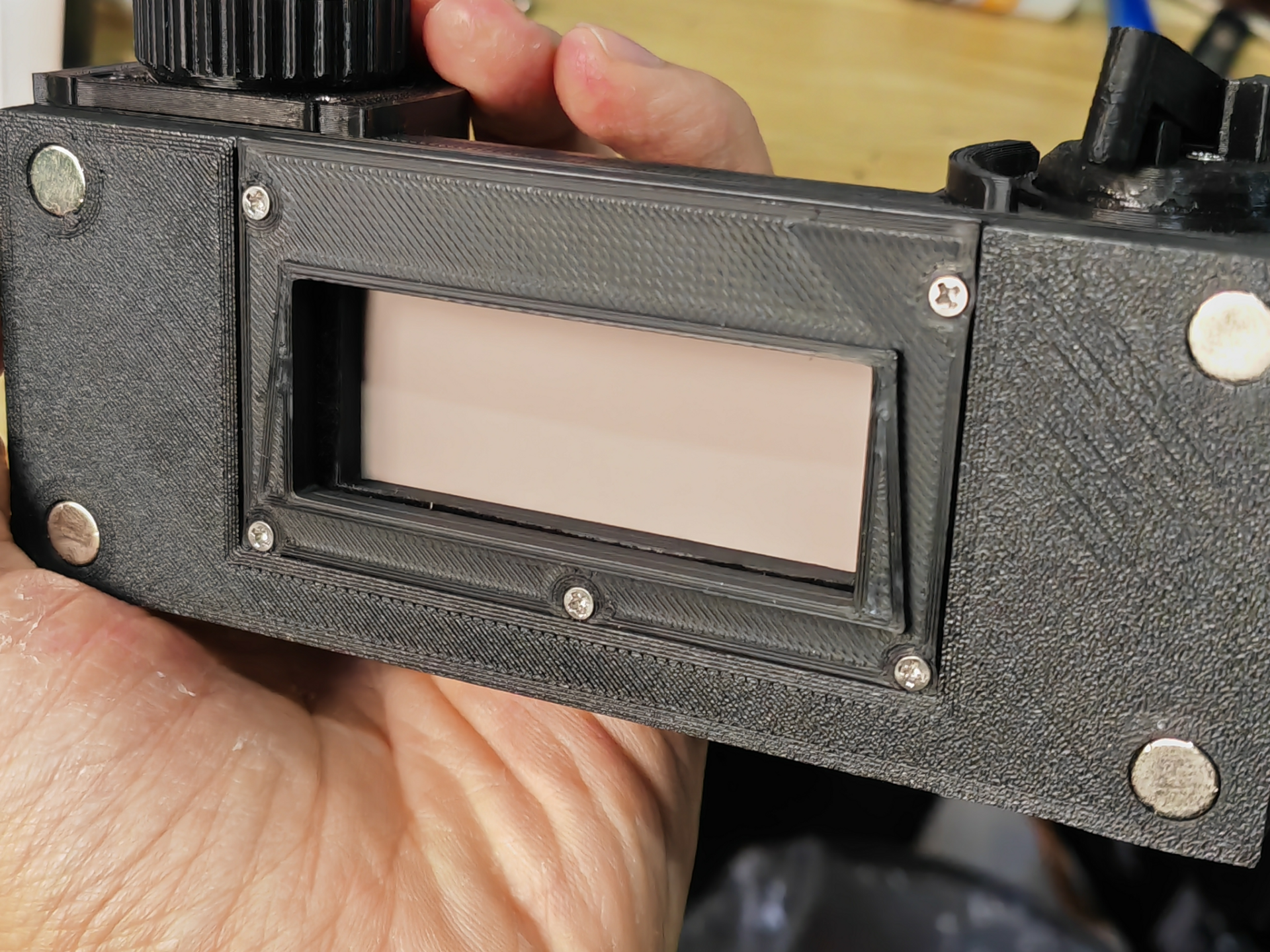

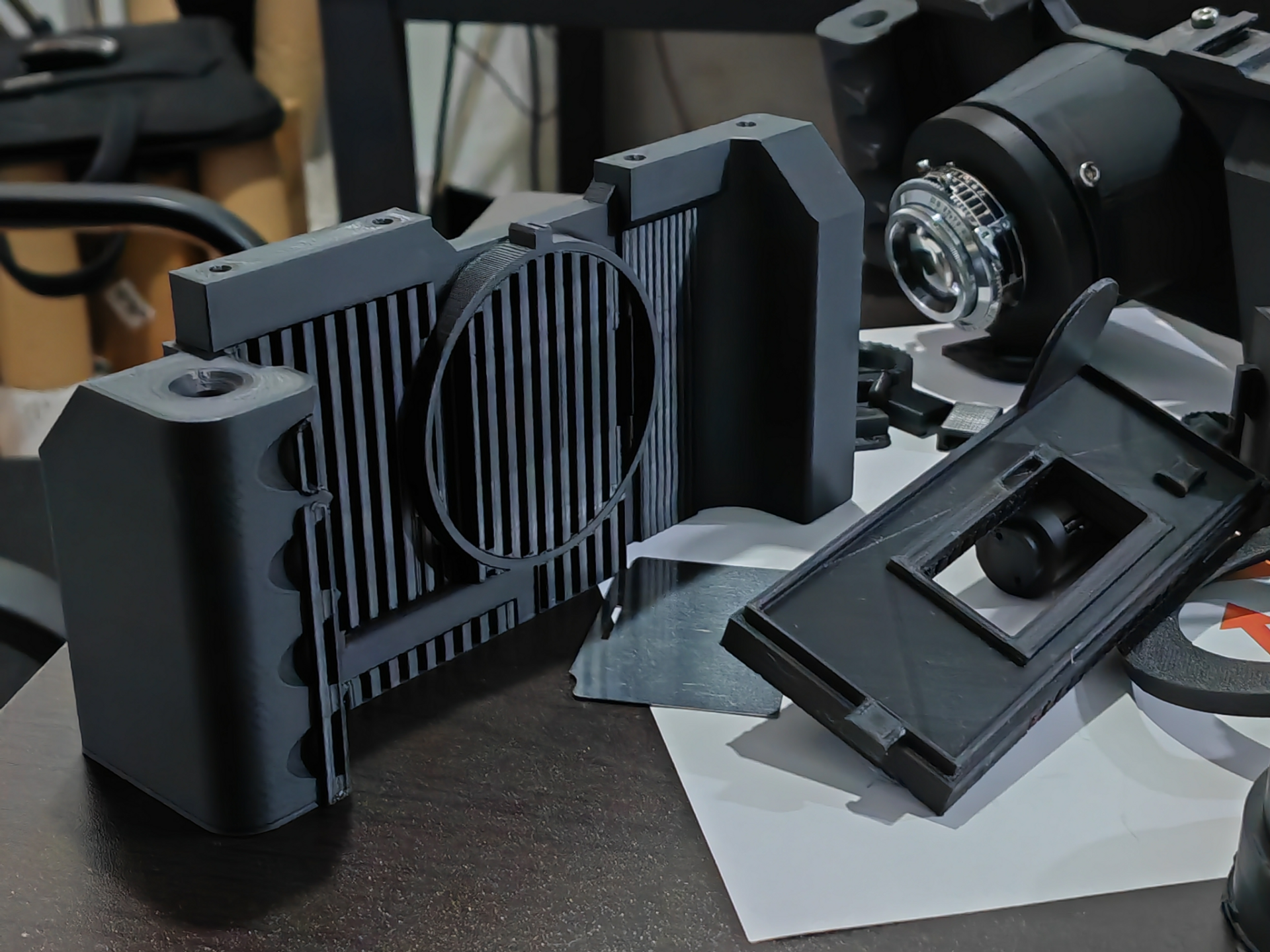

使用调焦筒＋磨砂对焦屏进行对焦，后背可拆卸更换，可换对焦屏对好焦再拍或者标注对焦刻度再估焦拍摄。后背有豆腐刀，后背结构设计严格把关，拒绝漏光！

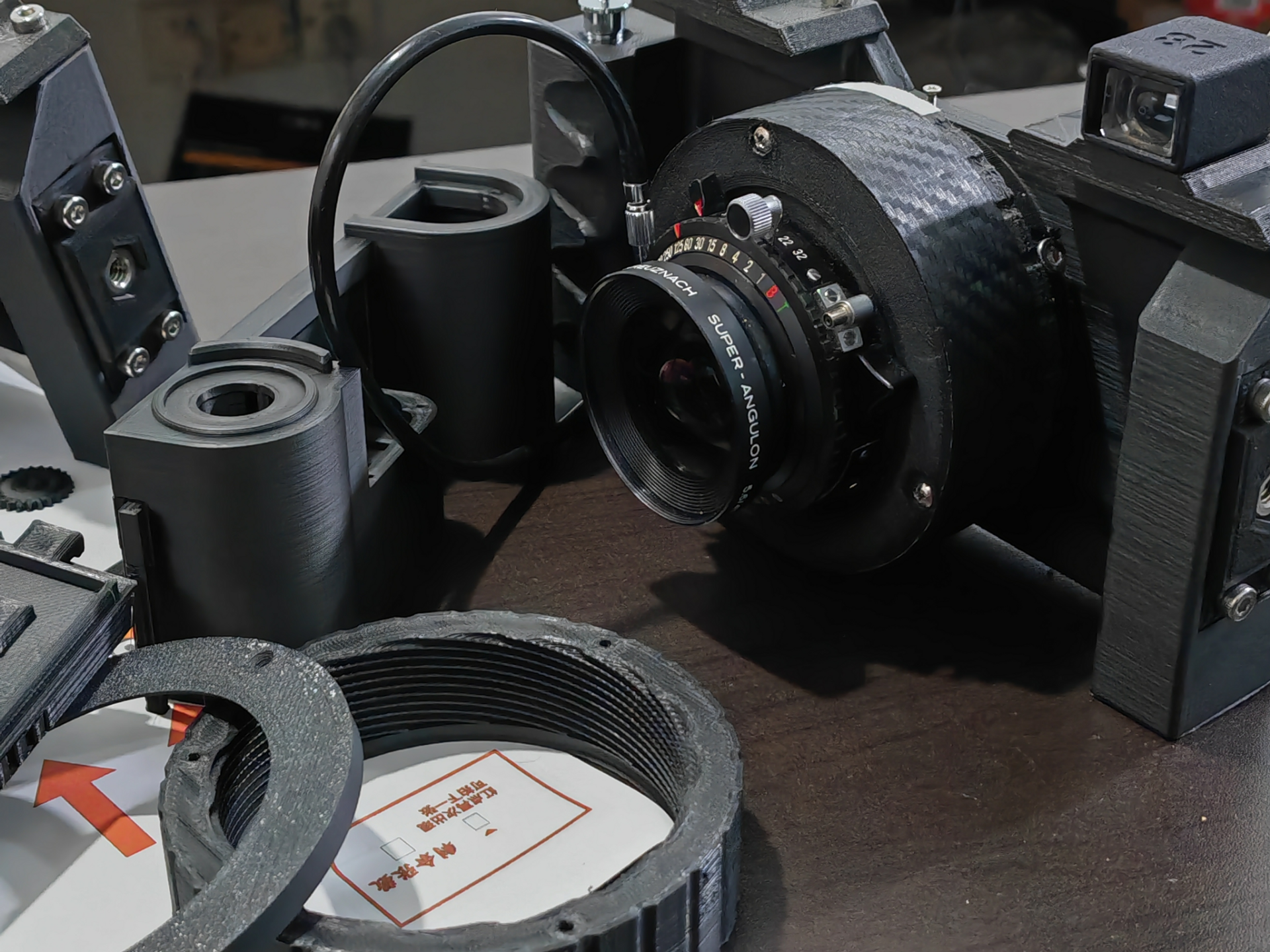

目前可适配镜头（宽幅适合用广角镜，必须大/中画幅带镜间快门的镜头，皮腔机拆机镜头也可以）：
1、施耐德47mm的几颗经典广角镜：super angulon 47mm F8（我用的是一颗派宝69快拍机拆机镜头），super angulon47mm F5.6，

2、施耐德47XL专用机身。
3、中画幅皮腔机或双反的75mm/105mm镜头（对焦方式：3D打印调焦筒＋自带的调焦筒（如果有的话）），
4、选用百搭机身＋对应法兰距范围的猪嘴可以适配几乎所有0号或00号快门的中大画幅镜头。
5、选用玛米亚新闻机卡口特制机身＋cnc铝合金卡口可以转接所有玛米亚新闻机镜头。（镜头卡口不能做3D打印，因为对材料强度要求高，cnc铝合金卡口套件可以直接找“藕可米”购买成品。
【闲鱼】https://m.tb.cn/h.TH97YBd?tk=9uMOe8AzWnX HU293 「藕可米的闲鱼号，快来关注TA吧～」

以后会推出适配更多镜头的版本，随时更新，请持续关注！每次更新都会上传更新日志，文件链接不变。

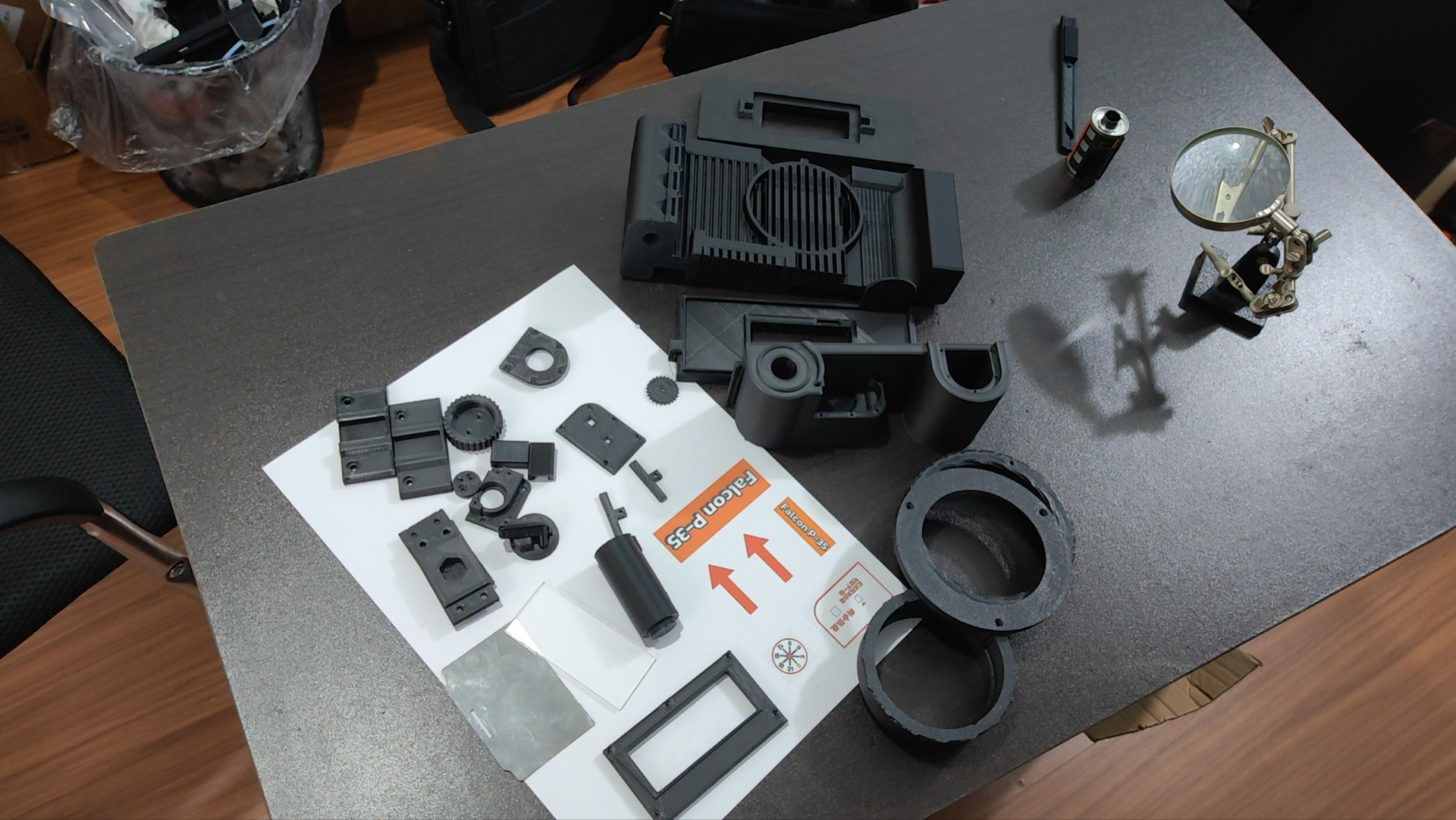

打印说明（详见附件）：
1、为避免老化开裂的漏光，胶卷后背主体部分请选用高密度填充打印（60％以上）！
2、主题部分零件的打印材料必须是全黑色塑料，反光不要太强的，不要用过于粗糙的磨砂材质，推荐彩格的黑色pla耗材。
3、平面.dwg设计图我放在单独的文件夹，一个不锈钢金属片插刀，一个磨砂亚克力塑料板（必须是单面磨砂）。把平面图文件提交给淘宝定制商家定做切割，亚克力板结构简单，直接说70×33mm的长方形尺寸就行。
磨砂亚克力板厚度2mm，插刀厚度0.2mm。两种定制零件推荐下面这两家淘宝店：

【淘宝】https://e.tb.cn/h.TN4zhwMUN1ajG0r?tk=Je0ne4gyDGy CZ005 「65mn弹簧钢带钢板淬火弹簧片硬性高弹性钢片刮片垫片加工切割定制」
点击链接直接打开 或者 淘宝搜索直接打开

【淘宝】https://e.tb.cn/h.TmpNdXqH39qkRY5?tk=VIfye4gCgr8 CZ005 「磨砂透明亚克力板定制吊顶高透光灯箱罩挡阳台卫生门窗圆方形塑料」
点击链接直接打开 或者 淘宝搜索直接打开

欢迎进微信群“3D打印造相机”交流讨论，加我微信进群！

ENGLISH VERSION
**Author:** 黑白影趣(Same name on Bilibili, Xianyu, and RedNote)

**Project Name:** Falcon P-35 Version 1
*Updates will follow. Stay tuned!*

**Special Note:** The author is currently a high school student.
This series of 3D-printed film cameras is my original design. The purpose of open-sourcing is to better demonstrate the practical significance and value of technological innovation.

All film photography enthusiasts are welcome to freely print and assemble their own wide-format film cameras. The process is very simple, and video tutorials will be released on Bilibili. Suggestions for improvements and shared results are also highly appreciated.

**Contact Information for the Open-Source Author:**
- WeChat: zsq15983556719
- QQ: 2897769642
- Email: shengqiangzhang84@gmail.com
*You can contact me to join the WeChat discussion group.*

This is a non-profit project, but DIY enthusiasts with 3D printers are allowed to assemble and sell the cameras.
*When selling or sharing, please credit the original designer:* **"黑白影趣"**

**Bilibili Videos on Features and Structure:**
- [Final Preview of the Open-Source 3D-Printed 135 Wide-Format Film Camera – "Falcon P-35" Project](https://b23.tv/uQwttoB)
- [final Open-Source Introduction: 3D-Printed 135 Wide-Format Film Camera – Falcon P-35 Project](https://b23.tv/QAEOxW2)
*(Follow the same Bilibili account for printing instructions and assembly tutorials. Stay tuned!)*

**Introduction:**
This is a primarily 3D-printed camera designed for shooting 135 film in a wide format (24×65mm). It features film positioning, automatically frame counting, and focusing capabilities. It can also be adapted to be used on a 4×5 large-format camera back with a 3D-printed mounting plate(also included in the model files) .

Except for metal fasteners, the dark slide, and the frosted acrylic ground glass, all parts are 3D-printed. The structure is sturdy and simple, suitable for standard FDM 3D printing. Materials like PLA or PETG work well. If you don’t own a 3D printer, you can send the model files to a printing service (*ensure they use fused deposition modeling (FDM) with matte black, non-reflective material—no resin printing!*). For printing orientation and slicer settings, refer to the instructions in the folder. *Not all files need to be printed!*
Considering the particularity of the detailed printing tutorial, I did not make an English translation version of it. Please use translation software and combine images to understand.

*If you’re unfamiliar with 3D printing, avoid altering the settings.
*If using a printing service, emphasize these requirements and DONOT change them.

**Features:**
- Manual film advance with mechanical frame counting.
- A standard 36-exposure 35mm film roll yields 20~22 wide-format (24×65mm) shots.
- Focusing is achieved via a focusing tube and a frosted focusing screen. The removable back allows for focusing screen swaps or marked distance scales for zone focusing.
- The back includes a dark slide , and the design ensures no light leaks.

**Compatible Lenses (wide-angle lenses are recommended for wide-format; must be medium/large-format lenses with leaf shutters; lenses from bellows cameras also work):**
1. Schneider’s classic 47mm wide-angle lenses:
  - Super Angulon 47mm F8 (I used one from a Paxette 69 snapshot camera).
  - Super Angulon 47mm F5.6.
2.Schneider super angulon 47 XL: please choose the specialized main body for printing.
3. 75mm/105mm lenses from medium-format bellows cameras or TLRs (*focusing method: 3D-printed focusing tube + the vary inside-focusing tube*).
4. Universal body + corresponding flange distance adapters can fit almost all medium/large-format lenses with No. 0 or 00 shutters(flange between 65~160mm)
5. Custom Mamiya Press camera mount body + CNC aluminum mount adapters can fit all Mamiya Press lenses (*3D-printed mounts are unsuitable due to material strength requirements; purchase CNC aluminum adapters from "藕可米"*):
  - [Xianyu Link](https://m.tb.cn/h.TH97YBd?tk=9uMOe8AzWnX)
  *Future versions will support more lenses. Stay tuned! Updates will include changelogs, with the same file links.*

**Printing Instructions:**
1. To prevent light leaks from aging or cracking, print the film back body with high infill density (60% or higher).
2. Main parts must be printed in solid black, low-reflectivity plastic. Avoid overly rough textures. Black PLA or PETG are recommended.
3. For the .dwg design files (a stainless steel dark slide and a frosted acrylic plate as ground glass*must be single-side frosted*), submit them to Taobao custom shops for laser cutting. The acrylic plate is a simple 70×33mm rectangle.  (For overseas enthusiasts, you can have the required parts custom-made by local workshops.)

  - Frosted acrylic thickness: 2mm.
  - Dark slide thickness: 0.2mm.

  Recommended Taobao shops:
(https://e.tb.cn/h.TN4zhwMUN1ajG0r?tk=Je0ne4gyDGy)
(https://e.tb.cn/h.TmpNdXqH39qkRY5?tk=VIfye4gCgr8)

4. Sticker printing settings:(Print on 4*6 inch adhesive-backed  paper;does not support border printing(no cropping or scaling allowed).

**Join the WeChat group "3D-Printed Camera Builders" for discussions! Add me on WeChat to join.**

---  Assisted by DeepSeek for translation.

Design by 黑白影趣 on MakerWorld (license: BY).
