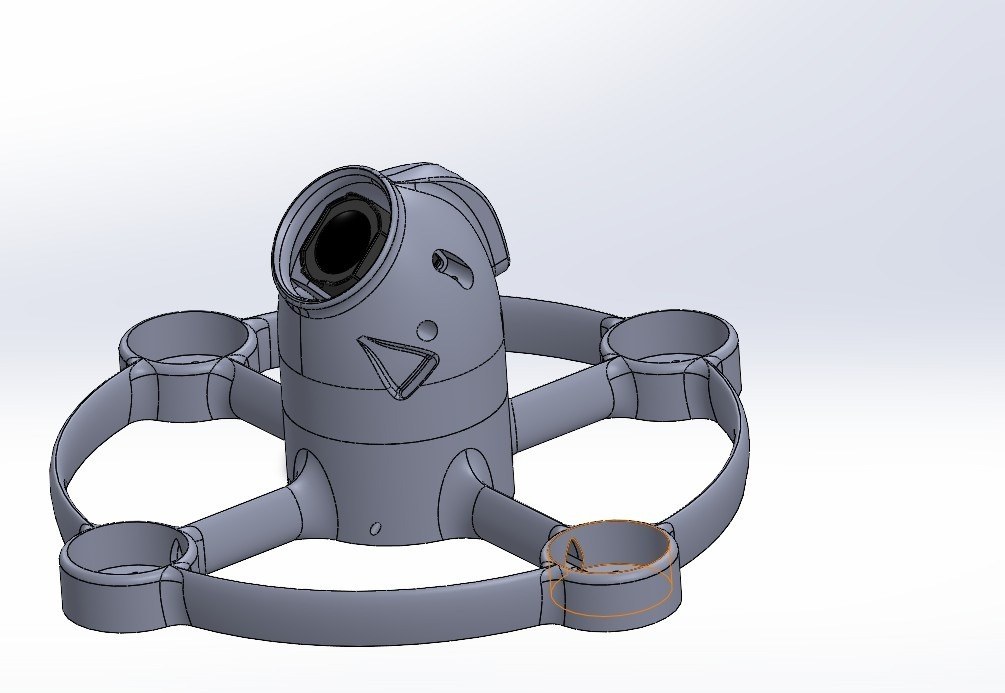

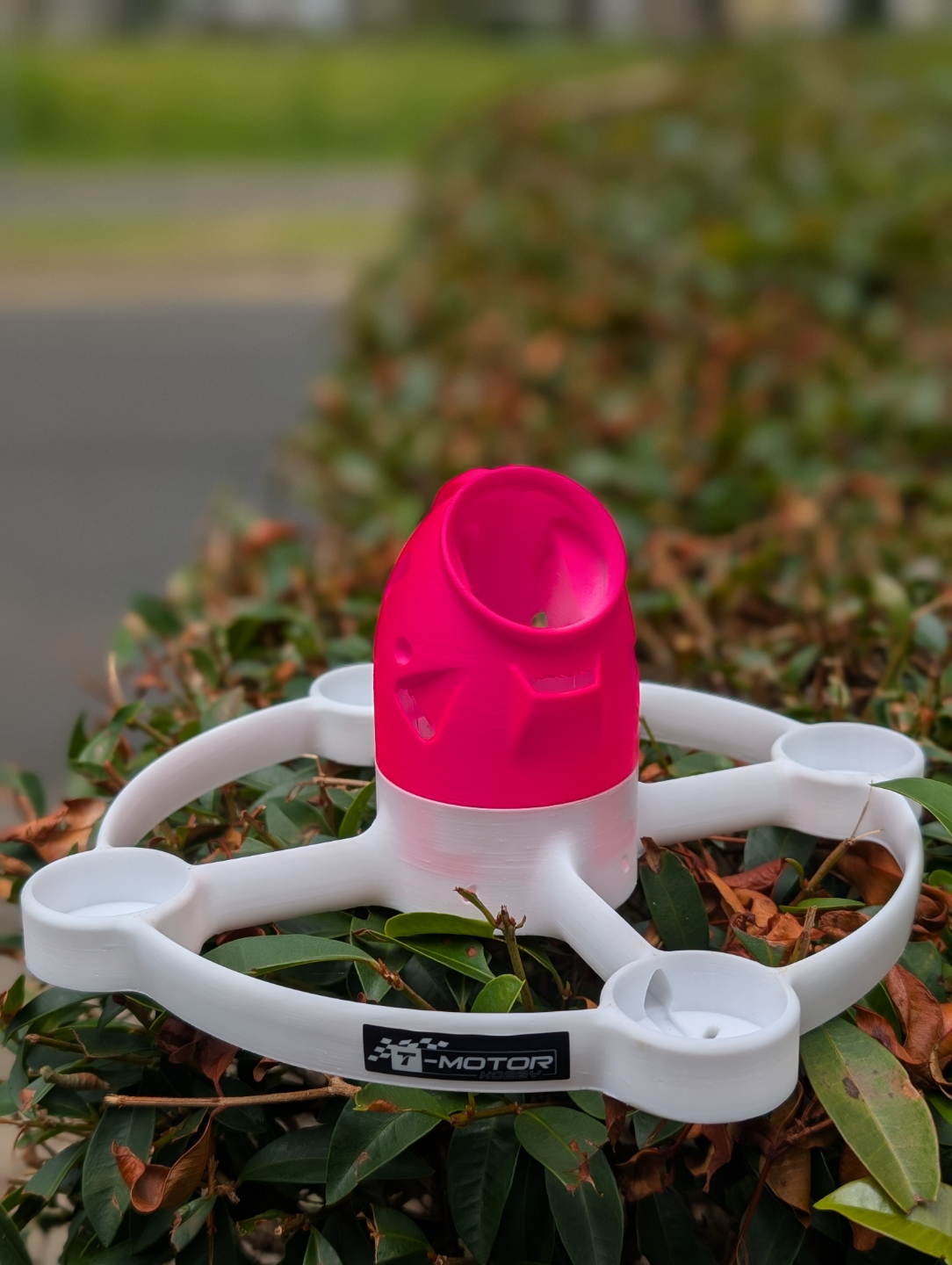

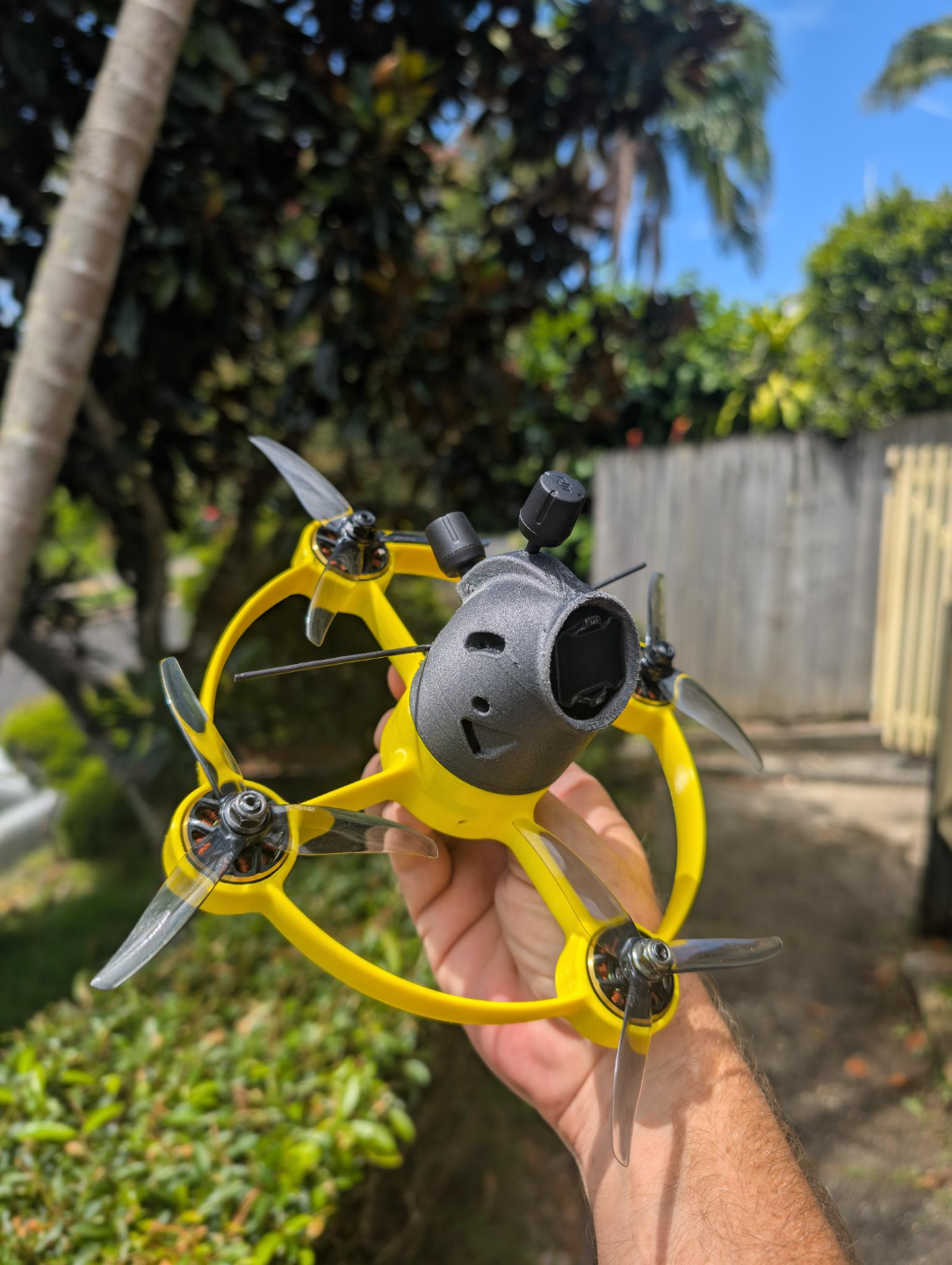

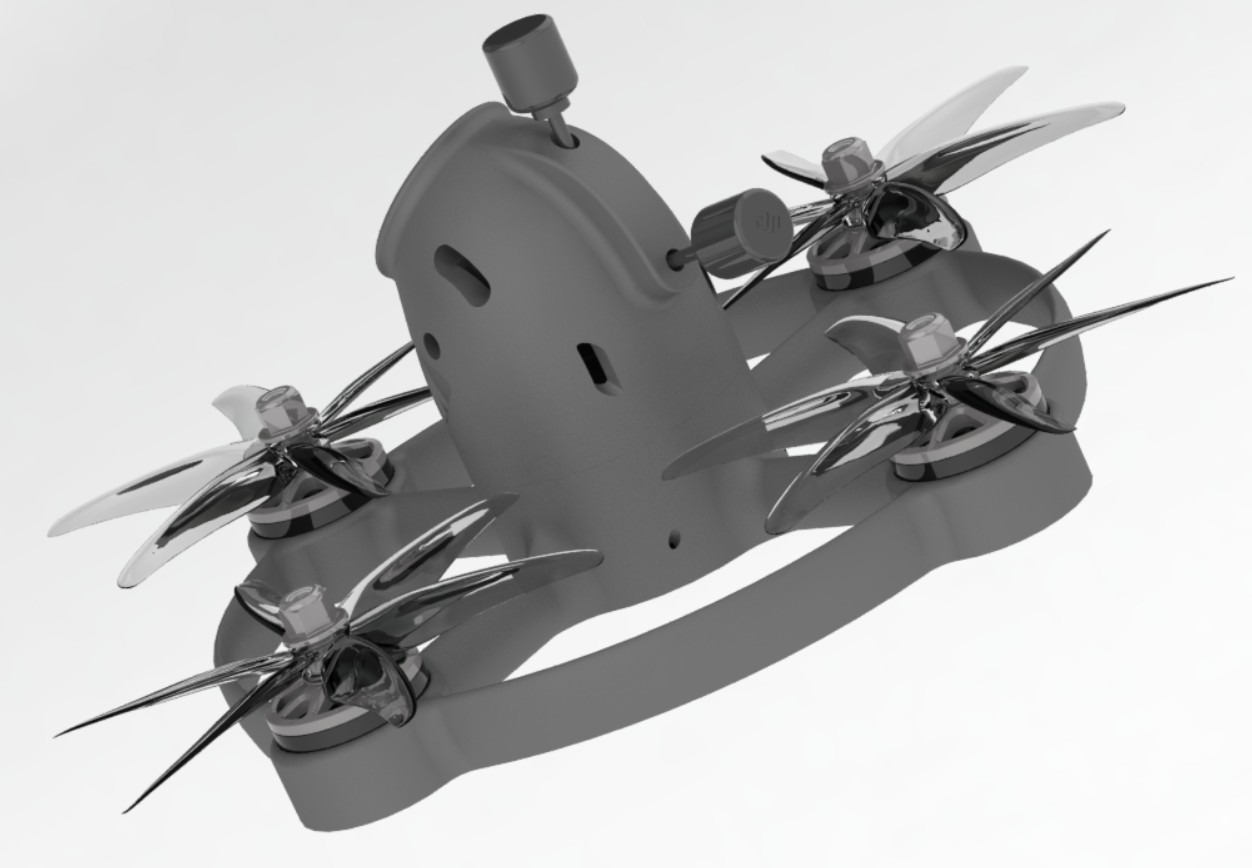

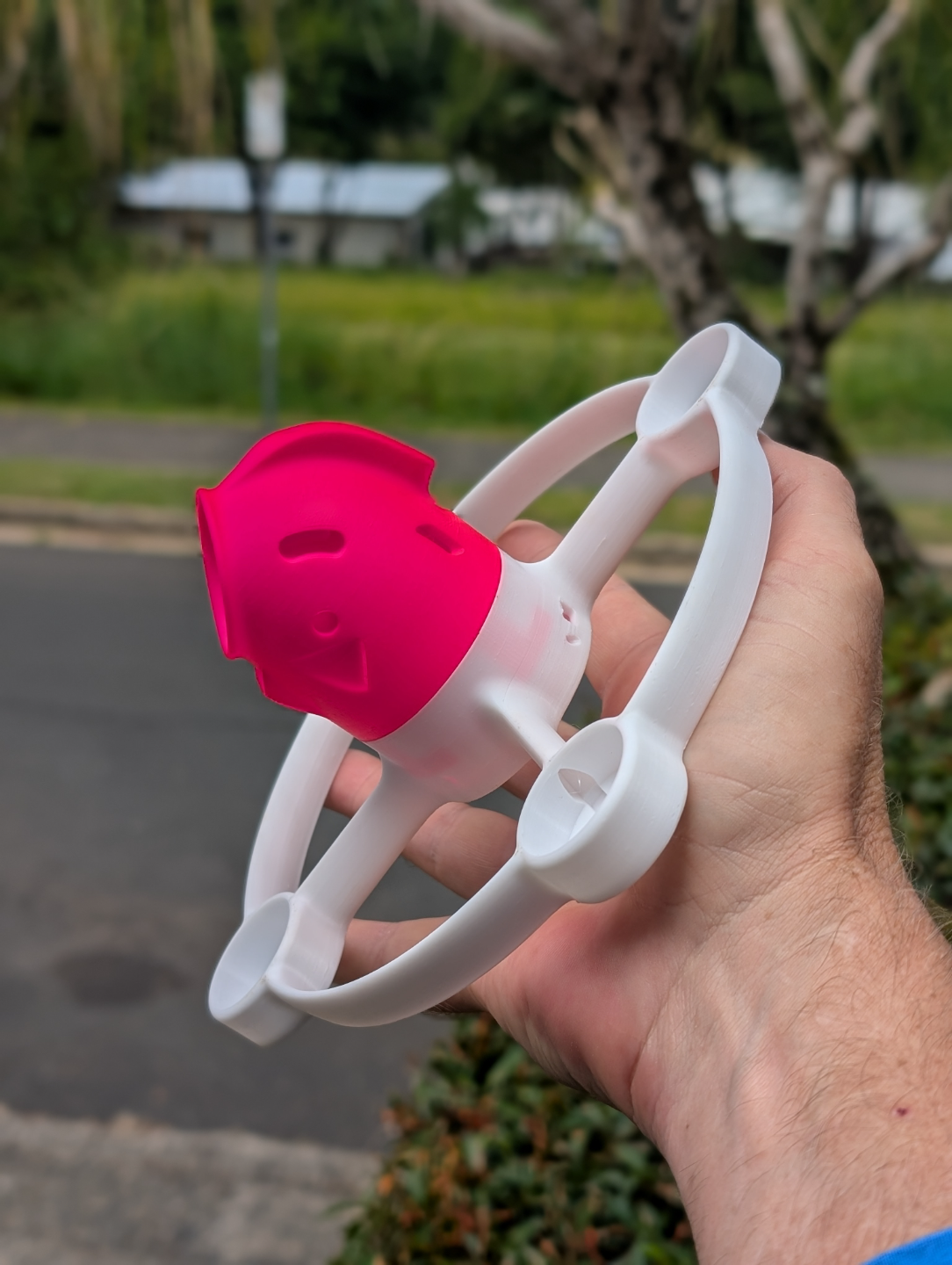

3inch Aeroring Drone
3inch Aeroring Drone
⚠️ WARNING: FOR SEASONED FPV PILOTS ONLY ⚠️
The AeroRing is built for experienced pilots who understand the risks and responsibilities of high-performance flight. By proceeding to download these files, you agree:
To fly safely and responsibly, away from people and property.
These drones are NOT intended for warfare or reckless use.
You take full responsibility for your actions while flying.
Only Download this thing if you're ready to absolutely send it!!!!
Build Steps:
- Add Velcro strap (do not skip this step!).
- Wire in the motors.(check motors spin freely) It was designed for the 1507 Tiger Motor. *(you will have to cut the heat-shrink from the motor wires) . Carefully remove the heat-shrink and line the motor wires into the boom.
- Solder motor wires to ESC (watch that soldering iron, you can melt the plastic)
4 Then add your ESC/FC long screws. Line them up one by one... - Don't forget your Battery wires, leave them longer and stick them out the hole. (PLUS config wires come out from the ESC towards the left 45 degrees. X config straight back.
6.PLug in USB and choose X or PLUS in BetaFlight, check motor direction!!!!
7.With no support for USB, PID's must be changed in the glasses.
(other tips, wires from motors to esc's can get in the way of the twist canopy) This is because the twist part is near the bottom of the center pod for strength, just take your time, it is a really simple fun build and the thing RIPPSSS!!!!!

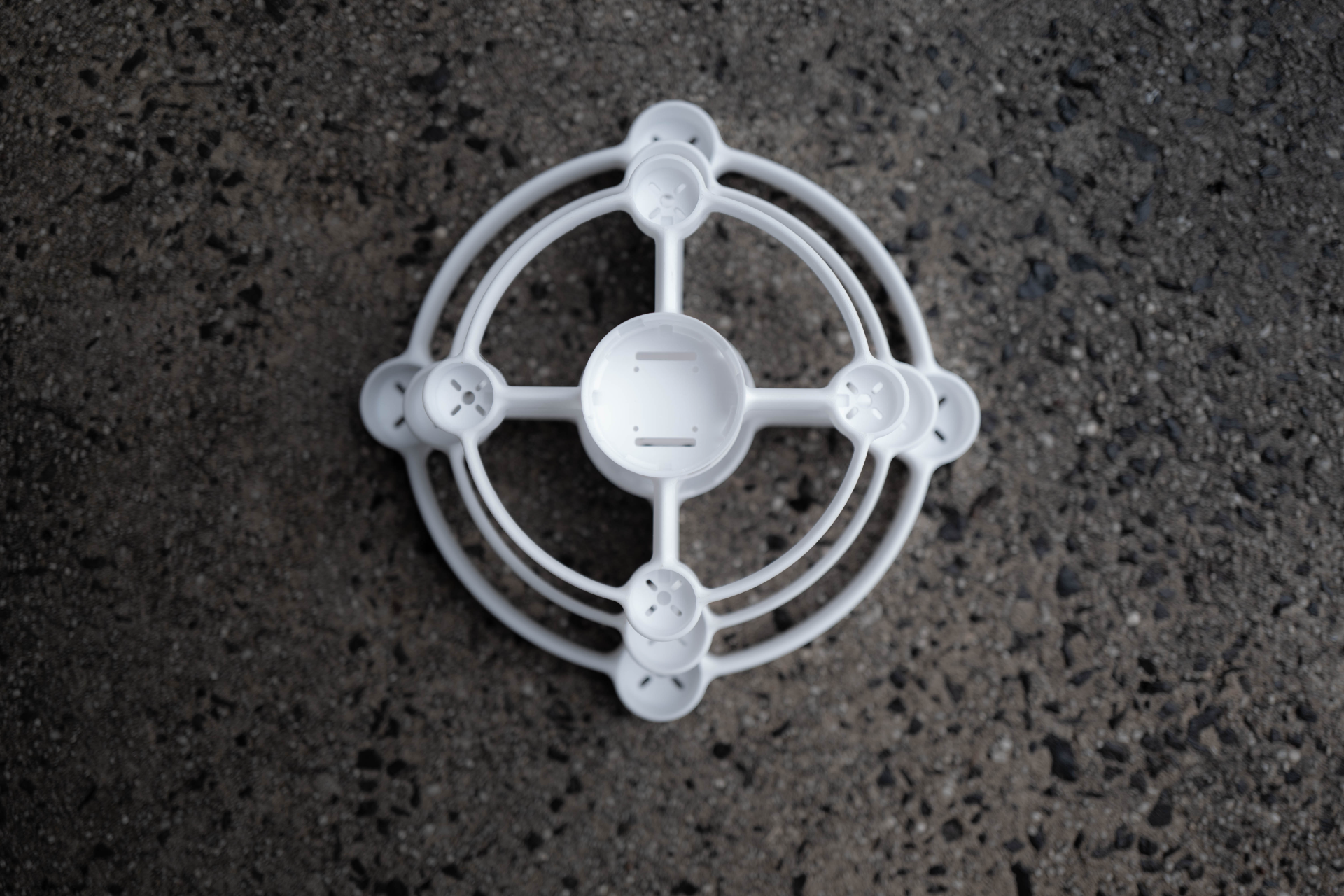

Why the Ring is the Smartest Form for Drones
The ring frame design is more than just innovative—it’s practical, durable, and built for performance. Unlike traditional X or Plus frames, the Aeroring leverages the natural strengths of a circular structure to redefine what drone frames can achieve. Here’s why the ring is the future:
1. Superior Impact Resistance
The circular shape of a ring is inherently strong because it distributes impact forces evenly across its structure. Unlike traditional frames with exposed booms that act as weak points, the Aeroring absorbs and spreads pressure to minimize damage. This makes it exceptionally durable, even in extreme tests. The ring can be printed at home using normal PLA Filament or for those pushing the boundaries of flight, Polycarbonate (PC) can be used.
2. Reduced Vibrations
Vibrations can cause instability and ruin camera footage, but the Aeroring solves this problem naturally. The continuous geometry of the ring resists torsional vibrations, providing a smoother and more stable flying experience. Without extended arms amplifying oscillations, the Aeroring keeps your motors and flight controller in an optimal environment for precision control. Harmonics should be minimal and on one Axis. You won’t need anti-vibration dampening on your Camera (like all other FPV drones)
3. Improved Aerodynamics
The Aeroring’s circular design is inherently aerodynamic, reducing drag and improving efficiency during flight. Unlike traditional X or Plus frames with exposed edges and arms disrupting airflow, the ring moves cleanly and quietly through the air. This results in longer flight times, better power efficiency, and smoother forward motion.
4. Lightweight Yet Strong
The ring frame delivers an exceptional strength-to-weight ratio. By integrating the motors into a single, unified structure, the Aeroring eliminates the need for bulky components, creating a frame that is both lightweight and robust. This means more power for performance and payload, without compromising on durability.
5. Balanced and Stable Flight
The symmetrical design of the ring ensures even weight distribution and balanced thrust. This not only simplifies flight control but also improves handling during dynamic maneuvers. Unlike X frames, which can experience uneven stress and require separate PID tuning for pitch and roll, the Aeroring maintains consistency in all directions. PID’s for Roll and Pitch should be the same.
Why the Ring Design Matters Today
With advancements in 3D printing, high-efficiency motors, and battery technology, the Aeroring is more relevant than ever. It’s designed for creators, builders, and pilots who demand performance and reliability. Whether you’re flying for endurance, speed, or creativity, the Aeroring combines the durability of its circular structure with cutting-edge drone components to create a truly revolutionary frame.
The Aeroring isn’t just the strongest form for drones—it’s the smartest.

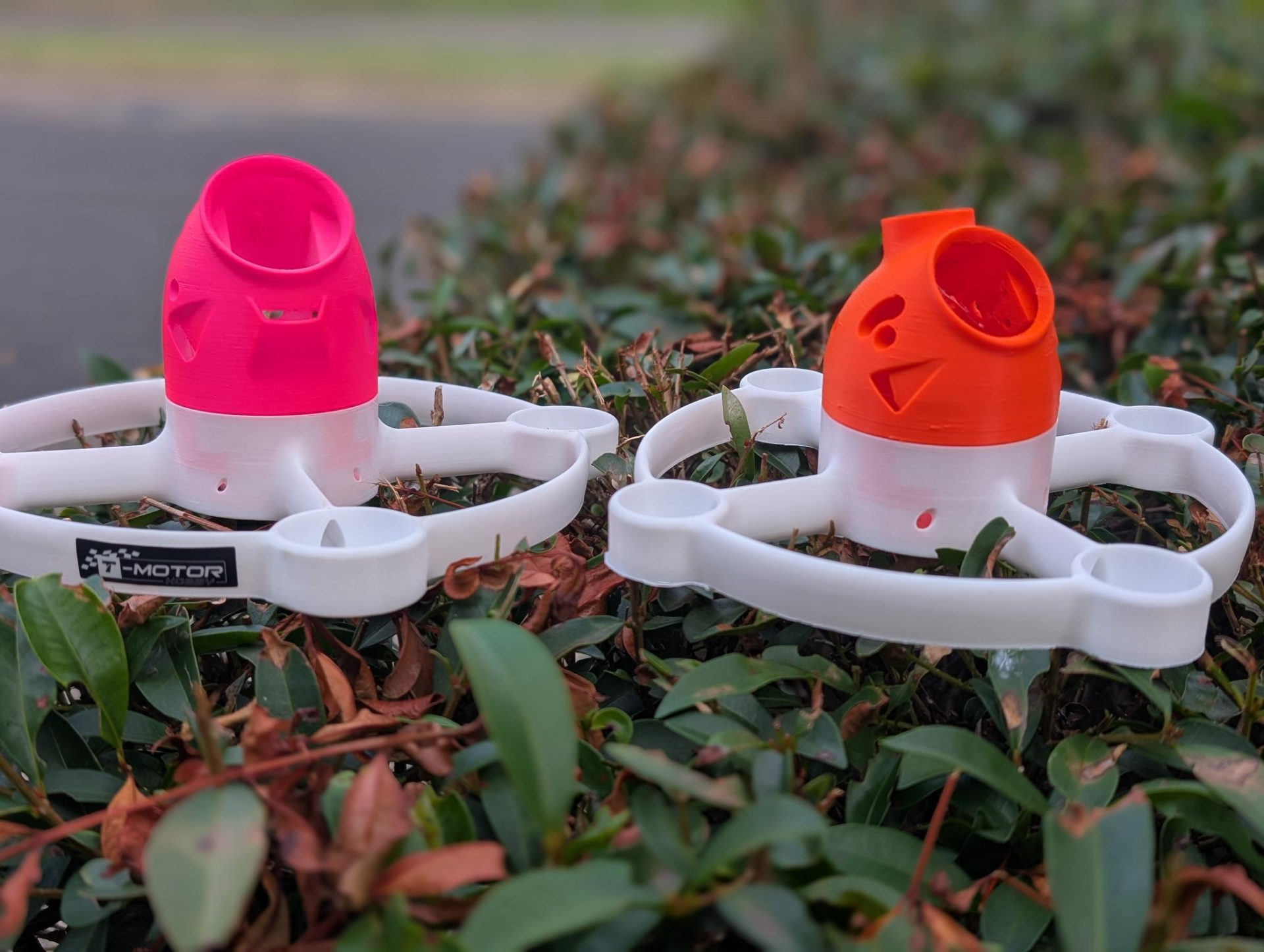

My goal isn’t to convince you that Plus is the only way to fly. In the end, it comes down to trends, personal preference, or even just the look you prefer. That’s why we also designed an X configuration—for all the die-hard X fans out there! 😊"
Design by Aerobot2 on MakerWorld (license: BY).
