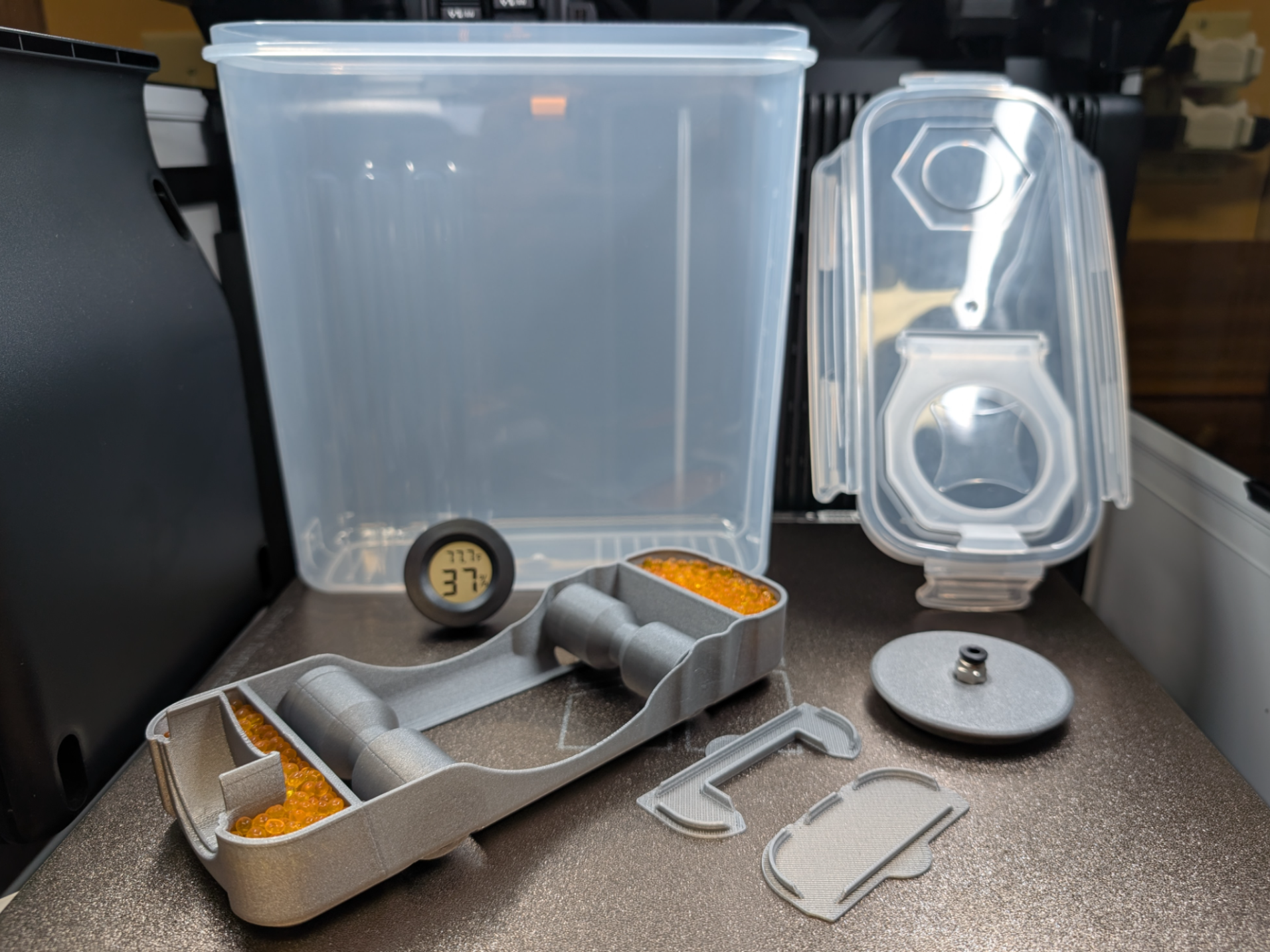

4L Cereal Container Drybox Spool Roller Feeder

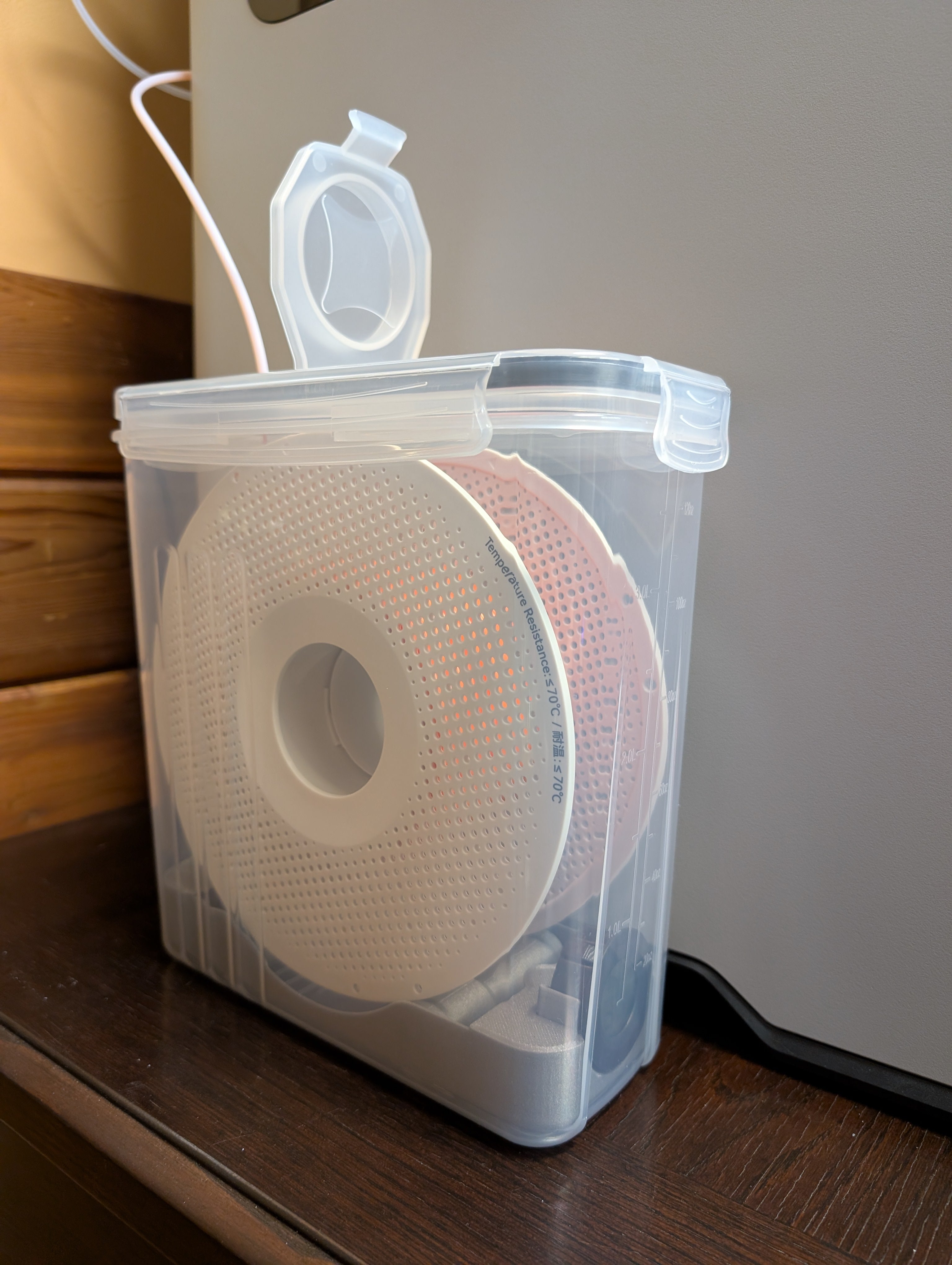

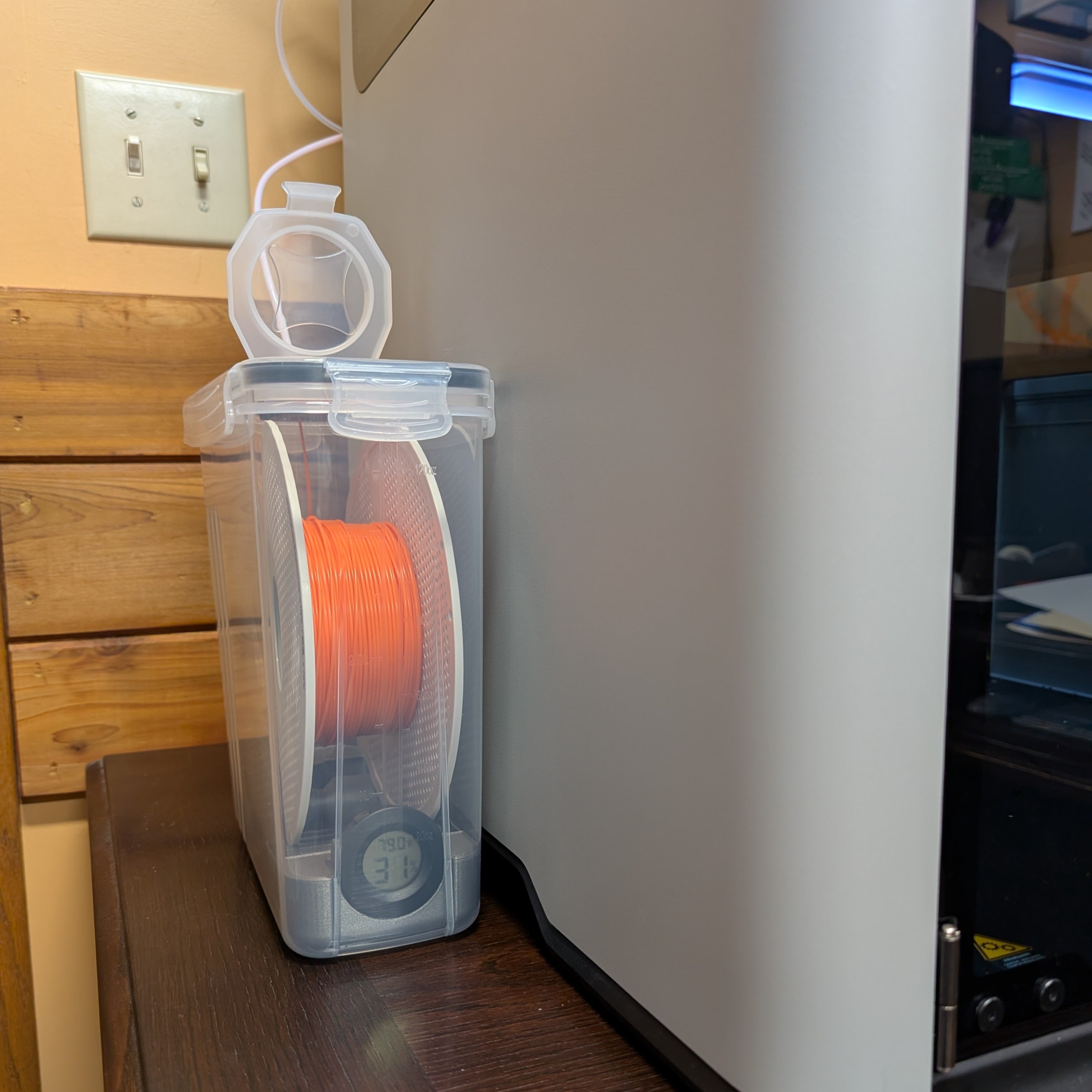

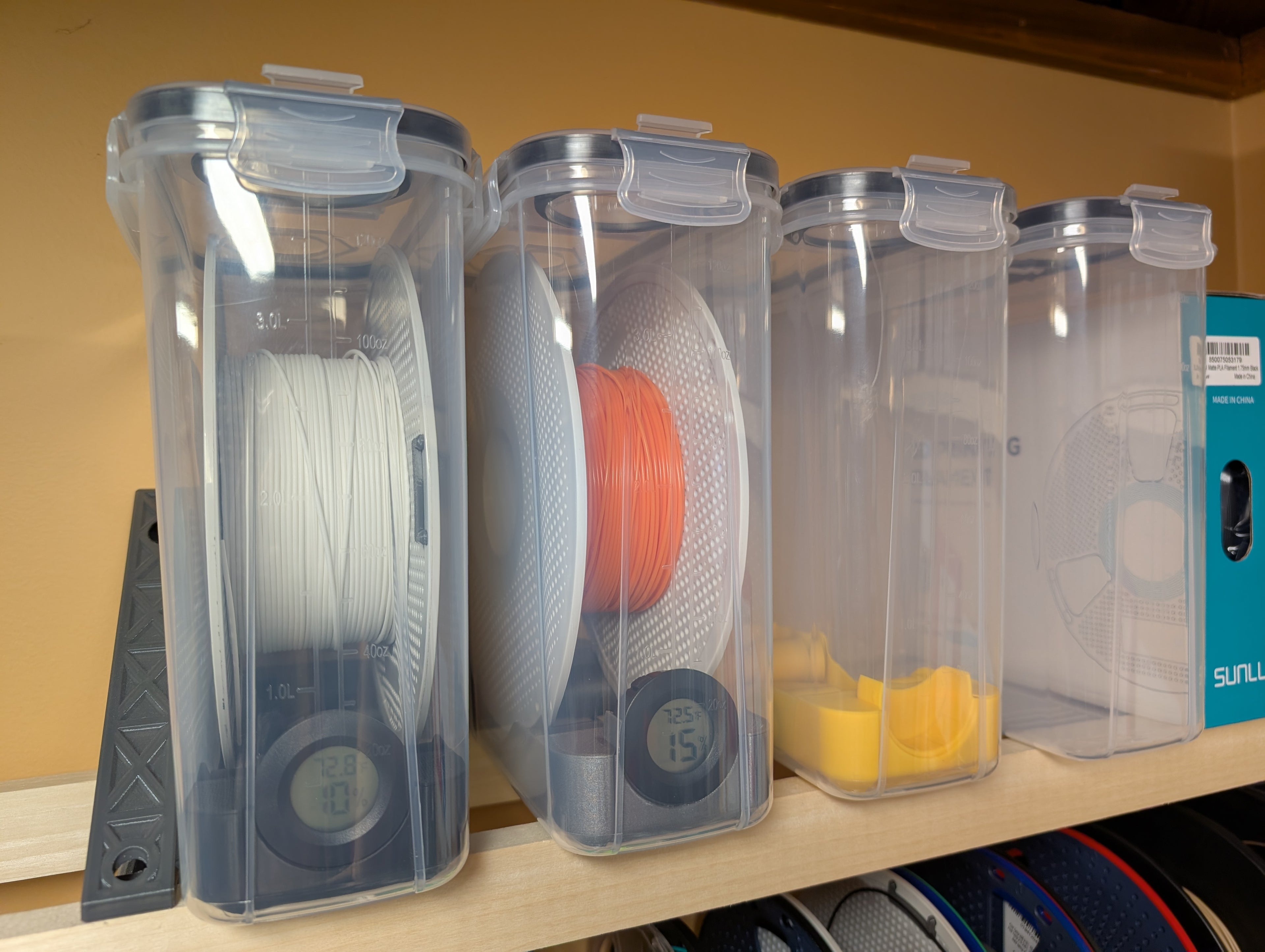

This design is a filament storage and feeder drybox using the commonly available 4L Cereal containers available on Amazon and other locations.

Features include:

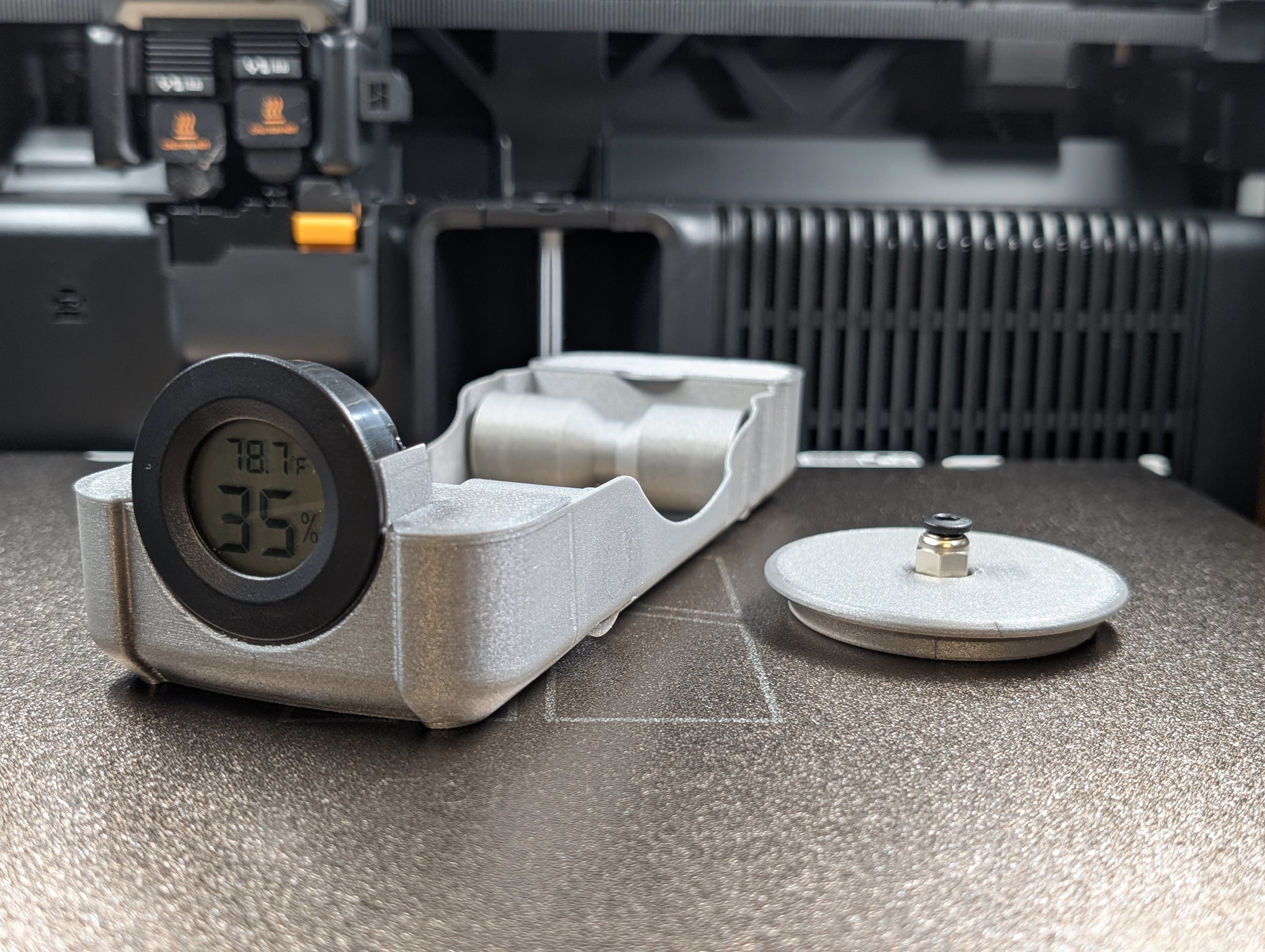

• Space for a Round Hygrometer (45deg and 60deg variants work)
• Ample Space for Silica Gel Desiccant

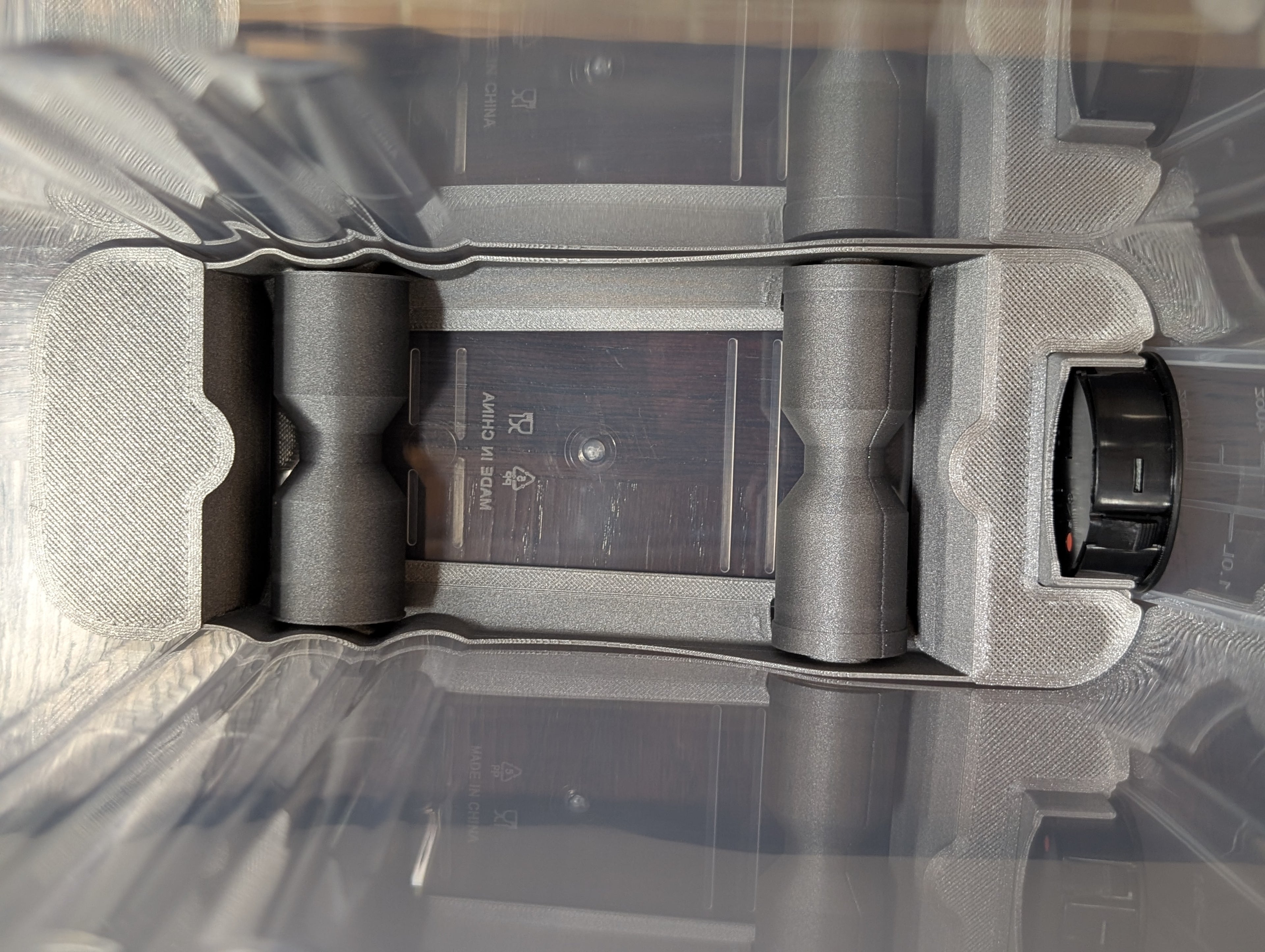

• Uses Common 608 Bearing for rollers
• PTFE Top Feeder Tube Adapter

Parts needed:

• 1PK - 4 Pack 4L Cereal Containers: https://www.amazon.com/dp/B09ZLBJQDW?th=1
• Qty:1 - Round Hygrometer (See BOM Below)
• Qty:4 - 608 Skate Bearings (See BOM Below)
• Qty:1 - PC4-M10 Fitting (See BOM Below)
• 1Lot - Silica Beads (Purchased or repurposed from what comes with filament)

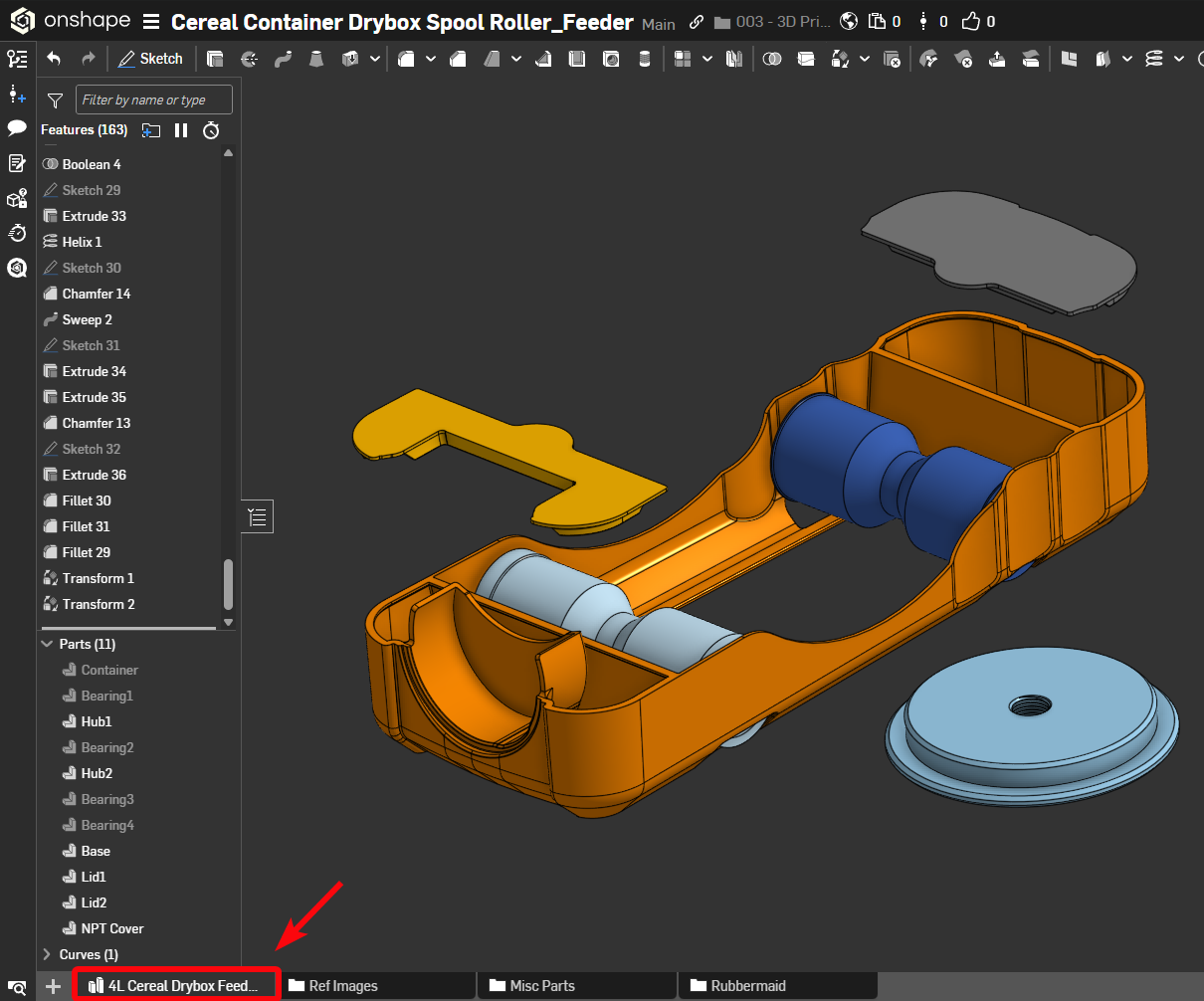

I have included a Step File if you want to modify the design for your own needs. And I have also included the Onshape native file link below (Please not this one has an ugly design tree, I plan to clean it up at some point).

Onshape Link: https://cad.onshape.com/documents/730b6af191b032a8dd8f3021/w/4eb90ca75e6282f4e2e66cf7/e/422df78950a8ba6cacb413ca?renderMode=0&uiState=692d86d7e8e7046f20c8846e

Design by eclien on MakerWorld (license: BY-SA).
