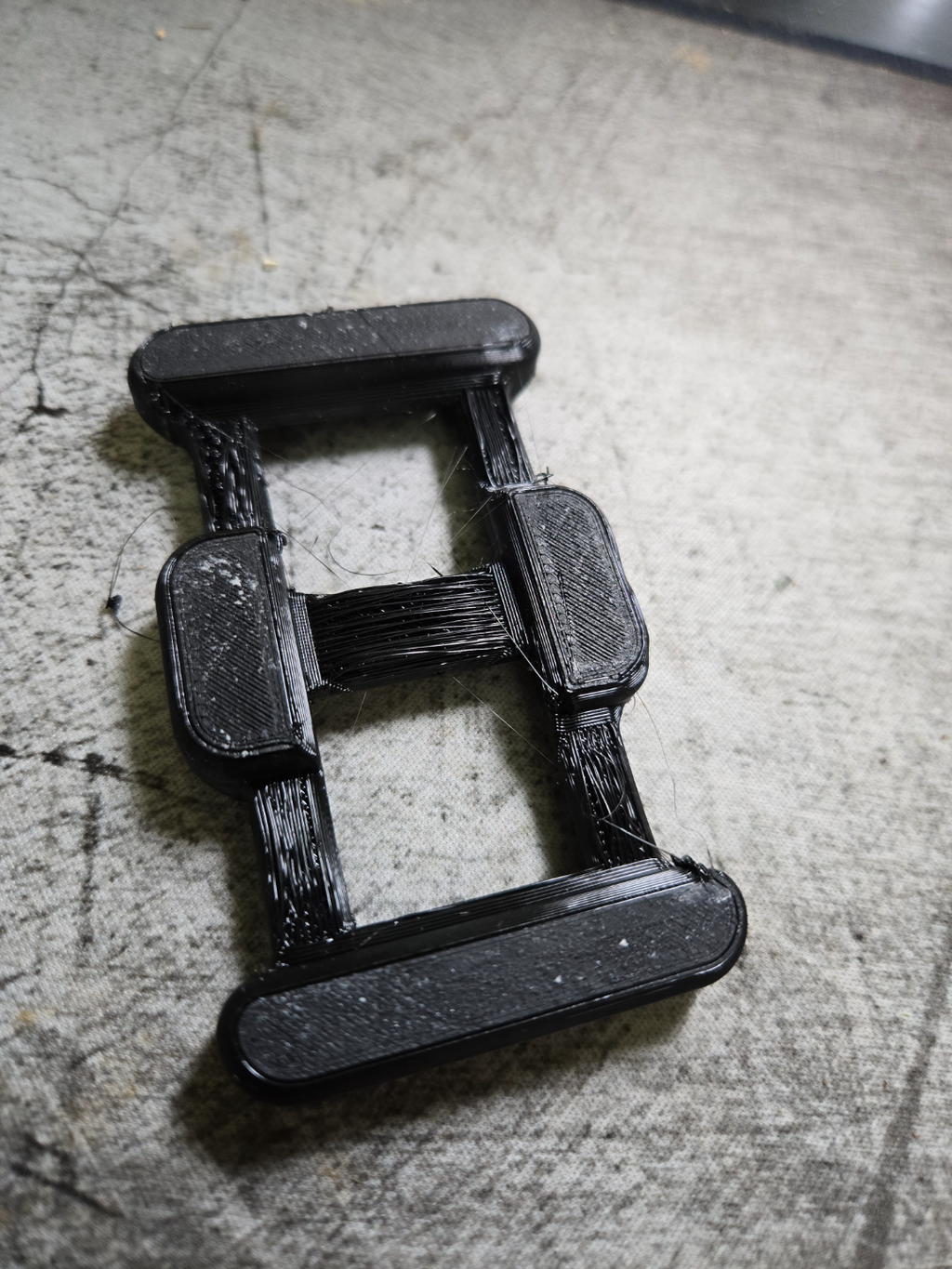

6S and 4S Battery Savers

Are you also sick of destroying your expensive 6S batteries when flying a bit too hard? Yeah me too, that is why i designed this battery saver. It wont save your battery from all crashes but the laws of physics says it should help in most situations that would have harmed the battery. It also helps to prevent frontal ejects in a crash.

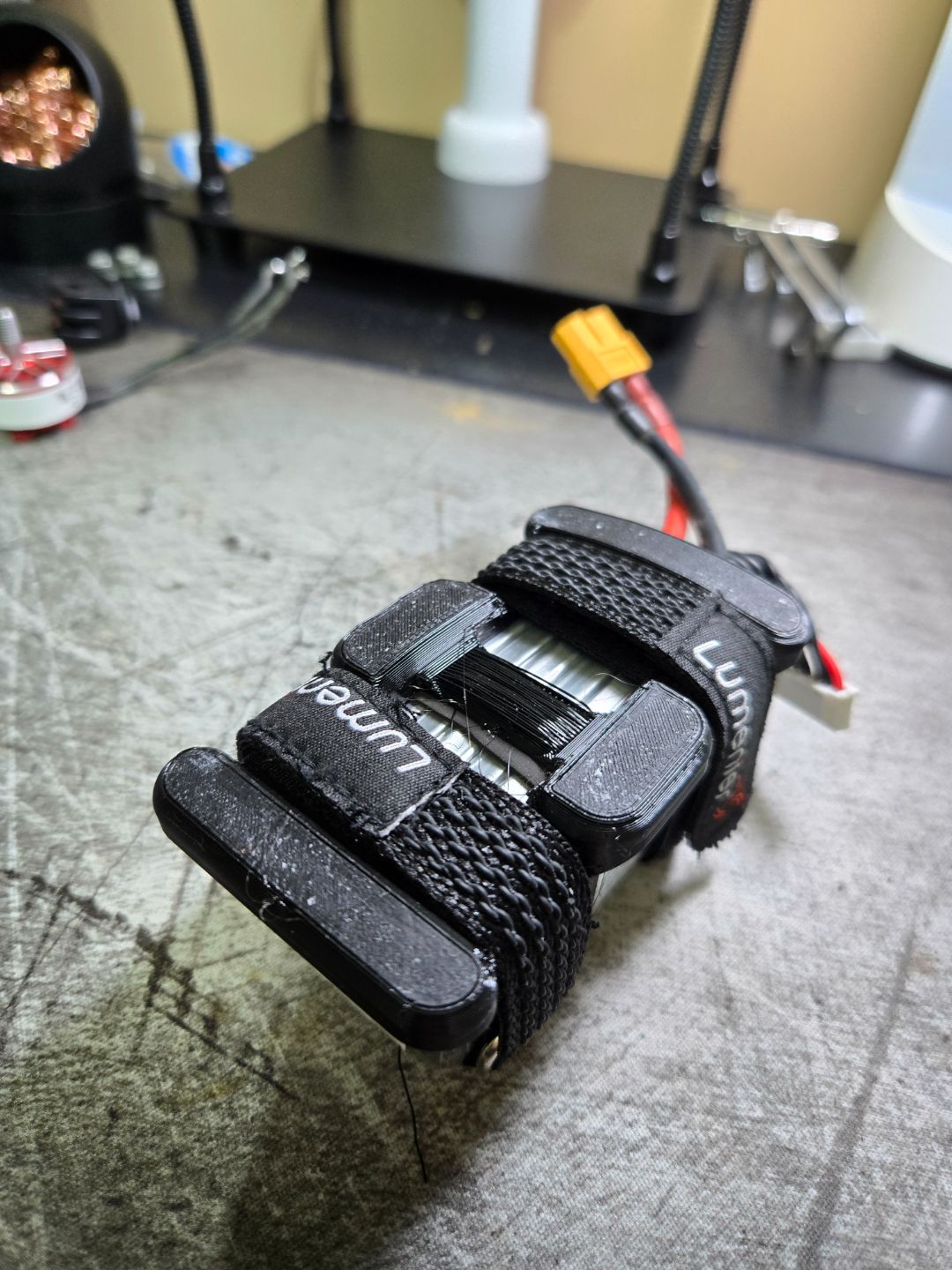

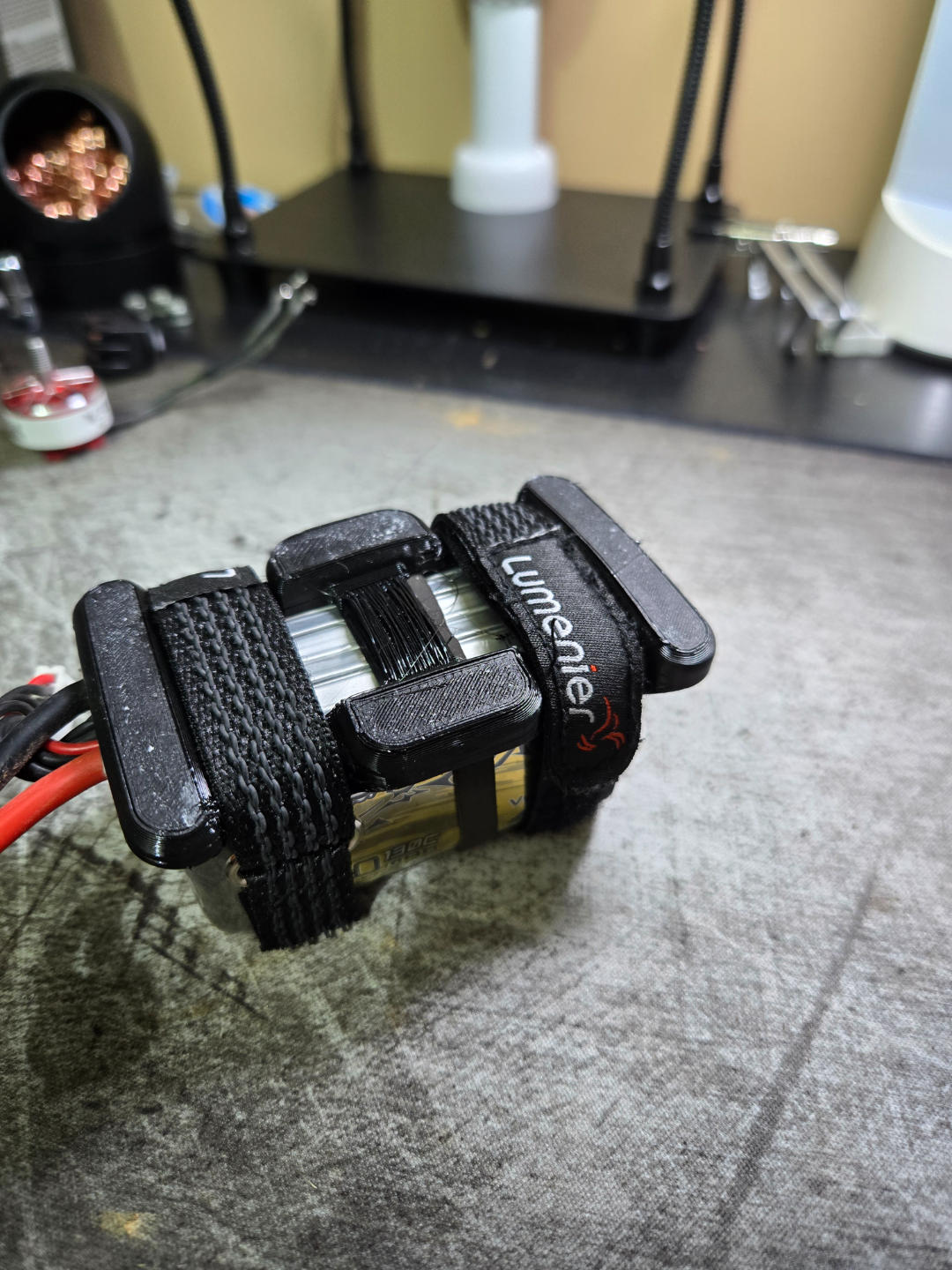

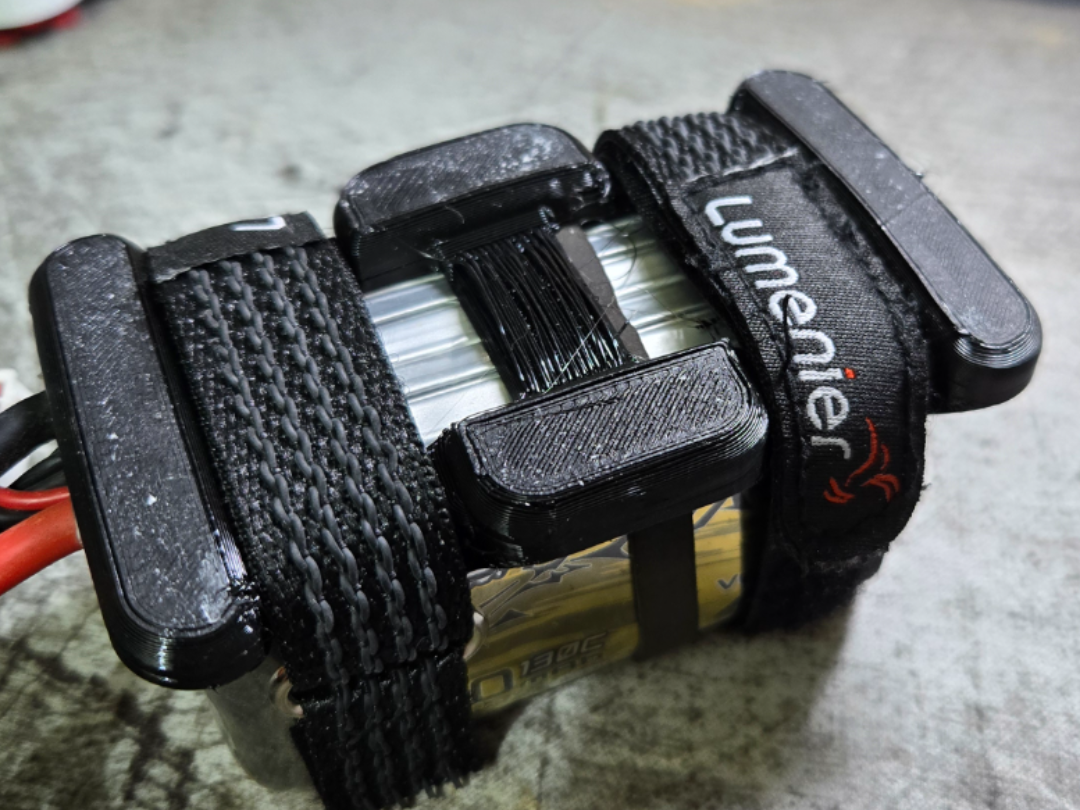

All models have a 2 strap version and 1 strap version for those of you who like to live dangerously.

The walls and infill setting are just what I found work best for me, feel free to experiment with your own settings for optimal squish vs solid

My prints were all done with Overture TPU 95A

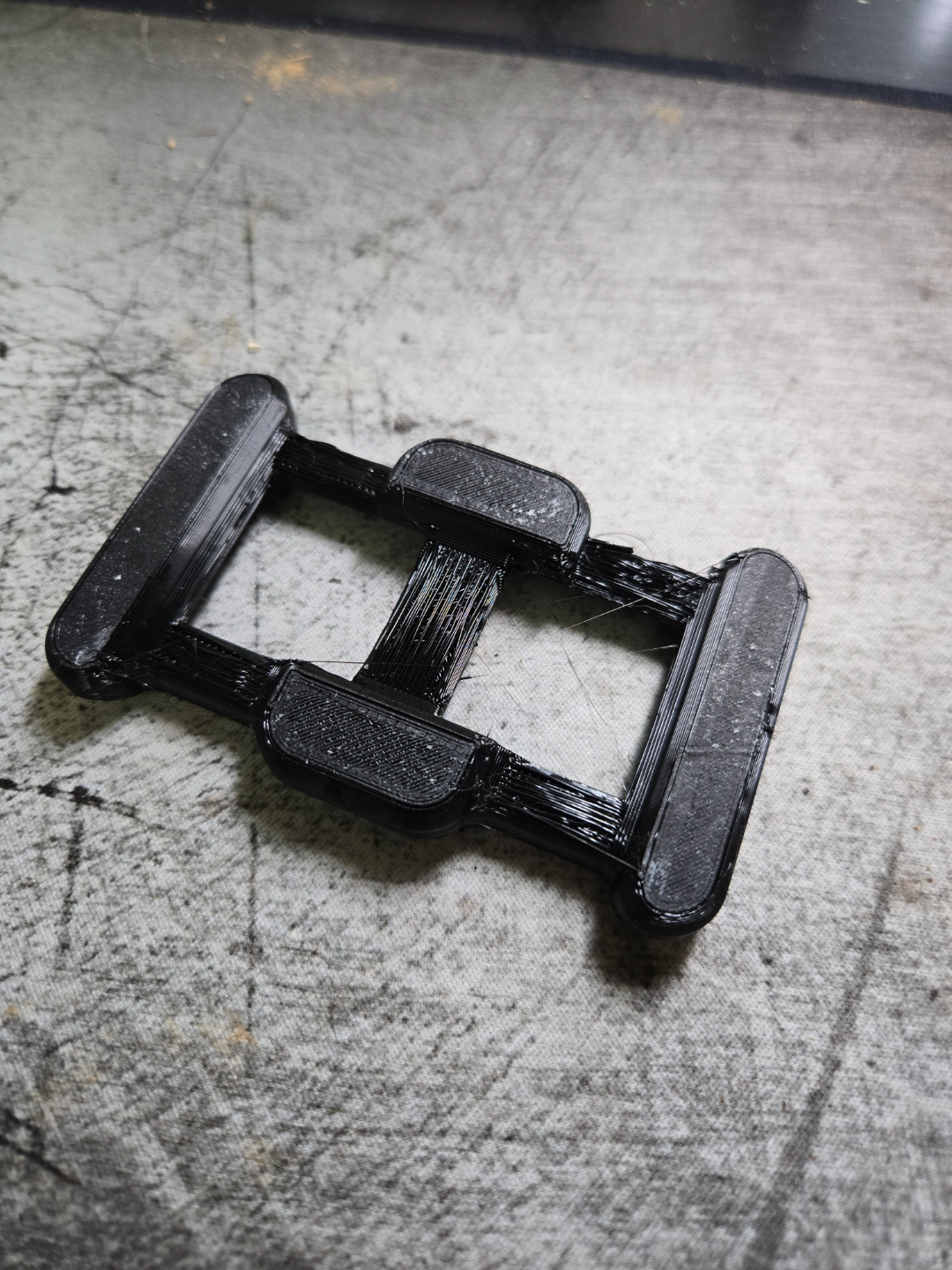

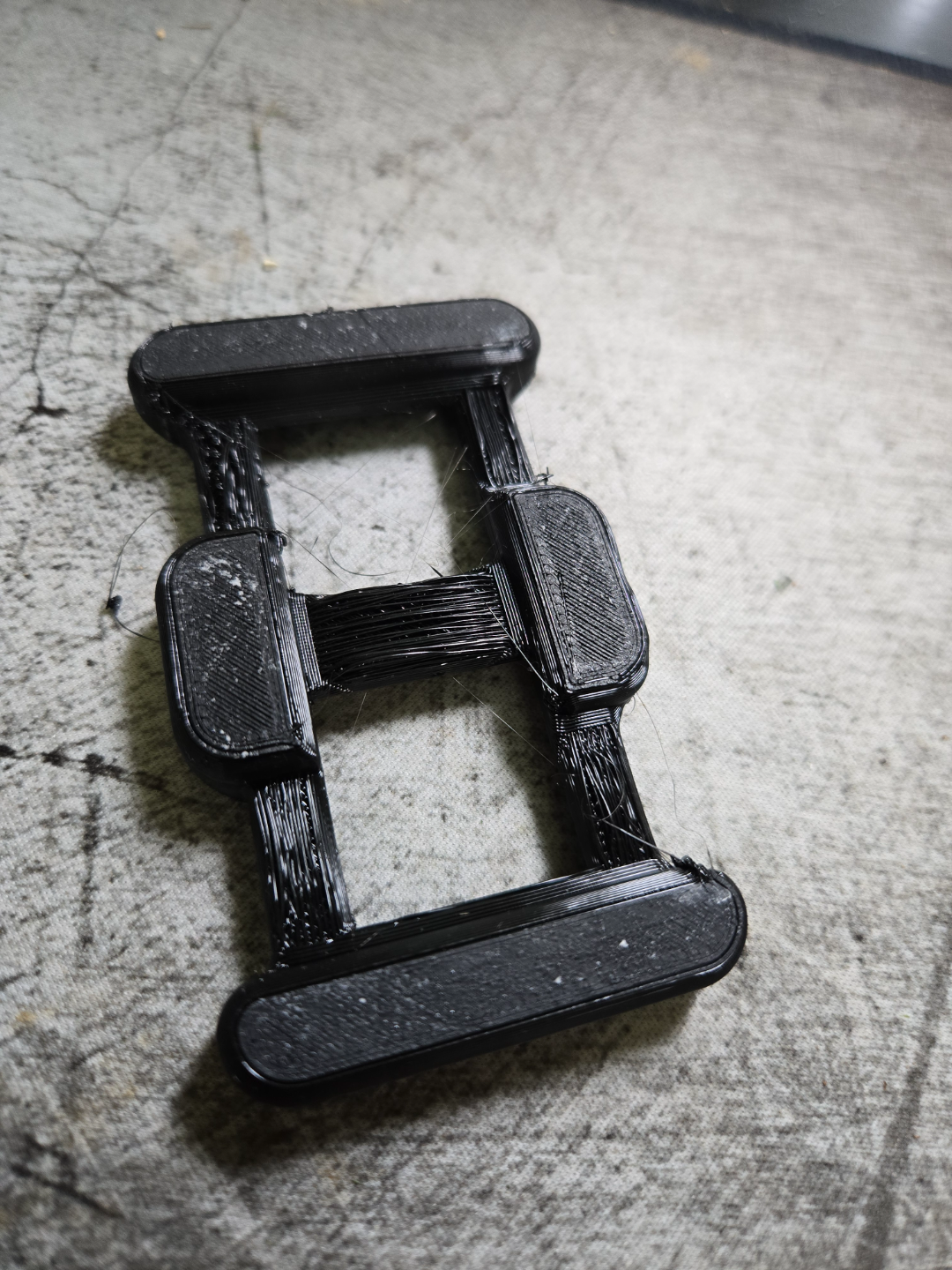

Orientation for printing should be with the top down. This does cause some ugly bridging but the end results are plenty usable. I DO NOT recommend using supports as with TPU they are also always fused to the print. If you do use supports you may want to do manual only to help the bridge midway, I have not tested this so try at your own risk.

So far I have made these for the following Batteries, if your battery has the same top dimensions as these it should fit no problem.

GNB 6s 1100Mah 120c

76mm X 38mm

Tattu R-Line 6s 1300Mah 130c

78mm X 39mm

Tattu R-Line 6s 1200Mah 150c

78mm X 40mm

GNB 4s 850Mah 80c Square Type

64mm X 31mm

If you send me your batteries top measurements and specifications I can make a Battery Saver sized for your battery.
