Action Cam Magnetic Mount

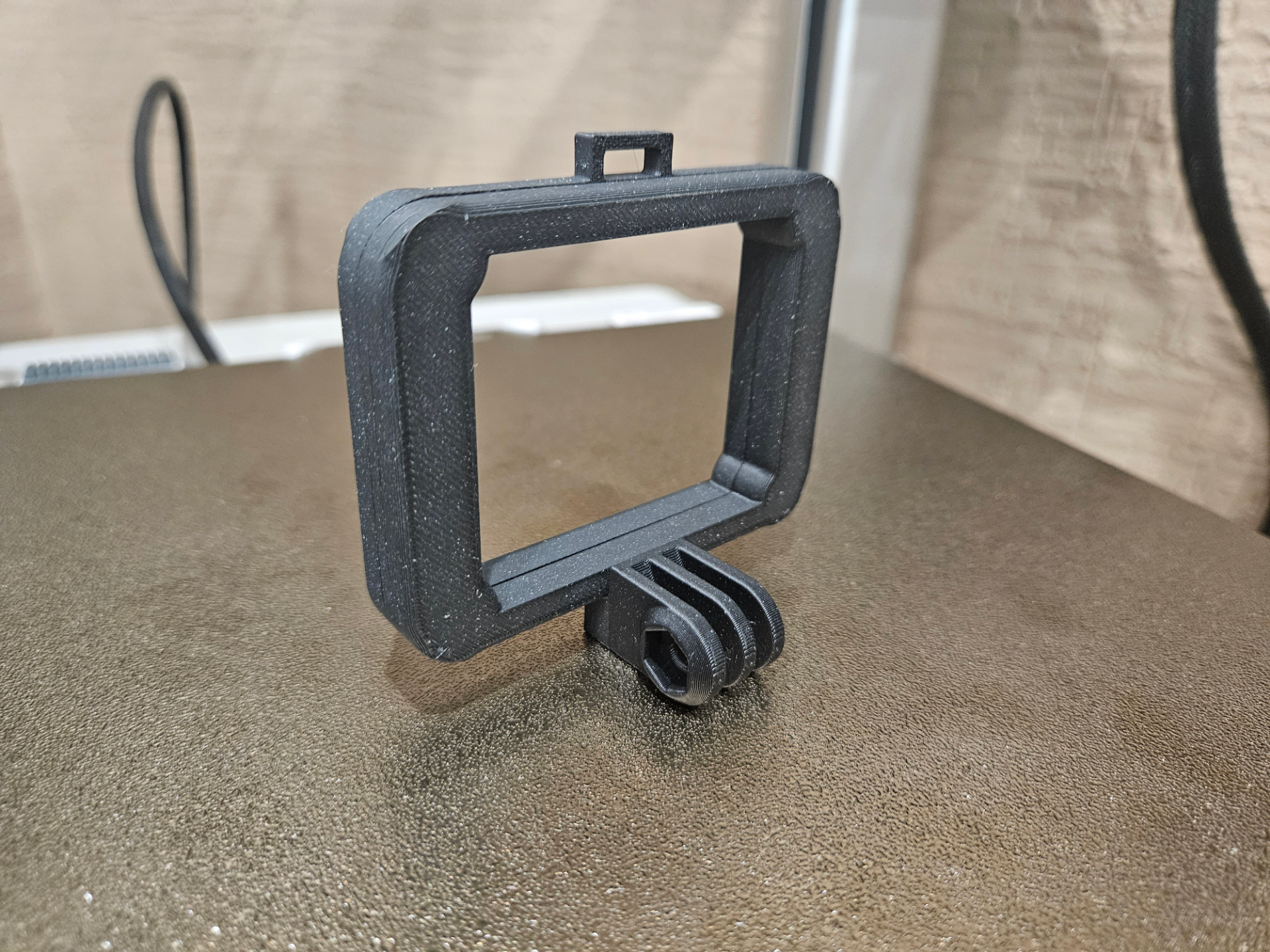

Action Camera Magnetic Mount (Pendant)

For proper assembly, you need the following items:

1. x8 10x3mm round magnets
2. x12 8x2mm round magnets
3. x1 M5 20mm screw + x1 M5 nut
4. x1 shoelace or any other lace to hold the back under your shirt firmly

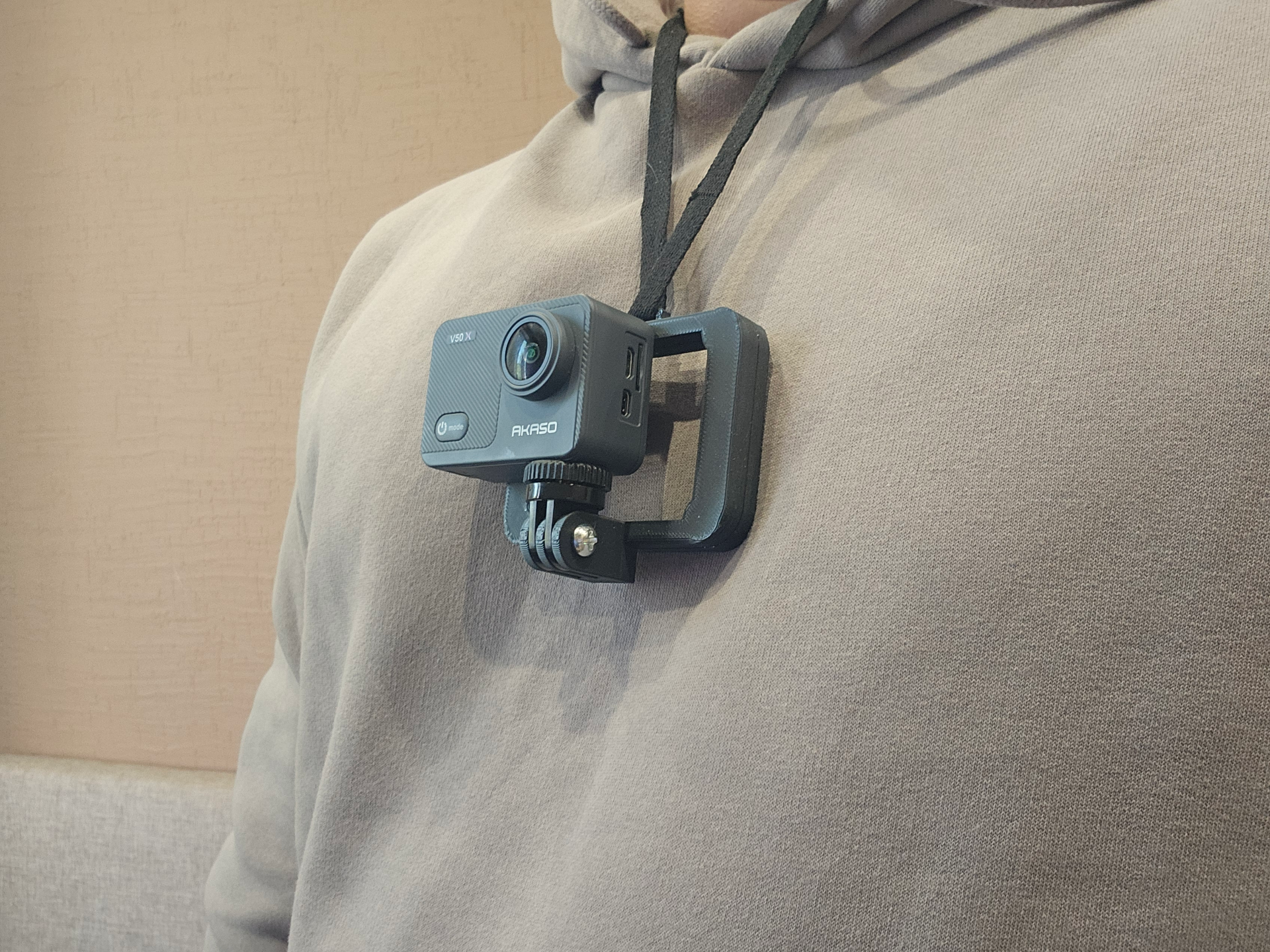

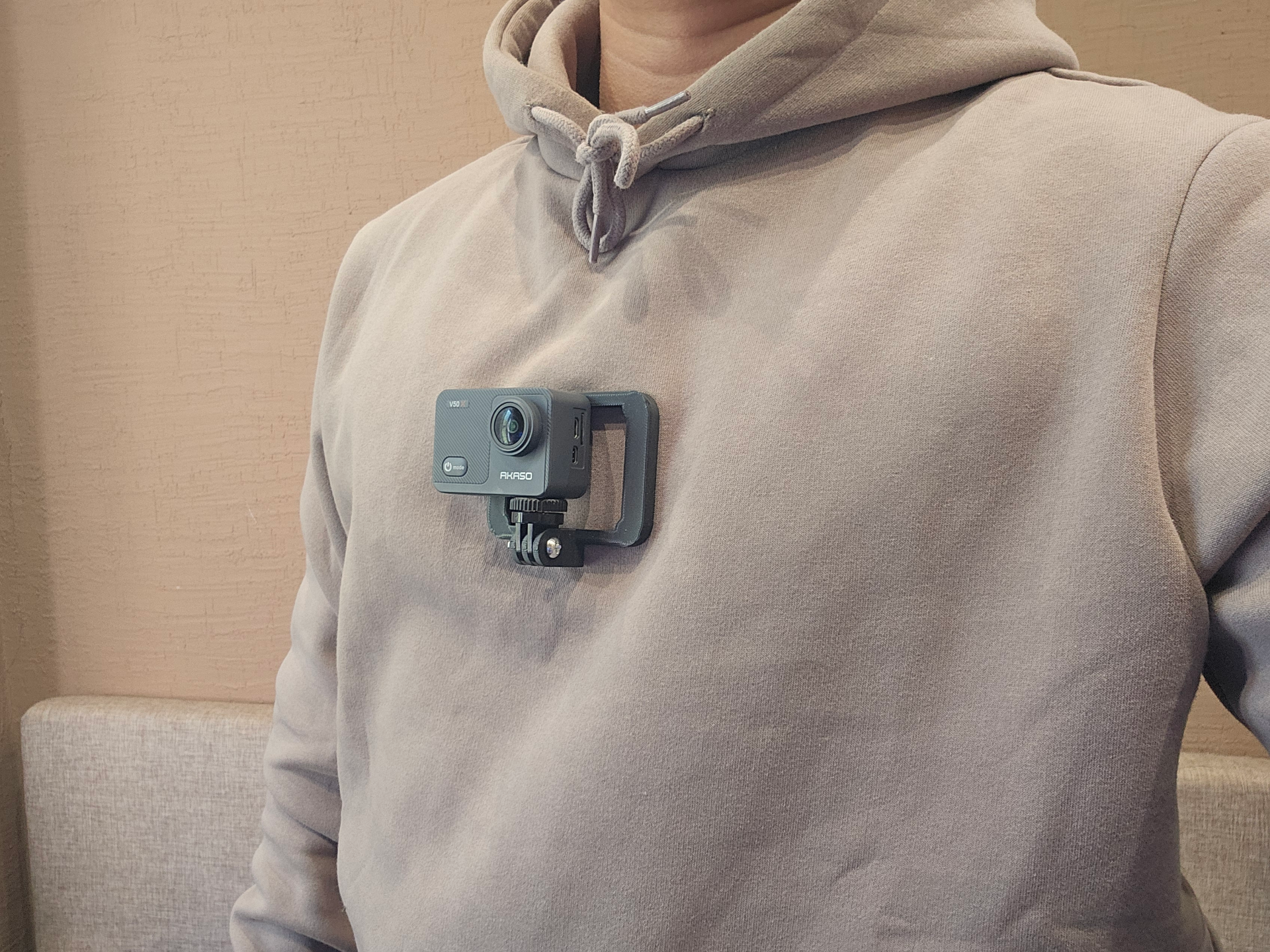

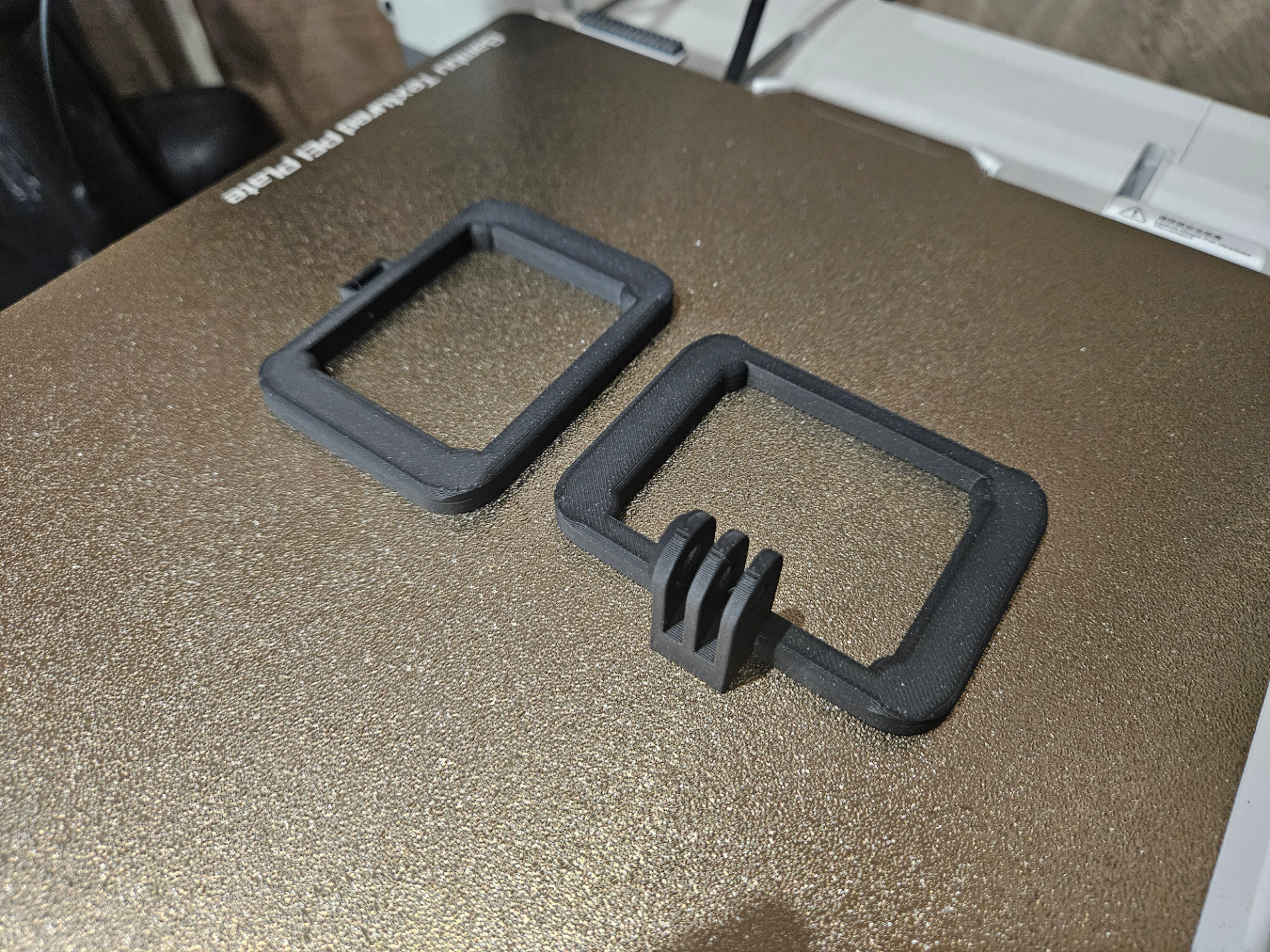

Feel free to change the settings of the print, pauses are already adjusted as well. First pause for you to insert smaller magnets, then the second pause is to insert bigger corner magnets. I recommend 15% infill gyroid, otherwise, it might get too heavy. It holds up pretty well even through a thick hoodie, tested on a bike, and it feels good.

VERY IMPORTANT: You must face your magnet in the right way, or the front and back will reject each other instead of joining.

Design by mrreloaed on MakerWorld (license: BY-SA).
