Blue Steel Cage - for 20 in Scale Size Ring
Blue Steel Cage - for 20 in Scale Size Ring
COMMERCIAL USE ALLOWED!! You can now revise and remix this and I'm allowing for commercial uses! Please don't sell the STLs or files itself, but if you want to print it and offer it for sale on your own website, FEEL FREE! I just ask for a link back if you don't mind! (Also, check my bio to buy me a cup of coffee if you want!)
Hell in a Cell Design available NOW! - Special shout out to TheJamesCreed for testing on this one! Check out Hell in a Cell here!
--------------------------

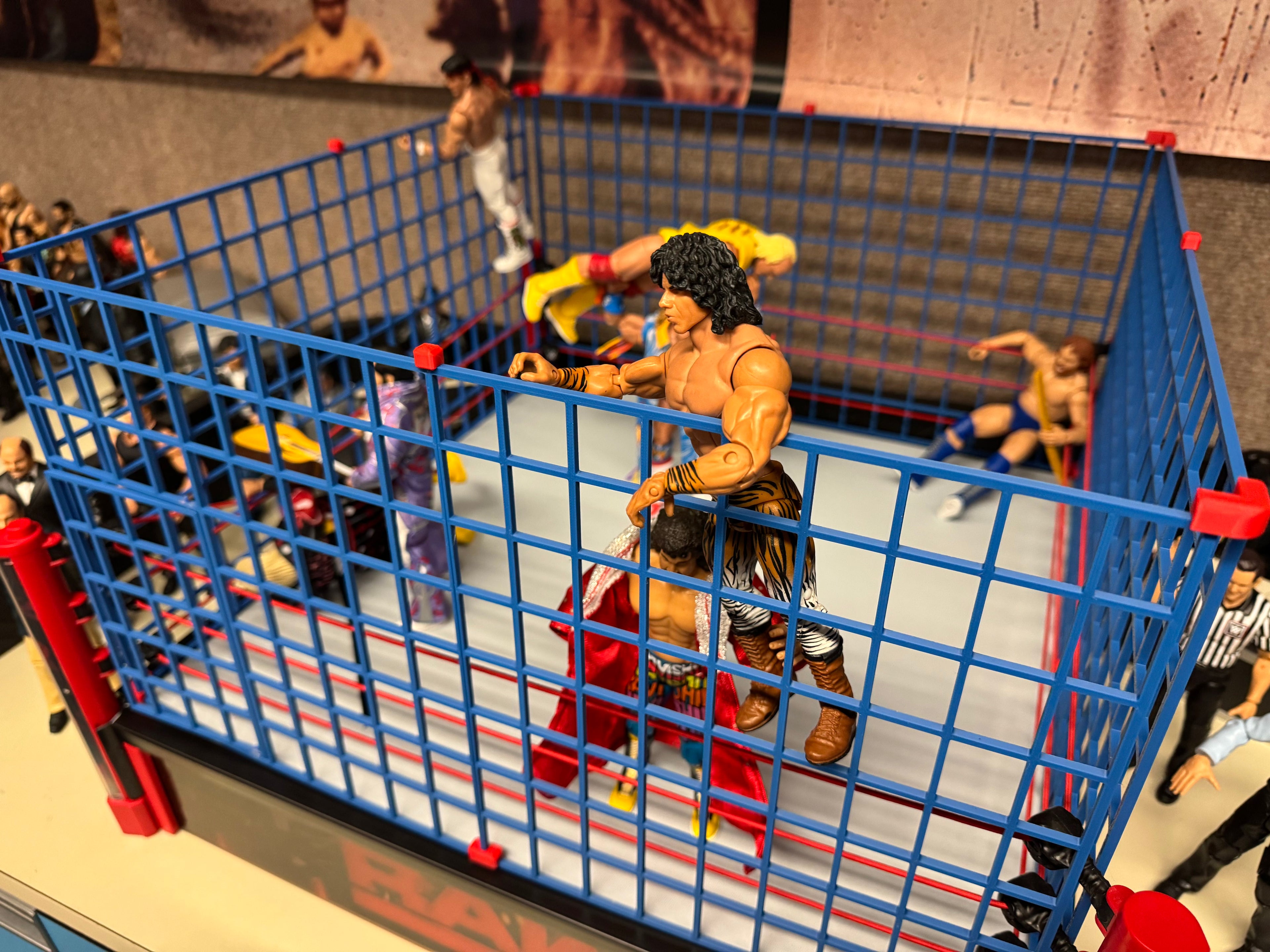

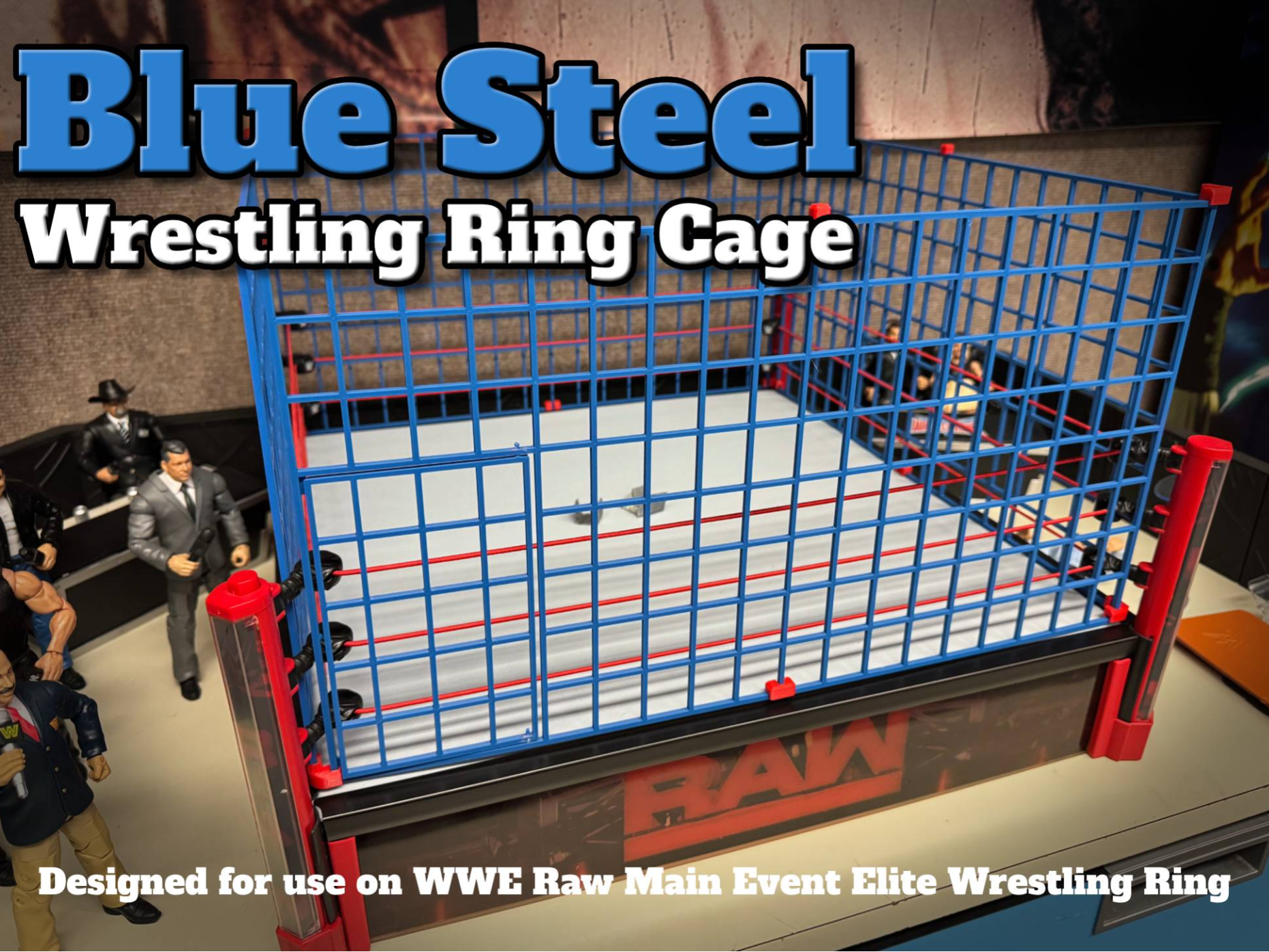

Bring a piece of wrestling history to your collection with this 3D-printable Classic Blue Steel Cage, inspired by the iconic cage from WrestleMania 2! This model is sized to fit the Mattel Authentic Scale ring like the WWE Raw Main Event Elite Wrestling Ring and replicates the legendary look of the steel structure from Hulk Hogan vs. King Kong Bundy.

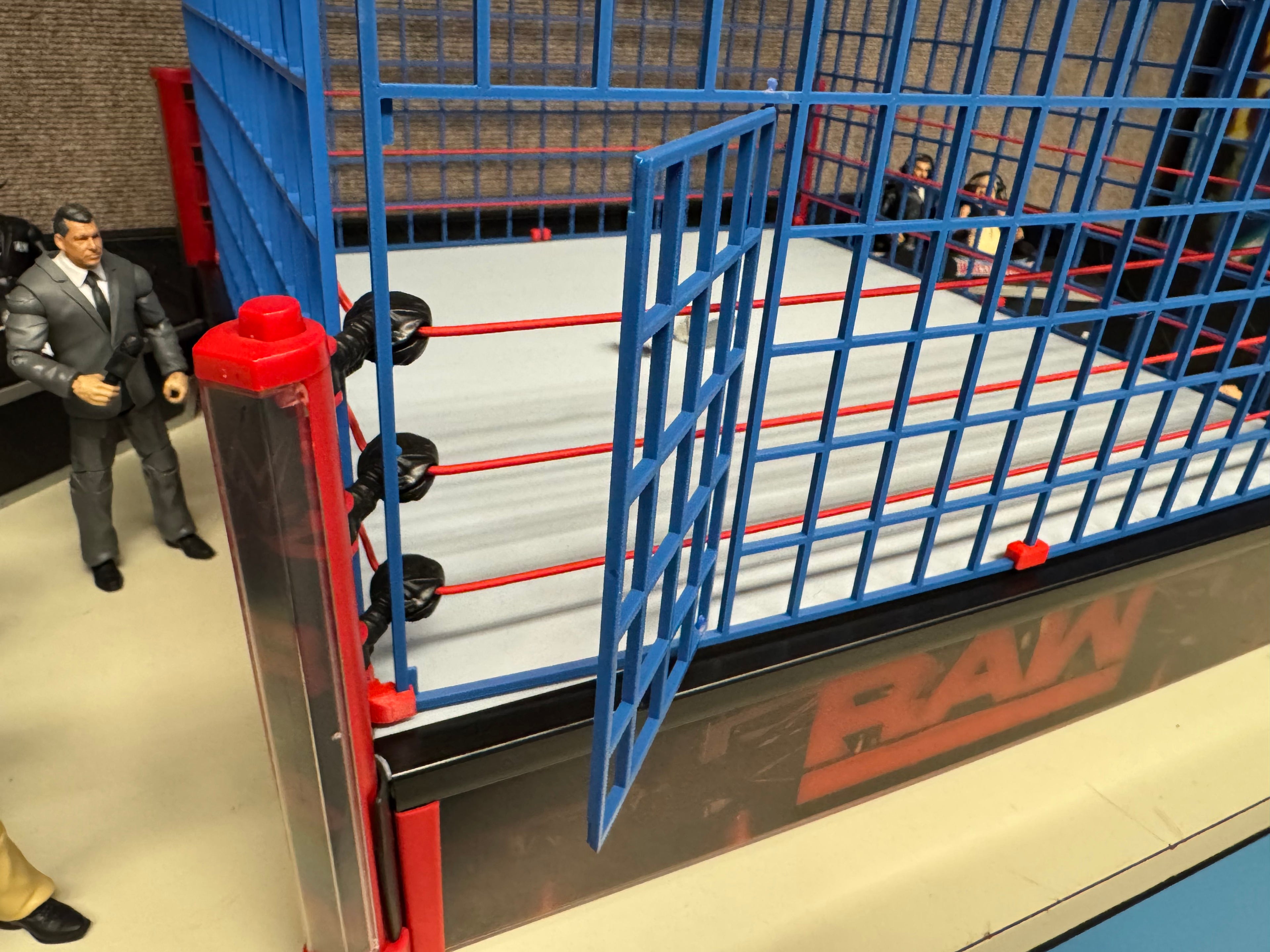

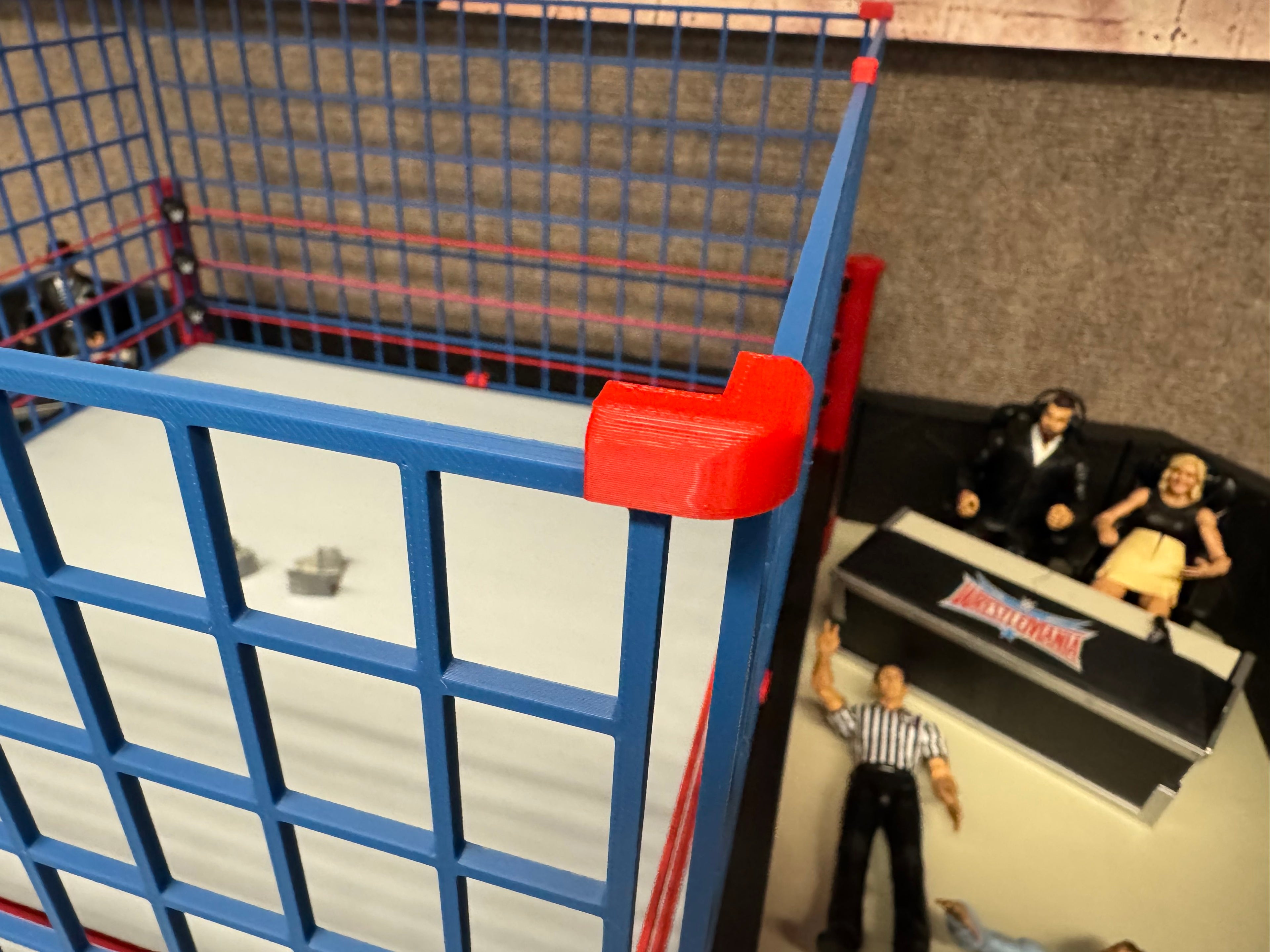

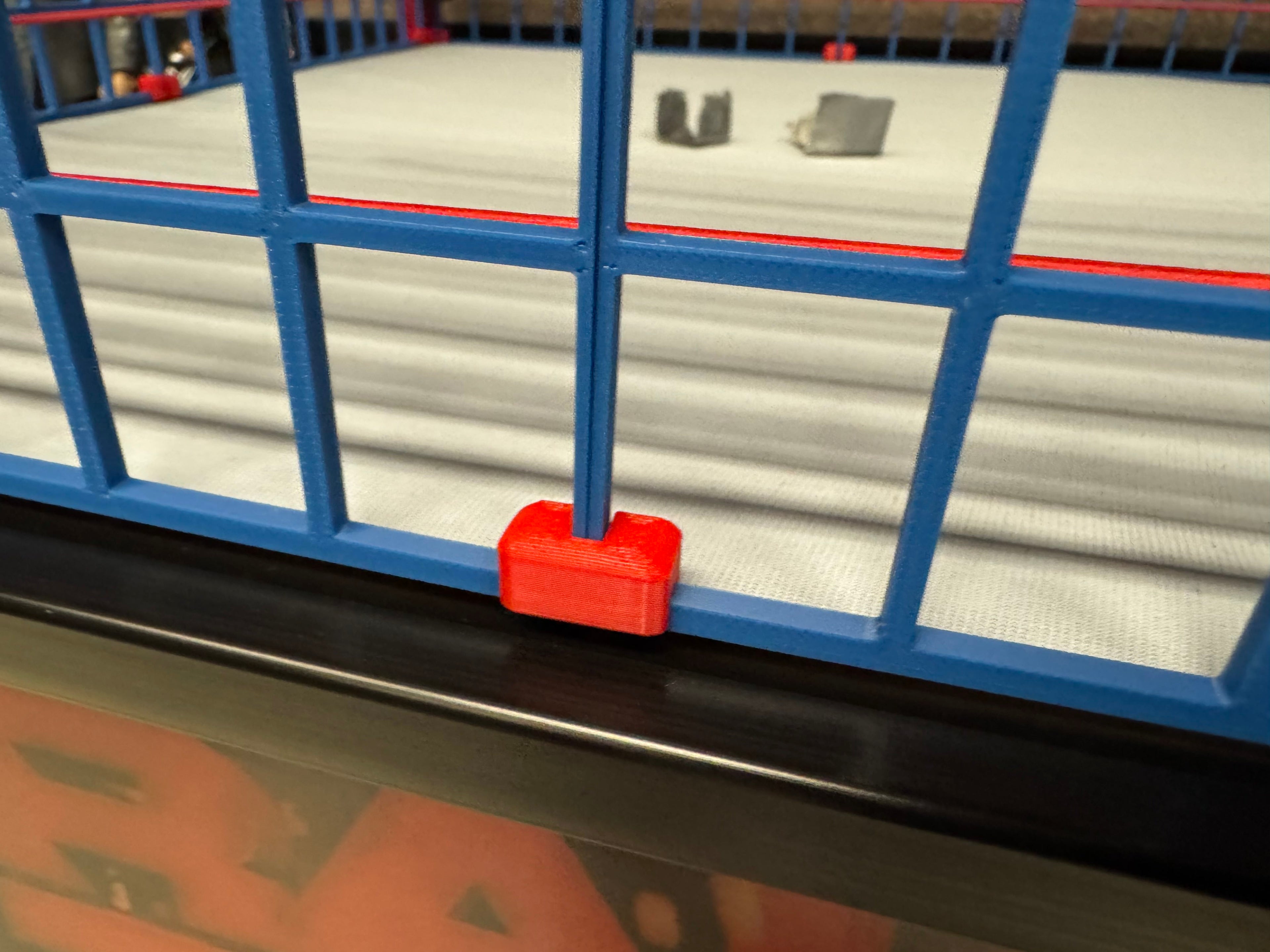

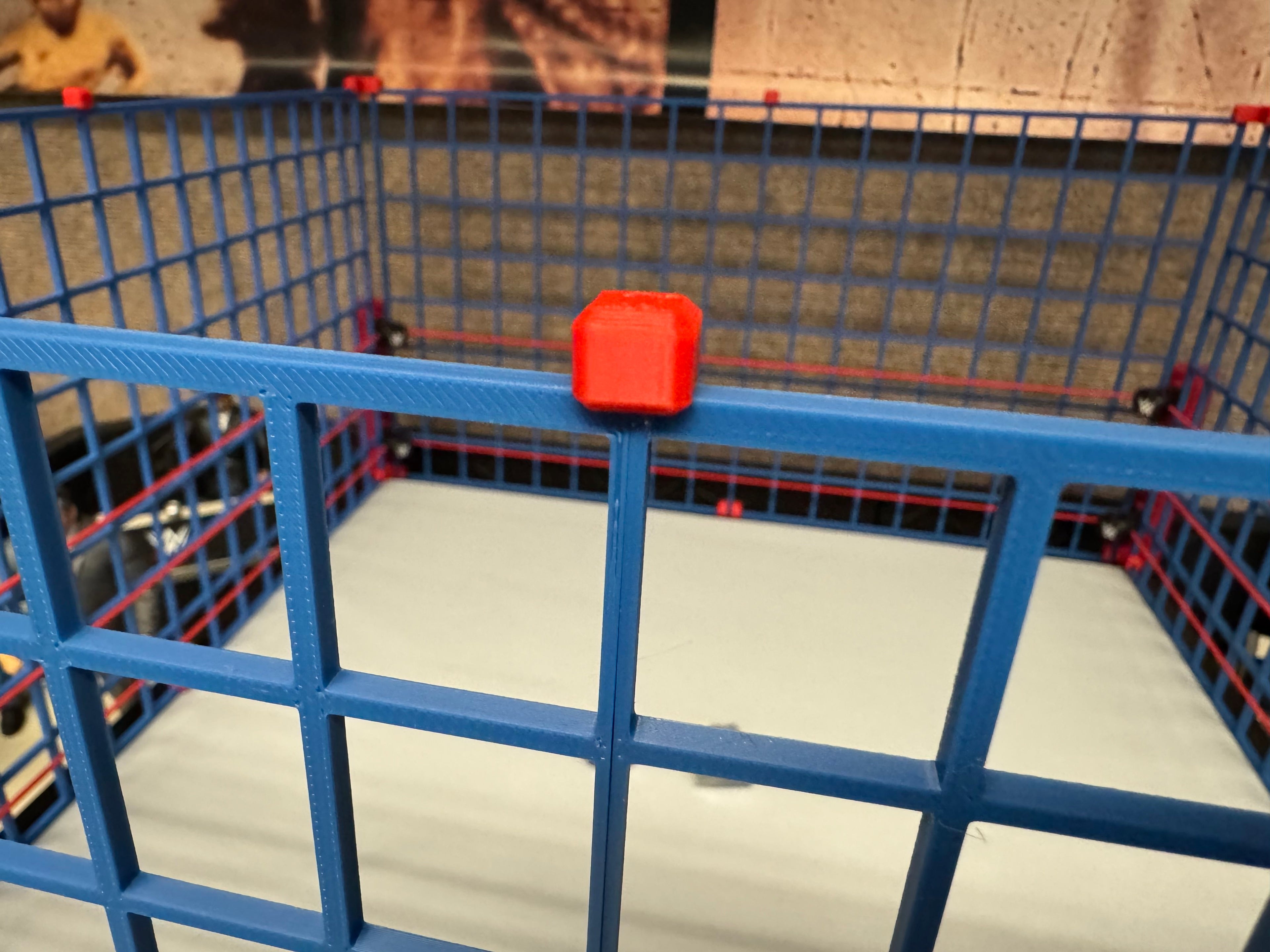

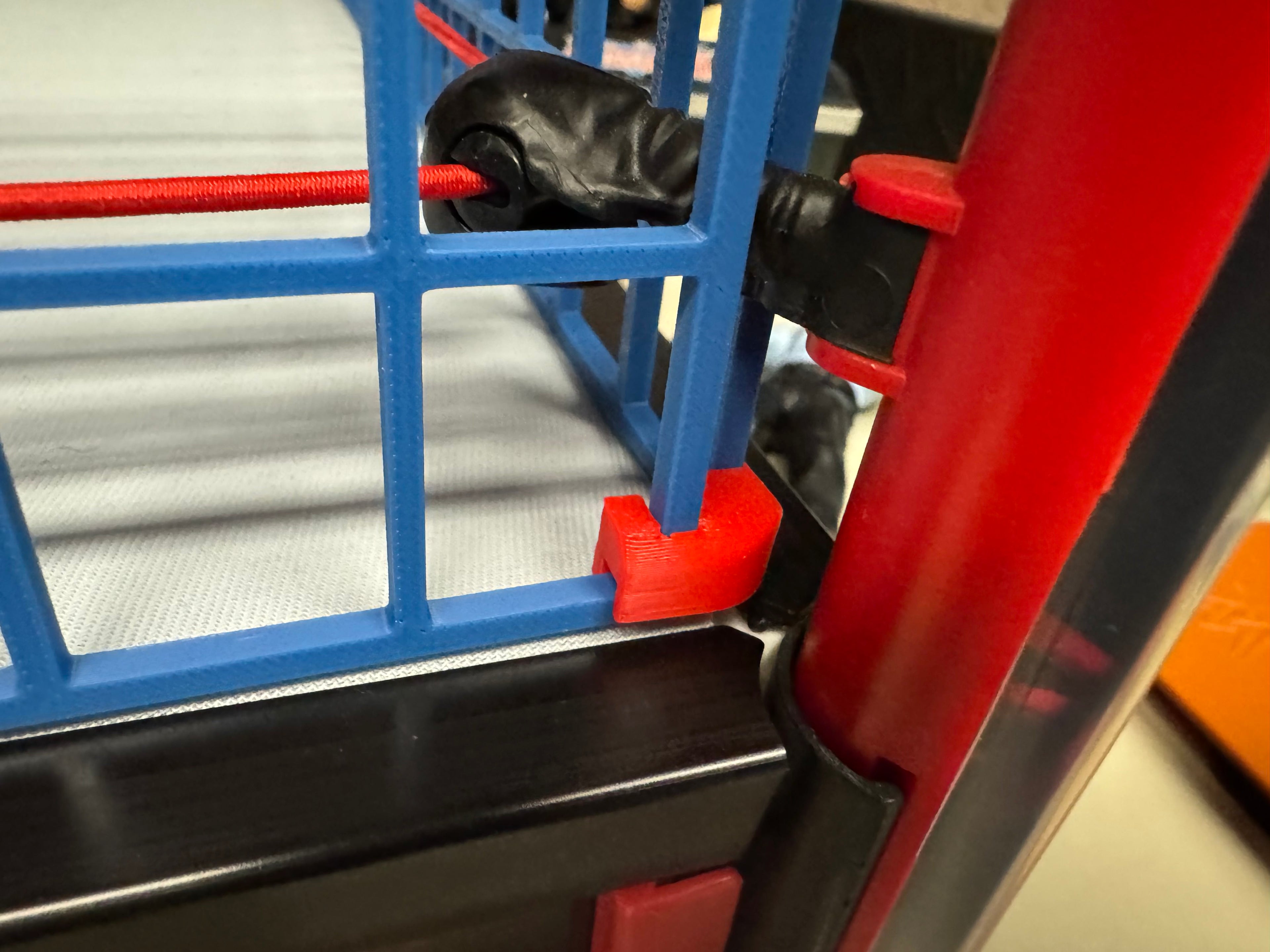

The full cage consists of eight panels plus one door, all connected using printable connectors. Each panel attaches at the top and bottom corners and middle points. A special bottom connector is included for the door corner. The door itself can be attached using a small piece of filament at the top and bottom—just ensure proper orientation before securing it in place. A small dot of glue can help keep the filament from slipping.
Dimensions:
📏 Width: Just under 18 inches when a left and right piece are connected.
📏 Height: Just under 10 inches tall.
Designed for use with a Mattel Authentic Scale ring like the WWE Raw Main Event Elite Wrestling Ring. May not work for other wrestling rings.
Printing Requirements:
🖨 Minimum Bed Size: 256mm x 256mm
🛠 Material: PLA+ recommended, but any filament works—it doesn’t have to be blue!
🛠 Supports: Not required
🛠 Adhesion: Ensure a clean print surface; wash with soap and water if needed
🛠 Optional: Add a brim for small connectors if necessary
Assembly Notes:
- Pay attention to plate names—they indicate how many times each piece should be printed.
- Eight panels + one door make up the full cage.
- Use printable connectors to secure the structure.

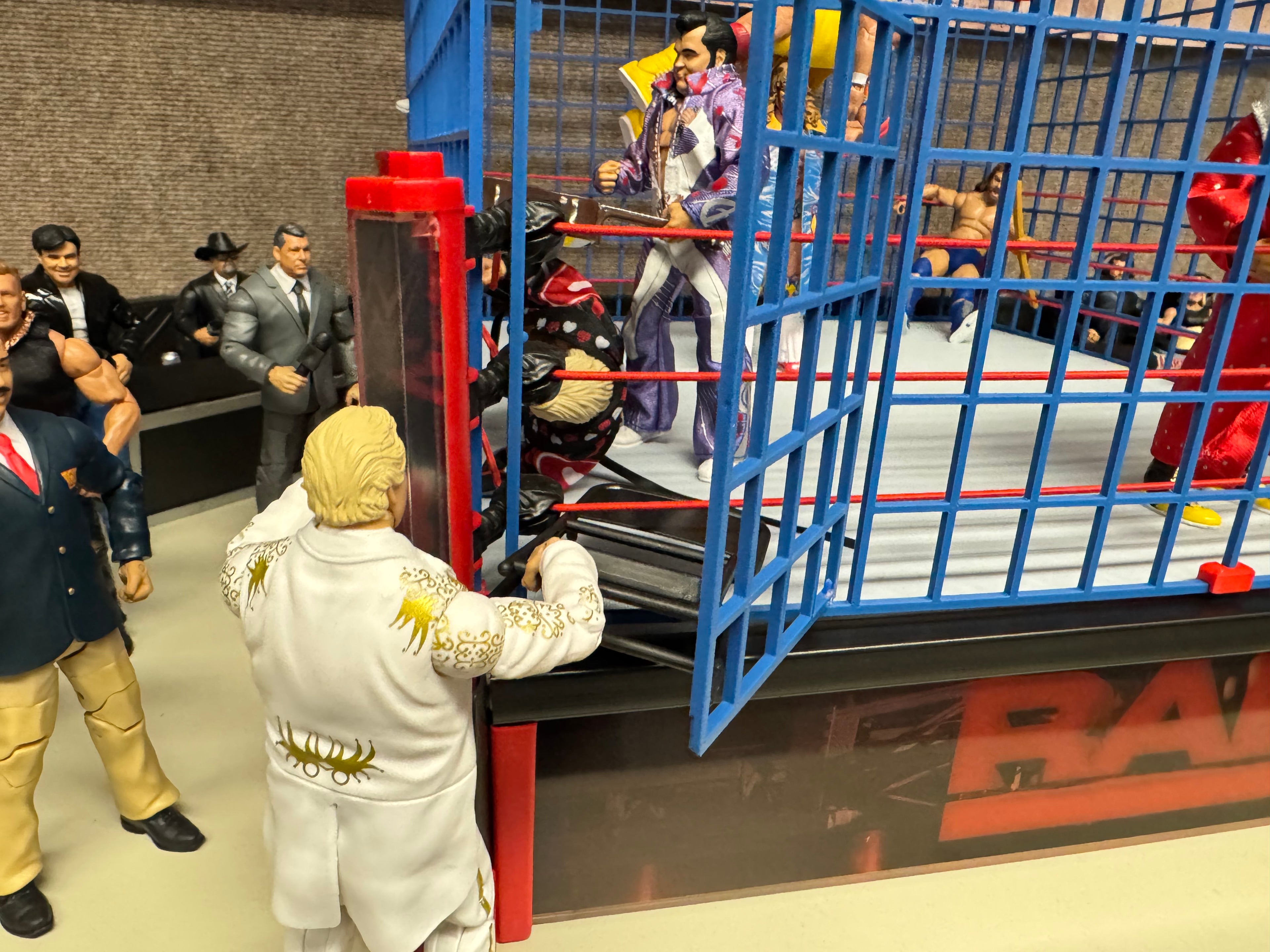

- The door attaches with a filament hinge—glue may help hold it in place.
Relive the golden era of wrestling with this classic steel cage! 🏆💪
Designed in Tinkercad and printed with A1. Optimized to avoid exclusion area on P1 and X1 printers.
Design by Subton on MakerWorld (license: BY).
