[Dummy] SIG Sauer TANGO6T 1-6x24mm LPVO

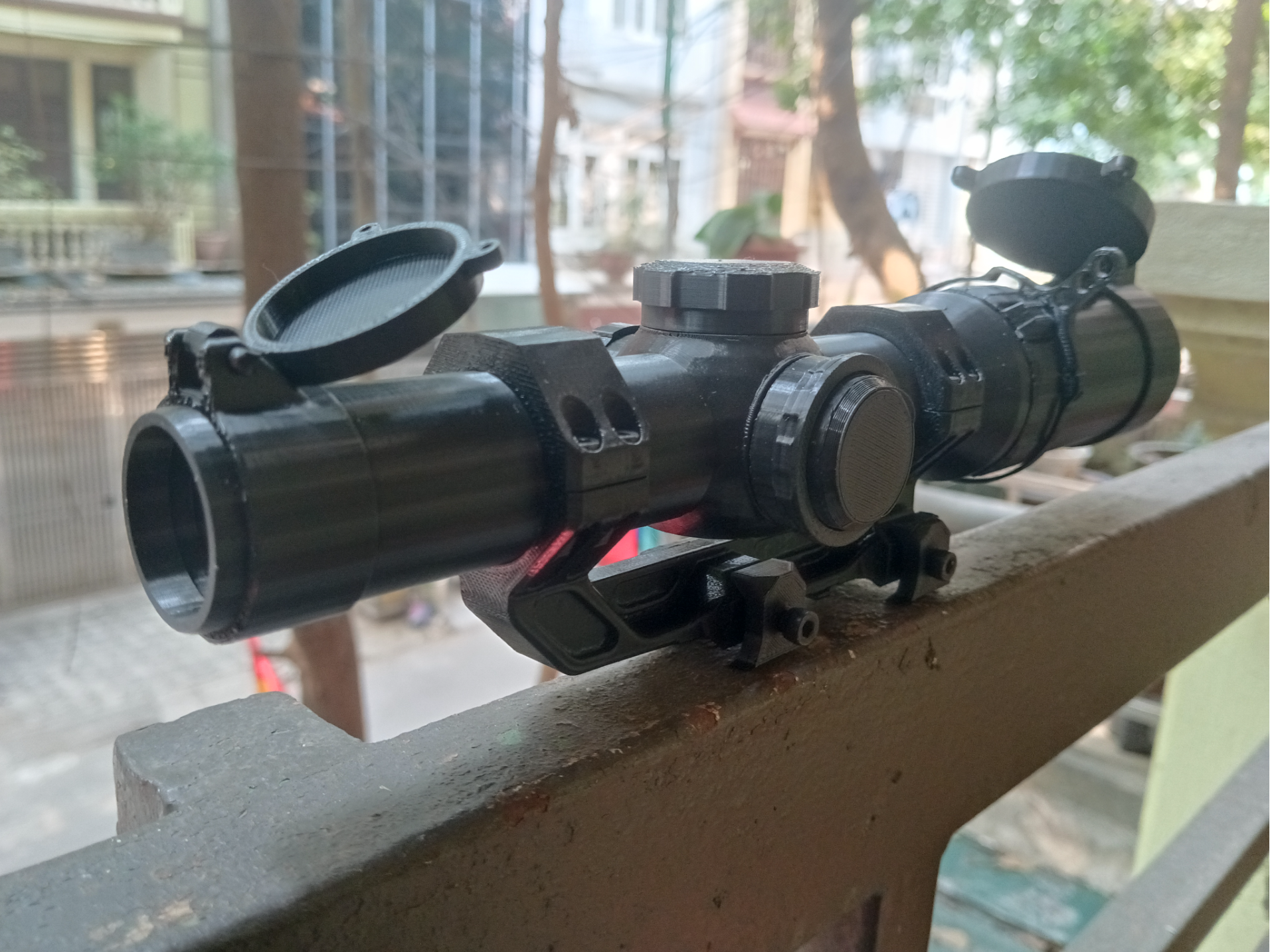

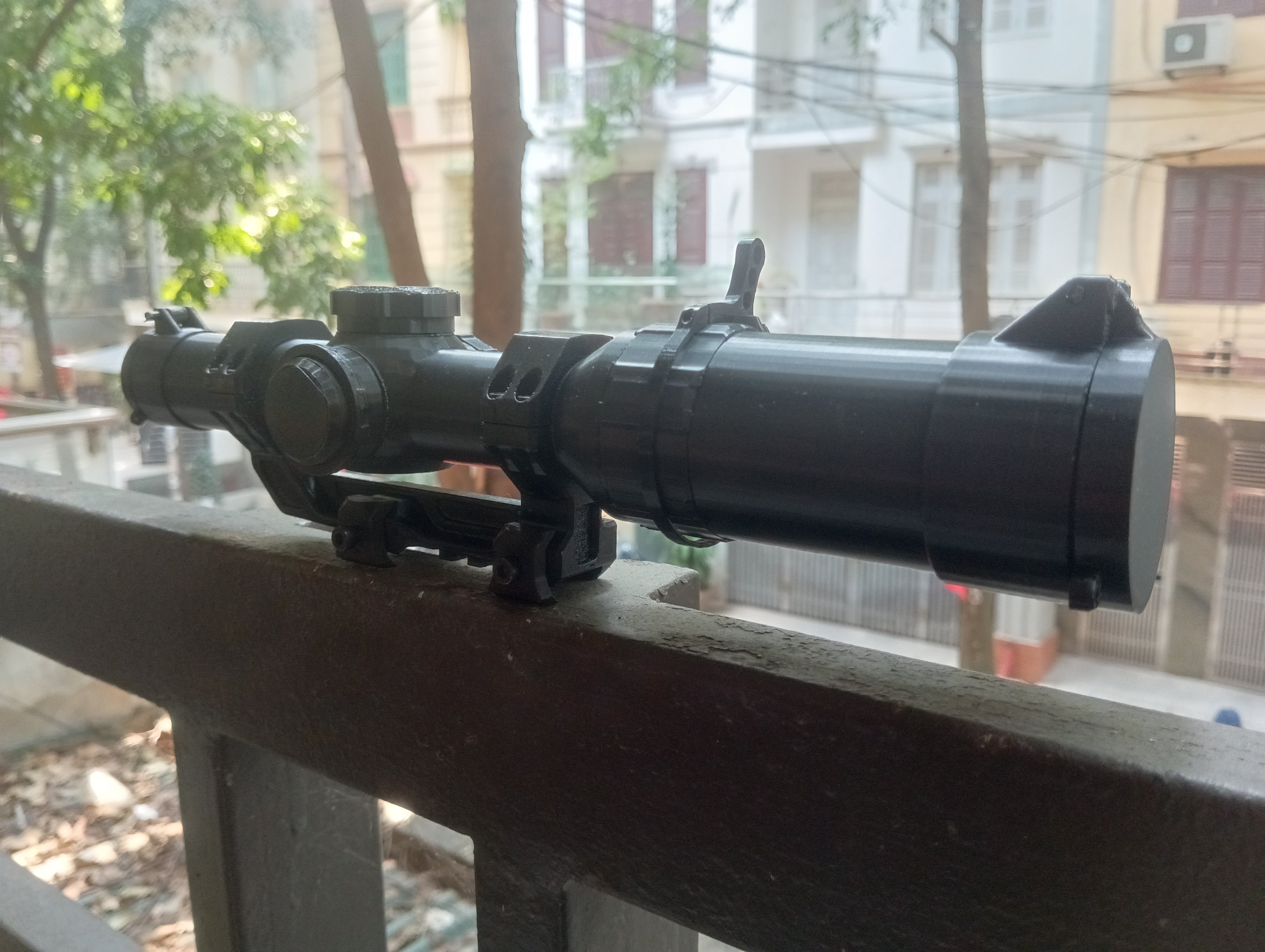

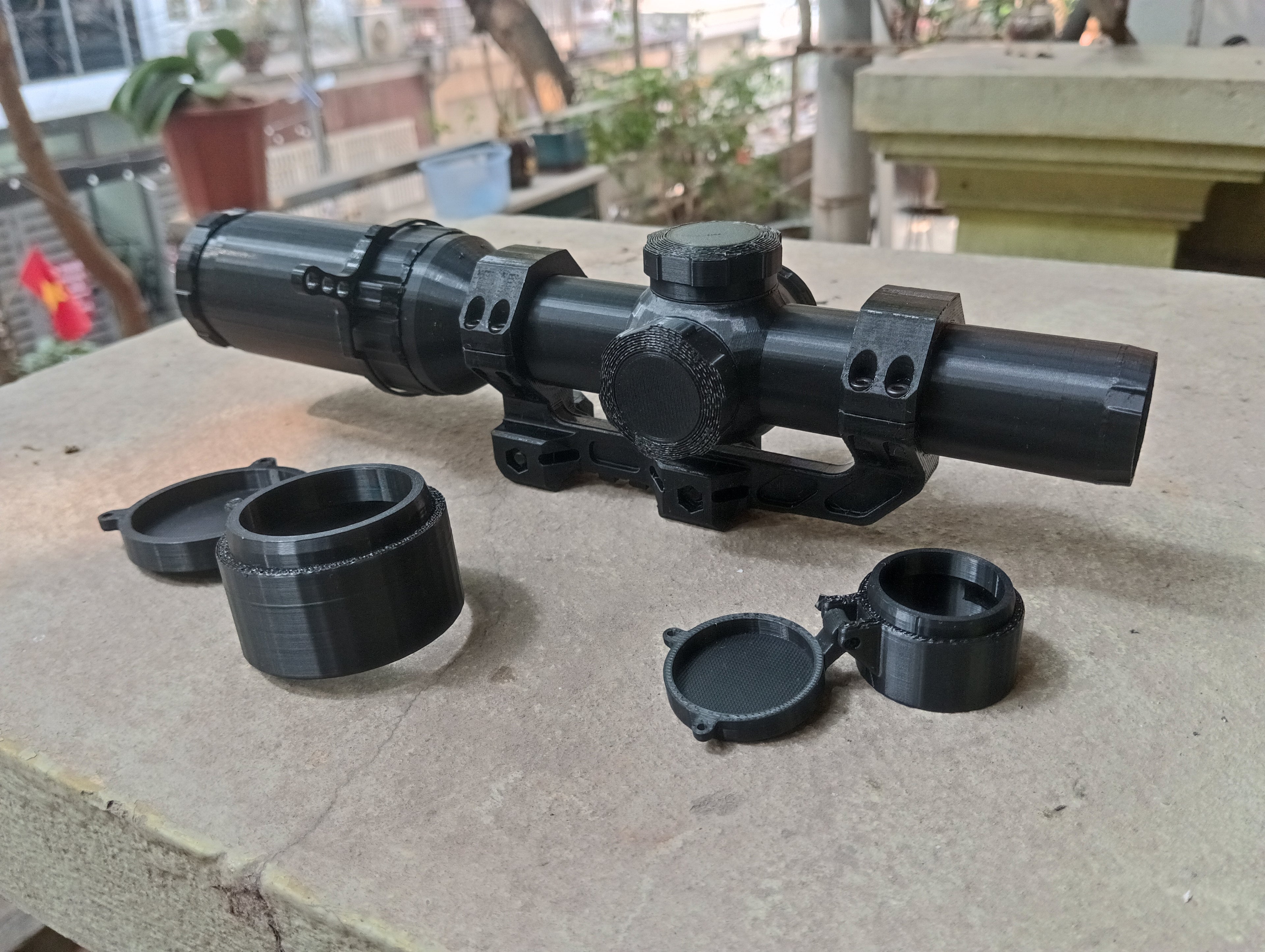

A dummy model meant for decoration on model guns. The lens caps can be flipped up or down and are removable. The adjustment/magnification turrets can be rotated. The cantilever mount can be used with any other 30mm scopes.

Hardware needed:

• 2 M4x30mm screws and 2 M4 nuts to attach the cantilever mount to a picatinny rail.
• 8 M3x6/8mm screws to attach the upper half of the scope rings. If you're new to scope mounts then you can watch the assembly from 4:20s of this video https://www.youtube.com/watch?v=MfGZR_WHRPU
• Superglue to attach the magnification lever to the magnification turret, if you can think of any other solutions please suggest to me.
• You might need something to add friction to the mount (e.g. some tape) if the scope doesn't stay put.

Some printers might struggle to print the cylindrical pins for the lens caps, in which case you can use whatever fits the length and diameter e.g. piece of filament wrapped in tape.

Printing the mount in PETG is recommended.

Design by AmserTheTree on MakerWorld (license: BY).
