Filliment card with 14 tests -- 15 MINUTE PRINT!

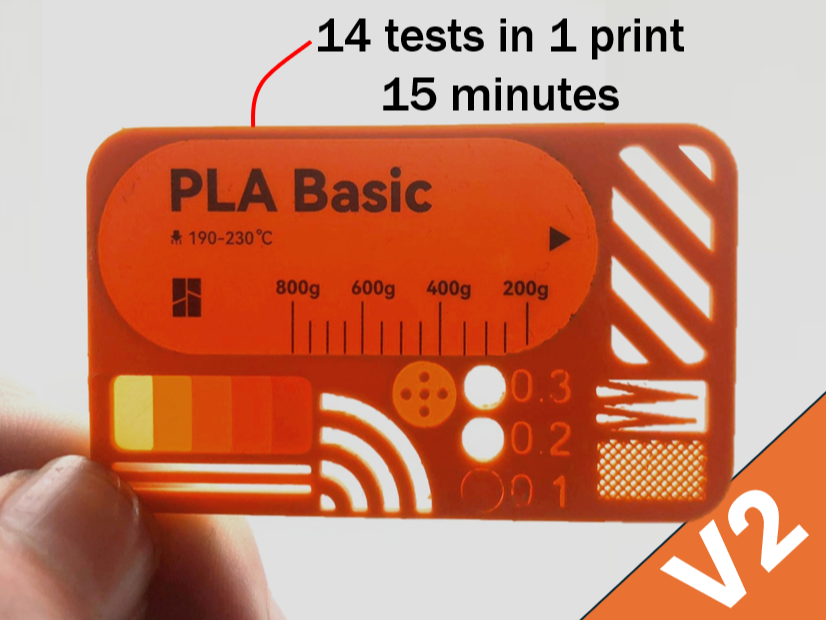

🧵 Filament Card Test V2 — The Ultimate 15-Minute Print

This is the upgraded version of my original Filament Card Test V1.


V2 prints 8 minutes faster, uses less filament, and includes more than double the tests, while keeping the same compact card size so both versions fit in the same storage boxes.

⚙️ What’s New in V2

• ⏱ Print time: ~15 minutes (8 minutes faster)

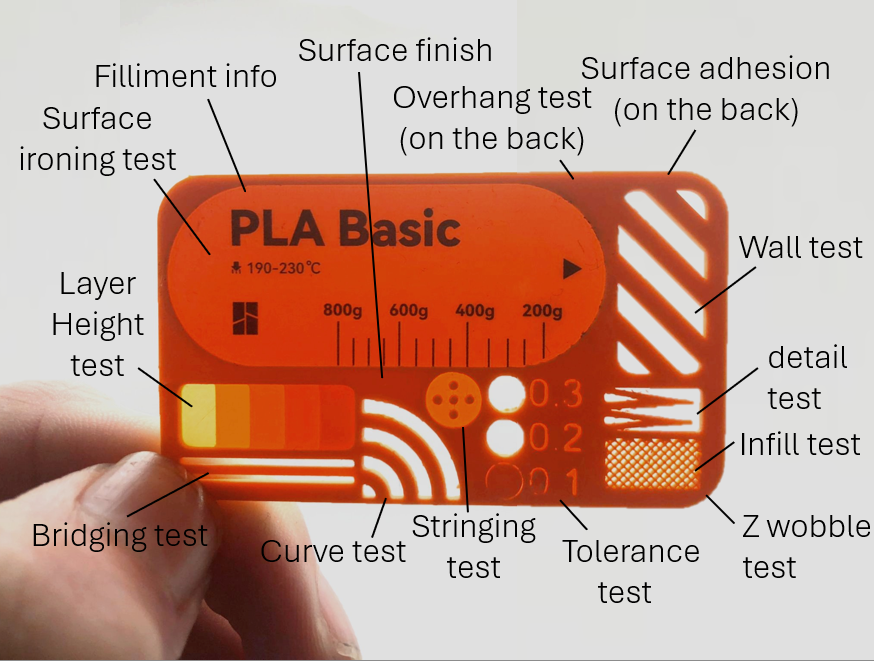

• 🧪 14 integrated tests:
  1. Filament info area (fits Bambu sticker perfectly)
  2. Surface ironing test
  3. Surface finish test
  4. Layer height test
  5. Bridging test
  6. Curve test
  7. Stringing test
  8. Tolerance test (0.1 mm / 0.2 mm / 0.3 mm)
  9. Z-wobble test
  10. Infill test
  11. Fine detail test
  12. Wall test
  13. Surface adhesion test
  14. Overhang test

Quickly checks every key aspect of your printer and filament in one short print.
Includes a small removal lip to make prying the card off the bed easy and clean.

📊 V1 vs V2 Comparison

💡 Summary

Fast, detailed, and efficient — Filament Card Test V2 helps you evaluate your filament and printer performance in just 15 minutes.
It looks great, prints fast, and delivers accurate, repeatable results every time.

⚠️ Printing Notes

Do not change the default Bambu Slicer settings (we optimized them for you!) Adjusting speed, layer height, or flow may alter the test results and make them inaccurate. The model is tuned for stock slicer profiles.

ADITIONAL STORAGE

A model by @albertjmulder has been made to store these filament swatches please print the 60mm version for these swatches to fit you can find the link HERE

Design by PolyNova on MakerWorld (license: BY).
