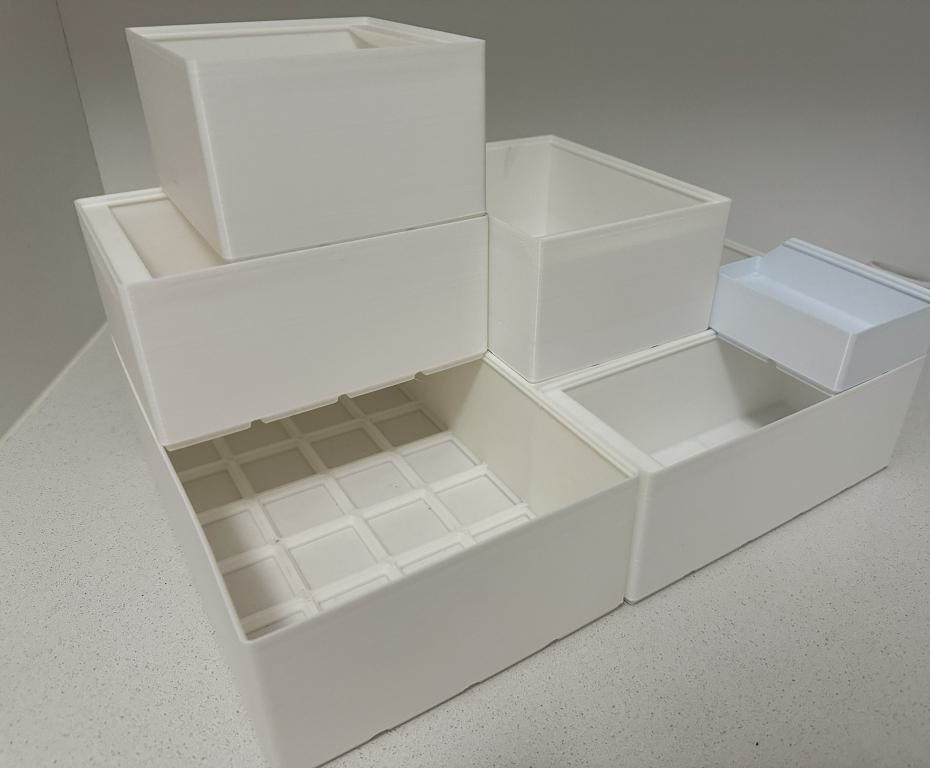

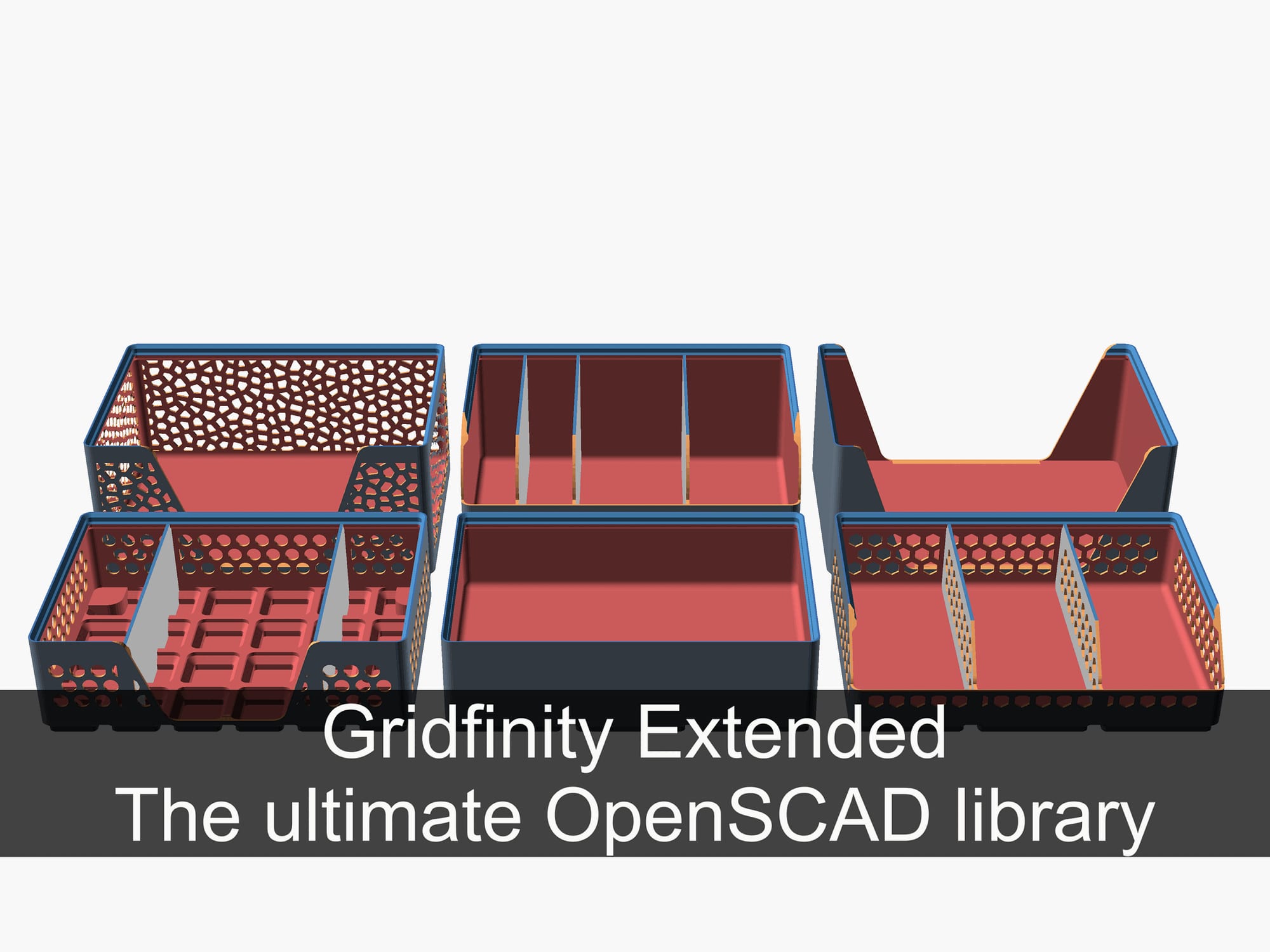

Gridfinity Extended

Basic Cup

• General Cup Settings
  • Size, label settings
• Subdivisions,
  • Both x and y
• Base options
  • Standard, efficient, smooth efficient and flat
• Configurable finger Slide
  • Rounded and angled
• Tapered Corners
  • for front access.
• Wall Cutout,
  • for top access (I.E. cutlery)
• Wall Pattern
  • Grids, Hex Grids, Voronoi. Reduces filament and looks nice
• Split bin
  • Print bins larger than your print bed

Full Online documentation
docs.ostat.com/docs/openscad/gridfinity-extended/basic-cup/

Base Plates

Customisable gridfinity base plates and lids

• General Settings
  • Size
• Base Plate
  • Default: Standard efficient base
  • Magnet:Efficient magnet base,
  • Weighted
    • Weighted base, as per zacks design
  • Woodscrew
    • Has center wood screw position
  • CNC: Can be cut with a CNC or laser
  • CNC Magnet: CNC cut with MAgnet
• Lid Options
  • default
  • flat:Flat Removes the internal grid from base,
  • Halfpitch: halfpitch base
  • efficient: Efficient lid

Formal documentation
docs.ostat.com/docs/openscad/gridfinity-extended/base-plate/

Gridfinity Silverware
Script for easily creating silverware holders for kitchen drawers

Measure your silverware, input the values and the correct spaces dividers will be calculated.

• Auto calculates the size of the bin needed (in width and depth).
  • User can enter Height
• The walls can have a rounded top.
• The walls can be tapered from base to top (so 4mm bottom and 2mm top).
• Wall cut out for easy access to the utensils
  • Can be applied to whole bin, it just inner dividers.
• Add padding/margin to utensils as needed.

Gridfinity Drawer system

A Chest and drawer system

Options

• Chest size,
  • X and Y
• Drawer count and height
  • All drawers the same size
  • Alt, individual drawer sizes
• Chest Top
  • Add Gridfinity base
• Chest Bottom
  • Add Cup grid
• Wall pattern
  • Grids, Hex Grids, Voronoi. Reduces filament and looks nice

Formal documentation

docs.ostat.com/docs/openscad/gridfinity-extended/drawer/

Gridfinity Item Holder

Allows for creating Gridfinity bins for stacking in regular sized items.

Options

• Gridfinity Basic Cup settings
  • See Above, most settings are supported.
• Preconfigured know items
  • tools
    • 4mm, ¼", 5/16" 3/8" hex bits
  • batteries
    • All common cylinder sizes,
  • Memory cards
    • All common sizes (USB, sd, minSD, compactflashi..)
  • Cartridges
    • Game Cartridges (atari800, nes, nintendoswitch…)
• Mulit card slot
  • I.E, sd USBA microsd slot
• Customizable Sizes
• Grid or Hex layouts

Formal documentation

docs.ostat.com/docs/openscad/gridfinity-extended/item-holder/

Gridfinity Tray

Create custom trays for holding knick knacks

Tray are rectangles with rounded corners that are removed from Gridfinity cup. Magnets can be included Under the tray (centred in the Gridfinity cell) that can keep small metal items from rolling away.

• Gridfinity Basic Cup settings
  • See Above, most settings are supported.
• Tray cutout count
  • vertical_compartments
  • horizontal compartments
• Tray specifications
  • Corner radius
  • Depth
• Grid center magnet for holding items
• Custom tray compartments
  • Each tray compartment can be configured in terms of position, size and other settings

Formal documentation

docs.ostat.com/docs/openscad/gridfinity-extended/tray/

Updated 2024-06-23

Gridfinity Lid

Create custom bins that support a sliding lid. A small rebate is added to the bin for the lid to slide on.

• Gridfinity Basic Cup settings
  • See Above, most settings are supported.
  • Different lip styles work better than others
• Lid Thickness
• Lid Cut out

Formal documentation

docs.ostat.com/docs/openscad/gridfinity-extended/lid/

Gridfinity Sieve

A flat based Gridfinty bin, with options to ad a grid to the bottom.  Intended to be used as a Sieve for separating items of different sizes.

• Gridfinity Basic Cup settings
  • See Above, most settings are supported.
  • The base is defaulted to smooth efficient flat base.
• Sieve hole size
• Sieve hole shape (square, hex or circle)

We used this to unmix some cat food as the cat didn't take to the new food like we had hoped.

Formal documentation

docs.ostat.com/docs/openscad/gridfinity-extended/sieve/

Gridfinity Vertical divider

A script for creating vertical dividers (for example a letter holder).

• Gridfinity Basic Cup settings
  • See Above, most settings are supported.
• Divider count
• Divider dimensions
  • Height, Width, Corner taper
• Wall pattern
  • circle, hex, Voronoi
