H2D / H2S Slanted Poop Chute Bin
H2D / H2S Slanted Poop Chute Bin
Update 3.1: Added V3.1 based on great feedback from @Tendersoul3 . In V3.1 I have added an optional lid. The lid helps hold in chamber heat and also keeps out household furry friends from scavenging toys.
Update 3: Added V3 based on great feedback from Rhen (@DadB0d) . In V3 I have added even more draft in both planes from printer chute outlet into reservoir to help eliminate the chance of backups. I now have a V3 Standard and V3 Extended with this new geometry.
Update 2: Added V2 which moves the left of the bin away from the vent flaps for use with extraction hose connector, extended it slightly for added volume, and increased slope from outlet into reservoir to help with backups others have reported.

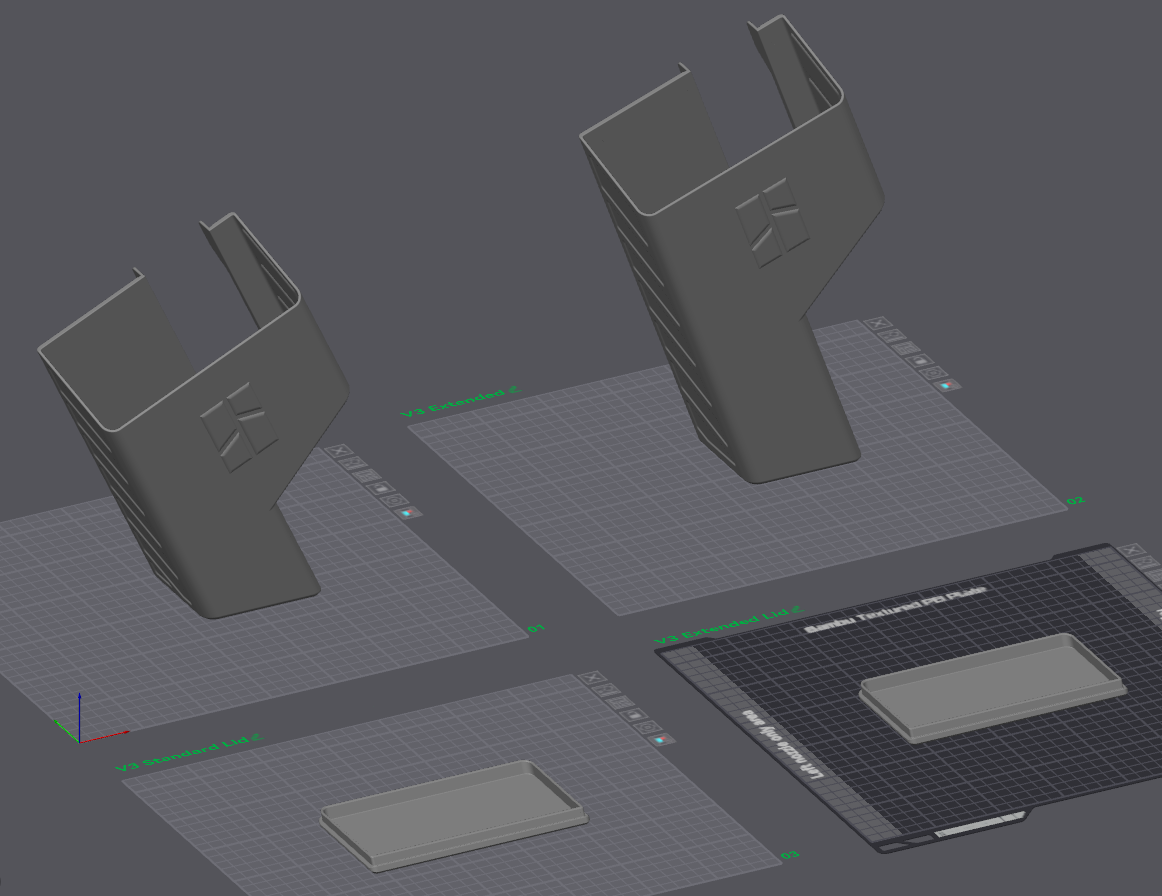

Update 1: Added extended version for more printer poop storage at the request of @Flying4T. It is included as an additional plate option in the print profiles.

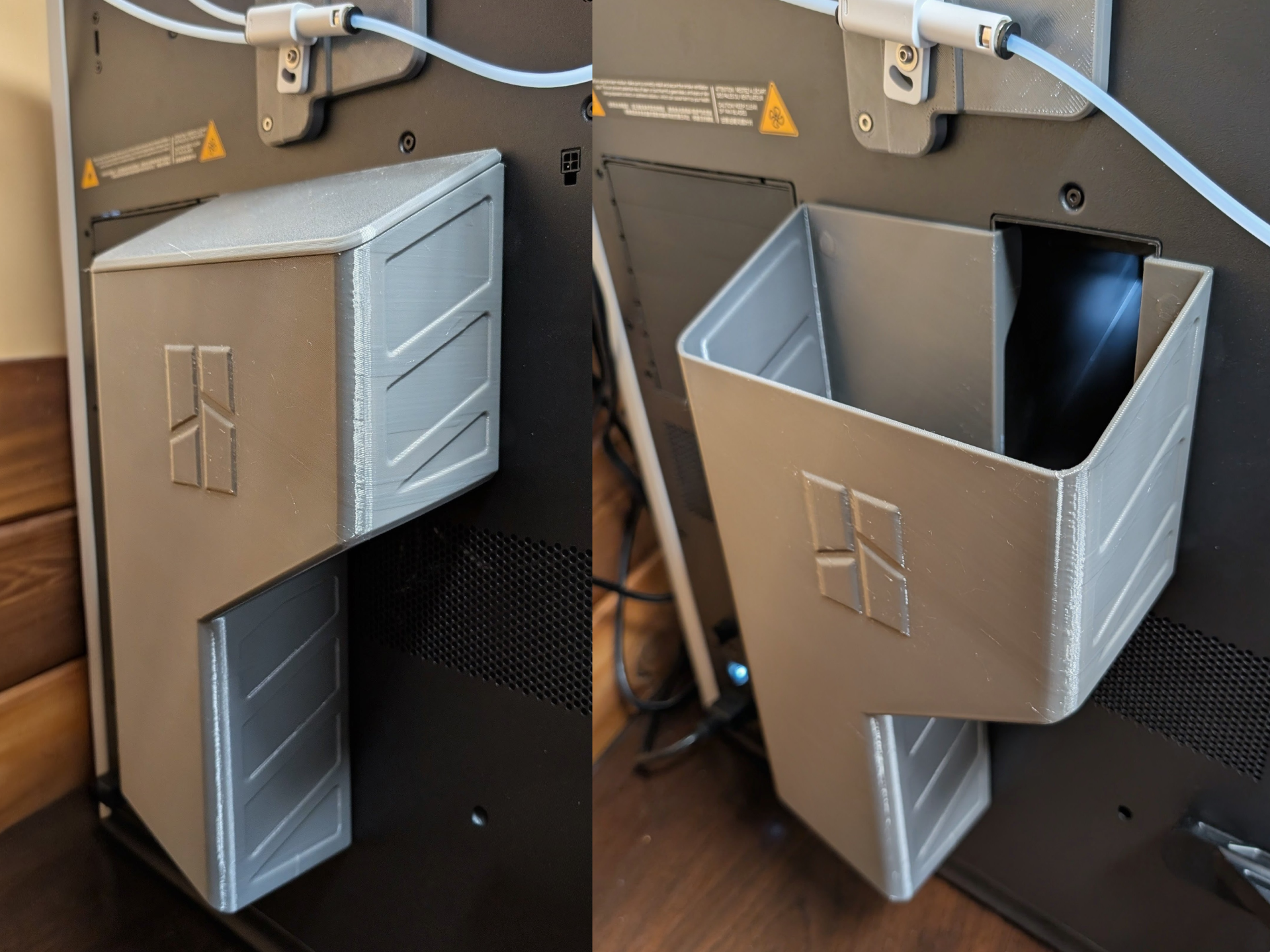

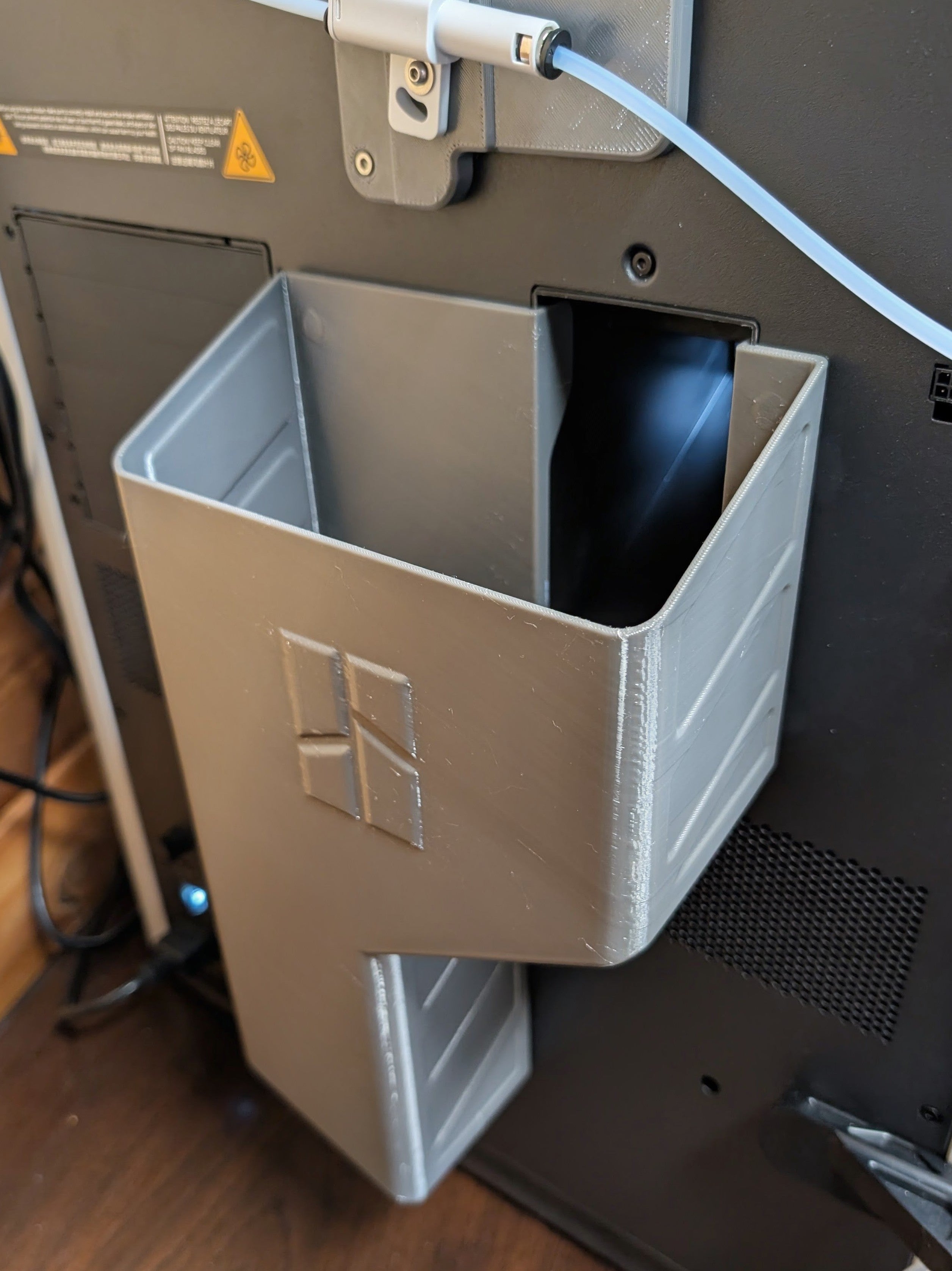

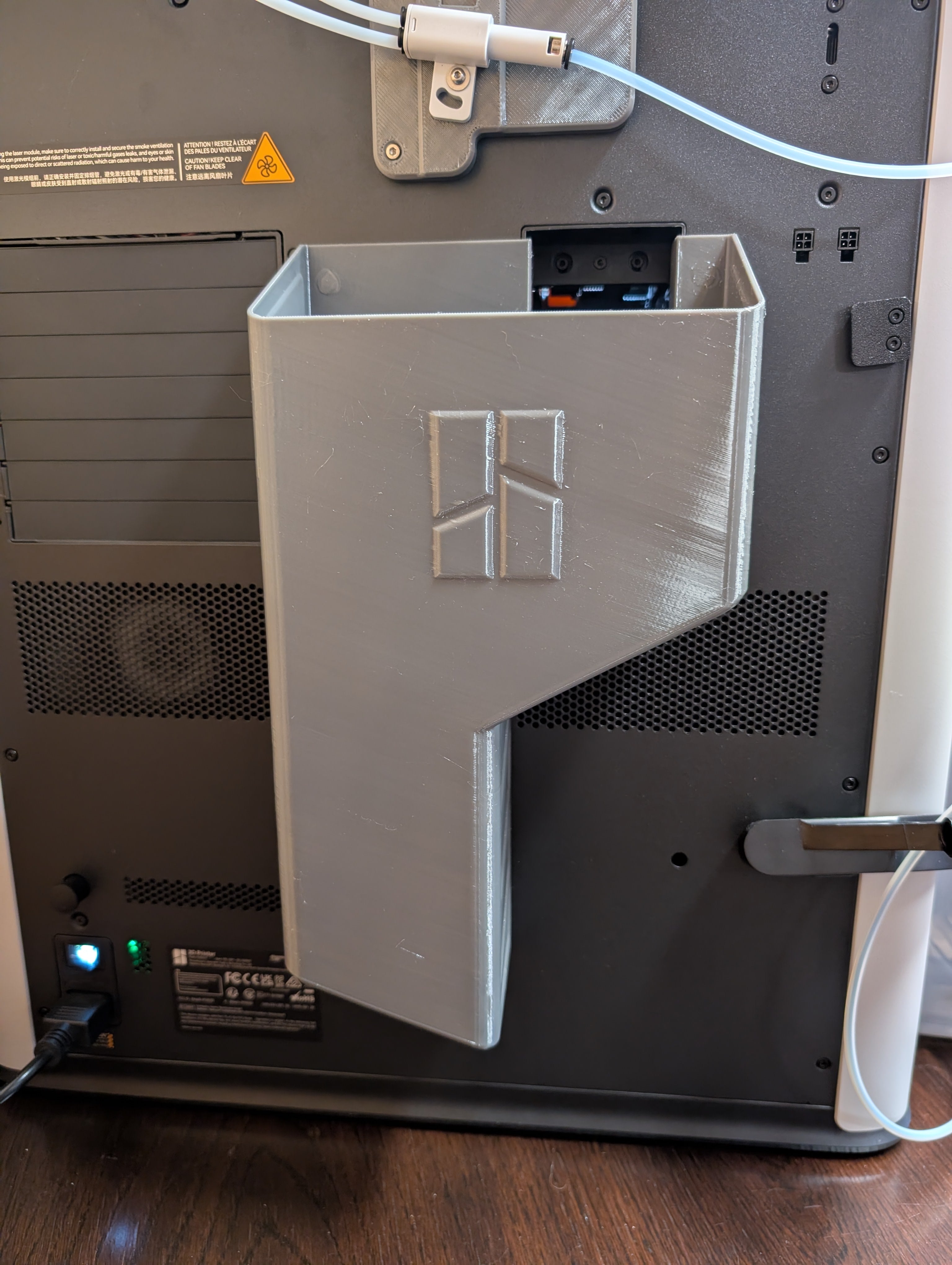

Original: I have tried many poop chute bins for the H2D but none functioned how I wanted. The H2D printer is very deep and so there is not much room behind the printer on my desk. Since the printer moves on the vibration feet I wanted the chute to attach to the back with magnets. Due to the vent grills on the back of the printer it makes things harder to make the chute have much capacity directly below the outlet. So this is what I came up with. The area in the poop bin directly under the H2D chute slants to the left, and slides the poops into a second lower chamber. The second chamber design could be made bigger. But I have found I don't need to catch as much printer poops since I can utilize two nozzles and my purge waste is much lower compared to what I tend to generate on the X1C and P1S printers I have.
The file prints without supports and in one piece.
*The print requires Qty:4 - 8mm x 3mm round magnets, see BOM below.
I have included a STEP file in the downloads, and linked below is the native Onshape file if you want to modify it better to suit your needs.
Design by eclien on MakerWorld (license: BY-SA).
