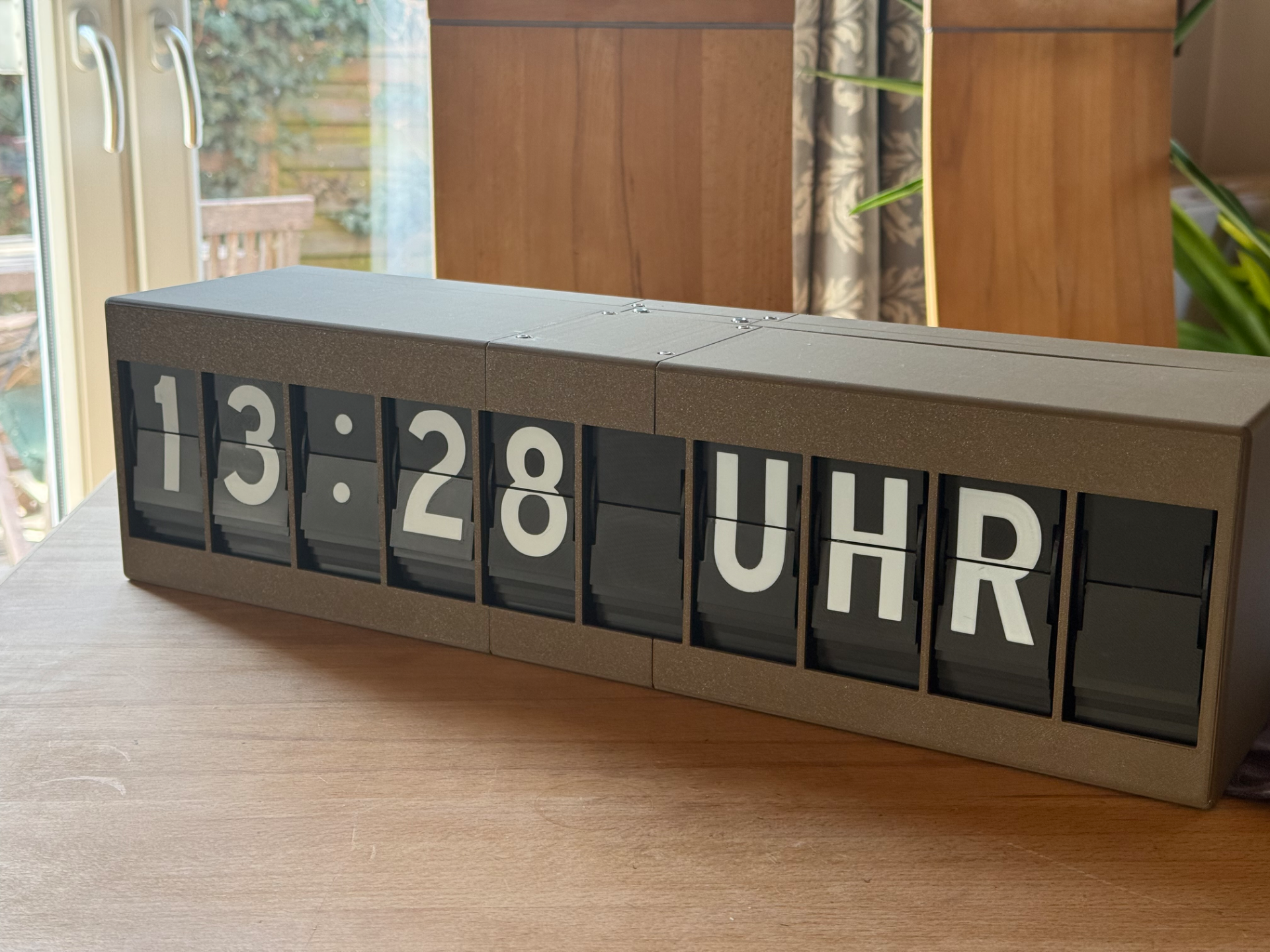

Legendary Split-Flap Display by David Kingsman

The legendary split-flap display by David Kingsman has so far unfortunately only been available on Printables. For this reason, I have developed well-printable profiles for Makerworld and am uploading them here.

I AM NOT THE CREATOR OF THIS MODEL!

I recommend using the Smooth-Plate from Bambulab for the flaps to achieve the best results. Additionally, it might be advisable to switch to a larger nozzle for the frame in order to speed up the printing process. However, in the uploaded files I have only selected the 0.4 mm nozzle.

There are two versions:

• Normal version with A-Z, "$", "&", "#", 0-9, ":", ".", "-", "?", "!"
• German version with A-Z, "Ä", "Ö", "Ü", 0-9, ":", ".", "-", "?", "!"

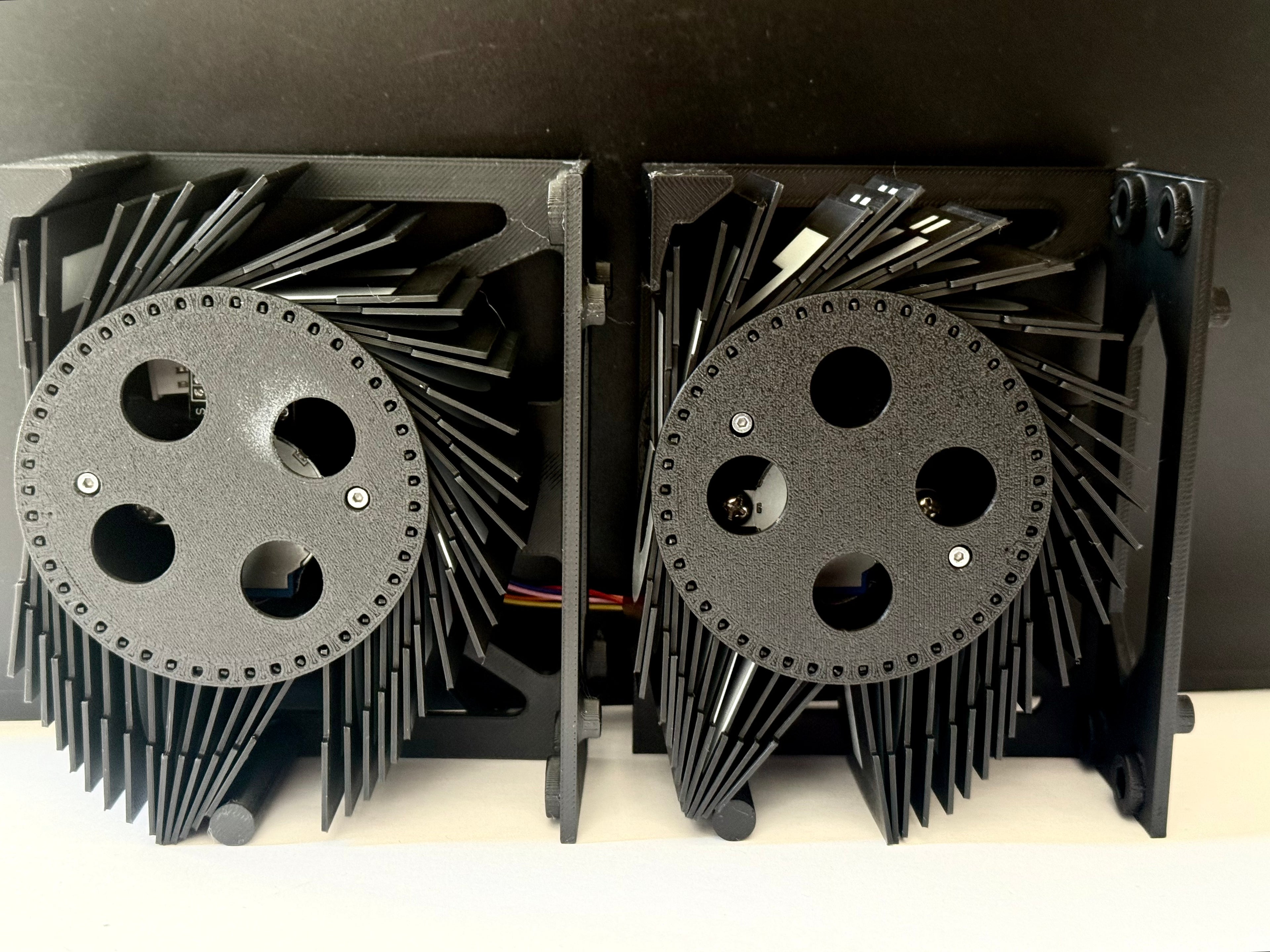

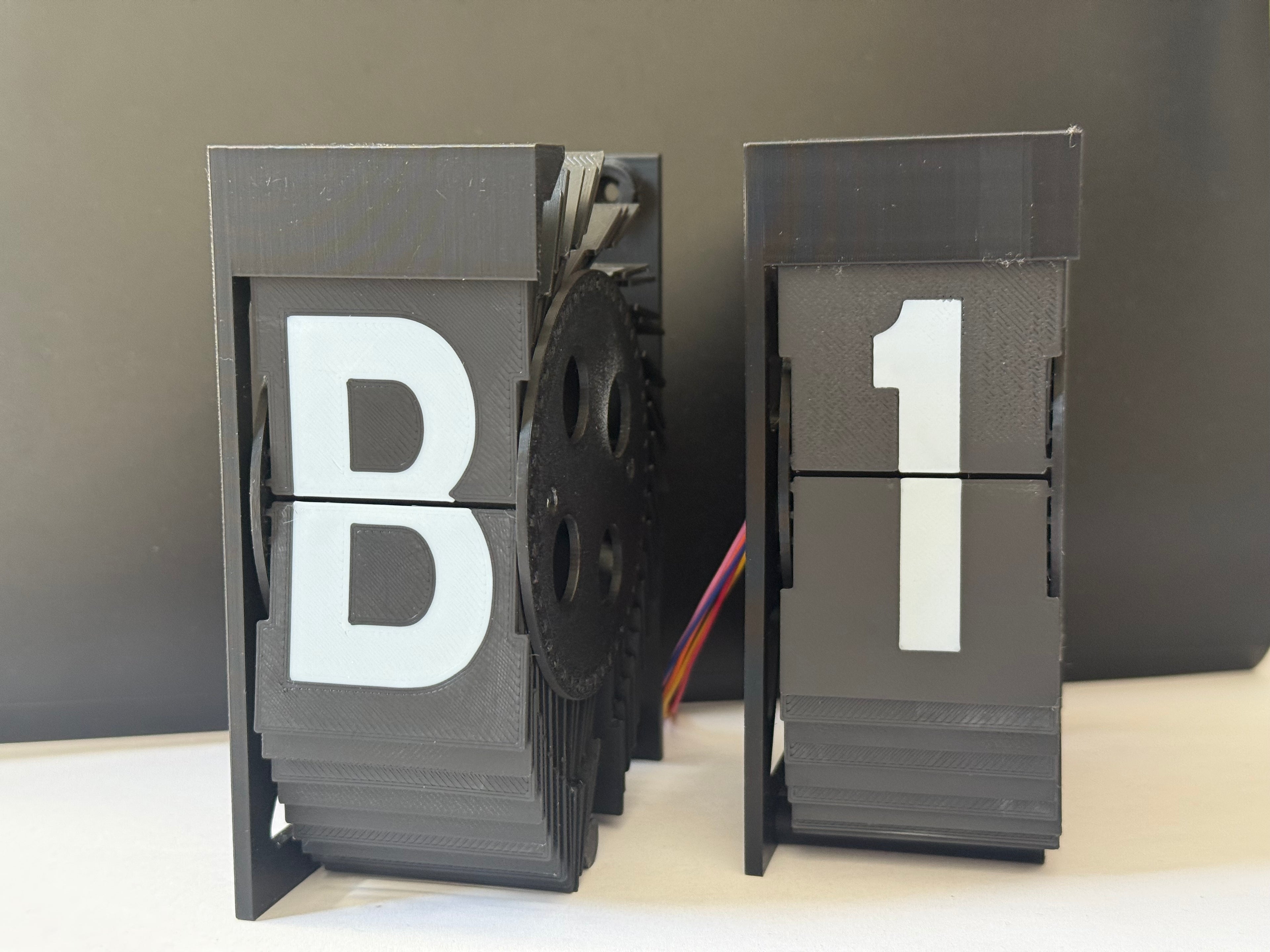

I have also improved the frame of the unit so that the flaps don't swing as much. It's the model on the right in the side-by-side picture.

Design by Tim on MakerWorld (license: BY).
