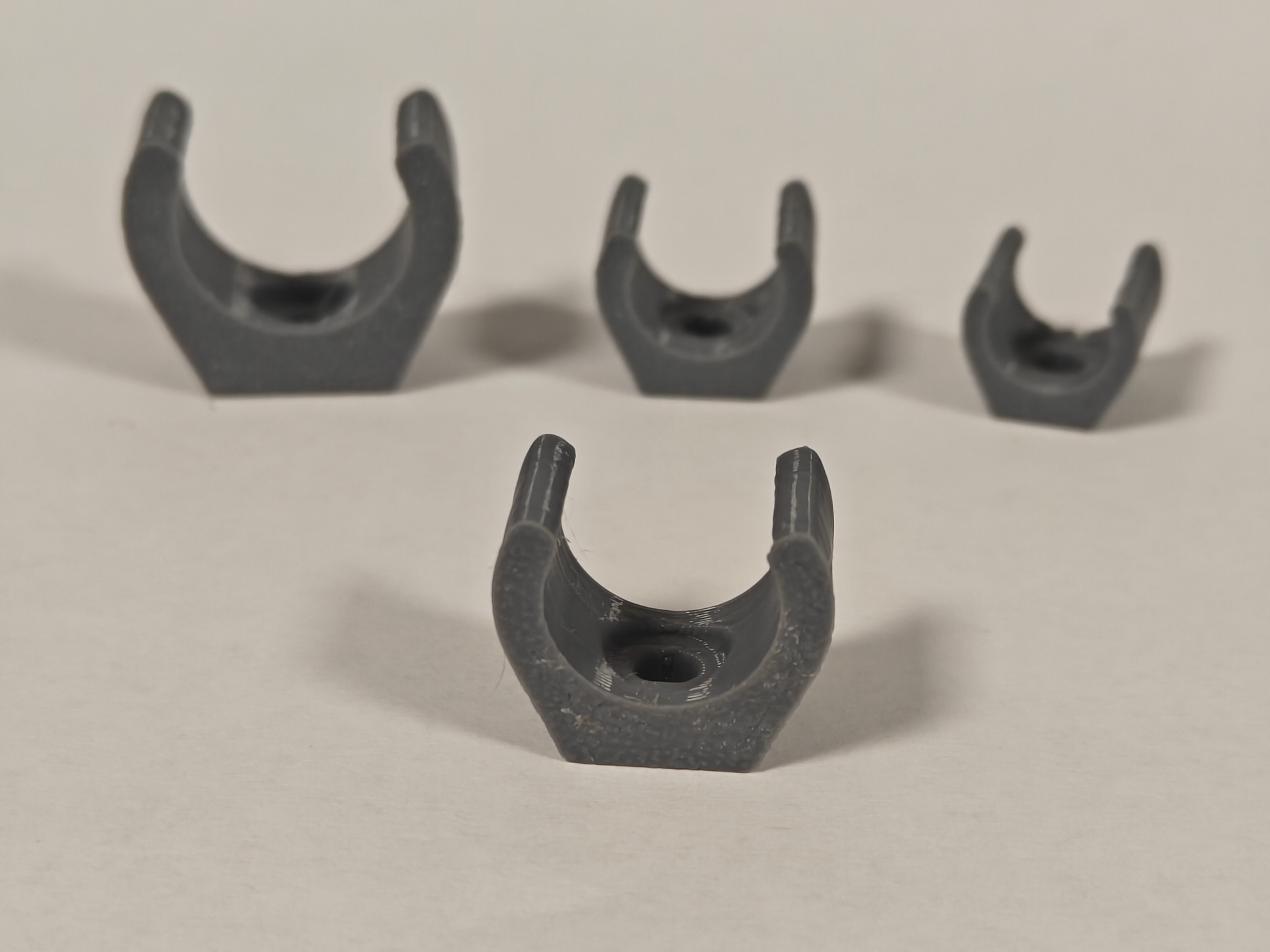

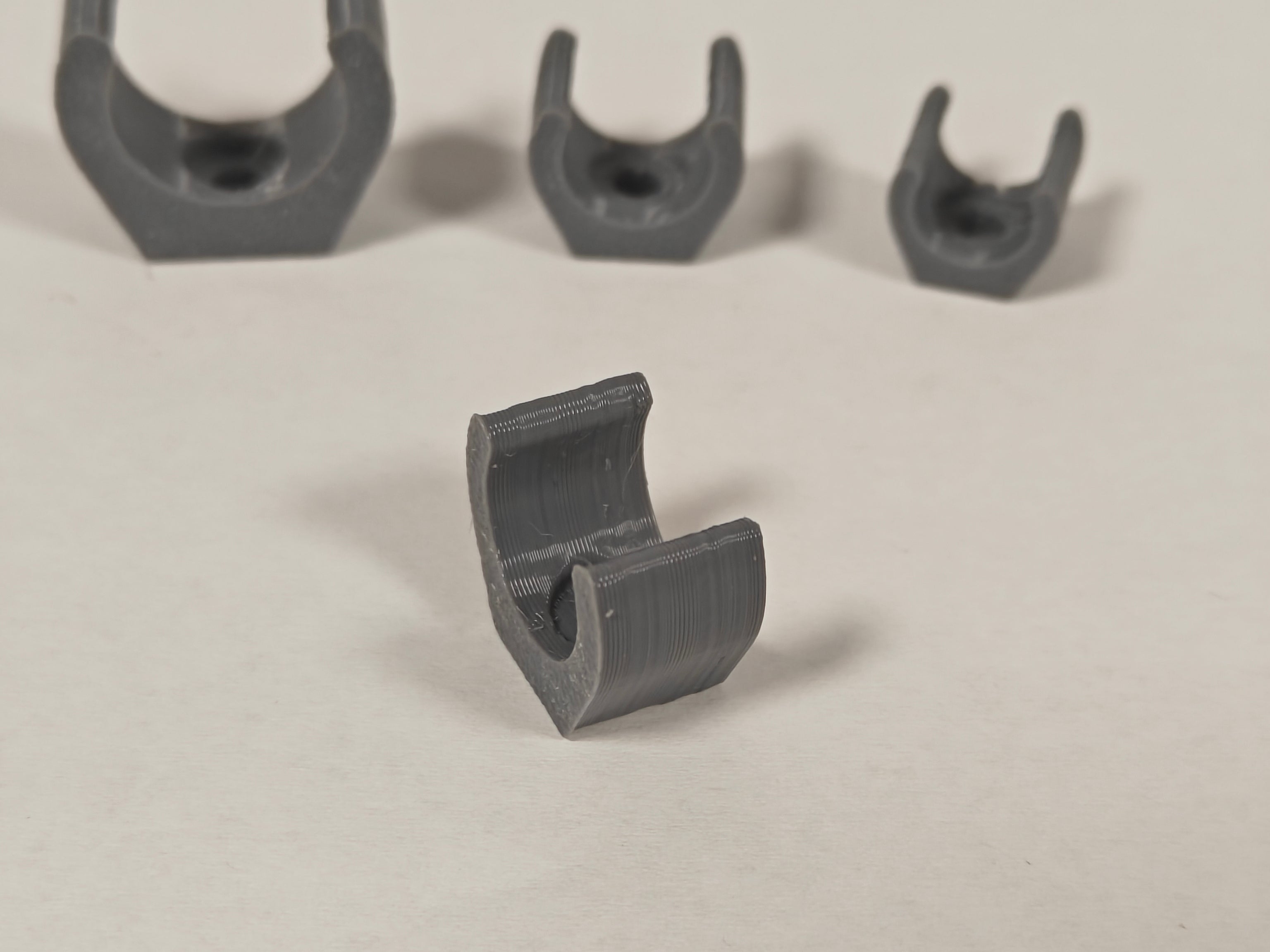

Micro Pipe & Tube Clips | 8-15mm (M3)

This "Micro" set completes the collection, offering mounting solutions for very small diameter tubes.

These are perfect for organizing small copper pipes (gas/hydraulic lines), PTFE tubes for 3D printers, or wire looms in electronics projects. Despite their small size, they maintain the robust M3 screw mounting capability.

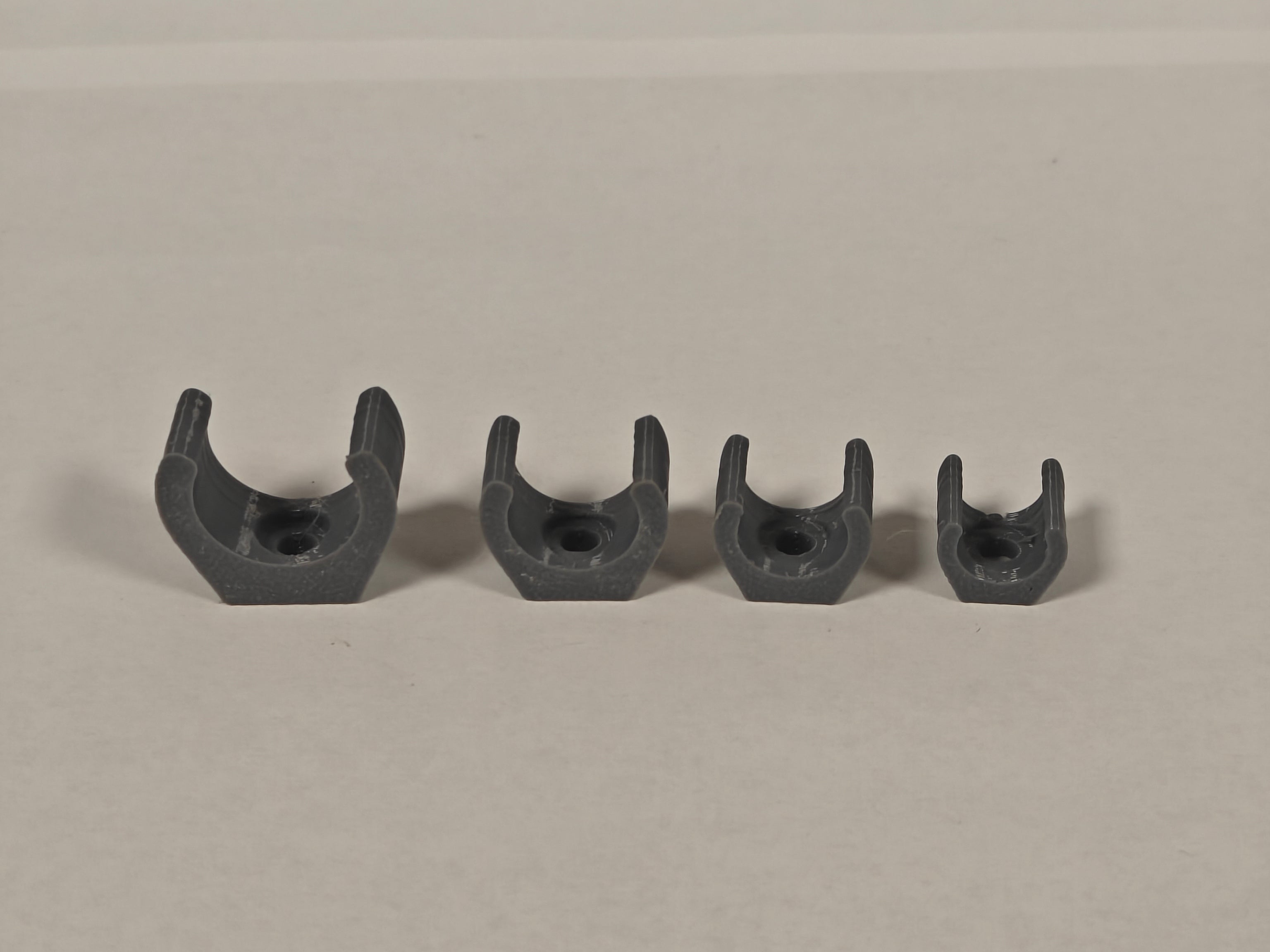

The Set Includes 4 Micro Diameters:

• 8mm
• 10mm
• 12mm
• 15mm (Common copper pipe size)

Key Features:

• M3 Mounting: Designed to be secured with standard M3 screws, making them ideal for attaching to 3D printer extrusions, computer cases, or small wooden bases.
• Precision Fit: Designed for a tight snap-fit on rigid tubes.
• Clear Labeling: Tiny embossed numbers on the front help you identify the size instantly.

Printing Instructions:

• Orientation: Print standing upright.
• Material: PETG or ABS/ASA is strongly recommended. At this small scale, PLA might be too brittle and snap when forcing the pipe in.
• Nozzle: A 0.4mm nozzle works fine, but check your wall thickness settings to ensure the arms are solid.

Design by Mateusz Tokarz on MakerWorld (license: BY).
