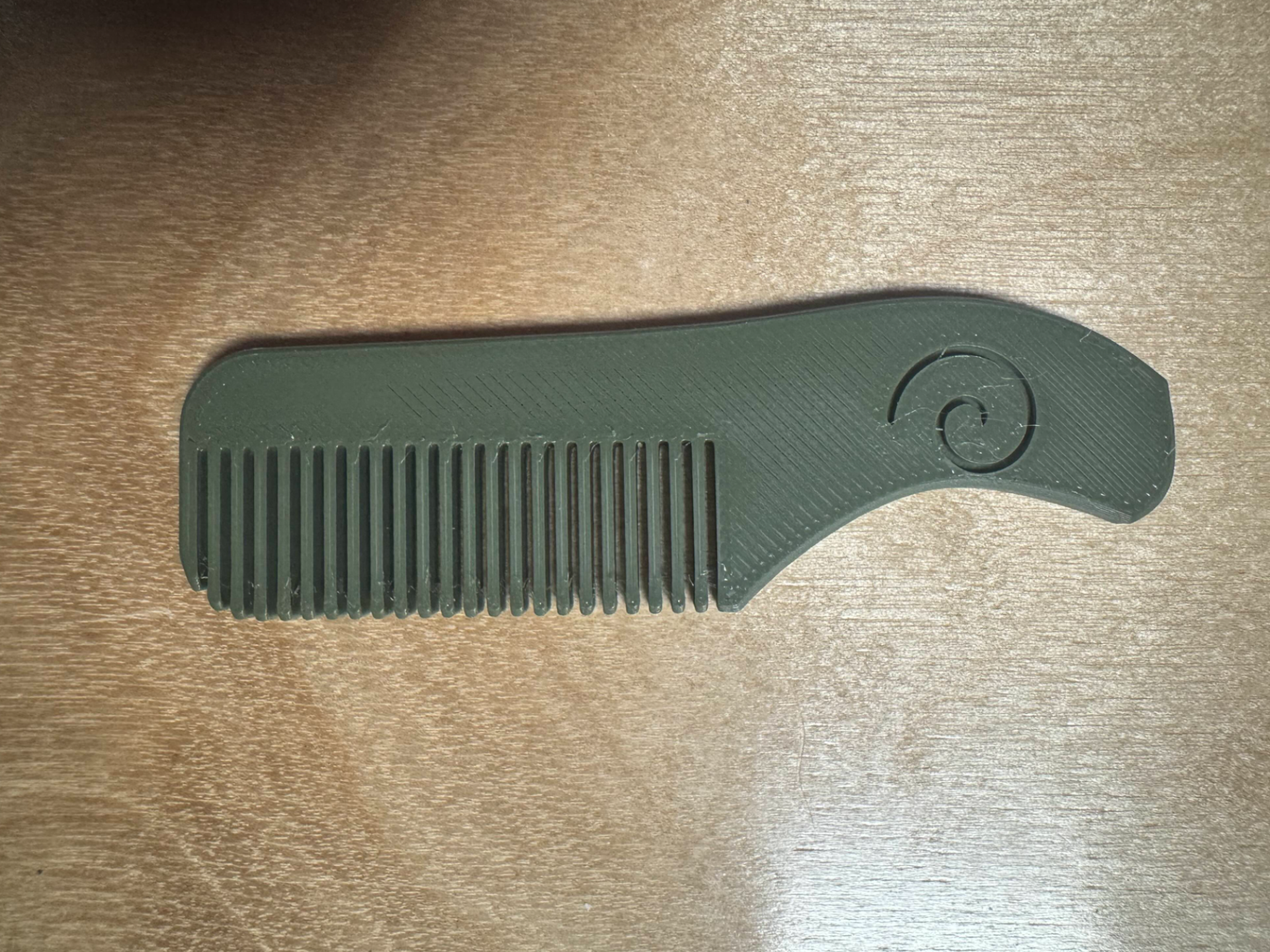

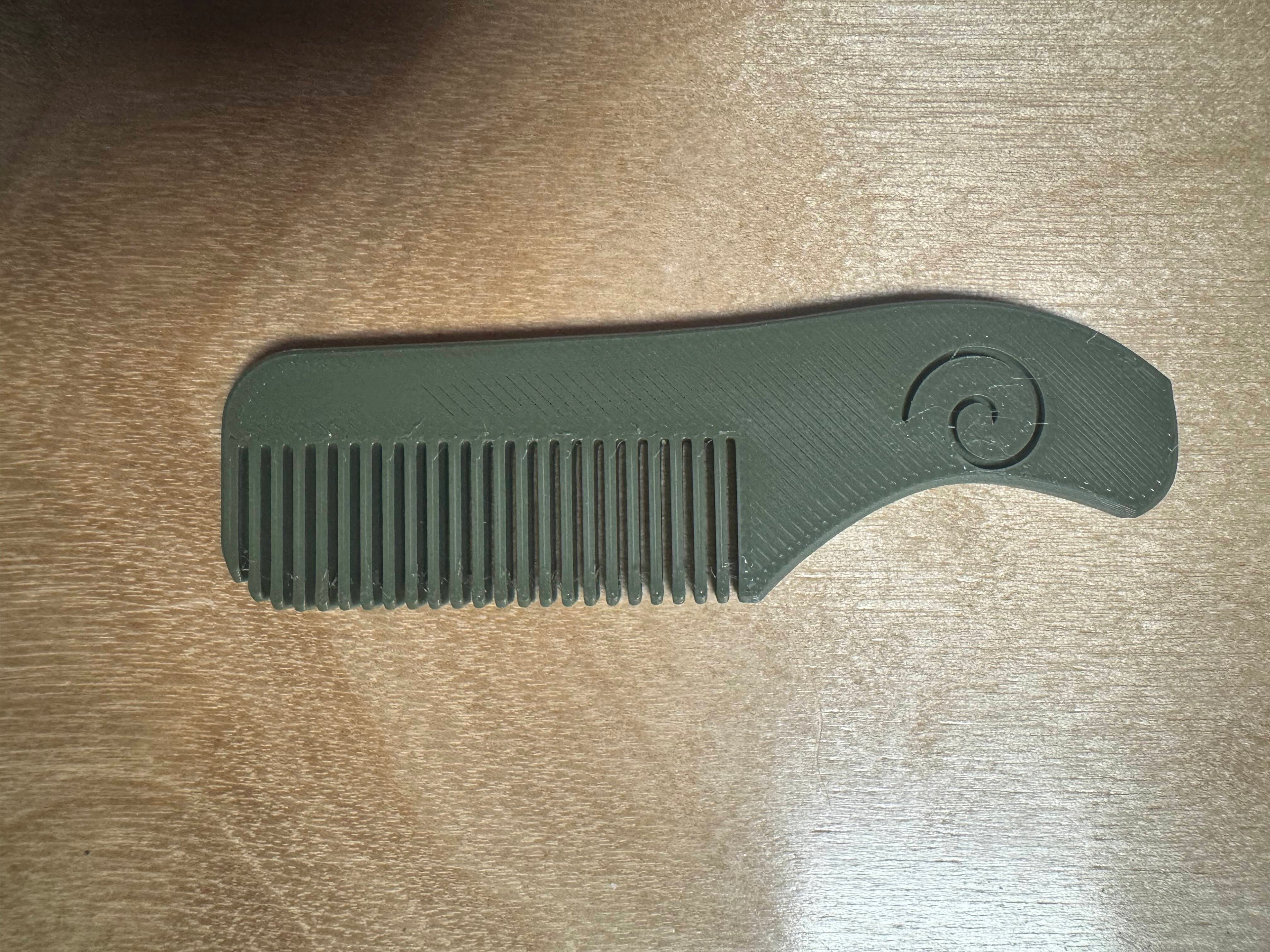

Mini Beard & Mustache Comb (Kent A 81T Style)

A pocket-sized facial-hair comb modeled after the classic Kent A 81T sawcut comb — the little curved-handle comb every mustache-grooming guide recommends. Redrawn from
 scratch as a clean parametric model.

Fits in a wallet, pocket, or dopp kit. Prints in about 6–12 minutes and uses ~4 grams of filament, so a single spool makes hundreds.

 Features

•  True-to-original silhouette — gently crowned spine, fine teeth on the front ~55%, and the signature curved "fishtail" handle with a concave underside that doubles as an
   index-finger rest.
• Reinforced end tines — the two outermost teeth are thickened (1.6mm) so they won't snap, while the inner teeth stay fine (0.9mm teeth / 0.8mm gaps, ~22 teeth).
• Decorative swirl embossed into the handle.
• Rounded, skin-friendly edges — top edge chamfered, tooth tips eased.
• Prints flat, no supports — flat bottom for great bed adhesion; the geometry has zero overhangs.

  Print Settings

•  Material: PLA (PETG for extra toughness
• Layer height: 0.12–0.16mm recommended for crisp, well-separated teeth (0.20mm works but looks coarser)
• Walls: 3+ (the fine teeth are almost entirely perimeter
• Infill: 15%

Dimensions

•  76 × 24 × 3 mm (≈ 3 × 1 × 0.12 in)

Notes

•  Designed to match the real Kent A 81T as closely as a 0.4mm nozzle allows — the original's ~1mm teeth can't be reproduced at that nozzle size, so the teeth here are tuned to
   the finest spacing that prints reliably. you should also buy a Kent A 81T, they are unmatched.
•  Not affiliated with or endorsed by Kent Brushes — "Kent A 81T" referenced for fit/style description only.

Design by dimatosj on MakerWorld (license: BY).
