Modern Glare-Free Pendant Shade & Reflector

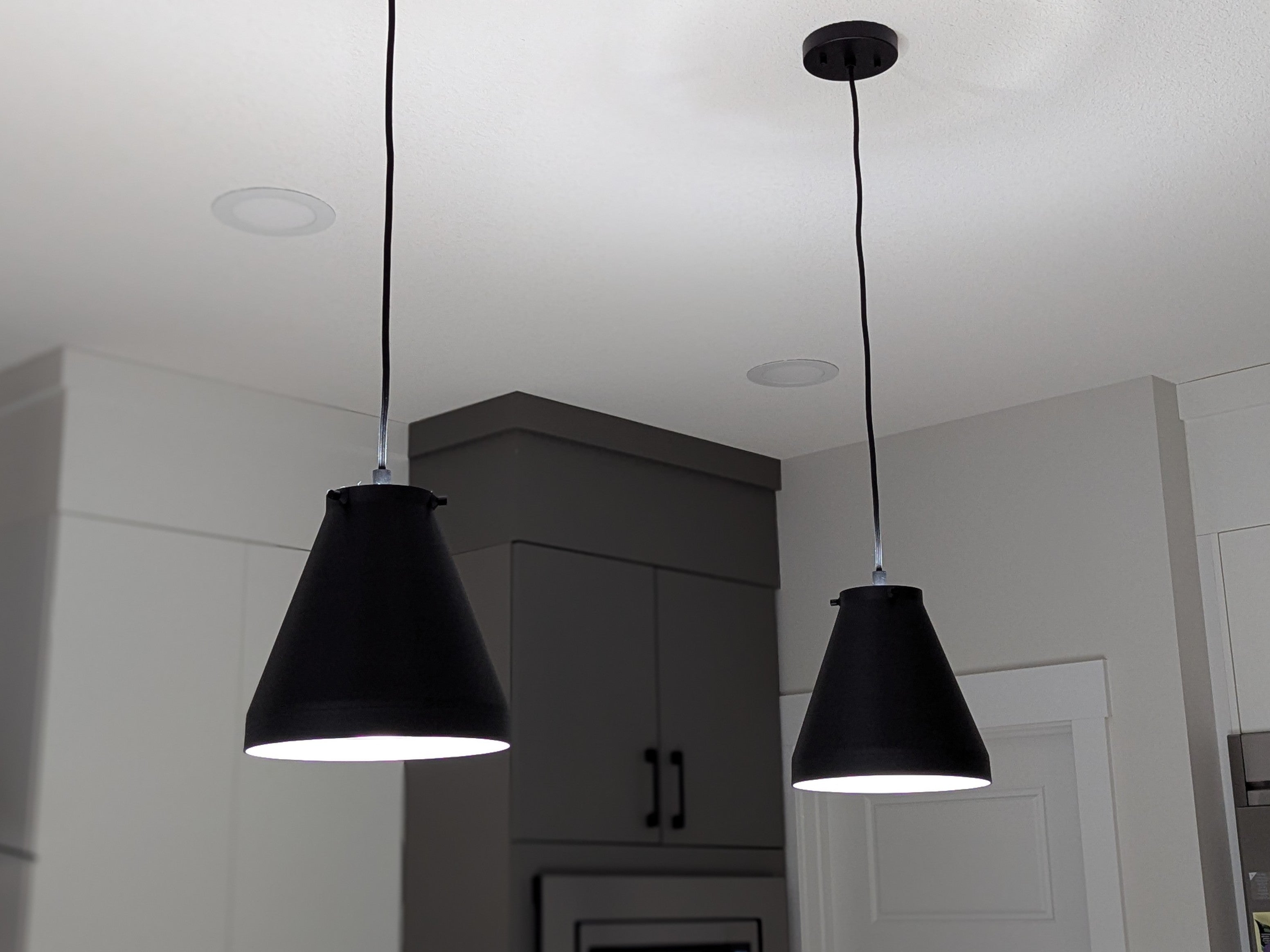

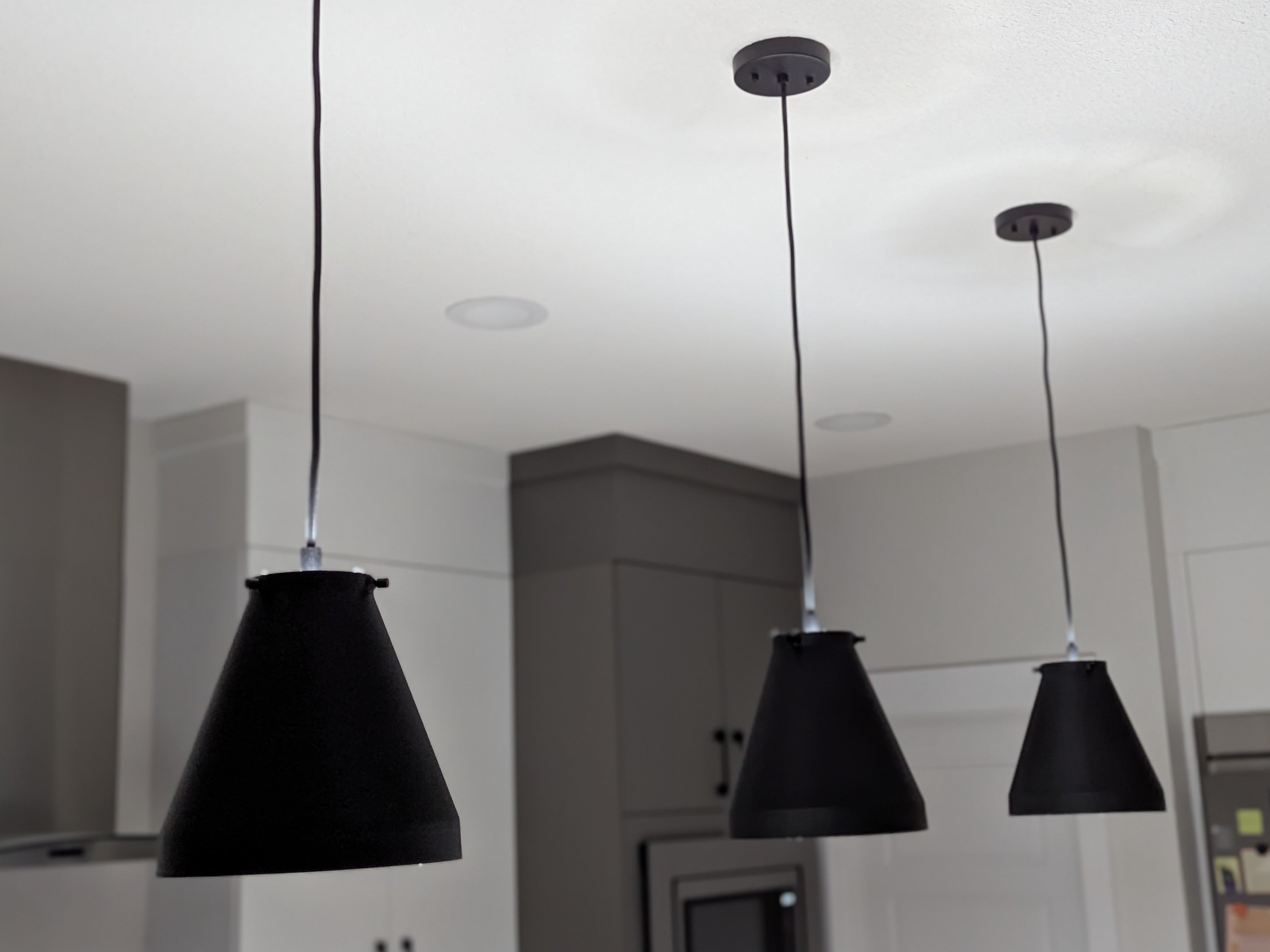

Elevate your kitchen lighting with this elegant, minimal pendant shade. Designed with smooth, clean lines, this fixture is perfect for drop-lights over kitchen counters and islands.

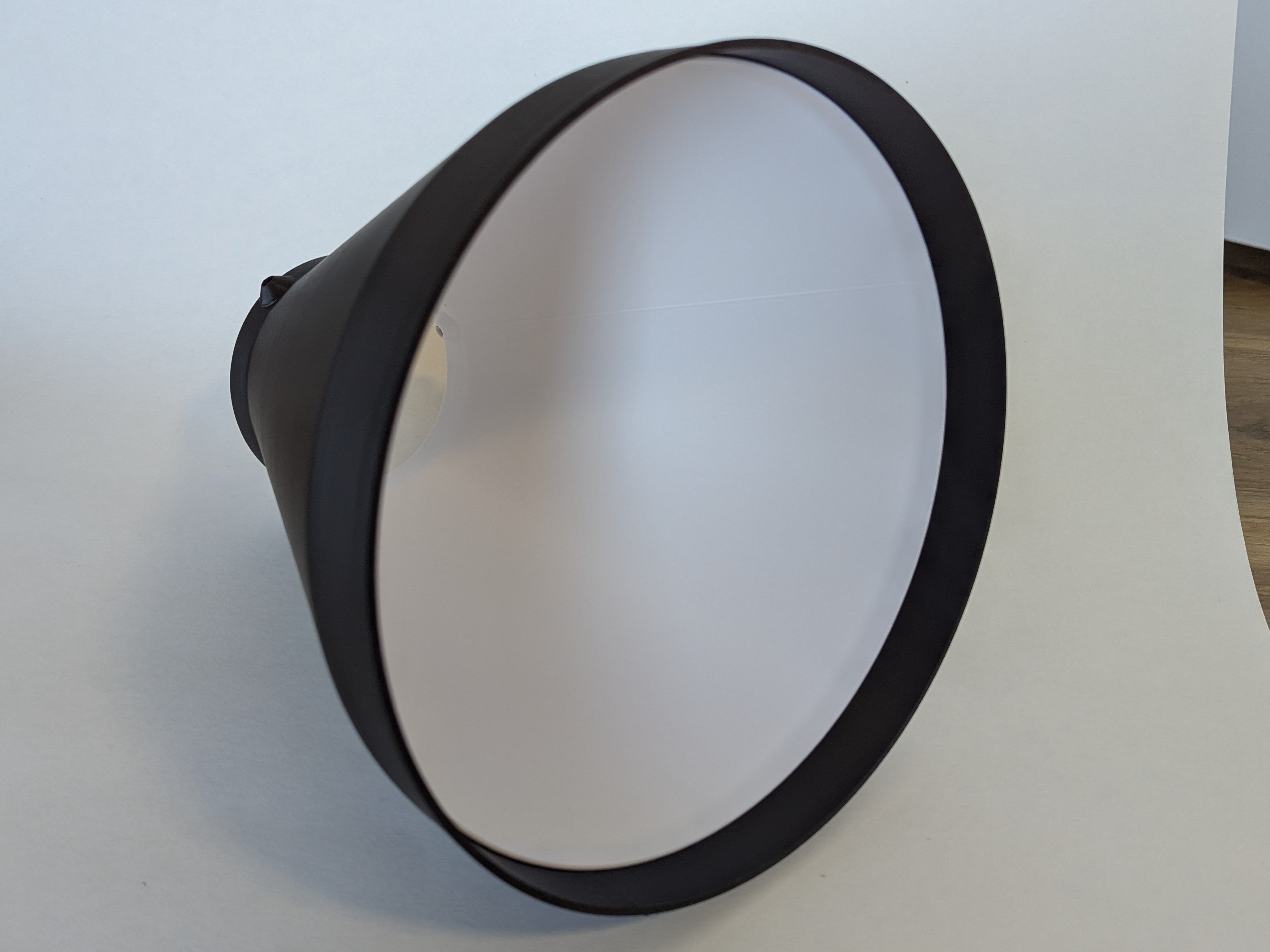

The standout feature is the separate internal reflector. Unlike standard shades, this design focuses the light downward onto your workspace while completely eliminating eye glare from the side. It offers the high-end look of a dual-layer fixture.

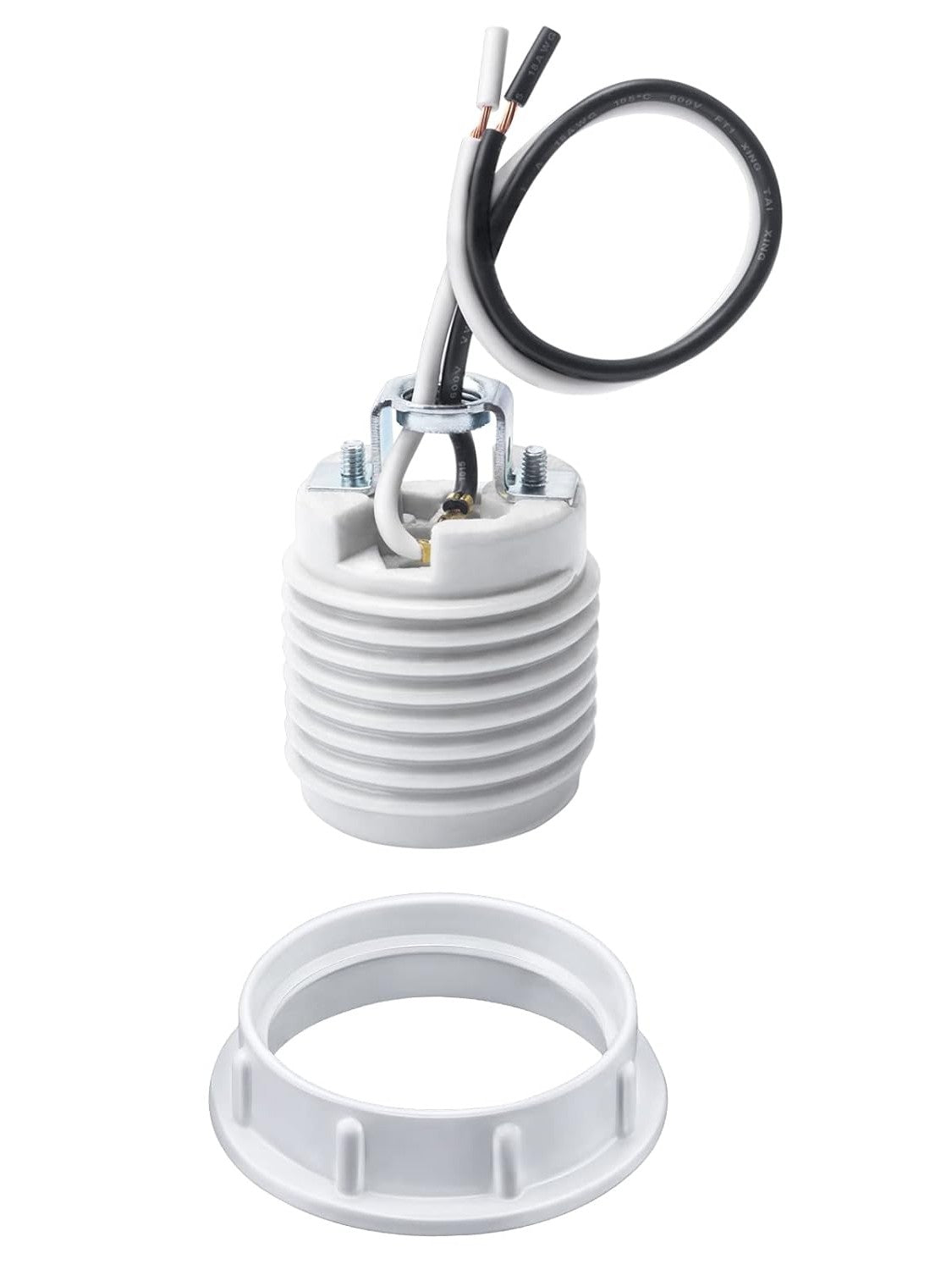

Option 1: The "Socket Mount" (Threaded Adapter) Fits standard threaded light holder sockets (E26 or E27) using the included Adapter Disk.
- Designed for sockets with a retaining nut up to 40mm outer diameter.

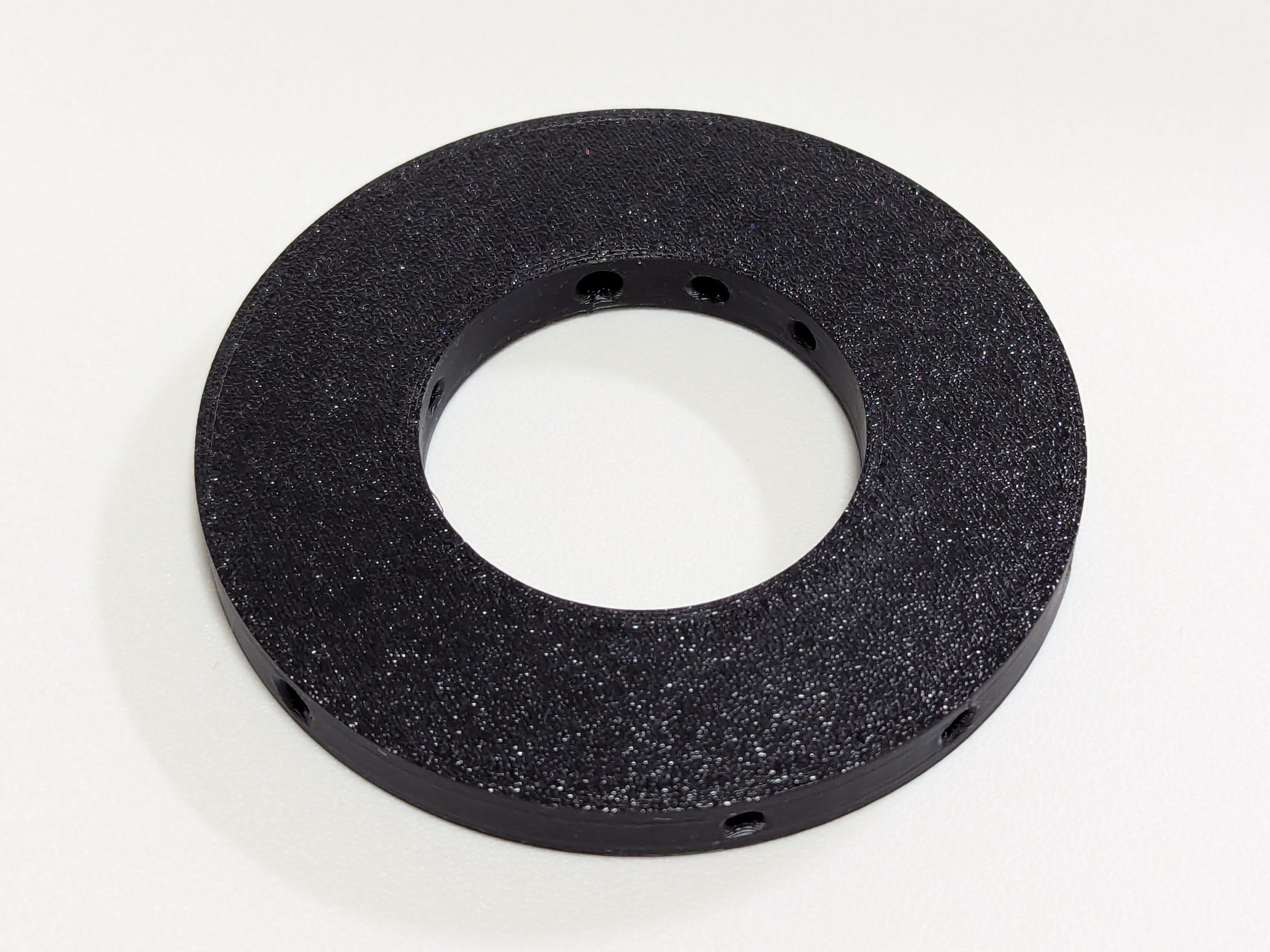

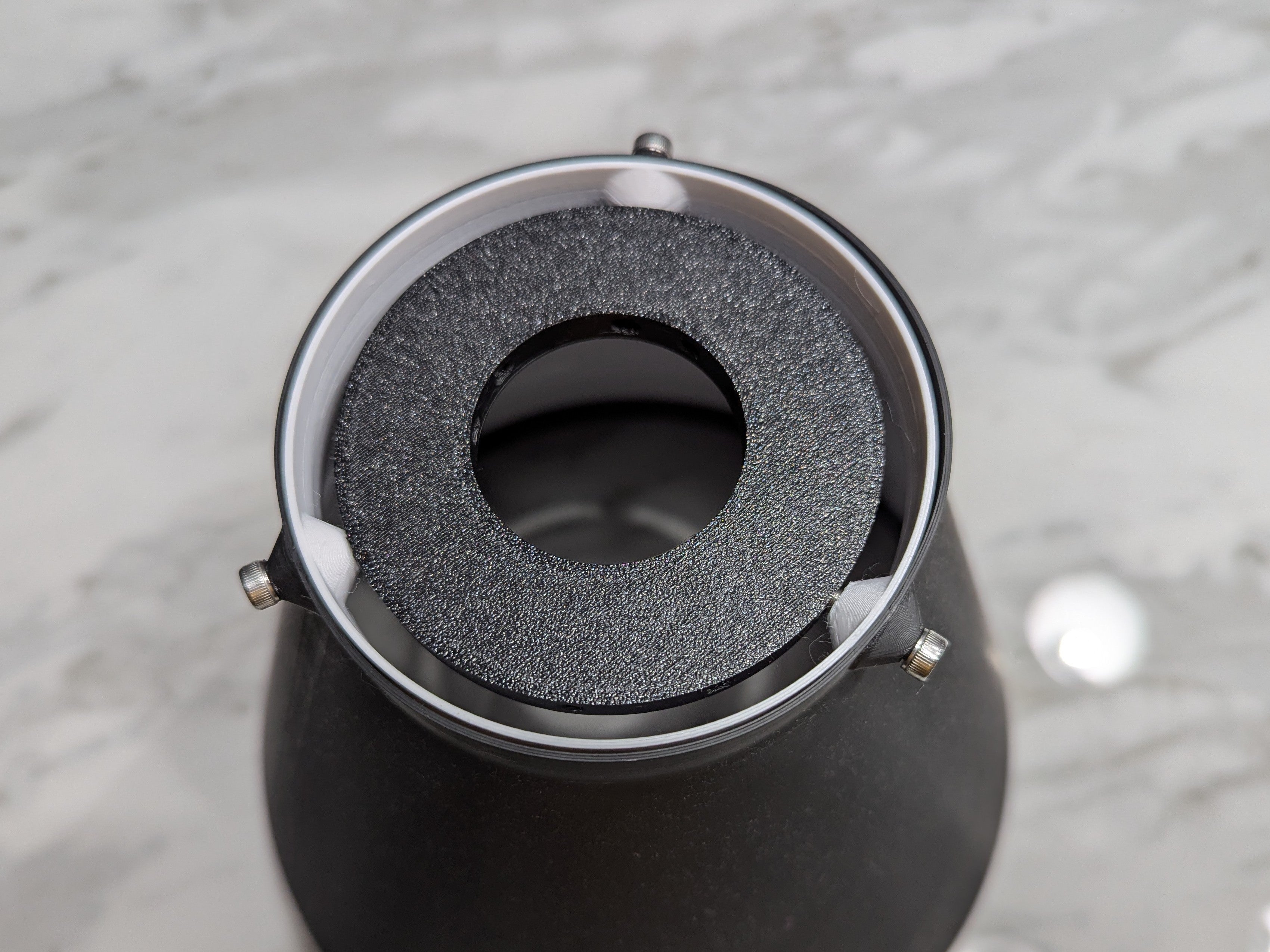

- The adapter disk locks the shade to the socket collar.
- The disk is threaded to accept 3 screws (20mm length). Files are available for M4, M3.5, or M3 threads to suit your hardware.

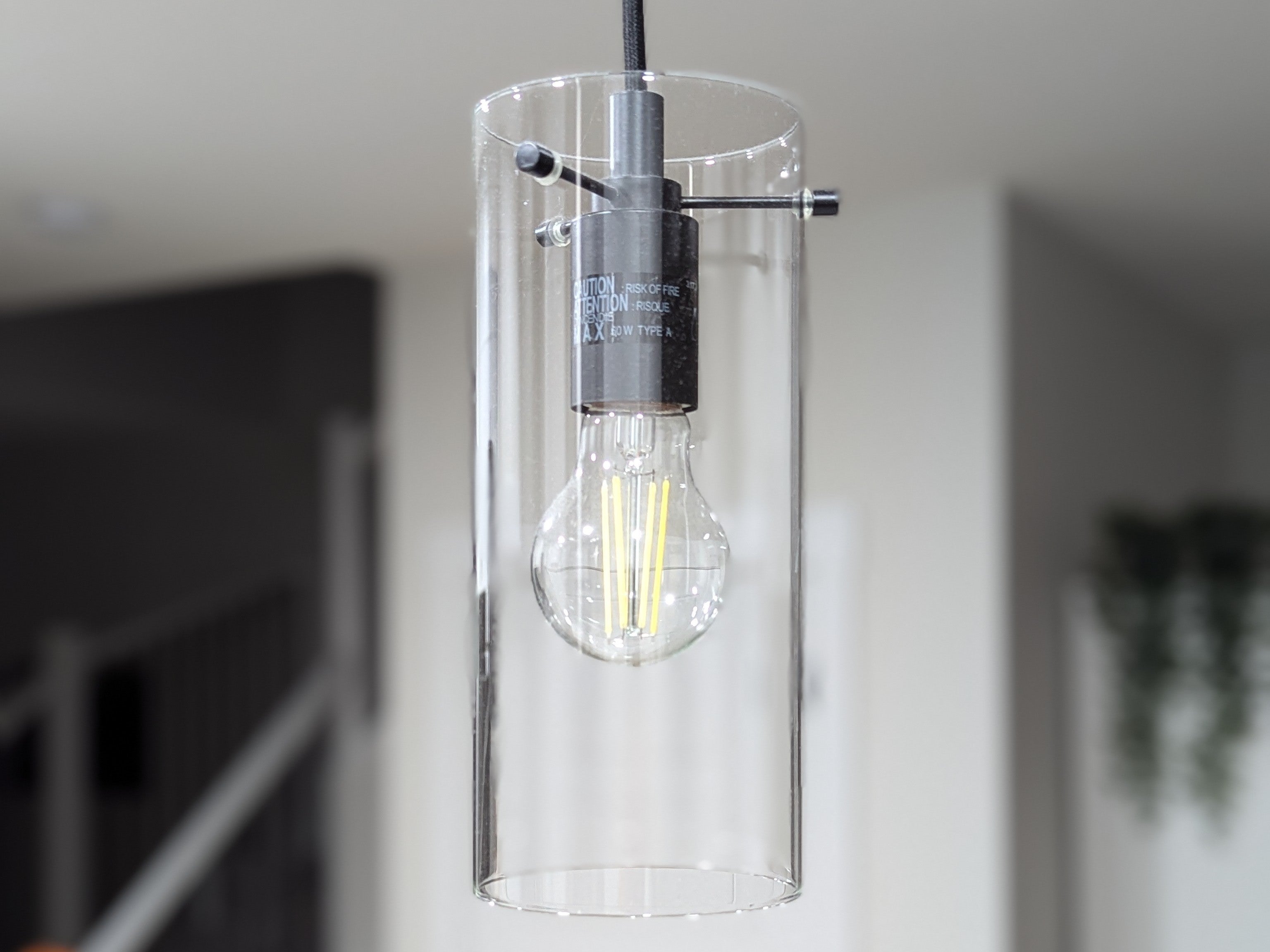

Option 2: The "Pin Mount" (Direct Replacement) Designed to replace standard 100mm diameter glass cylinder shades.
- Fits fixtures with a 3-pin retention system (pins must be on the light fixture).
- Designed to match specific vintage/generic glass dimensions: 100mm diameter, 230mm height, 2mm thickness.
- Hole specs: Matches 6.6mm diameter holes for 3.8mm mounting pins.

Print Settings & Recommendations: Supports: None needed! (Print-in-place friendly). Walls: 2 walls are sufficient for the shade. 3 walls are recommended for the Adapter Ring for extra strength. Infill: 15%.

Material: Inner Cone/Adapter Ring: PETG is highly recommended due to proximity to the bulb heat.

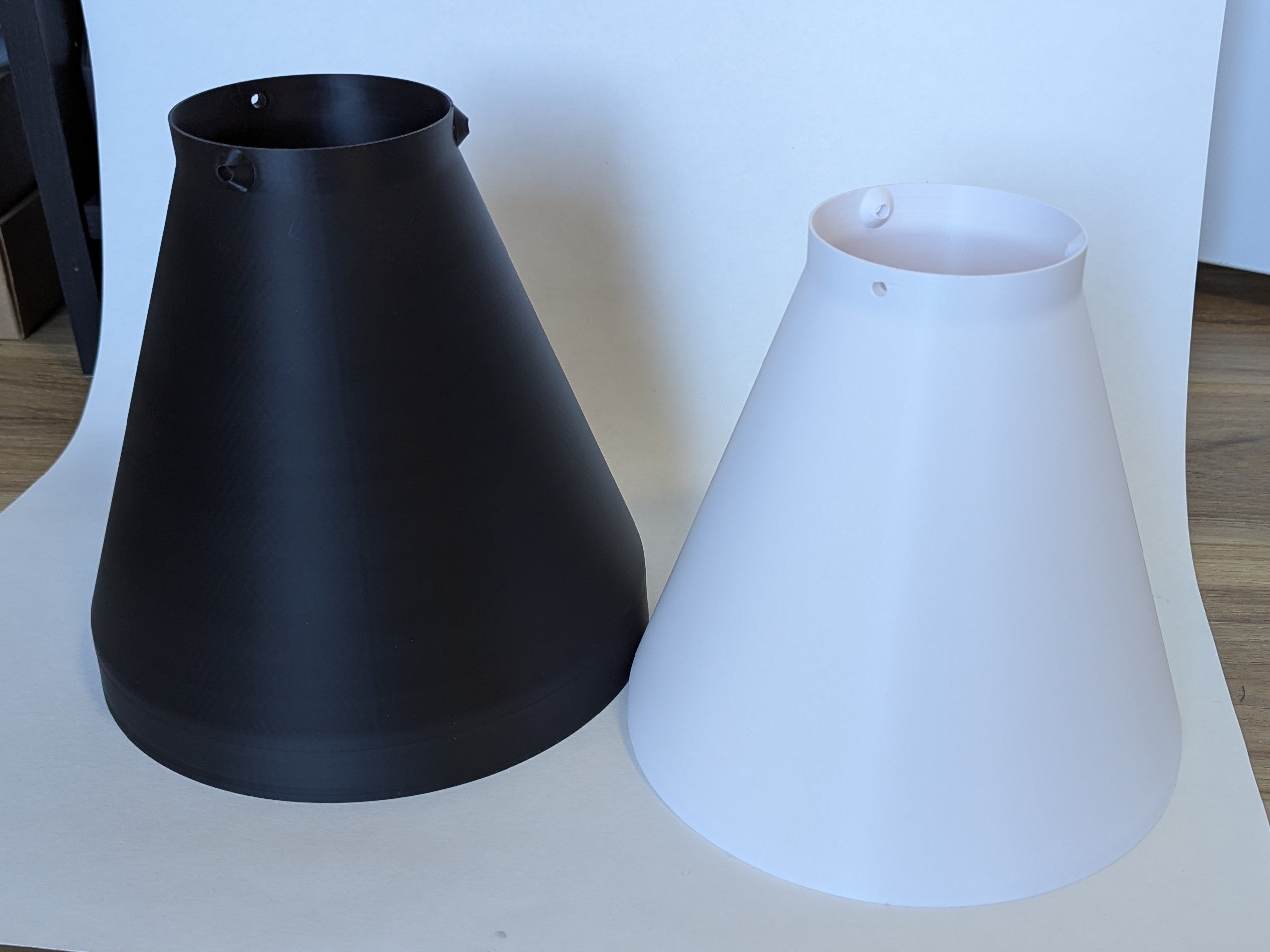

Outer Cone: PLA, PETG, or any preferred aesthetic material.

Design by Dave.the.Borg on MakerWorld (license: BY).
