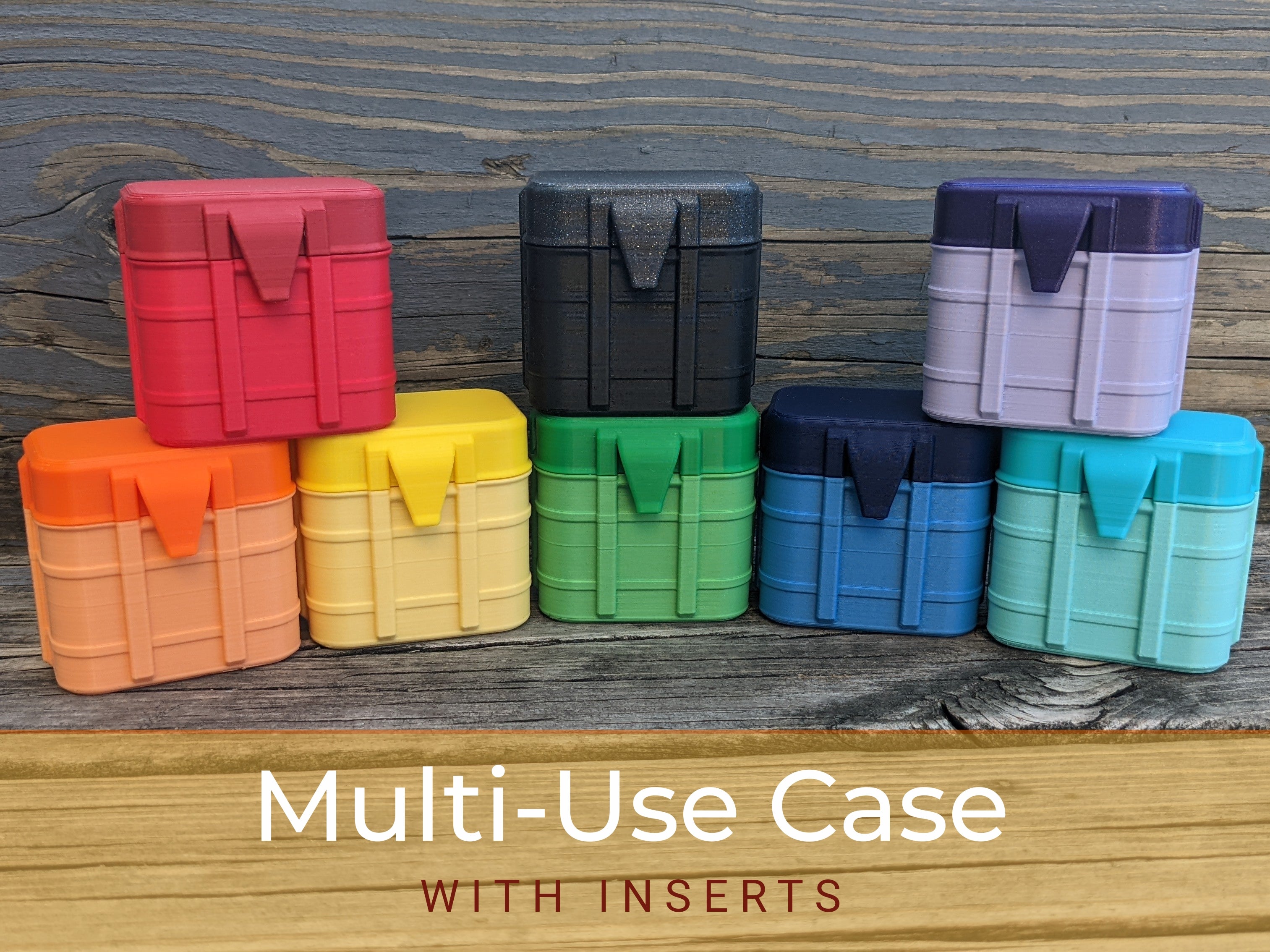

Multi-Use Case with Inserts

A small, strong case with a collection of optional inserts for different uses.

Case

Use a section of 1.75mm filament inside the hinge to connect the lid to the base. Depending on your printer/setup, this hole maybe be on the tight side or a bit loose. If tight, drilling out the hole may help. If it is slightly oversized, I suggest melting the end of the filament piece with a soldering iron or lighter.

This can be a standalone case or you can add inserts for more functionality.

Print Settings

Base and Lid can be printed with 3 perimeters and 0% infill. Using these settings, most walls will be solid.

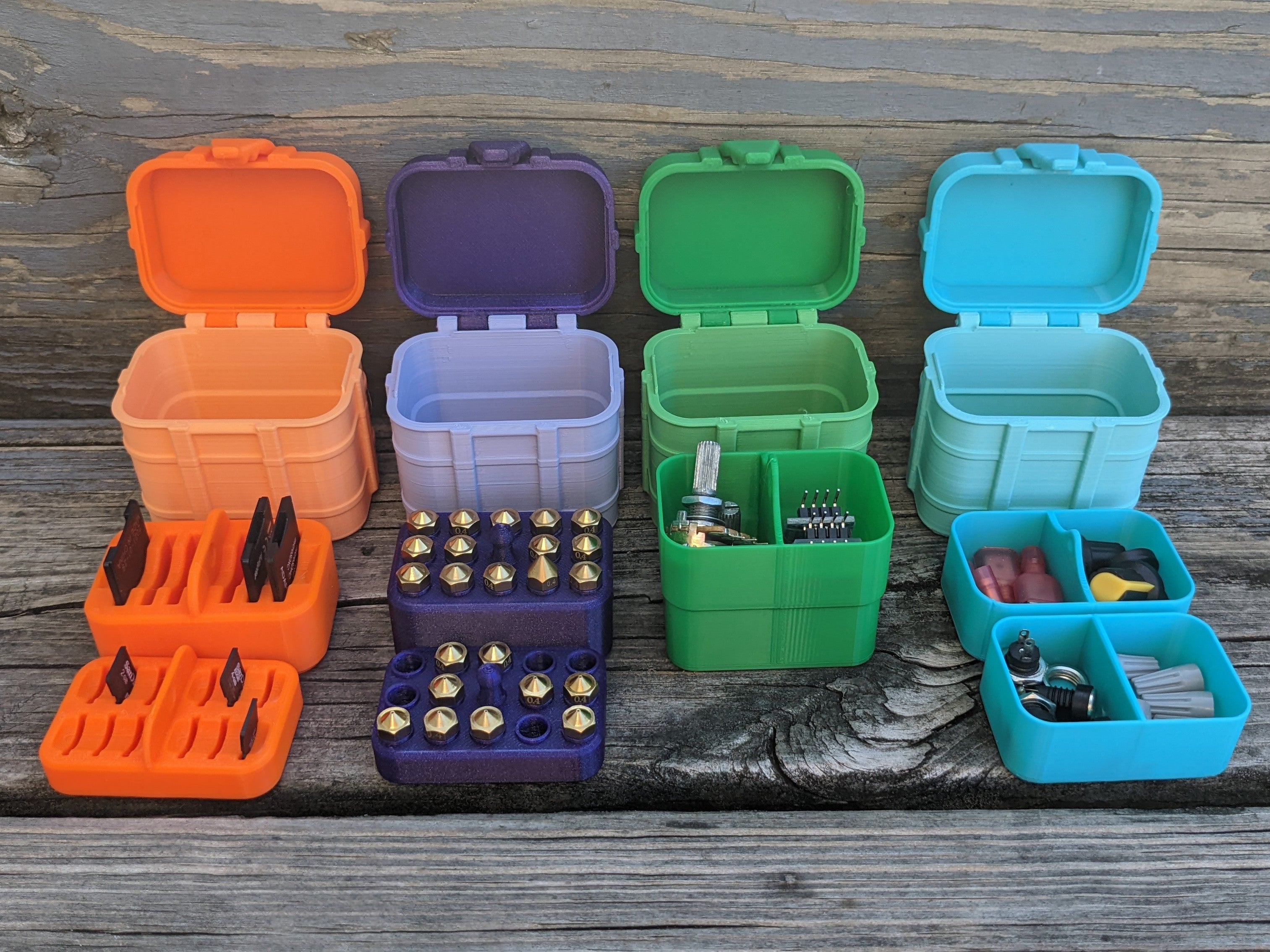

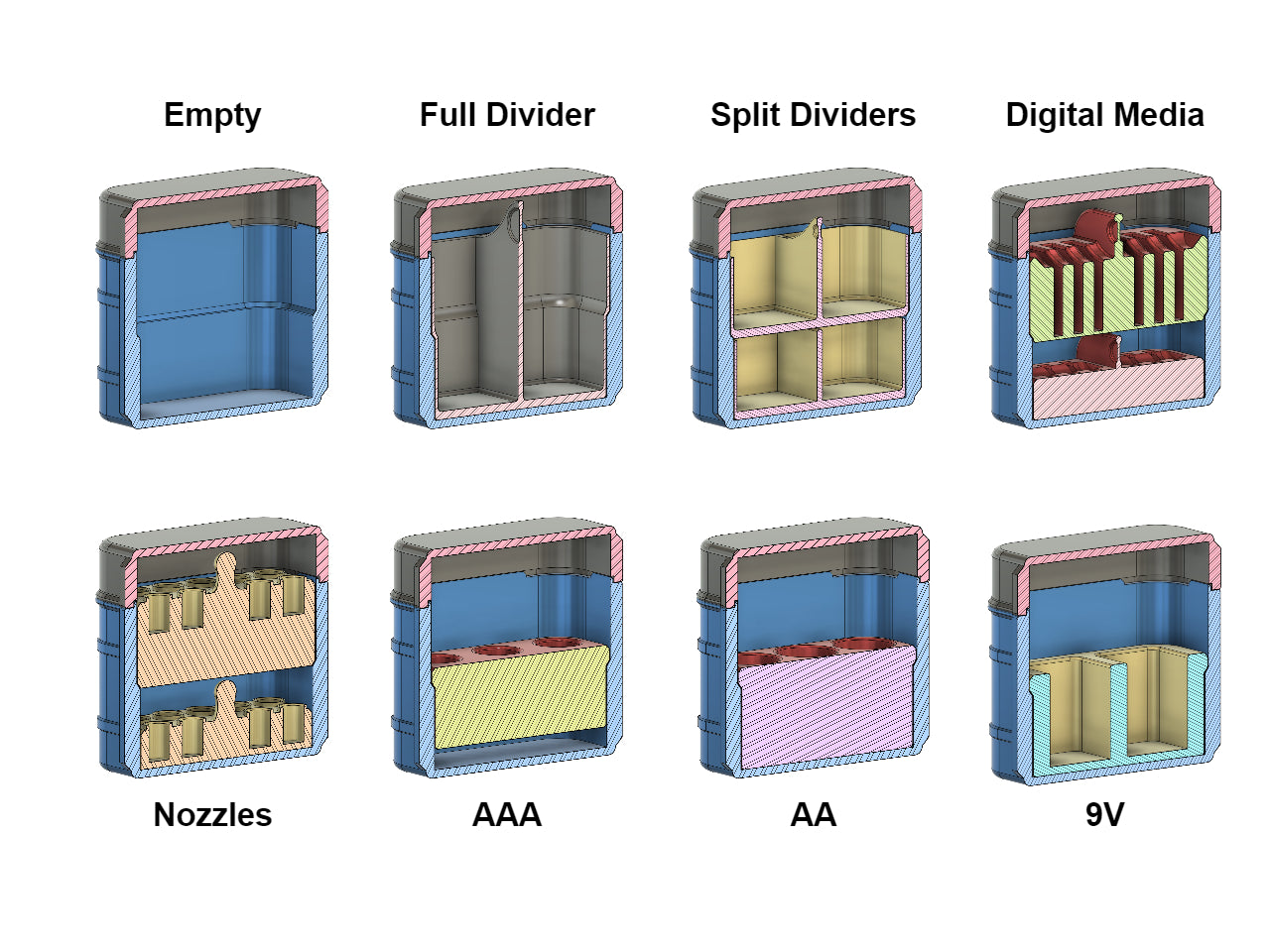

Optional Inserts

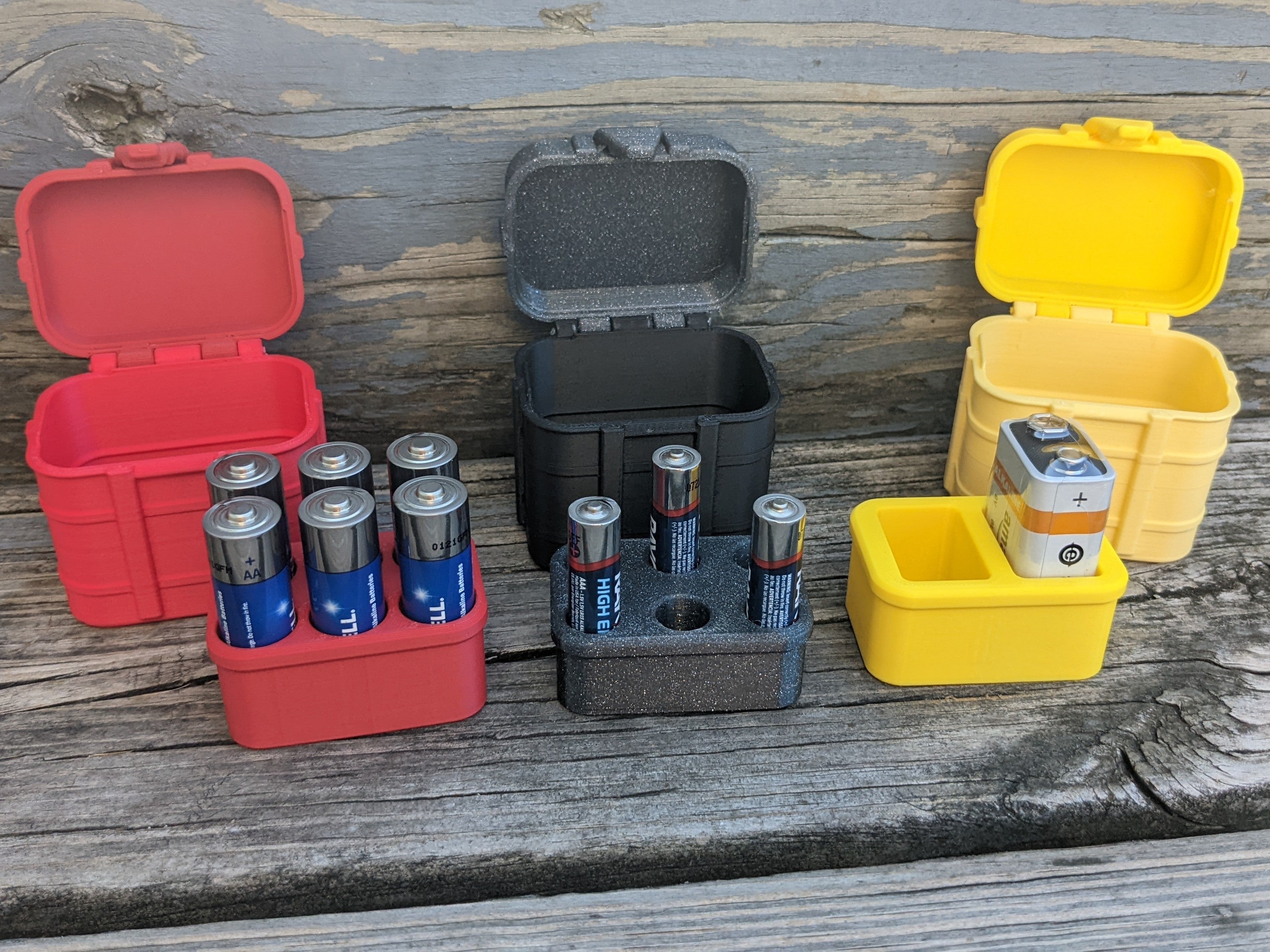

• Battery Holders
  • AA Holder - fits up to 6 AA batteries
  • AAA Holder - holds up to 8 AAA batteries
  • 9V Holder - fits up to 2 9V batteries
• Digital Storage Holders - Can be used together or separately
  • MicroSD Card Holder - fits up to 12 MicroSD cards in the lower section
  • SD Card Holder - fits up to 6 SD cards in the upper section
• Dividers
  • Full Divider - Splits the entire case into 2 compartments
  • Upper Divider - adds 2 compartments on top - Can be used with the Lower Divider
  • Lower Divider - adds 2 compartments on bottom - Can be used with the Upper Divider
• Nozzle Holders - Can be used together or separately
  • Upper Nozzle Holder - fits 14 standard nozzles (MK8 or E3D V6)
  • Lower Nozzle Holder - fits 14 standard nozzles (MK8 or E3D V6)

Print Settings

No special print settings are needed for any of the inserts. I used 3 perimeters and 10% infill.

The following filaments were used in the pictures above:

Black Case

• polymaker PolyTerra Charcoal PLA
• Hatchbox Sparkle Gray PLA

Red Case

• polymaker PolyTerra Army Red PLA
• polymaker PolyTerra Lava Red PLA

Yellow Case

• PrintBed Yellow PLA
• polymaker PolyTerra Banana PLA

Teal Case

• polymaker PolyTerra Arctic Teal PLA
• PrintBed Baja Blue PLA

Purple Case

• Prusament Galaxy Purple PLA
• Fillamentum Lilac PLA

Orange Case

• CC3D Flame Orange PLA+
• Inland Orange PLA

Green Case

• PrintBed Green PLA
• polymaker PolyTerra Forest Green PLA

Blue Case

• GIANTARM Matte Navy Blue PLA
• polymaker PolyTerra Sapphire Blue PLA

Design by JamesThePrinter on MakerWorld (license: CC0).
