Nintendo 2DS Display Stand, IKEA SKÅDIS Mount

A minimalist upright stand that mounts your Nintendo 2DS directly onto an IKEA SKÅDIS pegboard, so your console stays on display instead of buried in a drawer.

Features

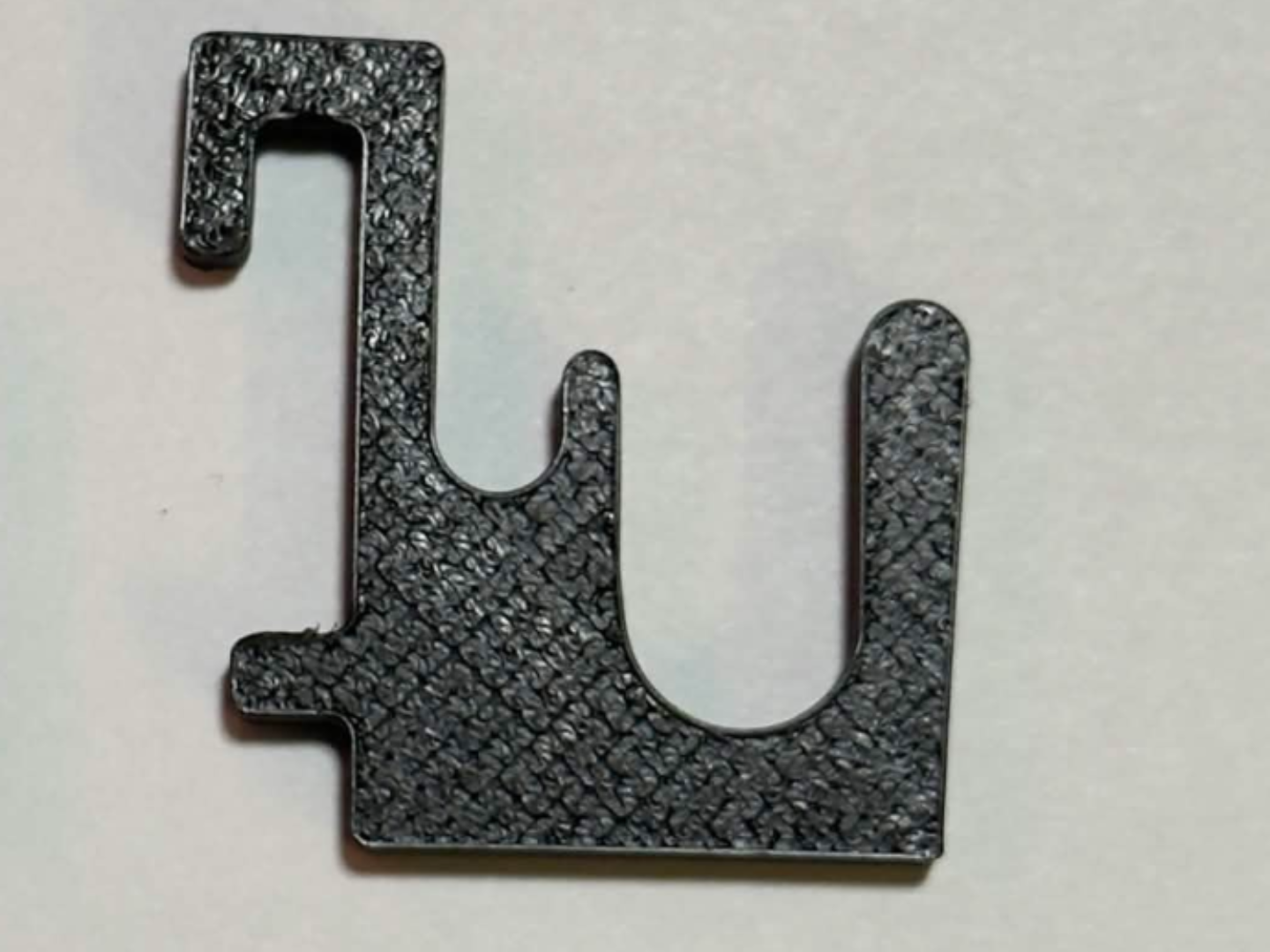

• Snaps onto standard SKÅDIS pegboard holes using one integral hooks, no screws, no extra hardware
• 5° backward tilt holds the console securely at a comfortable viewing angle
• Tapered slot with a semicircular floor groove precisely sized for the 2DS hinge barrel, so the console sits snug without wobble

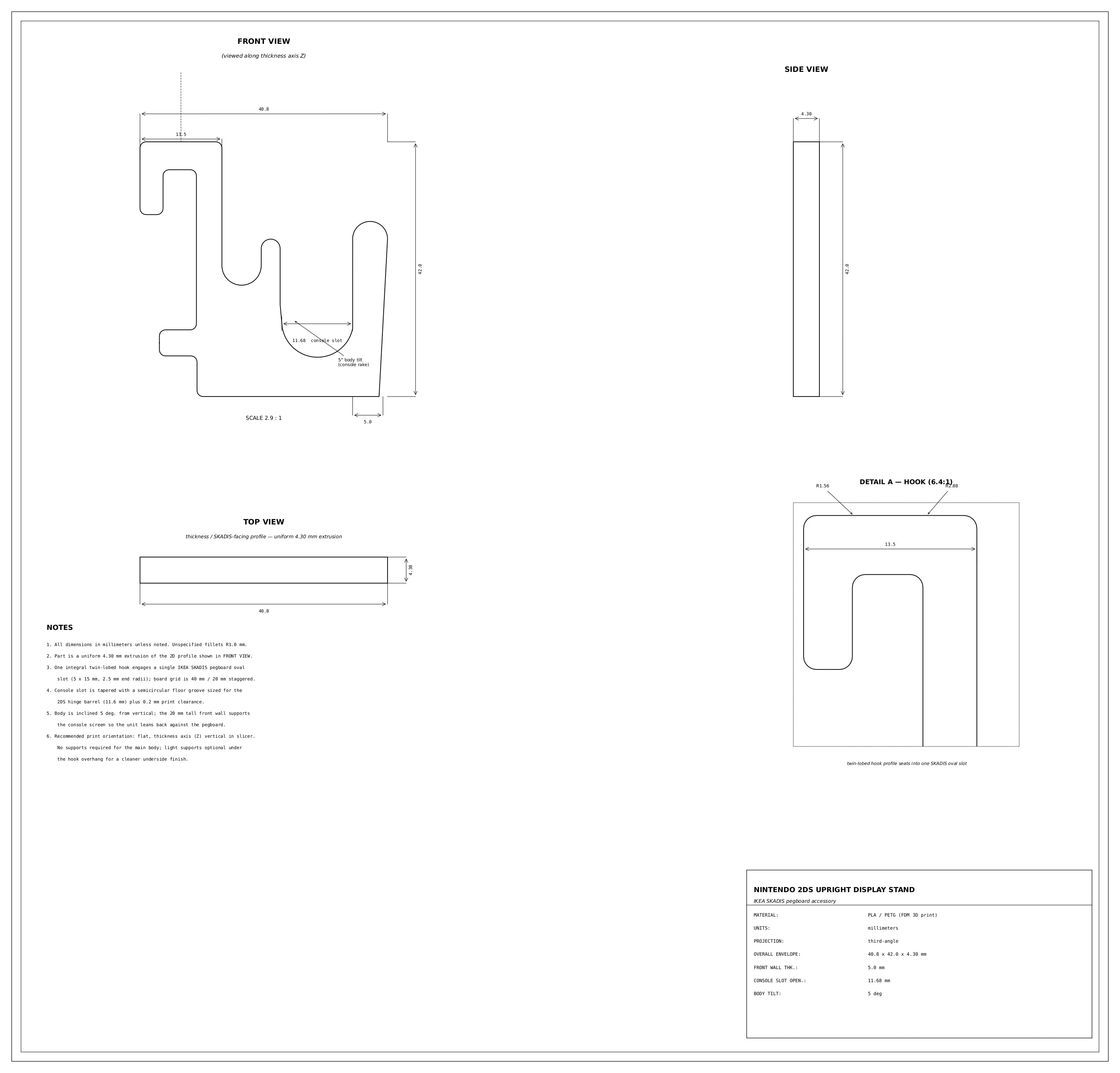

• Compact footprint: ~41 × 42 × 4.3 mm

Print settings

• Material: PLA or PETG

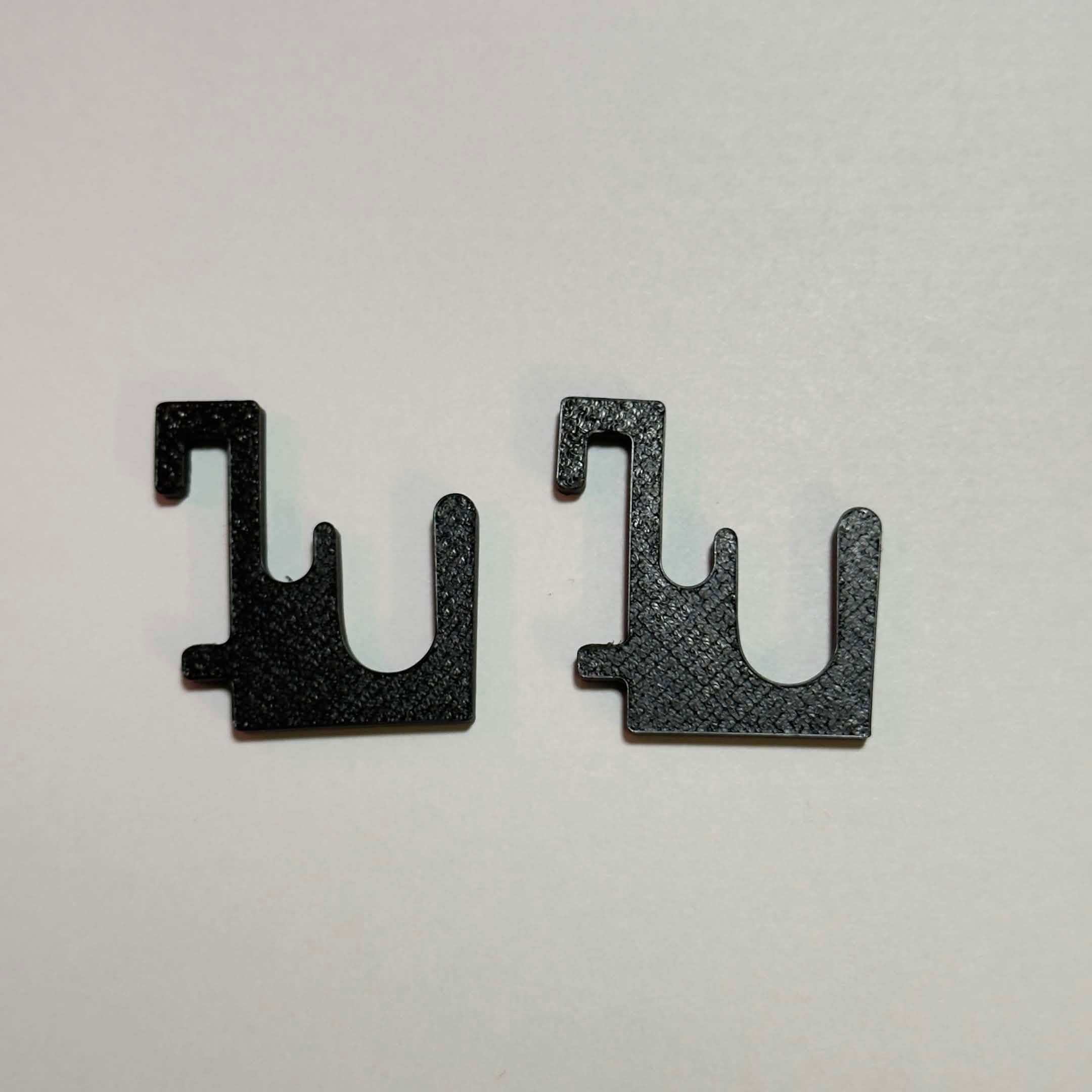

• Print quantity: 2, one goes under each side of the console; a single piece won't support the full width
• Layer height: 0.2 mm
• Infill: 15–20%
• Orientation: print flat, exactly as exported (thickness axis vertical)
• Supports: not required

Assembly

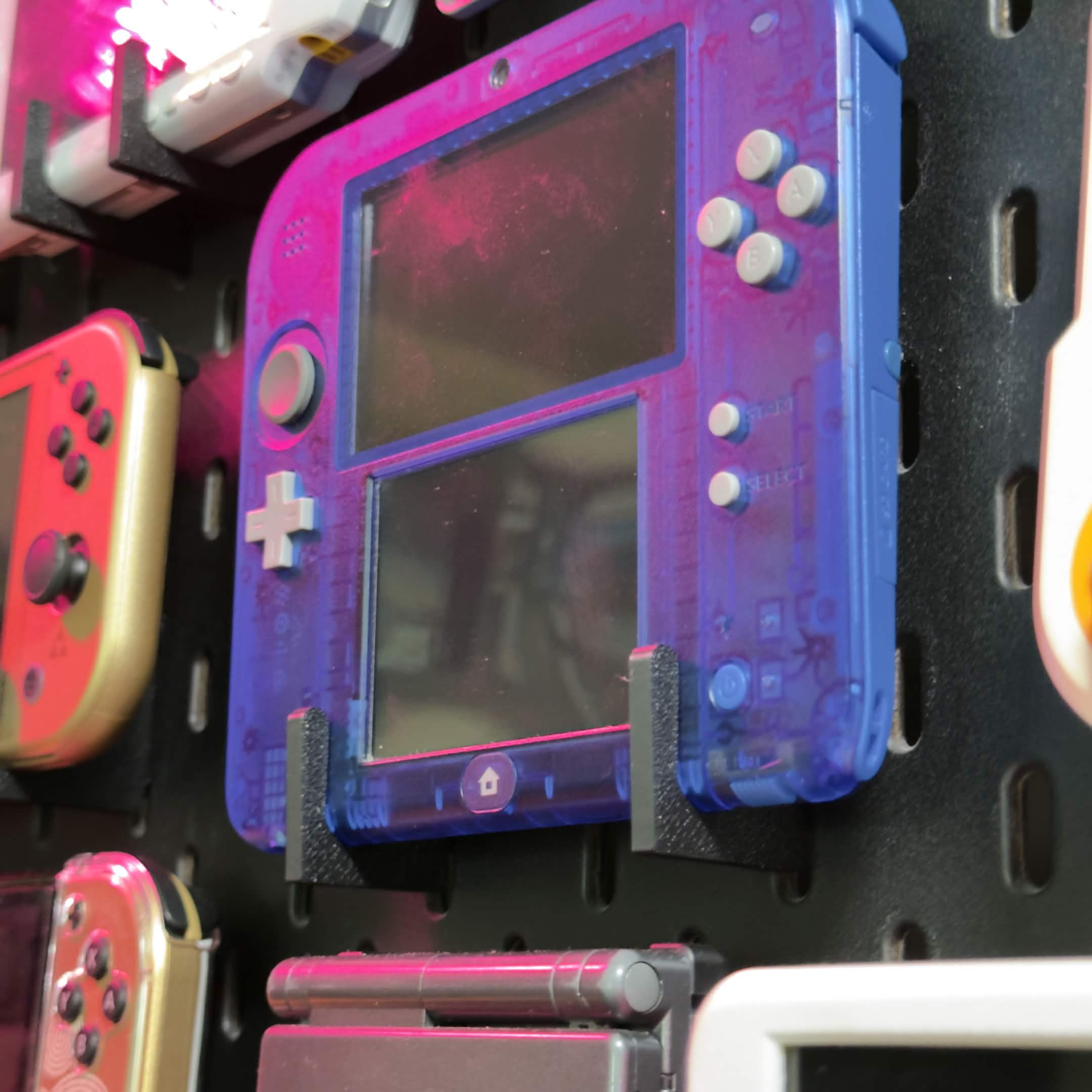

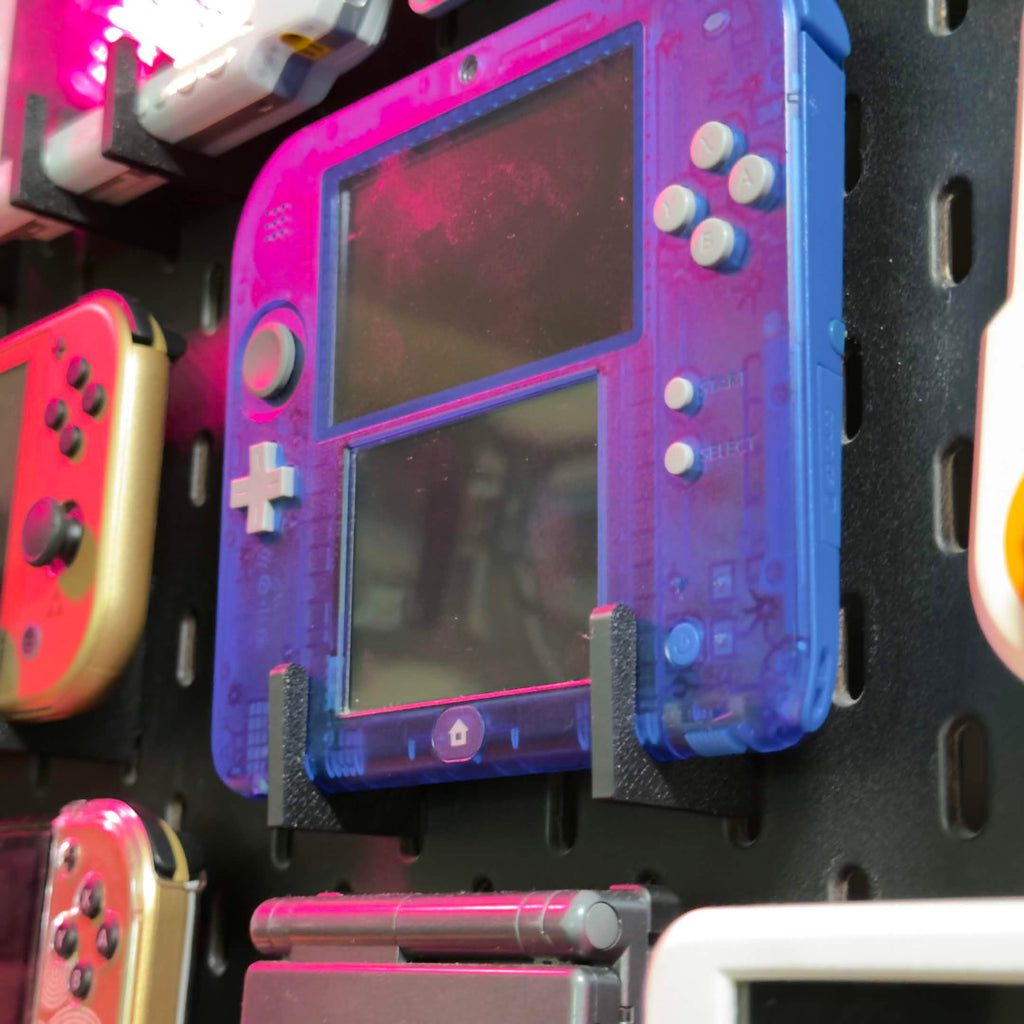

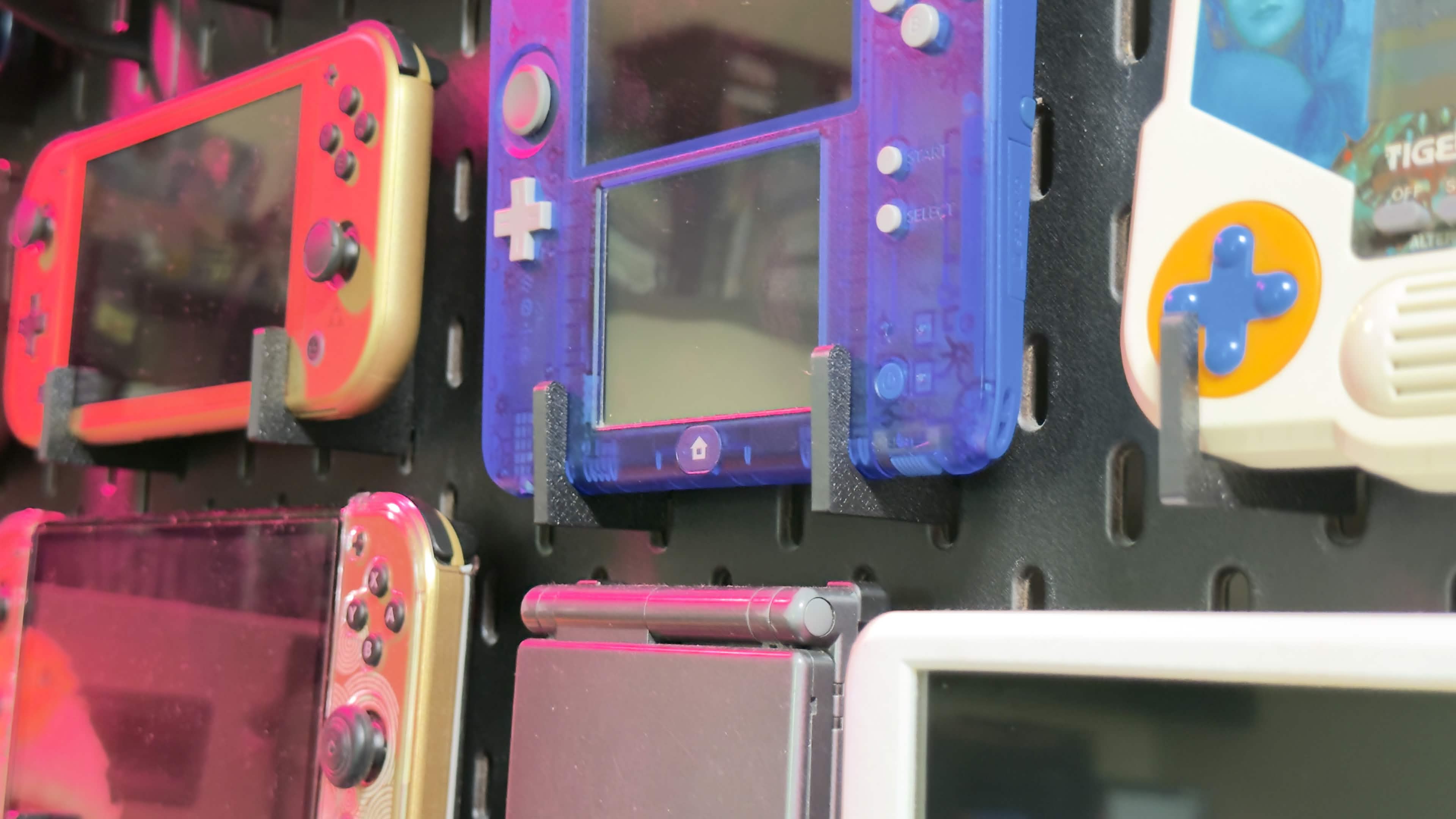

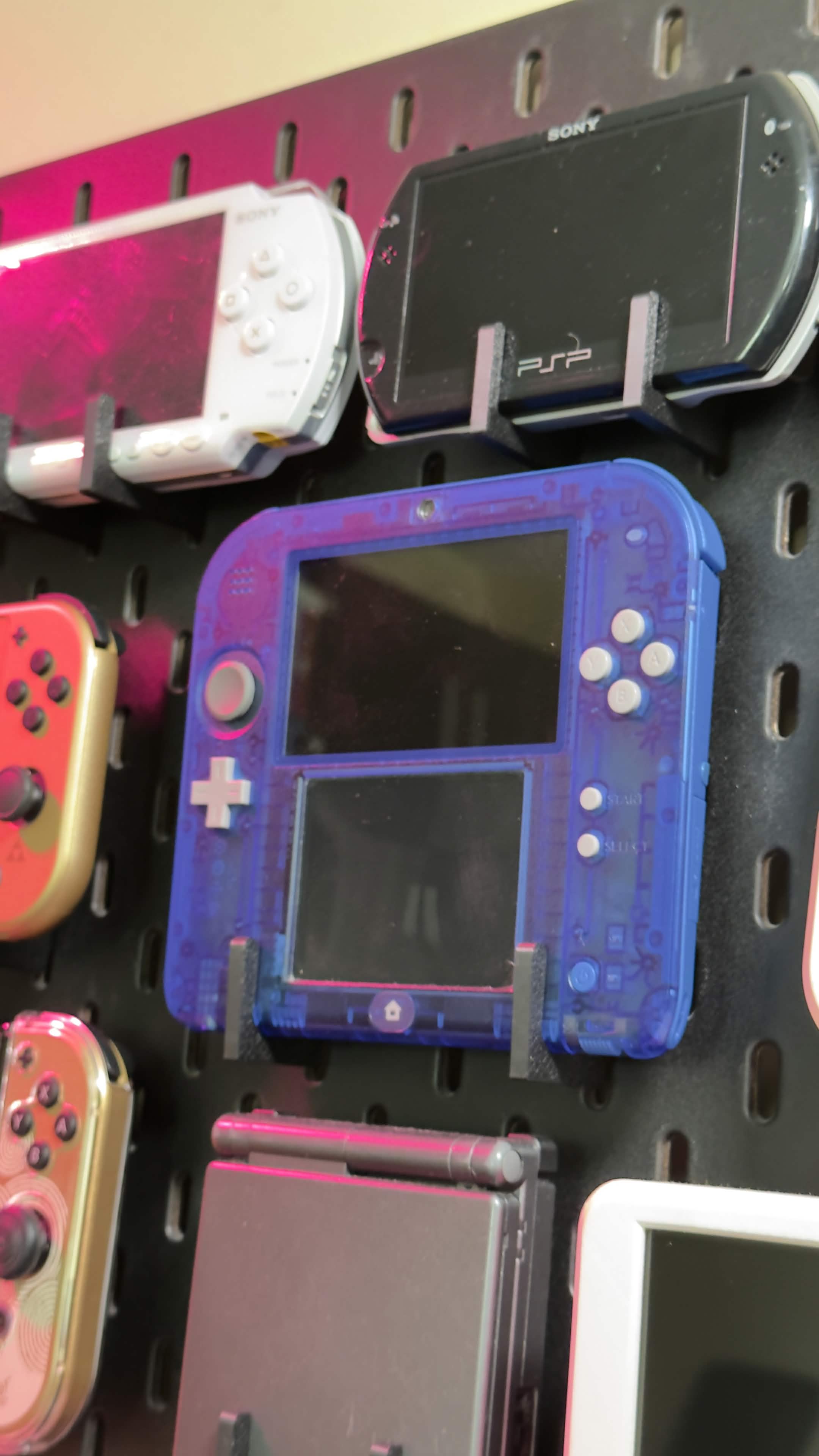

Print two, snap both onto adjacent (or symmetric) SKÅDIS holes at the same height, then rest the 2DS in the two slots.

Fit note
Hooks are dimensioned for genuine IKEA SKÅDIS boards (5 × 15 mm oval holes, 40 mm grid). If your printer runs a bit hot/cold dimensionally, you may want to test-fit the hook on a single hole before printing a full batch.

Enjoy having your Nintendo 2DS proudly on display!

*Designed for the IKEA SKÅDIS pegboard. Nintendo Switch is a trademark of Nintendo; this is an unofficial, fan-made accessory not affiliated with or endorsed by Nintendo or IKEA.

Design by Speedy on MakerWorld (license: BY-SA).
