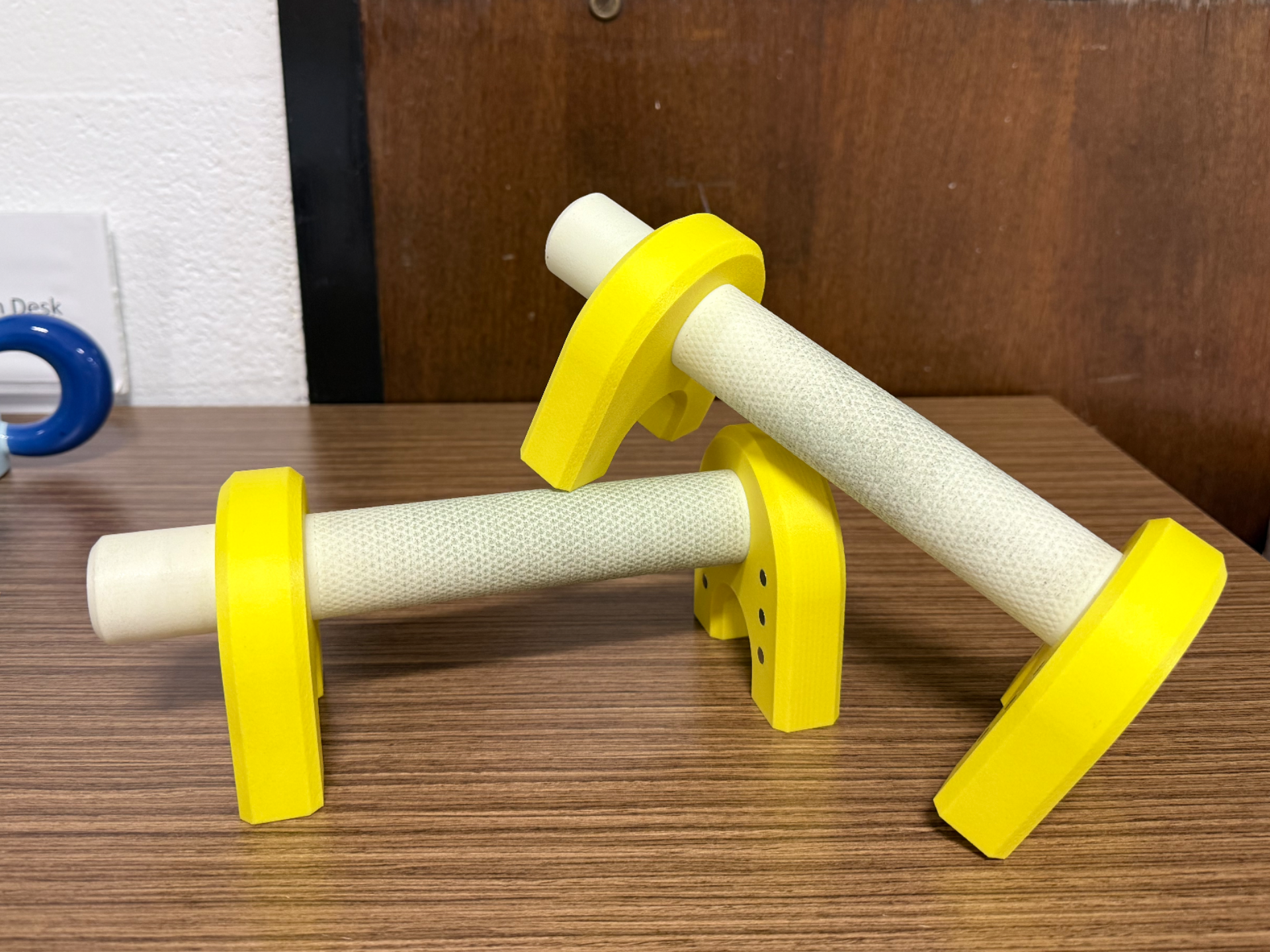

Parallettes with Magnetic Assembly & Fixed Handle

These compact parallettes are designed for calisthenics, strength training, and home workouts. The model integrates embedded magnets for modular assembly, along with an optimized handle mount that prevents unwanted rotation during training.

Key Features:

• Magnetic Assembly: 12 cylindrical magnets (⌀6 mm × 3 mm) ensure a secure lock while allowing quick disassembly.
• Optimized Handle: Center handle ⌀35 mm × 150 mm, reinforced to avoid rotation during use.
• Easy Assembly: Parts are designed to press-fit together; depending on material shrinkage and printer tolerance, minor adjustments or sanding may be required for the best fit.

• Print Settings:



  • Wall thickness: 6 perimeters recommended
  • Infill: 30% 3D honeycomb pattern
  • Center handle print at 99% XY scale (already set in .3mf; .stl remains 100%)



• Material: Tested with PA-GF; PETG is expected to perform similarly well.
• Use Cases: Push-ups, L-sits, handstands, planche training, and more.

Inspiration & References:

• 3D-printable reference: MakerWorld LF-8 Magnetic Parallettes
• Product inspiration: Kensui Fitness YinYang Wooden Parallettes

This remix builds on those ideas with improvements in handle fixation, printability, and material optimization.

Design by Pisco on MakerWorld (license: BY-ND).
