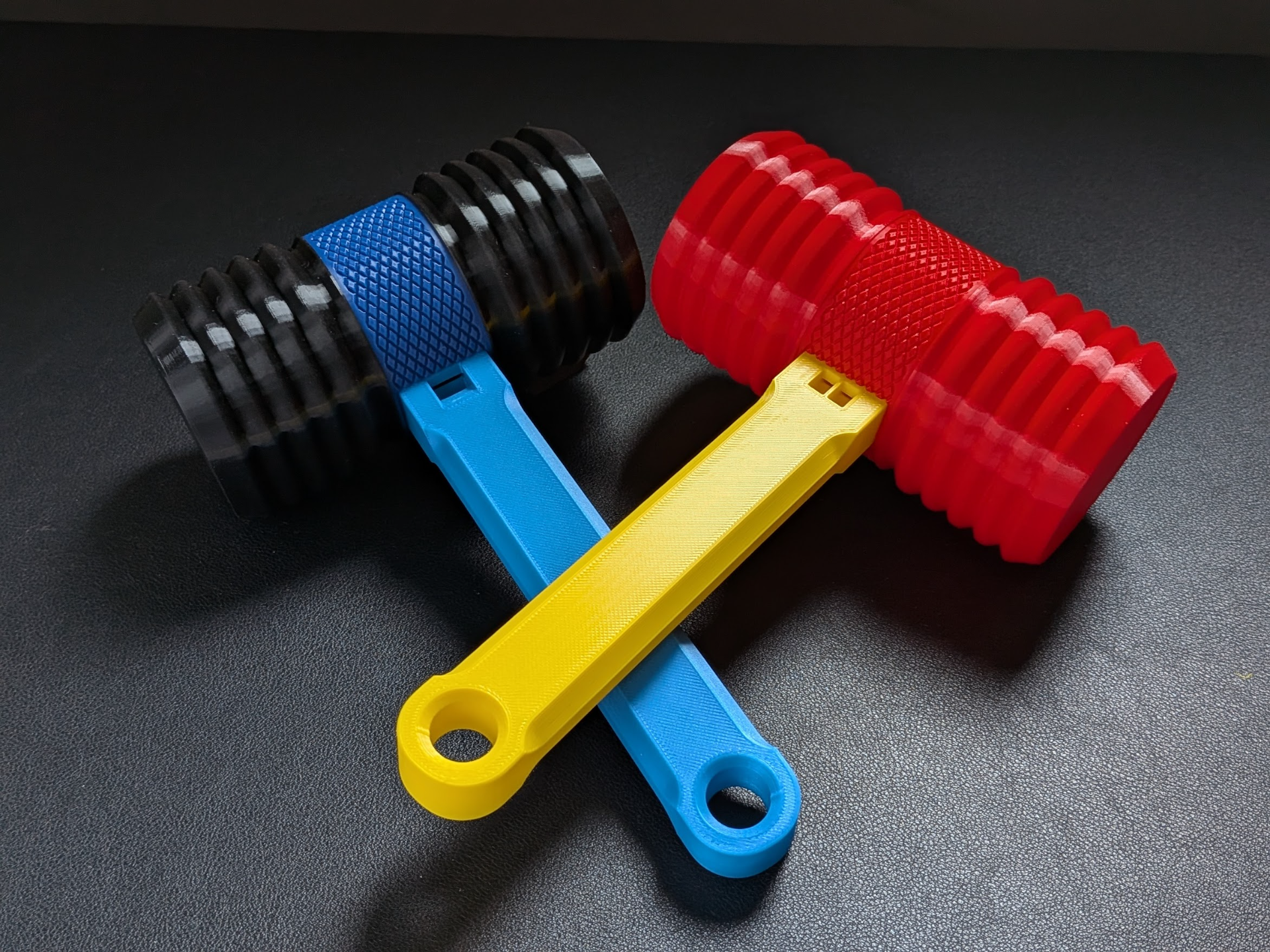

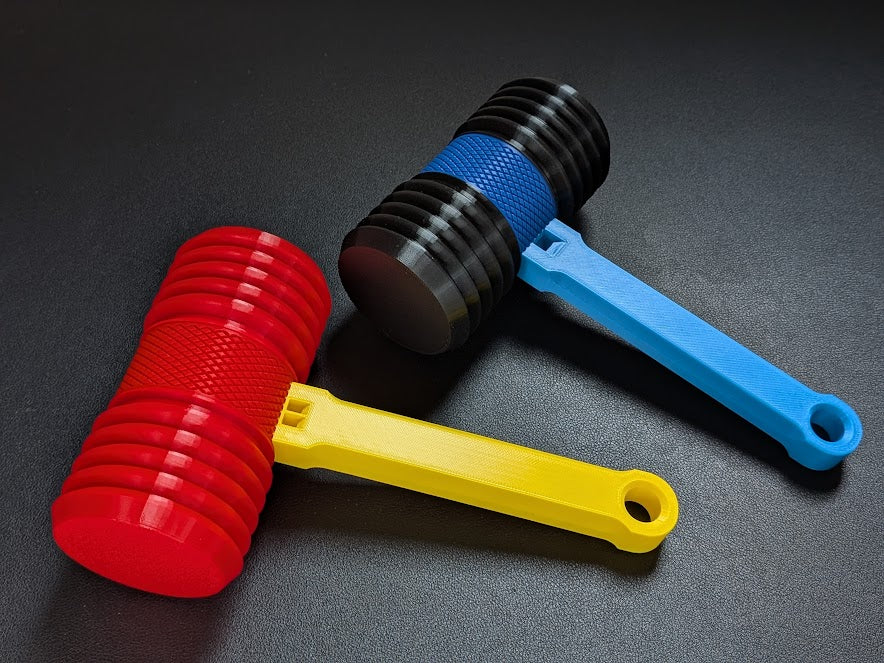

Piko Piko Hammer (ピコピコ ハンマー) is a classic Japanese toy that just about everyone in Japan knows and loves. When you hit something with it, it makes a cheerful "Piko! Piko!" sound.
This printable version functions fully as a squeaky hammer, while also having a polished appearance, and it even produces a better sound than most store-bought versions. Assembles in just 30 seconds without any glue or screws.
Print the following parts:
2x HammerHead: Print TPU 95A, You must print this using a 0.4mm nozzle, layer height 0.2mm, with the outer wall width set to 0.6mm, Bottom shell layers 4, and spiral vase mode enabled. This is a must.
1x Headmiddle: Print PLA, PTEG , etc.
1x Handle: Print PLA, PTEG , etc.
Assembly:
1. Place the HammerHead parts over both ends of the HeadMiddle part.
2. Finally, snap the handle in place to complete the assembly.
Notes:
This design is intended to be printed with TPU 95A
Please make sure to print the HammerHead in TPU only, it won't function properly with PLA or PETG.
To print the HammerHead, you must use a 0.4mm nozzle, layer height 0.2mm with an outer wall width of 0.6mm, Bottom shell layers 4, and spiral vase mode enabled. This is absolutely required.
