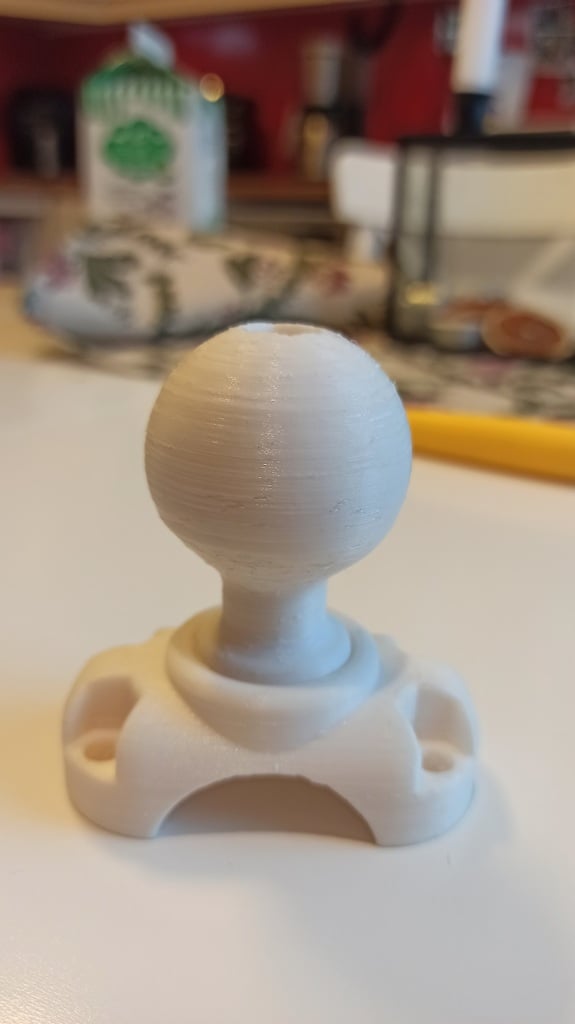

Ram Mounts style pipe mount 1.5" C-size

Summary

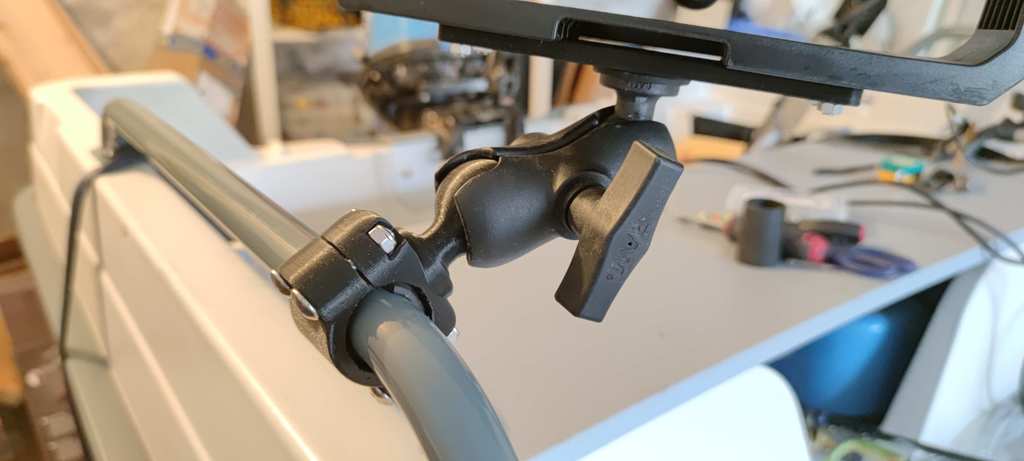

RAM Mount style ball system for bow mount motors, handrail, grab handle etc.
Adapters for 22mm, 25mm and 28mm included.

It's made for 33mm pipe that is the size of the Minn Kota bow mount motor, and also Haswing. I think it would fit most of the bow mount motors on the market.

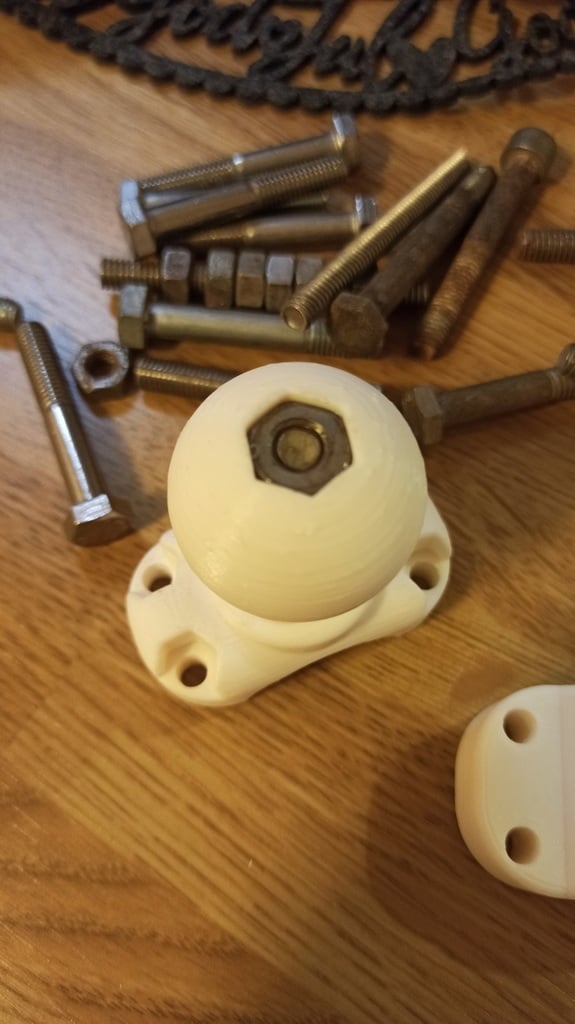

I use Acetone to glue the ABS parts together so that the ball does not spin.
Some rubber paint or equivalent is good to make sure that everything don't just spin around ...

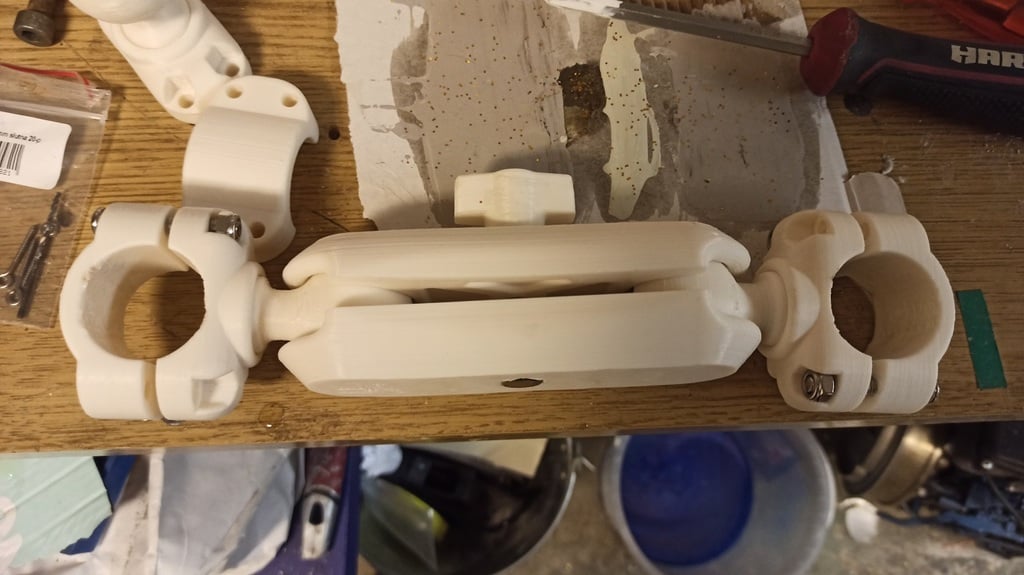

Use Yakfishers "arms" to make it complete. https://www.thingiverse.com/thing:3384911
Great work by him!

M8 Neededparts:

• M8 nut
• M8 bolt aprox 50-55mm

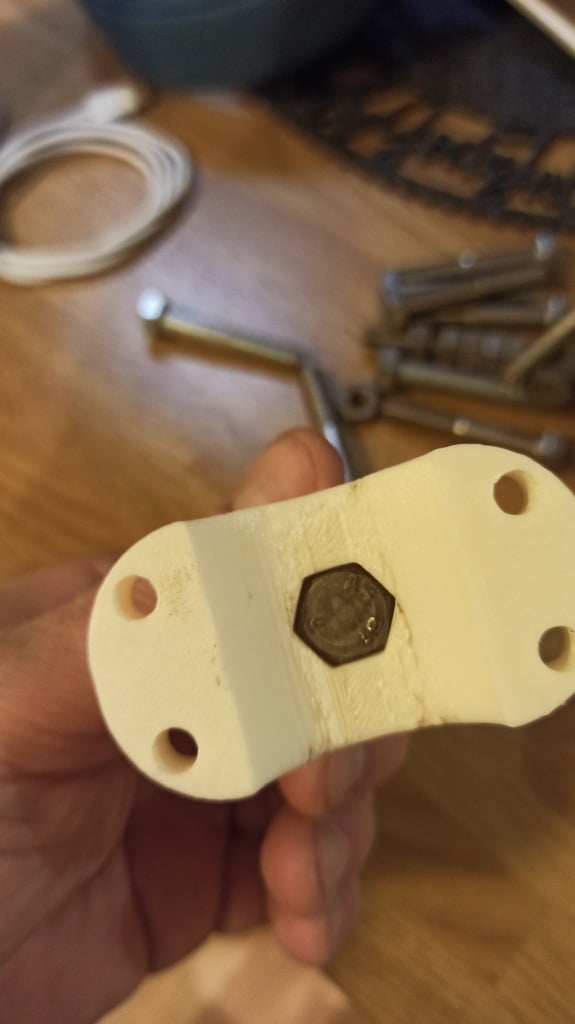

M6 Carriage bolt needed parts

• M6 nut
• M6 carriage bolt aprox 50-55mm

Arm parts needed(Yakfisher):

• M8 nut
• M8 bolt aprox 70-90mm

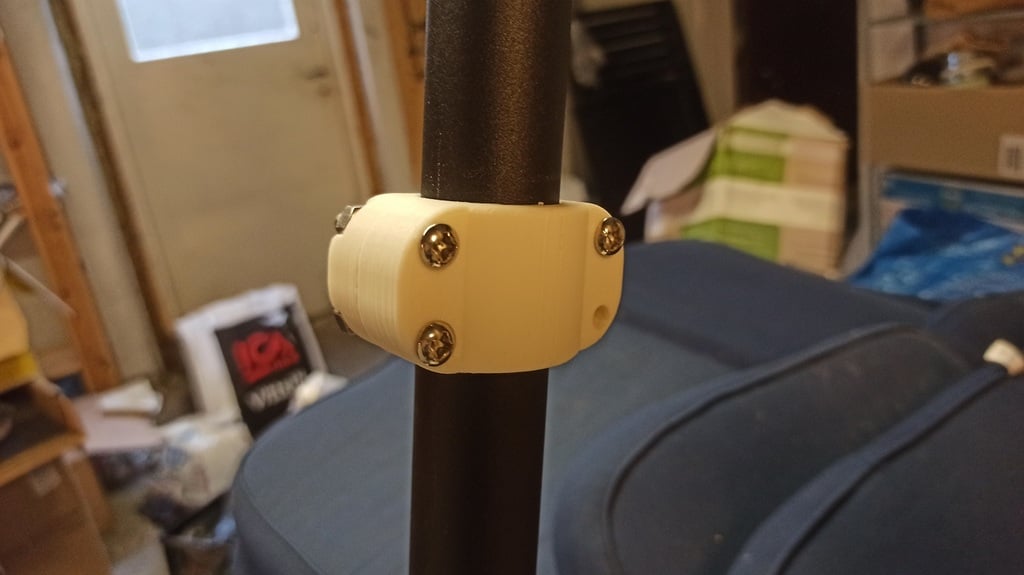

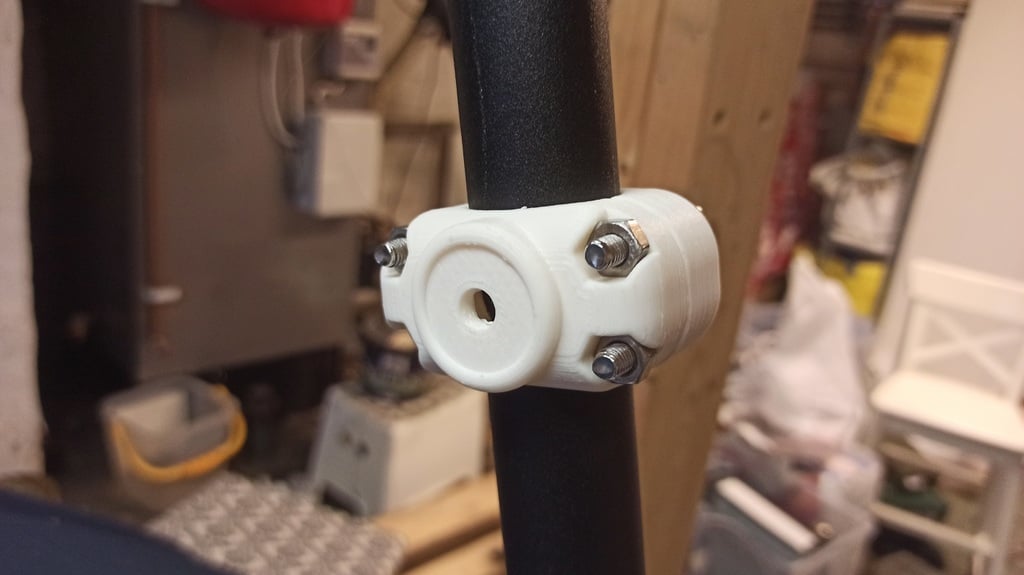

Pipe Mount:

• M6 Nut
• M6 bolt aprox 40mm

Design by jonsja on MakerWorld (license: BY).
