RC Fomie back skid

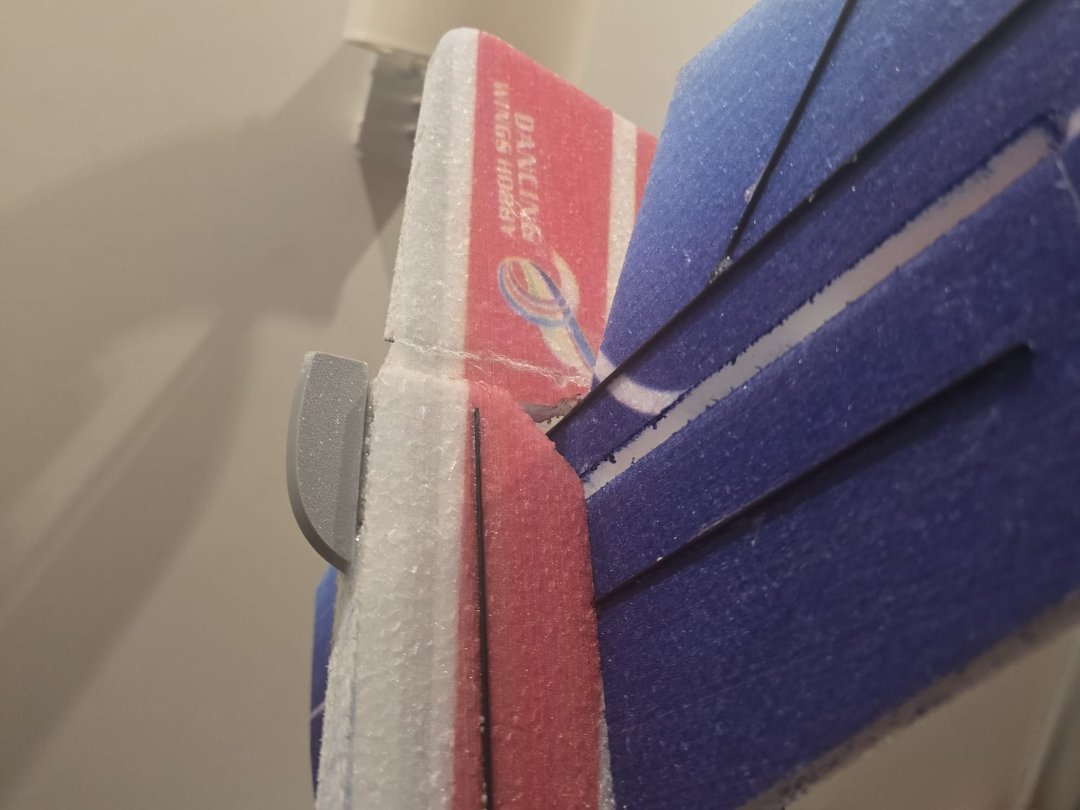

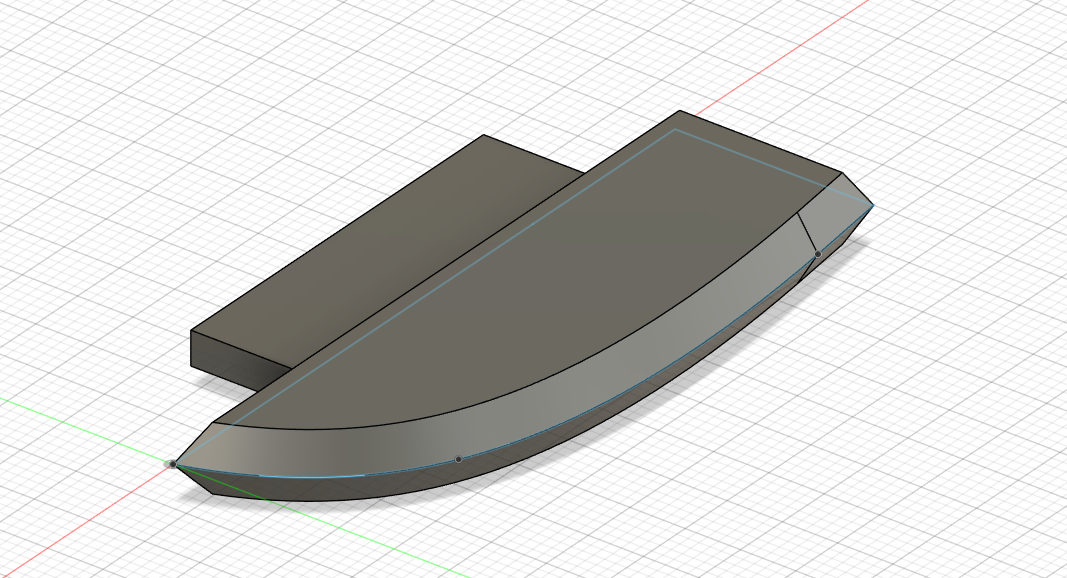

A lightweight, high-durability tail skid to replace heavy tail wheels on EPP/Depron 3D foamies. Designed with a mounting tab that glues directly into a pre-cut slit in the bottom of the fuselage.

Features:

• Drops Weight: Improves 3D CG compared to standard wheel hardware.
• Smooth Glide: Curved profile handles grass, dirt, and tarmac without catching.
• Easy Install: Cut a matching slit in the foam, apply CA/UHU Por, and push it in.

Print Settings (Important):

• Orientation: Print flat on its side. Do NOT print it upright, or it will snap along the layer lines on your first hard landing.
• Material: ABS, ASA, or PETG highly recommended for maximum abrasion and impact resistance.
• Infill: 100% (Solid).
• Walls: 3+ perimeters for extra strength.A lightweight, high-durability tail skid to replace heavy tail wheels on EPP/Depron 3D foamies. Designed with a mounting tab that glues directly into a pre-cut slit in the bottom of the fuselage.
• Features:
• Drops Weight: Improves 3D CG compared to standard wheel hardware.
• Smooth Glide: Curved profile handles grass, dirt, and tarmac without catching.
• Easy Install: Cut a matching slit in the foam, apply CA/UHU Por, and push it in.
• Print Settings (Important):
• Orientation: Print flat on its side. Do NOT print it upright, or it will snap along the layer lines on your first hard landing.
• Material: ABS, ASA, or PETG highly recommended for maximum abrasion and impact resistance.
• Infill: 100% (Solid).
• Walls: 3+ perimeters for extra strength.

Design by roe hai on MakerWorld (license: BY).
