Screwdriver Carousel Stand for Bergeon Horotec

This is a remix of the Watchmaker Screwdriver Rotating Stand by cariocadogema on thingiverse.

I made the following modifications:

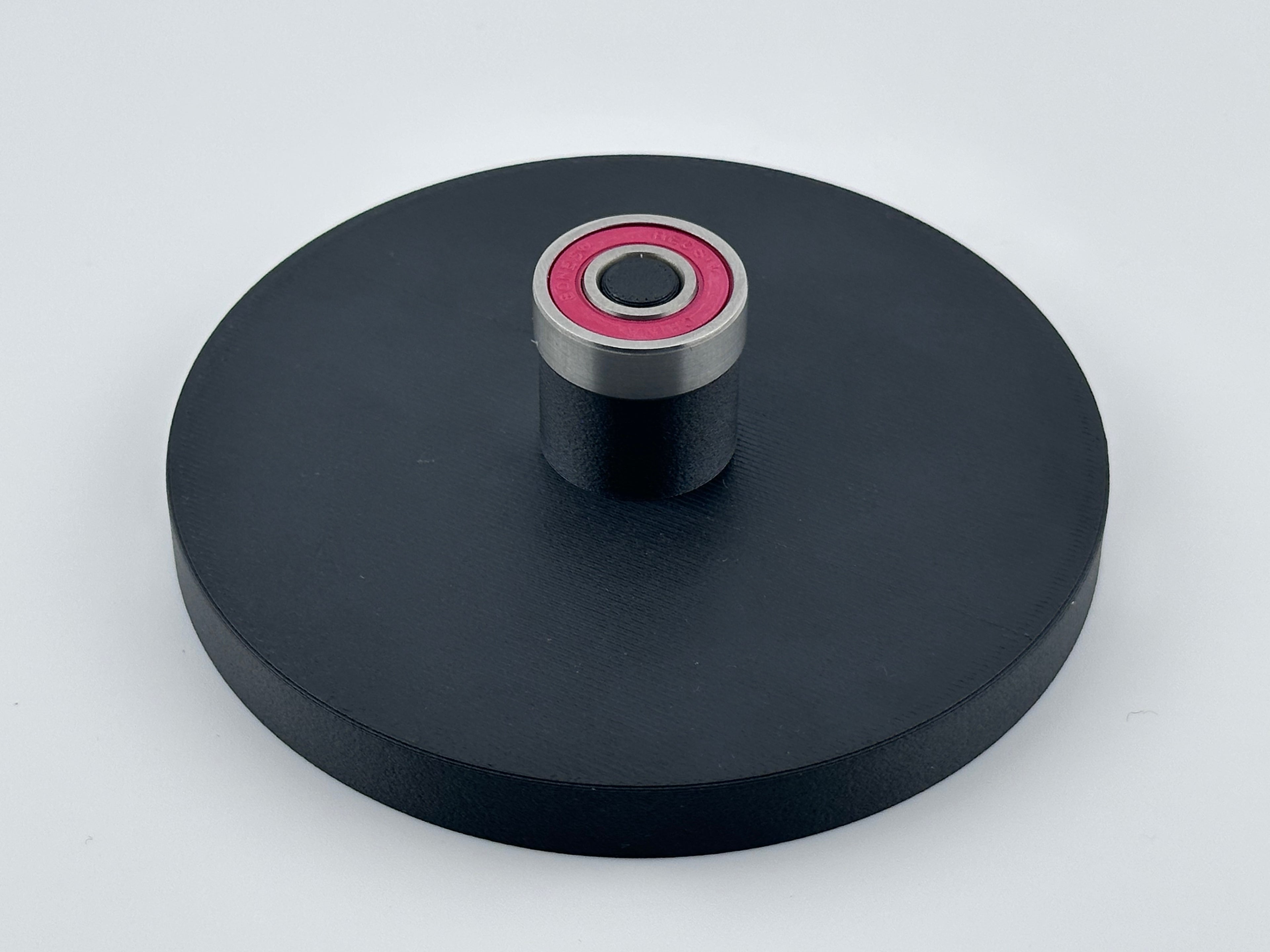

1. Remodeled the base and the top to accept a standard skateboard bearing.
2. Removed the Company logo that was previously on the model.

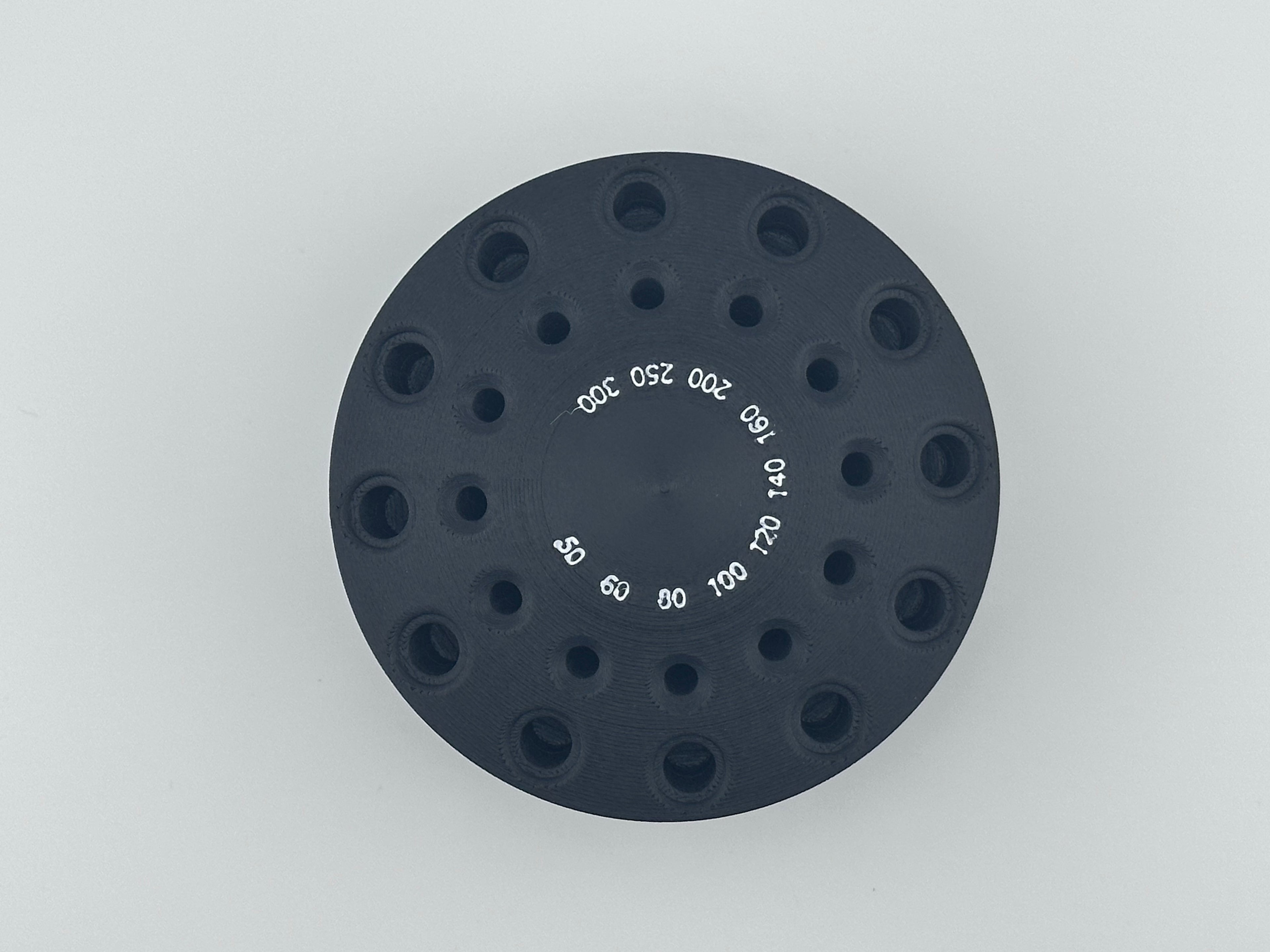

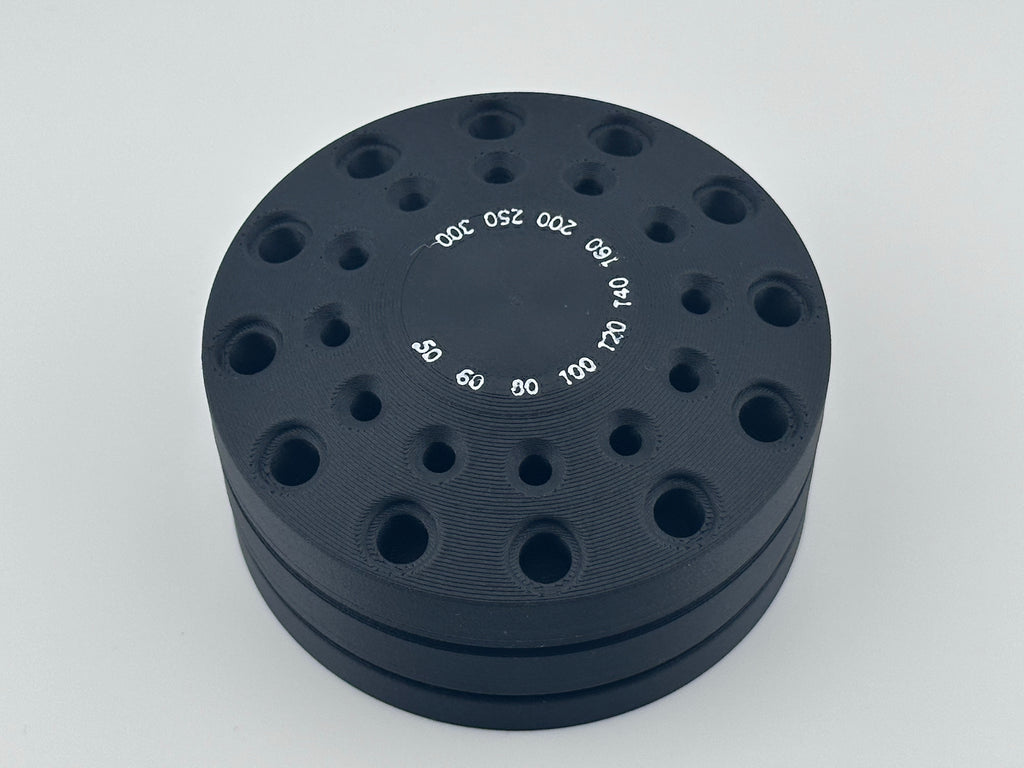

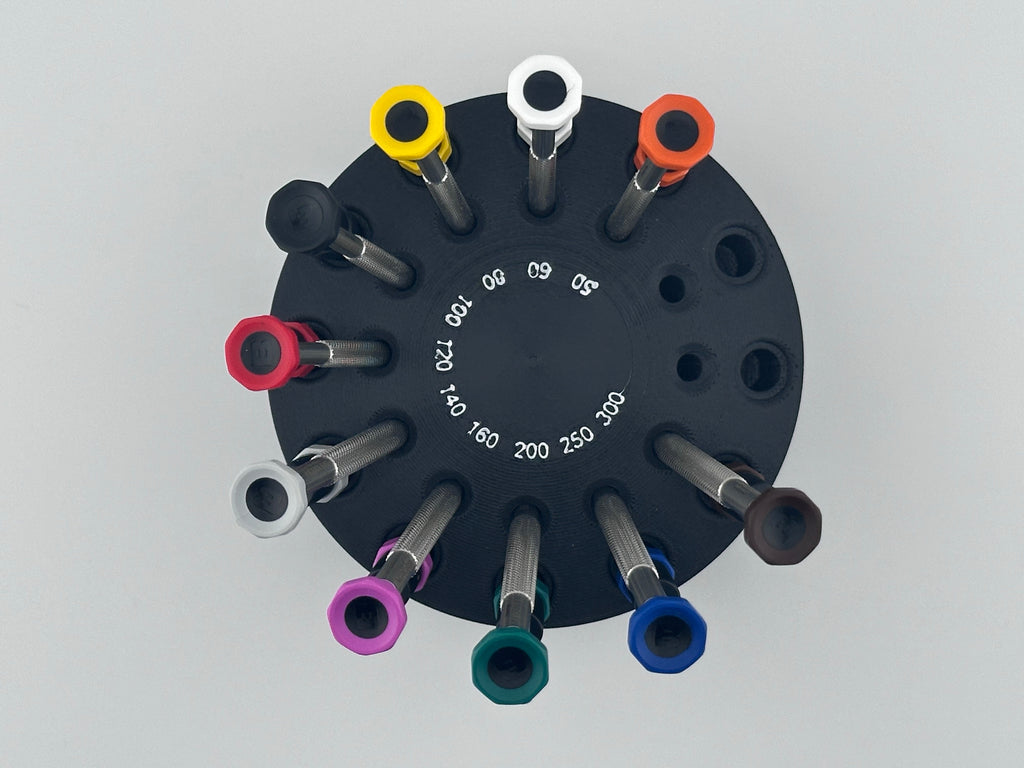

3. Added screwdriver sizes to each of the holes.
4. Resized some of the holes.

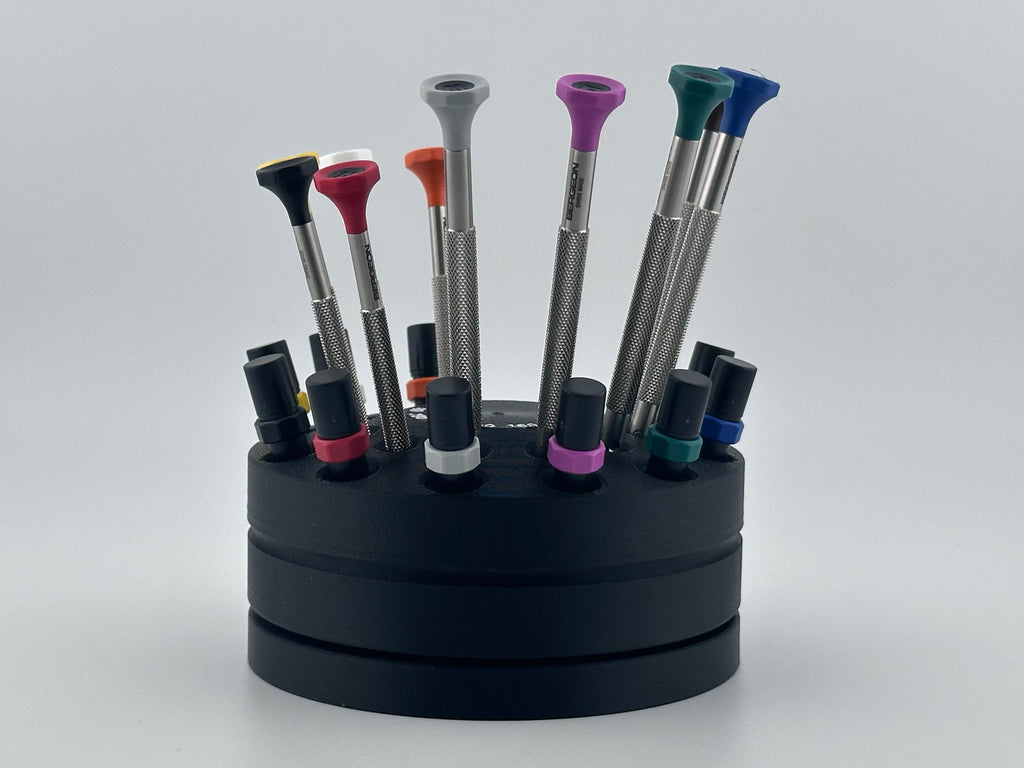

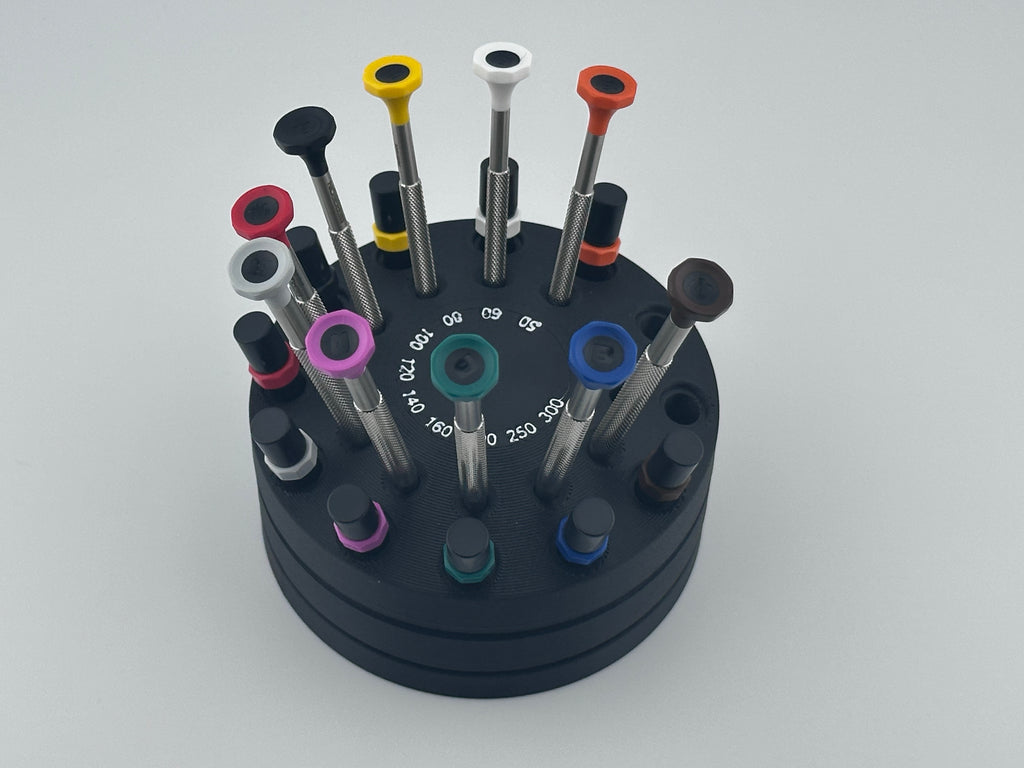

The print in the photos above was made with PETG CF in black with PETG HF in white for the letters.

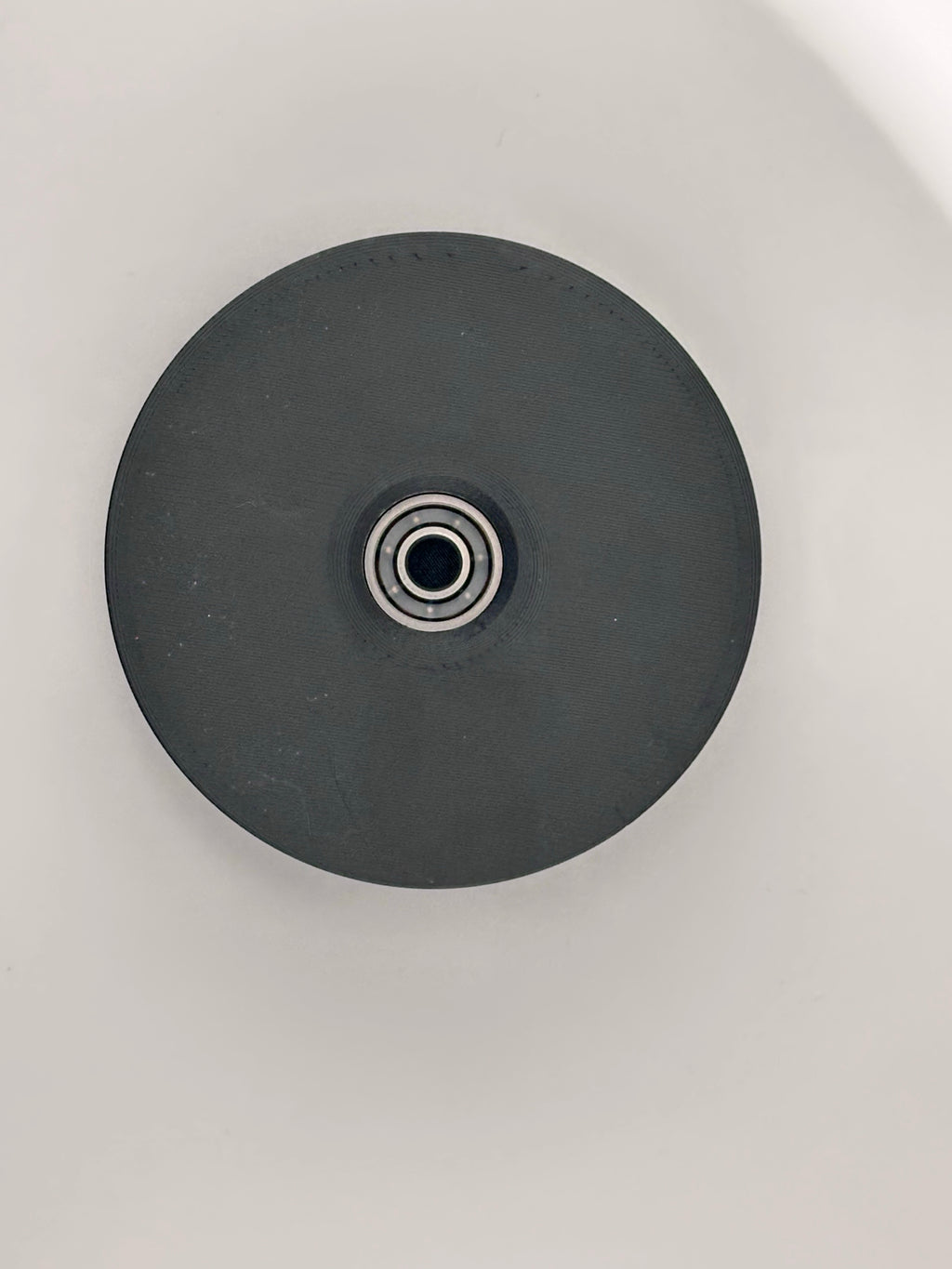

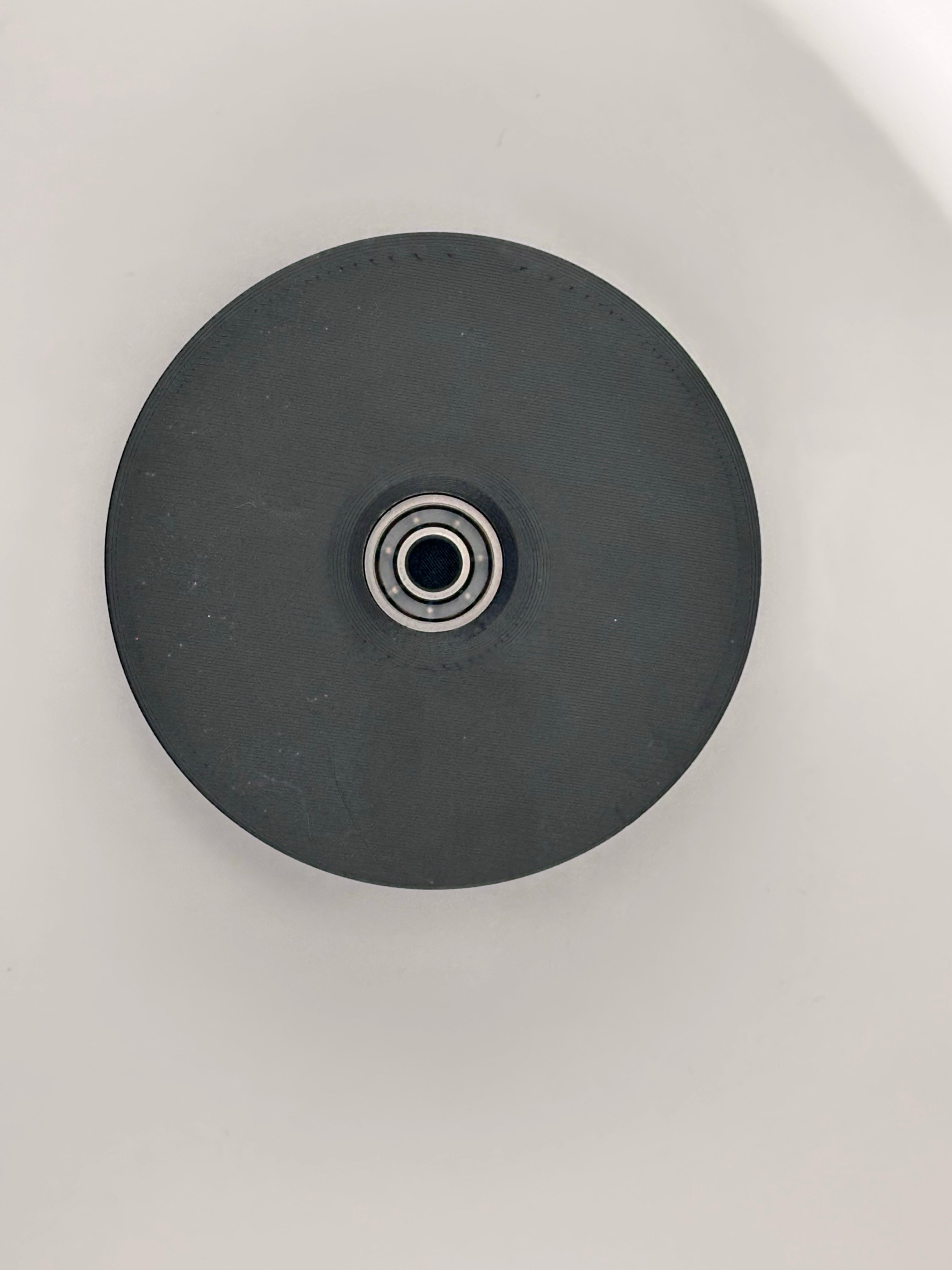

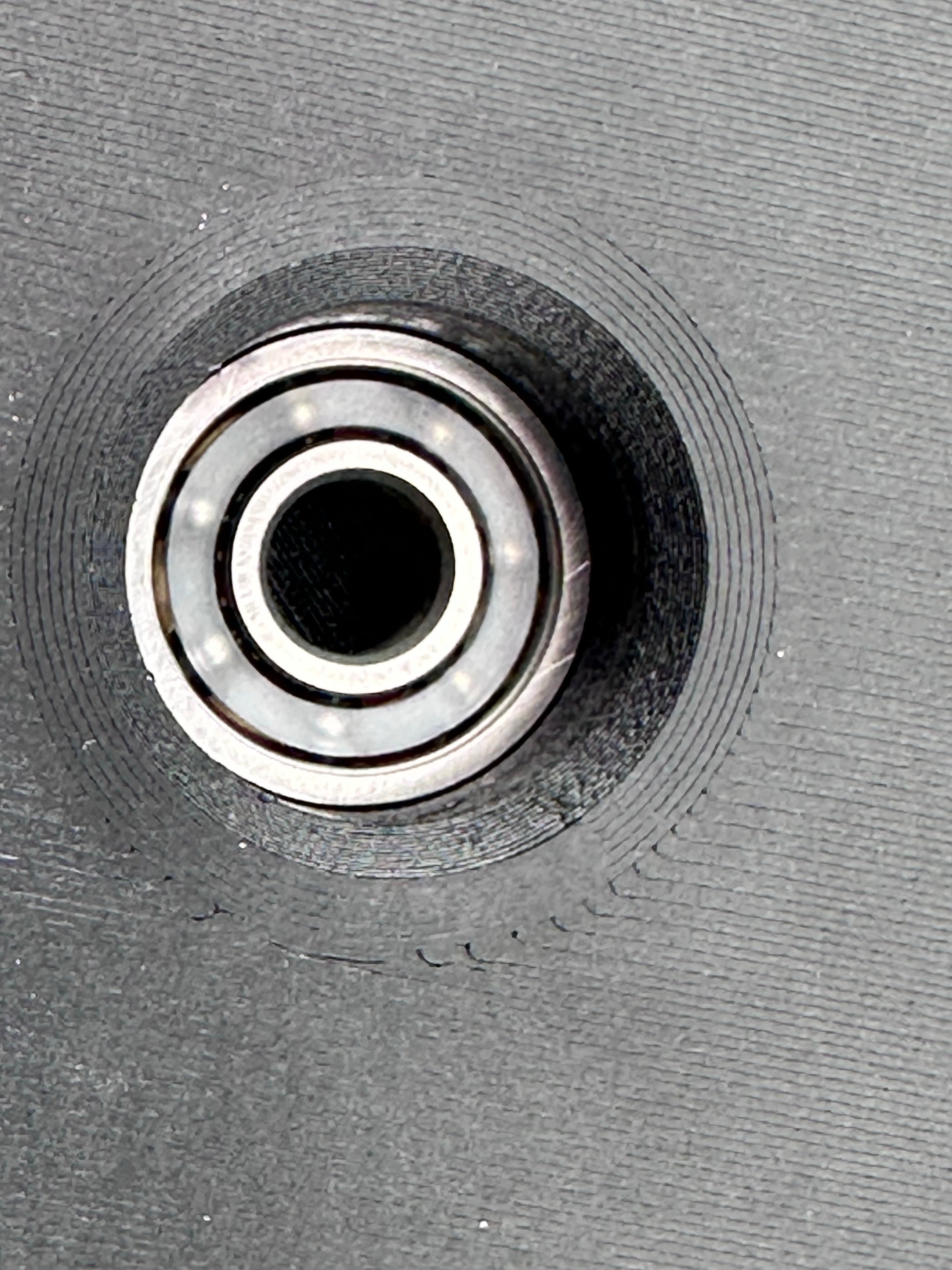

Note that the hole for the bearing is exactly the same size as the bearing (22mm).  Maybe it was the PETG CF filament I used, but the bearing fit was very tight.  I needed to use a clamp/vise with a socket to press the bearing in to the top.  However, it does spin silky smooth and you can pick it up without the base falling out of / separating from the top.  Your print tolerances may vary and your bearing may be easier to install.

The bearing is a 22mm outside diameter, 8mm inside diameter, 7mm tall.  Standard skateboard bearing.

I hope you enjoy.  You can see my collection of other watch maker gridfinity trays here.

Design by FatCat on MakerWorld (license: BY-SA).
