Tolerance Test

Tolerance Test

$4.99
$4.99
In Stock. Ready to order — printed when you buy.
Fast fulfillment. Ships after quality check. Trackable delivery.
Easy returns. Shop with confidence — see our return policy.
Secure checkout. Encrypted payment powered by Shopify.
Boost MeFeel free to Boost me if you like the model

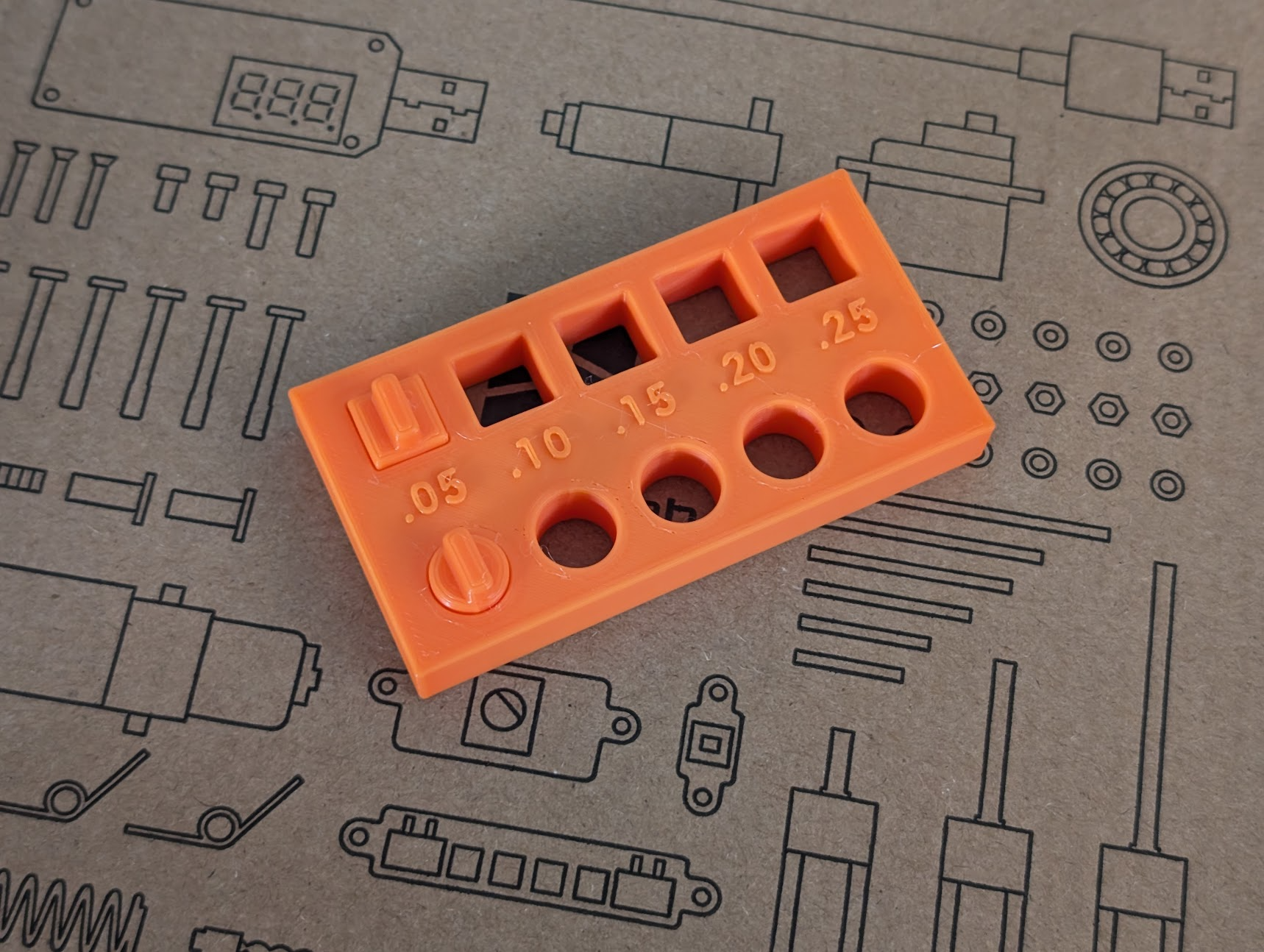

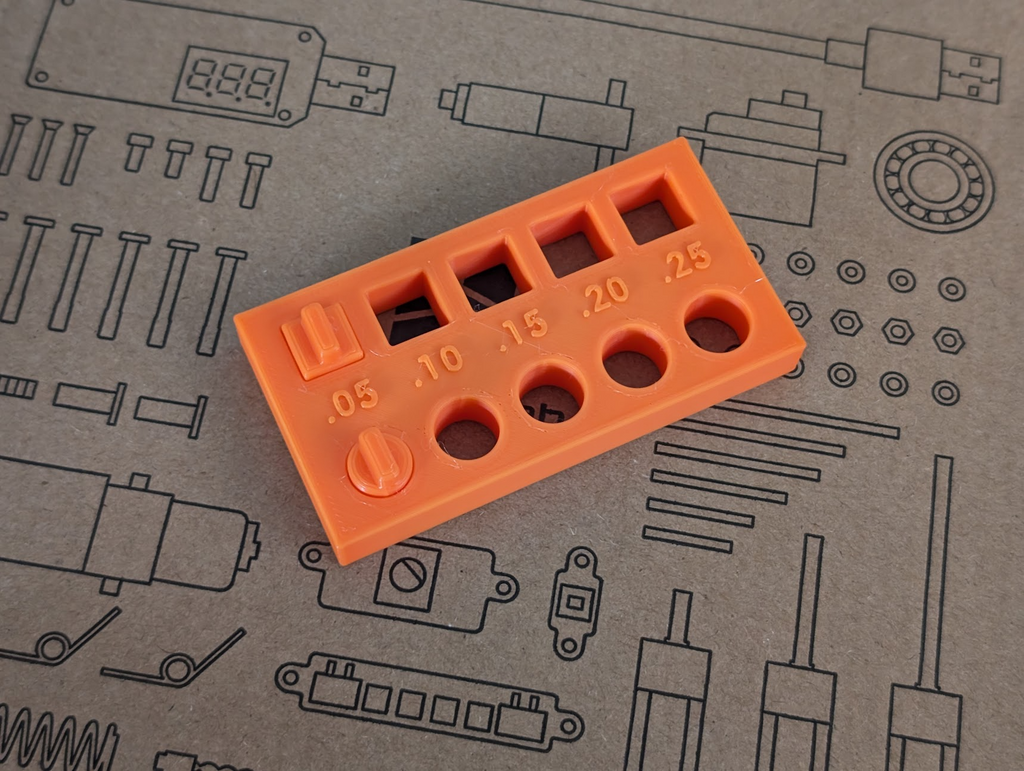

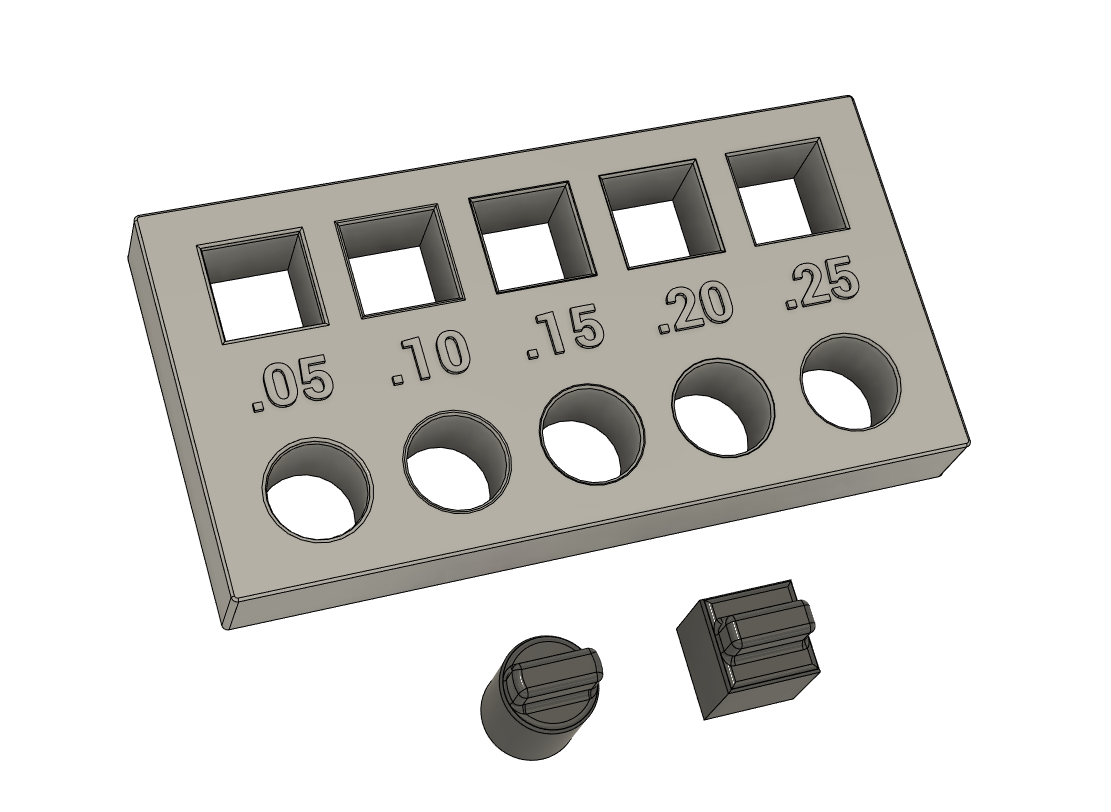

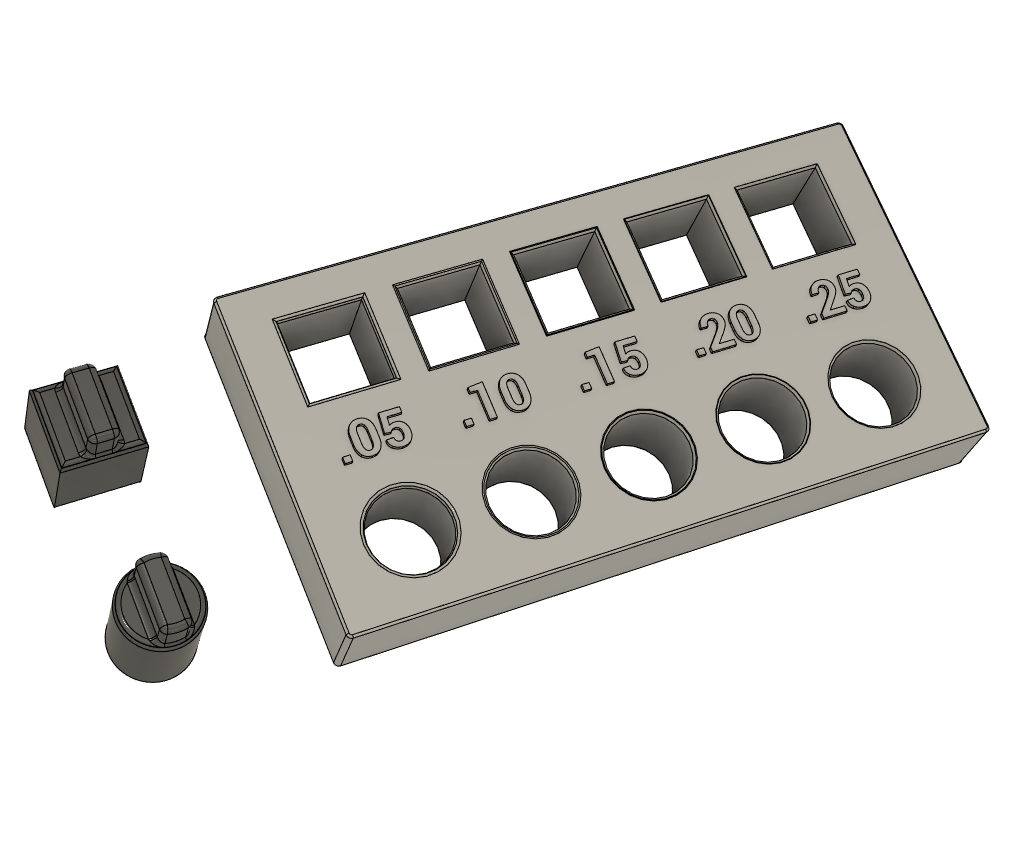

Tolerance Fitment Test



0.05 to 0.25 mm tolerance test.



Try insert the round and square pegs into each hole and see how good your printer's tolerances are.




Note: Tolerances are for each mating surface. E.g. For 0.1mm, there is 0.1mm gap on all sides of the hole, and the holes are 10.2mm wide.

Note: The pegs are 10mm wide.







Long Version: https://makerworld.com/en/models/22213#profileId-20160

Design by kvnper on MakerWorld (license: BY-SA).
