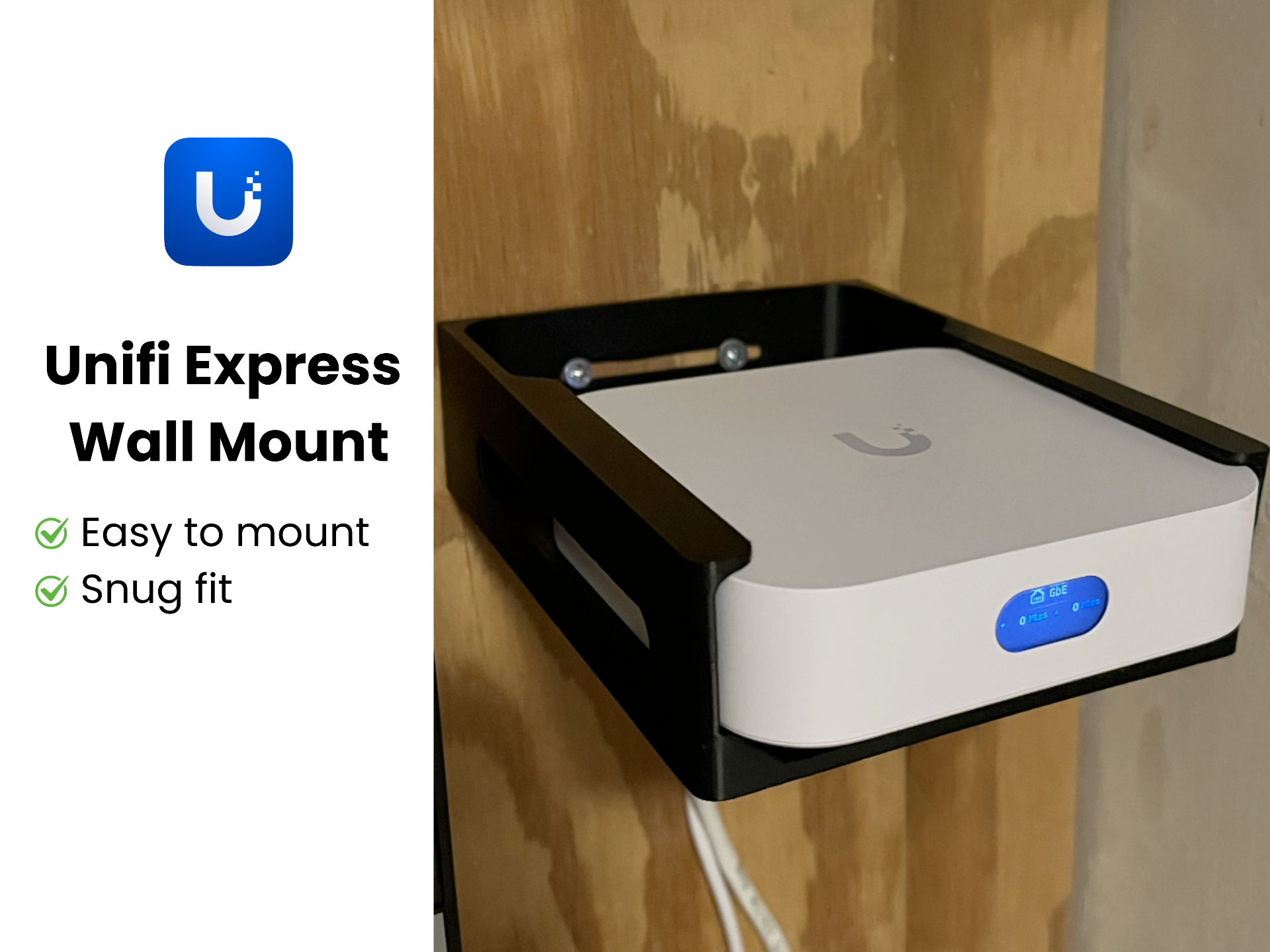

Ubiquiti UniFi Express (UX) Horizontal Wall Mount

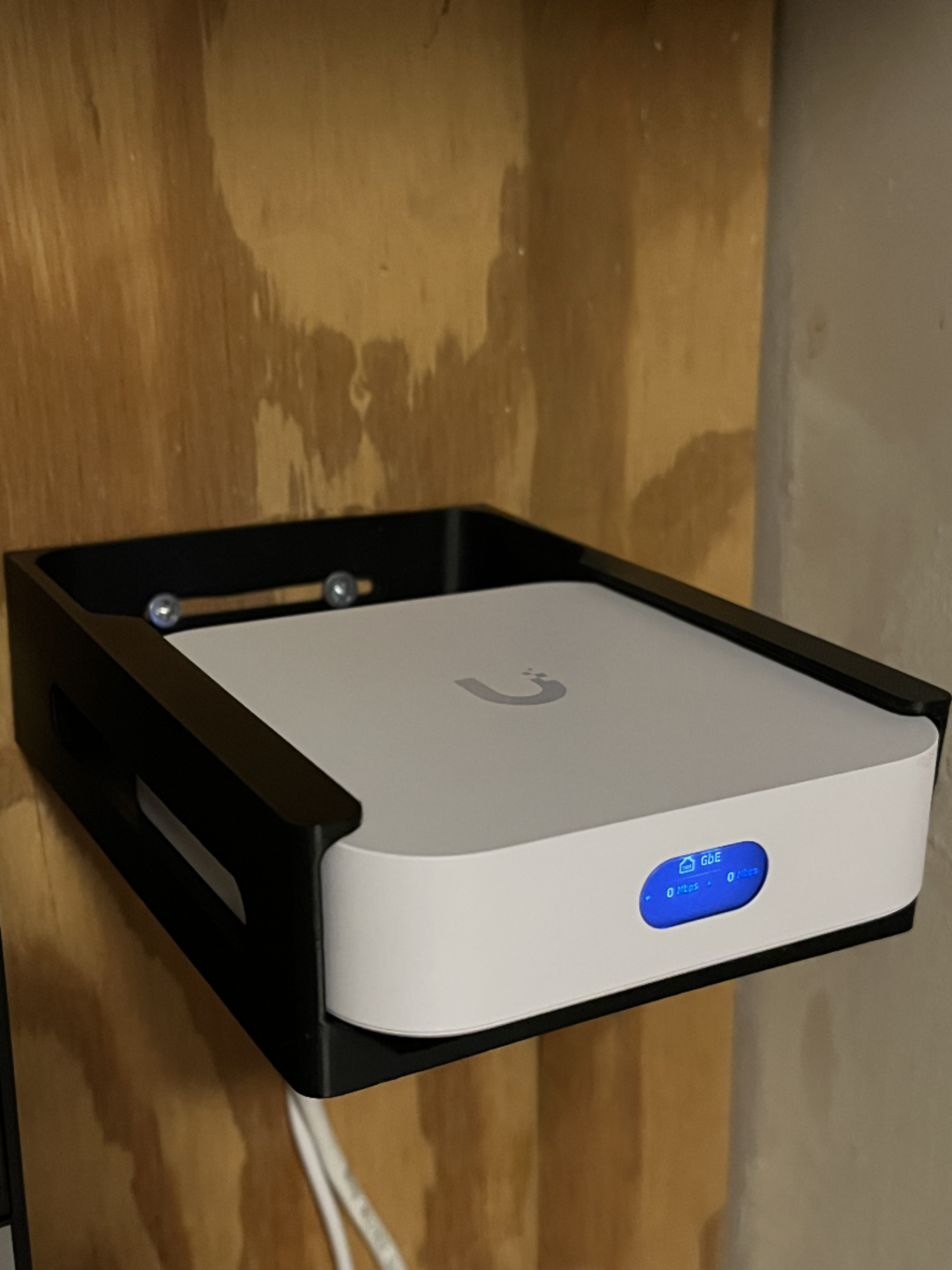

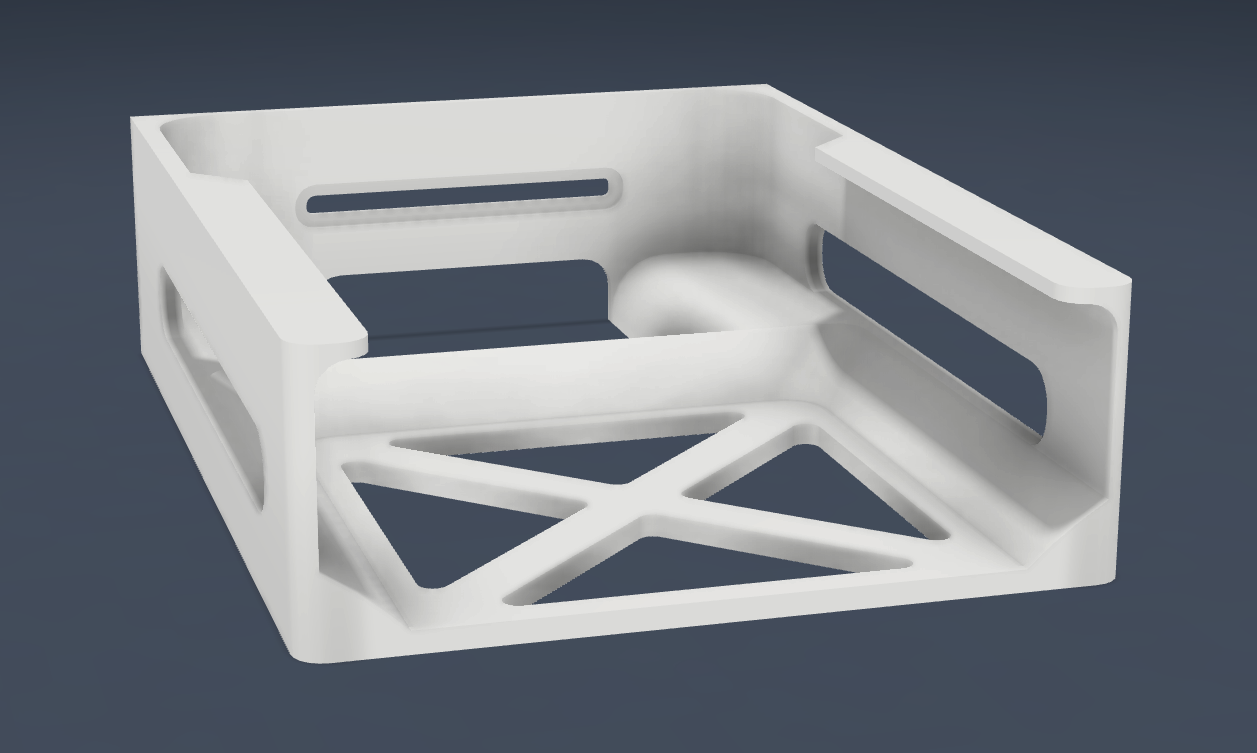

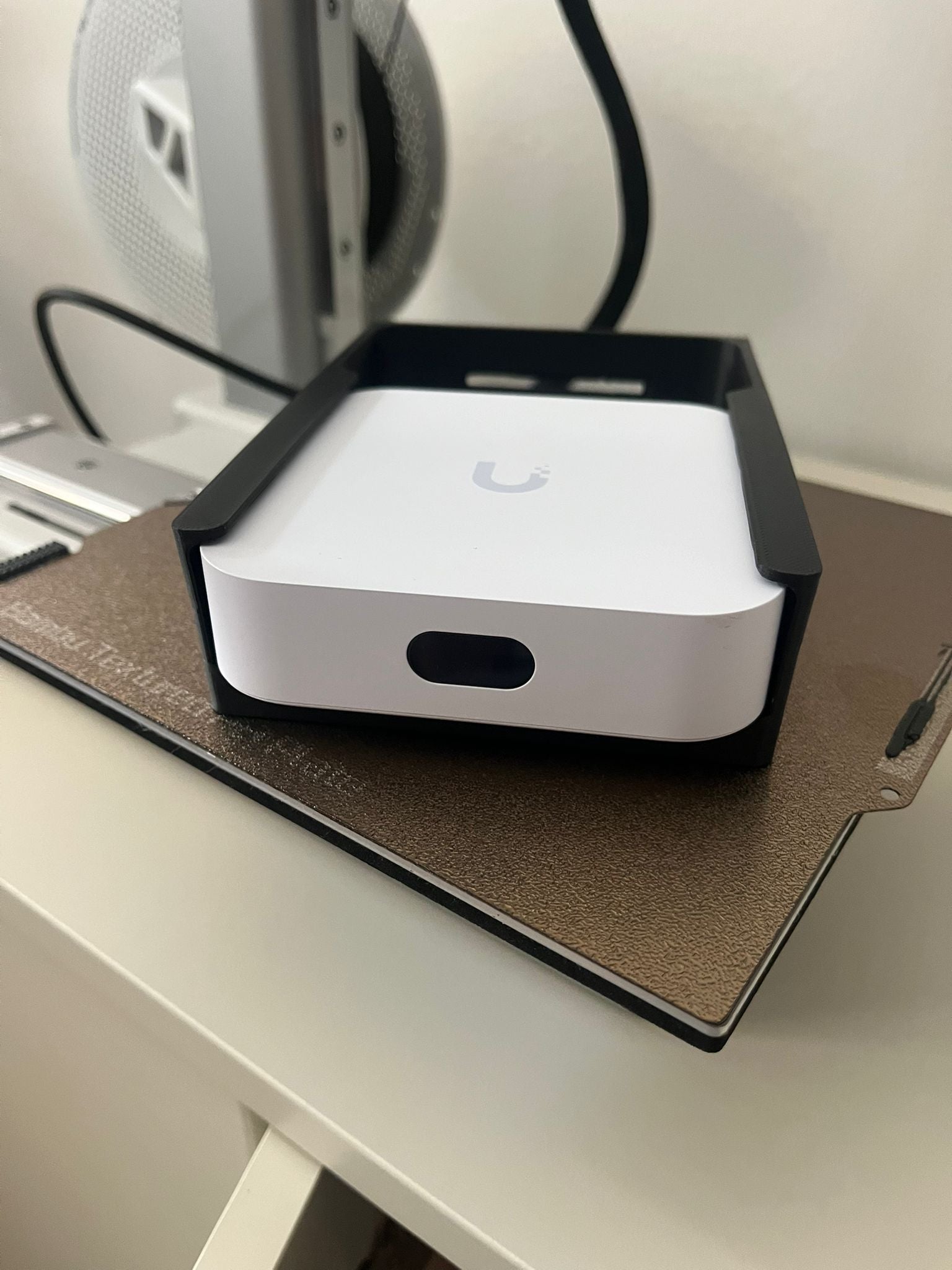

My UniFi Express (UX) was exiled to the corner of my equipment room. It also runs a bit warm, so I wanted it off the floor, with better airflow, but I didn’t want a vertical mount (which are available on MakerWorld), because I want to be able to take a peek at the screen when I need to without straining my neck. 🤓 So I designed a horizontal wall mount: snug fit, fast to install, screen facing forward, and a clean rear channel so the cable can go up and/or down.

• Snug, device-specific fit for UniFi Express
• Horizontal orientation keeps LEDs/screen readable
• Rear cable gap for easy access and tidy routing

• Not suitable for the UX7.

Print & material
• PLA
• 0.20 mm layer
• Walls: 3 | Infill: 15% | Support required

Hardware & mounting
• The gap for the screw is 3mm. The counterbore is 7mm.

Feedback, questions or installation pics?

Please let me know in the comments. Happy to learn, help and see your creations!

Design by Vershoudbakje on MakerWorld (license: BY).
