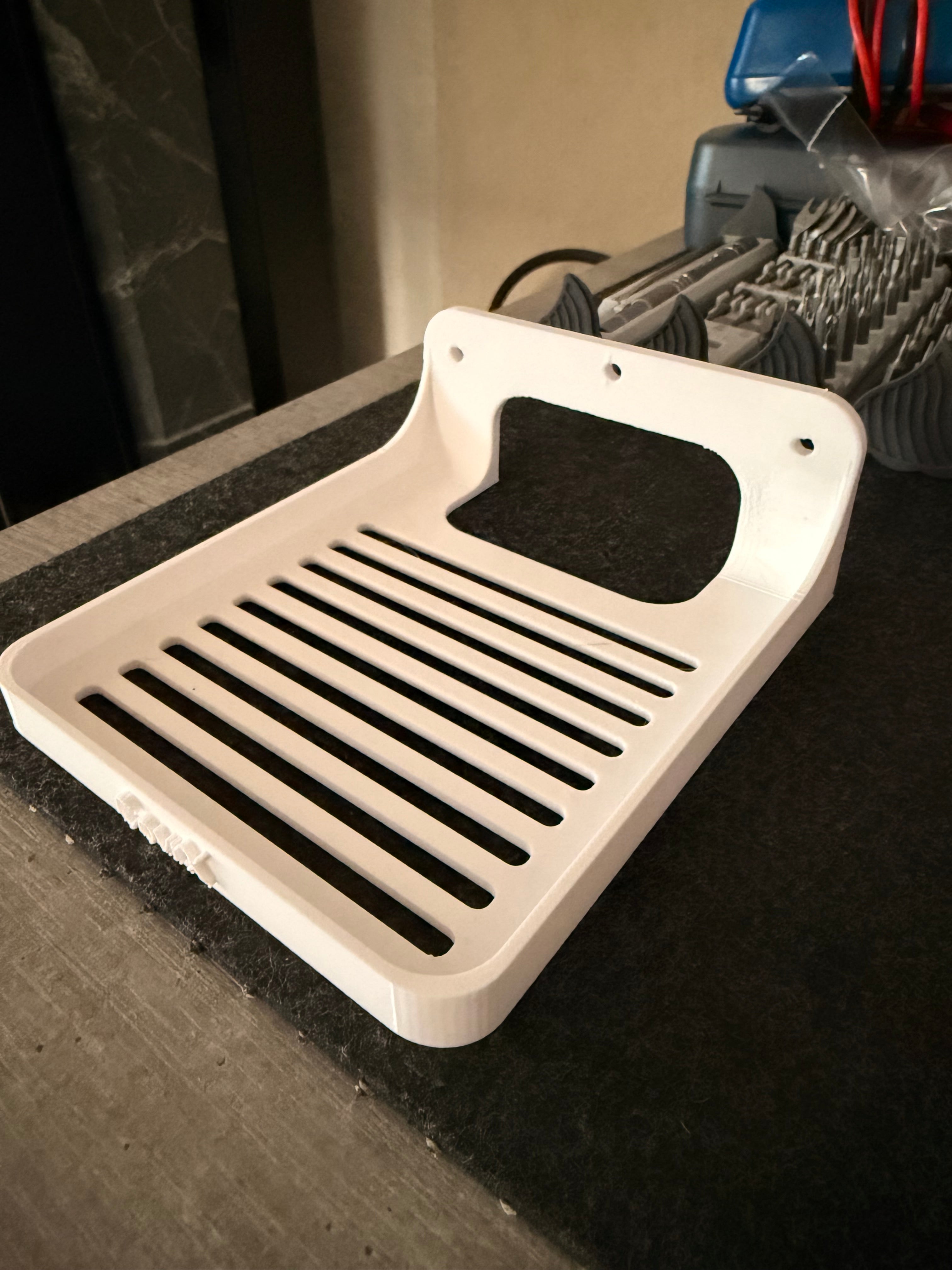

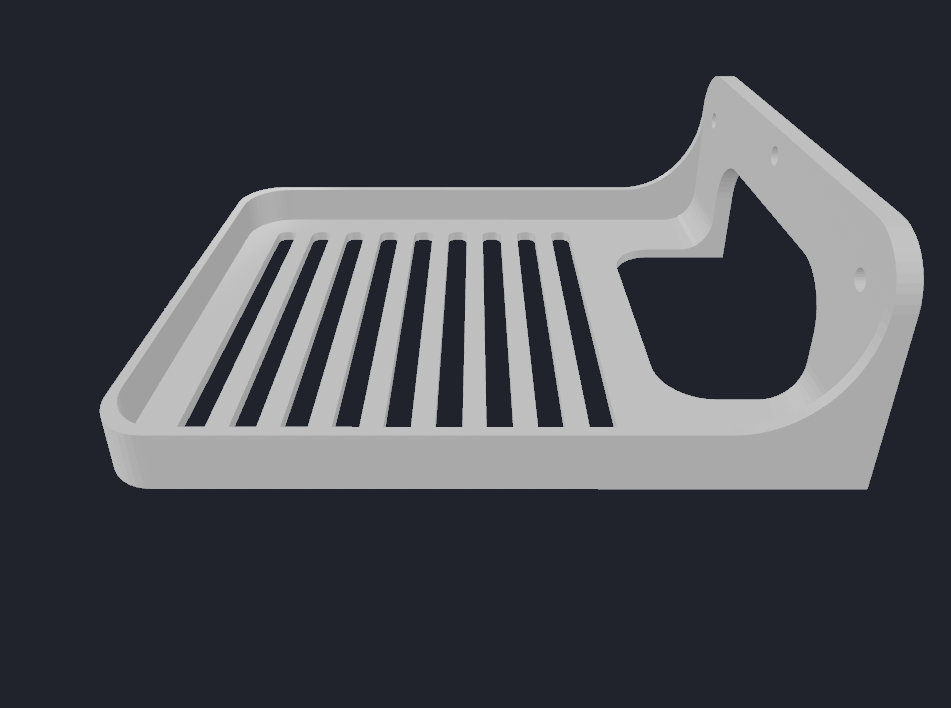

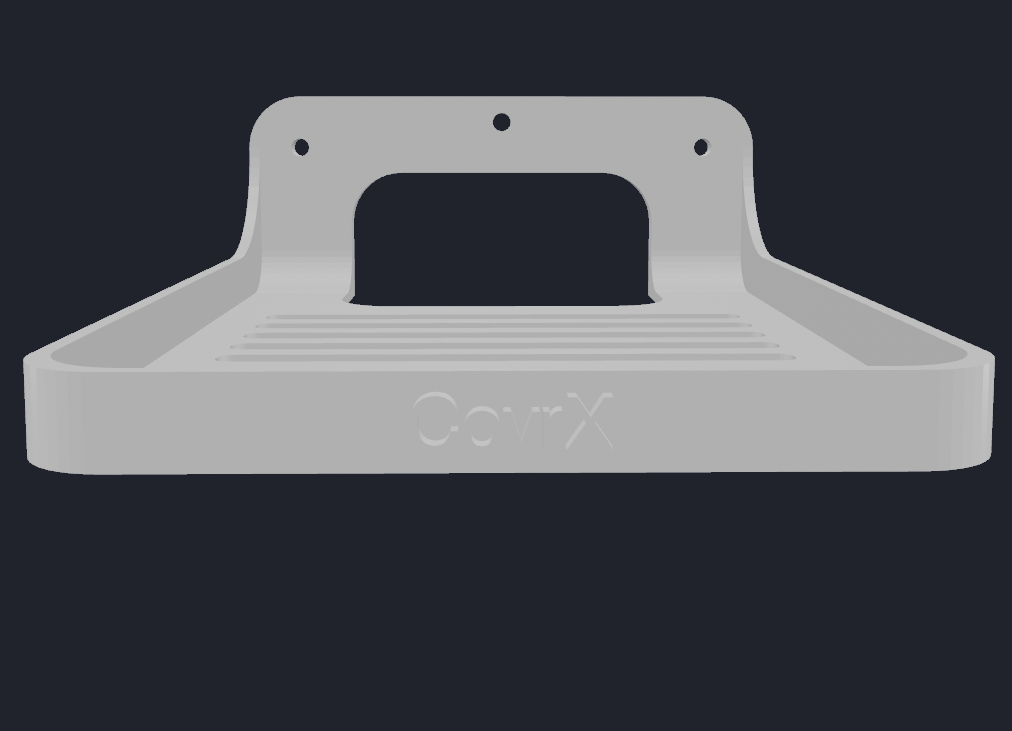

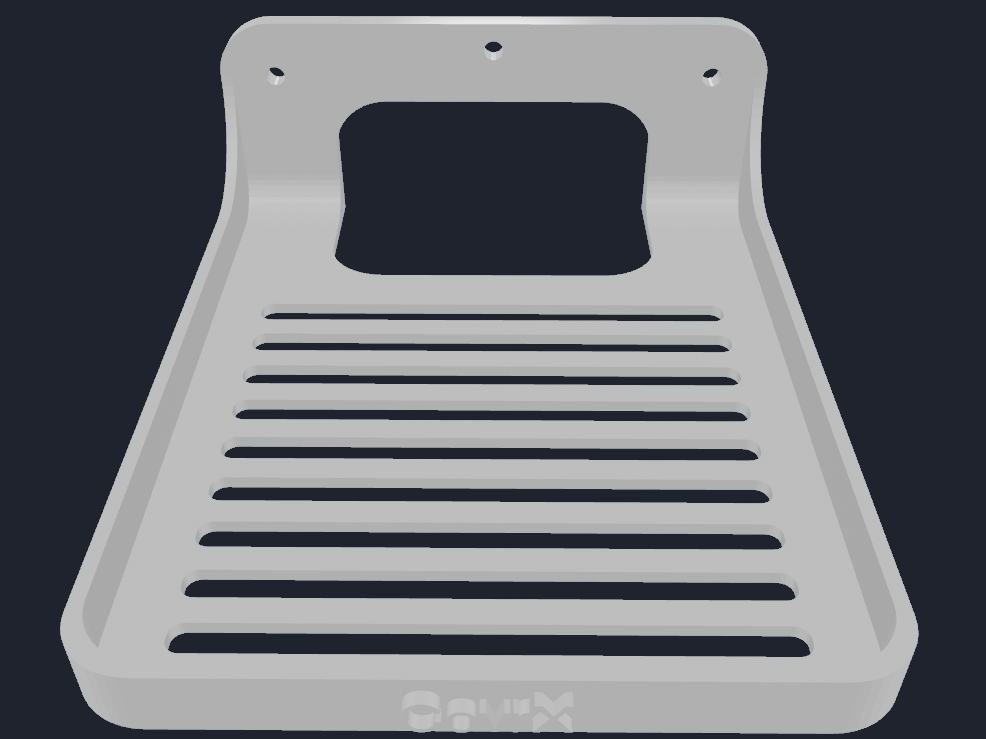

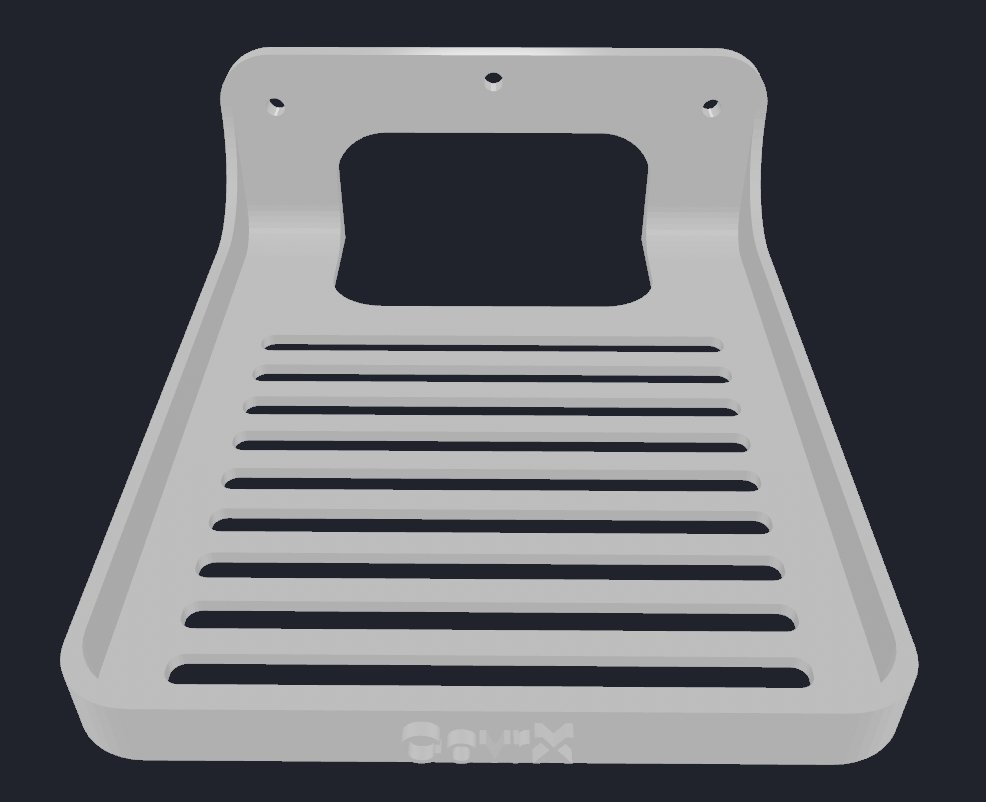

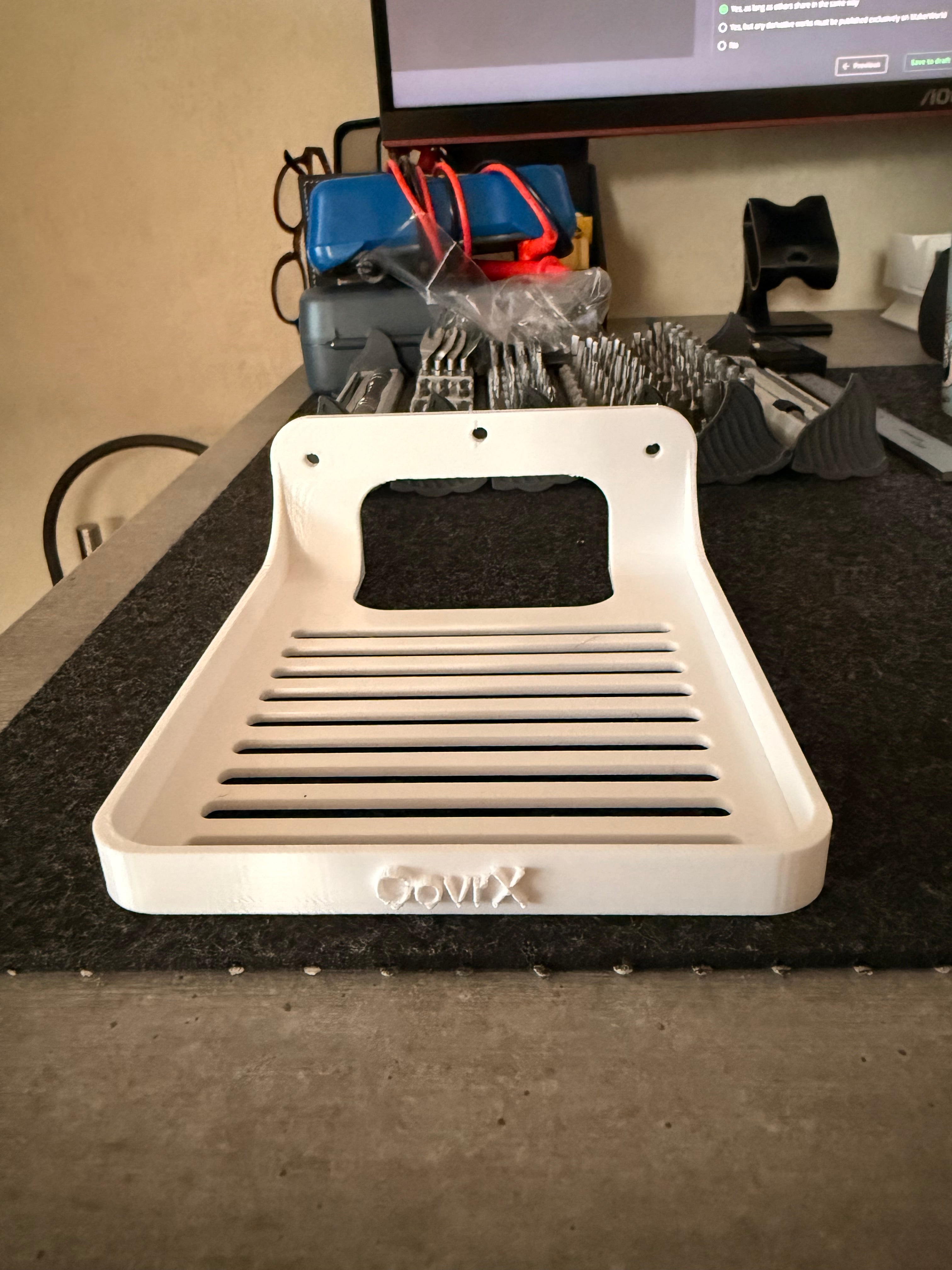

Wall Mount for D-Link COVR-X Mesh

This is a remix of the “WiFi router module wall mount / bracket for D-Link COVR and others”
by **fncesar**, originally published on Thingiverse under the CC BY-SA 4.0 license.

Original model:
https://www.thingiverse.com/thing:6245080

This version is modified to perfectly fit the **D-Link COVR-X series**
(Covr-X / Covr-1100 v3 / Covr-X1860).

Changes from the original:
• Adjusted geometry for a tighter snap fit
• Modified internal spacing for COVR-X tolerances
• Reinforced back plate for stronger wall mounting
• Cleaner print orientation with no supports needed

Recommended print settings:
• Material: PLA or PETG
• Layer height: 0.2 mm
• Infill: 20–30%
• No supports required
• Print flat with bracket face down

Designed for clean cable management and stable wall mounting of COVR-X mesh nodes.

Design by Andnaa on MakerWorld (license: BY-SA).
