xTool F1 Dog/Pet Tag jig

This is a jig I made for holding assorted dog/pet tags while engraving them with an xTool F1 machine.
The tags I use were sourced here (no affiliation, just the ones I purchased and used)…
https://www.amazon.com/dp/B099NDT2R8?ref=ppx_yo2ov_dt_b_fed_asin_title

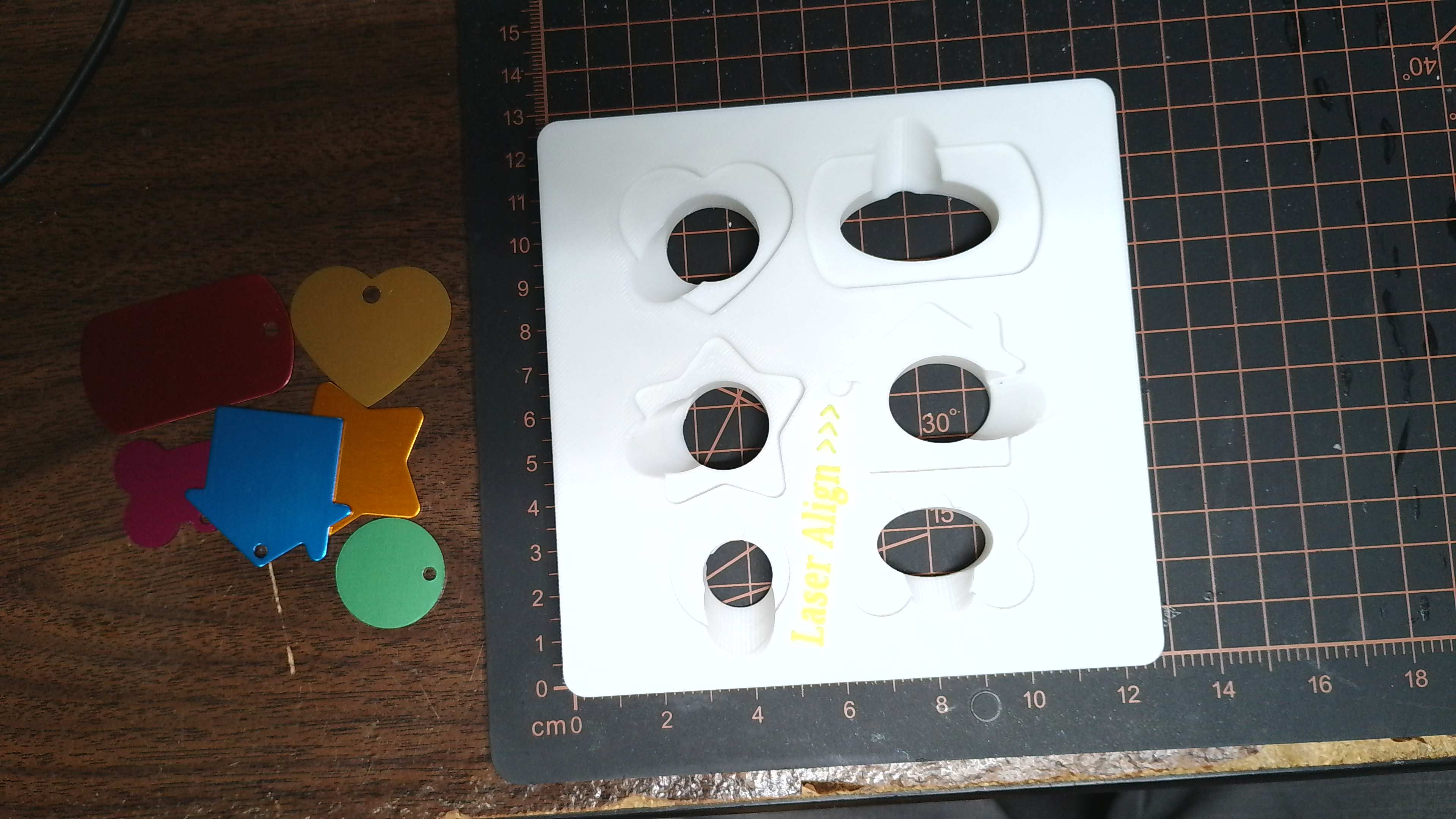

I made cutouts for easier removal of the tags.

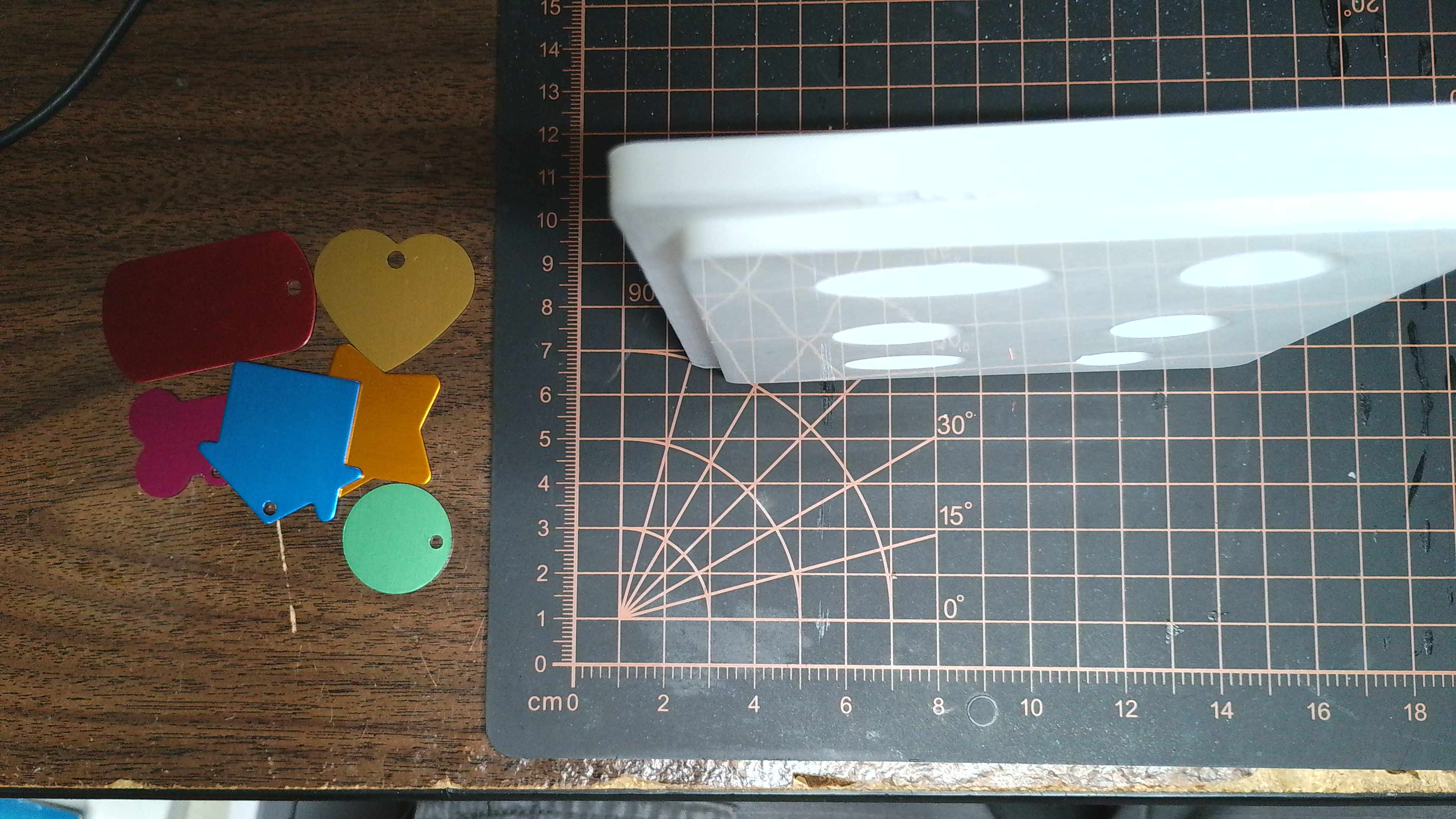

I made through holes to help with heat dissipation.
The tag material thickness is ~1mm, and the cavity is 2mm.

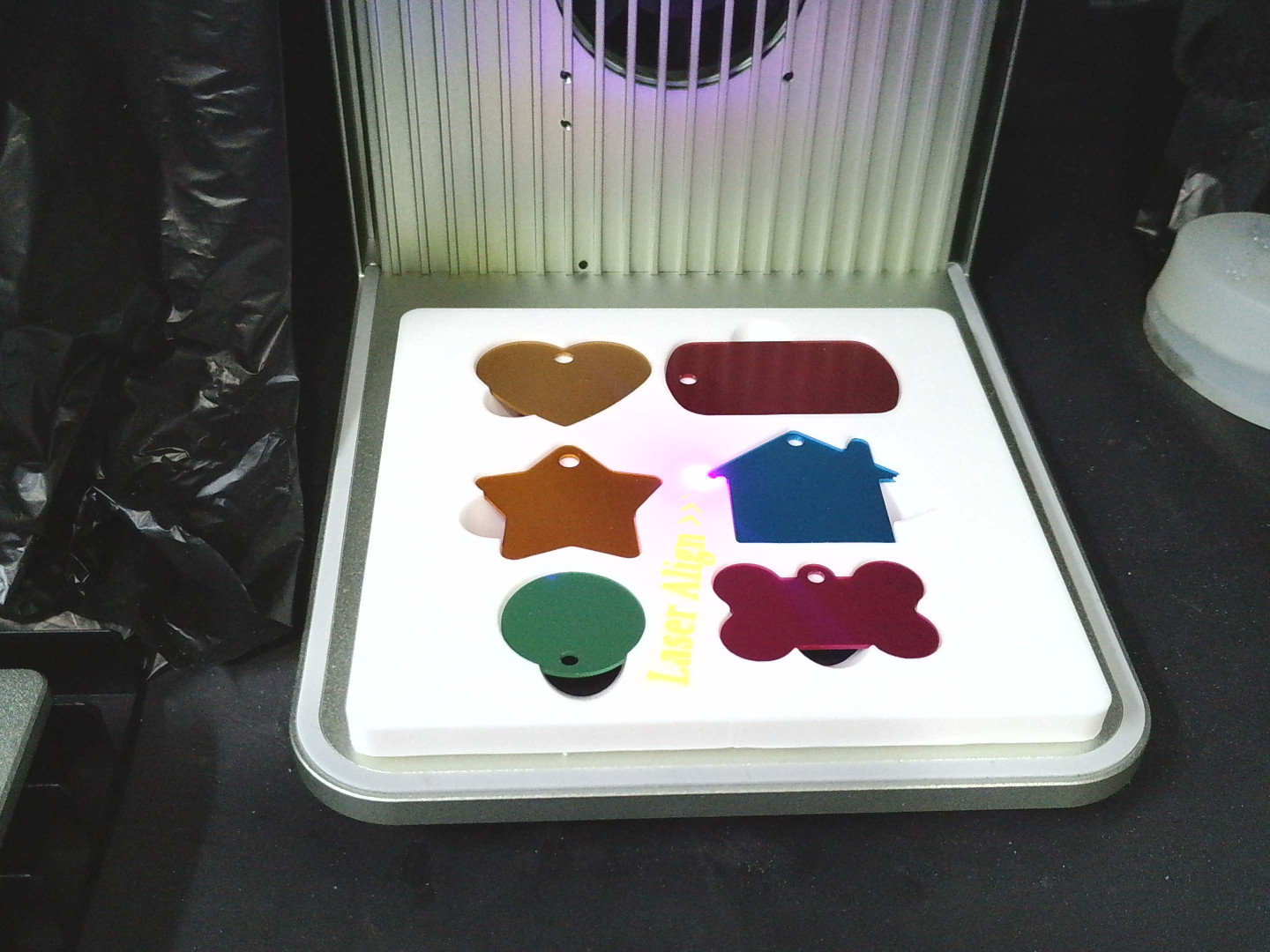

I placed a spot in the center for aligning the laser based on the 1mm thickness of the current tags. Anything thicker or thinner will require some tweaking with the adjustment. The area is labeled with the yellow text and arrows ;)
I printed using a draft setting with 5% infill. This is adequate but you can always print it finer.

Besides only having 6 different shapes to work with, I choose to not cram in any duplicates to try to use up the extra room. I did it the way I did mainly so that there was enough room between them while keeping them as close to center as possible. That way there is no distortion trying to engrave out near the perimeters of the F1.

Printed in PLA Basic white & yellow
I hope you enjoy using this jig.
Have a nice day!!!


Design by SiuMaker on MakerWorld (license: CC0).
