磁吸显卡支架(GPU Holder)

显卡支架，可以在45mm——70mm之间切换高度；

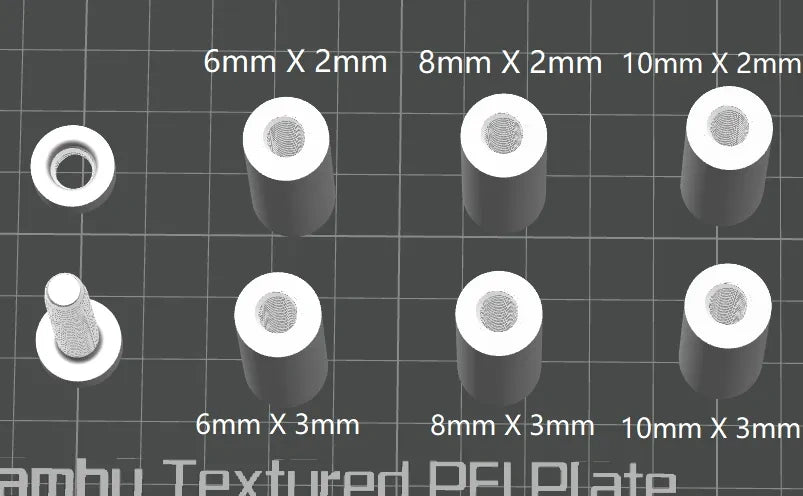

底部嵌入磁铁可以使其更好地吸附在机箱上，磁铁尺寸有6mmX2mm、8mmX2mm、10mmX2mm、6mmX3mm、8mmX3mm、10mmX3mm。

注：磁体打印时埋入模型，设置有两次打印暂停（第一次可放入2mm厚度磁铁，第二次才可放入3mm磁铁）；

注：打印需注意喷嘴不能为硬化钢。

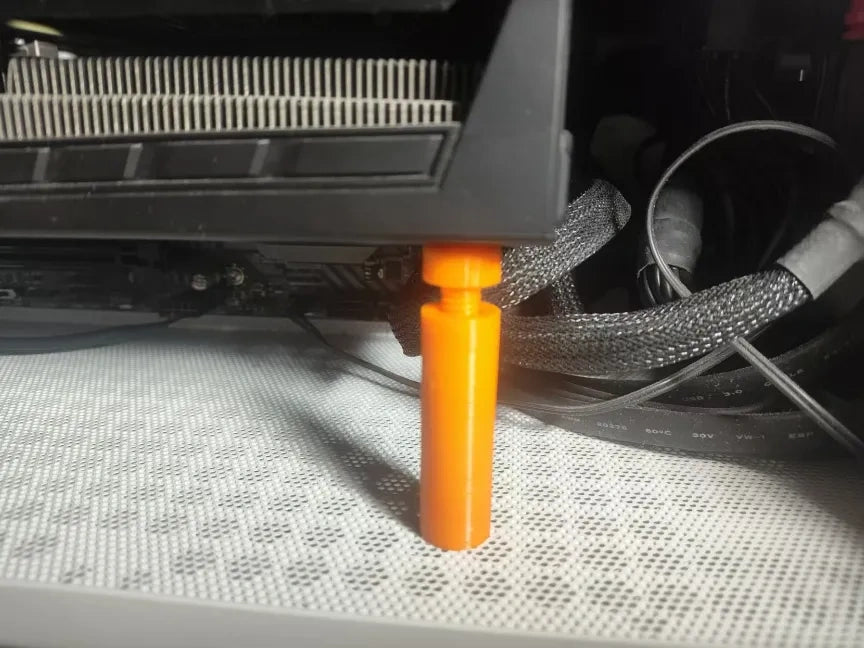

GPU holder, can switch height between 45mm and 70mm;
The bottom embedded magnet can better adhere to the chassis. The magnet sizes are 6mmX2mm, 8mmX2mm, 10mmX2mm, 6mmX3mm, 8mmX3mm, and 10mmX3mm.
Note: The magnet is embedded in the model during printing, with two printing pauses set (the first time can accommodate a 2mm thick magnet, and the second time can only accommodate a 3mm magnet);
Note: When printing, please note that the nozzle cannot be made of hardened steel.

Design by 浴火重生 on MakerWorld (license: BY).
