18650 charger case parametric for battery contacts

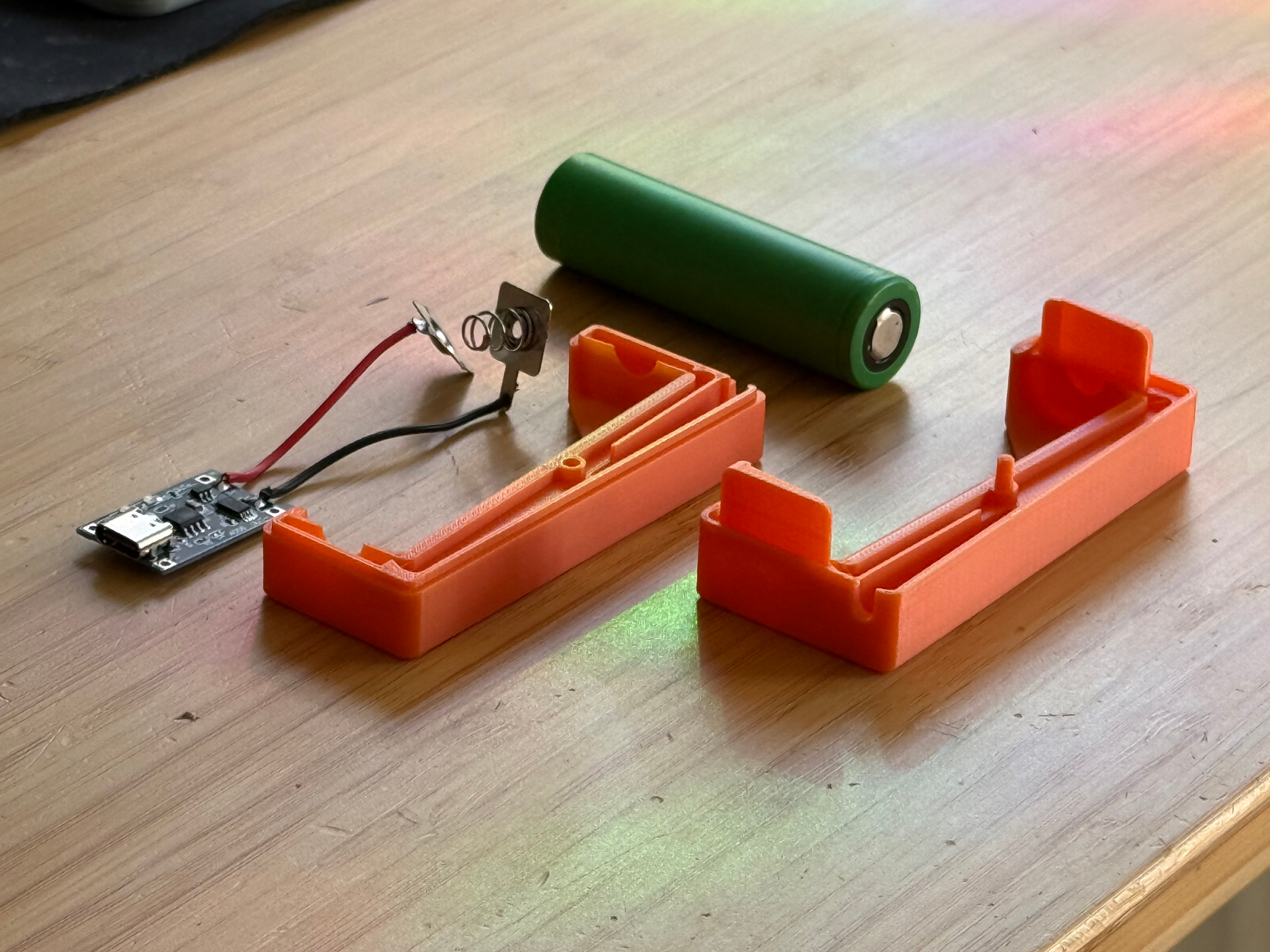

I had several different sizes of battery terminals/contacts that I wanted to use for building 18650 chargers with TP4056 and IP2312 USB-C boards. There are plenty 18650 charger cases to be found online, but none fit my battery terminals quite right.
Thus I decided to make a 18650 charger case model that's fully parameterized for readymade battery terminals/contacts. The parameters can be changed in Autodesk Fusion. I've added several variants as stls as well.

Features:

• parametrically adjustable for many battery terminal (bt) sizes
• allows for different sizes of bt at the anode & cathode

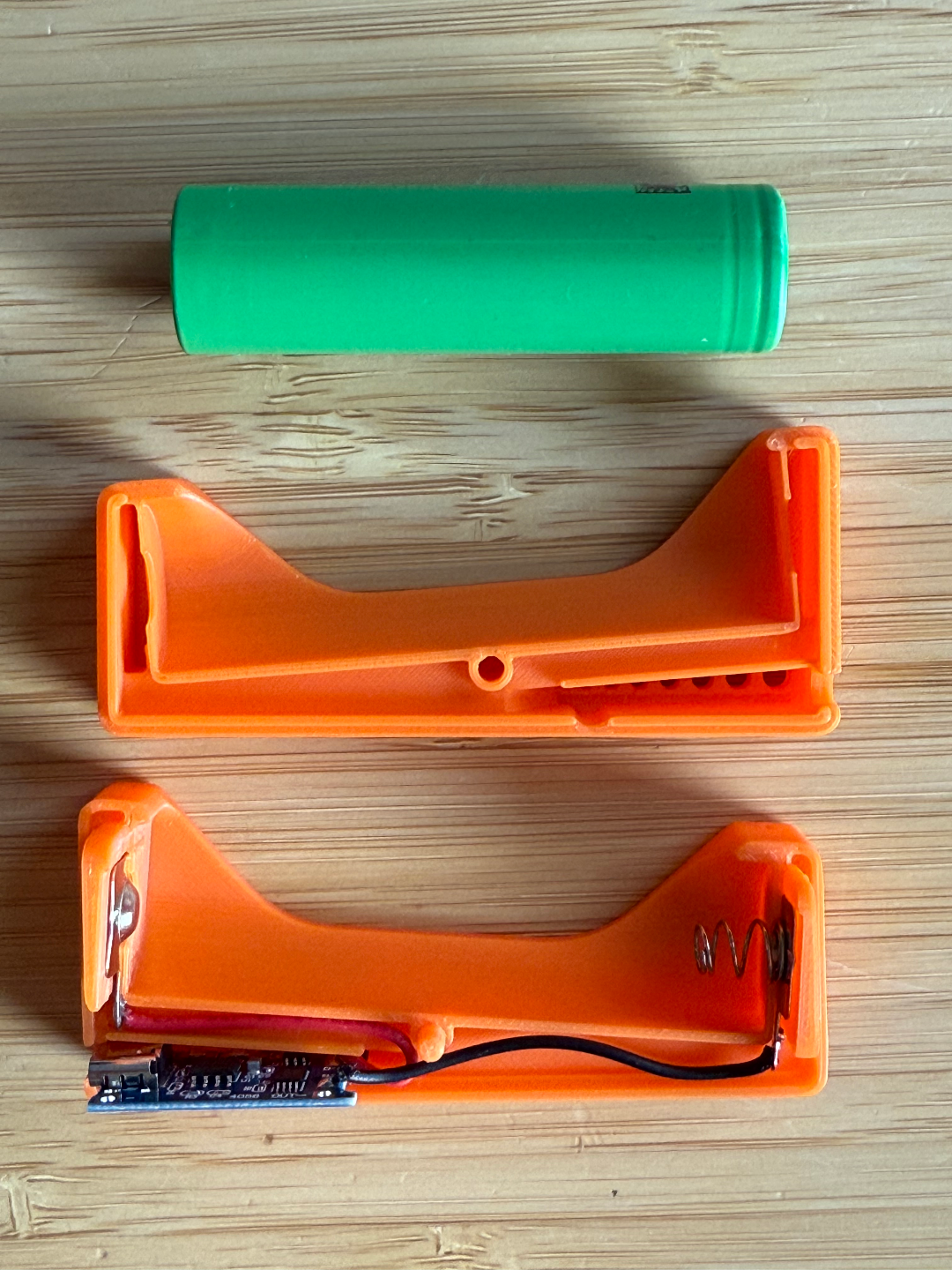

• snug press-fit assembly

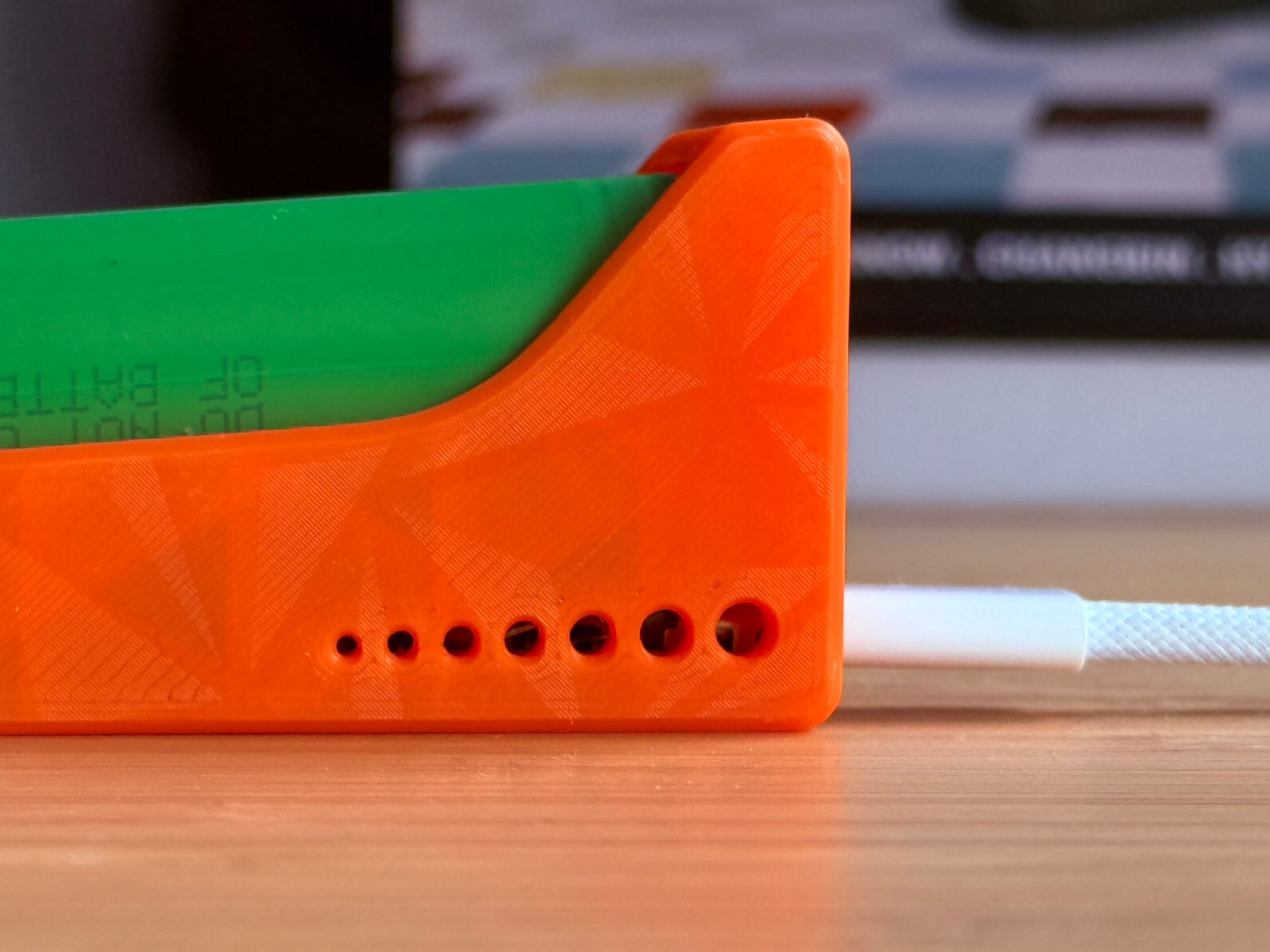

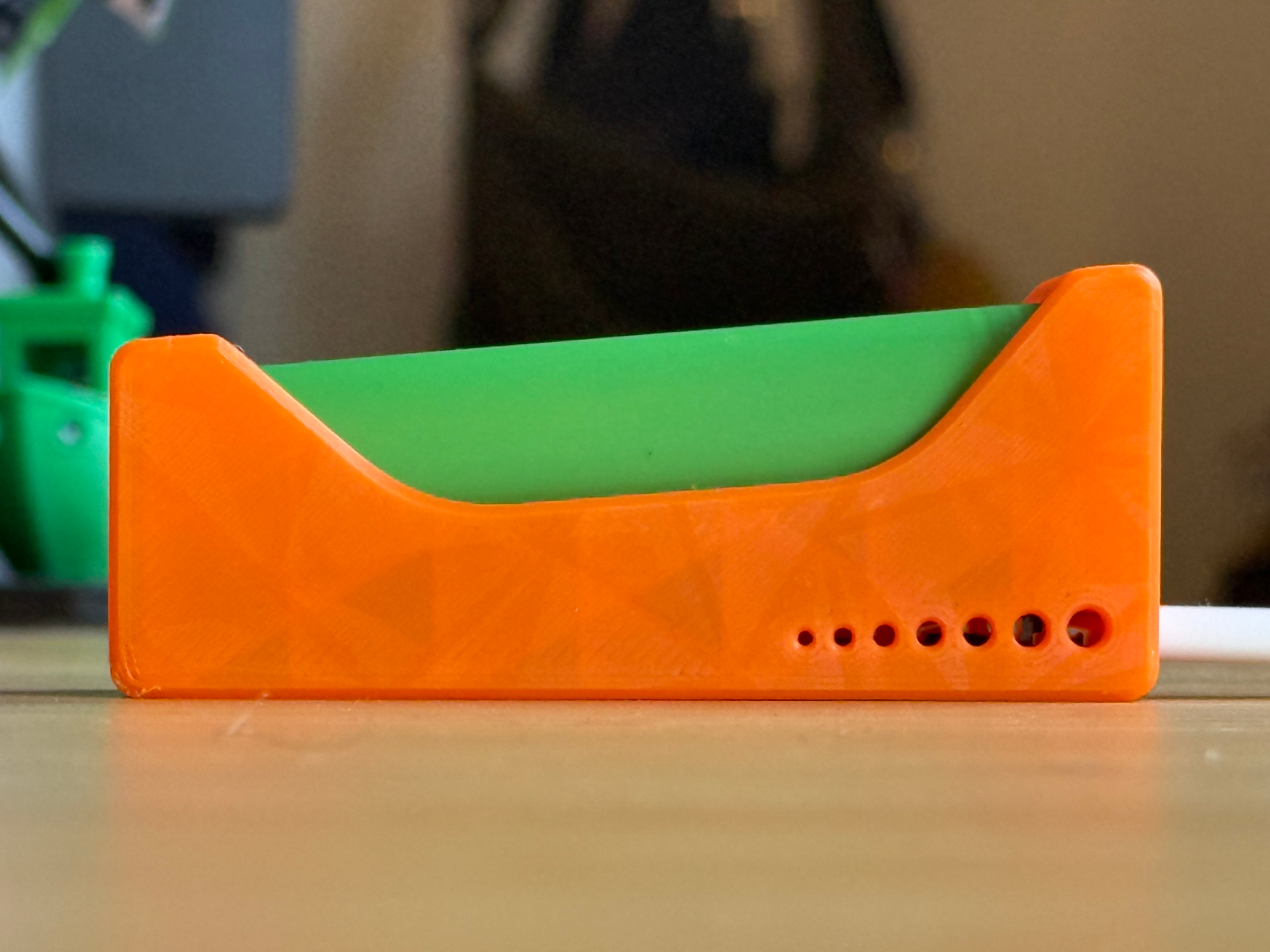

• ventilation holes allow for visible status lights

Asumptions:

• bt and the charger pcb are line symmetrical vertically
• bt width & height (and charger width) both do not exceed the battery diameter
• charger module with USB-C input (17.5mm x 28mm) is line symmetrical as well

Design by ntnt on MakerWorld (license: BY).
