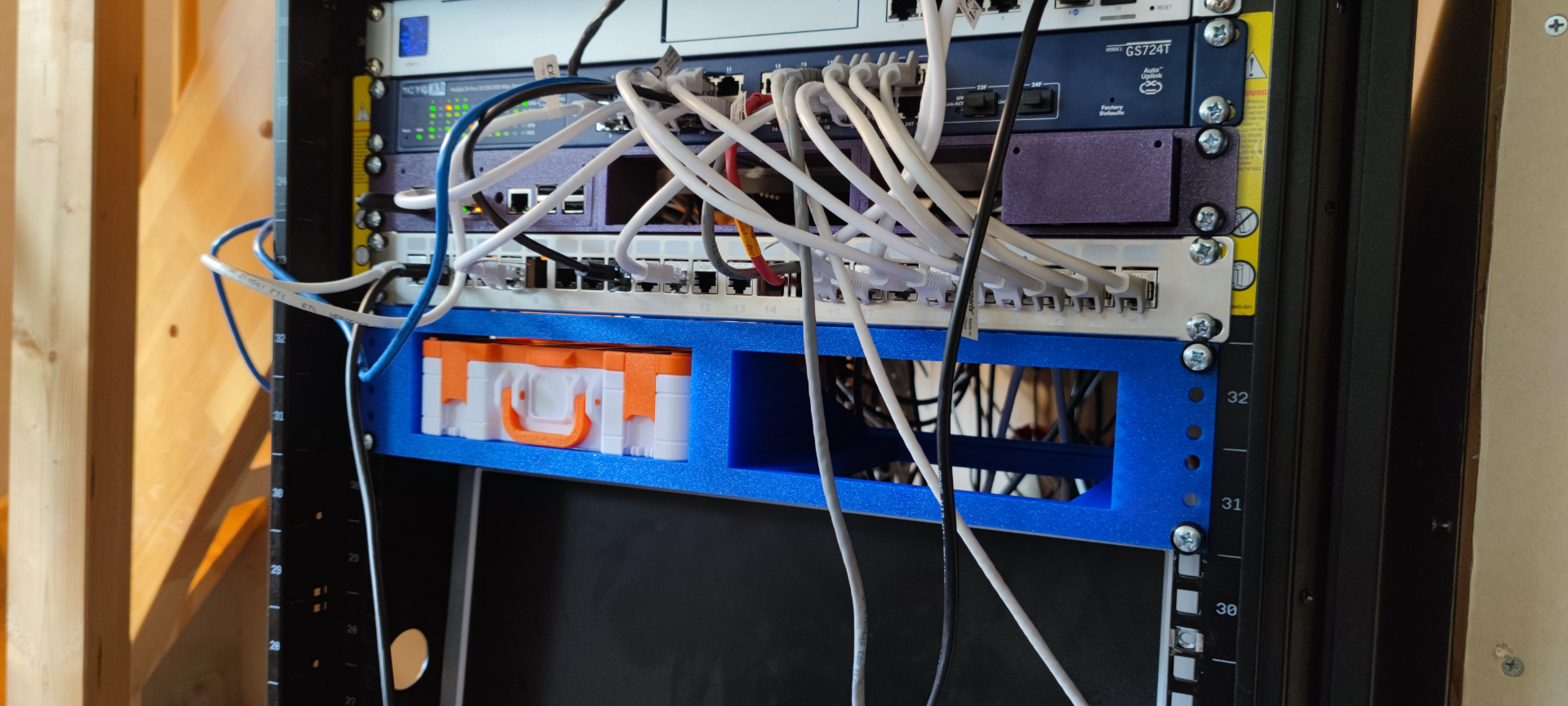

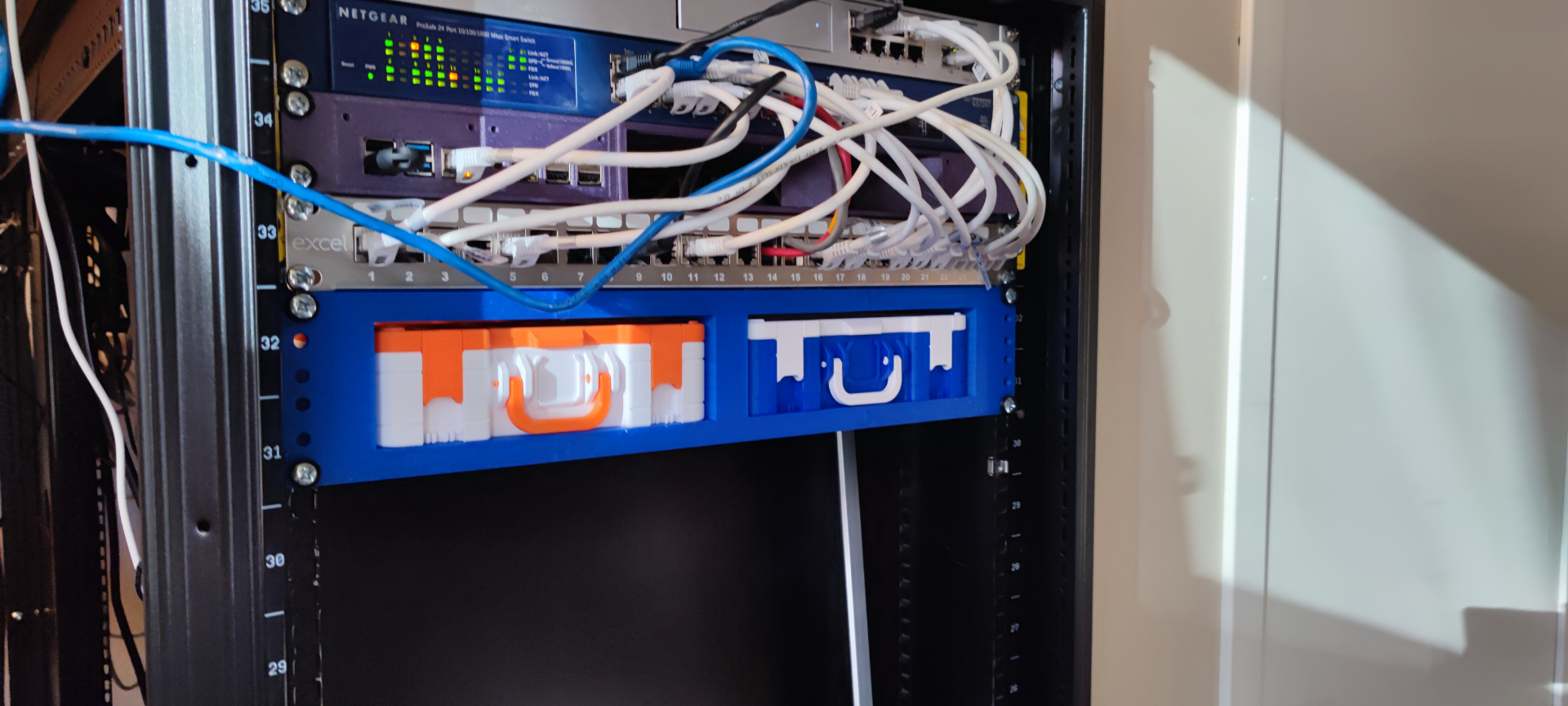

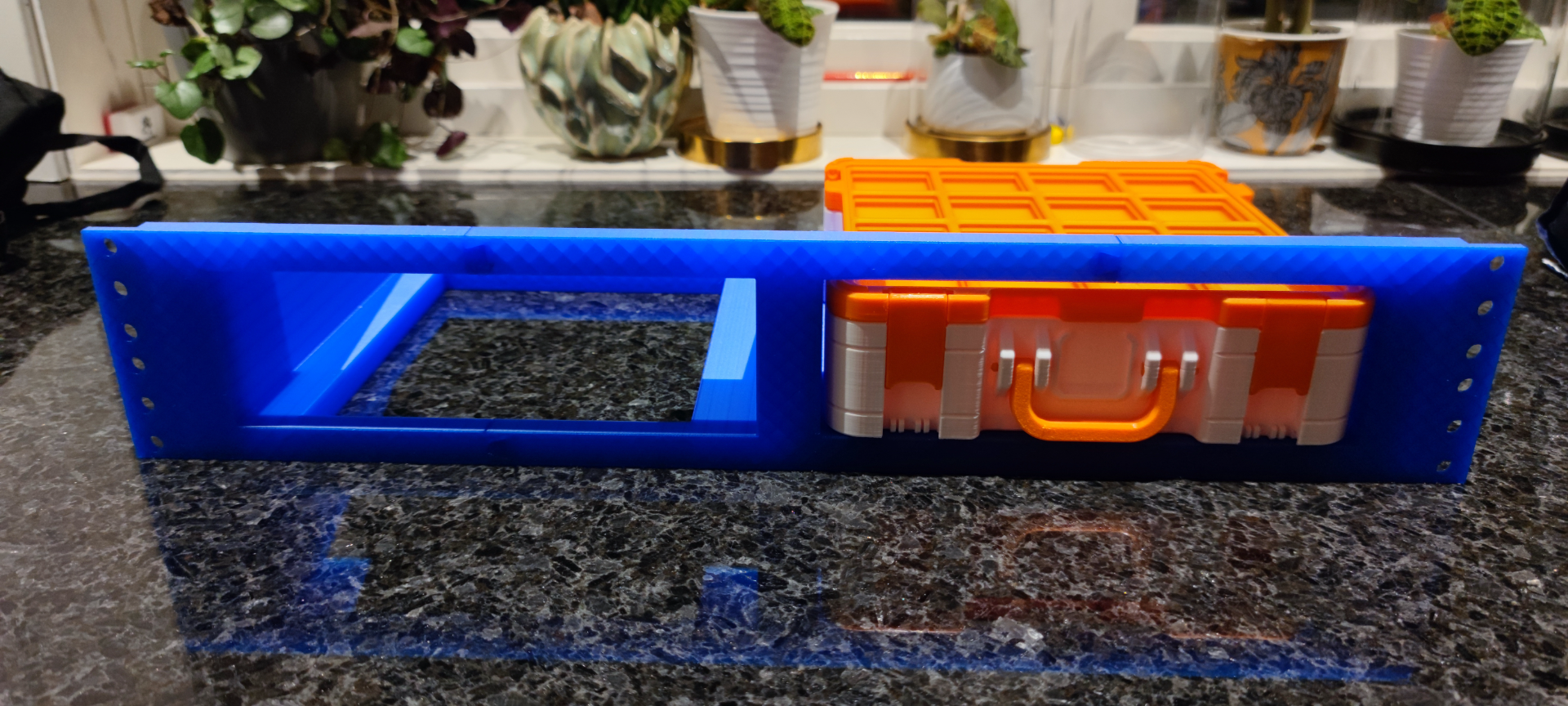

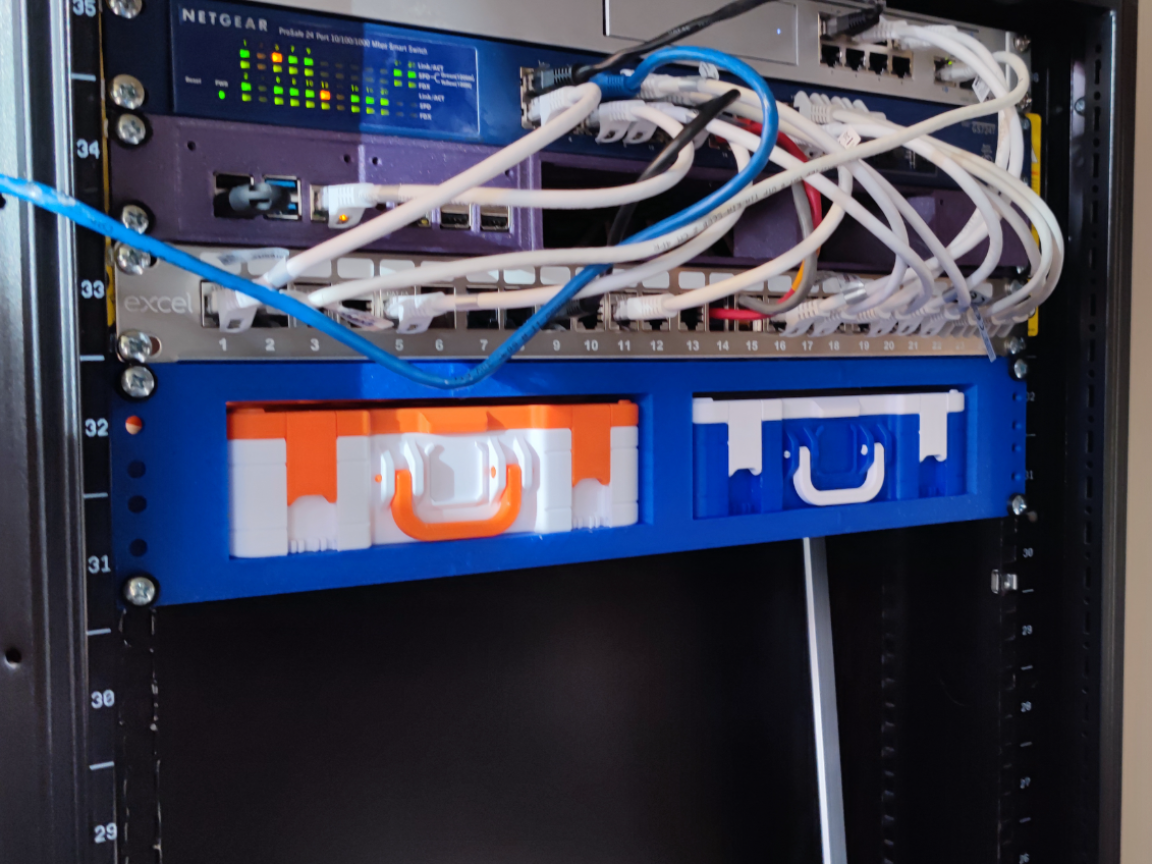

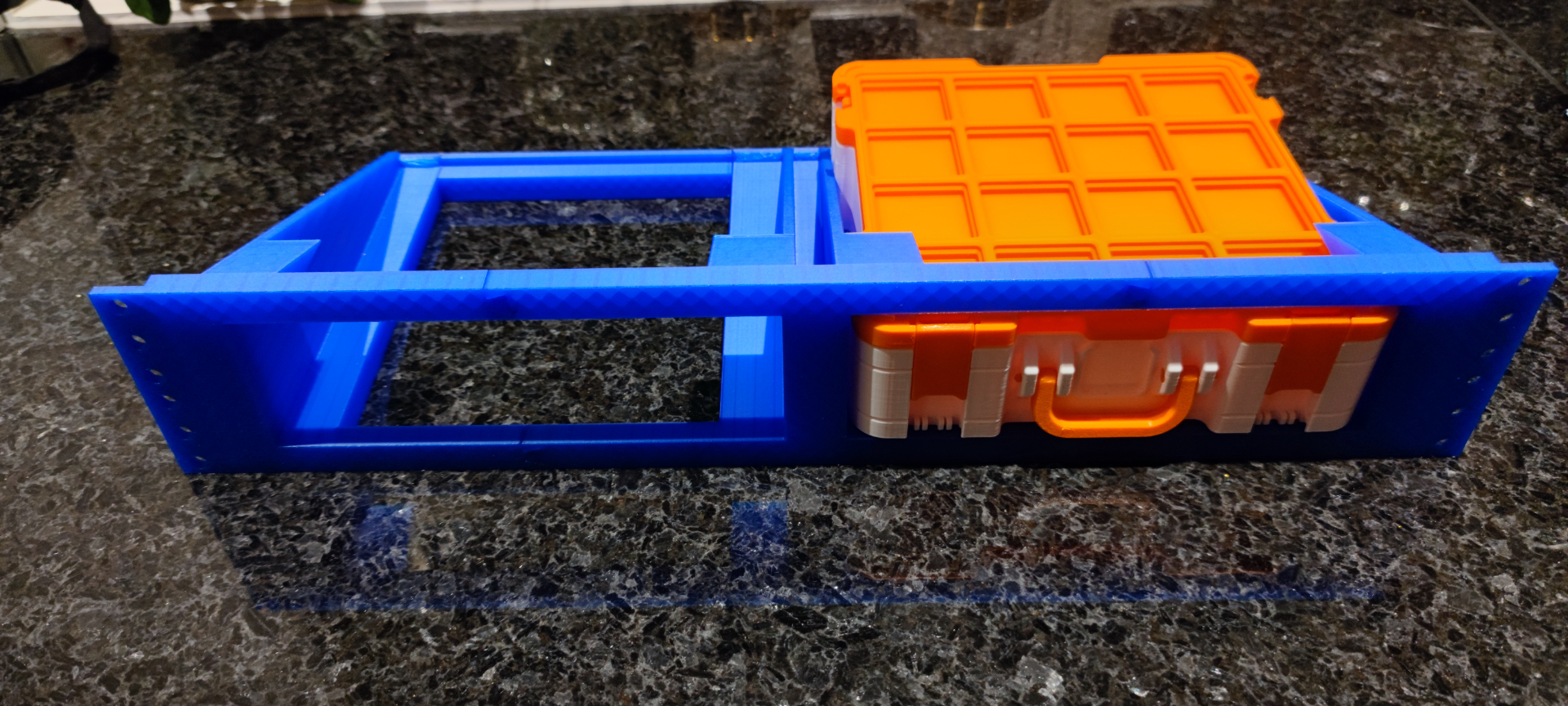

This is a 19" 2U rack frame that can hold 2 boxes.
It was designed to hold 2 boxes, 4U x 4U x 6U Gridfinity boxes by Pred (https://www.printables.com/model/543553-gridfinity-storage-box-by-pred-now-parametric), but it will hold any other boxes with similar measurements.
The Frame is printed in multiple pieces, and while they can all print on the same plate, i recommend splitting them onto multiple plates.
The frame is friction fit, and intentionally a tight fit, but I have not had any problems assembling it.
This has not been optimized to save plastic
I printed with Generic PLA, 0.4 nozzle, 0.20mm Standard profile
I did not use any supports
Assembly:
Press together the front parts, then push the assembly towards a table or something to make sure it is flush.
At the end, install the rear beams for added strength.
Design by Espen on MakerWorld (license: BY-SA).
