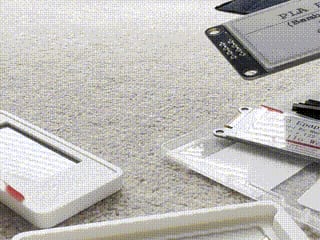

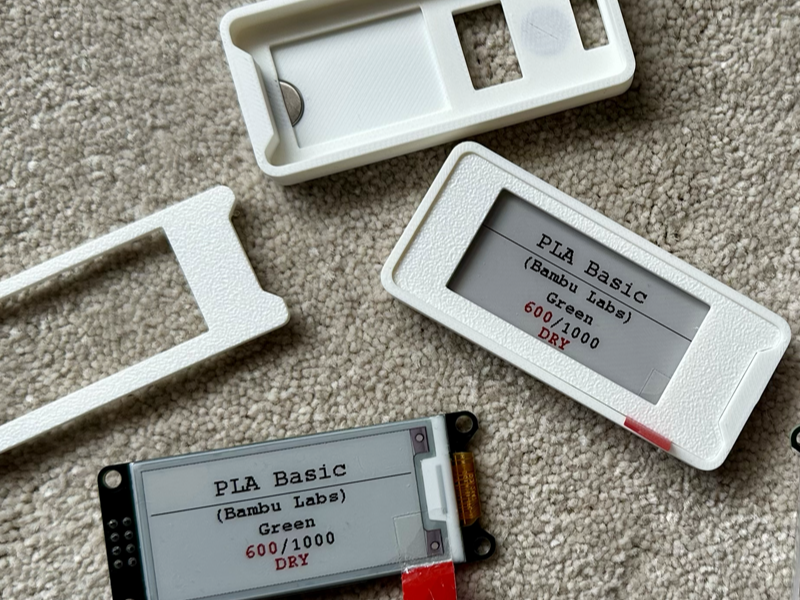

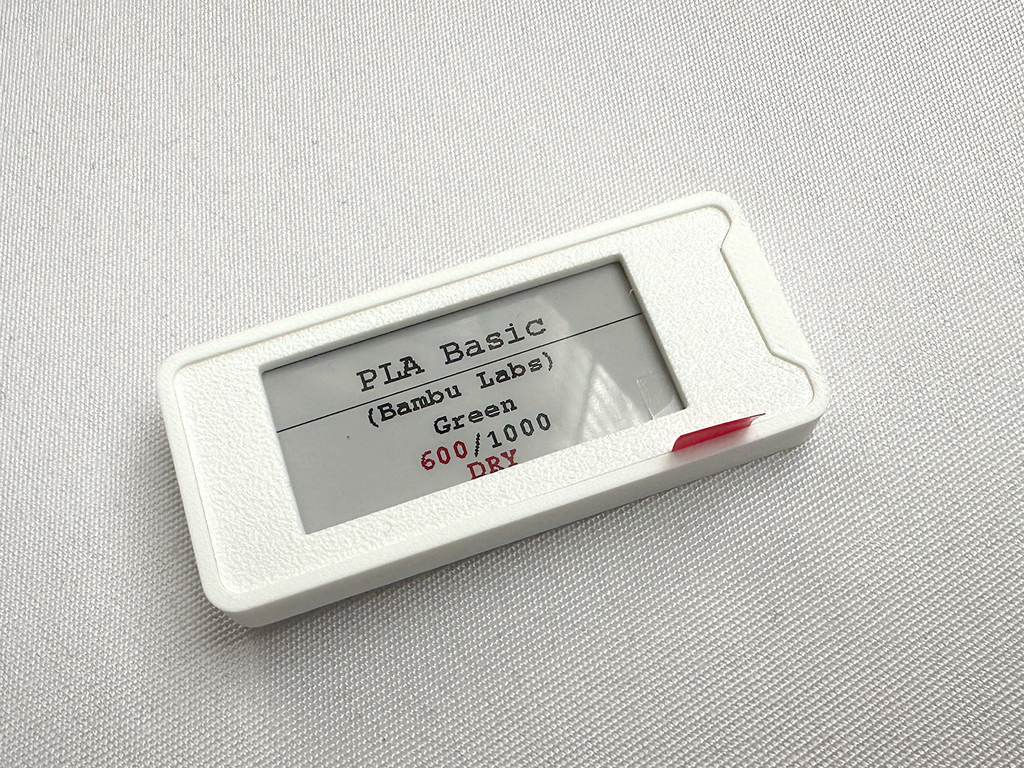

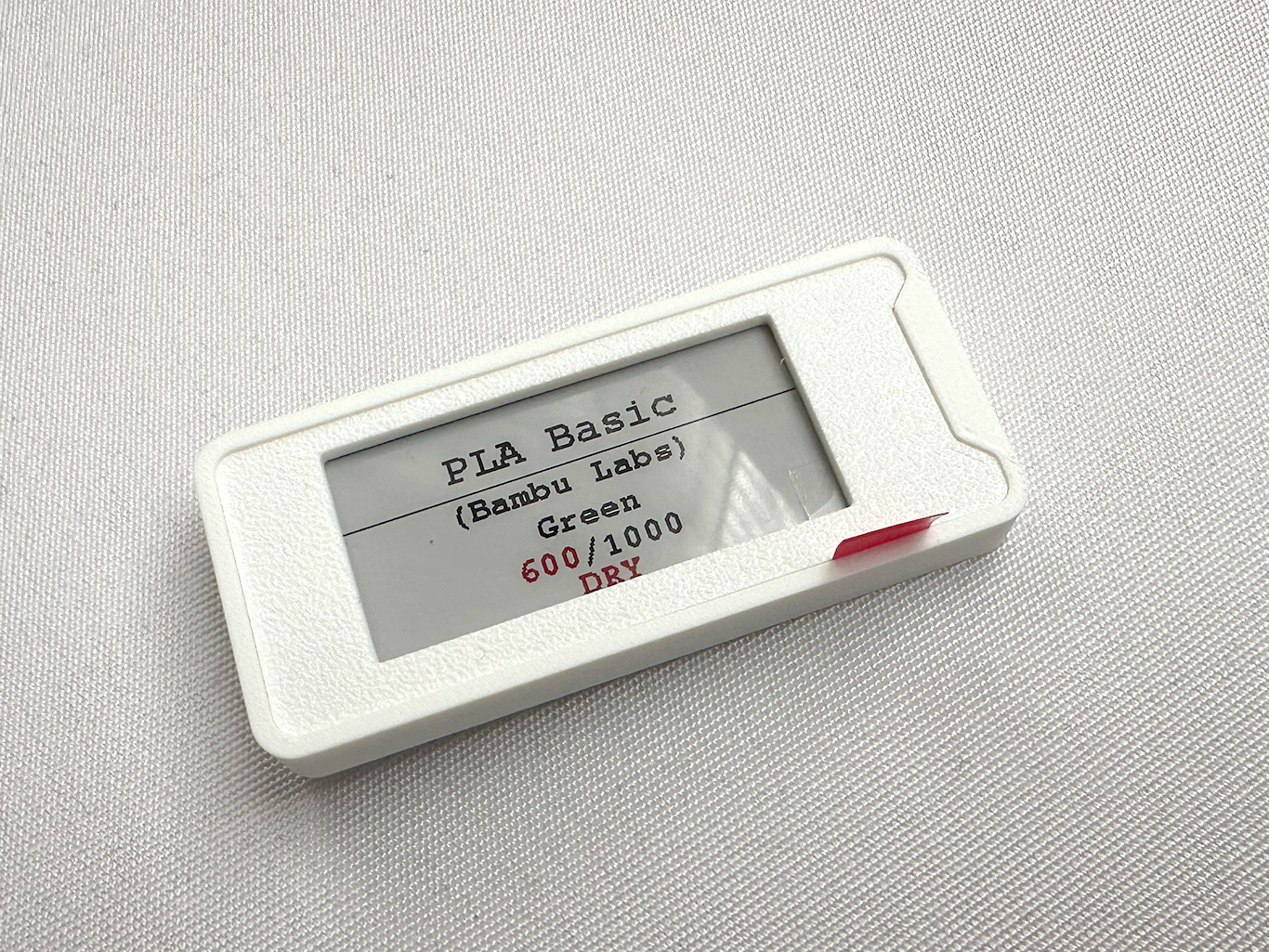

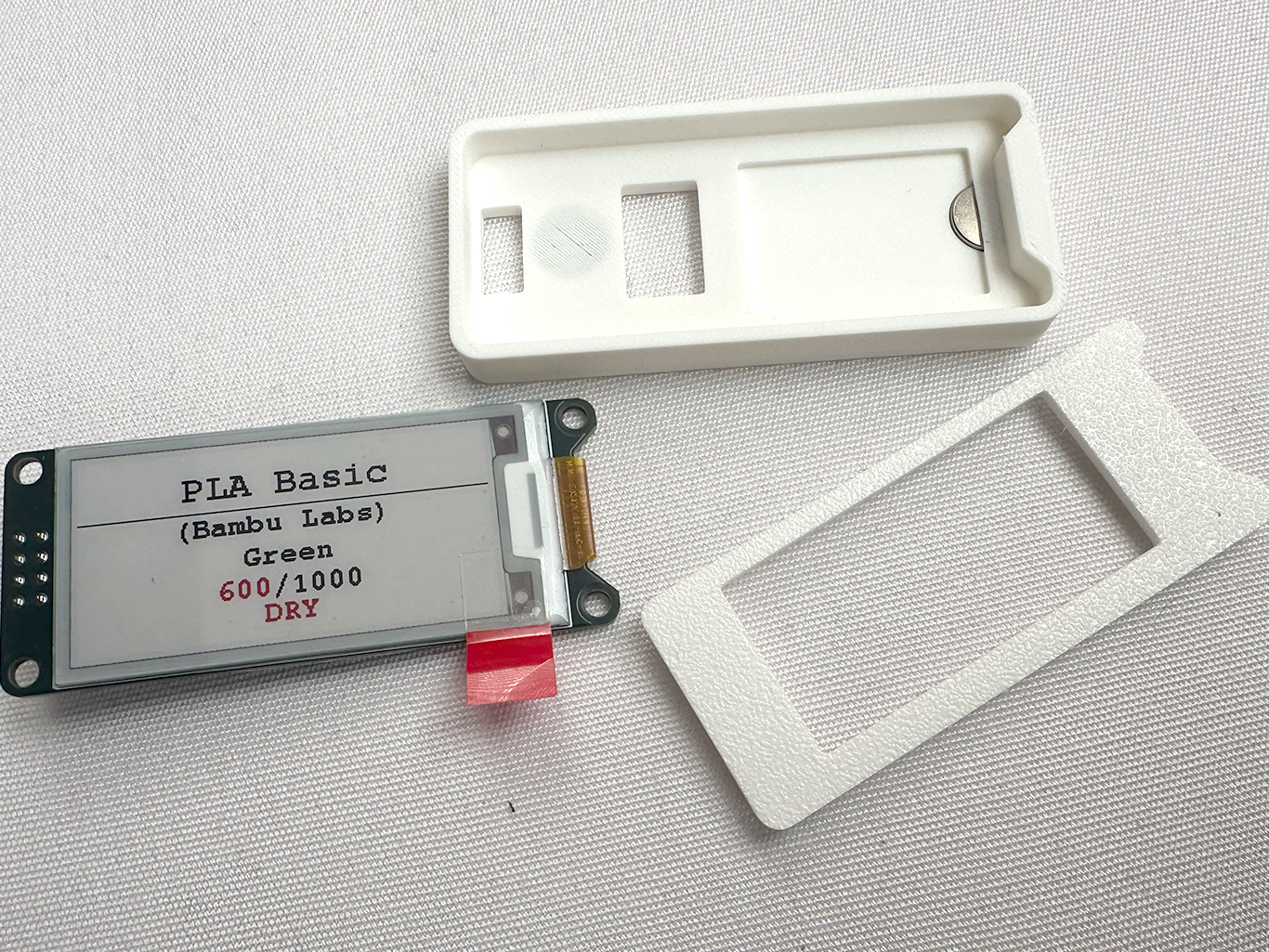

This is a housing component for the WeActStudio's 2.13in eink labels available on AliExpress. The front piece has a cut out for just the eink portion of the screen, while the back piece has cut outs for pin access.

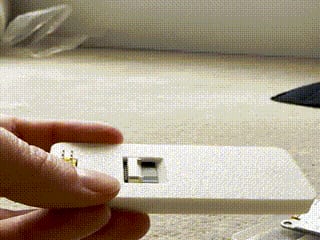

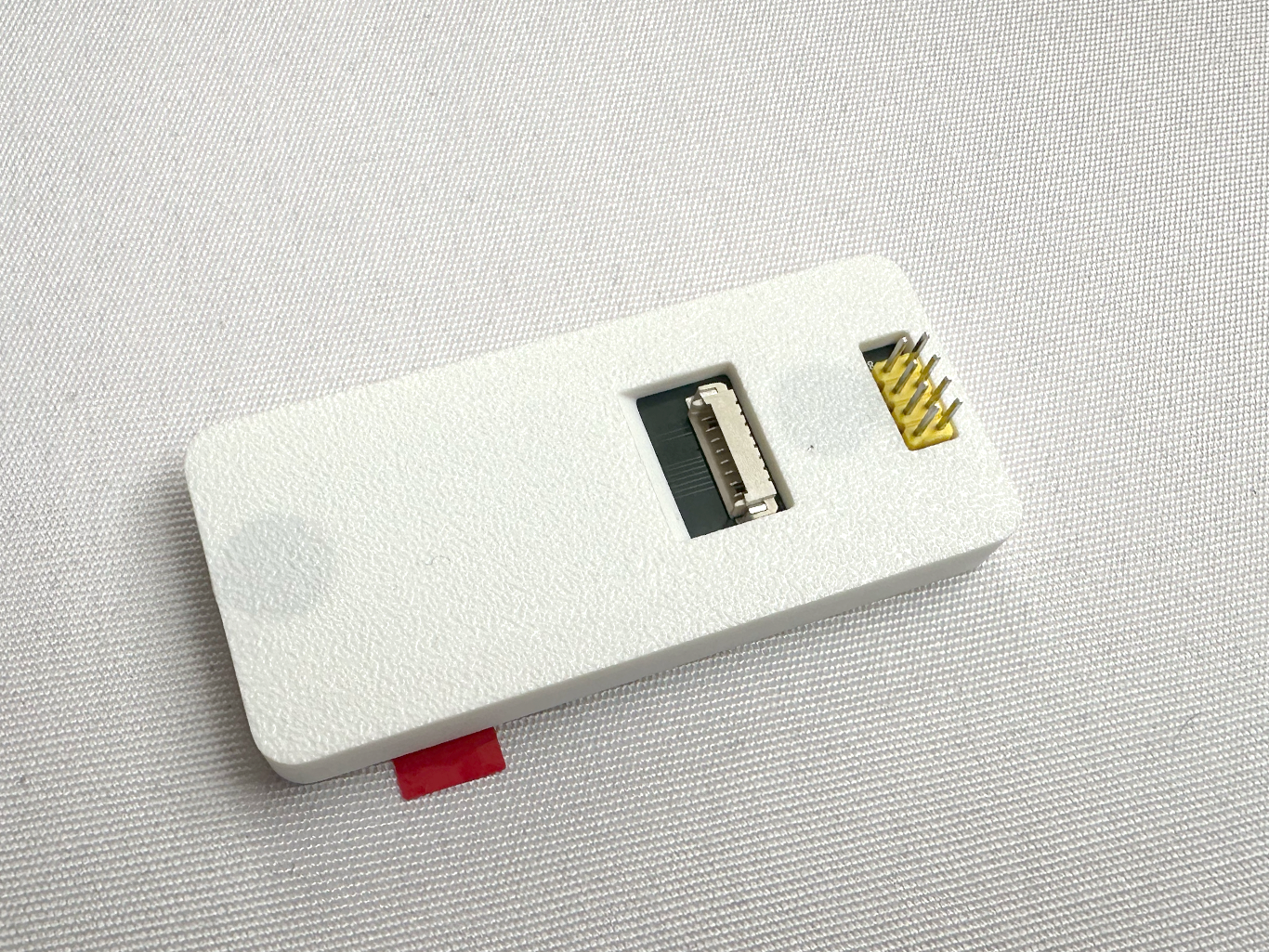

The back half has 2 cut outs, one for the vertical pins and one for the 4x2 header, as well as a smaller cut out so the screen sits flush. The front piece has 4 very thin pegs to keep the screen in place, which is a press fit into the back piece, keeping the screen in place. If you want to remove the screen and the front piece push on the cut outs at the back and it should come out without damaging the pins.
For flexibility the print file includes 3 different plates:
- Plate 1: Has a pause mid-print for you to add your own 10mm x 2mm magnets
- Plate 3: No mid-print pause, instead it includes 2 spaces for you to glue your 10x2mm magnets
- Plate 2: No magnets in the design, allows you to glue the housing or add your own connection method
Design by InsiderPhD on MakerWorld (license: BY).
