Summary
Ø2" x 1/2" simulated Rivets heads for use on theatre stage and other cosmetic effects.
Included a 2" countersunk hole to make it easier to attach the rivets to our stage with #6 x 3/4" flathead wood screws.

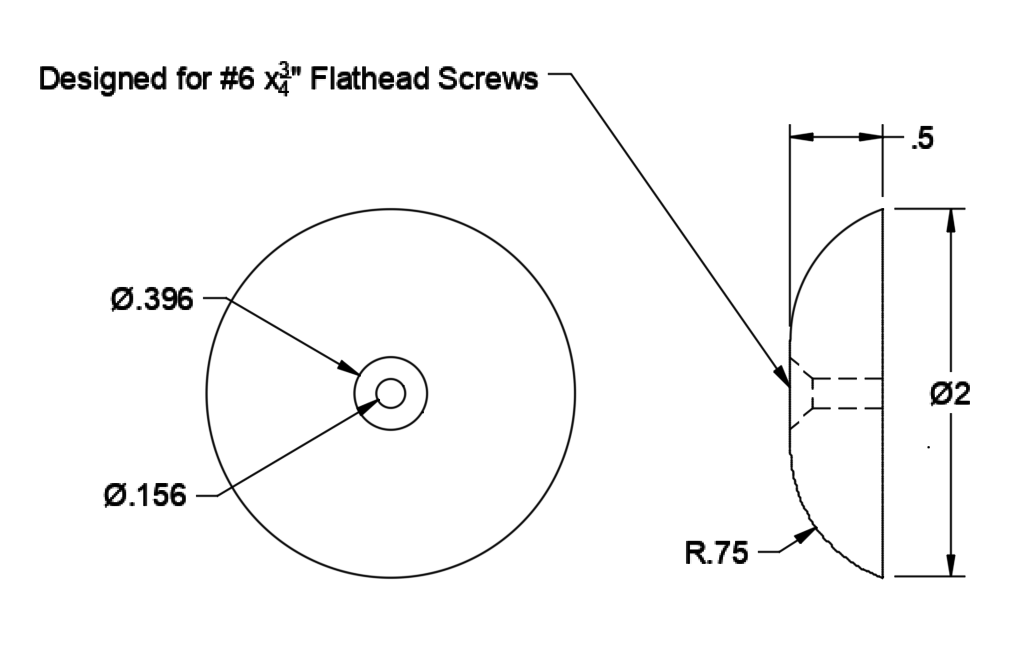

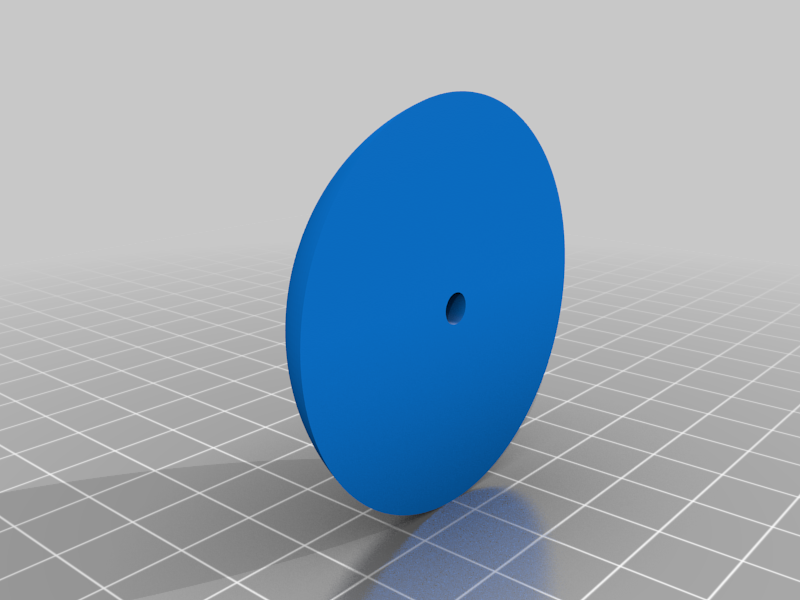

Design was pretty quick and simple focused on aesthetics and an ability to print quickly. I did not design (or redesign) these with parametric or scalability in mind but included the technical drawing and Fusion 360 files if you want to make modifications.
We used a spray primer and regular household paints to color them to match our final set.

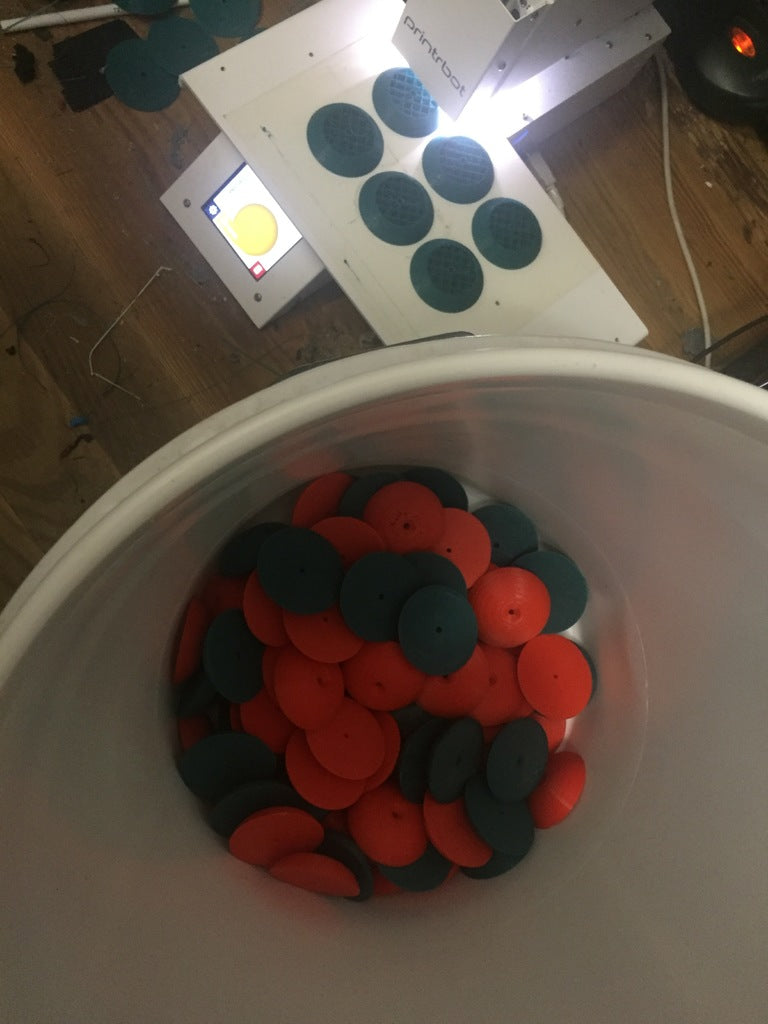

Print Settings
Printer Brand:
Printrbot
Printer:
Printrbot Simple Metal
Rafts:
No
Supports:
No
Infill:
15
Filament: Generic PLA
Notes:
Found that the rivets looked better with extra top layers with the minimal infill. Also increased wall loops to make the built in countersunk screw hole a little stronger.
Post-Printing
Sanding is optional
We used Rustoleum Painters Touch 2x Spray Primer as a base coat. We then used household paints to color them to match our stage design.

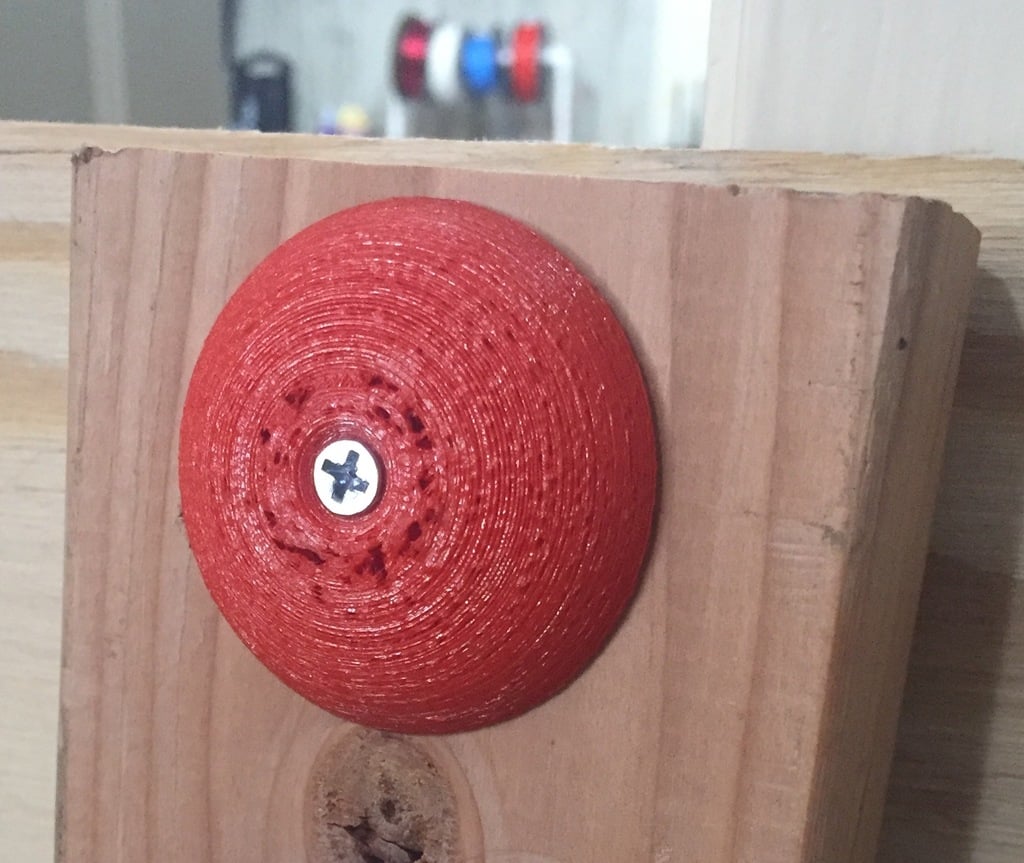

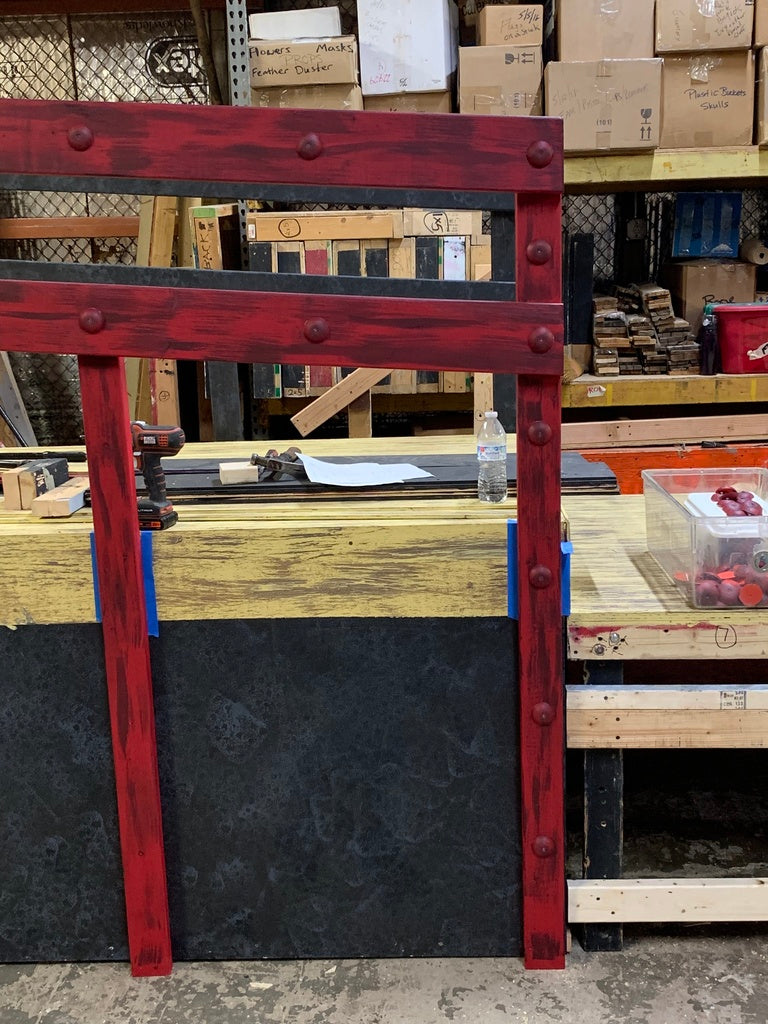

After dried, we attached the rivets heads to our set with #6 x 3/4" flathead wood screws, but smaller drywall screws may work. #8 flathead wood screws could possibly work but may require drilling a larger center hole.
Design by g3head on MakerWorld (license: BY-SA).
