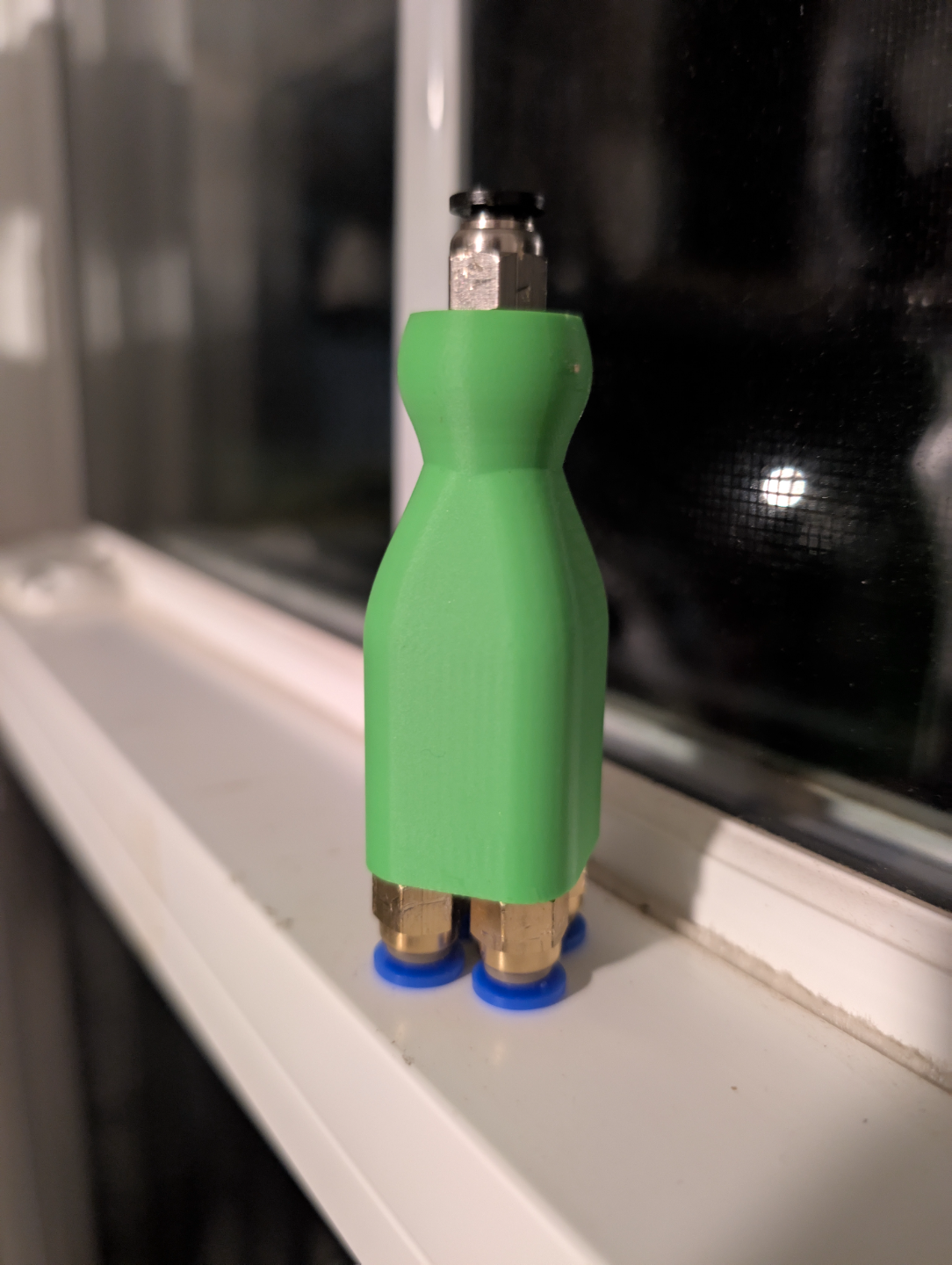

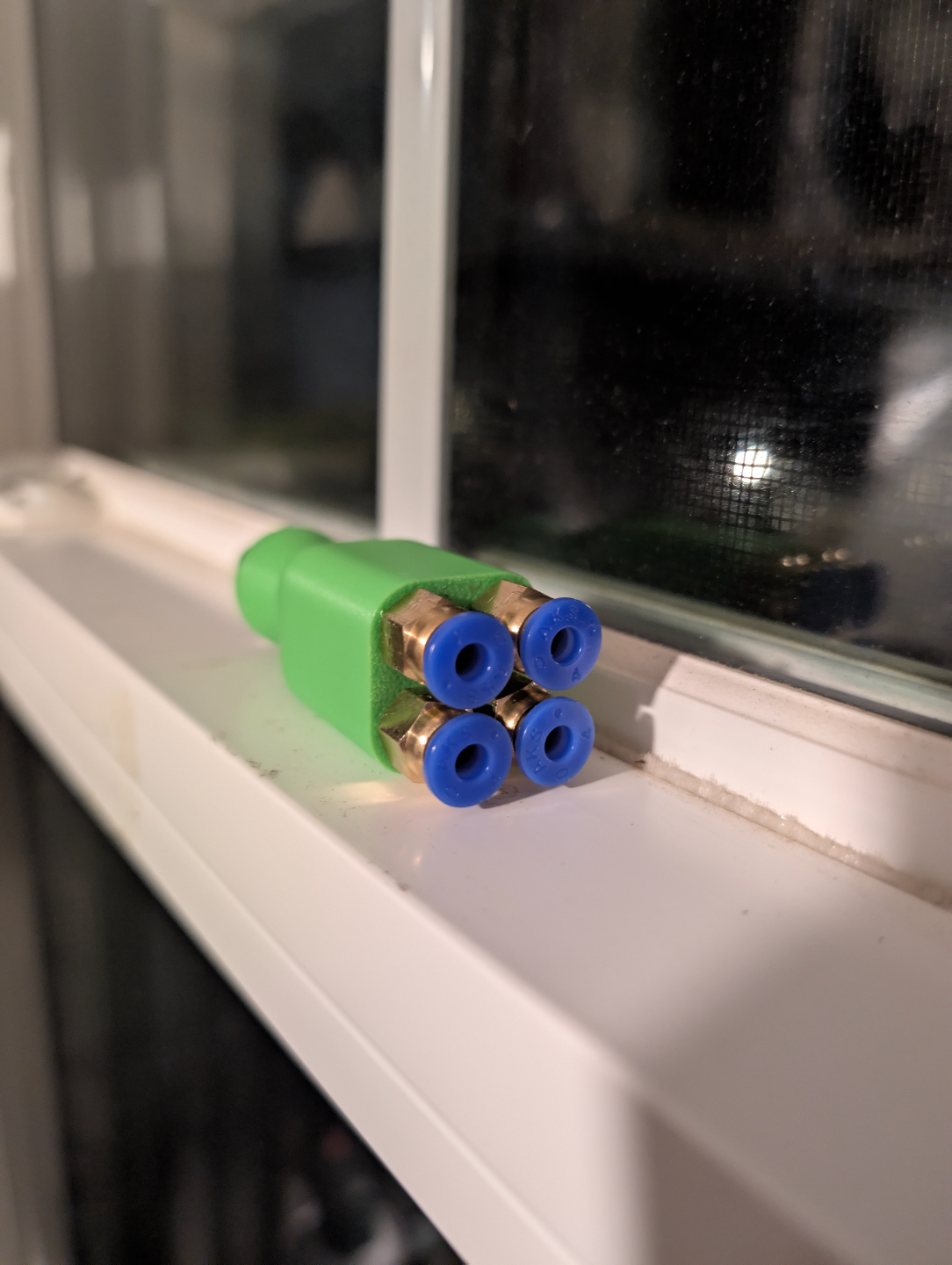

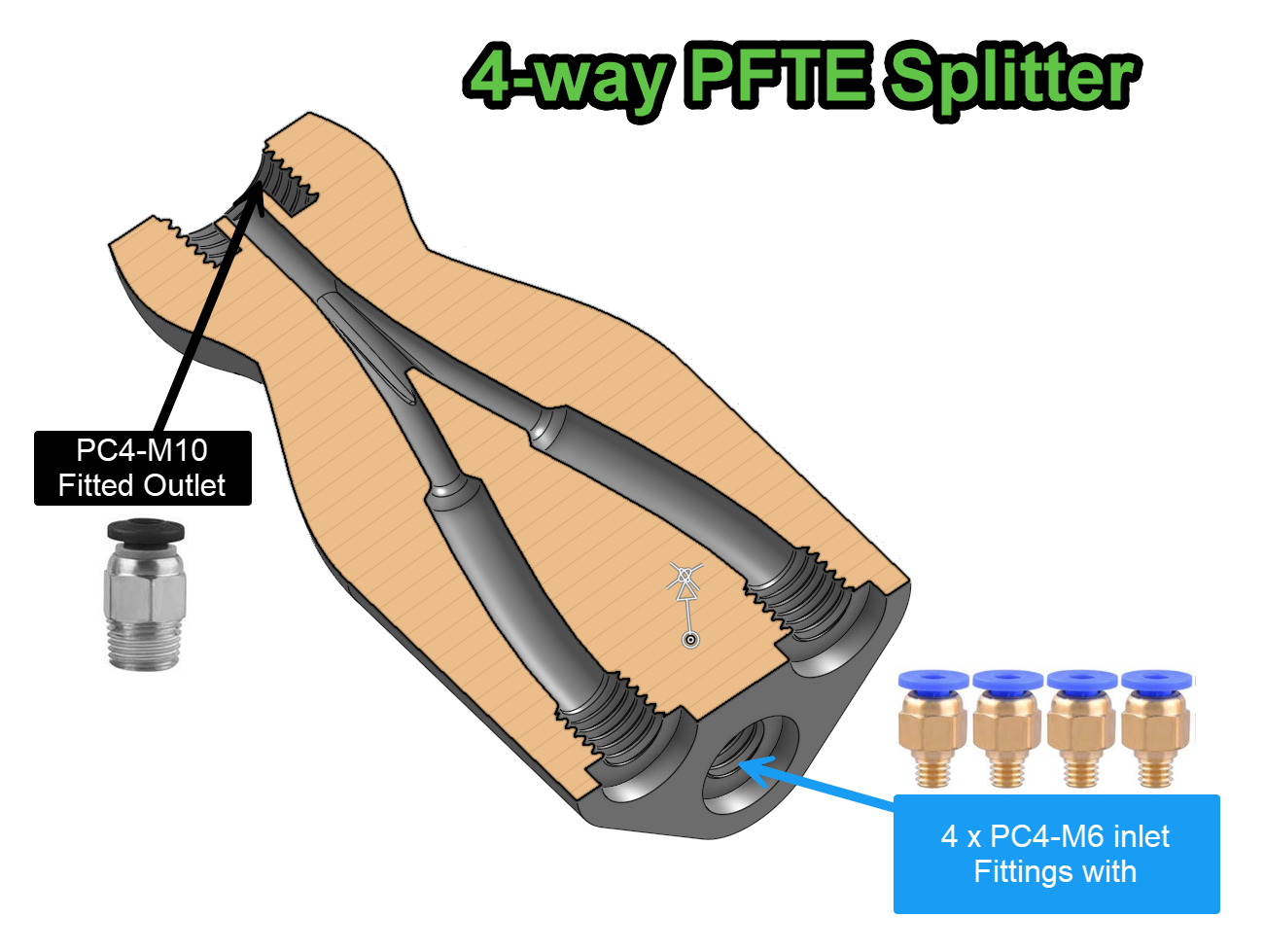

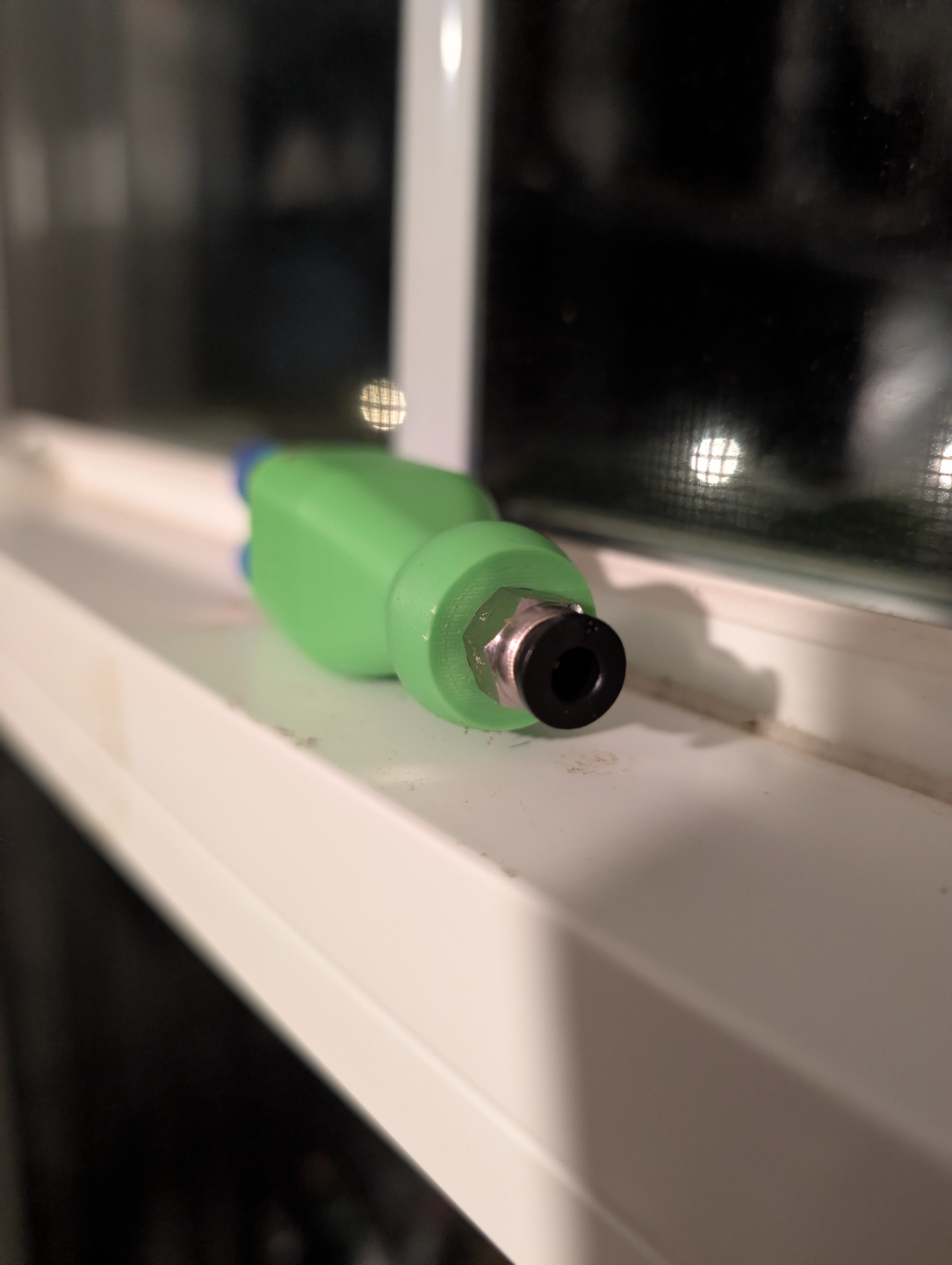

I've looked for a splitter that would fit the parts I have on hand and didn't find one, despite M6 and M10 fittings being argiably the most common size. Next I created this bottle part, not at all different then most of what I've seen posted, except with thread and depth to fit nice and snug.
First few turns can be done by hand, but to tighten flush you will need your trsty pliers, needle nose, strippers, etc. Please make sure to start the thread straight.
I printed in PETG at highest quality, took two hours, but I'm sure it'll save at least that in the next 6 moths. PETG seems a bit softer then PLA, allowing for tighter fit. Please let me know if PLA works as well. I'll be on the lookout if any questions come up, so feel free to comment.
- Thank you!
Design by SVYtech on MakerWorld (license: BY).
