A1 External Spool Bearing Adapter
A1 External Spool Bearing Adapter
- Made to order — 3D printed after you buy
- Free shipping on orders over $25
- Quality checked before it ships
- Questions? Contact us · Returns

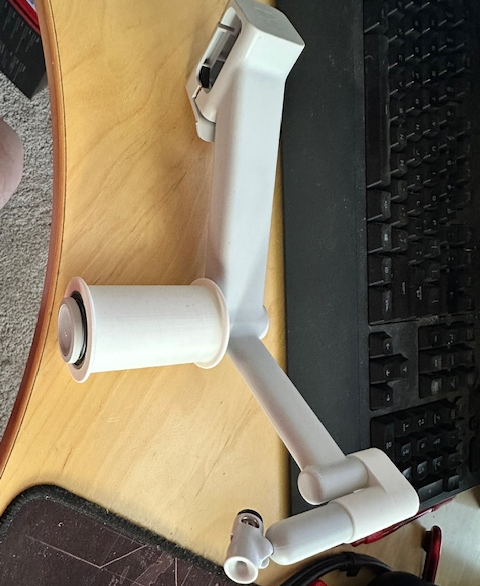

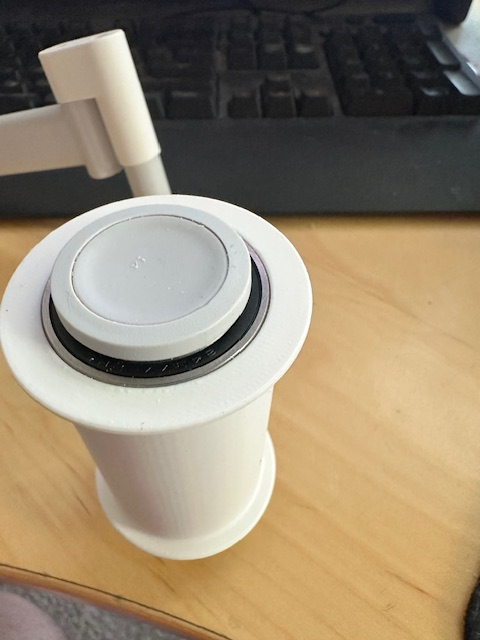

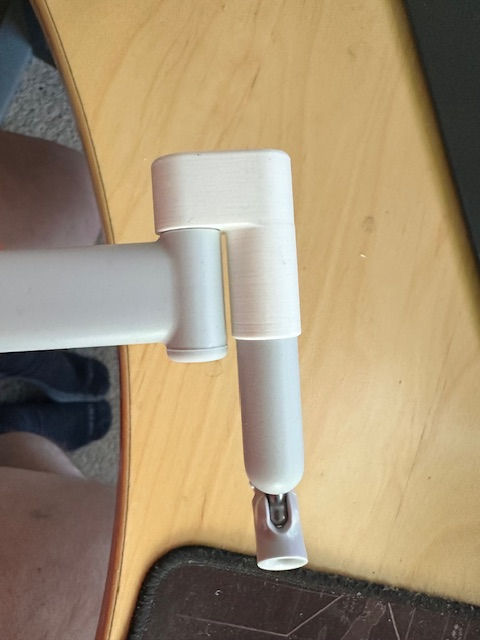

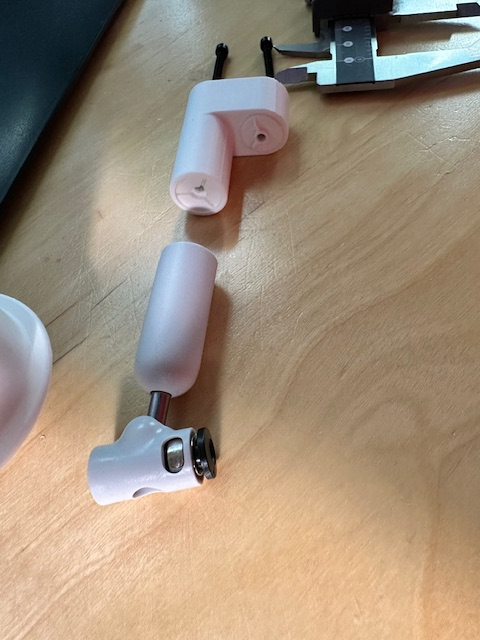

This is an external Spool Accessory that enhances the A1 External Filament Spool mount. It uses the original External Filament Spool mount adds a printed adapter to offset the PTFE guide, a printed spool, (2) bearings, and a printed bearing spacer to ensure that the bearing isn't loose on the original tapered spindle coupled with a spacer to keep the spool from rubbing up against the External Filament Spool mount.

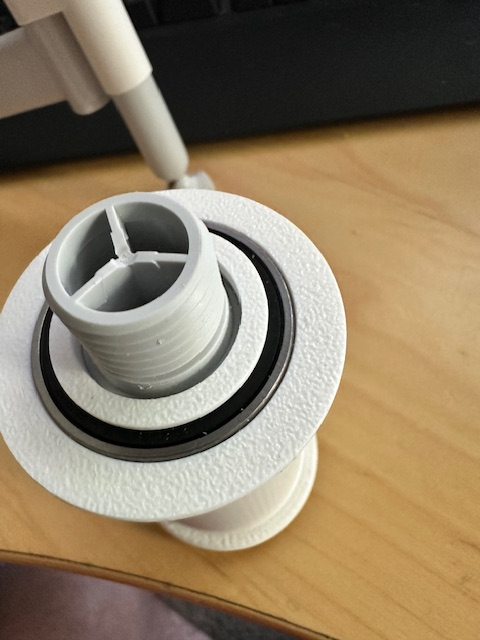

The Bearing Spacer was printed with a .2mm nozzle. You may have to design your own depending upon the variance in the size of your spindle.
The 24mm x 37mm x 7mm Bearings can be found on Amazon <$9.00 delivered. https://www.amazon.com/dp/B08H27WZ4M?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

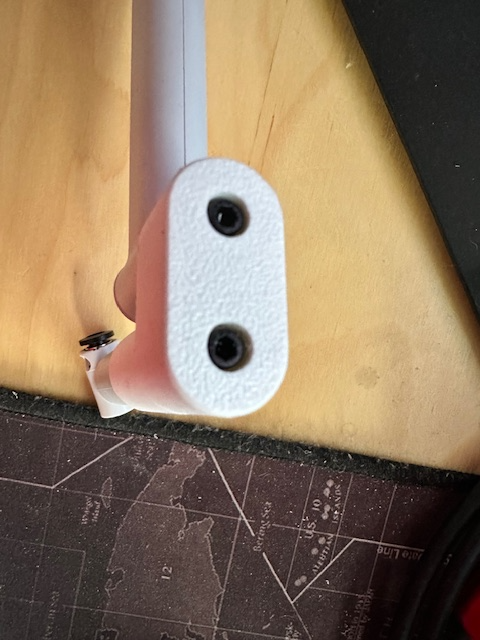

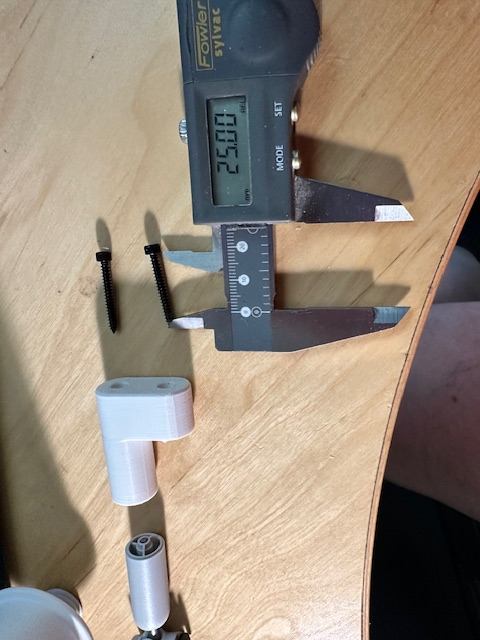

Requires (2) 3mm x 25 screws (Black hex socket head screws shown in the image) I purchased a screw kit
https://www.amazon.com/dp/B0D1R21JRR?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1 Or you can purchase 2 BT3x25mm screws from Maker's Supply.
Design by TimGS on MakerWorld (license: BY).
